*OFFICIAL* M11x Benchmark Thread

you sir are awesome , i cant wait to get my m11x and play some STO on the couch



Thanks a lot for the tip! I cancelled my subscriptions a while ago (the game felt extremely grindy and boring for me) but I'm sure there's still lots of others playing who'll appreciate it!



Here are the settings I use. I used fraps to get the FPS. Also I have 4GB of ram.

Space FPS on Flickr - Photo Sharing!
Space FPS 2 on Flickr - Photo Sharing!
Settings 1 on Flickr - Photo Sharing!
Settings 2 on Flickr - Photo Sharing!
Settings 3 on Flickr - Photo Sharing!



If any with the R1 is interested in a challenge

I was able to overclock the SU7300 in my Asus UL80vt to 2080 MHz



"That's hot!"

OK I'll bite, would this involve a soldering iron?



Nope. No physical modifications were made. Have not even redone the thermal paste.



Just curious how many people have been fortunate with their OCing to get above 8k.



Hmm, I'm pretty sure the M11x is stuck at 1.6GHz. Not 1.73GHz. I'd love to get 2080MHz on the M11x. Did you use Set FSB? The M11x has a TME locked pll



ya turbo33 from asus as well as setfsb

Cannot do 325 fsb though, 320 was the highest I have gotten so far



http://forum.notebookreview.com/att.../53037d1279422091-m11x-r2-benchmarks-8102.png



http://img832.imageshack.us/i/13949955.png/



Nice CPU scores! Wish I had your i7 and my gpu i could top 8.3k probably =)



What settings do I use in 3dmrk06?



All runs done at default settings, native resolution, 1280 x 768.
All 3DMark Vantage runs done with PhysX OFF



1280x768?!

Get an external attached and do it right

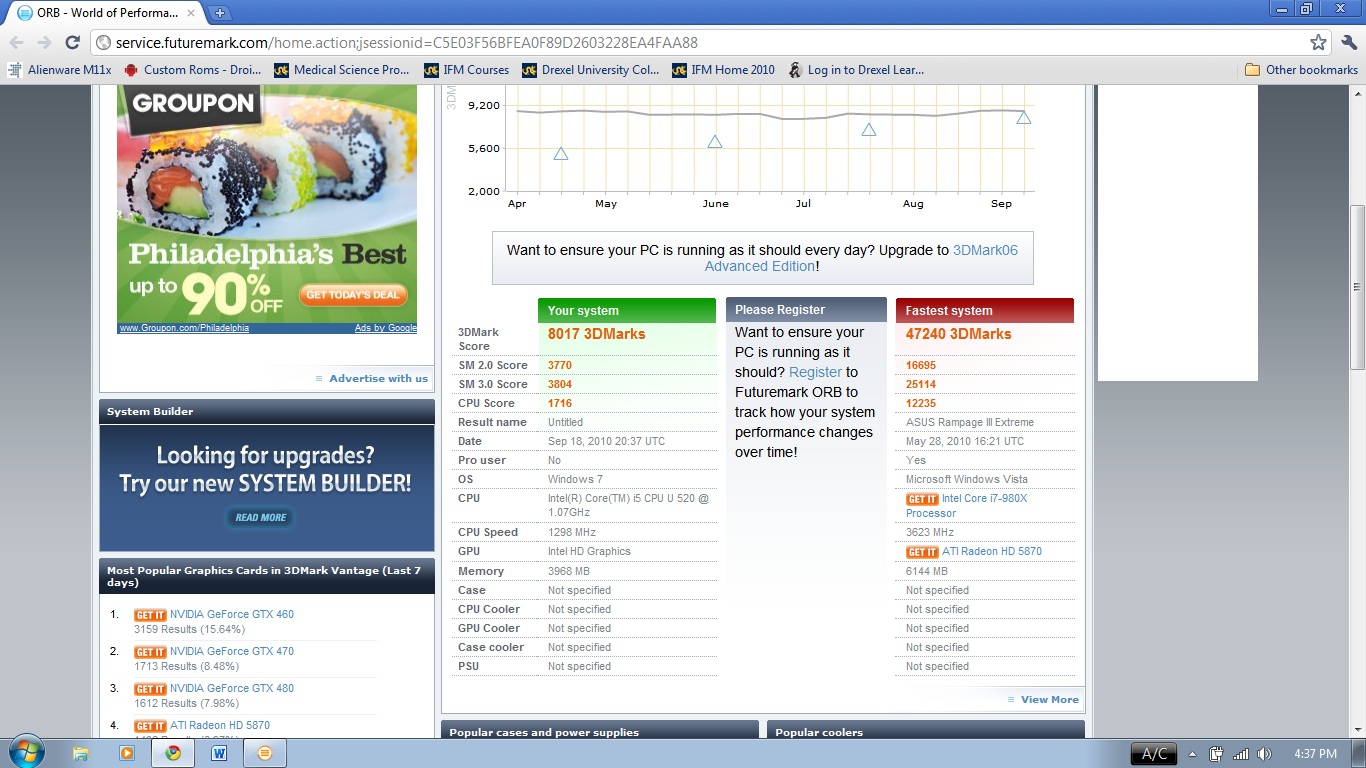

8.1k+ hehe just for fun



I'm amazed you guys can get over 8000 in 3DMark06.

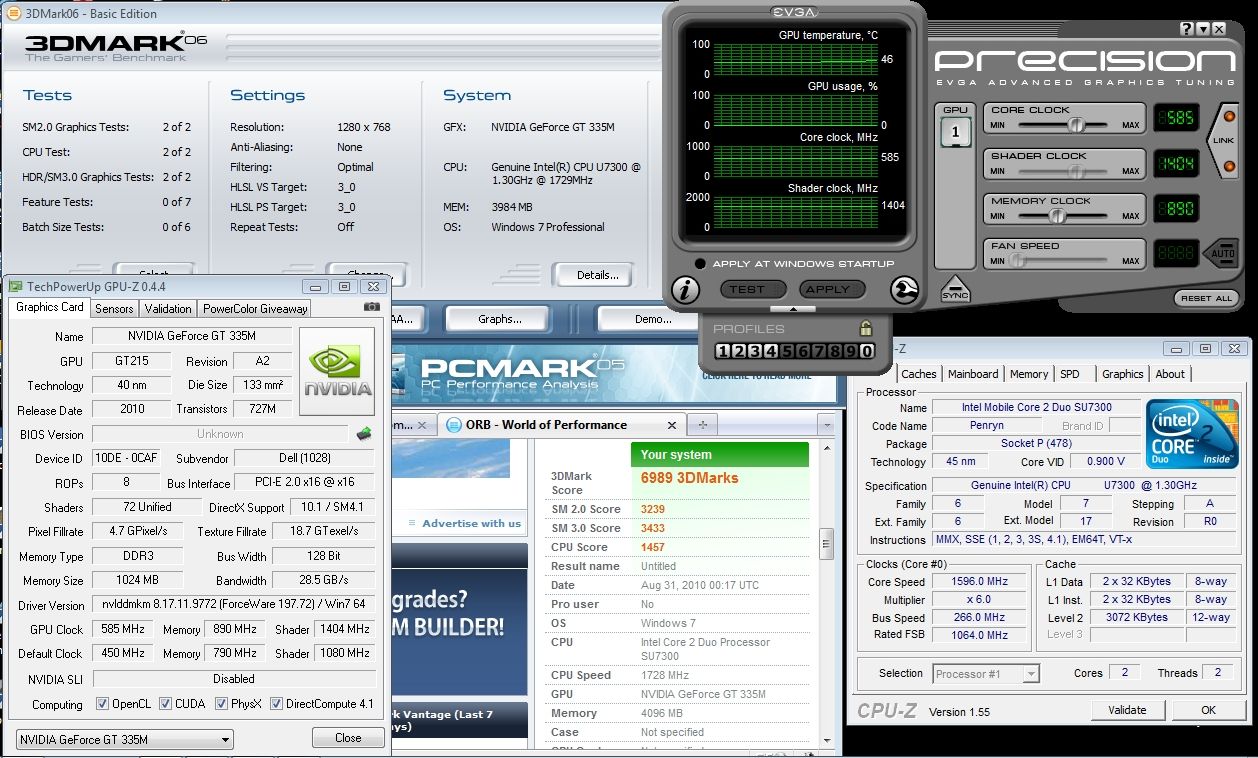

I must be hopeless I can only get 6989.

Hang on... I have an M11xR1 SU7300



For you R1 folk, here are some numbers from my Asus for you to try to catch

Rocking a monster SU7300 hehe

PCMark05: 6563

And it looks like for once the GPU is making a difference in 06 haha - you all are crushing me here despite my CPU oc
3DMark06: 3585



Hi all,

I have an m11x R2, running the beta 260.xx drivers listed in the forum. I'm having an issue with 3dmark06, i've added the .exe to the whitelist, and when I open it, my Windows Theme turns to basic (causing the taskbar to become solid, etc) and the video card listed on the status first screen is listed as the Intel HD integrated graphics and not the 335m.

Is there something I'm missing or doing wrong to get 3dmark06 to run on the 335m instead of the integrated video card (I don't have any problems with this for other programs such as SC2)?



I can't get my M11x to go past 7800

I'm also running an i7 with 4gb ram and a 500gb HD and I have my FSB set at 166 with Turbo on. My GPU clocks are set at 535/1284/875

This seems to be the max stable GPU clock I can get.

What's interesting is these are the exact same numbers I got on my old machine that this current one is an RMA exchange/new build. I swapped HD's between the original and exchange so I wouldn't have to reinstall everything.

Could that have something to do with getting the same clocks on 2 diff. machines?

Or any other input as to why I can't break 8K, it's appreciated. Not that it's a huge deal breaker for me. As long as it can play games...



how did you turn off physx? i can set it to GPU or CPU, no option to turn it off completely.

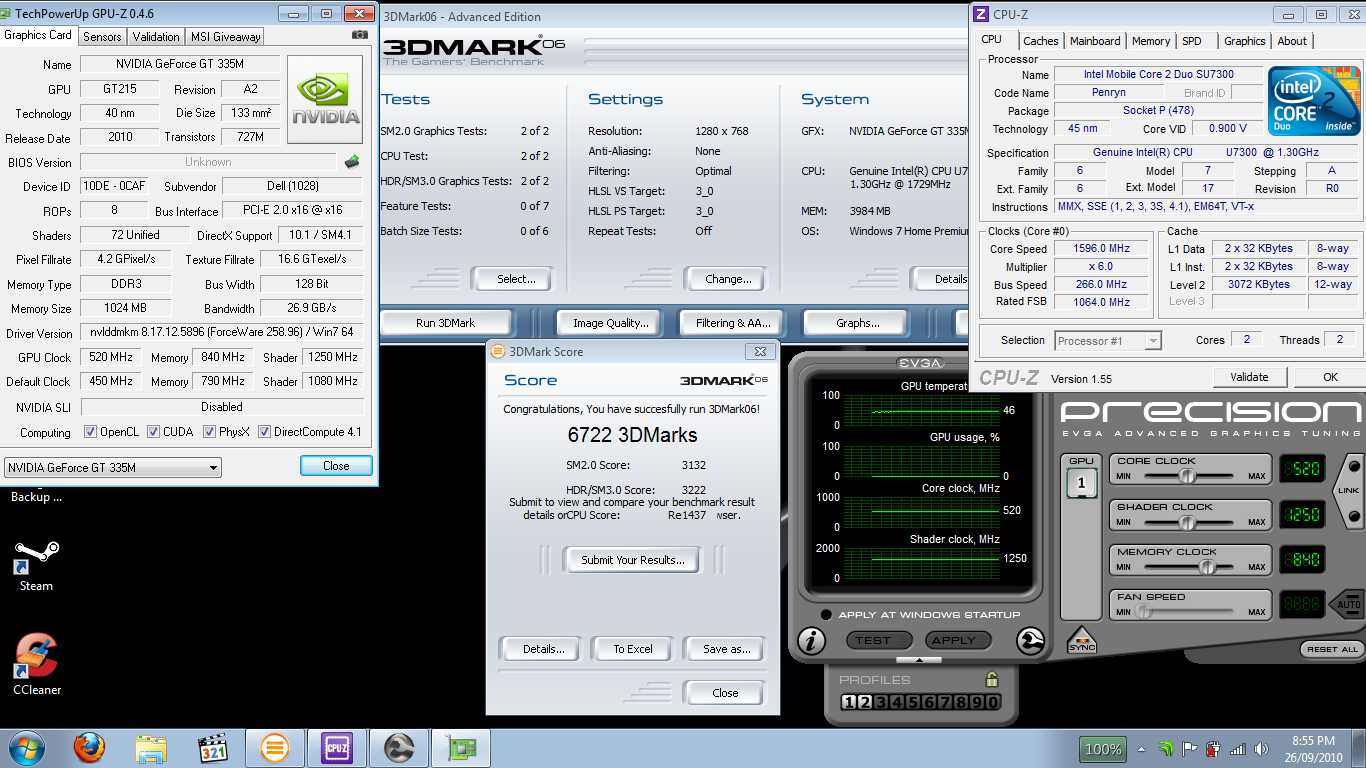

Tried my hand on OCing the GPU and got 6722 in 3DMark06 at 520/1250/840.

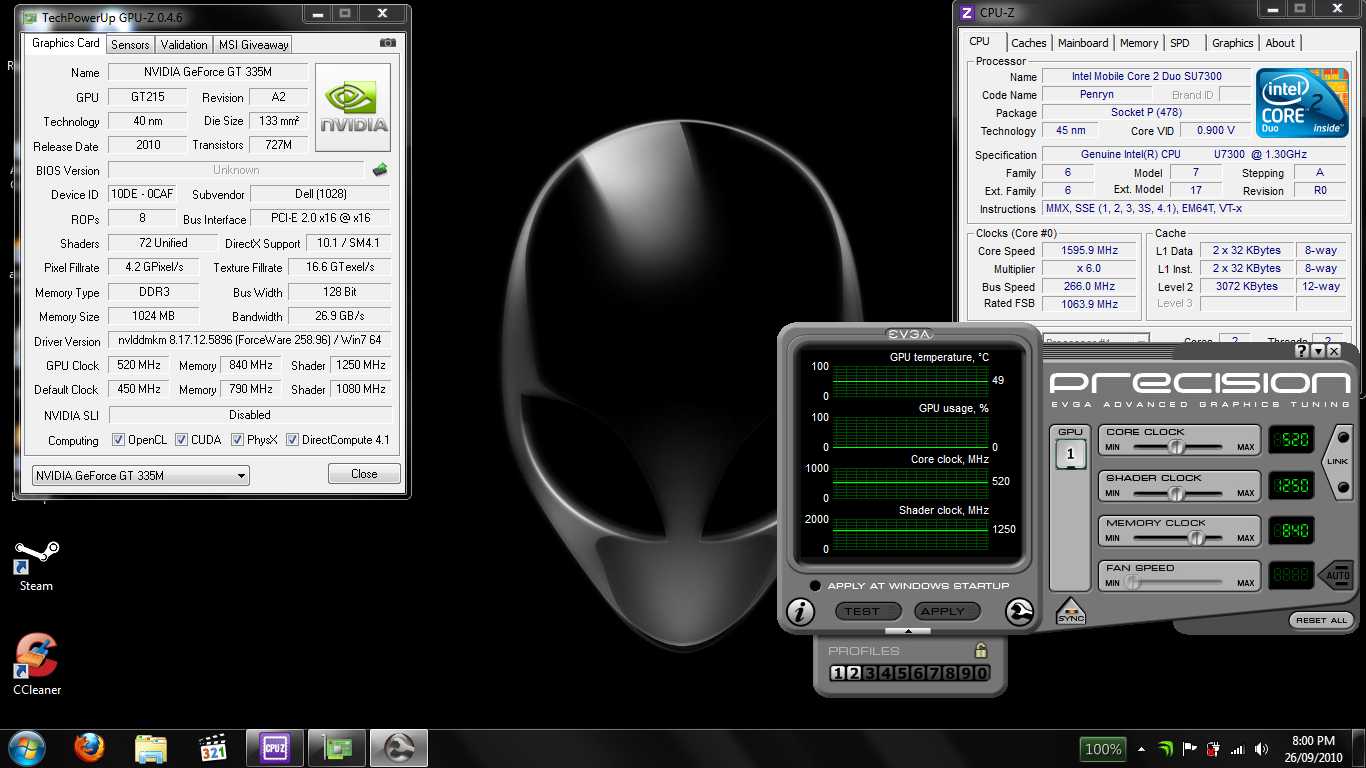

Didn't want to try and go further since my idle temperature seems to shoot up to the high 40s (seen 49-50) using that setup as opposed to the low to mid 40s that people seems to be getting here.

Is it normal for the idle temp to get that high?



Yea the temp is fine. The problem comes when the temps start hitting 90*C+



Yep, as DR650SE says, 40 - 50C on a GPU is fine, quite low on an over-clocked GPU to be honest.

Are you currently living on an ice pack with a pet polar bear?

I normally get around 50 - 60C on an M11xR1 SU7300 with both CPU and GPU over-clocked. This is also well within accepted values.

Have an old cia 1999 'netbook' which runs at about 70C since I put winXP on it and it's been running that way for over 5 years now. It burns your legs if placed on your lap

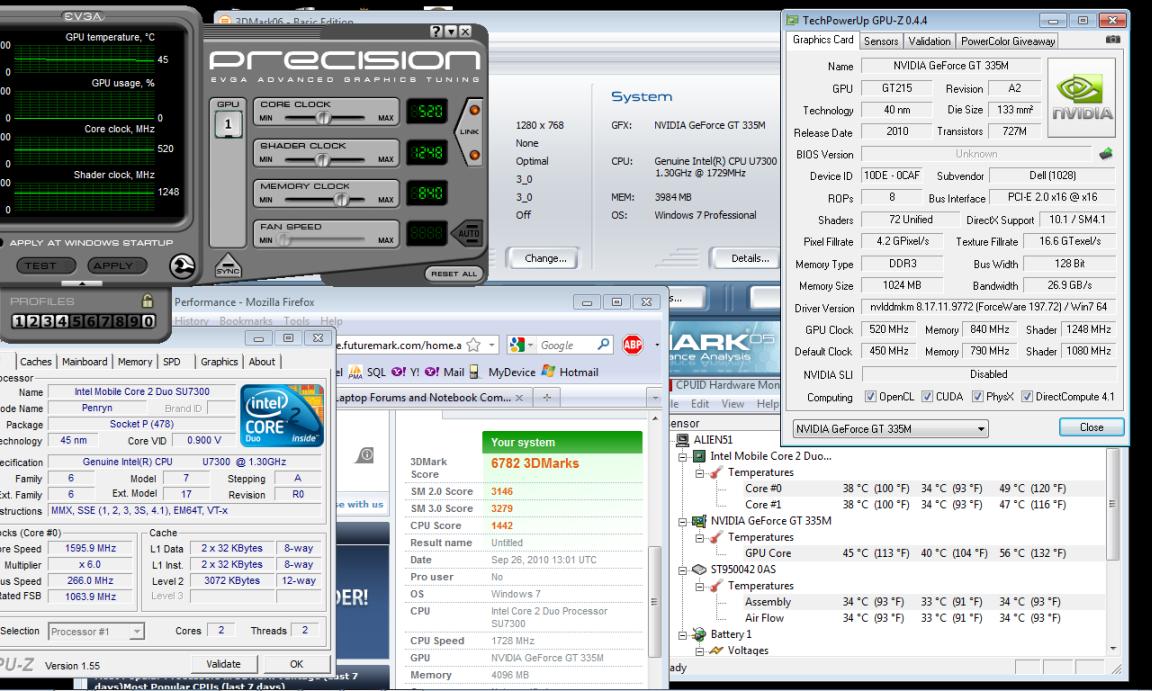

I ran my M11xR1 SU7300 using the same GPU clocking as you indicated in your post.

M11xR1 SU7300 OC'd BIOS A05 4GB RAM nVidia 197.72(Dell) 520/1248/840

I ran CPUID Hardware Monitor and got 40-56C temperature during the test.

3DMark06 returned:

3DMark Score: 6782 3DMarks
SM 2.0 Score: 3146
SM 3.0 Score: 3279
CPU Score: 1442​

This score is about right for these GPU settings and probably quite stable during gaming.

I have had a 3DMark06 Score of 6986 with GPU 580/1392/888 on an M11xR1 SU7300 BIOS A05 nVidia 197.72(Dell)



Anyone have an idea why I can't get 3dmark06 to recognize my 335m?



Its just a cosmetic flaw from optimus, even though it says intel HD graphics its using the 335m. you wouldnt get anything past 2-3k probably using the intel HD graphics.



I'm glad to see this thread start coming back to life. If there is enough demand, I'd be willing to create and R2 benchmarks section in the original post with the score tracking. The scores were never really tracked so I never read much about them due to lack of orgainization. But I'd do it for the R2 crowd if they wanted it.



I dont think swapping the HD's had anything to do with it. Just had similar luck with GPUs both times. You may want to tweak your CPU OC to something lower, people are reporting that less is more with the i7 overclocking meaning people are getting higher CPU benchmarks at 154fsb (random number) as oppose to 166fsb. I dont think anyone really knows the reason why.



the lower the fsb, the better the turbo feature is utilized boosting less cores more



Thank you DR650SE and DrGoodvibes for the explanation.



Hello all, my R1 will be getting here tomorrow. I plan on contributing many benchmarks to this forum.



throttle stop 40/80 + 162 fsb i5 + 580/1490/920 GPU OC



Can someone explain how to get 3DMark06 to detect my proper GPU? I was running the test and it was lagging like hell. (FPS of only 1,2) I think it was using the Integrated graphics card on my R2. I have an i7 and would like to contribute. Thanks



ok go to nvidia control panel and on the top left of it go to View and check the last thing.
Then go 3DMark06 and right click it and click run with graphics > Nvidia
I think that should work



Hi everyone! Does anyone know how I can fix this problem?
As you can see beside SM 2.0 Score, SM 3.0 score, and CPU score; they all say N/A which definitely hinders my final score.



Thanks I got it in the Whitelist.

Hmm, I have an i7, FSB 150, with TS on 200/200. no GPU overclock. Only achieved something like 7100...



200/200 in TS

made me lol

something like 90/90 should be more than sufficient - I recommend asking DR650se as he is getting to be an expert with TS and i7 laptop cpus



My machine maxed out to the fullest, literally:



And the verifiable GPU and CPU setting will be supplied... a bit later

With or without PhysX?



Pleeeaaase can someone help me.

Before TS My best 3dmark score was 8105 probably could have squeezed further but was happy with this.

see.. Imageshack - 13949955.png

this is i7@166 gpu 543/l1303/905

sm2.0/3648
sm3.0/3631
CPU/2003

Now with i7@166 TS 20/60 or 100/100 or 200/200

http://img87.imageshack.us/i/10658905.png/


I am getting a huge jump in CPU approx 450-500 but my GPU score is now lower more like 3200 for each so my best overall is approx 7700 over a few runs.
I have high performance plan selected (set back to defaults just in case)/Powermizer to off both ac and batt. (im using AC as I know 3dmark scores lower on battery)
I have dropped the OC on the GPU down as was advised it can downclock if it gets too high but the score was still in the 7000's. Has my GPU degraded or something?.
I should be getting near the 9000's based on tassadars i5 score.
Im pulling my hair out here. yours hopefully.........



This is not vantage.....so the only think you need to check is the resolution



GPU clock: 590/1485/930
TS: 200/200
CPU overclock: 166 FSB
260.89 driver



thats one of the highest GPU OC's ive seen around these threads. Is it stable in gaming conditions?



Not on SC2 thats for sure, stable for Borderlands and l4d2



I can't get anywhere near that high an OC on my system. So far 8422 - 550/1320/890 is the best I've achieved. That's stable when playing Metro2033, CivV, L4D and L4D2. Anything higher and the driver will crash or 3dmark06 will lockup during the graphics loading (dirigible on the river) test.

tassadar898 has a magic 335 in his system! I plan on tweaking a bit tomorrow.



Are you able to flash the GT335m to get more voltage?



This is the best i can get for now! If I push much further it gets very unstable. A 600 point increase since the TS boost was applied is very pleasing.
Unclewebb is a good chap and deserves a donation from everyone of us m11x owners.

http://img543.imageshack.us/i/61694274.png



Nice I think you can push 9k+!!! Up that shader clock some more and put the m11x in the 9k league



lol..i think 9k is too far away! be nice though. I have always left shader linked. Is it ok to un-link and change it?. Any risks involved?.
On another note does anyone know how do you remove a program from the whitelist. I have stuff uninstalled but still showing there and remove is always greyed out



i dont think they iis any risk involved i have unlinked from the start of OCing when i got my machine months ago with no issues, try upping the shaderclock up by about 80mhz.... if 3dmark06 bugs out or is instable just knock it back down.... im not sure on the whitelist issue.
