    940XM Worth

    Discussion in 'Alienware M15x' started by Taxifare, Jun 13, 2018.

  1. Taxifare

    Taxifare Notebook Enthusiast

    Reputations:
    0
    Messages:
    23
    Likes Received:
    1
    Trophy Points:
    6
    Hi,

    I am considering an upgrade for my M15X CPU. I'm wondering is it really worth it to upgrade 720QM to 940XM or isit just a slight insignificant boost?

    And what temperature would I be expecting on idle and on load, whether it is on OC or stock clocks. (Using Thermal Grizzly Kryonaut since I have extras)

    I do occasionally run programs that are single core for work.

    Thanks!

  2. Danishblunt

    Danishblunt Guest

    Reputations:
    0
    It really depends on what you're doing.If you want to go for a 940XM you probably need to remove the centerpin to make it not throttle.

    temps depend on heatsink fit, thermal paste and fan profile

  3. King of Interns

    King of Interns Simply a laptop enthusiast

    Reputations:
    1,329
    Messages:
    5,418
    Likes Received:
    1,096
    Trophy Points:
    331
    Yes a large performance jump. 720qm does 1.73ghz across 4 cores 940xm is unlocked.

    Under stock cooling and power supply you can still overclock to 3ghz on 4 cores.

    If you go for a beefier power supply eg 240w (delta) or 210w(dell) then you will have to potential to hit 3.3-3.7ghz 4 cores.

    Also throttling only concerns the gpu. The cpu will never throttle if it has enough power and heat is under 99C. It will pull power to whatever is limiting it; heat, power supply etc. Yes I have tested this.

  4. Danishblunt

    Danishblunt Guest

    Reputations:
    0
    Yeah I forgot that the M15X prioritizes the CPU over the GPU. It will throttle the GPU instead, which still isn't desirable. So when going for a 940XM and having a 100W+ GPU, removing the centerpin is a must.

  5. King of Interns

    King of Interns Simply a laptop enthusiast

    Reputations:
    1,329
    Messages:
    5,418
    Likes Received:
    1,096
    Trophy Points:
    331
    If you overclock it (which is certain these days to game) yes absolutely a gaming power supply with center pin removed is critical.

    Keep original 150w psu for charging purposes or normal use.

    I would also avoid those right angle tip adaptors they can melt under heavy usage. This was a good idea back in the day but time proved us wrong.

    triturbo likes this.
  6. Taxifare

    Taxifare Notebook Enthusiast

    Reputations:
    0
    Messages:
    23
    Likes Received:
    1
    Trophy Points:
    6
  7. Taxifare

    Taxifare Notebook Enthusiast

    Reputations:
    0
    Messages:
    23
    Likes Received:
    1
    Trophy Points:
    6

    .3.3-3.7ghz on 4 cores, roughly what temperature will I be looking at?

  8. Taxifare

    Taxifare Notebook Enthusiast

    Reputations:
    0
    Messages:
    23
    Likes Received:
    1
    Trophy Points:
    6
    My heatsinks and fans are on stock. Thermal paste I still have a spare Thermal Grizzly Kyronaut in my cupboard.

  9. King of Interns

    King of Interns Simply a laptop enthusiast

    Reputations:
    1,329
    Messages:
    5,418
    Likes Received:
    1,096
    Trophy Points:
    331
    Yes 940xm will work fine. 240W is fine. What GPU do you have. If you plan to overclock the cpu heavily power draw will be such that pulling the center pin on your 240W will be necessary. This will eliminate any GPU throttling. Just get a small pair of pliers and pull the pin out. You will then no longer be able to charge the battery with it so keep the original 150W for this purpose.

    Heat will be high under load. I would recommend propping back of laptop up to ensure very good airflow, clean out the vents, heatsinks and fans to make sure they are free of dust. Also regarding overclocking the cpu you will need to test in increments. Some chips can handle 3.3ghz others more with the limit at around 3.7ghz on stock voltage. At these clockspeeds the cpu will run at 85-95C under load but this is totally fine. Nehalem 45nm chips are incredibily robust so you can run them at 100% load at up to 99C with no issues.

    If you hit 100C then the machine will shut off so to keep an eye on this.

  10. Taxifare

    Taxifare Notebook Enthusiast

    Reputations:
    0
    Messages:
    23
    Likes Received:
    1
    Trophy Points:
    6
    I'm running GTX 860m for my GPU. Ordered a piece. Hopefully it worth the money paid. Thanks!

  11. King of Interns

    King of Interns Simply a laptop enthusiast

    Reputations:
    1,329
    Messages:
    5,418
    Likes Received:
    1,096
    Trophy Points:
    331
    It depends on what you paid :) I paid 250 dollars for M390X customs and shipping included :D

    860M MXM = Kepler not maxwell so I personally wouldn't pay more than 120 dollars for it.

  12. Taxifare

    Taxifare Notebook Enthusiast

    Reputations:
    0
    Messages:
    23
    Likes Received:
    1
    Trophy Points:
    6
    Well. Sadly PC hardware is expensive in my country.

    Btw, I need some help. The processor arrived from the dealer and I plugged it in. I couldn't boot up to windows now. I'm on Windows 10. It spins for 2 to rounds and it stops there. My bios is on A09. But its detecting my CPU as 000 @ 1.3Ghz. What could be the issue?

  13. Taxifare

    Taxifare Notebook Enthusiast

    Reputations:
    0
    Messages:
    23
    Likes Received:
    1
    Trophy Points:
    6
    After searching around the web. Turns out I was scammed. It was an Engineering Sample Unit and it wasn't even an 940XM. Gosh! Where can I find trustworthy sources.

  14. King of Interns

    King of Interns Simply a laptop enthusiast

    Reputations:
    1,329
    Messages:
    5,418
    Likes Received:
    1,096
    Trophy Points:
    331
    So what is it? If it has 4 cores and is unlocked then it should serve well. There is zero difference between 920xm and 940xm too so it depends what the ES was based off. With throttlestop both chips overclock up to about the same

  15. Taxifare

    Taxifare Notebook Enthusiast

    Reputations:
    0
    Messages:
    23
    Likes Received:
    1
    Trophy Points:
    6
    I doubt its a 920XM/940XM chip. It is reading it as 000 @ 1.3Ghz .1.3Ghz dont seem to be the clockspeed of 940XM. Or maybe Im wrong somewhere. + It couldnt boot up the OS for some reason

  16. King of Interns

    King of Interns Simply a laptop enthusiast

    Reputations:
    1,329
    Messages:
    5,418
    Likes Received:
    1,096
    Trophy Points:
    331
    What PSU adaptor do you have? Some people have under-powered PSU's (ie sub 150W) and this hinders the boot process.

  17. Taxifare

    Taxifare Notebook Enthusiast

    Reputations:
    0
    Messages:
    23
    Likes Received:
    1
    Trophy Points:
    6
    240W PSU Centre pin removed as adviced. I was running on i7-740QM without issues. The moment I swapped to this processor it couldnt boot.

  18. King of Interns

    King of Interns Simply a laptop enthusiast

    Reputations:
    1,329
    Messages:
    5,418
    Likes Received:
    1,096
    Trophy Points:
    331
    Well then likely you are sadly correct. Sucks to be misled like this. Do check the NBR forums also to see is a processor is selling. More trustworthy source.

    Sent from my SM-A500FU using Tapatalk

  19. Taxifare

    Taxifare Notebook Enthusiast

    Reputations:
    0
    Messages:
    23
    Likes Received:
    1
    Trophy Points:
    6
    Yeah. Hopefully ebay refunds my money so I can source for another place.

  20. electrosoft

    electrosoft Perpetualist Matrixist

    Reputations:
    2,771
    Messages:
    4,117
    Likes Received:
    3,982
    Trophy Points:
    331
    Do you have a picture of the actual CPU you received?

  21. Taxifare

    Taxifare Notebook Enthusiast

    Reputations:
    0
    Messages:
    23
    Likes Received:
    1
    Trophy Points:
    6

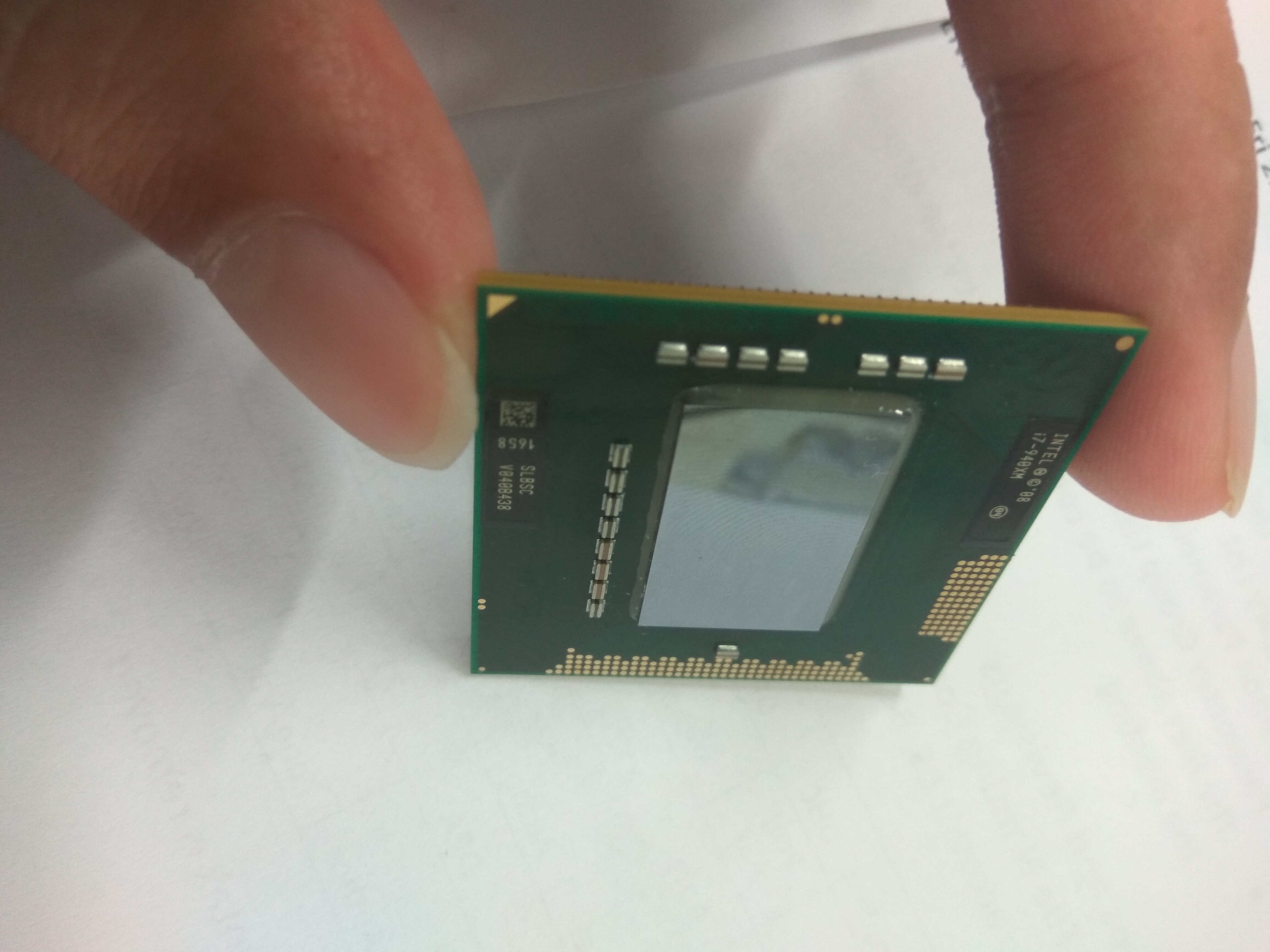

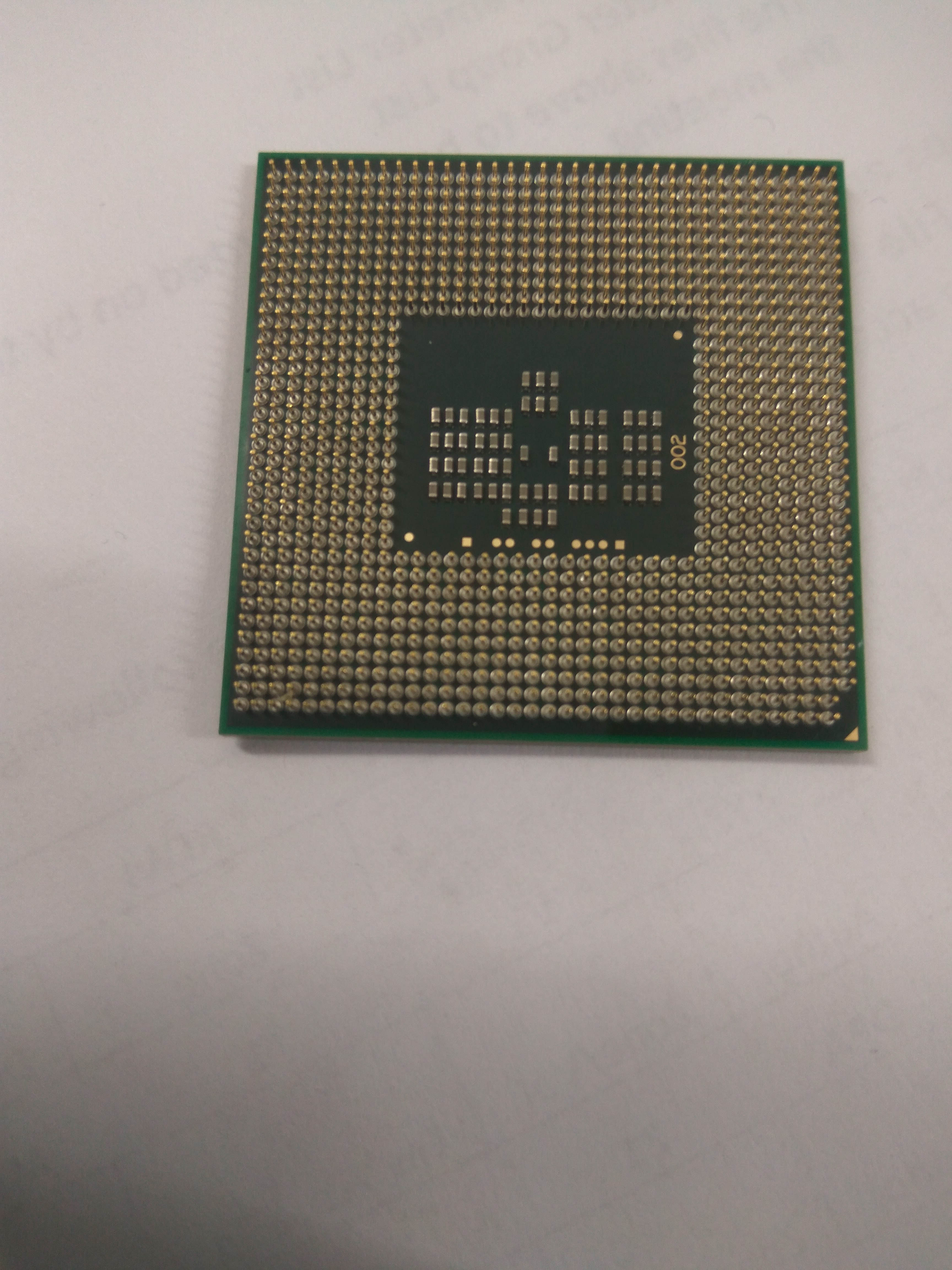

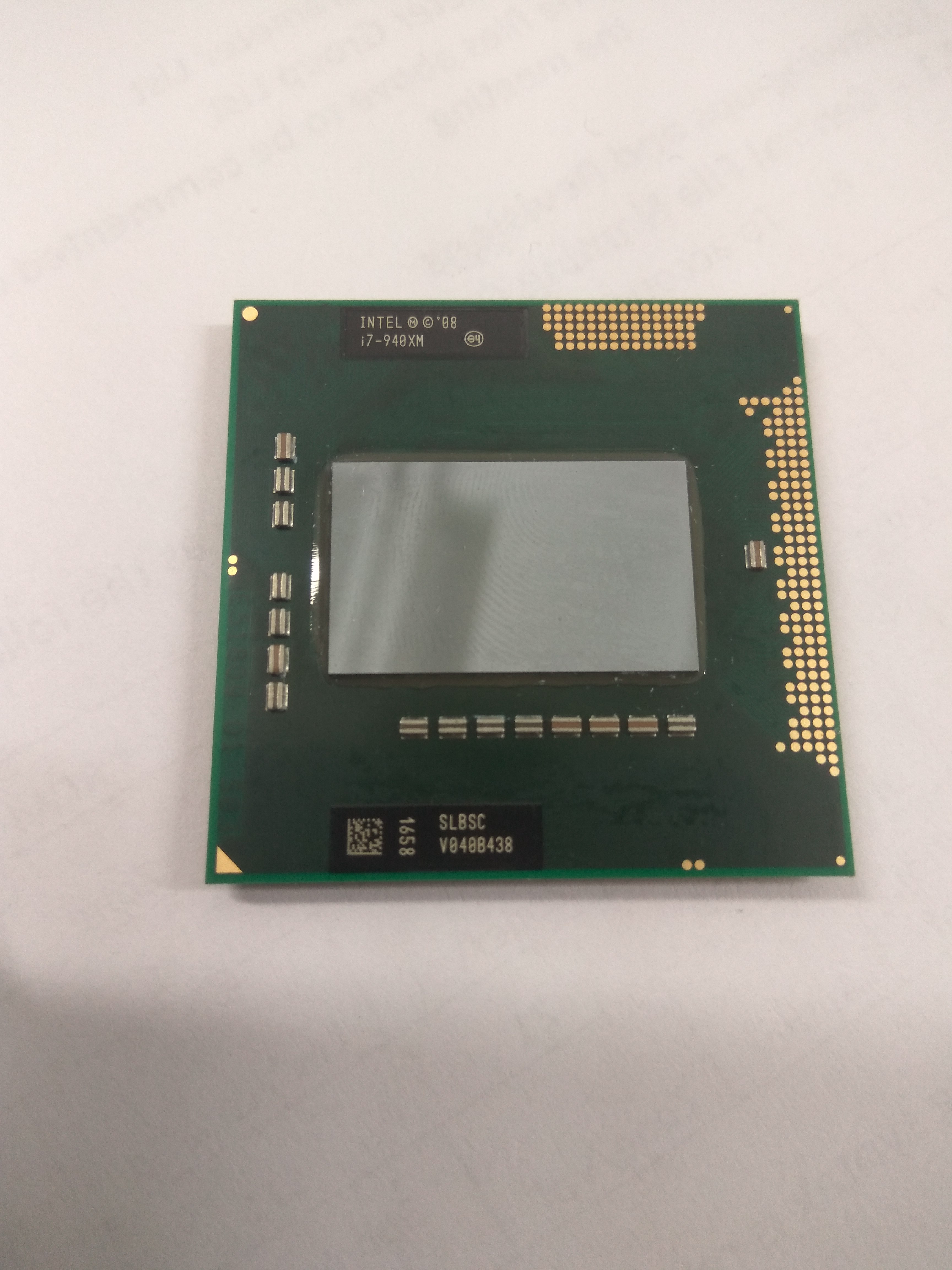

    Here. Also, are there any Revision to the Alienware M15X Board that does not run 940XM?


    Attached Files:

  22. ssj92

    ssj92 Neutron Star

    Reputations:
    2,446
    Messages:
    4,446
    Likes Received:
    5,690
    Trophy Points:
    581
    Just make sure you're on the latest BIOS.

  23. DNOYA

    DNOYA Notebook Guru

    Reputations:
    0
    Messages:
    56
    Likes Received:
    8
    Trophy Points:
    16
    --

    Hi Mate, have you solved your case, I have the same case as you, I just bought the 940MX but after install it was showing 000. @1.73ghz
    cannot boot up, trying to install new windows but always stuck after view minute.
    i just return it now.

    after swap to the old one now is okay..

  24. Taxifare

    Taxifare Notebook Enthusiast

    Reputations:
    0
    Messages:
    23
    Likes Received:
    1
    Trophy Points:
    6
    Hi,

    Yes I have solved my case. It is a fake chip. I returned to sender and got my refund. Don't waste time with it. I've ordered a 920XM from a local vendor. Arriving next week. Verified working chip. Hopefully it goes well for you too.

  25. DNOYA

    DNOYA Notebook Guru

    Reputations:
    0
    Messages:
    56
    Likes Received:
    8
    Trophy Points:
    16
    ----
    Hi Mate,

    i have return it to the seller, he promise to send the replacement lets see, because the seller was top rate seller in ebay this is the link

    https://www.ebay.com/itm/Intel-Core...m=131867427343&_trksid=p2060778.c100290.m3507

    in case he is lying again we have to blacklist this seller.
    2018-08-05_0-05-13.jpg 2018-08-05_0-05-13.jpg

  26. King of Interns

    King of Interns Simply a laptop enthusiast

    Reputations:
    1,329
    Messages:
    5,418
    Likes Received:
    1,096
    Trophy Points:
    331
    Amazing that there are fake chips out there! Considering how cheap these now are it surprises me to find such fakes in the marketplace.

  27. Taxifare

    Taxifare Notebook Enthusiast

    Reputations:
    0
    Messages:
    23
    Likes Received:
    1
    Trophy Points:
    6
    So, my 920XM arrived. I realise it was running on 80-85'c on load (No OC yet). Is this normal?

  28. Taxifare

    Taxifare Notebook Enthusiast

    Reputations:
    0
    Messages:
    23
    Likes Received:
    1
    Trophy Points:
    6
    Yes I was caught off guard because they sell at market price. It did not trigger me as suspicious seller at first. Too many good reviews are not to be trusted.

  29. DNOYA

    DNOYA Notebook Guru

    Reputations:
    0
    Messages:
    56
    Likes Received:
    8
    Trophy Points:
    16
    ---

    I just refund my money back.. and the seller did already, could anyone has any recomendation for baying I7 940XM or another recomended seller.
    pls shared it here many thanks

  30. Taxifare

    Taxifare Notebook Enthusiast

    Reputations:
    0
    Messages:
    23
    Likes Received:
    1
    Trophy Points:
    6
    Try finding locally. If you cannot find. I'll ask from a local dealer and you can contact him.
