    GeForce 980m + i7 940XM

    Discussion in 'Alienware M15x' started by zazantiago, Oct 19, 2020.

  1. zazantiago

    zazantiago Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    2
    Trophy Points:
    6
    Thanks to Chinese websites I’ve been able to find some not so expensive spare parts for my always reliable M15x. I’m currently running games on windows 10 with an i7 820QM, 16 Gigs of RAM a great GeForce 980m (according to the bios from Dell) on a 240 watts PSU with no problem other than the noise from the fans.

    I know that all the bibliography on the system says the i7 920XM is the top of the line processor for this system, but I decided to give the 940XM a try since it apparently uses the same socket and draws the same amount of power.

    It’s gonna be a while before I get my hands on the CPU so I’m asking in advance what sort of modding I’ll be looking at since I’ve read many comments referring to some successful 920XM and a 980m combo.

    I’ve been unable to find any dedicated posts on the matter, so any help will be greatly appreciated.


    Enviado desde mi iPad utilizando Tapatalk

    zazantiago, Oct 19, 2020
    #1
  2. Maxware79

    Maxware79 Alienware died in 2014

    Reputations:
    218
    Messages:
    1,277
    Likes Received:
    944
    Trophy Points:
    131
    From what I've seen, only the 4gb version of the 980M will work properly in the M15x. @MrMogwai will be able to shed more light on this though

    Maxware79, Oct 19, 2020
    #2
  3. zazantiago

    zazantiago Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    2
    Trophy Points:
    6

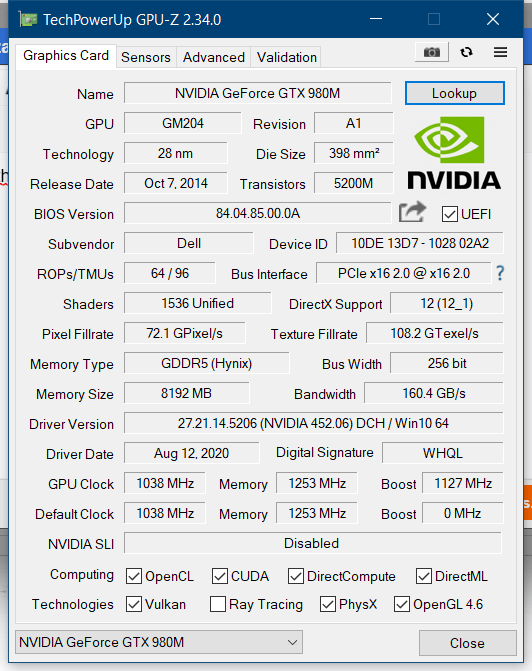

    I’m working with the 8gb version with no problem othe than the temp. The card throttles at 85°C but it's almost unnoticeable

    [​IMG]

    Last edited: Oct 19, 2020
    zazantiago, Oct 19, 2020
    #3
  4. Maxware79

    Maxware79 Alienware died in 2014

    Reputations:
    218
    Messages:
    1,277
    Likes Received:
    944
    Trophy Points:
    131
    That's good to know then. Did you have to do the 240W PSU mod to get full power?

    Maxware79, Oct 19, 2020
    #4
  5. zazantiago

    zazantiago Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    2
    Trophy Points:
    6
    Yes! But I didn't pull the central pin from the cable. It was easier to just open the PSU and cut the ID cable. If I ever need to get the PSU back to normal I can solder it back on.

    zazantiago, Oct 19, 2020
    #5
    Papusan and Maxware79 like this.
  6. MrMogwai

    MrMogwai Notebook Evangelist

    Reputations:
    22
    Messages:
    423
    Likes Received:
    103
    Trophy Points:
    56
    +T+he best way to handle thay mod is to drill a small square hole +and solder in a two position slider switch, if you need charging, just move it to charge position :)

    MrMogwai, Oct 20, 2020
    #6
