    Is it possible to remove the LCD screen and only display via DisplayPort on the M15x (2009)

    Discussion in 'Alienware M15x' started by ghostnetwork, Sep 12, 2020.

  1. ghostnetwork

    ghostnetwork Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    1
    Trophy Points:
    6

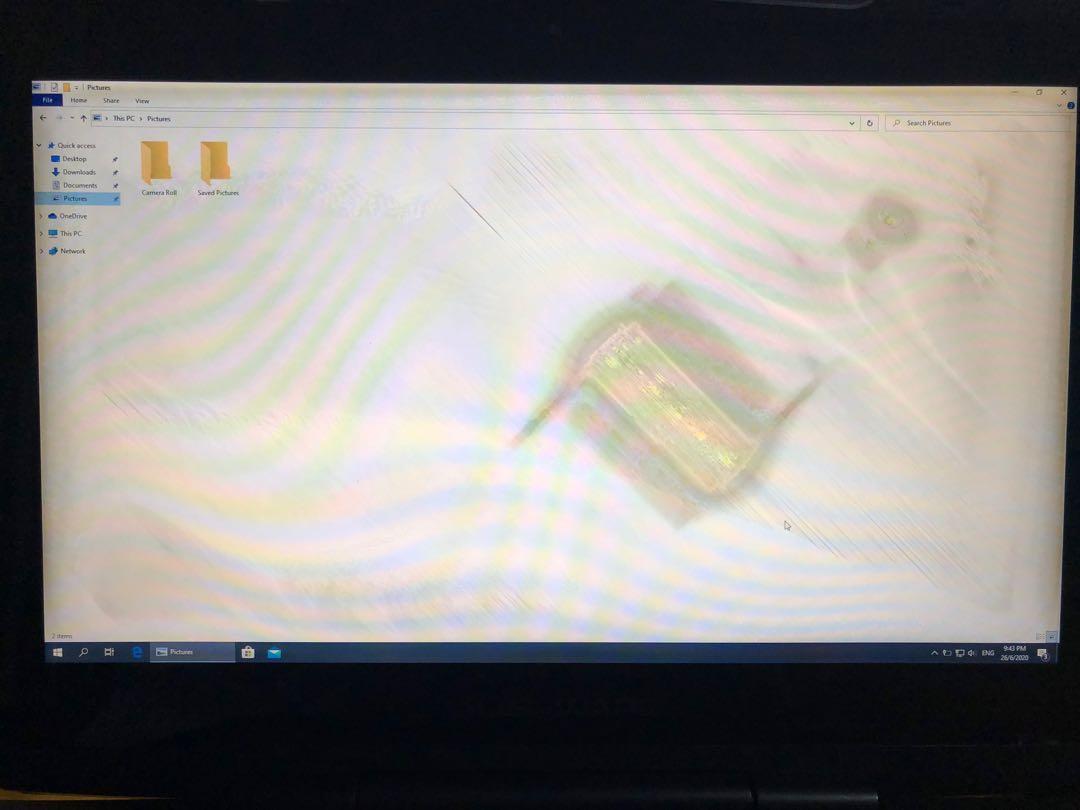

    Hi fellow M15x owners and experts, wanted to check if its possible to remove the whole screen assembly and use an external display via the DisplayPort. Have been using this laptop since 2010 and its been very reliable until the LCD started degrading (pic attached below).

    I tried removing the screen assembly but the laptop did not POST as expected. Wondering if I'm missing something or what I'm hoping to do is not possible from a design perspective.

    Thanks and appreciate any thoughts.

    [​IMG]

    ghostnetwork, Sep 12, 2020
    #1
  2. senso

    senso Notebook Deity

    Reputations:
    565
    Messages:
    1,645
    Likes Received:
    789
    Trophy Points:
    131
    Why remove the display?
    Just leave it in there.

    senso, Sep 13, 2020
    #2
    ghostnetwork likes this.
  3. Maxware79

    Maxware79 Alienware died in 2014

    Reputations:
    218
    Messages:
    1,277
    Likes Received:
    944
    Trophy Points:
    131
    No, the laptop needs to recognise that an LCD is attached or it won't post. I don't know if anyone has ever found a way around this.

    Maxware79, Sep 13, 2020
    #3
    ghostnetwork likes this.
  4. senso

    senso Notebook Deity

    Reputations:
    565
    Messages:
    1,645
    Likes Received:
    789
    Trophy Points:
    131
    Maybe removing the EDID eeprom from a broken panel and soldering it to the i2c, Vcc and Gnc pins of the LVDS/eDP cable might be more than enough, so the laptop thinks that a display is connected.

    senso, Sep 14, 2020
    #4
    ghostnetwork likes this.
  5. darnok44

    darnok44 Notebook Consultant

    Reputations:
    177
    Messages:
    285
    Likes Received:
    87
    Trophy Points:
    41
    Hi,
    There is a way. If I remember correctly I've had that's same problem and I found solution somewhere. I had to remove one resistor from motherboard in order to work without panel. But it was few years back and I simply don't remember which one was that. I should have this motherboard lying somewhere around. I will try to find which resistor was that. But I can't promise anything.

    darnok44, Sep 14, 2020
    #5
    ghostnetwork and ll_r1d0_ll like this.
  6. ghostnetwork

    ghostnetwork Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    1
    Trophy Points:
    6
    Looking to use an external monitor in place of the built in LCD, and due to the space constraints, makes most sense to remove the defective part.

    ghostnetwork, Sep 18, 2020
    #6
  7. ghostnetwork

    ghostnetwork Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    1
    Trophy Points:
    6
    Thanks for the responses. Looks like its possible, but not straight-forward, and helps to confirm my theory. Appreciate if anyone can share a guide or website on what @darnok44 was referring to. Looks promising.

    ghostnetwork, Sep 18, 2020
    #7
