    M15x USB 3.0 Express Card 54

    Discussion in 'Alienware M15x' started by Nivaku, Apr 24, 2011.

  1. Nivaku

    Nivaku Notebook Evangelist

    Reputations:
    128
    Messages:
    689
    Likes Received:
    6
    Trophy Points:
    31
    So I recently bought an expresscard usb 3.0 because it seems that usb 3.0 is starting to appear more and more, expecially in the newer laptops IE (m11xr3 and m14x etc)

    With that being said I wanted to test the performance of the card itself to compare usb 2.0 vs 3.0 in real world comparisons.

    in crystaldiskmark for usb 3.0 i get 66.11 MB/s transfer and 58.35 MB/s write

    for usb 2.0 i only get about 21.2 MB/s write speed

    Overall for just ~$20 it's a good deal for the upgraded performance

    Make sure you download both the driver and firmware update from this website http://www.station-drivers.com/page/nec.htm
    Dont even bother with the driver disk they give you, it's garbage

    Version 2.0.34.1 Pour Windows Xp/Vista/7 32/64bits Driver
    Firmware Version 3.0.2.7.0.8 (Windows 32 & 64bits)

    Here's a link on where I bought it Express Card Expresscard 54 to USB 3.0 x 2 Port Reader | eBay

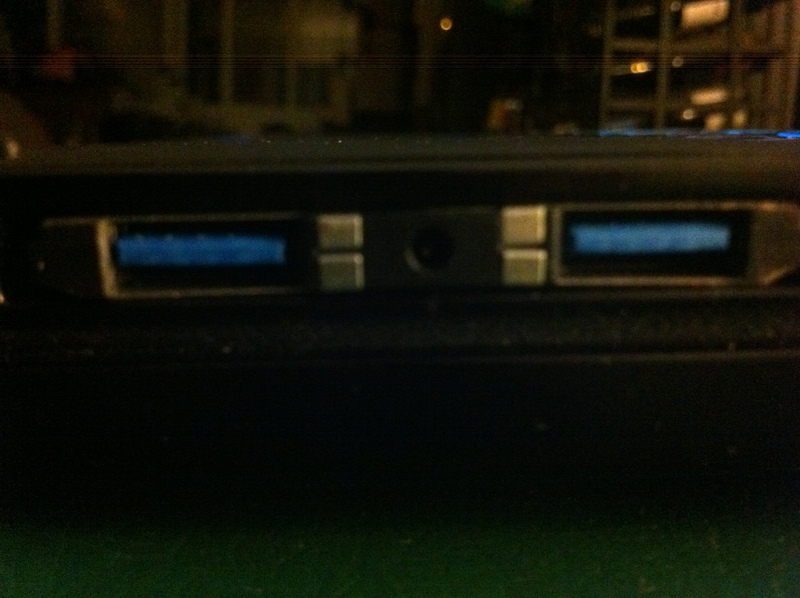

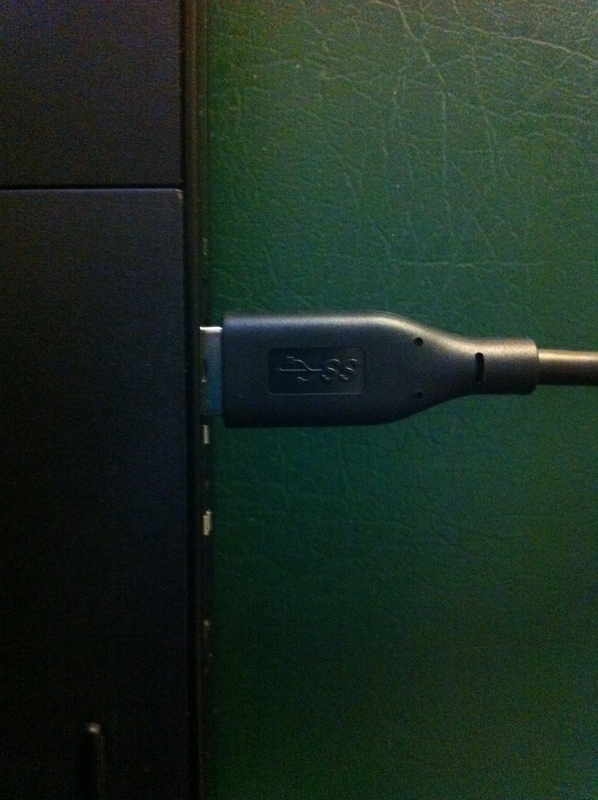

    Here are some pics also, its a nice low profile factor. Also here's a top view


    Attached Files:

  2. Sacred_User

    Sacred_User Notebook Guru

    Reputations:
    8
    Messages:
    53
    Likes Received:
    1
    Trophy Points:
    16
    Thats a huge difference over usb 2.0. So if i where to get this card just for the extra USB ports would i be able to use devices that only support 2.0 with it too?

  3. Nivaku

    Nivaku Notebook Evangelist

    Reputations:
    128
    Messages:
    689
    Likes Received:
    6
    Trophy Points:
    31
    Yes USB compatible to USB 2.0 and obviously 3.0 bro also comes with a USB power adaptor if you need extra power so it's cool

  4. TheHighlightGuy

    TheHighlightGuy Notebook Consultant

    Reputations:
    67
    Messages:
    263
    Likes Received:
    1
    Trophy Points:
    31
    I've been looking for one with such a small form factor. Thanks for the link!

  5. Sacred_User

    Sacred_User Notebook Guru

    Reputations:
    8
    Messages:
    53
    Likes Received:
    1
    Trophy Points:
    16
    What is the power adapter for? I'm confused. haha

  6. Nivaku

    Nivaku Notebook Evangelist

    Reputations:
    128
    Messages:
    689
    Likes Received:
    6
    Trophy Points:
    31
  7. Jdpurvis

    Jdpurvis Notebook Evangelist

    Reputations:
    152
    Messages:
    512
    Likes Received:
    182
    Trophy Points:
    56
    This brings up a question I've had for a while. It appears that my expresscard slot is closed. Did my machine simply not come with one? Could I add one? I haven't seen anything in my documentation about "stripped down models, but I might have one.

    Your thoughts?

    Joe

    Never mind -- it was just stuck.

    J

  8. TricksterMatt

    TricksterMatt Notebook Consultant

    Reputations:
    25
    Messages:
    137
    Likes Received:
    34
    Trophy Points:
    41
    Oh my days I have been looking around for a USB 3.0 express card and I might just buy one from the link you provided and those performance increase over the 2.0 is massive. I have a Western Digital 1TB mybook which is USB 3.0 and deffo considering getting the express card cause it takes so long to transfer over files such as all my videos/music/games and stuff. One question where do I actually fit the card too and how? and are all express cards the same speed or are there some better ones? and should i pull the trigger and get myself one you think? ^^

  9. Nivaku

    Nivaku Notebook Evangelist

    Reputations:
    128
    Messages:
    689
    Likes Received:
    6
    Trophy Points:
    31
    @TricksterMatt in the picture on the bottom right hand edge, there's a lot a link provided on the card itself, yeah express cards are mostly the same speed from the ones I've seen i havent seen any faster usb 3.0 express cards. for only $20 its not a bad price for a performance increase, plus it adds a bit more life on your laptop imo

  10. TricksterMatt

    TricksterMatt Notebook Consultant

    Reputations:
    25
    Messages:
    137
    Likes Received:
    34
    Trophy Points:
    41
    Yeah I just looked on my laptop but the expansion card seems to be shut? :S there's like a plate type thing covering the slot how can I remove this? I'm gonna order one now :) thanks for this thread and post if this thread wasnt here i wouldnt of gotten the express card ever i think +rep to you. Can't wait to have USB 3.0 ports + extra 2 ports! Bi-winning :D

  11. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    Why don't you get something for the esatap port? I have one and it is over 100MB transfers.

  12. taylrjones

    taylrjones Notebook Consultant

    Reputations:
    51
    Messages:
    237
    Likes Received:
    3
    Trophy Points:
    31
    Thanks for this review +rep.
    I ordered it from amazon; $19 + free 2 day shipping with prime.

  13. Nivaku

    Nivaku Notebook Evangelist

    Reputations:
    128
    Messages:
    689
    Likes Received:
    6
    Trophy Points:
    31
    Here are the links for the driver update, for both firmwire and driver - yeah i forgot to mention that the driver cd that they provide you is garbage.

    SONY/NEC/RENESAS Drivers & Firmwares

    Version 2.0.34.1 Windows Xp/Vista/7 32/64bits AND Firmware Version 3.0.2.7.0.8 (Windows 32 & 64bits)

  14. drkfire07

    drkfire07 Notebook Consultant

    Reputations:
    37
    Messages:
    125
    Likes Received:
    0
    Trophy Points:
    30
    It is just a "dummy" card to prevent things such as dust collecting in there. To remove it, press it in. It should click and when you release it should pop out and be ready to remove.

  15. Nivaku

    Nivaku Notebook Evangelist

    Reputations:
    128
    Messages:
    689
    Likes Received:
    6
    Trophy Points:
    31
    @widezu69

    What exactly are you talking about?

    Anyways what nice about the 54 expresscard is that you can easily remove it and replace it with something else. it's a win win imo tbh.

    But it's all personal preference

  16. TricksterMatt

    TricksterMatt Notebook Consultant

    Reputations:
    25
    Messages:
    137
    Likes Received:
    34
    Trophy Points:
    41
    @drkfire07 - Thanks a lot worked like a charm :D now have to wait for the bloody thing to arrive now I really want to see the improvements over USB 2.0

    @Nivaku - Once again thanks for all the info and help :)

  17. taylrjones

    taylrjones Notebook Consultant

    Reputations:
    51
    Messages:
    237
    Likes Received:
    3
    Trophy Points:
    31
    Hes talking about the esata port. its built in to the front right usb port. Its basically an external sata connection, but your drive has to support it

  18. TheHighlightGuy

    TheHighlightGuy Notebook Consultant

    Reputations:
    67
    Messages:
    263
    Likes Received:
    1
    Trophy Points:
    31
    +rep @ Nivaku & taylrjones
    Thanks for the review and for the heads-up on the amazon purchase! Thank you $4 one day shipping :D

  19. ElectricTurtle

    ElectricTurtle Notebook Consultant

    Reputations:
    103
    Messages:
    189
    Likes Received:
    2
    Trophy Points:
    31
    Sorry for being stupid but i've never been able to reach one of these before in my country. So, where do u guys put it in ???

  20. Nivaku

    Nivaku Notebook Evangelist

    Reputations:
    128
    Messages:
    689
    Likes Received:
    6
    Trophy Points:
    31
    on the right side of your m15x bro, near the front there's a cover protecting it from dust and stuff, just push the cover in and it should pop out.

    The pics provided should give you an idea on where it's at, if you still need more help hit me up bro

  21. ElectricTurtle

    ElectricTurtle Notebook Consultant

    Reputations:
    103
    Messages:
    189
    Likes Received:
    2
    Trophy Points:
    31
    Holy @%#^$&*#^, how come i didn't see it XD. I know my M15x lacks an express card slot compared to other laptops and it's been bugging me this whole time. BIG HUGE LOL at me LOL XD
    Thanks to you and lol to me ^^!! /facepalm

  22. Nivaku

    Nivaku Notebook Evangelist

    Reputations:
    128
    Messages:
    689
    Likes Received:
    6
    Trophy Points:
    31
    Np bro glad i could help

  23. JWest

    JWest Master of Notebookery

    Reputations:
    233
    Messages:
    907
    Likes Received:
    0
    Trophy Points:
    30
    Thanks for the link to the adapter, I've been in need of more USB ports anyway, and with an adapter like this it pretty much adds more ports right into the laptop. And of course they're 3.0, so yippy :)

    + Rep ;)

  24. Jdpurvis

    Jdpurvis Notebook Evangelist

    Reputations:
    152
    Messages:
    512
    Likes Received:
    182
    Trophy Points:
    56
    Don't feel too bad - if you look a few posts up, you will see that I made the same mistake. I've had my m15x for nearly 18 months - and all the time I thought I had a stripped down model without the Expresscard and SD slots!

    Joe

  25. Zswickliffe

    Zswickliffe Notebook Evangelist

    Reputations:
    231
    Messages:
    654
    Likes Received:
    0
    Trophy Points:
    30
    Cant wait to hear more reports to see if others are experiencing the same speed increases!

  26. svl7

    svl7 T|I

    Reputations:
    4,719
    Messages:
    3,758
    Likes Received:
    134
    Trophy Points:
    131
    Hey, little question about this adapter... when you take a look at this (scroll down to the pictures) then you see them using a cable between a regular USB jack and the middle of the card, for "additional power supply". Is this necessary to make this thing functional? Or does it only improve the performance? Or what is this for?

  27. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    It's to power the thing. I don't think the expresscard slot delivers the same voltage as an ordinary USB port does.

  28. svl7

    svl7 T|I

    Reputations:
    4,719
    Messages:
    3,758
    Likes Received:
    134
    Trophy Points:
    131
    So... Do you know whether it doesn't work at all without the power cable or does it simply work at slower speeds?

  29. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    I think if your peripheral is powered in it's own way like a HDD dock bay or something, it should be fine. But I don't think it will be able to power a single cable external drive.

  30. Jdpurvis

    Jdpurvis Notebook Evangelist

    Reputations:
    152
    Messages:
    512
    Likes Received:
    182
    Trophy Points:
    56
    This is to accomodate the occasional USB device that draws more current than the laptop wants to provide. External hard disks and Blackberries are potential culprits - I've had this happen with other laptops.

    However, I've never had a device complain about not enough power via USB with the mx15, so, maybe the power supply is more robust.

    Joe

  31. svl7

    svl7 T|I

    Reputations:
    4,719
    Messages:
    3,758
    Likes Received:
    134
    Trophy Points:
    131
    Ok, I'll see, it was dirt cheap anyway, even though it gets shipped from the states. Thanks guys.

  32. Jdpurvis

    Jdpurvis Notebook Evangelist

    Reputations:
    152
    Messages:
    512
    Likes Received:
    182
    Trophy Points:
    56
    Both my single cable external USB drives --Toshiba 1TB and WD 500 GB run happily on the standard USB from my mx-15 and from the USB 3.0 adapter without any external power. I have not tried running both at the same time.

    However, not all laptops are created equal. I have had situations where a work laptop (smaller Dell) wouldn't support one of my drives - shorter USB cable seemed to help. And the same smaller laptop would not support my BlackBerry.

    Joe

  33. JWest

    JWest Master of Notebookery

    Reputations:
    233
    Messages:
    907
    Likes Received:
    0
    Trophy Points:
    30
    I gotta say, I highly recommend this upgrade :D Really I just wanted to add two extra USB ports (come on Dell, 3 USB ports on this thing? Really?), but I just bought an external drive to back up on and it uses USB 3.0. All I can say is HOLY CRAP. This thing is damn fast. Seriously, this is definitely a worthy upgrade, and it's only $20!

  34. Infin1ty

    Infin1ty Notebook Geek

    Reputations:
    0
    Messages:
    78
    Likes Received:
    0
    Trophy Points:
    15
    So I read the other pages, and I'm confused about the power supply, is it definitely needed?

  35. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    I think the consensus is that it shouldn't be needed however, if your device fails to power up from the added USB ports, then you may need the power source.

  36. Infin1ty

    Infin1ty Notebook Geek

    Reputations:
    0
    Messages:
    78
    Likes Received:
    0
    Trophy Points:
    15
    Thanks widezu69, I swear you've answered every query I've had so far

  37. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    Don't sweat it, I'm just a guy who wants to help :)

  38. Jdpurvis

    Jdpurvis Notebook Evangelist

    Reputations:
    152
    Messages:
    512
    Likes Received:
    182
    Trophy Points:
    56
    I agree. I have not yet found a device that the M15x couldn't power directly via USB, but I have seen this with other laptops. I recently bought a USB 3.0 double drive bay - all of these devices seem to have their own AC power.

    Joe

  39. Syth

    Syth Notebook Consultant

    Reputations:
    14
    Messages:
    161
    Likes Received:
    0
    Trophy Points:
    30
    Does anyone know if they ship to Canada? On the ebay page it seems that it only ships to the US :(

  40. The Revelator

    The Revelator Notebook Prophet

    Reputations:
    5,395
    Messages:
    4,571
    Likes Received:
    2
    Trophy Points:
    105
  41. Syth

    Syth Notebook Consultant

    Reputations:
    14
    Messages:
    161
    Likes Received:
    0
    Trophy Points:
    30
    Haha, now how did i forget about Amazon. Just ordered thx :)

  42. svl7

    svl7 T|I

    Reputations:
    4,719
    Messages:
    3,758
    Likes Received:
    134
    Trophy Points:
    131
    I ordered my card from ebay as well and they even ship it to Switzerland... for free :D I guess it will be the same for Canada. Just search for USB 3.0 expresscard, there are a ton of sellers selling this thing.

  43. DuxDucis

    DuxDucis Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
  44. svl7

    svl7 T|I

    Reputations:
    4,719
    Messages:
    3,758
    Likes Received:
    134
    Trophy Points:
    131
    I got mine a couple of days ago, very fast and free shipping, card works fine so far and fits pretty good.

  45. EleJota

    EleJota Notebook Guru

    Reputations:
    1
    Messages:
    58
    Likes Received:
    0
    Trophy Points:
    15
    i have a stupid question about of this device, i buy one of this expresscard i try to update the firmware and allways show this msg:
    No found the target device.

  46. DarthXX

    DarthXX Notebook Enthusiast

    Reputations:
    0
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    Misread the OP speeds, can some people who have bought it give me some idea of how fast this is, people saying "really fast" is not very helpful :)

    It's only 20 bucks so I'll probably get it anyway, but it might be worth my money just to get an eSata external drive hmm.

  47. DR650SE

    DR650SE The Whiskey Barracuda

    Reputations:
    7,383
    Messages:
    8,222
    Likes Received:
    178
    Trophy Points:
    231
    See Sig link for details ;)

  48. Carceri

    Carceri Notebook Enthusiast

    Reputations:
    0
    Messages:
    27
    Likes Received:
    0
    Trophy Points:
    5
    I have the exact same problem, yet the device seems to work fine.

  49. The Revelator

    The Revelator Notebook Prophet

    Reputations:
    5,395
    Messages:
    4,571
    Likes Received:
    2
    Trophy Points:
    105
    The Firmware 3.0.2.8 (only FW update I was able to find) only works on devices with firmware 3.0.2.7 or earlier. The firmware shown for my Renesas NEC USB 3.0 Host Controller (and probably yours) is 4015, so perhaps we have the most recent firmware or the firmware update just doesn't apply to our device?

  50. FXi

    FXi Notebook Deity

    Reputations:
    345
    Messages:
    1,054
    Likes Received:
    130
    Trophy Points:
    81
    That is a nearly perfect card, imo. 2 flush ports is perfect. The only thing I'd improve would be to put a right angle on the power adapter going into the card just to keep that power input from sticking out very far.

    Nice find :)

 Next page →
