    SATA to SSD change

    Discussion in 'Alienware M15x' started by dalook, May 1, 2011.

  1. dalook

    dalook Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Hey just purchased a 256GB Samsung 470 series Serial ATA and would like to swap it out with the current drive which is a st9500 Seagate drive SATA. I tried to complete this last night and discovered that it physically would not happen. The connector that attaches to the current Seagate drive would not fit with the Samsung SSD. I am not sure if I need to purchase a new type of disk connector to match it up or if i'm doing something wrong. If you could please assist me that would be awesome, Thanks

    dalook, May 1, 2011
    #1
  2. svl7

    svl7 T|I

    Reputations:
    4,719
    Messages:
    3,758
    Likes Received:
    134
    Trophy Points:
    131
    You need to remove the interposer from the HDD and put it on the connector of the SSD, should work like a charm. Can you post some pictures to explain what's exactly the problem?

    Edit: Service manual page 18...

    svl7, May 1, 2011
    #2
  3. dalook

    dalook Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Yeah I will re-post pictures when I get home from work to better show the issue.

    dalook, May 1, 2011
    #3
  4. Jdpurvis

    Jdpurvis Notebook Evangelist

    Reputations:
    152
    Messages:
    512
    Likes Received:
    182
    Trophy Points:
    56
    As svl7 says, there is an adapter on the end of the drive that needs to be moved to the new drive. I made the same mistake, and actually took a drive back to the store because I thought it didn't fit. Easy and common mistake.

    Good luck with your new SSD!

    Joe

    Jdpurvis, May 1, 2011
    #4
  5. Sgt.

    Sgt. Notebook Consultant

    Reputations:
    95
    Messages:
    254
    Likes Received:
    0
    Trophy Points:
    0
    The solution lies with what svl and other guys have already said. Try it out. It's a walk in the park.
    Cheers

    Sgt., May 2, 2011
    #5
  6. xeroxide

    xeroxide Notebook Deity

    Reputations:
    487
    Messages:
    1,390
    Likes Received:
    1
    Trophy Points:
    56

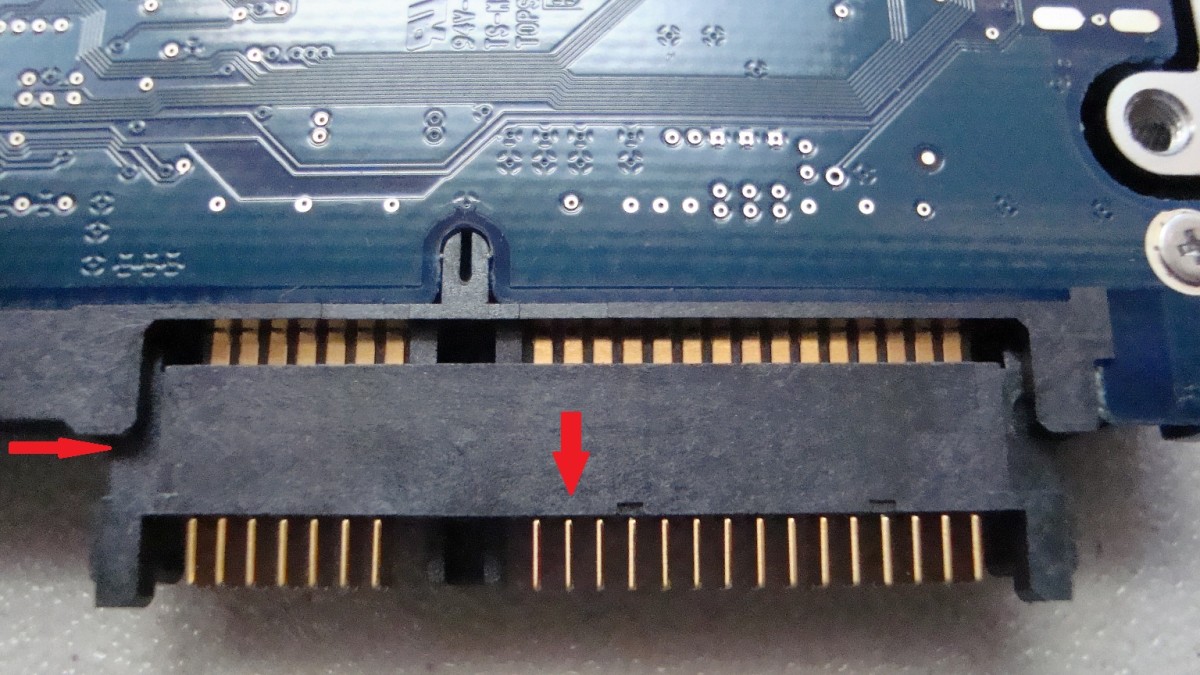

    courtesy of google image search
    [​IMG]
    it should slip off quite easily, don't loose it.

    xeroxide, May 2, 2011
    #6
