    Thermal pads on gpu

    Discussion in 'Alienware M15x' started by khetik, Oct 1, 2012.

  1. khetik

    khetik Notebook Deity

    Reputations:
    101
    Messages:
    812
    Likes Received:
    17
    Trophy Points:
    31
    Where exactly are the thermal pads needed on a the gfx card, and are they all the .5mm size? I have the 5850m, and the stock pads seem to be of 2 different sizes (possibly 1mm?). The 2 squares on the right vertical area are 2 thermal pad squares stock from previous gfx card and I believe that those are 2 of the required areas, not sure about the rest

    Is the plastic cover around the die area needed to be there or effect performance?

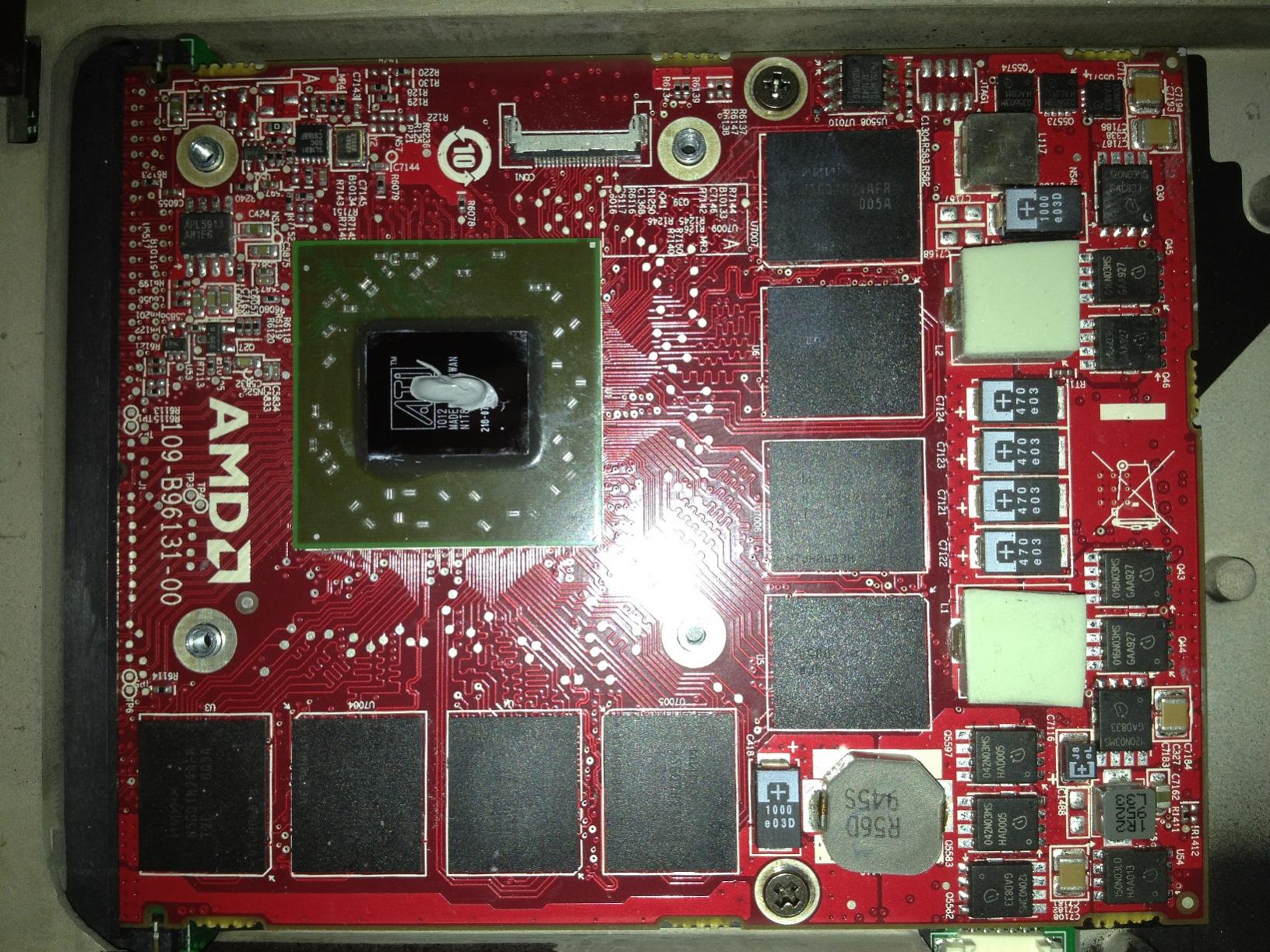

    Pic attached of my gfx


    Attached Files:

    khetik, Oct 1, 2012
    #1
  2. lastOne

    lastOne Notebook Guru

    Reputations:
    24
    Messages:
    70
    Likes Received:
    8
    Trophy Points:
    16
    usually on all the black squares (memory chips)

    the plastic cover is there mostly to protect against too much thermal paste

    lastOne, Oct 1, 2012
    #2
  3. STiHiaL

    STiHiaL Notebook Consultant

    Reputations:
    22
    Messages:
    166
    Likes Received:
    44
    Trophy Points:
    41
    [​IMG]
    This one is Ok )
    ~0.5-0.6mm

    STiHiaL, Oct 1, 2012
    #3
  4. khetik

    khetik Notebook Deity

    Reputations:
    101
    Messages:
    812
    Likes Received:
    17
    Trophy Points:
    31
    one other thing i noticed was that there was a thermal pad about 1mm on the heatsink near the copper square over the gpu die. After removing it i've noticed an increase by a few degrees in the temp.

    khetik, Oct 2, 2012
    #4
