    USB3.0 Vs ESATA (Using Express Card)

    Discussion in 'Alienware M15x' started by EleJota, Aug 8, 2011.

  1. EleJota

    EleJota Notebook Guru

    Reputations:
    1
    Messages:
    58
    Likes Received:
    0
    Trophy Points:
    15
    Hello normally to work publishing video and use an external box of 2.5 Power inches to over ESATA, being looked for one better rate of transference and a better yield buys a card express card usb 3,0 since my M15x does not have usb3.0 here them attached the comparative one that I have realised.

    Devices:
    Express Card Expresscard 54 to USB 3.0 x 2 Port Adaptor
    </title>< name="description" content="Compra Express Card Expresscard 54 to USB 3.0 x 2 Port Adaptor en la categoría Computing, Laptop Accessories, PCMCIA Cards, Other PCMCIA Cards de eBay España.">< name="keywords" content="Express Card Ex

    Western Digital Scorpio Blue 2.5" 500GB SATA 3Gb/s 8MB 5400RPM

    Delock 2.5 External enclosure SATA HDD > Power Over eSATA
    DeLOCK > Products > Enclosures > 42465 Delock 2.5 External enclosure SATA HDD > Power Over eSATA

    Lian li 2.5 Inch External Enclosure USB3.0 Model : EX-10Q
    Lian Li Industrial Co., Ltd.

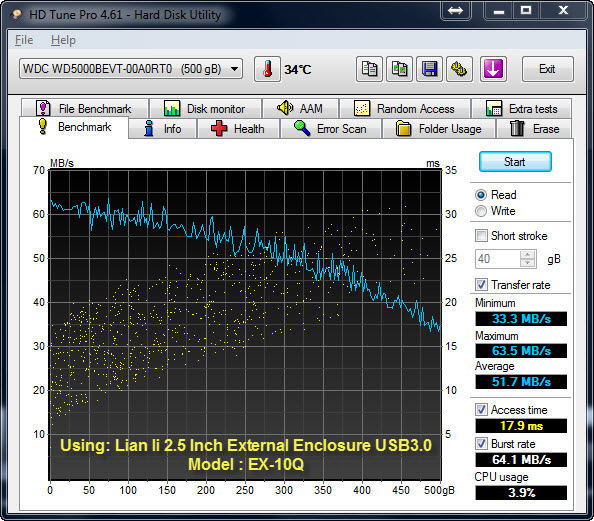

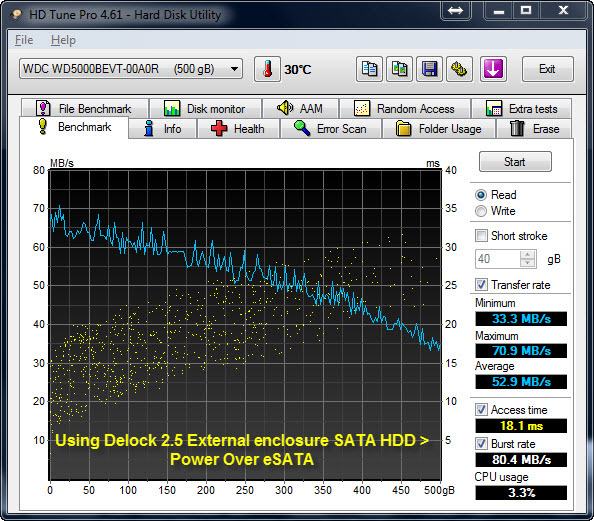

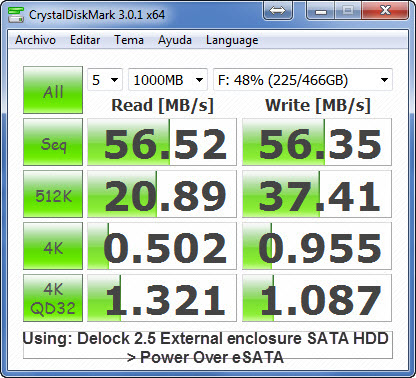

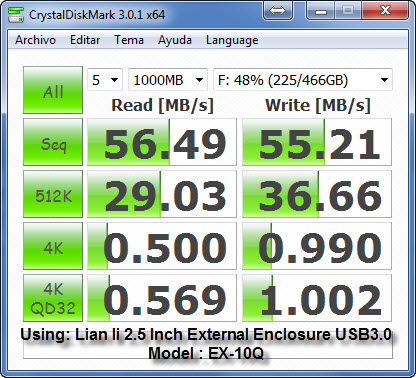

    It realises the test with HD Tune 4,61 Pro and Crystal Disk 3.0.1 Mark X64 with the following results:
    (But I do not know if the port express card of my M15x can take advantage of all the potential port USB3.0.)


    Attached Files:

    EleJota, Aug 8, 2011
    #1
  2. svl7

    svl7 T|I

    Reputations:
    4,719
    Messages:
    3,758
    Likes Received:
    134
    Trophy Points:
    131
    Here's a thread about how USB 3.0 expresscards and the M15x:
    http://forum.notebookreview.com/alienware-m15x/573153-m15x-usb-3-0-express-card-54-a.html

    You can get a expresscard with 2 USB 3.0 ports for about $15, which is pretty cool, the transfer rates aren't full USB 3.0 speed, but definitely faster than what you get with USB 2.0.
    I got up to 90 MB/s with my USB 3.0 expresscard, depends on the device which you connect.

    However, the eSata port is still the best choice for transfering data from/to the M15x. eSata is faster than USB 3.0 and it works very well on the M15x, too bad there's only one port imo.

    svl7, Aug 8, 2011
    #2
  3. ASCI_Blue

    ASCI_Blue Notebook Consultant

    Reputations:
    1
    Messages:
    191
    Likes Received:
    0
    Trophy Points:
    30
    might be limited by the 5400 rpm drive too. my understanding is our computers expresscard slot is a 1x as well so I'm not sure if there's enough bandwidth from that to handle USB 3's full potential.

    I've been debating what to do with this stuff as well since I've only got a 320 gig drive in my computer and the one this is replacing has 680 gigs worth of space and much of that was full. 300 gigs of that computer is media and could viably used over esata or USB 3 or maybe even USB 2.

    ASCI_Blue, Aug 8, 2011
    #3
  4. James D

    James D Notebook Prophet

    Reputations:
    2,314
    Messages:
    4,901
    Likes Received:
    1,132
    Trophy Points:
    231
    USB is UNIVERSAL serial bus. Maybe you need more than 1 eSata while some of us don't need even 1. Good that mine my VAIO has combo eSata and USB port

    James D, Aug 8, 2011
    #4
  5. ElectricTurtle

    ElectricTurtle Notebook Consultant

    Reputations:
    103
    Messages:
    189
    Likes Received:
    2
    Trophy Points:
    31
    Wow, that's amazing, eSata and USB combo ... wait ... we all have that port buddy ... ;)

    ElectricTurtle, Aug 8, 2011
    #5
  6. svl7

    svl7 T|I

    Reputations:
    4,719
    Messages:
    3,758
    Likes Received:
    134
    Trophy Points:
    131
    Well, the eSata port of the M15x is a combo port... I dind't mention this since all M15x owners know this and it wasn't relevant to the subject...
    A perfect notebook should have eSata/USB combo ports instead of USB ports. But the average user only really uses USB, that's true.

    Edit: Lol, the turtle was quick... :D

    svl7, Aug 8, 2011
    #6
  7. James D

    James D Notebook Prophet

    Reputations:
    2,314
    Messages:
    4,901
    Likes Received:
    1,132
    Trophy Points:
    231
    I know that it is... that's an answer to both of you guys :). It proves that even 1 single eSata is more than you need, while you say need more than 1 ;)

    EDIT
    LOL too :D

    James D, Aug 8, 2011
    #7
  8. xeroxide

    xeroxide Notebook Deity

    Reputations:
    487
    Messages:
    1,390
    Likes Received:
    1
    Trophy Points:
    56
    well i could certainly use a 2nd esata port.
    I occasionally xfer a large amount of data from external to external using 2 hdd docks (the sort that allows you to plug in an internal desktop hdd).
    they use usb2 and/or esata.

    xeroxide, Aug 8, 2011
