    After the GPU Downclocking... Do we have a CPU one? A call to M15x owners.

    Discussion in 'Alienware' started by milcs, May 11, 2008.

  1. milcs

    milcs Anti-fanboy

    Reputations:
    247
    Messages:
    2,005
    Likes Received:
    0
    Trophy Points:
    55
    Thank you very much about that dhoang. That's extremely helpful.
    Well... I was told that they "control" everything you post. Appart from that... I can't really use it as I'm in Europe (AW knows we are more demanding... :D).

    Keep us posted regarding that thread then.
    Thanks for your help.

  2. kobe

    kobe Notebook Virtuoso

    Reputations:
    374
    Messages:
    2,629
    Likes Received:
    1
    Trophy Points:
    55
    Will do Milcs. I'll occasionally drop by the forums and ask for an update. And keep you guys updated.

  3. tacomenace21

    tacomenace21 Notebook Deity

    Reputations:
    75
    Messages:
    1,124
    Likes Received:
    0
    Trophy Points:
    55
    thanks guys for all your testing. I really wish AW would do something about this but NO ONE WILL ANSWER US!!!! I think after dealing with this issue I'll never buy AW again!!! by the way we have a new record for time it takes to downclock!

  4. Lessaj7

    Lessaj7 Notebook Evangelist

    Reputations:
    23
    Messages:
    400
    Likes Received:
    0
    Trophy Points:
    30
    Yea I replaced my paste, takes a good 6 minutes almost. Oh well!

  5. newfiejudd

    newfiejudd Notebook Deity

    Reputations:
    305
    Messages:
    1,139
    Likes Received:
    3
    Trophy Points:
    56
    This is still not fixed by AW. Holy S$@T that is appalling. AW needs a good class action suite and public humiliation. I would just return the system if I were you guys. You have more then enough evidence to prove your system are defective, and demand a full refund. I think the time has long passed for AW to offer a reasonable repair time frame for you guys. I wonder if anyone has even tried contacting Intel about this. I have ahd to deal with them before in the past, and they where amazing to deal with. And our work issues were resolved quickly and professionally.

  6. kobe

    kobe Notebook Virtuoso

    Reputations:
    374
    Messages:
    2,629
    Likes Received:
    1
    Trophy Points:
    55
    Why not give AW a chance to fix up the system by sending it in and let them honor the warranty that you paid for?

  7. milcs

    milcs Anti-fanboy

    Reputations:
    247
    Messages:
    2,005
    Likes Received:
    0
    Trophy Points:
    55
    Dhoang, regarding the extreme CPUs... this issue has been "exposed" by newfie, Taco and so many others. This has been what? 3 months ago. Has anything been done? New laptops being shipped with the extreme processor still have the exact same problem.

    Sort to say... they simply can't solve it. But they don't even stop giving the extreme processor as an option.

  8. Miho

    Miho Notebook Consultant

    Reputations:
    187
    Messages:
    248
    Likes Received:
    0
    Trophy Points:
    30
    Capitalism at its finest. :rolleyes:

  9. kobe

    kobe Notebook Virtuoso

    Reputations:
    374
    Messages:
    2,629
    Likes Received:
    1
    Trophy Points:
    55
    They haven't sent their m15x's in for AW for a chance to try to take a look at the problem yet.

  10. tacomenace21

    tacomenace21 Notebook Deity

    Reputations:
    75
    Messages:
    1,124
    Likes Received:
    0
    Trophy Points:
    55
    well I think the problem is AW doesn't want us to send the system in for the simple fact that they have been able to reproduce to problem are trying out ways to fix it which they haven't yet. They are saying to themselves why spend our money sending the system in when we can't even fix it ourselves.

  11. kobe

    kobe Notebook Virtuoso

    Reputations:
    374
    Messages:
    2,629
    Likes Received:
    1
    Trophy Points:
    55
    Sure about this? Send it in and let them see for themselves. I must admit AW is pretty hard-headed at times. :D

  12. tacomenace21

    tacomenace21 Notebook Deity

    Reputations:
    75
    Messages:
    1,124
    Likes Received:
    0
    Trophy Points:
    55
    well I would but like I said they have been able to reproduce the issue themselves so if they can't fix on their on machines I highly doubt they'll be able to fix it on mine. I keep in touch pretty regularly with AW and they have never given me the option to send it.

    EDIT: Just got off the phone with them and they still haven't got a fix for it. and i quote "We still have not gotten a fix for that yet but our mobile group is working on it, please send an e-mail to [email protected] with your info" So there we go.

  13. kobe

    kobe Notebook Virtuoso

    Reputations:
    374
    Messages:
    2,629
    Likes Received:
    1
    Trophy Points:
    55
    Man, if everyone on this forum with the extreme processor has this same downclocking problem and can reproduce the issue easily how hard can it be for AW. So, AW is working on this issue right?

  14. tacomenace21

    tacomenace21 Notebook Deity

    Reputations:
    75
    Messages:
    1,124
    Likes Received:
    0
    Trophy Points:
    55
    well they been saying that for around 2 months now.

    EDIT: Ok so I've e-mailed a corp guy at Intel that I know through work. I'll see what he has to say about all this maybe we can at least stop AW from selling the x9000 on the m15x

  15. groove75

    groove75 Notebook Evangelist

    Reputations:
    84
    Messages:
    413
    Likes Received:
    0
    Trophy Points:
    30
    Has anybody been able to reproduce the downclocking issue with real world applications? Meaning, can anyone do it without actually using a stress test program designed specifically to bring a cpu to it's knees? I was going to read back through the thread and see for myself until I noticed we're on page 42... I suddenly got very tired at the thought. ;)

  16. kobe

    kobe Notebook Virtuoso

    Reputations:
    374
    Messages:
    2,629
    Likes Received:
    1
    Trophy Points:
    55
    Maybe that's why AW is taking so long to test because they are testing it through real world apps and trying to find downclocking through them instead of these stress tests.

  17. milcs

    milcs Anti-fanboy

    Reputations:
    247
    Messages:
    2,005
    Likes Received:
    0
    Trophy Points:
    55
    Several people experienced this downclocking during WoW, some during video compressing/editing, etc etc...
    AW hasn't done a thing because they don't know how to solve it. They have no solution for it and they keep selling computer with the extreme processor even if it overheats and downclocks.

    Isn't this unacceptable? Why don't they simply stop selling the extreme processor if they are aware there is a problem with it? You know why? Because that would be assuming in front of the world they do have a problem with their cooling and they do not want to do that.

    Marketing and corporativism... Anyway.........

  18. tacomenace21

    tacomenace21 Notebook Deity

    Reputations:
    75
    Messages:
    1,124
    Likes Received:
    0
    Trophy Points:
    55
    yes mine will downclock while converting videos. It will happen after a few min of the cpu being at 100% and Lessa and New had downclocking while playing WoW.

  19. groove75

    groove75 Notebook Evangelist

    Reputations:
    84
    Messages:
    413
    Likes Received:
    0
    Trophy Points:
    30
    Taco, has your downvolting fix solved the problem?

  20. tacomenace21

    tacomenace21 Notebook Deity

    Reputations:
    75
    Messages:
    1,124
    Likes Received:
    0
    Trophy Points:
    55
    well yes it does work thats what I do when I do work like that, but at the same time I shouldn't have to do that. It should work without a work around. Thats why I really pushing for AW to fix this plus its not cool for new people that buy that cpu.

  21. kobe

    kobe Notebook Virtuoso

    Reputations:
    374
    Messages:
    2,629
    Likes Received:
    1
    Trophy Points:
    55
    I agree with Milcs for one thing. If AW can't fix this issue that happens during real life applications, then it's a better idea not to sell it. But, I think that they are still working on a plausible solution.

  22. Lessaj7

    Lessaj7 Notebook Evangelist

    Reputations:
    23
    Messages:
    400
    Likes Received:
    0
    Trophy Points:
    30
    Yea how about a cooling system that doesn't suck my left testicle. I like that idea. Or having the fan actually ontop of the component might help.

  23. Coresong

    Coresong Notebook Enthusiast

    Reputations:
    24
    Messages:
    48
    Likes Received:
    0
    Trophy Points:
    15
    I was wondering why my framerate is Wow was periodically plummeting. I loaded HWmonitor/RMClock and low and behold, my X7900 extreme M15x was steadily cycling between a 14x and 6x multiplier once the cpu temp got to 86-88C.

    The cooling system just isnt capable, seems a blatant design flaw.

    I tried the undervolting experiment, dropped the stock 1.2625v setting down to 1.15v (1.10v was not stable), and presto, my max CPU temps dropped to 71-72C and no cycling down to 6x multiplier.

    SO far the fix seems rock steady, but its hardly the job of the users to find this fix. I have tried to give AW the benefit of the doubt here, but after all the bios probs, the smoking vid card temps, and now the downclocking CPU issues, the m15x fails at thermal design. It is a flawed system as shipped, perhaps there is a hardware fix that can increase the cooling to the CPU, but other than that, software kludges (even if this undervolting fix holds up) is just not a valid long term solution.

    A redesigned cooling system is the only solution that would be acceptable.

    For those willing to try, I heartily recommend the undervolting "fix" suggested here. Its just sad the fix comes from the user base and not Alienware....

  24. tacomenace21

    tacomenace21 Notebook Deity

    Reputations:
    75
    Messages:
    1,124
    Likes Received:
    0
    Trophy Points:
    55
    so now we have someone else with downclocking! Thank you for testing and now we can add you to the list. I agree with you 100% that the cooling system is flawed and they lacked in testing. Also glad to hear the undervolting helped you out.

  25. milcs

    milcs Anti-fanboy

    Reputations:
    247
    Messages:
    2,005
    Likes Received:
    0
    Trophy Points:
    55
    The more I read, the more it makes me sick... Added him to the list.

    9 out of 10 users with extreme processors report downclock. Does anyone else needs further proof? Does Alienware needs more evidence?

    How can AW justify their inability to solve this? How is it possible that they just ignore this horrific problem?

    Last edited by a moderator: May 8, 2015
  26. tacomenace21

    tacomenace21 Notebook Deity

    Reputations:
    75
    Messages:
    1,124
    Likes Received:
    0
    Trophy Points:
    55
    I think they have all the evidence they need. THEY NEED TO DO SOMETHING ABOUT IT!

  27. tacomenace21

    tacomenace21 Notebook Deity

    Reputations:
    75
    Messages:
    1,124
    Likes Received:
    0
    Trophy Points:
    55
    hey guys want a tip on how to downclock your extreme CPU faster! Switch to integrated graphics and watch as the temps rise super fast!! I'm assuming this is because the integrated graphics card and the cpu are using the same heatsink. Don't worry guys if you undervolt even when using integrated graphics it still won't downclock assuming you did it right.

  28. markus.kainer

    markus.kainer Notebook Guru

    Reputations:
    12
    Messages:
    68
    Likes Received:
    0
    Trophy Points:
    15

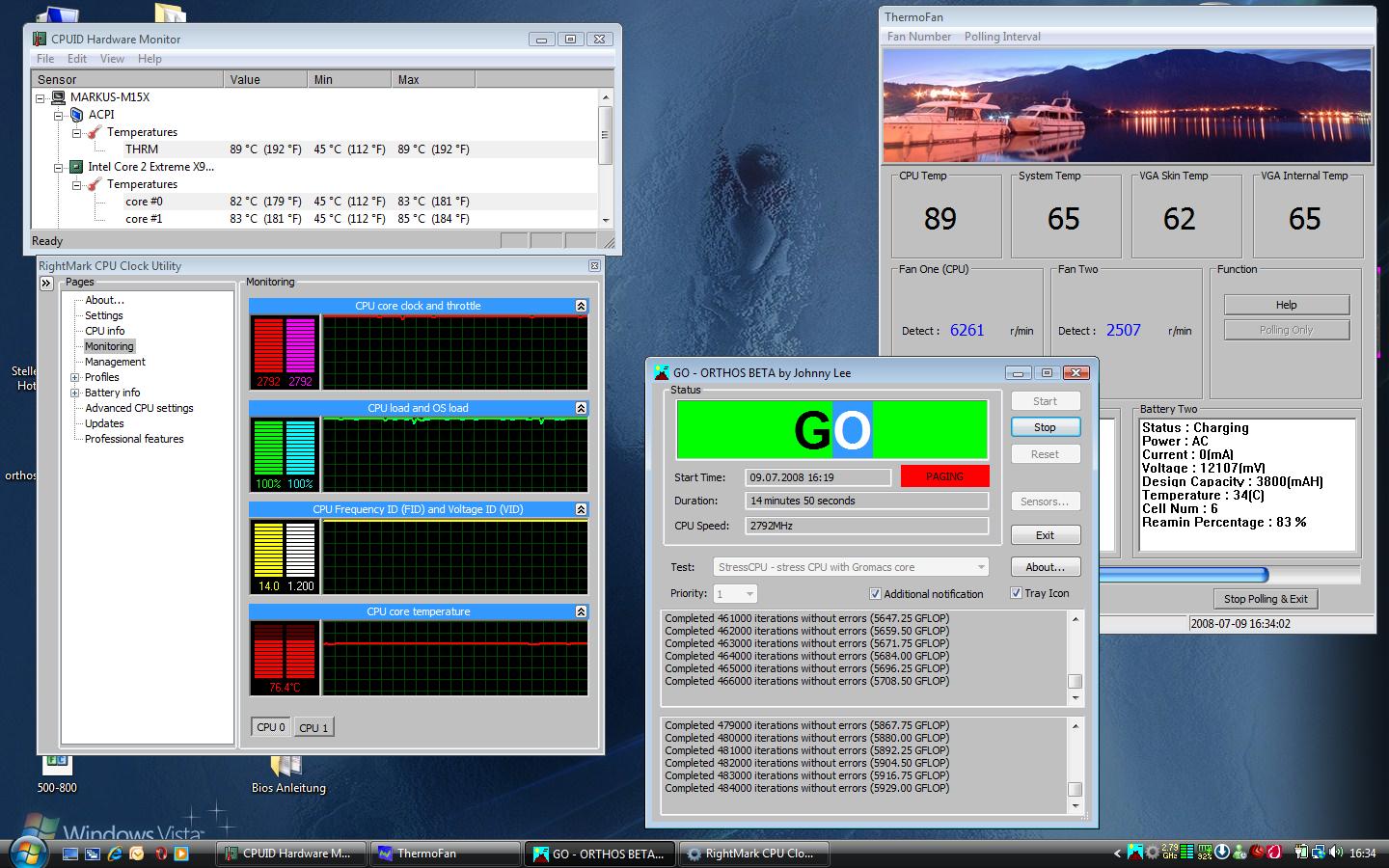

    sorry taco ... but also this is not happening on my m15x :)

  29. tacomenace21

    tacomenace21 Notebook Deity

    Reputations:
    75
    Messages:
    1,124
    Likes Received:
    0
    Trophy Points:
    55
    i'll trade you! LOL JK well you are one of the very few. Whats funny is that you upgraded yourself so it seems that we need you to repair our cpus and not AW LOL

  30. JBthatsMe

    JBthatsMe Notebook Geek

    Reputations:
    3
    Messages:
    96
    Likes Received:
    0
    Trophy Points:
    15
    Im not seeing it either taco.......im sure there is some kinda fix to this problem...there has to be some kinda of solution to the situation....I dont see why they would make some cpu's diffrently than they made others. Are other laptop makers with the same cpu have these problems??
    -J.B.

  31. milcs

    milcs Anti-fanboy

    Reputations:
    247
    Messages:
    2,005
    Likes Received:
    0
    Trophy Points:
    55

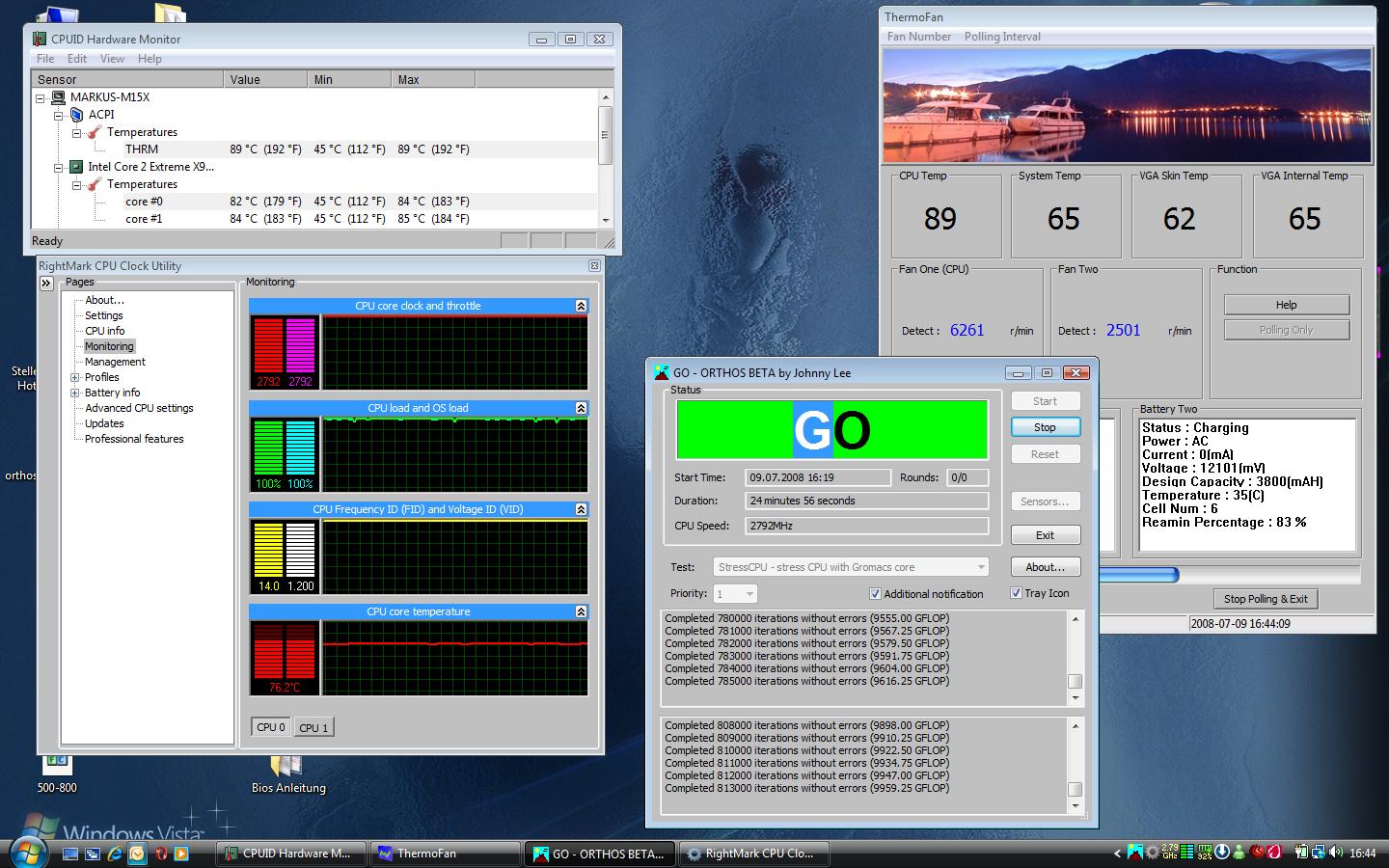

    Are the people "not seing it" actually running prime95 and RMclock to follow the core speeds (like suggested in the 1st post)? Because I am intrigued with this "not seeing it".
    Could you post us screens of your CPU's being stressed with RMclock, Thermofan and HWmonitor so that we can understand what is happening?
    That would be really helpful...

  32. evilwill32

    evilwill32 Notebook Guru

    Reputations:
    0
    Messages:
    69
    Likes Received:
    0
    Trophy Points:
    15
    Guys, count me out of the non downclocking x9000 group. I originally didn't get downclocking when I used Prime95, but I decided to monitor it while ripping a DVD to HDD. Posted screenshot of RM Clock with settings on Mobile. The indicator at the bottom right of the taskbar fluctuates between 2.8 Ghz and 1.2 GHz, a trend I saw in CPU-z, but decided to check out in RMClock to see...


    Attached Files:

  33. evilwill32

    evilwill32 Notebook Guru

    Reputations:
    0
    Messages:
    69
    Likes Received:
    0
    Trophy Points:
    15

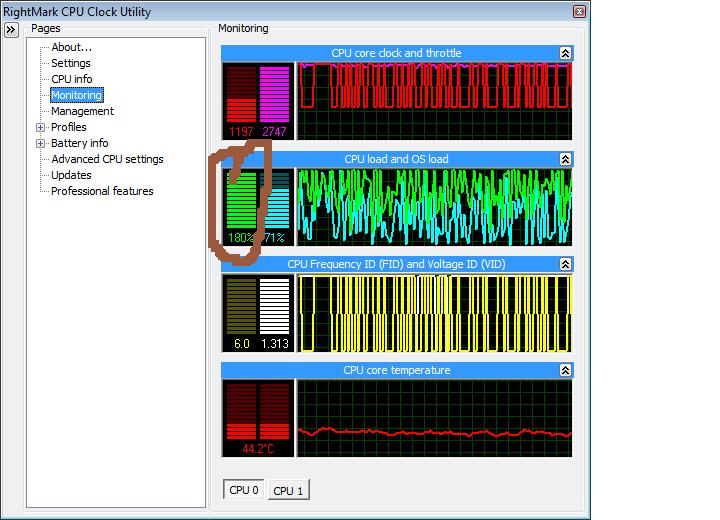

    Interestingly enough, my CPU load and OS Load bars go sometimes go over 100%- pics to come

  34. milcs

    milcs Anti-fanboy

    Reputations:
    247
    Messages:
    2,005
    Likes Received:
    0
    Trophy Points:
    55
    Hi evil.
    I am a bit unsure whether that's true downclock...
    Would you mind getting HWmonitor and Thermofan running to follow temperatures. If your temperatures are going anywhere above 92ºC, I think that you can consider you have downclocking. If not... I am not sure whether that's only a normal CPU behaviour.

    I think that you really have to do these "tests" plugged. If prime95 does not do it for you (with CPU stress test- small FTTs), I don't think your CPU is downclocking.

    I don't know... do some more tests and let us know how it goes.

    Good luck,
    M.

  35. evilwill32

    evilwill32 Notebook Guru

    Reputations:
    0
    Messages:
    69
    Likes Received:
    0
    Trophy Points:
    15

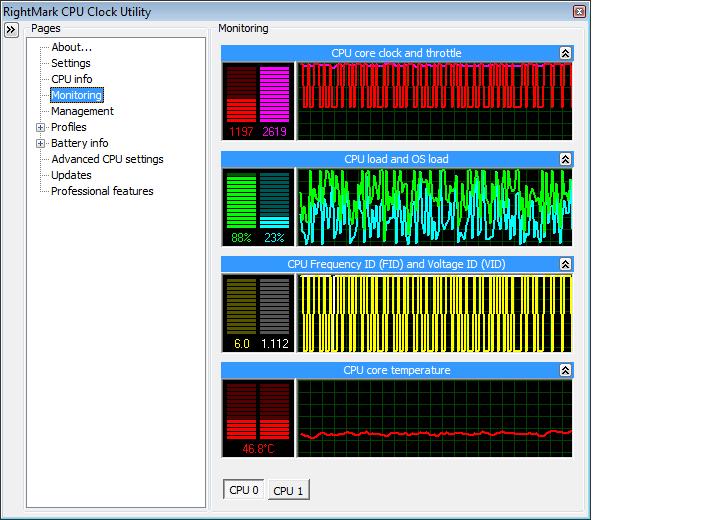

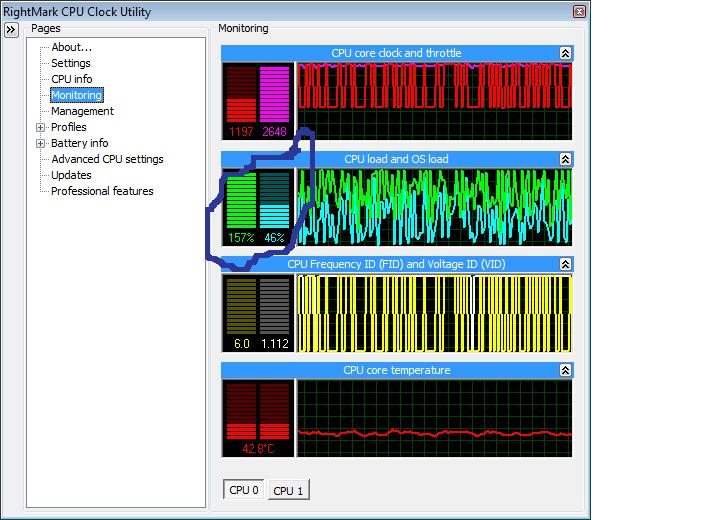

    Pics from RMClock below


    Attached Files:

  36. Mystik

    Mystik Notebook Deity

    Reputations:
    164
    Messages:
    1,095
    Likes Received:
    0
    Trophy Points:
    55
    /From page 20
    //just wanted to make sure that I was counted :)

  37. milcs

    milcs Anti-fanboy

    Reputations:
    247
    Messages:
    2,005
    Likes Received:
    0
    Trophy Points:
    55
    There you go... :) Nobody wants to leave you out! :D

  38. evilwill32

    evilwill32 Notebook Guru

    Reputations:
    0
    Messages:
    69
    Likes Received:
    0
    Trophy Points:
    15

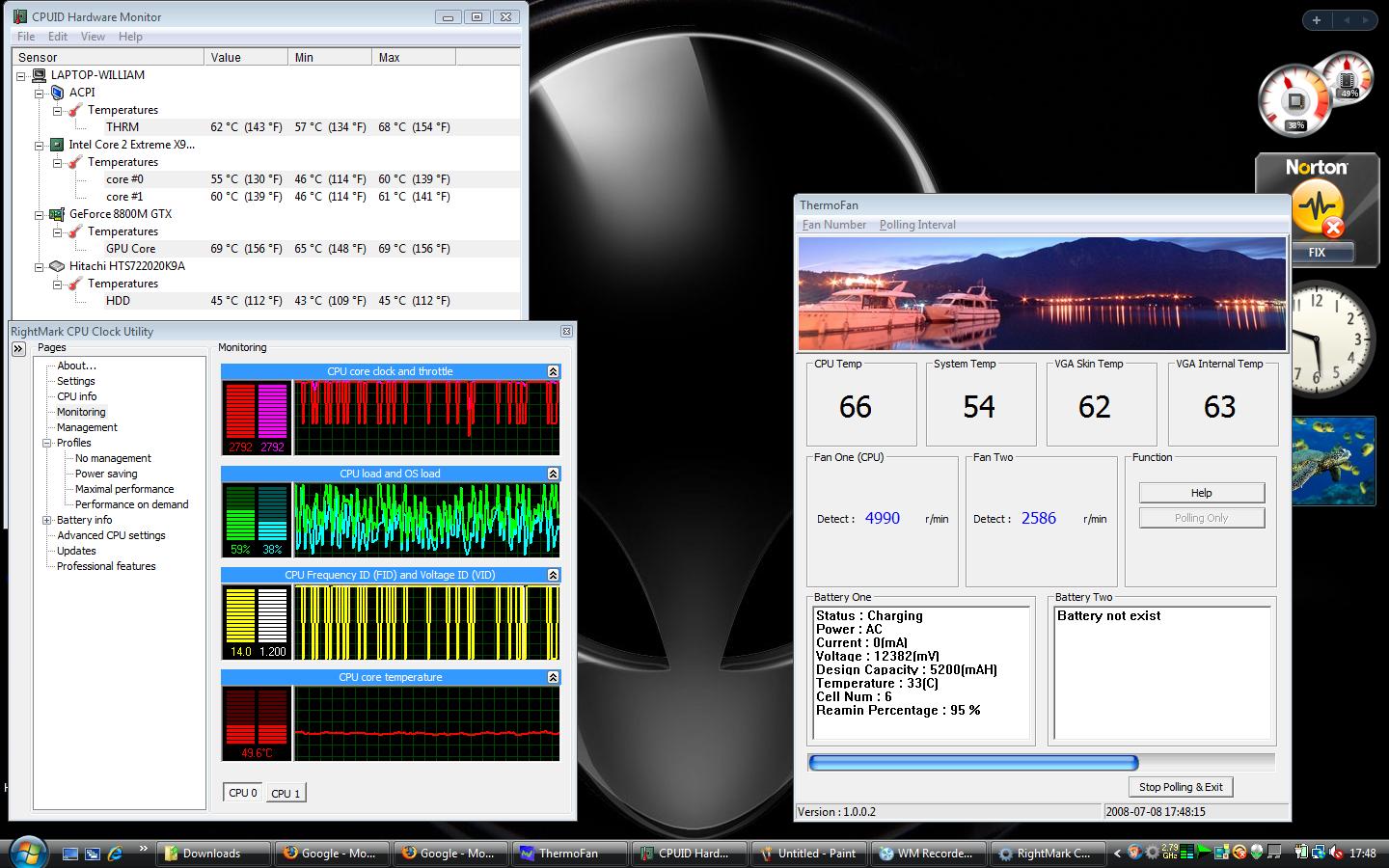

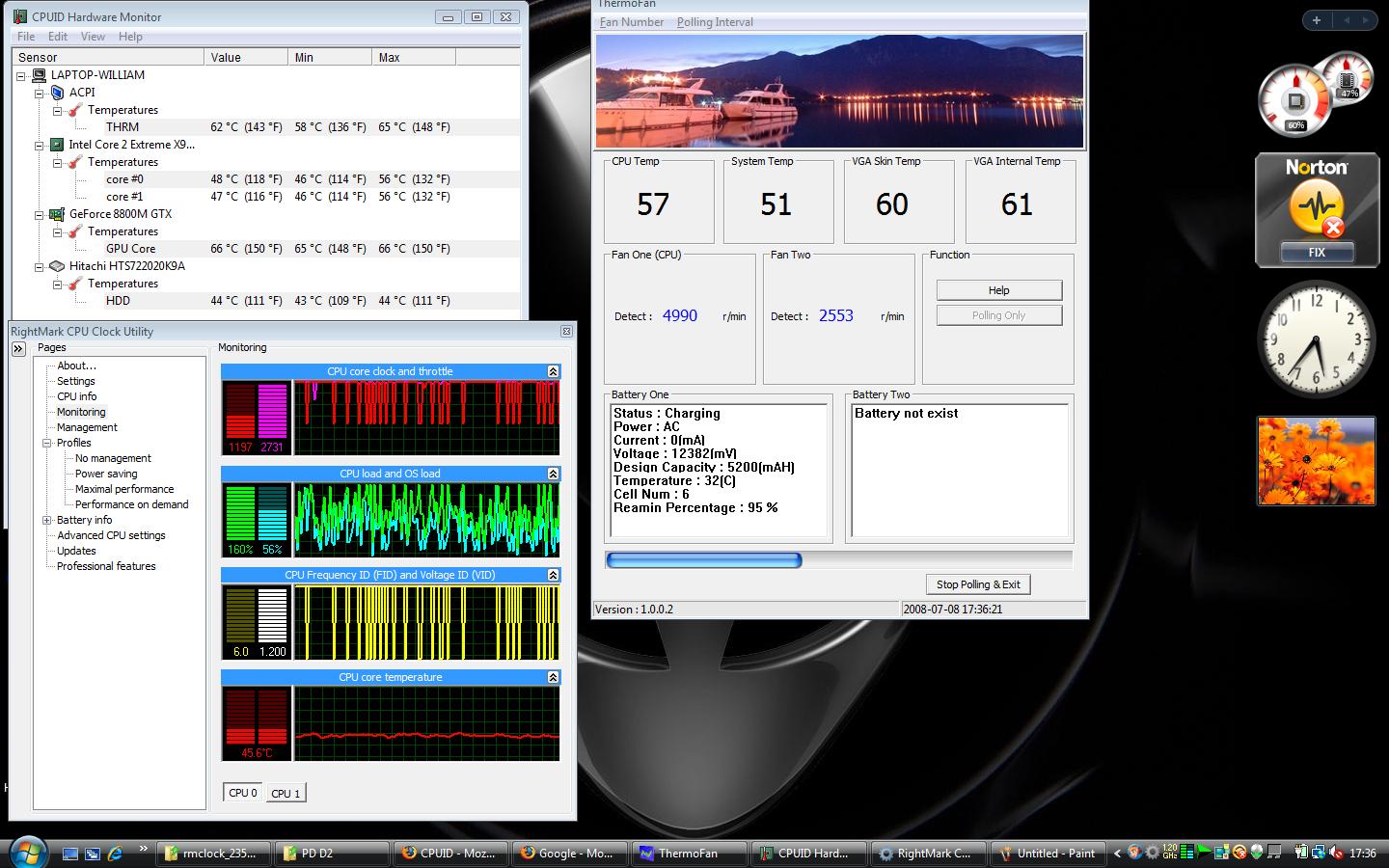

    Here are my results with HWMonitor, ThermoFan, and RMClock. One of the pics shows only Core 0 in RM Clock at a certain time, the other 2 are taken at nearly the same time, with Core 0 in RMClock in one pic, and Core 1 in RMClock in the other. Is what I have downclocking??


    Attached Files:

    • CPU.jpg
      File size:
      206.2 KB
      Views:
      131
    • CPU2.jpg
      File size:
      206.2 KB
      Views:
      122
    • CPU3.jpg
      File size:
      199.4 KB
      Views:
      132
  39. milcs

    milcs Anti-fanboy

    Reputations:
    247
    Messages:
    2,005
    Likes Received:
    0
    Trophy Points:
    55
    No... that's not downclocking. That is a normal feature from the processor which is called speedstepping.
    Do the following, get Prime95 and Run "CPU stress test- Small FTTs". This will drive your CPU to be always at max clocks and will put the CPU at working constantly at max speed.
    Use the same "trio" of programs to follow temperatures and clocks. Run Prime95 for 30 minutes. If everything is fine, you will see that the Clocks will be always on the top and never come down. If after sometime you start seeing it jumping up and down, then you do have downclock (by this point, the temperature of your CPU (according to Thermofan) should be around 92-93ºC).

    Hope that all makes sense...
    Let us know how it goes.

  40. Mystik

    Mystik Notebook Deity

    Reputations:
    164
    Messages:
    1,095
    Likes Received:
    0
    Trophy Points:
    55
    THANKS man!

    I feel spechal now!

  41. Rizz1e

    Rizz1e Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    So I'm guessing this has been a problem mainly for the extreme processors? From what I can tell the majority of the T9300's seem stable, which is refreshing.

  42. milcs

    milcs Anti-fanboy

    Reputations:
    247
    Messages:
    2,005
    Likes Received:
    0
    Trophy Points:
    55
    I'm sure that you will be perfectly fine. Given you are not going for the Extreme CPU and you are going for the 8700, you will probably won't notice any of these "overheating" problems.

    Good luck

  43. tacomenace21

    tacomenace21 Notebook Deity

    Reputations:
    75
    Messages:
    1,124
    Likes Received:
    0
    Trophy Points:
    55
    evil the way I test it is I'll run prime95 but also run thermofan and rmclock. Wait to see if your pc hits 93c if does and then drops down really quick then you have downclocking. From what it looks like to me is that it may be speed step.

  44. evilwill32

    evilwill32 Notebook Guru

    Reputations:
    0
    Messages:
    69
    Likes Received:
    0
    Trophy Points:
    15
    taco,

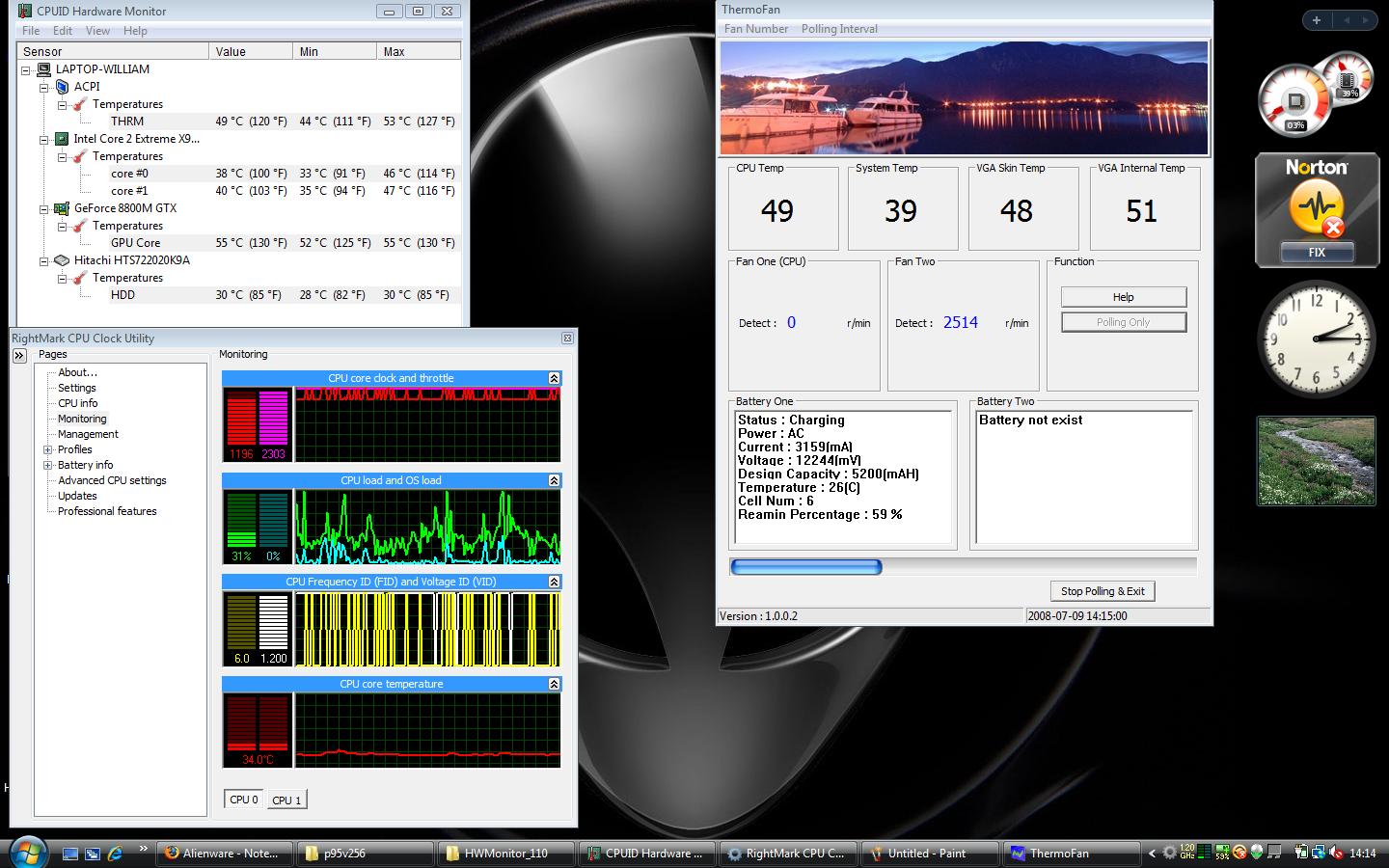

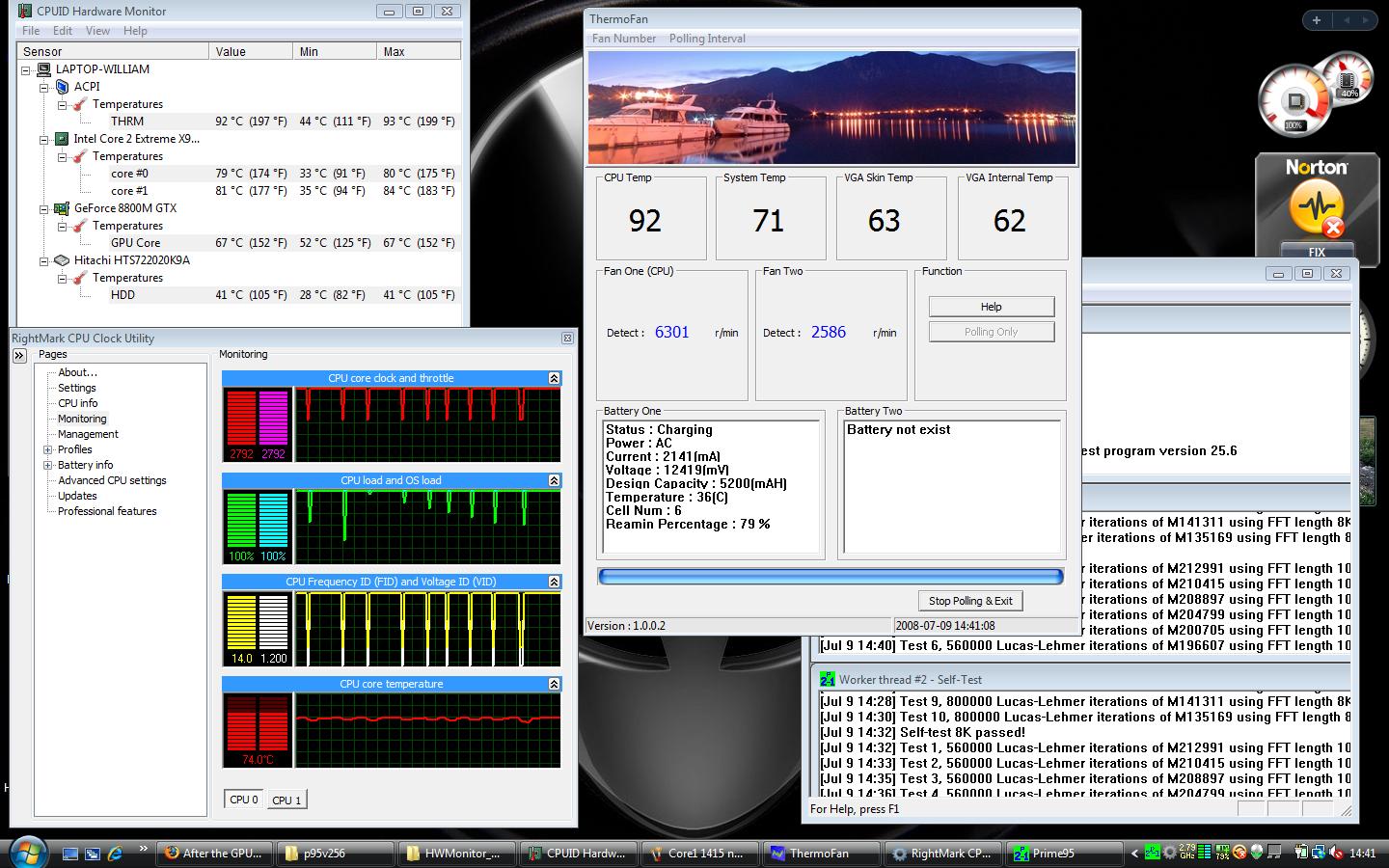

    I think I do have CPU Downclocking on my X9000. I have attached 4 pics with RM Clock, HWMonitor ThermoFan and Prime 95 in background. Two of the pics are without the CPU being stressed by Prime 95, one showing CPU 0 and one showing CPU 1 in RM Clock. The other two are after the CPU has been stressed for about 25 minutes with Prime95 (small FFT) with one showing CPU 0 in RM Clock and one showing CPU 1 in RM Clock. The conclusion of this test seems pretty obvious....


    Attached Files:

  45. milcs

    milcs Anti-fanboy

    Reputations:
    247
    Messages:
    2,005
    Likes Received:
    0
    Trophy Points:
    55
    There you go... that's is definately (NO DOUBT) the CPU downclock we are all talking about.

    I would go a step further and say that EVERYONE has this issue. Just that some people do not use the exact same programs to monitor it and, therefore, report a "non-downclocking" CPU. Like evilwill32 for example. In the beggining he reported no downclock... He just didn't look in the right direction.

    So... Here is another solid and big statement:


    Nearly 100% of the M15x with extreme processors have CPU overheating and downclocking!

    Last edited by a moderator: May 8, 2015
  46. markus.kainer

    markus.kainer Notebook Guru

    Reputations:
    12
    Messages:
    68
    Likes Received:
    0
    Trophy Points:
    15
    Here we go ... is this OK now @milcs ;)


    Attached Files:

  47. milcs

    milcs Anti-fanboy

    Reputations:
    247
    Messages:
    2,005
    Likes Received:
    0
    Trophy Points:
    55
    Now it is very OK! :)

    As I already said, I am not going to put you up on the list as what you've done actually voids the warranty.
    But maybe AW should learn from you and the other guy (which name I do not remember).

    Anyway... You still seem to be running pretty close to the "critical" temperature, as your ACPI is at 89ºC. Would you mind running the Prime95 for at least one hour (or a couple)? Just to make sure your colling can keep that temperature for above 30 minutes.

  48. markus.kainer

    markus.kainer Notebook Guru

    Reputations:
    12
    Messages:
    68
    Likes Received:
    0
    Trophy Points:
    15
    but the temp stoped moving, as you can see between the first screen (15min) and the second screen (25min) ... but sure, I´ll run the test tonight when I go to bed :)

    And anyway, I didn´t lose my warranty, I just have no warranty on the X9000!

    My Geforce 8800M was faulty, and the AW support knew the change from T7100 to X9000, and I still got a new 8800M ... It´s the same with Dell, you can do with you laptop/desktop whatever you want, as long as it´s not YOUR fault if something breaks down!

  49. milcs

    milcs Anti-fanboy

    Reputations:
    247
    Messages:
    2,005
    Likes Received:
    0
    Trophy Points:
    55
    Thanks Markus.
    Regarding the "stability", with my CPU, I had it running under 90C for almost 2 hours. Close to the 2 hours, it broke 90C and stabilized at 92ºC. I run the test for a total of 4 hours.

    That's the reason I am asking you that...

  50. markus.kainer

    markus.kainer Notebook Guru

    Reputations:
    12
    Messages:
    68
    Likes Received:
    0
    Trophy Points:
    15
    hmm .... listen, just to be realistic, which game need the FULL CPU power over 4 hours?

    I mean, I´m sure my m15x will pass this test as well, but still, thats just looking for some faults ... I´m sure, that with many other high spec laptops the same thing happens, if you just look for some faults!

    Still .... I really like to say it again ....

    I LOVE MY m15x .... ^^

← Previous pageNext page →
