***[M1530 A09 BIOS - Post Your Temps]***

I could claim ignorance; it's not like dell have actively gone out of their way to tell people about these drivers.

Besides I presume the fans are on much more under the new BIOS, that is something I wish to avoid. Would I be right in saying this, are the fans on more?



Well, so were nVidia who should have morally been the first people to go out of their way and tell people about it all, since its where this issue was born No point in hitting Dell on the head repeatedly, because no matter what, I still think Dell did its best for the moment (I still find it hard to believe that Dell would have called for replacement the 100s of 1000s of laptops probably right away) in releasing the BIOS update, even if its not a sure fix, but something to keep the cards (assuming ALL are defective) going till they, and nVidia too probably, figure out the best way to deal with it. You should take a look at Forte' (and other similar posters in that thread) arguments and reasonings Makes for a good reading and for once makes you think from different perspective as well.

For your second part, I wouldn't say the fans are on 'much more'. Before when gaming or excessive work load, the fans kinda kicked in around 70-72. Now its at 65-66. And this only if the temp' touch 65-66, not otherwise. For me, I don't see a big, life changing difference to be honest in fan turn on frequency.. Looks the same for me these days. And in any case, as one poster pointed out a couple of days back somewhere in this forum, "I'd rather run my fan now than have my GPU screwed up"



Well what I mean is I'm sure dell will fix any issues resulting from these faulty dies. Also I only have a 1 year warranty. My worry is that if I use the fix now, and I happen to have a defective GPU (which is probably unlikely), the problems will become apparent as soon as I'm out of warranty. This way if I'm going to run into problems it will be sooner rather than later and I can get a free fix up.

If however, the BIOS update conclusively proves to run the system cooler without increasing fan time (which hopefully someone will test sooner or later) then I may consider upgrading. That said I don't really have a problem with my 1530 running a little hot (as long as it's not doing damage) as I don't use it on my lap much.

Finally as has been mentioned before. If this BIOS ammendment does help, then it will only delay potential issues, not prevent them.



i played C&C3 for almost 2 1/2hours and i got max GPU temp of 69C.

i guess my NVIDIA driver is not affected of latest driver issue.

i'm done with NVIDIA driver....my concern now is tickling sound of my HDD, sometimes i heard a freakin sound



This hard disk sound is something common with this system I guess (or at least thats what I read from around here). I get these tickling/ticking sound as well, but not often.. once in a while. but then when I asked my friend to monitor closely, he said its usually when there is something being written on the hard disk.. and to be precise, I would its pretty 'rare', the noise or sound. (I dont know about your case, is it very often?) have you tried searching here for this discussion? There was a thread going on somewhere here, pretty recently, about this hard drive noise and there were some useful suggestions / explanations. Let me see if I can find it, guess I'd subscribed to that. Will get back else just do the search and you should find it



By the way, I did some stressing out of my system yesterday and temp' peaked at 75 C but never crossed that (BIOS A09, btw) - this temp is after 3 hours of various stress things including some games and also the free GPU burn in thing which was recommended by some people in another thread ( http://www.daionet.gr.jp/~masa/rthdribl/). Once I exited all the programs, the temp' very quickly dropped back to early 50ish.



Hmmmm- in that case I think the second core on your laptop is turned off then! Are you sure you are running both cores? That would explain your much lower temps for both CPU and GPU (as they are connected to the same heat sink).

Sorry, when I said underclocked, I meant undervolted (as the laptop will underclock itself when idle anyway). Does the fan on your xps ever come on? Even if I am web browsing, after about 5 mins of fans off the fans will come on to max before tailing off again for 1 min.

I would definately investigate your CPU settings as the fact your cpu core 2 temp is below ambient is astonishing!

Ambient = 28 deg, core 2 = 24 deg!!

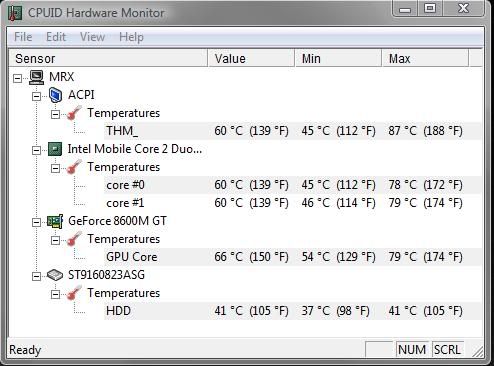

(from your attachment: http://forum.notebookreview.com/attachment.php?attachmentid=21571&d=1217177624 )

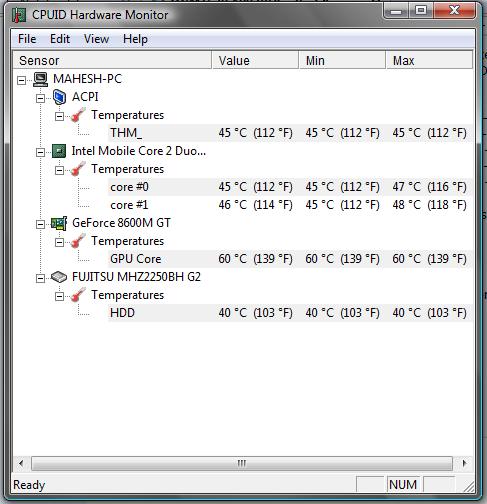

My temps at idle

THM 41C
CORE0 41C
CORE1 41C
GPU 59C
HDD 39C



Pretty good and perfectly normal I guess Cheers.



3hours of gaming now i got 73C maximum temp, no aircon/no cooling pad/rom temp around 32C.....

see attached pics to see how's my XPS1530 explode like a bomb



My temps after turning on, about 15 minutes on the internet and then 3 hours on Company of Heroes, it is now idle(ish):

Item : Current : Min : Max
THM_ : 39 : 38 : 73
CPU1 : 42 : 37 : 70
CPU2 : 42 : 36 : 70
GPU : 61 : 54 : 75
HDD : 42 : 39 : 44

Room temperature about 25C



Mine with around 3.5 hrs of browsing, music, extensive analysis of my research data with 3 different graphic intensive applications, preceded by around 3 hrs of gaming wow, now the current system temps -

THM_ - 42C - min 38C - max 61C
core #0 - 37C - min 35C - max 63C
core #1 - 42C - min 37C - max 62C
GPU core - 56C - min 55C - max 67C
HDD - 39C - min 31C - max 43C

room temp around 25ish I would guess; no cooling pad; a small table fan running around 7 feet away focused towards me n the laptop.



Ehh...are you guys testing temps with the AC adapter plugged in or with the laptop on battery power?


THM---> 43 C
CORE0---> 42 C
CORE1---> 42 C
GPU---> 60 C
HDD---> 38 C

This is with charger plugged in, screen setting on brightest, and about 2 hours of internet browsing...



mine was on AC, screen at full brightness, max resolution as could be seen in my sig.



I think it will be better to type min/max values for idle and gaming modes

I have on A08
in idle
GPU 57-70C
CPU 46-60C

in games
GPU max 82
CPU max 82



mine was on AC, max brightness at 1920x1200

I think it will be better to show min/max values too, otherwise they will drop significantly when you finish your game and goto the desktop. Even Ctrl-Esc to the desktop while playing will lower the temps because the GPU doesn't need to render the game frames at that point.



While playing GRID my max temps are

THM_ 71
core 1 68
core 2 66
GPU 82
hdd 45

Got it two days ago. It is new but it was shipped/built on 19/03/08 so I'm slightly worried, but it seems okey.



have apdated to A09, nothing is changed

in idle
GPU 55-67C
CPU 46-60C

in games
GPU max 82
CPU max 82



It actually seems to have raised my temps a bit. While I used to idle at ~59c, I now idle at ~62c.



When you guy are playing on AC are taking the battery out?

Does it make a difference on the temperature ?



Check these out:
under one hour of use, internet only no gaming, 9 cell batt, plugged in,

THM - 83 max92
core0 - 79 max89
core1 - 80 max90
GPU core - 86 max90
HDD - 49 max 49

if you guys are worried about lower temps, I'm quite concerned about mine. It is quite hot to the touch, but I've never had any operational problems. Wish I knew what the temps were before A09, but doesn't seem much different...



THAT IS hot... Are you sure you aren't blocking the vents or intake in any way.. For the one hour of use with no gaming and just internet, I think you should be having your PC checked mate...

Btw, internet on wireless??

Anyways... have it checked out mate. And this after A09???



WoOoOoOoOoT........!!!!!
Call Dell ASAP



wow, thanks guys for the heads up. I've never had problems with performance, just the heat is obviously a nuisance. Or maybe the temp program is not working right. I will call anyway.



this is my temps after update the A09 driver. i just got this m1530 for 2 days from the Dell outlet store. And I got the max temp after I played COD4 for 1.5 hrs

Item --- Current --- Min --- Max
THM_----- 41-------38------58
CPU1------44-------36------62
CPU2 ----- 42-------37------63
GPU ------ 56-------53------76
HDD ------ 35-------32------44

with these temps, i think it should be OK for now...



here is my xps 1530 temp.
just took now,

im using A09 bios version,
n nvidia 175.97ver drivers which put my gpu to normal temp,
while im usin ma xps just for normal work like, browsing, n multitasking
here are my temp attached in the picture.

while playing games my gpu temp will go up as 84-88c, but i play games for while, not always,

thou it gets heated up.

the gpu drivers 175.97 are digitally signed n they run ma gpu by 60c normal boot up.

im happy for that.



i was playing COD4 and the max temp for
ACPI 82 C
GPU 83 C
Core1 76 C
Core2 75 C
HDD 38 C

Is that Bad ???????



your ACPI is normal, GPU is maybe 3 degrees higher than avg but still within normal range, CPUs are fine, HDD is good.



I've been using my lappy for nearly 6h, only for internet and chatting , and here is the result :



Is that bad?



I think i have a problem

I played TF2 for about 10 min ...



Very strange thing,

I decided to revert to A08 and my temps are better for the CPUs and the GPU (5-7 C) !



Are you sure those temp' are just for internet and chatting??? You got to have it checked mate... looks high for the usage..

And are you sure u r not blocking the vents or anything??



Here are my temps..

Normal, At 15mins of RT HDR IBL, Max after 15 mins of Orthos and max after 3d mark...



I really think I need to call Dell

for 1 hour of TF2 I get nearly 100C on both CPU and GPU, with a 9cell battery



There's nothing blocking the vents. It's actually high for normal use. I bought it for a very cheap price and now I have to pay for that. So disappointed!!



***Test Settings***
Time: 1hr13min

World in Conflict
Resolution: 1440x900
Settings: Medium-High
Notebook Cooler: Zalman NC-2000
Drivers: 174.31
Room Temperature: 82F



Keep note: The Minimum readings are my idle readings



is there any temp-difference if i'm usin wireless or not?

Is it possible WiFi card , to heat up other components?

Right now my temps are:

GPU:
Min 56 - Max 83
... (i'll check otheres later).



Alright! I'd like to chime in...

My GPU temp reads 63 celsius. Not bad! Since it's multi-tasking loads of stuff!



A09's a keeper for me until the next BIOS upgrade esp if the need arises tenth-fold!

Cheers! ​



Nice, but to be honest, I dont think surfing n background scanning should heat up your GPU.. so U shud probably test with GPU intensive app's.. u cud try the free RT HDR IBL thing to see where the max temp' hit at.. as well as Orthos or Prime95 to test CPU temp' and stability. Good luck.



I also think position and room temperature have to do with the laptop temps too people...

Just did another run with World in Conflict same settings, 77F-78F after 3 solid hours.



I agree with you Xe12o. Room temperataure has LOTS to do with it. I live in Delhi, India and it gets to 46 degrees C here in the summer (about a 113 F, I think), and my GPU, after playing Crysis for a couple of hours peaks at around 89-90. Recently I visited a much cooler place in the mountains and playing the highest my GPU hit was 81. So that's my experience.

My temps:
GPU: Idle-60 Load-90
CPU: Idle-48 Load-60
HD: forgot. lol.

And personally I haven't noticed any difference after the BIOS update.

Oh and I've OC'ed my GPU to 650/950, which is pretty goos IMO.



GPU w/ normal browsing + working: 56-68
GPU max w/ gaming: 80

CPU w/ normal browsing + working: 45-55
CPU w/ gaming: higher 60's, low 70's
CPU max: 75 + 78 on cores



Hi! FWIW, I was doing some rendering using CS3 at the same time. Please see annotation on the attached image.

Thanks!

See you around!



Yeah yeah I saw that annotation and only then did I mention about it Take no offense, but I was just thinking you could have an even better idea about the temp when your GPU n CPU are being stressed to the max... and it was a free tool anyways Cheers.



I'm pleased with the BIOS update. I was actually at A07 before I updated to A09. Oops. But when I'm playing GRID on medium quality preset, I'm averaging high 50's rather than high 60's like I did before. I also updated my driver to 175.97 though, so that might've helped as well with temperature. Definitely helped with graphics performance too



My temps are CRAZY hot and I JUST got the motherboard replaced TODAY!!!

After about 15 minutes of playing WoW I noticed my hands were getting HOT!!! Even on my dual fan cooler below my temps were as follows:

THM 51c Min 100C Max
Core0 51c Min 98C Max
Core1 51c Min 94C Max
GPU 61c Min 92c Max
HDD 43c Min 45c Max

I was NOT blocking the fan and my room temps are 73F.

I am chatting with Dell right now.



Dell is making me send it back to the factory. CRAZINESS!!! I am going to be without a computer for 2 weeks!!!



Those temp' WERE a hotter than what most people see for the mentioned usage... though u'd be without a laptop for a week or two, I think having it checked with Dell is worth it. Probably you'd get some replacements inside. Good luck.



Hi Guys,

First off, great forum. I've found loads of useful info on here - keep up the good work!

I finally got my M1530 on Friday which has the now infamous 8600M GT. My M1530 using the A09 BIOS and 174.31 driver idles within the 55C - 67C temperature range. I've had a look around to get an idea of other peoples idle temps when using the A09 BIOS, however I would like to ask the following question. Are peoples temps stable at the posted idle temps? i.e. The system stays at the posted temp for a reasonable about of time.

The reason I ask, is because my system constantly cycles between 55C and 67C (at which point the fan kicks in and cools the temp quickly back down to 55C). The cycle then starts over again. It can take as little as 5 minutes and always less that 10 minutes for the cycle to complete I'd love to hear peoples opinions on whether this is normal?

Thanks in advance..



In theory it should be kind of stable, but not really fixed at a given temperature.. for example, I idle around 57 - 59/60 (laptop left alone for around 15 or 20 mins) and I am using 175.97, the latest driver released from dell for M1530... before I was on 174.31 and it was around the same for me at least... and the fluctuations do happen because I learnt that even during normal work like browsing, the card still has to work to render your desktop and the browser and whatever... so the fluctuations would be there, but not often if you leave it really idle away.. try leaving the laptop for 20 mins or so and see the temperatures then.. you'll have an idea
