L702x Modded GPU BIOS

No i dont windows is Fresh installed



What about cpu usage? Let me know



Its in Idle about 4-12%

Ram Usage is 20%

Diskusage 0%

Fan is still Power UP with fresh windows install without other prgrams installed. Except with Linux is the Same Problem



Let's try the oldest L702x stock bios
https://www.dell.com/support/home/i...erid=fd9rg&oscode=biosa&productcode=xps-l702x

Maybe u will need to reset cmos, to do this u must disconnect the battery of the notebook, disconnect the cmos battery under the keyboard for 15 20 min. Let me know



Thanks fo your help. it was the power cable in the palm rest, i took a new one and now the fan is still quiet!



Happy to know it!



ok sorry the problem has not yet done, the fan is still running very often and turns back permanently .. I'll post again test the bios of you posted and report again, do you have any other ideas? Have tried it with speedfan and Dell-SCT-IT8518E-Fan-Control-master but unfortunately that brings no real improvement



Usually these problems are caused by the bios, which bios do you have?



I have the

BIOS mod for L702X DOWNLOAD from mediafire
MD5 checksum: 617B098A2A248FE3F9E7EDCEFEBA2F6A
mod version: version 6
BIOS version used: A19
notes: L702X A19 BIOS with unlocked menus + uefi boot+ native speedsteep + updated microcodes from v23 to v28 + computrace unlock + serial tag changer + RAID + modded Nvidia vbioses from Sharadeos's from his "A17 0.9120"

from Site 59 Settings are default



Cooking something for you based on previous version with microcode updated to 2F version (latest).



http://www.mediafire.com/file/k3qdt...code_May_2019__%26_sharadeos_vbioses.zip/file

Clear cmos before



Hey Dexter this BIOS worked @ 9200 V. Any chance you can mod my Alienware 17 R2 BIOS? I got a 980+4980HQ all is good but CPU power throttle to 800GHZ while gaming in graphic intence situations. Was wondering if it's something i can disable in bios when its unlocked. I've searched and there was one but all the links to that are dead



Hi @Dexter1983

is this updated to prevent meltdown and spectre ?
Why CMOS clear before. Is it not normal to do it afterwards ?
Can i use this BIOS on my 3D Mainboard with 4 RAM Slots and
GT555M 3GB ?

I use the latest captain casars L702x modded bios.

DID YOU SUCCEED TO UPDATE THE INTEL ME ?
DID YOU USE IVY BRIDGE CPUS ALREADY ?

Please let me know when you succeed.

Which is the best BIOS for my L702X with GT555M 3GB.
and the 3D Version with 4 RAM Slots.

Would like to be protected from spectre & meltdown
and should have the unlocked menus and unvervolted GPU.

I'm an L702X Lover from Germany and have 2 L702X one is 120hz Display, 32GB Ram and 2860QM (but i dont have the 3D infrafred emitter - i just want the 120hz and the brightness)
and the other non 3D Mainboard i update the right know with new motherboard, screen and cable... ;-)

I also use an EGPU Setup with the BEAST Dock and a EVGA GTX1060 SC
in conjunction with the EGPU setup from nando with great success and 80% performance
on an external and 60-70% performance an the internal screen.

@KillerB3340

What do you mean @9200V ?

Throttle to 800GHZ ? Wow do you have some kind of graphite based CPU ?



Thank you got it.
I want to try this on my machine.
I use conductonaut so my cooling is enhancend
substantially so i think it will be no problem to overclock to the max.

Can i use this BIOS on my L702x (3D-4Ram-GT555M-3GB) ?



Mine is not 3D Model but same specs and it works L702X



But those are two different Mainboards, so...
I dont want to brick it.



I doubt few extra MEMORY Slots is a big difference since model is still L702X and BIOS for both our machines is exactly the same but check withDexter i guess



Thats not the only difference. It supports other kind of displays..
Im 90% shure buts that not enough ;-)

Where are you from KillerB3340 ?
Since when do you use L702x ?



Hi,

i have a Dell XPS l702x Laptop, is it now possible to upgrade this laptop to the i7 3940xm Ivy Bridge ? I also have this CPU, when i put it into this laptop i have a blackscreen and only the Fan is turn.

Is there a special bios oder can i update the chipset? In google i dont find a solution and the most request war from 2012/13.

bg
Temho



I'm in US, got my L702X in 2011 been Abusing it since and still holding up My main rig had a leak so i'm using this laptop for few days now.



There was/is a BIOS Recovery TOOL but the link on the page is dead. I guess keep reading and good luck
http://forum.notebookreview.com/threads/l702x-modded-gpu-bios.641688/page-15



Hi,
on this Page they make gpu overclocking, but there is nothing about the IVy Bridge Generation (3th).
I already have a Open bios on Me Laptop that i Can use my ddr3 2133MHZ normal only 1300mhz work.
I also connect a gtx1070 to my laptop with mpci.
And i Upgrade the cooling 2 extra Fans and more heatpipes.

My next Step is upgrading the cpu to an i7 3940xm but i dont find the Solution.



Interesting. I'm from Germany. Got my L502X since 2012 but since then bought
several used 3D L702X and L502x, some upgraded and then sell some just sell
and making some extra bucks

@temho

To my knowledge its not yet possible to upgrade to ivy bridge processors
The best sandy bridge is 2860QM but you could try to use 2960XM BUT
you need best possible cooling with conductonaut paste, because it has
55W instead of 45W like the 2860QM has. I also want to try
this... but the performance difference between the two is little
and it still costs 150$... the 2860QM only 88$ in China...

I hope someone will update the Intel ME to 8.0. Then it will be possible
to use ivy bridge processors.



5,2GHZ Overclocking world record.... OMG

https://hwbot.org/hardware/processor/core_i7_2960xm/

no i REALLY want to try the 2960XM
with normal paste it would not be a good idea
because of throttling BUT with conductonaut metal paste
my fan hardy goes to half speed with my 2860QM
I think i could use the 2960XM even with some overclocking..

Will the mainboard go with this extrem conditions ? Thats the question...



@MatthiasBraun
I recently got an Alienware17R2 dirt cheap off eBay with GTX980&4980HQ for gaming @ work, it's not bad but the cpu throttle is pissing me off



JUST use conductonaut!
Which metal is the CPU Cooler ?



I ran my L702X @ 810 MHz for years before upgrading, i did remove the mesh on bottom from the inside for better air flow.

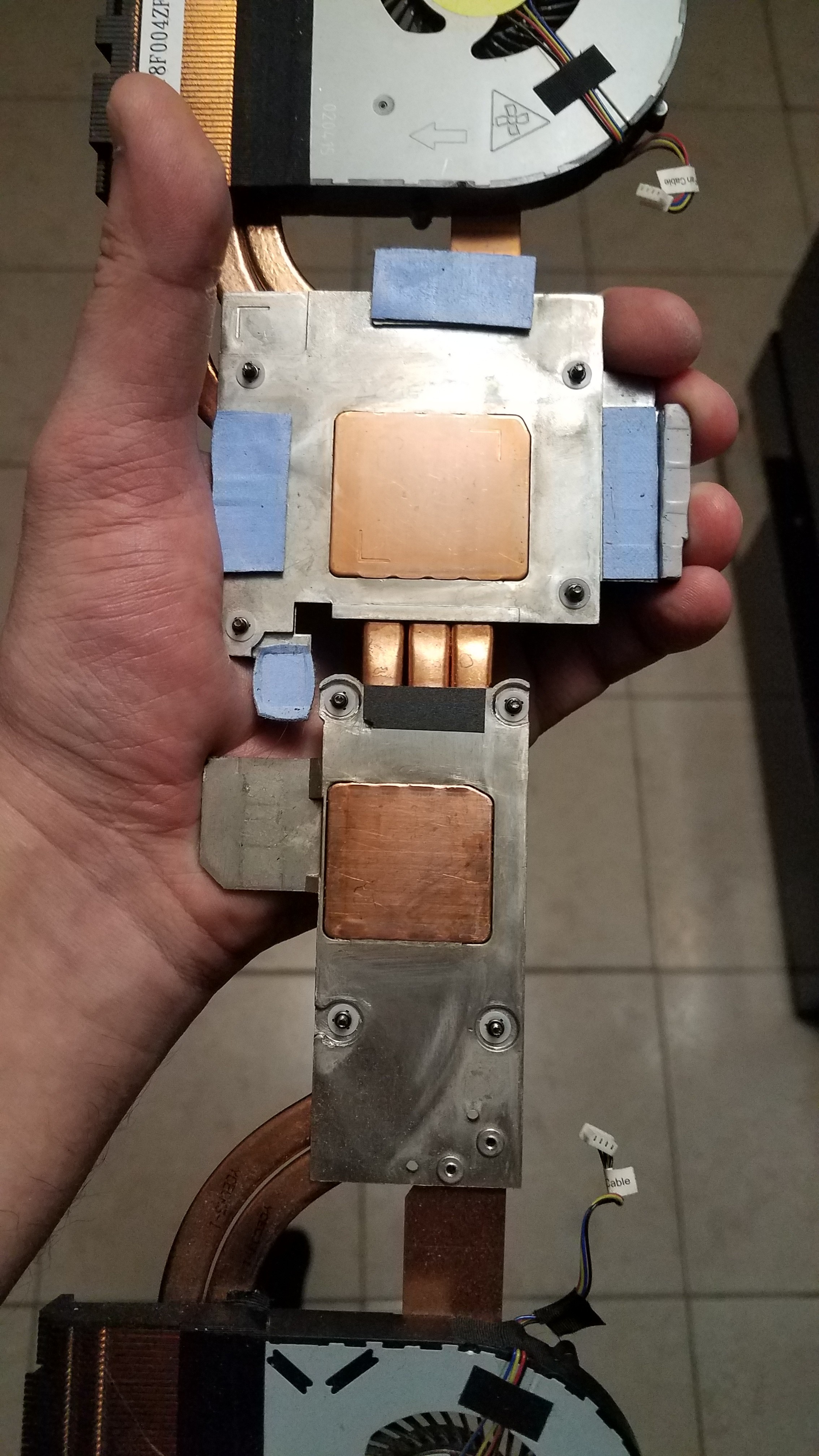

Yep that will work. Exactly
like the L702X. Please make shure that u
really use VERY little conductonaut so that
the paste does to get to the Aluminium body
and stays on the copper. Please isolate the
electronic structures directly around the CPU and the GPU
chip so you dont get a shortcut. Do this with some
epoxy resin glue. That stuff is very chemical stable.
Epoxy is used in electronics a lot...

You can even isolute the aluminium around the copper plates!
I didnt do it. On one of my machines i even didnt isolate
the electronic structures around the chips and not shortcut.
Its important to really use very little... approximately 1/4 needlehead
on the chip and 1/4 of a needlehead on the copper plates.
Just a VERY thin layer of this stuff so it does go somewhere else and just
sticks there!!

Cooling will be dramatically enhanced as you will find!
20% at the least! Then also remove all dust filters and other barriers
for optimal air flow!



Nahh, i dont do Liq.Metal. I did try Noctua NT-H1 and i might have done something wrong or it was an old stock"OLD PASTE" . Will have to repaste this thing as soon as i'm done with my main rig.



Why you dont want to do it ?
Its great if you are carefull!



I've seen many reviews and it's 3-5 degree difference between L.metal and good paste but the risks are higher.



In my view its more than that.
You have to consider that the fan
doesnt turn of that often and that high!



Try this https://www.techpowerup.com/download/techpowerup-real-temp/ Silently sitting on taskbar and shows real time GPU&CPU temps with more options



I use HWMonitor, but in tray is nice, too. Thanks!



Hi, can anyone help me? I have a bios with open all menus/gpu settings ram takt settings (2133) and so one. Now i will remove the withelist that i can connect my eGPU to my mpcie slot without problems. Now when i connect it i have a blackscreen, when i start the laptop and connect it 2-4 secounds later ist works. But i wont to connect it every time.

I need the same bios but with removed the withelist, maybe there is ansone who can help me or support me in this case

My bios
https://www.dropbox.com/s/x0ejqfv6nhdgfh6/bios1.rar?dl=0

thank you very much



Hey there everyone

First off, this has to be one of the absolute best and longest (8 years!) threads on a computer system / issue I have ever seen. Kudos to you all who have participated. I stayed up waaayyy too late last night trying to read every piece of it but I'm sure that I stopped absorbing somewhere around 2am. Maybe ya'll can help me -

So I have the XPS L702x 3D Nvidia 555m. It was my dad's - he was a computer programmer his whole career and would have just absolutely loved what you have done here. He passed away, it'll 5 years ago this year, and my brother and I took on the herculean task of going through his lifetime of computer equipment including a literal mountain of hard drives. Reading about the RAID functionality I wish we had saved some of them! Oh well, I don't need it anyway. I'll continue -

Now I've used this laptop for about 4 years. Couldn't touch it for nearly a year. Then took a year to clean it out, reload it, update everything to most current software, and physically clean it. Been running great since. Now, normally I wouldn't need 3 monitors running but with the COVID-19 going on and my 4 daughters and I at home for at least the foreseeable future with our stay at home orders from the government we need as much computing power and accessibility as we can get! I tried running both MiniD and HDMI to external screens and using the built in just to find what has been told here. No functionality with the 3D unit. Boo!

So here is the ask - anything at all a guy can do to get the 3rd running? Is there some physical component built in that can be removed to allow both Intel and Nvidia to run simultaneously and get 3 monitors? Or do I have to buy a very expensive dock? What are my options? If we are getting into that 100ish dollar range I would probably just buy another chromebook for a couple hundred. Seems more worth it?

Your thoughts? Thanks in advance for your consideration!

D



can you reupload it?

or anybody else?



Hi, @capitankasar @Dexter1983

I saw the updated BIOS on the support site https://www.dell.com/support/home/e...g/0-bDUyeTdNd1kydGwvdi9JYXVlTWJZQT090/drivers for Dell XPS L702X:

System BIOS 19 Jun 2020 File: L702X_ A19.exe, Filesize: 10 111 992​

Detail Info - https://www.dell.com/support/home/e...verid=p5c4t&oscode=w764&productcode=xps-l702x

But, original file 2012 (or I was wrong): L702X_ A19.exe, Filesize: 10 104 832



Is this the latest current BIOS version? File not found



Oh, you are right! Give me some days to verify



I will restore in some days, but i want to verify new bios first, stay tuned



I am now waiting too for updated links to the unlocked BIOS for the L702X. I own the L702X for some years now and I never knew I needed an unlocked BIOS until I needed some fix for the L502X and came across the Capitan Kasar's unlocked bios. I need an eagle splash screen at start up, please!



http://www.mediafire.com/folder/fuasrm5ldruzk/Bios_VARI
This is the full bios repository updated with 2f microcode, you will find some other useful thing also



Thank you, I've just bought a second L702X (the GT555M version) and some other goodies (4x dimms Kingston FuryX DDR3 2166MHz, a second Intel Core i7 2960XM, some high end thermal grease, Intel AX200 WiFi 6 cards with PCIE adapters etc.) and this is coming in very handy in updating / upgrading both laptops.



Doing my due diligence, I have started reading the topic from the beginning and noted that the video cards are coming in two flavours, the GF106 and the GF116.

I have the GT550 M GF116 BIOS 70.26.40.00.04.

Are these BIOS files suitable for my laptop?



LE: I have tried the "capitanKasar5 2F" bioses, they both work and allowed my memory to run at 2133MHz instead of the default 1333MHz. As the only visible difference, with the L702X_A19-2F_generic_Unlocked_Menus_&_updated_cpu_microcode May 2019 anti Spectre.zip you also get Capitan Kasar's Eagle splash screen, so I'll keep this version on.



The logo come with the 6 version!



I can confirm that with the capitanKasar5 2F\ L702X_A19-2F_generic_Unlocked_Menus_&_updated_cpu_microcode May 2019 anti Spectre.zip I get the Eagle splash screen.

While I am very grateful to you guys for posting and re-posting these custom BIOSes (got both my L702X GT 550M and L702X GT 555M laptops upgraded), I must admit that I couldn't figure the difference between the different files. Beta sounded unfinished, so I've settled for the above version which comparing with the stock BIOS, offers me everything I wished for: stability, unlocked RAM frequency, and the possibility to disable BD-PROCHOT in the L702X GT 555M laptop in which the CPU was defaulting otherwise to 0.798 GHz despite no high temps on the CPU / GPU (probably a bad sensor or a less powerful-than rated power brick).

I wish I would have the same BIOS unlock on my Toshiba Qosmio X70-A and the Clevo PC50DN2.

I have not figured yet a way to play with CPU or GPU voltages to find a more stable profile, but things are already as good as I could hope, so probably I will stop here.



Is there someone who was able to use this laptop in raid configuration?
I'm really to old to get the raid to work. Can somebody give me an step by step manual for an bootable raid config win 10? If I activate the raid menu I can instal win 10 but I struggle always with the boot menu. One time I accidently could boot from an ssd raid but the access the the boot menu stopped working.
I know on page 60 the menu. Is there an youtube video anywhere where the process is visible? Sorry for my questions.
Best regards
