Inspiron 14R / N4010 Windows XP Drivers Complete Set

still wondering how to get battery meter in taskbar... if u have ny software 4 dat plz let me no..........

thx



You may want to search "R65211 Dell Battery Meter" from Dell site and try...



Hi Sluk, I have a Dell Inspiron N4010 and have tried installing all drivers as provided by you for WinXP. Everthying works exept for Display driver. I am receiving error's with regards to DLL under folder B100667. Hope you can advise, Thanks a lot.

My Device ID:
PCI\VEN_1002&DEV_68E0&SUBSYS_04561028&REV_00\4&2AF3BC31&0&0008

ATI Mobility Radeon HD 5470 1Gig Mem
Chip Type: ATI Display Adapter (0x68E0)



giostnph, your display hardware id match with the driver .INF so you should able to install it, what exactly is the error message? What procedures you use for the manual installation?



fckin there is no way to use numkeys and altkeys in this series lap...dell sucks!



Thanks Sluk, i have installed driver as per your instruction (Manual Installation). Apparently there's been lot's of dll's not recognize from folder B100667.



I cannot get my keyboard to work. I have the 14R laptop. Sometimes I can get it to work but then I restart, it stops working. I have to plug in a USB Keyboard if I need to type anything. Can someone please help me out?



My service tag is 542NDN1



Keyboard issue why don't you call help from Dell directly? There should not be related with XP if your keyboard not working...



It worked when I had Windows 7. Do you have a driver or a link for the keyboard? This is extremely odd as I never have had the problem.

Also, I stripstreamed a CD today with the files you told us to include. It still BLUE SCREENED on me during the install. So I went back to ATA and re-installed XP. Still no keyboard. I am baffled as I have rolled back a few laptops in the past few months. I always go with Dell because they include XP drivers with new laptops. This one, not so much. Please help me!



Hi sluk. I'm unable to download the files on rapidshare. Can you upload to another site like mediafire?



@showturfbrad... if keyboard is working properly in Win7 then it should work properly on WinXP as well. there is no special keyboard driver, it is a default input device. i would think your XP installer is not good, try another installer.



I tried a new XP install CD and now I have my keyboard working. I cannot get the display drivers to install and when I go to device manager, I don't even see DISPLAY ADAPTERS. The Wi-Fi also won't install. Can someone please help? I have attached a screen shot of my device manager and my service tag is 542NDN1 - I purchased this laptop at Best Buy about 3 weeks ago.

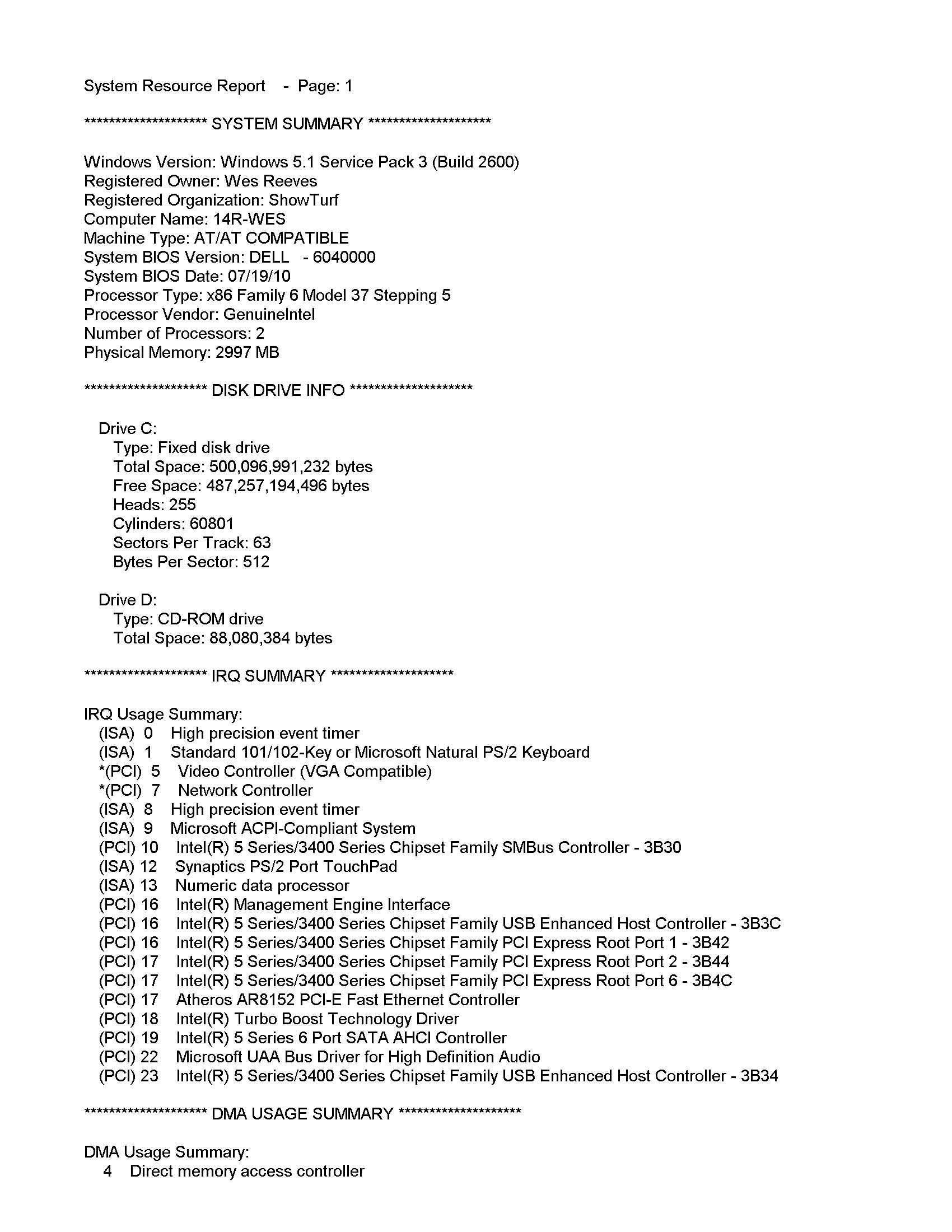

Here are the specs from Best Buy

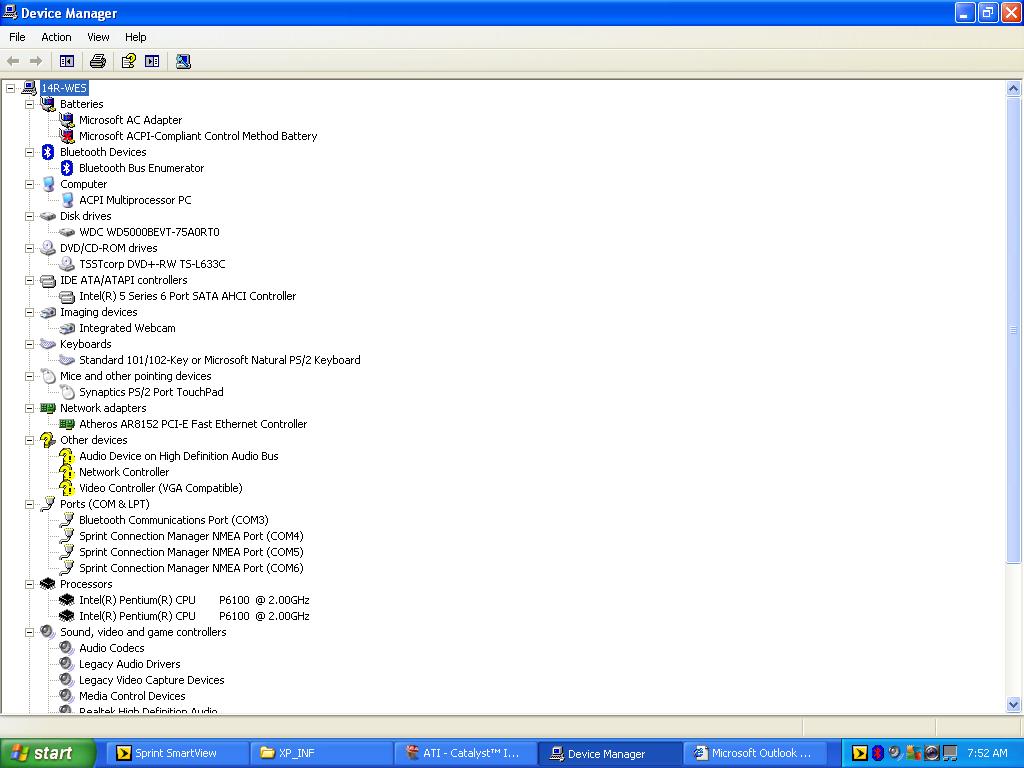

Attaching an actual screen shot of device manager...



this screen doesn't help to identify your display card's "Device Instance Id", you have to follow post #74



1. How do I dig out the name of the hardware adapter? I bought from Best Buy.

2. I don't have any adapters in my device manager

PLEASE HELP



hi there i hv a n4010 & i also want 2 install xp on it but after reading the process of changing AHCI to ATA,one scenario arise that after doing that 7 shows BSOD so can't we hv both 7 & xp as dual boot. & i also got trouble downloading the drivers each time i click one of those links rapidshare pages show me the page to upload files instead of downloading page,cud anybody help me with that.thanks



I'm using N4010 Intel HD display and work well with Win XP.. and also battery status working 100% with linux.



n Dell!!! Now my ATI 5470 HD Runs at PCI-E 1x Instead of 16x...any1 have solution to fix this issue??



hi all....

i use dell n4010 core i3, ati radeon mobility hd5470 1 GB with service tag 15639M1. i wanna to install win xp in my laptop. i have downloaded the driver and i tried to install it. But i can't install the ati catalyst. i have followed the instruction above but i can't still install it......can somebody help me?????? please..........

Thanks a lot......



Please check your display card's "Device Instance Id" by post a screen shoot of it, you can shown it from Device Manager -> Right Click on the adapter you want to identify then select "Properties" then click on the "Details" tab.



hi, all mediafire download links at:
Free File Hosting Made Simple - MediaFire



just bought this Dell - Inspiron Laptop / Intel® Pentium® Processor / 14" Display / 4GB Memory / 500GB Hard Drive Model: I14R-1440TMR ...2day(3 hrs ago).everthing going fine but video driver is not working....installed as instructions .rebooted but does not work..how to fix this...beliv it or not bought this laptop for xp....helpppp



You have to show your display card's Device Instance Id, refer post #122



Dear sluk,

First, I am very sorry if I bumped this thread.
I have followed your instruction to install Win XP in DELL 14R N4010. I have slip streamed the AHCI drivers and successfully installed XP in my laptop, but I still can not install my VGA card, that is ATI Mobility Radeon HD 550v
my device instance id is:
PCI\VEN_1002&DEV_9480&SUBSYS_04561028&REV_00\4&2AAA616A&0&0008

I have desperately searched for the drivers in many places, and still no success.

I am hoping that you can help me.
Thank you very much for your kind attention and help.


Best Regards,
dell-flare



You may need to download the latest ATI Catalyst pack for XP and extract the graphic driver then change the .inf to match with your device instance ID as display from the Device Manager and install manually.



And where is the location to download the latest ATI Catalyst pack for XP?
Thank you very much for your fast reply.



Dear All,

a good fortune has come to me and I have found a way to install the ATI Mobility Radeon HD 550v for DELL Inspiron 14R N4010. So you guys out there who are in the same position as me, you can download the driver here.
It's 200 MB something download, I know it's quite big, but you won't be disappointed. Believe me, it's worth it.
and FYI, my laptop comes with Intel WiFi, and I downloaded the drivers from Intel, and it's working.
Only small issues remain as sluk mentioned, that is:
1. No battery indicator
2. ACPI battery has to be disabled to take the full advantage of your processor speed

Again, thank you very much for your help, sluk..

Best Regards,
dell-flare



hi sir i cant able to install wifi drivers in my dell 14R N4010 IT SHOWS(no compatible hardware found)you just specified to locate the the WiFi Card you need to identify the module from the quotation and get back. but i don't know how to do?can you pls guide me this is my mail id:[email protected]



hi sir i cant able to install wifi drivers in my dell 14R N4010 IT SHOWS(no compatible hardware found)you just specified to locate the the WiFi Card you need to identify the module from the quotation and get back. but i don't know how to do?can you pls guide me this is my mail id:[email protected]



Hi Sulk,

Recently I uninstalled WIN 7 and installed Win XP SP2 on Dell Inspiron 4010, but while loading it is taking more than 2-3 min and then blanck screen for 2 more min and finally desktop will appear. One more thing I bought laptop with 4GB RAM, but now its showing 2.95 GB of RAM.

Can you please help me out in this?

Regards,
Satish
8754477427



u have installed 32 bit xp where max memory is 2.95 GB



Can you please suggest me how can i overcome from this issue?



Hi Sluk,

I have installed XP 64 bit on Dell N4010, but the performance is dead slow (booting process will take more than 2-3 min) and any operations also take lot of time... is there any way to speed up the process?

My laptop config is:
Core i3, 4GB RAM and 500 HDD.

If you give me your contact number it'll be very helpful for me to explain the issue clearly...

Regards,
Satish
8754477427



Hi All,

Just want to know is this thread closed? I'm very need of some one's help in correcting issue with my N4010 laptop.

If any one has complete bootable .iso (which is spiltstreamed) please upload it. I'll download and install it. As I'm unable to splitstream.

Please help me...

Regards,
Satish
8754477427



satish4u, try disable AHCI in BIOS, if your N4010 use build-in Intel HD Graphics, up to 1.7GB of main memory can be shared by the video adapter.
