    GTX 980 launched for notebooks

    Discussion in 'Gaming (Software and Graphics Cards)' started by Cloudfire, Sep 22, 2015.

  1. D2 Ultima

    D2 Ultima Livestreaming Master

    Reputations:
    4,335
    Messages:
    11,803
    Likes Received:
    9,751
    Trophy Points:
    931
    So my question to you: why didn't you buy a Clevo? You quite literally bought everything BUT.

    They didn't throttle the CPU with the HQ models, and the ZM models had desktop chips with the most powerful cooling too.

    D2 Ultima, Oct 4, 2015
    #301
  2. HaloGod2012

    HaloGod2012 Notebook Virtuoso

    Reputations:
    766
    Messages:
    2,066
    Likes Received:
    1,725
    Trophy Points:
    181
    Had to get it from newegg. I had 1500 in newegg gift cards. They didn't have any clevos

    HaloGod2012, Oct 4, 2015
    #302
  3. D2 Ultima

    D2 Ultima Livestreaming Master

    Reputations:
    4,335
    Messages:
    11,803
    Likes Received:
    9,751
    Trophy Points:
    931
    Oh.

    I don't know about newegg, but I know Xotic has listed their products specifically on Amazon so people could "buy it from amazon" in the past (with your custom config, of course), so if it ever happens again, see if they'll list it on newegg for you or something.

    D2 Ultima, Oct 4, 2015
    #303
  4. HaloGod2012

    HaloGod2012 Notebook Virtuoso

    Reputations:
    766
    Messages:
    2,066
    Likes Received:
    1,725
    Trophy Points:
    181

    When I grab a Pascal notebook this time next year I'll make sure to look for a clevo with a desktop CPU. Since nvidia is cramming desktop GPUs into notebooks, I can't see why more notebook manufacturers wouldn't use socketed desktop CPUs, especially the insane water cooled Asus. Its too small of a niche for them to care to go the clevo route, but I'd buy it in a heartbeat.

    HaloGod2012, Oct 4, 2015
    #304
  5. D2 Ultima

    D2 Ultima Livestreaming Master

    Reputations:
    4,335
    Messages:
    11,803
    Likes Received:
    9,751
    Trophy Points:
    931
    Because the mobile chipsets are easier to work with, and most of the people who buy their products do so on name brand... unlike us, they don't care much if at all about "working CPUs" and assume "any old i7 can play any game".

    Also Clevo's been doing it for over 10 years now; it's not really a new endeavour. They understand that businesses and consumers value their modularity.

    D2 Ultima, Oct 4, 2015
    #305
    DataShell, jaybee83, moviemarketing and 3 others like this.
  6. Varadero

    Varadero Notebook Consultant

    Reputations:
    74
    Messages:
    210
    Likes Received:
    27
    Trophy Points:
    41
    Has there been any info on whether the 980 not M will be HDMI 2.0? I'm guessing next month's HTC Vive/Steam VR will require it.

    Last edited: Oct 5, 2015
    Varadero, Oct 5, 2015
    #306
  7. ssj92

    ssj92 Neutron Star

    Reputations:
    2,446
    Messages:
    4,446
    Likes Received:
    5,690
    Trophy Points:
    581
    Yes it will be HDMI 2.0

    ssj92, Oct 5, 2015
    #307
  8. kolias

    kolias Notebook Evangelist

    Reputations:
    251
    Messages:
    629
    Likes Received:
    88
    Trophy Points:
    41
    I dont think that it can fit inside in 570wm or like p377sm-a.
    The pcb is wider.... :(
    We will see if the current 980 mxm 100w will be compatible....cross fingers....PREMAAAAAA :p :D

    kolias, Oct 8, 2015
    #308
    TomJGX and USMC578 like this.
  9. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,149
    Trophy Points:
    931
    well, we already know that the 120W MXM card is not wider but rather LONGER than the standard MXM-B form factor....so ud only need a little bit of space beyond ur mxm slot to accomodate the downsized 980 version...

    jaybee83, Oct 8, 2015
    #309
    TomJGX and USMC578 like this.
  10. hmscott

    hmscott Notebook Nobel Laureate

    Reputations:
    7,110
    Messages:
    20,384
    Likes Received:
    25,139
    Trophy Points:
    931
    Nvidia's highly Technical video on how they fit the Desktop PC 980 into notebooks...

    hmscott, Oct 8, 2015
    #310
    HTWingNut, sa7ina, D2 Ultima and 2 others like this.
  11. TomJGX

    TomJGX I HATE BGA!

    Reputations:
    1,456
    Messages:
    8,707
    Likes Received:
    3,315
    Trophy Points:
    431
    Where did you read this? Will these mxm cards fit in the Batman?

    Sent from my LG-H811 using Tapatalk

    TomJGX, Oct 8, 2015
    #311
  12. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,149
    Trophy Points:
    931
    jaybee83, Oct 8, 2015
    #312
  13. D2 Ultima

    D2 Ultima Livestreaming Master

    Reputations:
    4,335
    Messages:
    11,803
    Likes Received:
    9,751
    Trophy Points:
    931
    LOL.

    They even used a P870DM. Sexy spawn laptop. Brb drooling

    D2 Ultima, Oct 8, 2015
    #313
    hmscott likes this.
  14. Niaphim

    Niaphim Notebook Consultant

    Reputations:
    11
    Messages:
    196
    Likes Received:
    91
    Trophy Points:
    41
    How big the performance difference is going to be between 200W and 120W versions?

    Niaphim, Oct 8, 2015
    #314
  15. ssj92

    ssj92 Neutron Star

    Reputations:
    2,446
    Messages:
    4,446
    Likes Received:
    5,690
    Trophy Points:
    581
    It won't be huge, but the 200W version will overclock much better and probably run cooler as well.

    ssj92, Oct 8, 2015
    #315
    jaybee83 likes this.
  16. 5HT

    5HT Notebook Guru

    Reputations:
    5
    Messages:
    56
    Likes Received:
    18
    Trophy Points:
    16
    Can one be put in Aleinware 18

    5HT, Oct 8, 2015
    #316
  17. Niaphim

    Niaphim Notebook Consultant

    Reputations:
    11
    Messages:
    196
    Likes Received:
    91
    Trophy Points:
    41
    I mean, I'm hesitating what to take. Pretty sure it's going to be a 980, but then it's overclocking it or getting an mxm version and adding the second one after...
    And any information about prices of MXM version? Sorry if it was already posted, I've read most posts but didn't see.

    Niaphim, Oct 8, 2015
    #317
  18. ssj92

    ssj92 Neutron Star

    Reputations:
    2,446
    Messages:
    4,446
    Likes Received:
    5,690
    Trophy Points:
    581
    I will be getting two 980 (120W) versions. Overclock the 200W 980 as much as you want, you won't be able to make up for the extra 2048 cores from the second card. :p

    No idea on pricing yet.

    @5HT No it won't fit in the 18, it's longer than normal.

    ssj92, Oct 8, 2015
    #318
    5HT and hmscott like this.
  19. D2 Ultima

    D2 Ultima Livestreaming Master

    Reputations:
    4,335
    Messages:
    11,803
    Likes Received:
    9,751
    Trophy Points:
    931
    WAT

    D2 Ultima, Oct 8, 2015
    #319
  20. Niaphim

    Niaphim Notebook Consultant

    Reputations:
    11
    Messages:
    196
    Likes Received:
    91
    Trophy Points:
    41
    Yes, was thinking about this. Actually my logic is pretty simple - power is used for calculations, less power - less heat, less performance. I guess it's not a 1:1 ratio but it should be a pretty significant drop if you cut power of the same chip almost in half.

    I guess it was a single 200W vs 2x120W comparison - then it's true.

    Niaphim, Oct 8, 2015
    #320
  21. ssj92

    ssj92 Neutron Star

    Reputations:
    2,446
    Messages:
    4,446
    Likes Received:
    5,690
    Trophy Points:
    581
    The 200W version will have the monster heatsink with 6 heatpipes. The 120W versions will probably use something similar to the 100W versions just a bit longer which is the triple pipe heatsink.


    The 200W version has two fans to cool one card as well.

    ssj92, Oct 8, 2015
    #321
    jaybee83 likes this.
  22. Niaphim

    Niaphim Notebook Consultant

    Reputations:
    11
    Messages:
    196
    Likes Received:
    91
    Trophy Points:
    41
    Well, my bet is it's going to be right between 980m and 980 (200W\desktop) in terms of performance, like 10-20% better than 980m, since you can't do magic with physics laws. 980m has a TDP of 100W and is basically the same card as 980 with reduced number of cores etc. Now they don't cut core numbers so they will need to underclock the chip or the card will be unstable and faulty.

    Niaphim, Oct 8, 2015
    #322
  23. D2 Ultima

    D2 Ultima Livestreaming Master

    Reputations:
    4,335
    Messages:
    11,803
    Likes Received:
    9,751
    Trophy Points:
    931
    Even if you say that... that two-fans deal is only present in the P870DM. The 200W 980 WILL push out more heat on the whole, and for users who are modding it or adapting it for older systems, it'll be hotter for certain.

    D2 Ultima, Oct 8, 2015
    #323
  24. ssj92

    ssj92 Neutron Star

    Reputations:
    2,446
    Messages:
    4,446
    Likes Received:
    5,690
    Trophy Points:
    581
    The card will retain a clock speed of at least 1064Mhz so it won't even be downclocked much. They're probably binned more and use 5Ghz memory instead of 7Ghz but we'll see.

    http://www.geforce.com/hardware/notebook-gpus/geforce-gtx-980/specifications

    I was referring to it in the P870DM where it is officially supported.

    It will require some modding getting the 200w version in any other computer since it is not only longer but wider. Then you run into cooling issues, the heatsink needs to be wider and longer.

    I can see people modify the 120W version into current computers, but the 200w version would be hard to do.

    ssj92, Oct 8, 2015
    #324
    jaybee83 likes this.
  25. kolias

    kolias Notebook Evangelist

    Reputations:
    251
    Messages:
    629
    Likes Received:
    88
    Trophy Points:
    41
    I think i will sell my lapy.... :(
    I didnt see tha the 980 120w is longer.... :(
    Too bad

    kolias, Oct 8, 2015
    #325
  26. Ethrem

    Ethrem Notebook Prophet

    Reputations:
    1,404
    Messages:
    6,706
    Likes Received:
    4,735
    Trophy Points:
    431
    The 120W should be a standard MXM card... The 180W and 200W aren't.

    There is no reason you can't put a full GM204 on a standard MXM card.

    Ethrem, Oct 8, 2015
    #326
    GTVEVO likes this.
  27. ssj92

    ssj92 Neutron Star

    Reputations:
    2,446
    Messages:
    4,446
    Likes Received:
    5,690
    Trophy Points:
    581
    Except, it's longer than the standard MXM size: http://forum.techinferno.com/clevo/11083-low-power-edition-mobile-gtx980.html

    Maybe we'll see another set of desktop 980 cards in standard MXM but the ones we've seen so far are the 200w(wider and longer) and the 120w (longer)

    ssj92, Oct 8, 2015
    #327
  28. Ethrem

    Ethrem Notebook Prophet

    Reputations:
    1,404
    Messages:
    6,706
    Likes Received:
    4,735
    Trophy Points:
    431
    That's the 180W card. The regular MXM cards haven't been released yet.

    EDIT: Well I guess if Prema says that's the card, that's the card. He says that's the card for the P775DM and the GT80 but that makes no sense since the P775DM = 180W and the GT80 = 120W SLI. Guess we will have to see.

    Ethrem, Oct 8, 2015
    #328
  29. ryzeki

    ryzeki Super Moderator Super Moderator

    Reputations:
    6,547
    Messages:
    6,410
    Likes Received:
    4,085
    Trophy Points:
    431
    Maybe it's the same card, but they simply did not connect auxiliary power? :p

    ryzeki, Oct 8, 2015
    #329
  30. Ethrem

    Ethrem Notebook Prophet

    Reputations:
    1,404
    Messages:
    6,706
    Likes Received:
    4,735
    Trophy Points:
    431
    But there's zero need to have a bigger board for a 120W card. We already know it won't have 7Gbps GDDR5 and there's room for the power phases (just look at the open spots on the 980M). Plus MSI promised GPU upgrades in MXM format... Does the GT80 have the extra length to install two of those? I doubt it.

    Ethrem, Oct 8, 2015
    #330
  31. ryzeki

    ryzeki Super Moderator Super Moderator

    Reputations:
    6,547
    Messages:
    6,410
    Likes Received:
    4,085
    Trophy Points:
    431
    Apparently the GT80 version with 980 will be different but even so i think the current one has enough space for the extra lenght. I will check it out later.

    Sent from my SM-G925I using Tapatalk

    ryzeki, Oct 8, 2015
    #331
    TomJGX and jaybee83 like this.
  32. Ethrem

    Ethrem Notebook Prophet

    Reputations:
    1,404
    Messages:
    6,706
    Likes Received:
    4,735
    Trophy Points:
    431
    Well if they don't release a standard MXM card then we know what to expect going forward from nVidia. No more backwards compatibility. Wonder how MSI is going to explain that to all of the people who bought a machine with the promise of GPU upgrades.

    Ethrem, Oct 8, 2015
    #332
  33. D2 Ultima

    D2 Ultima Livestreaming Master

    Reputations:
    4,335
    Messages:
    11,803
    Likes Received:
    9,751
    Trophy Points:
    931
    It's not standard. It's slightly "taller" and won't fit in machines like yours or mine, even if we could mod heatsinks to accomodate.

    D2 Ultima, Oct 8, 2015
    #333
  34. Ethrem

    Ethrem Notebook Prophet

    Reputations:
    1,404
    Messages:
    6,706
    Likes Received:
    4,735
    Trophy Points:
    431
    That's obviously by design to force obsolescence.

    Ethrem, Oct 8, 2015
    #334
  35. D2 Ultima

    D2 Ultima Livestreaming Master

    Reputations:
    4,335
    Messages:
    11,803
    Likes Received:
    9,751
    Trophy Points:
    931

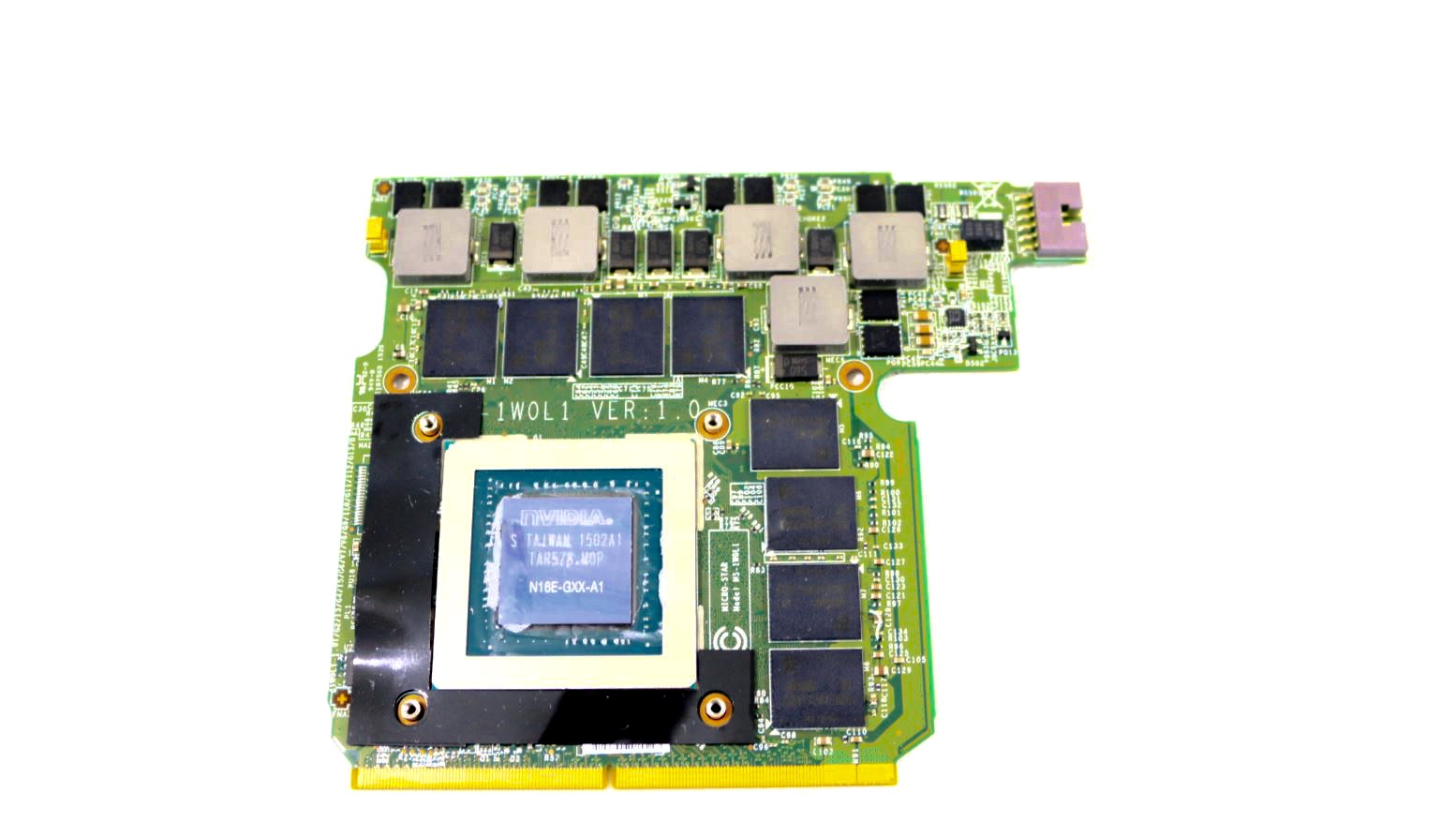

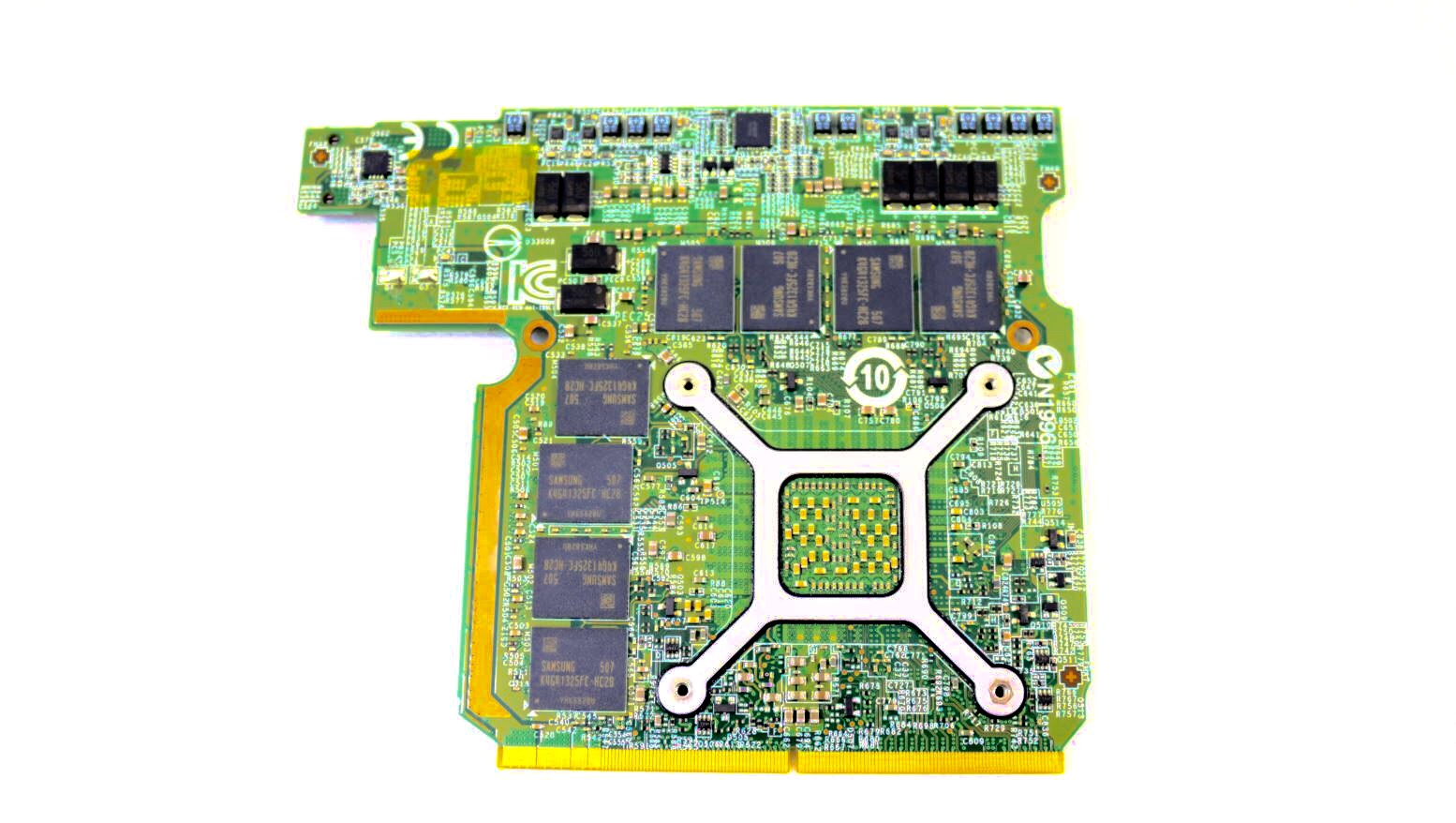

    I actually think that this time it's necessary. It has an extra power connector on it and all the space seems to be used up correctly.

    Here:
    [​IMG]

    D2 Ultima, Oct 8, 2015
    #335
  36. Ethrem

    Ethrem Notebook Prophet

    Reputations:
    1,404
    Messages:
    6,706
    Likes Received:
    4,735
    Trophy Points:
    431
    You see why I'm skeptical about that being the card MSI will be using for SLI, right? A 120W card doesn't need an external power source OR that many power phases. I don't see it but I guess we will have to wait and see what MSI comes up with.

    Ethrem, Oct 8, 2015
    #336
  37. octiceps

    octiceps Nimrod

    Reputations:
    3,147
    Messages:
    9,944
    Likes Received:
    4,194
    Trophy Points:
    431
    Counting the # of chokes it looks like 4+1 power phases just like the desktop 980

    octiceps, Oct 8, 2015
    #337
  38. D2 Ultima

    D2 Ultima Livestreaming Master

    Reputations:
    4,335
    Messages:
    11,803
    Likes Received:
    9,751
    Trophy Points:
    931
    Well maybe it's to feed extra power for OCing? nVidia did say they're making this for *cough* enthusiasts *cough cough* (I'm allergic to crap I'm sorry) *cough cough wheeze*
    First of its kind in a mobile format, is it?

    D2 Ultima, Oct 8, 2015
    #338
  39. Kevin

    Kevin Egregious

    Reputations:
    3,289
    Messages:
    10,780
    Likes Received:
    1,782
    Trophy Points:
    581
    Believe me sir, MSI will be hearing from me and my ilk, if I can't upgrade to Pascal. That was a BIG part of my reasoning in going with the GT72, to own a machine where the manufacturer promised future support. To no longer be at the mercy of Prema's propensity for awesomeness, like we were/are in the Clevo forum.

    I'll whip up enough internet furor for a class action suit. We will burn them to the ground.

    Kevin, Oct 8, 2015
    #339
    TomJGX, moviemarketing and Ethrem like this.
  40. HaloGod2012

    HaloGod2012 Notebook Virtuoso

    Reputations:
    766
    Messages:
    2,066
    Likes Received:
    1,725
    Trophy Points:
    181
    same here, bought the gt72 because its still using mxm and they make one of the big selling points the future upgrades

    HaloGod2012, Oct 8, 2015
    #340
  41. octiceps

    octiceps Nimrod

    Reputations:
    3,147
    Messages:
    9,944
    Likes Received:
    4,194
    Trophy Points:
    431
    No, looking at Fermi MXM cards they have more phases than reference desktop cards. Kepler (except for Asus with its funky design) and Maxwell though are under-built compared to desktop.

    octiceps, Oct 8, 2015
    #341
    TomJGX, jaybee83 and D2 Ultima like this.
  42. octiceps

    octiceps Nimrod

    Reputations:
    3,147
    Messages:
    9,944
    Likes Received:
    4,194
    Trophy Points:
    431
    You and what army?

    octiceps, Oct 8, 2015
    #342
    TomJGX likes this.
  43. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,149
    Trophy Points:
    931
    oh, they did! wouldnt even have noticed that if u hadnt commented on it :D

    how in hell would any user try and adapt the 200W monster for anything other than MAYBE a P775DM? o_O no way in hell thats gonna happen in any other system officially incompatible with that card...

    oh cmon now, dont sell ur stuff every time anything "new" comes out its not even worth it to "sidegrade" to a 980 in your case, performance-wise :D

    just one: be able to install significantly more power phases than on the 980M to still keep it at bay compared to the 980 overclocking wise.

    i dont think theres a physical difference between the 200W and the 180W TDP versions, since according to prema the only difference between them is just one single power phase (8 vs. 7), thats it!

    dont forget: nvidia isnt the one whos designing and building the mxm boards, its the respective OEM/ODM ;) so theres no excuse from MSI whatsoever!

    ...which proves that this is neither the 200W (8 power phases), nor the 180W model (7 power phases). maybe its a 160W variant....? :D since there still could be a 4 power phase model put in between the 980M with 3 and this 980 with a total of 5 ;)

    the NBR army :D

    Sent from my Nexus 5 using Tapatalk

    Last edited: Oct 9, 2015
    jaybee83, Oct 9, 2015
    #343
    TomJGX, moviemarketing, kolias and 1 other person like this.
  44. kolias

    kolias Notebook Evangelist

    Reputations:
    251
    Messages:
    629
    Likes Received:
    88
    Trophy Points:
    41
    I think you are right ;) :)
    I have the same perfomance with the 980.
    Well we see with the pascal how compatible it will be.... o_O

    kolias, Oct 9, 2015
    #344
    TomJGX and jaybee83 like this.
  45. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,194
    Likes Received:
    17,901
    Trophy Points:
    931
    Without doing component analysis it's hard to say that.

    Excess phases waste power and it's better to have fewer higher quality phases than many cheap ones.

    Meaker@Sager, Oct 9, 2015
    #345
  46. D2 Ultima

    D2 Ultima Livestreaming Master

    Reputations:
    4,335
    Messages:
    11,803
    Likes Received:
    9,751
    Trophy Points:
    931
    It makes me drool, I'd notice it anywhere. I want it bad.

    Please, we can't make this army agree single handedly that BGA is bad. How we gonna rise up against MSI?

    D2 Ultima, Oct 9, 2015
    #346
    TomJGX and TBoneSan like this.
  47. octiceps

    octiceps Nimrod

    Reputations:
    3,147
    Messages:
    9,944
    Likes Received:
    4,194
    Trophy Points:
    431
    980 card from the new Skylake GT72:

    [​IMG]

    [​IMG]

    octiceps, Oct 9, 2015
    #347
    TomJGX and jaybee83 like this.
  48. kolias

    kolias Notebook Evangelist

    Reputations:
    251
    Messages:
    629
    Likes Received:
    88
    Trophy Points:
    41
    I think after the msi 980s 120w beeing like that there is no hope to put it on our laptops...
    Oh well....

    kolias, Oct 9, 2015
    #348
  49. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,149
    Trophy Points:
    931
    that is some weird-ass form factor o_O really hoping clevo is coming up with something more compatible. after all, each ODM has its own freedom of mxm design
    clevo, give us a 980 with 4 power phases and standard mxm form factor! :D

    Sent from my Nexus 5 using Tapatalk

    jaybee83, Oct 9, 2015
    #349
    TomJGX and kolias like this.
  50. octiceps

    octiceps Nimrod

    Reputations:
    3,147
    Messages:
    9,944
    Likes Received:
    4,194
    Trophy Points:
    431
    I thought this was it?

    [​IMG]

    octiceps, Oct 9, 2015
    #350
← Previous pageNext page →
