Mobile Pascal TDP Tweaker Update and Feedback Thread

Ok, i´ve been optimizing my gpu oc and I think I can not run it any farther without unlocking it even more. At the moment is 151/170w, which is pretty awesome for everyday gaming. My firestrike result is 17323. My graphics result 21470. I think that is not bad at all for a 1070 in a laptop. Thank you very much to Coolane and Falkentyne who have helped me through this.

https://www.3dmark.com/fs/18153082



Really great results! Would you please make a screenshot of your voltage curve? Would be awesome!

Gesendet von meinem SM-G965F mit Tapatalk



Thank you! I can do it later, but for now, i think it is +200mhz, except at 1,025v, which is +212mhz and after that its flattened. Also +700mhz on vram.



Do you have samsung or micron vram?

Gesendet von meinem SM-G965F mit Tapatalk



Samsung. What is the difference?



The samsung memory is said to clock higher than the micron . I got the samsung too and i got +700mhz stable too

Gesendet von meinem SM-G965F mit Tapatalk



What are we talking about? I got lost in all the new posts



I think they were talking about how you and Fox helped Alienware back during the days of the Ranger.



That's a Long time ago now.



Potentially stupid question:

Are the vbios TDP limits for a card inclusive or exclusive of the vram TDP?



Inclusive. It’s total board power.



However ram power does not scale much with clocks.



OK makes sense. Thanks



only for Nvidia cards. AMD cards, the TDP doesnt really mean the same thing.



actual my best FireStrike score with my zephyrus m up to now with 150 watts tdp limit just for benching.
Impressive how a device this thin can actually perform!

https://www.3dmark.com/3dm/33305969?



150w is still a fair amount of power budget. I remember when 90w was considered the top level.



And I remember when +200w was considered the top level



A user on reddit claims he flashed a 1070 vbios on his laptop with nvflash......hummm...is this possible?
"Nvflash has worked on pascal since the October release. I used the one with board id mismatch disabled.
More specifically, I used it to flash another MSI 1070 vbios onto my laptop."



That would be really awesome though..

Gesendet von meinem SM-G965F mit Tapatalk



I misunderstood, he flashed a 1070vbios onto his 1070MQ so no modding.....that is why it worked. Not useful in my case, I will need to get my hands dirty.



The good old way...

Gesendet von meinem SM-G965F mit Tapatalk



opening my 1080 vbios in the editor shows a 170W TDP so a 200-220W should give a decent boost.



Yeah some time around the 680m I think, then 250-300w was the fun times



Can you share your afterburner settings? Pretty great score, I don't even get that with 170w

Edit: ok, my graphics score its better, but your cpu gets way better score...



So, @Coolane when can we expect Mobile Turing TDP Tweaker Utility ?



Yes that was the point. Just got those scores due to the better cpu

Gesendet von meinem SM-G965F mit Tapatalk



Yep, pretty amazing for that laptop. Anyway, I wouldn´t say better cpu...it´s got six cores, but isn´t it limited to 45w? In the real world, what stable speed can you get out of the six? is it possible to mantain the 3.9Ghz for long in the six cores? Because I think it´s only possible for very short periods, but maybe im wrong. In the case I´m wrong, its better. Mine can sustain 4.4Ghz without a problem, I could go farther, but dont want to risk with the high voltages...



Having a card would probably help.



What do you mean? It's a 1070

Gesendet von meinem SM-G965F mit Tapatalk



Dur to core temp and hwinfo it uses about 60-63 watts during load. The 3,9 ghz are always there with a decent undervolt.

Gesendet von meinem SM-G965F mit Tapatalk



Ok, nice, I have a friend who has a msi and his doesnt mantain the 3.9Ghz at all. What settings do you have to maintain it?



Did he already undervolt his notebook?

Gesendet von meinem SM-G965F mit Tapatalk



Sorry, meant to quote the above.



Hi
Is there any official signed Vbios for gtx1060 with TDP of 88W thaht can be flashed with nvflash on msi laptop?
Currently I have stock bios with TDP of 78W, but if there is official signed vbios with 88W thaht can be flshed without programer it would be great.
If someone have one I am kindly asking for an upload. I don't need unlocked power slider but 10W more would be great.

Thanks



Hey dude,
i have the same question like you except that i have a gtx 1060 max-q version
do you think would it be possible to upgrade it from a signed vbios onto a regular 1060M version ?
i currently suffering the power limits on my gpu and this is frustrating i really appreciate if someone help me with that

my vBIOS Version is 86.06.51.00.08 (Max-Q)
and the vBios that i found is 86.06.18.00.30 (Regular Mobile)

Here is the signed one that i found: https://www.techpowerup.com/vgabios/189965/189965
but it's not mentioned the TDP limit



This is someone that have flashed his laptop without using a hardware programmer:

http://forum.notebookreview.com/threads/np8954-gtx-1070-max-q-gtx-1070-unlock.826608/


and this is my reddit full post about this issue:

https://www.reddit.com/r/overclocki...hing_1060m_vbios_onto_1060m_maxq_upgrade_gpu/



What card do you have?



here is the full spec



No but what card/board is it? What is it like physically?



Hi

On my side I am looking for signed vbios for msi gtx1060 bga with 88W TDP.
GPU-z shows device ID: 10DE 1C20 - 1462 11D7
My current vbios is 86.06.29.00.04
If this matters I have Samsung GDDR5

Maybe newer msi laptops with bga gtx 1060 have higher tdp like 88W. maybe msi ge73 or ge75.

If someone have one please share.

Also if someones could tell me what programer and other hardware would be needed and best and easiest to work with for pascal vbioses. Beacause in future I want to buy one .

Anyway if someones have nice official vbios please share.

thanks



Haven't opened it since day 1 but here is the actual motherboard "physically"



It does not look like the power circuit is very beefy, have you checked it will be ok?



I don't know very much about it but what do you actually want to know ?



It's more what you want to know, will boosting the TDP fry the VRM?

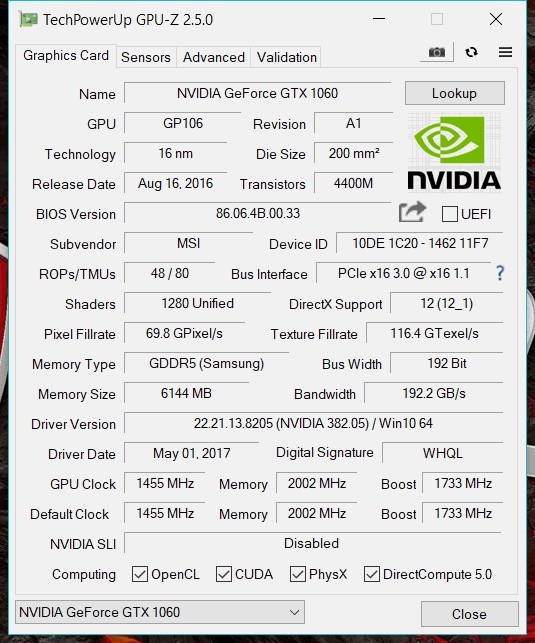

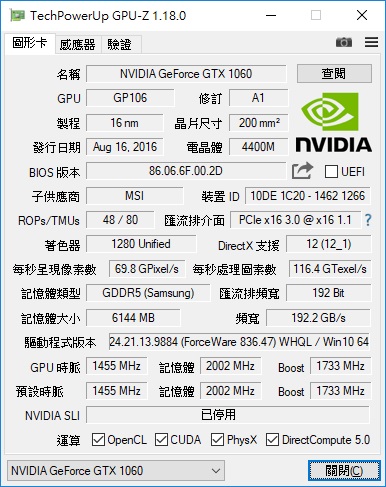

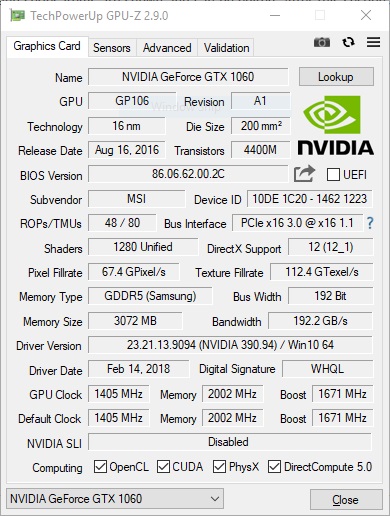

Hi maybe someone with those laptops can tell us what is the tdp of the gtx1060.
Most interesting are those with higher clocks

Maybe some CLEVO signed 88W TDP vbios will work



So you mean in matter of temperature?
temps are not the big problems in that case cause it's always below 65~67C under heavy load
btw how can i check and be sure about this one?

despite that do you think is it possible to flash a signed vbios without a programmer?



You dont know the temps of the VRM, have a look at the chips and their ratings.



I have to open it to check it ?
or is there any software to show the current VRM temps ? (maybe like HW info)



They wont be monitored. They will have just been designed with a tolerance and left to run.



Is it possible to hand-edit a (Quadro Pascal) VBIOS to enable core and memory overclocking, and then flash the VBIOS using the programmer?

Thanks very much.
