Mobile Pascal TDP Tweaker Update and Feedback Thread

Indeed, that's why there is a disclaimer about it on github, you first need to make sure your laptop and/or cooling is enough to wistand the extra heat on the core as well as the vrm.



This doesn't seem to be such a simple problem. Even assuming that the core and VRM can withstand the extra heat sufficiently, the overcurrent will destroy the capacitor. Haven't there been many reports on this forum where capacitors were destroyed by modifying the TDP?



Yeah well the caps used in laptops are the same ones as the ones used in high end aftermarket desktop gpus (most just use through hole capacitors), and nobody has ever destroyed a capacitor even when doing extreme overclocking on those.

Long story short, the capacitors are irrelevant. Just make sure the Vrms are cooled well enough and you're set.



That's good news. Thanks for reply.



Do I need to purchase an infrared thermometer to measure the temperature of the VRM?



That wont give you an accurate reading. Your best bet would be k-type thermocouples in between the vrms and the thermal pads.



k-type thermocouples? I have never heard of it. May be my brain doesn't reach the knowledge you have. But thanks for answering me. Is it impossible to guess the temperature of the VRM through software? Even if it is not the correct value, I can be satisfied. I just need to be able to get rough enough information to determine if my laptop's cooling solution is sufficient.



The last (and only) time I blowed up capacitor it was on a crappy GTX260 with a vmod at 1.35v and burning hot capacitor
K-Type thermocouples require a "special" thermometer to use, you can find one of theses on ebay for less than 5 bucks



Well its what gamers nexus uses for their testing

http://www.meter-depot.com/scientif...r-1-k-type-thermocouple-and-stainless-sensor/

I can take a look if you provide a picture of the cooling system.



Thanks nice guy! I'll provide a picture later.

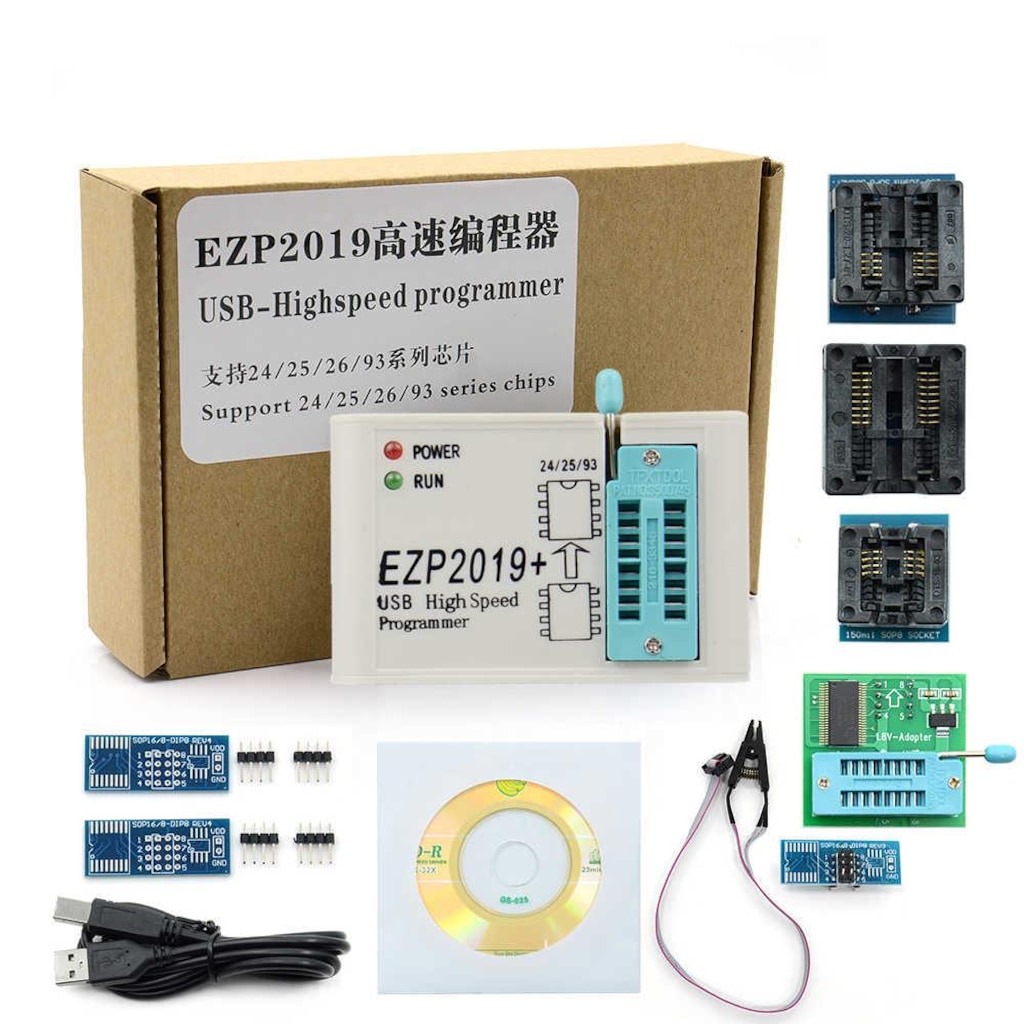

Hi guys, are these tools enough? I also want to write a modified vbios. My notebook is MSI GT72VR 6RE. There are 1070 GTXs. Power Adapter is 230 Watt.What should be the power limit for Vbios.



All them parts are correct apart from the SOIC8 test clip, which you should get a CPT 063 Test SOIC8 Pomona 5250 with some male to female cables such as
https://cpc.farnell.com/pro-signal/psg-jmp150mf/jumper-cables-m-f-150mm-pk10/dp/SC13050

Or similar to it.

Sent from my SNE-LX1 using Tapatalk



the included SOIC8 test clip is enough for his usage, that is to flash bios on some devices



I have the test clip shown in the picture and I have always had issues with it, whilst the one I linked can be clipped on and left to it's devices without risk to little SMD's next to the vbios chip, hence my suggestion.

Sent from my SNE-LX1 using Tapatalk



Hello does Mobile Pascal TDP Tweaker works with dekstop GTX 1070 cards? Do I have to use the programmer like in laptop versions of cards or nvflash is enough?



Mobile Pascal TDP Tweaker v1.1.0.0 , point 7) Support desktop Pascal vBIOS (experimental; 1060, 1070, 1080, and 1080Ti only) this was disabled in version Mobile Pascal TDP Tweaker v1.1.3.0 .

However it doesn't clearly state it was re-enabled after that, so you can try it out but just make sure you have 3 backups (3 Seperate reads via the programmer and save each file) then do a checksum to make sure they match then give it a whirl.

However if its a desktop GPU, you could always use a shunt mod (which is normally what people do on desktop GPU's), but each to their own.



ok, thx, but can I use nvflash?



No, its not possible to use NVFlash to flash modified vbioses as nvidia forced a requires a cert from nvidia requirement.
So the only way to flash a new modified vbios is to use a Hardware USB Programmer.

To which all parts required are in this forum thread.



Can't seem to hardware flash my modded vbios onto my MXM Quadro P5000 because of some stupid write protection on the chip. Anyway to get around that with the GQ-4X Software at all or do I need to buy another programmer?



Remove the chip from the card, the WP pin might be hardwired.



Hey guys, the Mobile pascal tdp tweaker doesn't seem to support the RTX 2070 Super mobile. How do I change the TDP on Super mobile?



Shunt mod might be the only way Auros X5-V7.

Sent from my SNE-LX1 using Tapatalk



Thanks for the reply, friend. By the way, I no longer use the Aorus X5-V7. I am now getting ready for my new laptop. Its name is "L9T27S". The GPU of L9T27S is RTX 2070 Super Mobile.

And the good news is that the L9T27S is a model with Intel's built-in graphics. With the laptop's MUXED technology, I can switch between internal and external graphics as I want.

In other words, even if my external graphics card is a brick, I can restore the external graphics by activating the internal graphics.

I am now ready to modify vbios to my heart's content without fear.

But one problem is, the mobile pascal tdp tool doesn't seem to support 2070 SUPER mobile.



Only way is to shunt mod.



I'll have to check back with you when i'm able to get good soldering equipment to safely remove the chip. But if that doesn't work I can order another W25Q40EW off of digikey.



What is this? Header Section? What Happens When I Select "Remove"? Does this really work to fix Black Screen?



There is no point vbios modding a RTX2070 Super with the pascal tool, the only way you can TDP mod that card is via a Shunt mod.

Also the Black screen fix removes a header called IFR and should only be used on a vbios with a starting point other then 55AA, for example 4E56.



Sent from my SNE-LX1 using Tapatalk



Wait, Mobile pascal tdp tweaker succeeded in detecting tdp of 2070 super mobile!
So I changed 115W to 150W.

Can you take a look at vbios file please?



You can change it, but the card wont work again due to the new BIOS protections NVIDIA set into them, you will never get the card out of error code 43.



Really? Nvidia's new BIOS protection? What is that? and When was it released? In other words, are you saying Mobile Pascal TDP Tweaker is useless now?



As already said to you countless times, you can't BIOS mod Turing aka RTX2000 series GPUs, you need to shunt mod, or at least optimize your curve using Afterburner, because there is plenty of performance to be had just by tweaking the curve.



Hi friends i did it as auto. But my video card didn't work. And gave this error. Please help me.



the computer was turned on but there was no picture. PLEASE HELP ME



HELP ME GUYS



Please tell us the steps you did in the flashing procedure.

Have you saved the original vbios?

Gesendet von meinem SM-G973F mit Tapatalk



I read the chip. This is the situation



Did you set the cable right on the chip? Red pin on pin one with the little point on the ship?

Gesendet von meinem SM-G973F mit Tapatalk



first i set winbond 25q80ev to 1.8v. I am a GT72VR 6RE user. I pressed the Auto button. And this gave the verification error. I assembled the computer again. However, there was no picture on the screen. What should I do again, depending on the programmer now?
The point is on the red wire.



Did i get that right, you just tried to dump the original vbios and that results in this error you've posted before?

Gesendet von meinem SM-G973F mit Tapatalk



Unfortunately i'm not familiar with this kind of programmer. I cannot tell you whether you set it up correctly on the programmer and in the software. I was using tl866 all the time.. but for me that sounds like you fried the vbios chip.

Gesendet von meinem SM-G973F mit Tapatalk



Yes



But if i watch both pictures the red cable wasn't connected on the pin with the paint dot.

Edit 2:
Was connected right.

Gesendet von meinem SM-G973F mit Tapatalk
View attachment 187889



The black dot isn't the red wire, so?



Argh my mistake.. haven't seen the black one on my mobile phones screen. No the black one is the right one and pin 1.

Gesendet von meinem SM-G973F mit Tapatalk



This image came when I pressed the test.



Unfortunately i cannot help you with that as i am not familiar with this software, sorry.

Gesendet von meinem SM-G973F mit Tapatalk



Read the chip ID, set it correctly on the software, and program a new VBIOS, because you corrupted your VBIOS, thats why there is no image.
And if you have a TL886 why did you buy another programmer, the TL can talk to those chips, all you needed was the 1.8V adapter.

So, what you need to do is connect the clip correctly, ID the chip correctly, and then program a new VBIOS.



The error shows up on the dump procedure. I don't think that he will have a working copy of the vbios.

Gesendet von meinem SM-G973F mit Tapatalk
