New gaming notebook unveiled - AORUS X7

Well it can use max 2GB because the same data is stored in the vRAM of each card.

Yeah they could have a new factory clocked GPU, maybe even 775m, who knows. But considering it's 4GB it's either 128-bit or 256-bit.



Of course I made that up. We're all hypothesizing here anyway.

Synthetics always show better multi-GPU scaling than actual games so 765M SLI is still dumb; I'd take a single 780M any day. Only reason I got my Y500 with SLI was because it was dirt cheap ($900) and with some easy overclocking it becomes faster than a stock 770M in games with good SLI support (which are the majority of what I play) and it cost a few hundred less than any 770M system.



GT 755M is listed @ Nvidia. GTX 785M is not. And what is the purpose of a 785M when they will launch GTX 880M pretty soon anyway?

God bless anyone who dare to buy a slim notebook with GTX 880M running at 1GHz. Inside GT60 with a thiiick fan, over the 850MHz GTX 780M, it reaches 90C.
Either you have a deadly laptop lifting of the ground and flying all over the room with its sharp edges because of the insane fanspeed. Or you will have a melted plastic pool in a few days

lol

Its not dumb when the other competitor (Razer) only have one GTX 765M. Gold mine is the word you are looking for (if priced right of course)
Sure games doesn`t scale near 100% at all like you say, but it will be a pretty hefty gaming notebook anway if you ask me



775 already exists, sold by Apple in their iMacs

Also SLI 128bit = 256bit.



755M info went up months after it had already started shipping in notebooks. GeForce.com ain't exactly known for its leaks of unreleased products if you catch my drift.

Dunno. Stranger things have happened.



Yeah, and for a long time, it was incorrectly listed as a 16W part capable of topping the 750M. LOL.

The launch of the 780ti. Nvidia 1upped their own titan



Yea well I'm guessing since that would be the best way to handle either 2 cards or 1 card without big thick cooling that are typically on gaming laptops , also I don't think there might be 4 fans , the front inlets don't seem seem to be like the back inlet/exit ..



Even if the laptop is portable, it will have one HUGE power brick, that's for sure



Its OK once u plug in the laptop , you will just forget about it



Not a single 7xxM card will be announced anymore.

All future cards will be 8xxM. 99.999998% sure



Did not know that. Now I do. Thanks.

Yes, but point being that even GB vRAM usually means 128-bit or 256-bit (ok, yeah 32-bit, 64-bit, 512-bit... yadda), so it couldn't be 770m is all I'm saying (which is 192-bit)



I really think it will be sli with one card being in a hot swap bay like lenovo.
Now if they had a igpu switch like in the alienware tht would be a miracle Lol imagine the battery life with tht

anyone know if a switch like that can be added in a bios update if not included at the laptops launch?



Looking at the pictures again, there is 2 vent holes in the back. Wouldn`t that mean 1 for the GPU and 1 for the CPU? Shouldn`t there be 3 holes if it was SLI?



I don't think it will be hot swap, there's no need for that. I don't think they are going for the budget laptop with option for more power. They are just going with more power from the beginning and also nobody needs/wants an optical drive in there. Just more wasted space. The "switch" would need to be wired properly on the mainboard, so it's not just a software fix.



Ah okay so hope they want it to then...



I'm skeptical of a lot of things. Especially 3DMark11 score, which unfortunately becomes more and more meaningless. You can check my new score HTWingnut and guess how it was possible on W230ST besides overvolting. What I want to see is actual in game performance, so lets wait till CES.



Holy cow, lol. That's like 680m! Run it at 1080p and see what the score is if you get a chance.



I'm sorry to disappoint you, but I basically just tricked synthetic benchmark with GPU virtualization. Software is supplementing my dGPU with HD 4600, 3DMark11 can't tell. So Gigabyte could potentially fit a GTX 770M in a thinner chassis (very impressive regardless), and do this trick to get high synthetic scores. That's why I don't trust any synthetic benchmark anymore to be honest. Yay, super high score - it's essentially meaningless if it doesn't translate to every game across the board.



No, I understand that, but that's all we have to go by right now. It would be significantly misleading though if that were the case, and people aren't so easily fooled. I'm not going to pass any judgement on it until I see the specs and hopefully a couple review samples with a full suite of benchmarks/gaming performance.

Besides, I find it a bit ridiculous to run a 720p benchmark on a machine that's equipped with a 1080p screen especially if it's being compared with a big boy like the AW 17.



I think it will work with Unigine in 1080p and certain games, but it doesn't work in everything and results are spotty. It also messes with Optimus in some way I think. I can run a test for you and post it in our Owner's Lounge not to go offtopic here.

All I wanted to say is that performance comparison through those benchmarks alone is finicky. Agreed about 720p benchmark comparison between 780M and some mystery card or combination of them.



Its official! its a GTX 765m SLI

AORUS Gaming Laptop X7

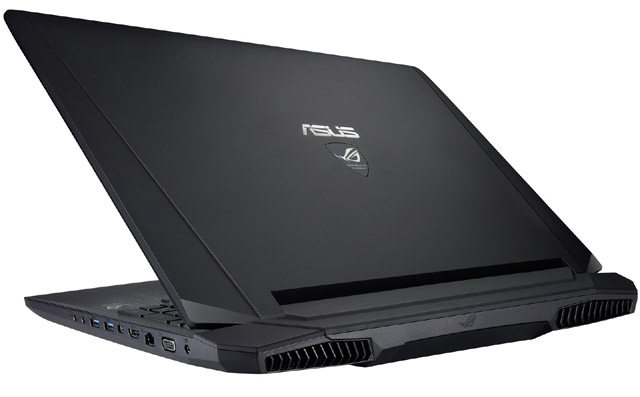

Oh come on, they just copied the ASUS G750's industrial design and made it thinner.





I wonder if AORUS is a spinoff of ASUS, e.g. ASUS and ASRock? Name sounds too similar. Nah it can't be.

Meh. Single GTX 780M all day. Unless it's $1500 or less. Then you have my interest.

Plus two fans for 1 CPU + 2 GPU's means one fan is gonna be shared between a GPU and CPU. Just asking for thermal/noise issues with a chassis that thin, and it's a hot Haswell i7 no less.



Looks nice, but I wish there was a 15 inch version.



Called it. I knew they wouldnt do a custom GPU like GTX 785M which would be highly illogical. Anyone who assumes GTX 780M in a notebook like that have very little knowledge of hardware and the requirements to feature it. Much better to spread out the heat on several fans with 2 GPUs instead.

That is a pretty impressive notebook. 765M SLi inside a chassis so thin as that is amazing. It have great features as well. FULL aluminium build, fan control for the fan speed you want with the touch of a few buttons, 2x2 watt speakers although the seem to be on the side (not sure if that is good), plus 2 subwoofers underneath it. It even have 4 RAM slots and 2 mSATA SSDs running in Raid0. Amazing.

Thermally I think this notebook is designed really really good. It have vent holes from both the fans on both the back AND on the sides. That should ensure really good venting for the system.

It may be a true winner and I hope they succeed.

Well done Gigabyte :thumbsup:



So ASUS is just gonna let Gigabyte rip off its notebook design? I smell a lawsuit brewing...

And why doesn't AORUS correct the description on its website? The "NVIDIA® GeForce® GTX 765M GDDR5 4GB dual graphics" is just losing them credibility. Anybody who's looking to buy this thing knows better than that and can cut through the marketing bull.



Linus' review of it is up, guess embargo lifted right before CES:



Wow I never thought I would say this but if the temps in the review are true it looks like we might actually have a thin gaming laptop with excellent performance .
My bet is it will be over 1800 dollars though probably quite a bit more too, so it doesn't really make it a contender to other similar performance gaming laptops, unless you are looking for something thin and light .



Wow, I like it. I really like it. But considering the MSI GS70 costs ~ $1800 and the Blade Pro $2500, it will likely be right around the $2000-$2200 mark. I would buy it in a heartbeat if it cost $1500 though. I think this is a system I'd like a lot. Just depends on how easy components are to access. Looking forward to a teardown.

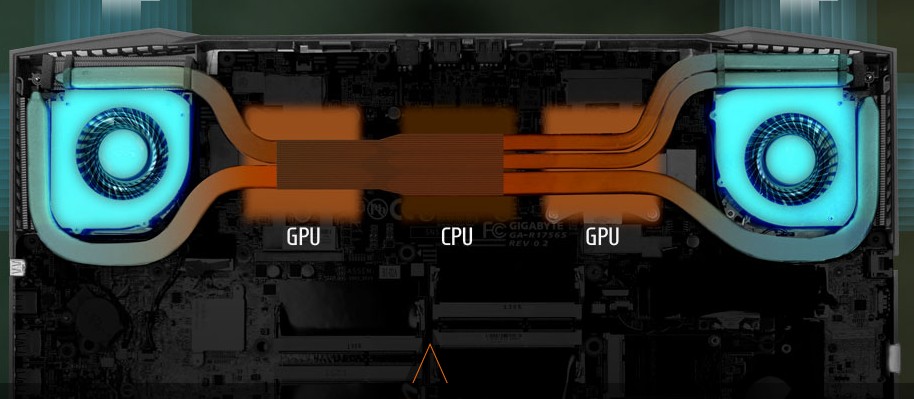

If you look on their site, their cooling is interesting. One GPU has its own fan, the other is shared by the CPU and GPU. I'm glad they used that many heatpipes too, and cooling on both sides of the fan. Looks like a solid design.



If they can get it around $1500 I'm buying one.



765M SLI?



Lol it could have gone either way , could have done the conventional design with dedicated CPU heatsink with dedicated GPU heatsink , without any engineering themral analysis , I can't for sure if the single gtx780M is feasible but it does seems feasible if they can get two gtx 765M in there.



Will probably be at least 2 grand.

Now if they could just mention battery life.



Whine and whine is that all you do? If you don`t have anything better to do, then please stop posting in this thread

"They are copying Asus. Buhuuu"
"GTX 765M SLI? Pathetic. GTX 780M is what I want. "
"4GB dual graphics. How dare they market the GPUs that way. Buhuuu"
"CPU and GPU share the same fans, it will crappy."

The fact is that this is the first system this slim to be this powerful. No other OEM have managed to do this. LinusTechReview found the system to be incredible cool despite your attempt at bashing this notebook. You would see it will be pretty efficient when you look at all the vent holes, that they spread out 100W on two fans instead of making a slim type fan deal with 100W alone. Its the only way to make it reasonable noisy and cool.

Try to see positive aspects of things instead of spewing out acid all over the thread and being a complete downer for the rest.

Pretty cool design (pun intended) HTWingNut.
Did you notice that each fan have vent holes on the side and on the back? They run each heatpipe all the way to a vent hole alone where it is cooled off by the fan. Clevo/Alienware/Asus only have vents on the back, so I imagine this design to be much more efficient.

The system comes with 2mSATA SSDs in Raid0 plus 1TB HDD. Plus it have 2 graphic cards, so yeah I think $2k+ is what it will cost too.



True but they could have just done a single spu and GPU with the Sam cooling configuration , 2x765 (75*2) + 4702(37) = 187 W . 780(122) +4702(37) = 159 , I thinking power might have to do something with this , but again the numbers above show that it wasn't a obvious configuration.you could argued that they split up the GPU so its 75 W on one heatsink and 112 on the other , but then a single GPU you can do what MSI did but have dual heatsinks thus 159 W spilt across two heatsink , most likely the manufacturing cost of dual 765M is cheaper thus more profit .

Tdp came from :

Intel® Core

NVIDIA GeForce GTX 780M | techPowerUp GPU Database

NVIDIA GeForce GTX 765M | techPowerUp GPU Database



Its definitely closer to 65W for the GTX 765M. It have half the cores of a GTX 680M, which also was lower than 100W.
Source: GTX 580M was 100W but GTX 680M ran much cooler.

We must remember that MSI use a big behemoth of a fan in their GT systems. You wouldn`t had room for a fan of that size in the X7. The fan`s X7 use is probably much slimmer. And a 100W GPU surely must have big enough room to breath right? There is a reason why all the 17" notebooks Asus,MSI and Dell make are thick. If they could go down in size, they absolutely would, to reduce material costs and to get more customers who want a lighter and thinner notebook which are easier to carry around with. You only find single GPU systems like MSI GS70 and Razer that are thin.
I also would have imagined that you would have created hotspots that could be uncomfortable to touch if you had a 100W slim notebook.

I think OEMs need to find a balance between power, temperature and noise.
They could try and put a 100W GPU inside the X7, but to keep it cool, they would need to increase fan speed. Which again increase noise. Which could potentially hurt their sales. They could go down in fan speed to lower noise, but that would increase temperatures, could lead to potentially broken systems where the GPU have died. Or have bad reviews where they get bad ratings because of high temperatures and uncomfortable to have it on your lap.
If they could spread out the heat on several fans, they could go down in fan speed while still ensuring cool temperatures. Power would go down a little since SLI doesnt scale 100% like a single GPU like GTX 780M.

But I guess cost also comes to play here like you say.

Who knows, the GTX 765M they have on the X7 could be downclocked slightly to reduce heat.



I'm just basing off the official tdp number since thats how I would design the cooling system , from the engineering perspective it is 100% feasible but most likely it was something else that made them choose dual 765M over the 780M , also u don't need big fans just need a lot of mass flow to transfer the heat in which X7 has , the cooling system is quite amazing so I think It can handle both situations. But let's just be happy that the performance we get in a such a small laptop , the thickness I'm speaking of. I might just try an Sli laptop now.

Also another reason why all 17" are thick is cause the competition hasn't change there design so why should lose money on making a new design , if it works keep it lol. If making laptops was about using the latest technologies , we would have liquid cooling in laptops . Its all about profit margins and selling a product and trying to beat the competition with minimal effort.



I reckon they could keep the same cooling design, 2 fans with all those heat pipes, and instead just have the CPU and the 780M, and have it all linked together so that both fans would extract heat from both the GPU & the CPU. Well, maybe it would help if they kept the same cooling design but had 3 heat pipes on both sides if you had the 780M. I reckon that could work.



I`m gonna get off my high horse a little since I cant sit here and think I know the answer.

The only way we would know 100% is if there existed a system that had these components.
Nobody have made any slim notebook with similar hardware. Slim notebooks became popular several years ago.

Both Razer and GS70 use dual fan setup. They only have GTX 765M.
Shouldn`t this atleast push us to believe that it isn`t as easy as one might think?

This is btw the first time we have a slim notebook with 2 graphic cards. Its a great deal when you think about it



Is that FOUR RAM slots?



Yea I agree with you there but in the engineering everything is possible , just that when you look at it from the business perspective , it gets complicated , you have to make sure to sell enough to offset the production cost , development cost and what customers want. Which I think causes laptops to be what they are , small changes towards a new design. Also i think the razer was the first slim gaming laptop , they had to make an impression thus they did something risky. Being innovotive is risky hence companies dont like to do it. But the X7 is a pretty innovative so I'm starting to think that next year gaming laptops will be thinner. But this is all speculation who knows they could get thicker.



Definitely a lot of unanswered questions. Give me or Cloudfire or Meaker a run at one and we'll gladly answer all the questions.

Still need to know about:

- battery life
- component accessibility
- component temperatures
- power adapter size/weight
- screen attributes
- peak power consumption

The other issue is availability for USA. Gigabyte has been notorious for not making their products readily available for purchase. Although I'm curious why they aren't launching it with an 860/865m GPU though, even if it is a rebrand, for marketing reasons only. Perhaps they will once they actually launch it considering 800m series is apparently imminent.

Edit: I'm tryiing to find contact information to give it a shot for a review sample, can't hurt. But I can't find any contact information at all!



Those would be good to know yes. Especially temperatures and noise.

I`d like to know the temperatures running the "stealth mode". Considering its 27C (on top of the notebook) during gaming, maybe one can game with "stealth mode"?

And does it have MUX like my Alienware 18? Its an awesome feature

Correct. It have 4 RAM slots.



Likely does not use Optimus, but manual switch hopefully? Or can you game on battery with a single GPU?



Manually switch would be awesome

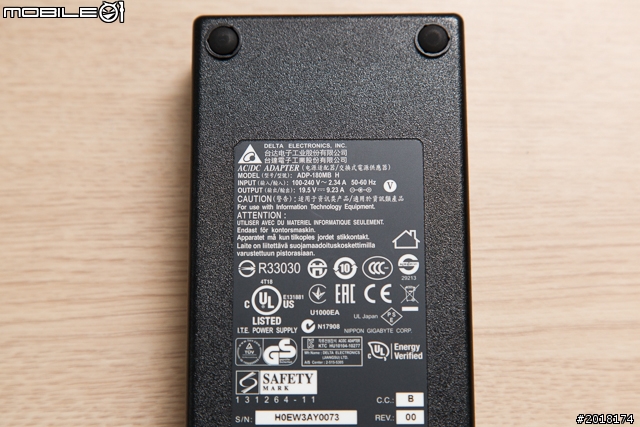

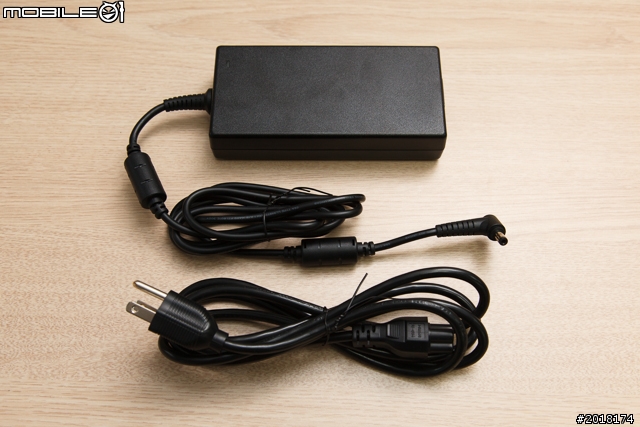

Its a 180W adapter and it weighs 805g.

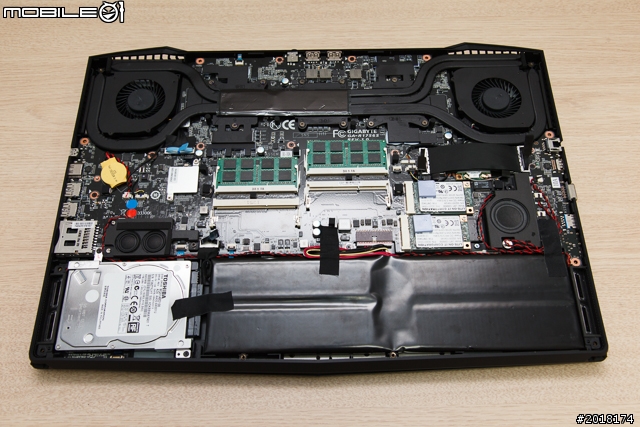

It looks very easy to upgrade as well




Many pictures here:
http://www.mobile01.com/topicdetail.php?f=159&t=3722047

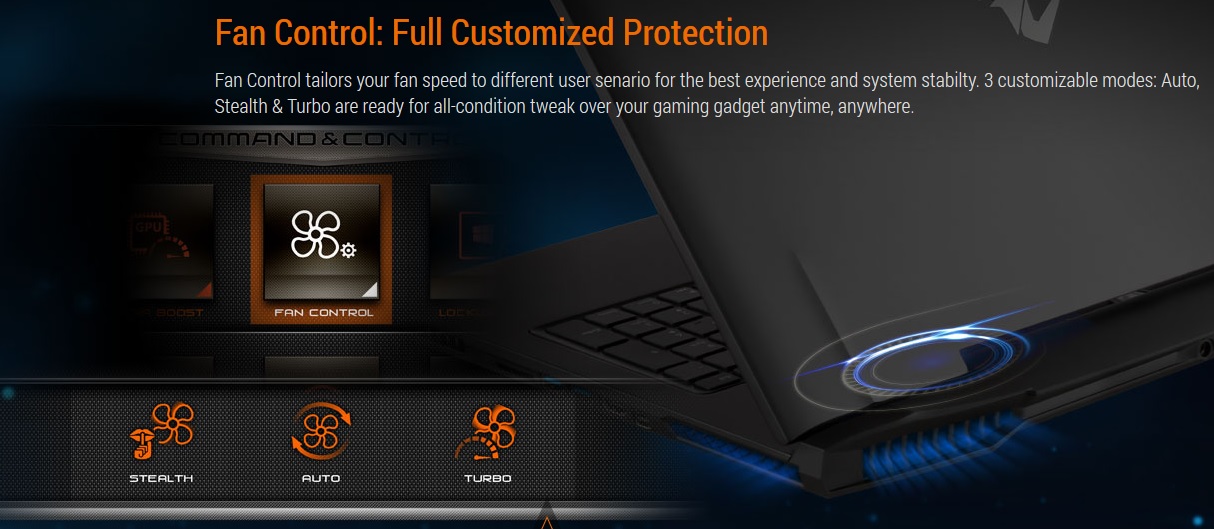

I saw this new lappy on Linus' Youtube. Oh look customizable fan control. Precisely just what we need on the Alienware.



when is it out

do they ship internationally ?

how much is it ?

I WANT IT!!!!!



By the way brother Cloudfire, for some reasons all your embedded images in your previous post above my post, cannot be viewed. They don't load.



Thanks for telling. Uploaded again with imgur.

I would also love to see a fan control solution like X7 on the Alienware`s. Atleast a turbo mode for the overclockers.



This is looking more tasty by the minute. If the power plug is 5.5mm/2.5mm I'm golden, have my 240W modded PSU, which is also 19.5V, and weighs only 700g

Never thought I'd say it, but this may be the laptop I buy this year. I can't afford my $4000 880m SLI behemoth, but this will suffice just nicely. Although will wait and see if they offer one in a couple months with a slightly more powerful 800m series GPU.



It would be quite a upgrade over your NP7330 thats for sure HT

If it wasn`t for my Alienware 18, I`d buy it too. It will be a bit slower than the Clevo/MSI/Asus with GTX 780M, but it is a much more solid machine overall with great features you can`t find elsewhere which makes it better in my eyes.

Resellers will undoubtly sell this machine. And they will ship it international of course



2.9KG according to spec, not that light.

for 15mm more you can get a m6800, 12mm more for a zbook17, just saying.
