    No more overclocking on Nvidia mobile GPUs

    Discussion in 'Gaming (Software and Graphics Cards)' started by octiceps, Feb 11, 2015.

  1. D2 Ultima

    D2 Ultima Livestreaming Master

    Reputations:
    4,335
    Messages:
    11,803
    Likes Received:
    9,751
    Trophy Points:
    931
    LOL.

  2. Player2

    Player2 Notebook Evangelist

    Reputations:
    120
    Messages:
    648
    Likes Received:
    240
    Trophy Points:
    56
    With nvidia inspector my 980m's show 1.056 v. As soon as I open nvidia inspector and after about 7 seconds it then shows 1.000 v. And I have stock vbios 84.04.22.00.12 with no overclock or overvolt on the cards yet.

  3. octiceps

    octiceps Nimrod

    Reputations:
    3,147
    Messages:
    9,944
    Likes Received:
    4,194
    Trophy Points:
    431


    Whatever voltage he's running, it's below the 1.2V limit. Desktop GM204 stock is over 1.2V.

    Pretty crazy that an OCed 1280 shader 192-bit mobile GM204 can match a 2304 shader 384-bit GK110 (desktop 780).

    Ionising_Radiation likes this.
  4. Ethrem

    Ethrem Notebook Prophet

    Reputations:
    1,404
    Messages:
    6,706
    Likes Received:
    4,735
    Trophy Points:
    431
    I don't know, when they were reviewing the MSI GT72, the hwinfo screen had a max voltage of 0.887v after running 3dmark on the 970M. It's very well possible that's the stock voltage for those cards. That's why I want to see what kind of undervolt I can get with my 980Ms but nVidia has it locked in the vbios that you can't undervolt. I am using Prema's because I don't want to get into a situation where my system is soft bricked like happened with the 880M and svl7s vbios but Prema said he will remove the block in the next release so I'll patiently wait for that. Considering my cards will run 1297 on stock 1.065v, it wouldn't surprise me if stock core can run in the 900s totally stable.

    Sent from my Nexus 6 using Tapatalk

  5. Player2

    Player2 Notebook Evangelist

    Reputations:
    120
    Messages:
    648
    Likes Received:
    240
    Trophy Points:
    56
    At 1126 core the voltage is 1.056v and at 1038 core the voltage is 1.000v. With stock 980m.

    this is for the guys that were in such a hurry to flash and couldn't remember.

    D2 Ultima likes this.
  6. octiceps

    octiceps Nimrod

    Reputations:
    3,147
    Messages:
    9,944
    Likes Received:
    4,194
    Trophy Points:
    431

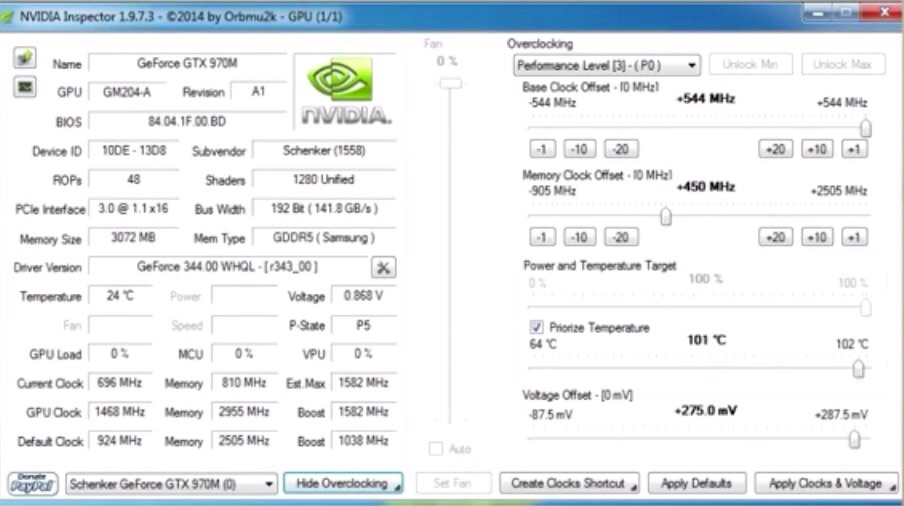

    LOL give this man extended OC limits. He's already maxed out the core slider. :D

    [​IMG]

    1582/6000 at what I'm pretty sure is 1.187V, if the end of the voltage slider corresponds to 1.2V

    Dat idle temp...I wonder, how cold is it in the UK right now? :p

  7. Ethrem

    Ethrem Notebook Prophet

    Reputations:
    1,404
    Messages:
    6,706
    Likes Received:
    4,735
    Trophy Points:
    431
    Hopefully he doesn't post a video in a week about frying his card. I always try to get what I can with no voltage increase or a very minor one. What blows my mind is that the card isn't throttling from power supply limits!

    Sent from my Nexus 6 using Tapatalk

  8. octiceps

    octiceps Nimrod

    Reputations:
    3,147
    Messages:
    9,944
    Likes Received:
    4,194
    Trophy Points:
    431
    Yeah, the 180W brick definitely wouldn't power a 980M with that kind of OC, assuming it's even possible in the first place

  9. Marcelosiciliano

    Marcelosiciliano Notebook Consultant

    Reputations:
    4
    Messages:
    268
    Likes Received:
    20
    Trophy Points:
    31
    Without messing with voltages i got 1337 on core and 1653 on memory with my 980m on the GT72

  10. heibk201

    heibk201 Notebook Deity

    Reputations:
    505
    Messages:
    1,307
    Likes Received:
    341
    Trophy Points:
    101
    not with those on board ones. to get to 1400+ you need 125W+ of power, and only MXM cards have enough VRMs to supply that power

  11. octiceps

    octiceps Nimrod

    Reputations:
    3,147
    Messages:
    9,944
    Likes Received:
    4,194
    Trophy Points:
    431
    It's more likely the BGA 980Ms are limited by the measly 180W bricks their systems are shipped with

  12. Talon

    Talon Notebook Virtuoso

    Reputations:
    1,482
    Messages:
    3,519
    Likes Received:
    4,695
    Trophy Points:
    331
    No it's not. Show me a GPU-Z or HwInfo Screenshot of a default bios with those voltages.

    Stock Clevo 970m voltage was 0.887v sometimes it shows 0.893v fluctuation.

    MSI vBios also had this as well.

    Prema unlocked vBios has a 100mV over volt for a default of 0.993v

    D2 Ultima likes this.
  13. D2 Ultima

    D2 Ultima Livestreaming Master

    Reputations:
    4,335
    Messages:
    11,803
    Likes Received:
    9,751
    Trophy Points:
    931
    Yeah you're probably right about the 970M. I was thinking of the 980M, which is higher than 1v at default.

  14. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581
    I think the 980M cores are fed almost 1.03V

  15. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581
    Last edited: Feb 28, 2015
  16. octiceps

    octiceps Nimrod

    Reputations:
    3,147
    Messages:
    9,944
    Likes Received:
    4,194
    Trophy Points:
    431
    Not set in stone. It depends on ASIC quality among other factors.

  17. Talon

    Talon Notebook Virtuoso

    Reputations:
    1,482
    Messages:
    3,519
    Likes Received:
    4,695
    Trophy Points:
    331
    Yes I think you're right on that.

    Do you think the 970m can handle voltages required to hit 1500mhz?

    I have my doubts long term.

  18. octiceps

    octiceps Nimrod

    Reputations:
    3,147
    Messages:
    9,944
    Likes Received:
    4,194
    Trophy Points:
    431
    Who knows. For a 24/7 OC I personally wouldn't go over 10% of stock voltage even if temps are typical Maxwell cool. Benching it's OK to push it more.

  19. D2 Ultima

    D2 Ultima Livestreaming Master

    Reputations:
    4,335
    Messages:
    11,803
    Likes Received:
    9,751
    Trophy Points:
    931
    For 970M? I don't know. For 980M? I would probably not cross 1.1v with any daily thing. Hell, I'd probably leave the bloody 980Ms stock at 1127MHz if I got them for most gaming. Maybe 1203MHz if I really need it, but I'm more concerned with getting them for:
    1 - More powerful while drawing less power
    2 - Cooler cards, enough so that I could use the EM heatsinks
    3 - Better clocked CPU and more power available to CPU with single power brick

  20. heibk201

    heibk201 Notebook Deity

    Reputations:
    505
    Messages:
    1,307
    Likes Received:
    341
    Trophy Points:
    101
    ^that too, although it wont help you to get to 1500+ even if you have a larger brick

  21. ajc9988

    ajc9988 Death by a thousand paper cuts

    Reputations:
    1,755
    Messages:
    6,121
    Likes Received:
    8,849
    Trophy Points:
    681
    Stock boost voltage is either .993 or .997, meaning two things, 1) not prema's vbios, and 2) over 1.2V

    EDIT: that was with prema's vbios.

    Last edited: Feb 28, 2015
  22. octiceps

    octiceps Nimrod

    Reputations:
    3,147
    Messages:
    9,944
    Likes Received:
    4,194
    Trophy Points:
    431
    The number on the Inspector voltage slider isn't accurate. Sometimes it doesn't apply extra voltage until the slider is moved to the right some. You have to check actual voltage under load with GPU-Z or something.

    ajc9988 and HTWingNut like this.
  23. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931

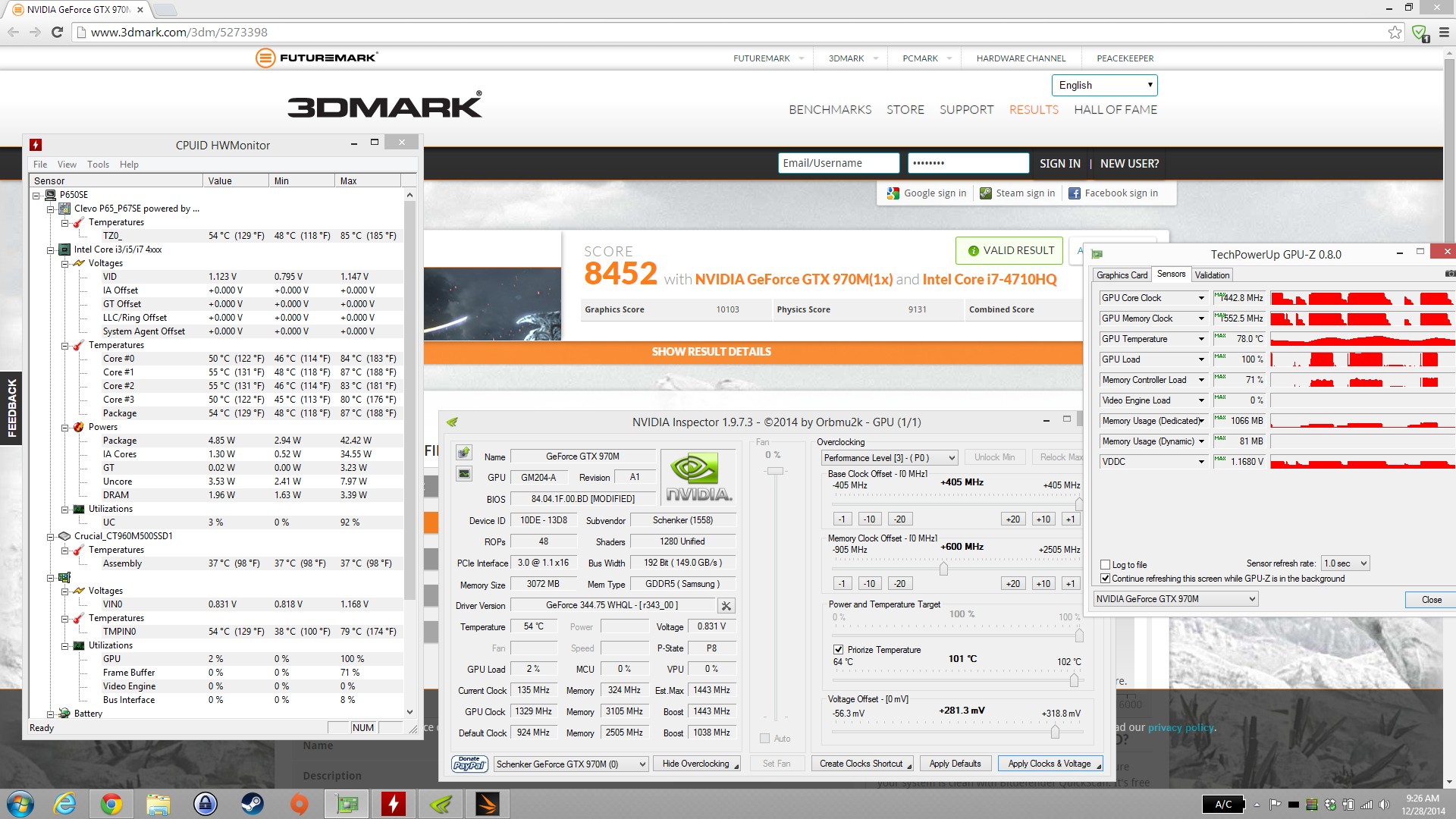

    Last edited: Mar 1, 2015
    Ionising_Radiation and octiceps like this.
  24. octiceps

    octiceps Nimrod

    Reputations:
    3,147
    Messages:
    9,944
    Likes Received:
    4,194
    Trophy Points:
    431
    Hmmm how come core slider on kingsknight's 970M maxes out at +544 MHz but yours at only +405 MHz? You guys both have P650SE running the same Prema modded vBIOS.

  25. n=1

    n=1 YEAH SCIENCE!

    Reputations:
    2,544
    Messages:
    4,346
    Likes Received:
    2,600
    Trophy Points:
    231
    @HTWingNut: I'll be damned, that's stock 780M SLI performance.

  26. D2 Ultima

    D2 Ultima Livestreaming Master

    Reputations:
    4,335
    Messages:
    11,803
    Likes Received:
    9,751
    Trophy Points:
    931
    That's right, it's just about stock 780M SLI performance
    http://www.3dmark.com/fs/2535613 that's some AW18 user's bench from online. Even though it's only win 7, that is stock 780M with stock vBIOS and a single 970M is crushing it. It's not getting close to my OC'd performance, but since I don't have enough power to run my OCs 24/7, I might as well be using two 970Ms right now; I'd have a RIDICULOUS amount of power headroom (no need for extra PSU) and I'd be able to OC like there was no tomorrow on the 970Ms too.

    Why do I want 980Ms again?

    Anybody?

    TomJGX likes this.
  27. n=1

    n=1 YEAH SCIENCE!

    Reputations:
    2,544
    Messages:
    4,346
    Likes Received:
    2,600
    Trophy Points:
    231
    "Such a resilient specimen, with you I could do great things"

    Eh probably not the best context but you get the idea.

  28. octiceps

    octiceps Nimrod

    Reputations:
    3,147
    Messages:
    9,944
    Likes Received:
    4,194
    Trophy Points:
    431
    n=1, I liked your comment more before you edited it ;)

  29. n=1

    n=1 YEAH SCIENCE!

    Reputations:
    2,544
    Messages:
    4,346
    Likes Received:
    2,600
    Trophy Points:
    231
    Eh I've done enough instigating as it is.

  30. Ionising_Radiation

    Ionising_Radiation ?v = ve*ln(m0/m1)

    Reputations:
    757
    Messages:
    3,242
    Likes Received:
    2,667
    Trophy Points:
    231
    One word, seeing all these excessively well-overclocked 970Ms: scheiße.

    TomJGX likes this.
  31. bigtonyman

    bigtonyman Desktop Powa!!!

    Reputations:
    2,377
    Messages:
    5,040
    Likes Received:
    277
    Trophy Points:
    251
    I meant by buying a new system. The 780m's have been in circulation for a while and yes I'll probably end up with a used one :)

  32. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    Prema can mod that slider to whatever value you want. I just couldn't go much higher than that anyhow, so no point. He probably modded it specifically for that other guy.

    octiceps likes this.
  33. thegreatsquare

    thegreatsquare Notebook Deity

    Reputations:
    135
    Messages:
    1,068
    Likes Received:
    425
    Trophy Points:
    101
    Now you made me wonder what my ASIC quality was. It's 69.0%.

    ...not really sure what that means as far as good/bad/...average.

  34. dragonwolf8504

    dragonwolf8504 Notebook Evangelist

    Reputations:
    106
    Messages:
    657
    Likes Received:
    61
    Trophy Points:
    41
    My ASIC quality is 74.1%

    I have an MSI GT72 w/ 980M

  35. kolias

    kolias Notebook Evangelist

    Reputations:
    251
    Messages:
    629
    Likes Received:
    88
    Trophy Points:
    41
    Mine 970m's are 72%
    I dont know if that is good :rolleyes:
    I think most of the cards are 70% and up

  36. Talon

    Talon Notebook Virtuoso

    Reputations:
    1,482
    Messages:
    3,519
    Likes Received:
    4,695
    Trophy Points:
    331
    Asic 74.4%. Clevo 6GB 970m

    Seriously that other guy must have some magical 970m sample. I can get to 400mhz core but it requires a stupid overvolt that I'm not sure I feel comfortable running. How he managed just 70C at that clock and voltage is crazy.

  37. ajc9988

    ajc9988 Death by a thousand paper cuts

    Reputations:
    1,755
    Messages:
    6,121
    Likes Received:
    8,849
    Trophy Points:
    681
  38. ajc9988

    ajc9988 Death by a thousand paper cuts

    Reputations:
    1,755
    Messages:
    6,121
    Likes Received:
    8,849
    Trophy Points:
    681
    I got the same score in firestrike at +190 core +190ram at stock volts 970m with an Asic of 74.6%. I noticed that there is sometimes a drawback to pushing too far. It's finding the balance. I got 8568 or something like that with those settings. Mine was running auto fans and never went near 70 with those settings.

  39. kolias

    kolias Notebook Evangelist

    Reputations:
    251
    Messages:
    629
    Likes Received:
    88
    Trophy Points:
    41
    Probably he is playing without the plastic cover for behind...im sure

  40. Ethrem

    Ethrem Notebook Prophet

    Reputations:
    1,404
    Messages:
    6,706
    Likes Received:
    4,735
    Trophy Points:
    431
    Nah, he must have liquid ultra on the GPU.

    Sent from my Nexus 6 using Tapatalk

    kolias likes this.
  41. Player2

    Player2 Notebook Evangelist

    Reputations:
    120
    Messages:
    648
    Likes Received:
    240
    Trophy Points:
    56
    Mine is 69 % on one gpu and 77% on the other. 980m sli .

  42. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,485
    Trophy Points:
    681
    Kingsnight is using the public release version of my Mod. Looks like I have to allow even more than 544Mhz for next update...LOL.

    HTWingNut has pre-release version as well as one with fixed OC as his daily driver.

    ALL my vBIOS use stock clocks and stock Clevo voltage unless the user decides to make changes.

    (The stock MSI vBIOS are undervolted compared to NVIDIA defaults.

  43. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,712
    Messages:
    29,847
    Likes Received:
    59,657
    Trophy Points:
    931
    Someone who knows how high the average ASIC quality is on gtx780m ?

  44. ajc9988

    ajc9988 Death by a thousand paper cuts

    Reputations:
    1,755
    Messages:
    6,121
    Likes Received:
    8,849
    Trophy Points:
    681
    Well color me purple. I thought it was1.2 limited and someone mentioned it was a+275 mV. Either I did the math wrong or read something wrong, but thank you for the correction!

  45. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    He mentioned he was using a cooler, possibly full fans too?

    kolias likes this.
  46. octiceps

    octiceps Nimrod

    Reputations:
    3,147
    Messages:
    9,944
    Likes Received:
    4,194
    Trophy Points:
    431
    Also his idle temp was like 24C. It must be freezing in the UK right now...

  47. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,149
    Trophy Points:
    931
    [​IMG]

    Sent from my Nexus 5 using Tapatalk

  48. Ethrem

    Ethrem Notebook Prophet

    Reputations:
    1,404
    Messages:
    6,706
    Likes Received:
    4,735
    Trophy Points:
    431
    Hmm... I think I'm still pre-release myself.

    And thanks for confirming I'm not insane when I said MSI was lower and I want that too. Lol.

    Sent from my Nexus 6 using Tapatalk

  49. kolias

    kolias Notebook Evangelist

    Reputations:
    251
    Messages:
    629
    Likes Received:
    88
    Trophy Points:
    41
    So Liquid ultra isbetter than ic diamond??

  50. Zymphad

    Zymphad Zymphad

    Reputations:
    2,321
    Messages:
    4,165
    Likes Received:
    355
    Trophy Points:
    151
    9950 score with 165/350 stock voltage. Can reach 240/400 with overvolt but I will avoid overvolting.

    Asic is useless. Has never been an indication of anything but to compare for meaningless number.

    Last edited: Mar 1, 2015
← Previous pageNext page →
