    15.6" FHD (1920x1080) panels and reviews

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by kakapo, Jan 25, 2011.

  1. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    15" IPS? Anywhere to get ahold of one? How is though? Any better than the v4?

    HTWingNut, Jul 21, 2011
    #51
  2. Lauski

    Lauski Notebook Consultant

    Reputations:
    85
    Messages:
    249
    Likes Received:
    34
    Trophy Points:
    41
    Lauski, Jul 22, 2011
    #52
  3. Lauski

    Lauski Notebook Consultant

    Reputations:
    85
    Messages:
    249
    Likes Received:
    34
    Trophy Points:
    41
    Lauski, Jul 22, 2011
    #53
  4. Lauski

    Lauski Notebook Consultant

    Reputations:
    85
    Messages:
    249
    Likes Received:
    34
    Trophy Points:
    41
    Lauski, Jul 26, 2011
    #54
  5. mysticman76

    mysticman76 Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    I am trying to find the "edidw2k" file but so far I have not found a good link to download it, can anyone help?

    mysticman76, Sep 23, 2011
    #55
  6. ilstallione

    ilstallione Notebook Enthusiast

    Reputations:
    27
    Messages:
    38
    Likes Received:
    6
    Trophy Points:
    16
    ilstallione, Sep 23, 2011
    #56
  7. tilleroftheearth

    tilleroftheearth Wisdom listens quietly...

    Reputations:
    5,398
    Messages:
    12,692
    Likes Received:
    2,717
    Trophy Points:
    631
    ilstallione, nice link +rep! :)

    tilleroftheearth, Sep 23, 2011
    #57
  8. ilstallione

    ilstallione Notebook Enthusiast

    Reputations:
    27
    Messages:
    38
    Likes Received:
    6
    Trophy Points:
    16
    Thx :)

    Also had some problems finding it.

    ilstallione, Sep 24, 2011
    #58
  9. mysticman76

    mysticman76 Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    thanks for the link, life saver!!

    mysticman76, Sep 25, 2011
    #59
  10. Dyskresiac

    Dyskresiac Notebook Enthusiast

    Reputations:
    11
    Messages:
    29
    Likes Received:
    1
    Trophy Points:
    6
    I have a v5 that's busted. ASUS G53SW-XA1 (The XA1 was the only SW to my knowledge to have a Full-HD screen.)

    Would it be a no brainer to replace it with a v0?

    Dyskresiac, Sep 29, 2011
    #60
  11. Lauski

    Lauski Notebook Consultant

    Reputations:
    85
    Messages:
    249
    Likes Received:
    34
    Trophy Points:
    41
    It would in a couple of regards.

    Either the v0, v1, v4, or v7 would all look WAY better than the V5 that is stock to your system.

    Installation is a bit time-consuming, although not super difficult. You just have to be careful.

    Here is some disassembly, parts of which will be required to access what you need to replace the LCD:
    BTOtech.com | G53Jw & G53Sw Disassembly Take Apart G53 g53j service manual - YouTube


    EDIT: Look up a couple posts to find reviews I've posted (and differences) between the 4 screens you can choose from. Once you find the screen you want, make sure wherever you buy it from, you DOUBLE CHECK that they will send you the -exact- model number they are advertising. A lot of vendors trick you by selling it as THE model number, where in fact, will send something "compatible".

    I'll find you the link, I've posted in a thread before, where we pointed out some of these offenders.

    EDIT2: Here you go: http://forum.notebookreview.com/dell-xps-studio-xps/592611-where-buy-auo-b156hw01-v-4-screen.html

    Lauski, Sep 29, 2011
    #61
  12. Dyskresiac

    Dyskresiac Notebook Enthusiast

    Reputations:
    11
    Messages:
    29
    Likes Received:
    1
    Trophy Points:
    6
    I spent a majority of my day looking up details and I am looking for a V.4, which happens to be $170-$200. I'm not sure if I care enough to pay more than double the price. >.> AUO discontinued all of their HW01 models.

    I can't imagine that the ONLY non-discontinued 15.6" 1080p LCD screen is the HW03 V0, which is nowhere near as good as 4 or 7... though still better than the v5.

    *sigh* This should be criminal. Heh.

    UNLESS...... there are other compatable screens from other manufacturers.

    Dyskresiac, Sep 29, 2011
    #62
  13. Lauski

    Lauski Notebook Consultant

    Reputations:
    85
    Messages:
    249
    Likes Received:
    34
    Trophy Points:
    41
    My v0 is great man. Contrast and colors are just ... what you'd expect. Every day use. Matte finish... You just don't notice anything about it. Because, it just does what it should. Helps me not think about "looking at a screen."

    I went from looking at a v5 to a v0 and REALLY found comfort.

    I'd recommend a v4 or v7 only if you're going to get it calibrated and configured, and if you're into work that requires the accuracy. Also, to be noted, buying a screen from anyone other than an authorized dealer could end you up with one of the defective screens plagued by red ghosting many have encountered (mostly in the v4s).

    I remember employees from Xotic posting on the boards stating that their screens are put through this additional step by Sager now, to ensure they don't reach customers, as this is a sign of a defect.

    EDIT: I have an H01 v.0, just to clarify, I saw you mention you're looking at the H03.
    EDIT2: It does look a little underwhelming: http://www.anandtech.com/Show/Index...page=6&slug=dell-xps-15z-sincerely-flattering

    Lauski, Sep 30, 2011
    #63
  14. Holo

    Holo Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Hey guys, is it physically possible to install a B156HW01 v7 on an ASUS G53SW which runs with a B156HW01 v5? Because from what I heard, this is the most horrific thing on my laptop, and I really like enjoying my movies....

    Holo, Sep 30, 2011
    #64
  15. Lauski

    Lauski Notebook Consultant

    Reputations:
    85
    Messages:
    249
    Likes Received:
    34
    Trophy Points:
    41
    Yes, all of the screens in our B156HW01 series are interchangeable. Just be sure when buying an alternative screen, you ensure you are not purchasing a "compatible" replacement, but getting the literal part number you want.

    If you aren't, ask for the model number of the "compatible" screen being offered to you, and look it up online, double checking reviews before you buy. That G53sw default screen was a bad screen and I want you end up with something better.

    Check my post history, I've made a couple of guide-like posts in the G53sw forums for tips on how to do what you're after and what your options are.

    Lauski, Oct 4, 2011
    #65
  16. Dyskresiac

    Dyskresiac Notebook Enthusiast

    Reputations:
    11
    Messages:
    29
    Likes Received:
    1
    Trophy Points:
    6
    I managed to find a hassle-free, red ghosting-free, authentic B156HW01 V4 from evolutioncomputersparts on Ebay.

    It's unbelievable how big of a difference this has made from my V5.

    AUO AU OPTRONICS B156HW01 V4 15.6" FHD LED ANTIGLARE | eBay

    My only gripe is that evolutioncomputerparts is very very very slow to respond to E-mails. (They didn't answer my question about the ghosting until after I received the screen.) But since there was no ghosting, and it was indeed a V4, I had no need.


    And Holo, I bougt a V4 for my ASUS G53SW. It's a PAAAAAAAAIN to remove the screen. But that's ASUS's fault. It's doable, and it's a HUGE upgrade from the V5 that comes with the ASUS.

    Dyskresiac, Oct 7, 2011
    #66
  17. King of Interns

    King of Interns Simply a laptop enthusiast

    Reputations:
    1,329
    Messages:
    5,418
    Likes Received:
    1,096
    Trophy Points:
    331
    Anybody know which 15.6" 1980x1080 screen fits the Clevo W860CU? It does come in 1980x1080 flavour but mine is only 1600x900. Would be nice to know my options if I decide to upgrade :)

    King of Interns, Oct 16, 2011
    #67
  18. Tsoukalos

    Tsoukalos Notebook Enthusiast

    Reputations:
    0
    Messages:
    21
    Likes Received:
    0
    Trophy Points:
    5
    Apologies if I'm bumping the thread needlessly, but I can't seem to find any other good thread on 15.6" FHD displays.

    Tech: Matte LED Backlit
    PNP ID, Manu & P/N: AUO13ED, AU Optronics
    Review(s): Notebookcheck (06/19/10)
    Used in: HP Elitebook 8540w

    Tech: Matte LED Backlit
    PNP ID, Manu & P/N: LP156WF1, LG Electronics
    Review(s): Notebookcheck
    Used in: HP Elitebook 8560, Clevo P151HM1?, MSI GT683R-242US v1?

    Tech: Matte LED Backlit
    PNP ID, Manu & P/N: 156HT01-201, Samsung Electronics
    Review(s): Notebookcheck
    Used in: Asus N55SF, G53SW/G53SX matte models?

    Tech: Glossy LED Backlit
    PNP ID, Manu & P/N: B156HW3, AU Optronics
    Review(s): Anandtech
    Used in: Dell XPS 15z

    Tech: Glossy LED Backlit, 3D?
    PNP ID, Manu & P/N: LP156WF2, LG Electronics
    Review(s): Notebookcheck
    Used in: LG A520

    Tsoukalos, Feb 6, 2012
    #68
  19. thatA52FX3

    thatA52FX3 Notebook Enthusiast

    Reputations:
    0
    Messages:
    32
    Likes Received:
    0
    Trophy Points:
    15
    what will fit a Asus a52f x3? I really need help, i hate this 1366x768 BS

    thatA52FX3, Feb 6, 2012
    #69
  20. thatA52FX3

    thatA52FX3 Notebook Enthusiast

    Reputations:
    0
    Messages:
    32
    Likes Received:
    0
    Trophy Points:
    15
    thatA52FX3, Feb 7, 2012
    #70
  21. thatA52FX3

    thatA52FX3 Notebook Enthusiast

    Reputations:
    0
    Messages:
    32
    Likes Received:
    0
    Trophy Points:
    15
    this AUO22EC SUCKS!!!!!! I am hoping this swap works....

    thatA52FX3, Feb 9, 2012
    #71
  22. LSB

    LSB Company Representative

    Reputations:
    199
    Messages:
    124
    Likes Received:
    16
    Trophy Points:
    31
    We have the authentic B156HW01 V.4,

    But I'm not allowed to say who we are and where you could get it from us :p

    LSB, Feb 9, 2012
    #72
  23. thatA52FX3

    thatA52FX3 Notebook Enthusiast

    Reputations:
    0
    Messages:
    32
    Likes Received:
    0
    Trophy Points:
    15
    lol, all well and good bro. I ordered mine on ebay, hopefully it works. and its obvious you are form laptop screens lmao.

    thatA52FX3, Feb 10, 2012
    #73
  24. thatA52FX3

    thatA52FX3 Notebook Enthusiast

    Reputations:
    0
    Messages:
    32
    Likes Received:
    0
    Trophy Points:
    15
    I instelled the monitor but it looks funny....its got a greenish tone to it. When I tilt the screen towards me everyhting looks normal, but when the screen is up it looks greenish? can aanyone help!

    thatA52FX3, Feb 11, 2012
    #74
  25. Nick

    Nick Professor Carnista

    Reputations:
    3,870
    Messages:
    4,089
    Likes Received:
    637
    Trophy Points:
    181
    could you post a picture?

    Nick, Feb 11, 2012
    #75
  26. thatA52FX3

    thatA52FX3 Notebook Enthusiast

    Reputations:
    0
    Messages:
    32
    Likes Received:
    0
    Trophy Points:
    15

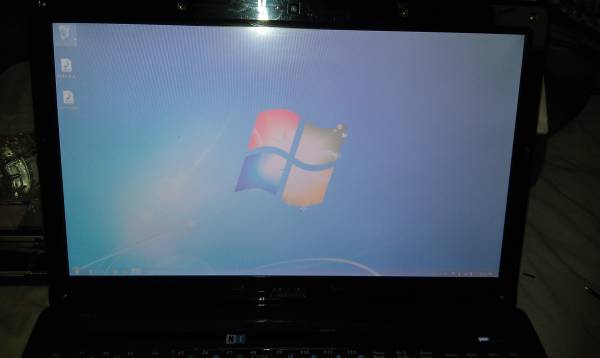

    HERE YA GO!


    Attached Files:

    thatA52FX3, Feb 11, 2012
    #76
  27. thatA52FX3

    thatA52FX3 Notebook Enthusiast

    Reputations:
    0
    Messages:
    32
    Likes Received:
    0
    Trophy Points:
    15
    I think the screen is warming up

    thatA52FX3, Feb 11, 2012
    #77
  28. LSB

    LSB Company Representative

    Reputations:
    199
    Messages:
    124
    Likes Received:
    16
    Trophy Points:
    31
    You sure you have FHD cable? If the image looks like every second vertical row is missing, you need a different cable.

    LSB, Feb 11, 2012
    #78
  29. thatA52FX3

    thatA52FX3 Notebook Enthusiast

    Reputations:
    0
    Messages:
    32
    Likes Received:
    0
    Trophy Points:
    15
    AUO AU OPTRONICS B156HW01 V4 15.6" FHD LED ANTIGLARE | eBay

    This is where I got it from, it said FHD, its a Lenovo LEN40B2 thats what the driver updated to. the Ribbon Cable fitted right with no problem.

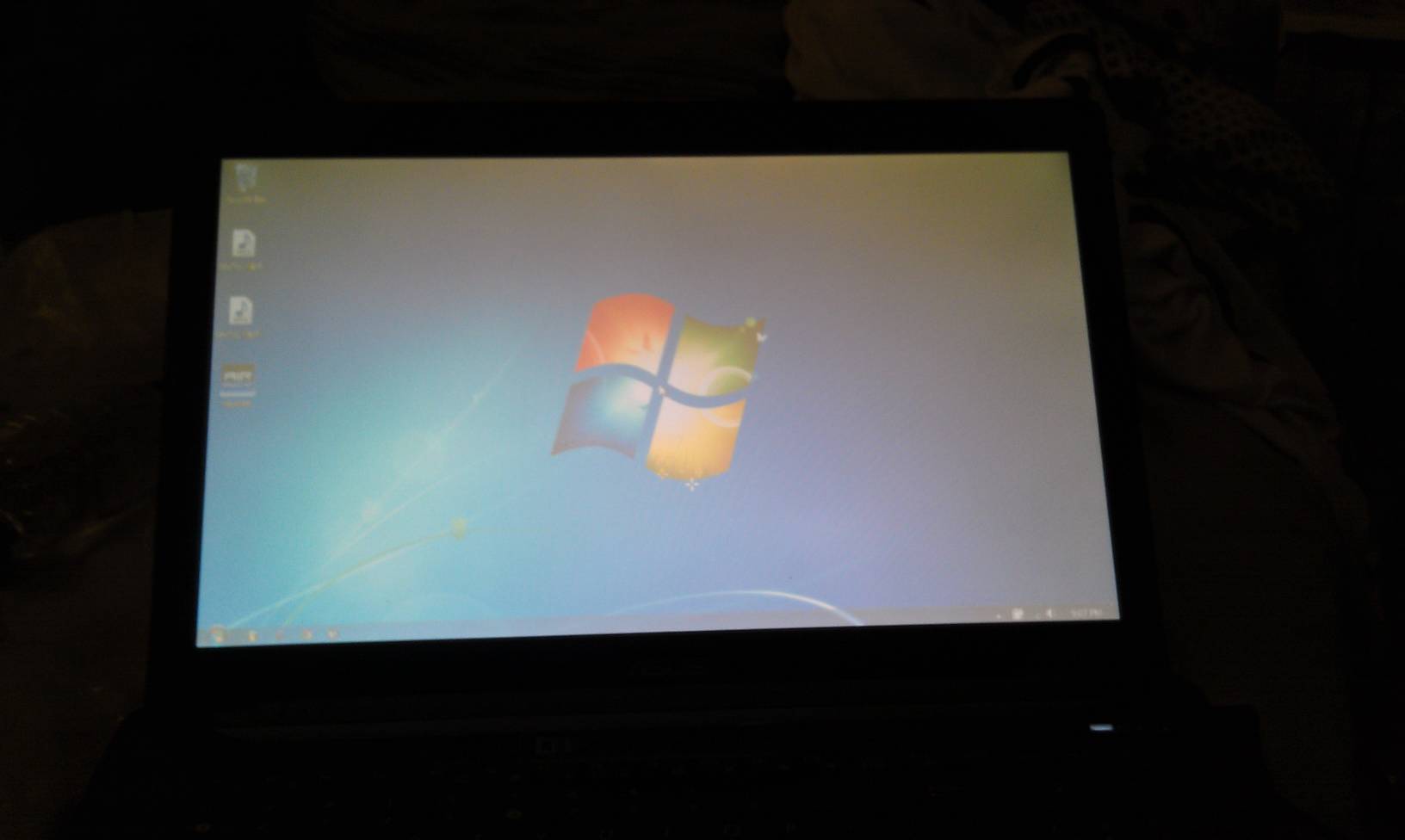

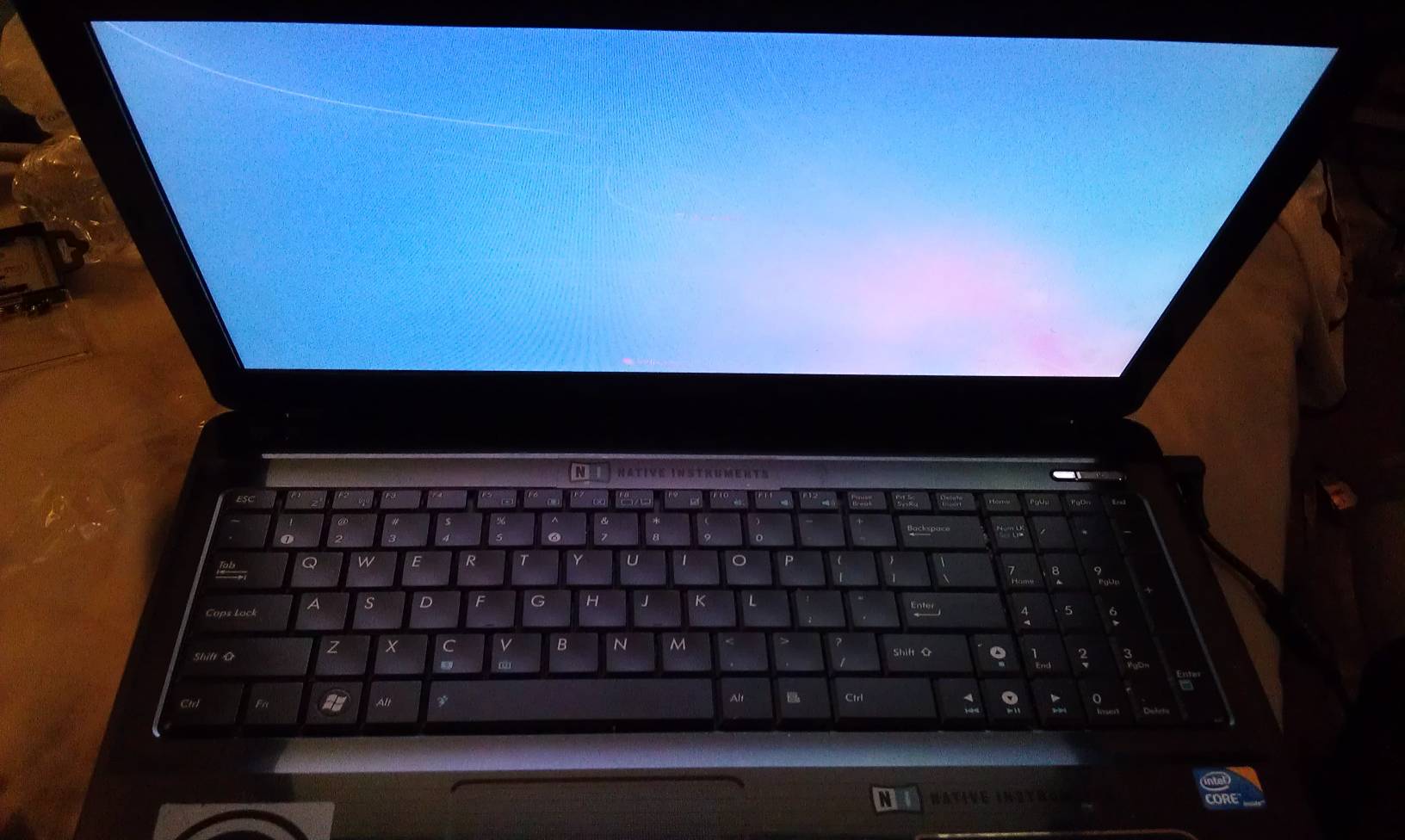

    here is a new pic, its starting to look better, but its still something thats causing it to look hazey.


    Attached Files:

    thatA52FX3, Feb 11, 2012
    #79
  30. thatA52FX3

    thatA52FX3 Notebook Enthusiast

    Reputations:
    0
    Messages:
    32
    Likes Received:
    0
    Trophy Points:
    15
    Im just goign to return it, and order one from LSB Laptop Screen

    thatA52FX3, Feb 12, 2012
    #80
  31. LSB

    LSB Company Representative

    Reputations:
    199
    Messages:
    124
    Likes Received:
    16
    Trophy Points:
    31
    The ribbon cable might need to be changed to a FHD one. Your current one could be missing some extra wires.

    LSB, Feb 12, 2012
    #81
  32. thatA52FX3

    thatA52FX3 Notebook Enthusiast

    Reputations:
    0
    Messages:
    32
    Likes Received:
    0
    Trophy Points:
    15
    where can I get one?

    Can anyone help me find and FHD ribbon for my laptop, please I am in dire need of help here, I've been looking all day.

    I wonder if I can use the Asus g60VX ribbon for my Asus a52f?

    any one have pictures of the N55SF LVDS MIC CMOS FHD Ribbon Cable?

    Well I ordered the n55sf LVDS, cable i hope it works, if it doesnt all i have to do is send it back.

    thatA52FX3, Feb 12, 2012
    #82
  33. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    OMG man, the colours, the colours! They burn ^-^ Getting used to it still!

    First time I booted I had a bright patch but that disappeared after a couple of minutes of use.

    It's funny, on darker screens it's as bright as my old one, but when you get a white background it just flares up.

    Meaker@Sager, Feb 13, 2012
    #83
  34. LSB

    LSB Company Representative

    Reputations:
    199
    Messages:
    124
    Likes Received:
    16
    Trophy Points:
    31

    Can I get a woot woot :)

    LSB, Feb 14, 2012
    #84
  35. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    BTW the delivery company left it with a neighbour (they tried again the same day) so I got it on Sunday.

    8 pm Wednesday -> 10 am Friday from the US to the UK still impresses me. 38 hours to my door across the Atlantic.

    Meaker@Sager, Feb 14, 2012
    #85
  36. LSB

    LSB Company Representative

    Reputations:
    199
    Messages:
    124
    Likes Received:
    16
    Trophy Points:
    31
    I don't know why couriers do that. I don't trust my neighbors...

    Ahem...we're Canadian! (North Vancouver, British Columbia, Canada)
    Humble servants of Her Majesty and everything...

    LSB, Feb 14, 2012
    #86
  37. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Sorry, from canada, the whole ups thing got me.

    Meaker@Sager, Feb 14, 2012
    #87
  38. triturbo

    triturbo Long live 16:10 and MXM-B

    Reputations:
    1,577
    Messages:
    3,845
    Likes Received:
    1,238
    Trophy Points:
    231
    I didn't saw it listed, so how about this 10-bit, S-IPS, RGB LED AWESOMENESS P/N LP156WF3-SLB1 :D I guess that's the DreamColor one. I would kill to have something like it for 15.4" size :(

    triturbo, Feb 15, 2012
    #88
  39. heng8866

    heng8866 Notebook Enthusiast

    Reputations:
    0
    Messages:
    23
    Likes Received:
    0
    Trophy Points:
    5
    just got my v.7's today.
    ordered HD+ cable from alinc.com.
    spent about 3 hours and installed them onto my 6560b and dv6z-6100, and they are just AWESOME.

    Thanks for the panel, and thank god you have what i want but not compatible ones

    heng8866, Feb 18, 2012
    #89
  40. LSB

    LSB Company Representative

    Reputations:
    199
    Messages:
    124
    Likes Received:
    16
    Trophy Points:
    31

    We do have this panel (LaptopScreen/580715),
    but it's a Dell specific connector =(

    LSB, Feb 23, 2012
    #90
  41. xmikemayerx

    xmikemayerx Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    how is the B156HW01 V.1 compare to V.4?
    I'm thinking about replacing my LCD in HP 4530s

    xmikemayerx, Mar 6, 2012
    #91
  42. LSB

    LSB Company Representative

    Reputations:
    199
    Messages:
    124
    Likes Received:
    16
    Trophy Points:
    31
    LSB, Mar 6, 2012
    #92
  43. xmikemayerx

    xmikemayerx Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    would you say the B156HW01 V.1 is a good alternative for the B156HW01 V.4?

    xmikemayerx, Mar 8, 2012
    #93
  44. fai2523

    fai2523 Newbie

    Reputations:
    12
    Messages:
    5
    Likes Received:
    4
    Trophy Points:
    6
    Hi everyone i got a xps 15 L502x with the really crappy 720p screen and would like to change to FHD one and i check around and B156HW01 V.7 is the exact same screen that dell offer.But i am looking for a matt screen,will B156HW01 V.4 fit into my laptop without problem or ghosting which other have reported due to cable not compatible.Any pros here know how to check if my cable is compatible?thanks in advance

    fai2523, Mar 17, 2012
    #94
  45. HeavenCry

    HeavenCry Notebook Virtuoso

    Reputations:
    1,044
    Messages:
    2,365
    Likes Received:
    18
    Trophy Points:
    56
    Just wondering if anyone tried to put an IPS panel into a P150HM yet?
    Is it even possible - would one work like the DreamColour HP 15,6" screen?
    Also has anyone seen both the B156HW01 V4 and V7 in action so they could comment if the V7 really has that much better contrast, colors and brightness compared to the V4 to be worth loosing the matte finish?
    Dont get me wrong the V4 was already a darn good upgrade over the V1, just wondering if i can do better...

    HeavenCry, Mar 26, 2012
    #95
  46. pau1ow

    pau1ow Notebook Deity

    Reputations:
    1,336
    Messages:
    1,181
    Likes Received:
    84
    Trophy Points:
    66
    If you do, I will be happy to get your V4 :p

    pau1ow, Mar 26, 2012
    #96
  47. HeavenCry

    HeavenCry Notebook Virtuoso

    Reputations:
    1,044
    Messages:
    2,365
    Likes Received:
    18
    Trophy Points:
    56
    Good to know, i just need ti find myself an IPS or the V7 first...

    HeavenCry, Mar 28, 2012
    #97
  48. Ryan

    Ryan NBR Moderator

    Reputations:
    2,320
    Messages:
    2,512
    Likes Received:
    17
    Trophy Points:
    56
    IPS is a no, Aikimox tried it but there are far too many bugs supporting the 10-bit RGB to get it to work.

    V.7 is a great upgrade, phenomenal brightness, contrast.

    I've used V4 and V7.

    Ryan, Mar 28, 2012
    #98
  49. HeavenCry

    HeavenCry Notebook Virtuoso

    Reputations:
    1,044
    Messages:
    2,365
    Likes Received:
    18
    Trophy Points:
    56
    Thought the IPs was a no-go... Thanks for the info Ryan.
    Just might try out the V7 (if i can find one that is) and see if i can live with the glare.

    HeavenCry, Mar 28, 2012
    #99
  50. ivanox1972

    ivanox1972 Notebook Consultant

    Reputations:
    0
    Messages:
    224
    Likes Received:
    0
    Trophy Points:
    30
    ivanox1972, Apr 1, 2012
    #100
← Previous pageNext page →
