    PLL Pinmod Overclocking Methods and Examples

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by moral hazard, Jun 24, 2009.

  1. timohour

    timohour Notebook Consultant

    Reputations:
    201
    Messages:
    170
    Likes Received:
    1
    Trophy Points:
    31
    Thanks a lot guys.
    I think I am gonna stick with the 3gb.
    I couldn't find the settings you mentioned nando4.
    Anyway thanks a lot. I'll see what i am gonna do.

    What is the maximum accepted temp for my t8100?
    I hadn't tested it yet

  2. User Retired 2

    User Retired 2 Notebook Nobel Laureate NBR Reviewer

    Reputations:
    4,127
    Messages:
    7,860
    Likes Received:
    10
    Trophy Points:
    0
    Run c:\windows\system32\igfxcfg -> Display Settings -> Power Settings -> Modify Settings.

    Check "Intel Rapid Memory Power Management"
    Check "Check "Intel Display Power Saving Technology" -> Maximum Battery

  3. timohour

    timohour Notebook Consultant

    Reputations:
    201
    Messages:
    170
    Likes Received:
    1
    Trophy Points:
    31
    "Intel Rapid Memory Power Management" was already ticked and "Intel Display Power Saving Technology" is disabled.
    Still no difference...
    Thanks anyway.

    I also made a test for my temps.
    I had purchased a Shin-Etsu X23-7783D.
    Great results!!!
    from 72 C I had with a normal paste, I gor60 C after running ORTHOS for 5 min with no problem.

  4. ilguercio

    ilguercio Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    Hello guys, i searched a lot over the internet for a way to mod the CY28547LFXC clock generator. I know that setfsb does not support this particular chip nor it can be tweaked via software. I also tried to be of help by looking for its datasheet but all i could find were chinese and japanese pages which i could not understand.
    So, is here any of you who knows how to squeeze a bunch of Mhz from this configuration.
    I got a Dell Vostro with a T7250 on it.
    Thanks.
    ;)

  5. ilguercio

    ilguercio Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
  6. ilguercio

    ilguercio Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    Anybody? :)

  7. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216

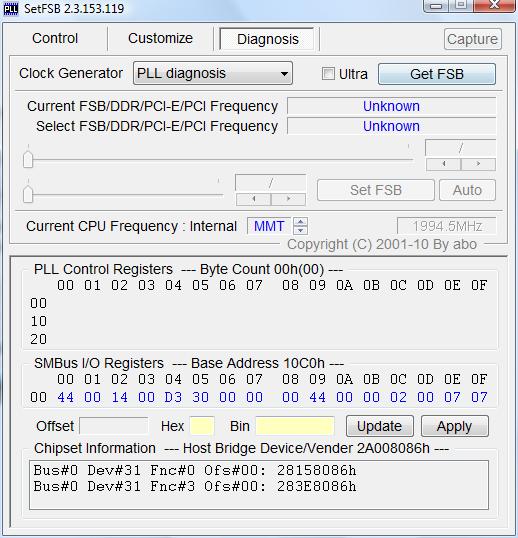

    Would be good if you could open setfsb, click on diagnosis, select "pll diagnosis" as the clock generator, click getfsb then upload a screenshot of that here.

  8. ilguercio

    ilguercio Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    Done, what do you think about it?
    Looks like it isn't of any help, right?
    According to what i read this clock generator needs some hardware mod before it can be tweaked via software.


    Attached Files:

  9. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Read the last part of this:
    http://forum.notebookreview.com/alienware-m17x/495203-how-oc-m17x-r2s-920xm-940xm-using-setfsb.html

    You need to do that to see your registers.

    Please do it then upload another screenshot.

  10. ilguercio

    ilguercio Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    I can't seem to find where is the option to change the font size.
    I am in the control panel and cant find anything.
    :confused:
    Do i have to use dpi's?
    Looks like i can't go under 96 DPI on Vista 64.

  11. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    I have no idea about font size in windows, but in setfsb there is a customize option which might help.

  12. ilguercio

    ilguercio Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    I'm trying to set the "Text" option to 0 but it looks like has just effect on the color of the fonts.
    The rest doesn't do anything
    Would you please be more specific? I am feeling kinda noobish right now.
    :D
    That SHOULD be so easy and yet i can't manage to get it going.
    :mad:

  13. ilguercio

    ilguercio Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
  14. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    You should be able to see them.

    If you can't get setfsb to work, try clockgen or try using linux.

  15. ilguercio

    ilguercio Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    I think it's time to summon nando4.
    I'm moving to Ubuntu now, i'll let you know if i succeded.
    Edit: still trying to get into ubuntu because my usb stick doesn't want to boot for some reason.

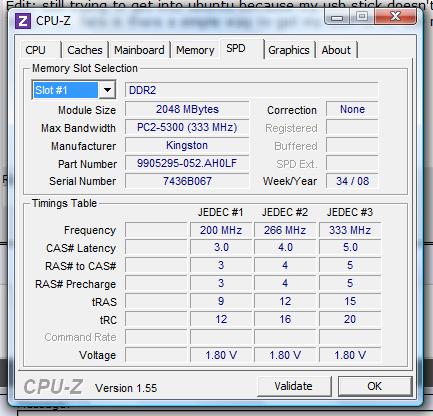

    While i am here is there a simple way to get my RAM to hit 400 mhz with 6-6-6-18 timings?


    Attached Files:

  16. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Try thaiphoon burner (older trial versions let you flash).

  17. ilguercio

    ilguercio Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    I am on ubuntu 10.10 now, what should i do in order to check if my clock generator is TME enabled?

  18. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    See Appendix 1 in the first page of this thread.

  19. ilguercio

    ilguercio Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    I am looking at it but i am a complete on linux.
    God, i'm really looking stupid right now.
    Where should i put those "code" parts?
    I installed lmsensors, that's a start.
    LOL
    I really need a hand from you guys since i am dealing with a CY28547 PLL on a T7250.
    Can anybody be a bit more precise about this post?
    http://forum.notebookreview.com/har...clocking-methods-examples-38.html#post5879433
    Since i really prefer to go for hardware mod rather than trying several times via software (looks like i can't even check my clockgen is in TME mode) .
    I'd really like to go straight to the point since it looks like i am a bit confused about all this stuff (i already OC'ed my 8600M GT but this is way harder) .
    Thanks and sorry for bothering.
    I don't know if a new thread would make things a bit easier since it could bring someone else to the discussion.

  20. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Well, I would try the TME mod first. But to do that you would need setfsb or something similar working.

    The other mod (going straight from 200mhz to 266mhz) might not work, because the datasheet doesn't mention 266mhz.
    I think for that you would need to connect pin 45 to GND.

  21. ilguercio

    ilguercio Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    The fact is i still can't get setfsb to give me those registers.
    Having them shown would be a nice starting point but i don't know why i can't.
    Any windows user that has had this problem before and resolved?
    I sent a pm to hikkoo (who OC'ed a XPS 1730 with my very same clockgen) and i am looking forward for his answer.
    I am kinda noob on linux in general, i am pretty much stuck right now.
    :rolleyes:

  22. niffcreature

    niffcreature ex computer dyke

    Reputations:
    1,748
    Messages:
    4,094
    Likes Received:
    28
    Trophy Points:
    116
    hikkoo did not overclock anything with the clockgen by which you mean PLL registers. No one has ever overclocked using those methods with the specific notebook with that PLL, and its definitely not possible.

    Hikkoo has a x9000 CPU with unlocked multipliers that can be overclocked on any notebook.

    The hardware method you linked in a post before ALSO has never, ever, been done. It MAY be possible but it is a THEORY.

    The whole RAM flashing thing is pretty easy relative to the tiny soldering you would have to do while making sure it will actually boot.

  23. ilguercio

    ilguercio Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    So what should i do with my CY28547 in order to gain something?

  24. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Try connecting pin 45 to GND, see if you can get it to work at 266mhz.

  25. Ahumphers91a

    Ahumphers91a Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
  26. Ahumphers91a

    Ahumphers91a Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    Wow, I give Abo my info and this is what I get ALWAYS from him: I do not have a lot of free time too much!
    You are an OC's beginner!!!

    BYE!!!!!!!!!!!!!!

  27. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
  28. ilguercio

    ilguercio Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    I'll ask a friend of mine which is good at soldering circuitry.
    Let's say my pin mod works, what will be my RAM speed then?

  29. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    887mhz I think, or something like that.

  30. Ahumphers91a

    Ahumphers91a Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    Ok, thanks Moral Hazard. Thats the post I read the most because it's the same PLL

  31. Ahumphers91a

    Ahumphers91a Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    pin 64 to any gnd? I have to solder these right?

  32. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    It's up to you how you connect them.

    Solder is the best way.

  33. ilguercio

    ilguercio Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    Is it possible to use some sort of temporary stuff just to see if it works?

  34. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    I don't know, if you find some way to do it, please post here.

  35. User Retired 2

    User Retired 2 Notebook Nobel Laureate NBR Reviewer

    Reputations:
    4,127
    Messages:
    7,860
    Likes Received:
    10
    Trophy Points:
    0
    Nice update on the first post. There's some crazy fast overclocks listed from which I can see:

    - Calpella platform can be PLL overclocked 133->166Mhz
    - Montevina platform can be PLL overclocked 266->333Mhz
    - Santa Rosa platform can be PLL overclocked 200->266Mhz

  36. ilguercio

    ilguercio Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    Why is the M1730 listed as pll moddable if the CY28547 clearly isn't on paper?
    :confused:

  37. User Retired 2

    User Retired 2 Notebook Nobel Laureate NBR Reviewer

    Reputations:
    4,127
    Messages:
    7,860
    Likes Received:
    10
    Trophy Points:
    0
    M1730 listing is noted ^3 theory requires implementation.

  38. ilguercio

    ilguercio Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    Let me try that, has any of you got a link to an older version of thaiphoon burner or just explain me how to raise the timings on my RAMs?
    I got Kingston Ram, not sure if they're 667 or 800 Mhz compatible.

  39. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Look for version 6.3 build 0522 (I can upload it to rapidshare if you need it).

  40. ilguercio

    ilguercio Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    Yeah, looks like i can't find it online easily.
    Upload it ;)
    BTW, my RAM's are running at a maximum of 667 Mhz, i don't think they can stand 887 :(

  41. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Download link:
    http://rapidshare.com/files/426883714/thphn63.zip

    I suggest changing the ram frequency to 533mhz and keep the 667mhz timings or even use 800mhz timings (6-6-6-18).

    Flash only 1 stick (the other stick should be underclocked to match automatically).

  42. ilguercio

    ilguercio Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    I'll try it as soon as i understand what's wrong with it now.
    Doesn't want to start, "runtime error 216 at 00403BD6".
    Nothing's going as i wanted.

  43. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Are you using 64bit win7?

    I don't think thaiphoon burner works well with that.

    Really I only had luck with winxp 32bit.

    You could try using SPDtool, but be careful with that one.

  44. ilguercio

    ilguercio Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    Vista 64, :(
    I might install a version of XP just to flash a ramstick, i'll try that.

  45. niffcreature

    niffcreature ex computer dyke

    Reputations:
    1,748
    Messages:
    4,094
    Likes Received:
    28
    Trophy Points:
    116
    I flashed my RAM to 400mhz, CL6.

    Its definitely not helping me overclock to 1333mhz FSB. Not sure what the best timings are at all...

  46. hikkoo

    hikkoo Notebook Consultant

    Reputations:
    397
    Messages:
    222
    Likes Received:
    0
    Trophy Points:
    30
    ilguercio sorry bit misunderstanding havnt tried theory yet, im considering to buy another mobo for xps to test.

    before solder anything , maybe good idea Test if PLL will allow PM965 to operate @ higher Bus speed by trying BSEL wire pinmod ...Nando gives good advice on first page also some info on Naton Thread ...
    need to be careful that cpu mates back flushly to chipset...because wire will interfere in getting cpu back into original level postion...so need somthing sharp to be able to carve a very small notch out chipset just enough for wire to be flush with chipset surface

    if test works ....then need to remove wire mod before try solder PLL pin correctly which require skill an so helpful have microscope about 40x or more > e.g check no bridging to adjacent PLL pins

  47. .NetRolller 3D

    .NetRolller 3D Notebook Deity

    Reputations:
    505
    Messages:
    1,127
    Likes Received:
    14
    Trophy Points:
    56
    Just letting you know that the Acer Aspire 5720 is also moddable. Isolate resistor R104 from +3.3V, and connect it to ground with a wire (I connected it to the ground pin of a USB port). This will disable TME.

    Also note that while all schematics and service manuals for this machine state the PLL as an ICS9LPRS365AGLFT, my board actually had a Silogo SLG8SP510T (essentially an SLG8SP513V in a different package). This PLL is nowhere near as capable as the ICS9LPRS365 (can only be set in discrete steps of 100, 133, 166, 200, 266, 333 and 400MHz, with no fine tuning), but I guess that it should not be hard to replace the chip with an ICS9LPRS365, given that the rest of the circuitry matches the schematic. (I haven't tested the chip replacement, as I have no ICS9LPRS365 to test with.)

  48. User Retired 2

    User Retired 2 Notebook Nobel Laureate NBR Reviewer

    Reputations:
    4,127
    Messages:
    7,860
    Likes Received:
    10
    Trophy Points:
    0
    What CPU are you using with what FSB overclock after you TME-unlock? MH will need those details to add you to the first page.

  49. whitrzac

    whitrzac The orange end is cold...

    Reputations:
    497
    Messages:
    1,142
    Likes Received:
    7
    Trophy Points:
    56
  50. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Setfsb is probably changing the source for the sata clock.

    Try changing bit 1 of byte 0, if that causes the lockup, then you found the problem.

    You can try using ICS9LPR501SGLF, I think it has the same registers as your PLL, but setfsb doesn't change the sata source with that PLL.
