AutoCAD 2011 on HP workstations

I am having an issue running AutoCAD 2011 LT on my 8740w with M7820 and have started a thread on the Autodesk forums. Someone with a 8540w (FX880M) is having the same issue. So i was hopoing to get feedback from everyone running AutoCAD 2011 (both FULL and LT).

Problem: Display Auto Track tooltip significantly degrades performance. The text box popup pauses all cursor movement for 0.5s-1s on my 8740w (other user reports 3s pause on 8540w).

My thread on Autodesk has been open for a few weeks, and this other user is the first to chime in as having the same issue. The fact that he has an HP with Nvidia graphics makes me wonder if it an HP issue. So please try this and report back.

1) Under Options>Auto Track Settings, toggle Display Auto Track tooltip
2) Open any drawing and make sure Osnap and Otrack are turned on. Start a line and move your cursor around.
3) Note whether you see a significant difference in performance with the tooltip on/off. In my case, when it is on, snapping and tracking causes a significant pause in movement while the text box tries to display information. Turning the tooltip off removes the text box and snapping and tracking go back to normal.
4) Report here with the following information:

name
AutoCAD version
laptop
GPU
CPU
Y/N (regarding problem described above)
notes

For example:

knight427
AutoCAD LT 2011
8740w
M7820
820qm
Yes
courser pauses 0.5s-1s as tooltip tried to display information making drawing and measuring very frustrating



Am I the only one using AutoCAD 2011 or AutoCAD LT 2011? If you do not experience the problem described in the above post, I am just as interested in hearing from you.



I do have a 8540w with quadro fx1800m and 8gig ram and i'm having the same problem in Autocad 2010!!

It's kinda frustrating!!! I can't work with this.

On Inventor i have no problem!!!



Exact same problem here on a brand new HP 8740w:

JJcph
AutoCAD Architecture 2011 trial version
Nvidia Quadro fx2800m
Intel i7 640

Yescourser pauses 0.5s-1s as tooltip tried to display information making drawing and measuring very frustrating



download the GPU accelerator driver from nvidia for autocad, this fixes the issue for me at least.



stug
AutoCAD Architecture 2011 (Trial)
8740w
2800M
840QM
Yes
courser pauses 0.5s-1s as tooltip tried to display information making drawing and measuring very frustrating. I think I have the nvidia drivers for AutoCAD, but there is no difference.



Any updates on this issue? I have the same problems.

2011 LT
8740w
M7820
620M
courser pauses 0.5s-1s as tooltip tried to display information making drawing and measuring



Sounds like my general tooltip error (Dont have autocad) some apps lag if a tooltip is shown, for example if I run a movie and a tooltip is shown then it all lags heavyly. So think its a vista/win 7 problem or just bad drivers from Nvidia
Did the same if I play in window mode and a tooltip is shown then my game fps is cripled



At least part of the problem is Aero. Here are your options.

1) Most AutCAD versions allow you to to "Disable visual themes".

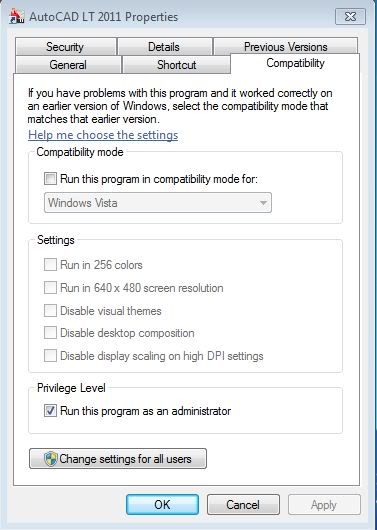

right-click AutoCAD icon>properties>compatibility


If you are unlucky like me, you will not be able to select this option (note how it is gray in the pic above). I think this has something to do with Windows 7 Pro64 due to replies I've received from other users on the Autodesk forums. But Autodesk doesn't seem to care to look into it. This leaves you with 2 other options.

2) Switch to Win7 Basic. This is pretty easy, my only problem with it is that I actually need Aero to be running to use one the multi-tasking programs I use in conjunction with AutoCAD.

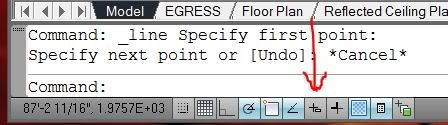

3) You can also turn off the worst offending tool, Dynamic Input. There is a button to toggle this on/off.

This will help some, and allow you to keep Aero running which is nice for multitasking. But it will not help the Measuring tool, if you do that a lot, you really need to use option (2) above instead.

So I'm kind of stuck. Aero allows me run a small program that increases my productivity while building a model in an acoustics simulation program...(don't ask about exporting/importing 3d drawings...it only works in theory). This is how I use AutoCAD 75% of the time...pulling coordinates off drawings to build a 3d model in another program. Turning off Dynamic Input helps some, but I use the measure tool a lot too, which is still slow and jerky until I switch to Win7 Basic.



if you're using just the drawings, why are you not just importing them into 3ds max, and using that software?

just confused



Architects still primarily use AutoCAD. Most of these drawings are 2d, I've only worked with a few 3d AutoCAD drawings. I don't see what 3ds max can do for me. I don't need a 3d visualization of the room.

The acoustical software I use ( CATT-Acoustic) can import 3d AutoCAD models, but not really. Importing one directly from the architect is impossible basically because there is too much detail in their model. I've tried editing those down to the right level of detail, but even then the imported model is cluttered which detracts from the acoustical simulation software performance and accuracy. I chose AutoCAD LT because most of the time I just need to pull coordinates off the drawings. I do sometimes do simple sketches of room treatment layouts, but nothing more complicated than the digital equivalent of a red pen on blue prints.

When I upgrade next, I will try IntelliCAD.



Well, I turned off Aero but this does not help at all. (this is always the first thing i do after installing Windows) Autocad in general performs poor with this laptop. My brother has a MSI GX620 and autocad runs so much smoother on that laptop. Even other older models in my office perform better than my 'higher end' model.



I have nothing intelligent to add to this conversation, however when researching which laptop to buy, I read about many problems dell M6400/6500 users were having in autocad type programs as well. They too were running the quadros under 64bit platform. Probably no help to you but found it interesting.



I think it has more to do with 64bit, than Quadro. I had the same problem on 2 previous 8740w with ATi graphics. (and tanks for the observation, at least the problem isn't unique to HP)



Hi,
I had the same problem untitill 5min ago and i managed to solve it by going Options-->Drafting --> uncheck Display Auto Track Tooltip

After that Dyn Input, Osnap tracking and all other Osnap crap works seemengly, no delay

Hope this helps, i had no delay since i unchecked that option i AutoCAD and Civil 3D 2011



If you want to disable themes for 64-bit apps, you have to go into the registry. Set "disable themes" on some app, and then look for appcompat "persisted" (very approximate name). You can then change the path of that entry to point to the 64-bit EXE (AutoCAD).



Sorry, can you give some more info regarding this?
