    HP ProBook 5320m 13.3 NB with Intel Core i3-350M Review

    Discussion in 'HP Business Class Notebooks' started by windwithme, Mar 7, 2011.

  1. windwithme

    windwithme Notebook Geek

    Reputations:
    260
    Messages:
    92
    Likes Received:
    49
    Trophy Points:
    26
    [​IMG]

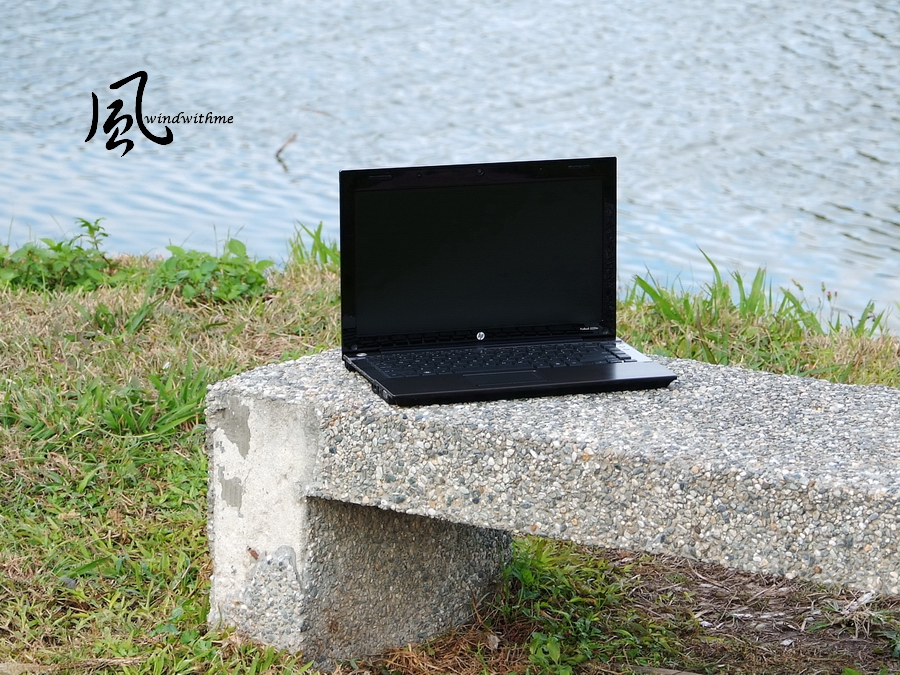

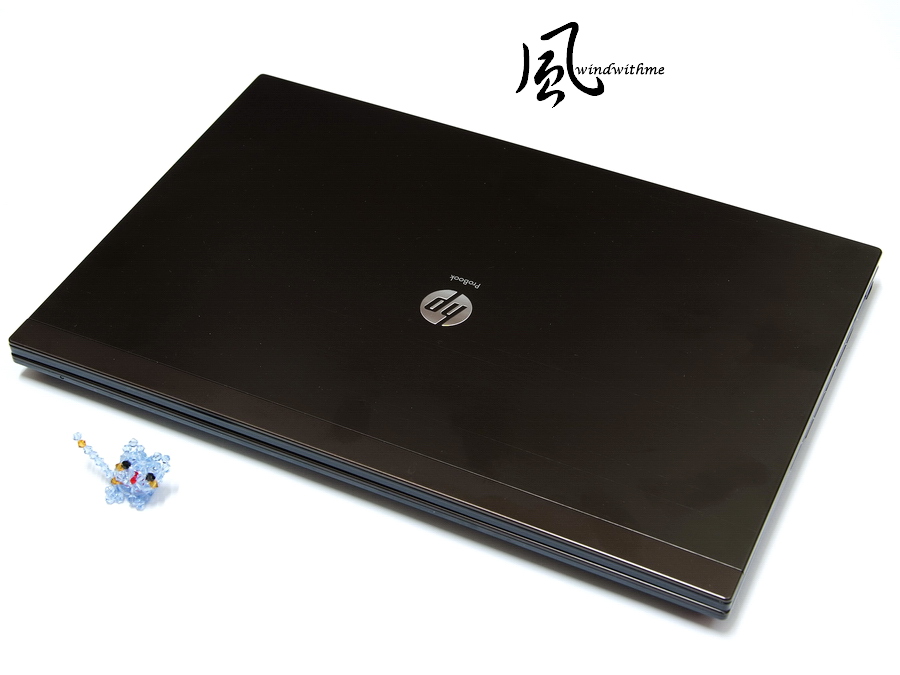

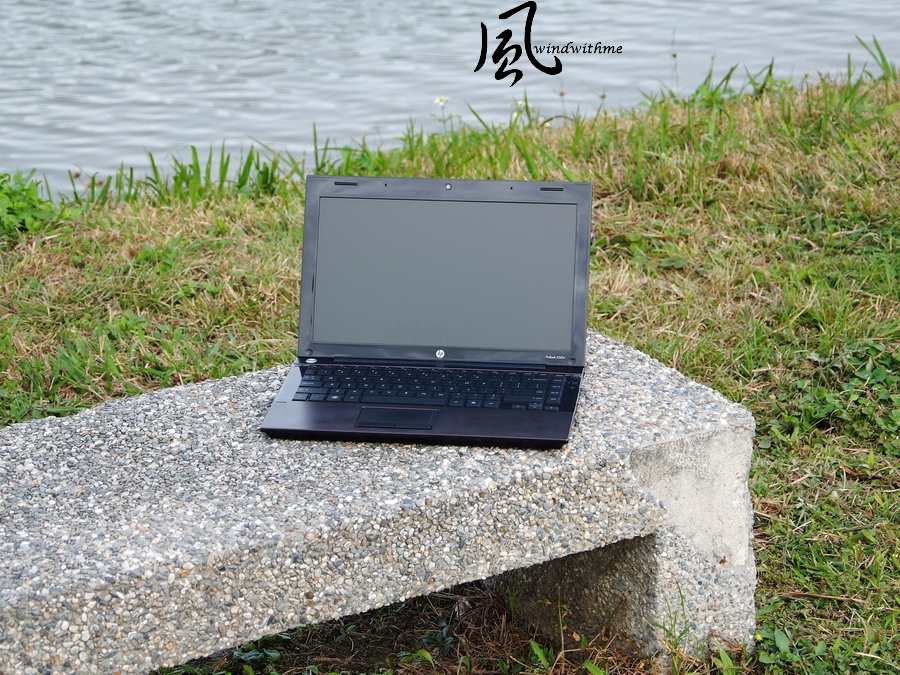

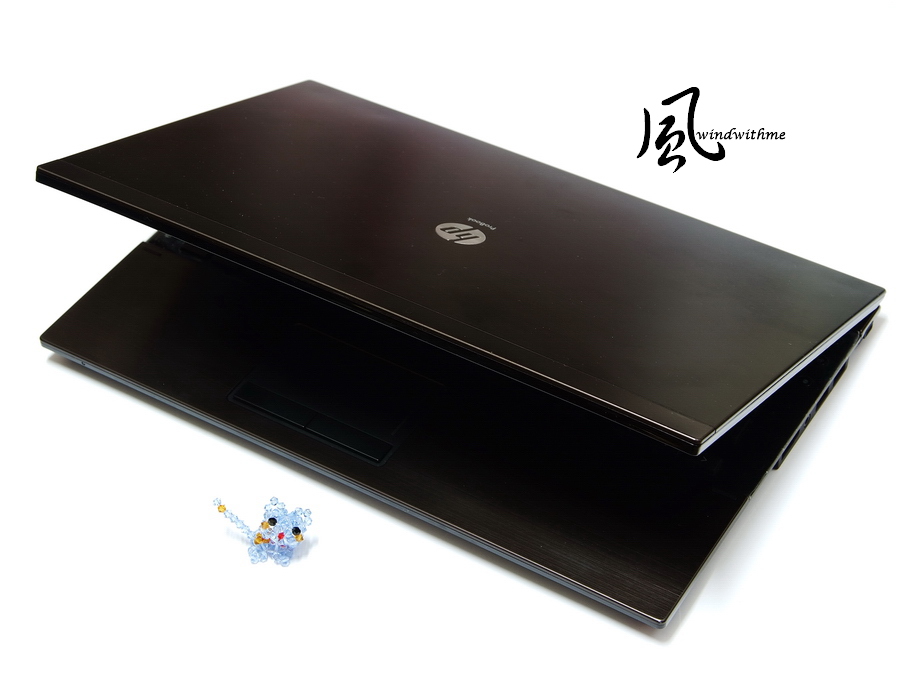

    HP ProBook 5320m
    [​IMG]

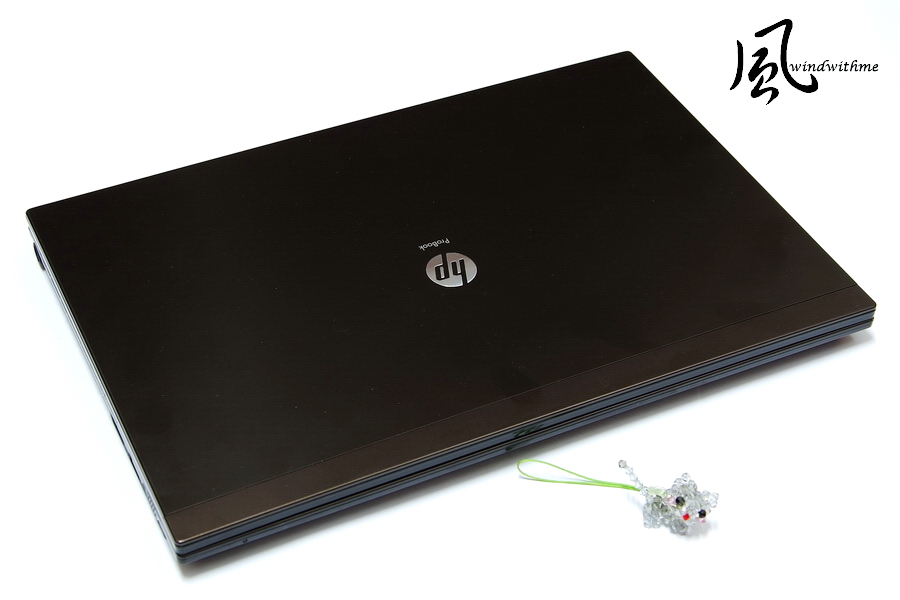

    32.8 X 22.10 X 2.35 cm
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

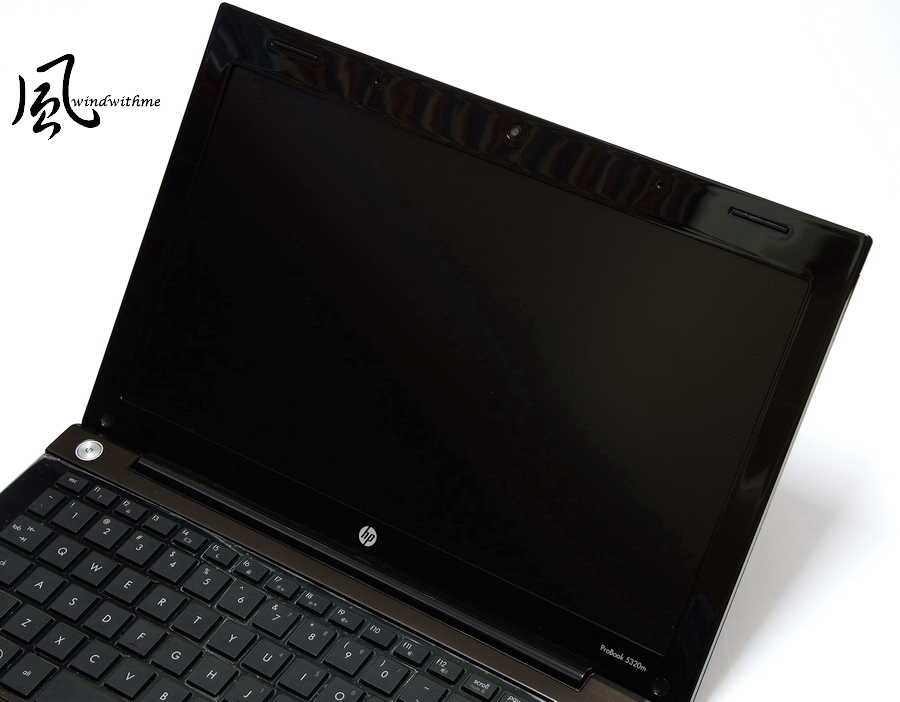

    13.3” matte monitor, the resolution is 1366X768. The open degree is 140.
    Integrated 2 MP webcam with fixed-focused lens.
    [​IMG]

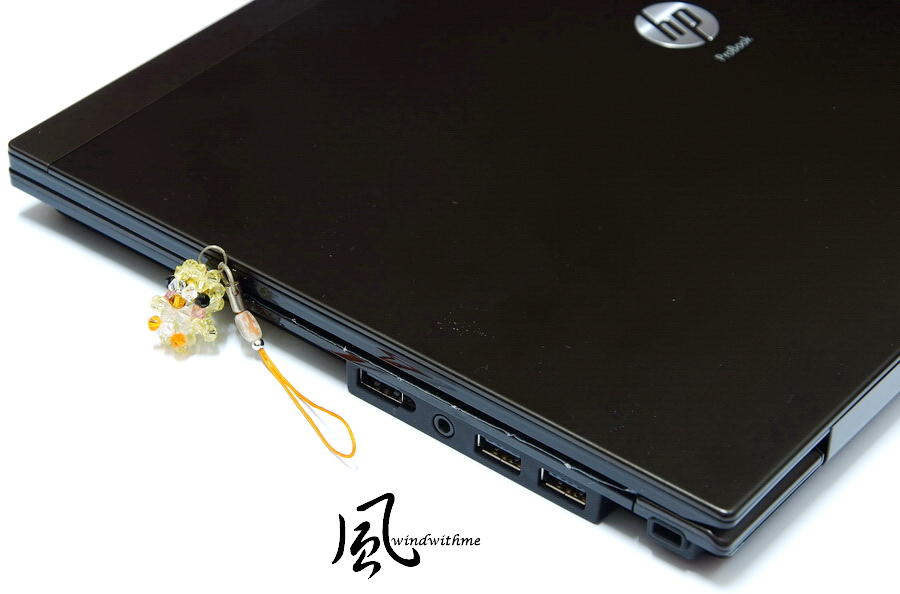

    Left side
    SD\1 X USB 2.0\1 X Mic in&Line out\2 X USB 2.0\anti-thief lock
    [​IMG]

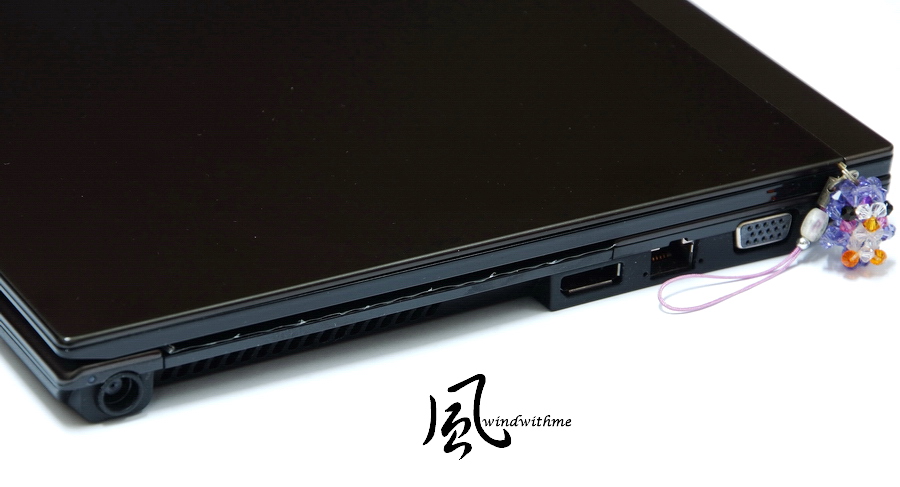

    Left side
    Power in\thermal holes\DisplayPort\RJ45 LAN\D-SUB
    [​IMG]

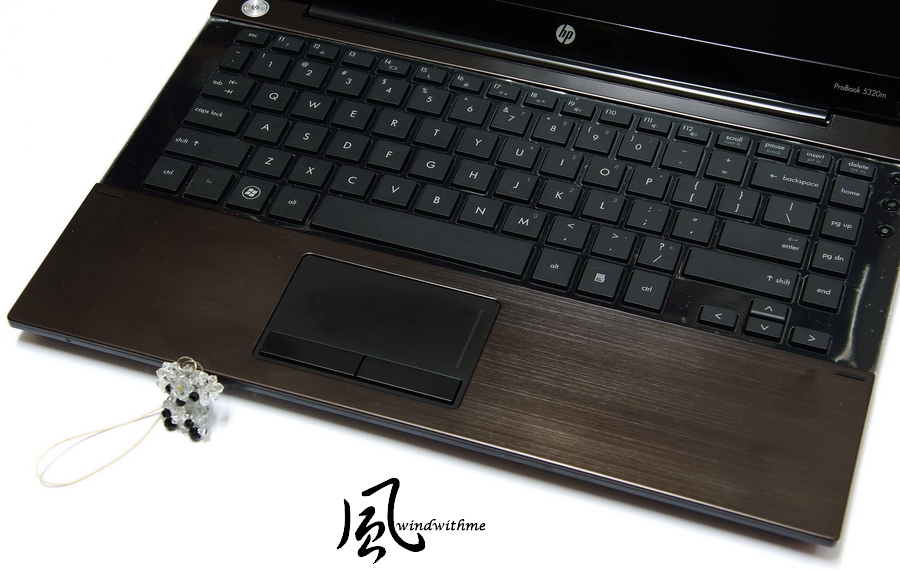

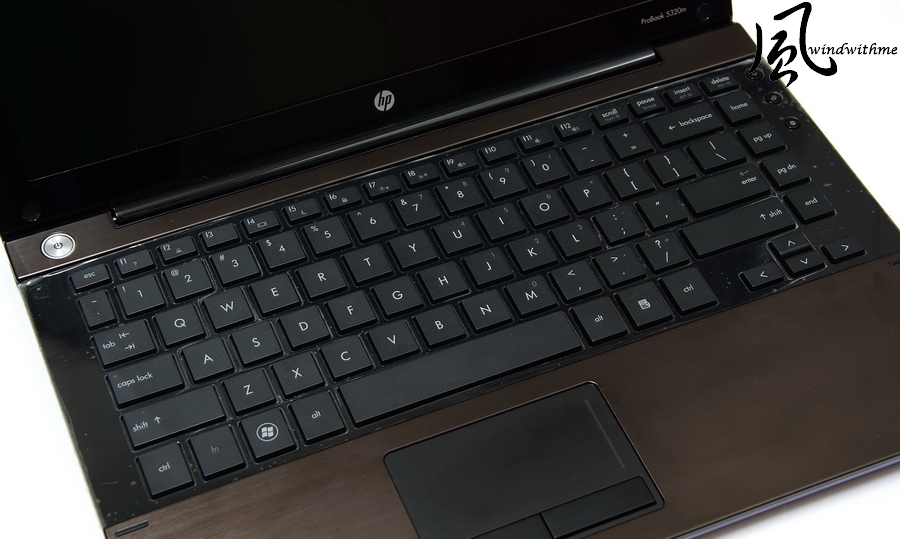

    Full-sized spill-resistant keyboard with HP DuraKeys
    [​IMG]

    windwithme, Mar 7, 2011
    #1
  2. windwithme

    windwithme Notebook Geek

    Reputations:
    260
    Messages:
    92
    Likes Received:
    49
    Trophy Points:
    26

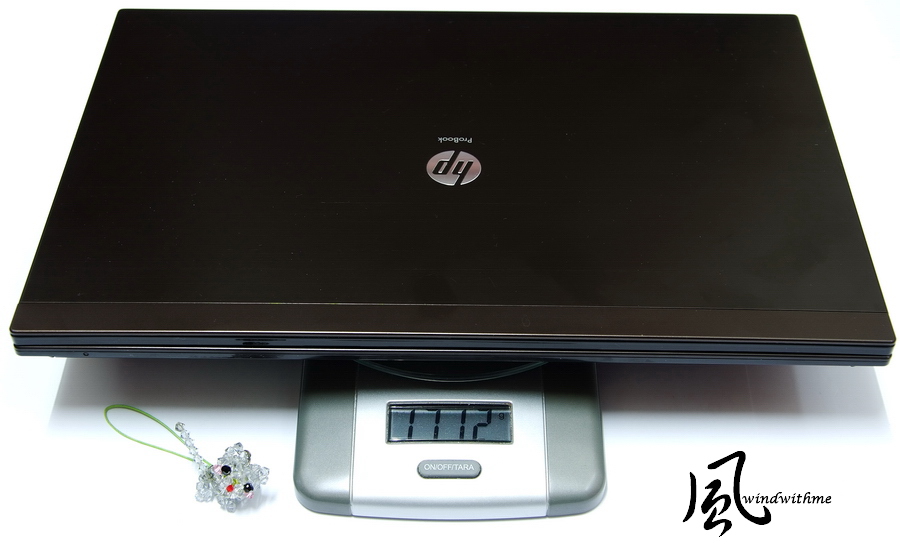

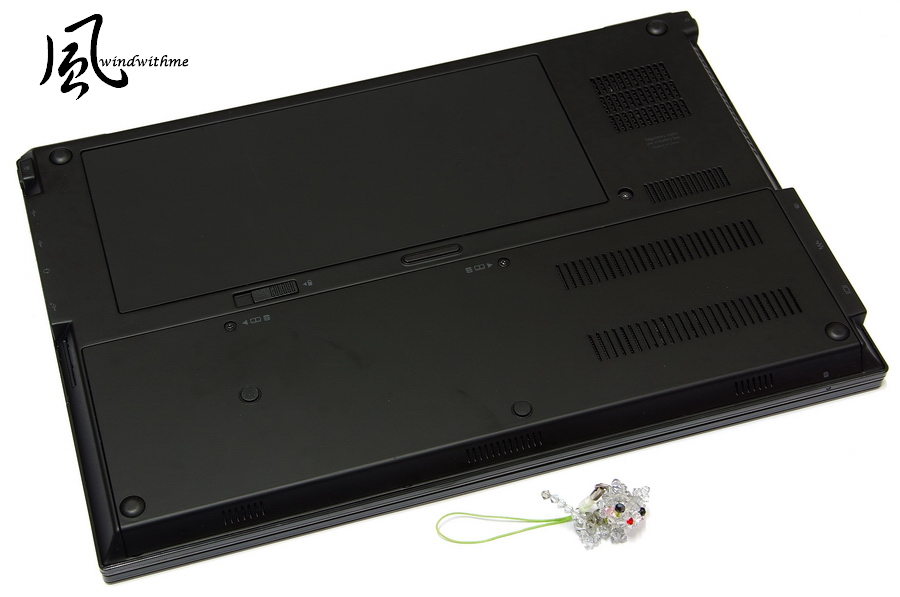

    4 Cell battery => 1712g
    [​IMG]

    HP ProBook 5320m uses Intel latest Calpella structure.
    CPU is Intel Core i3-350M. The clock is 133 X 16 => 2.26GHz, L3 3MB, dual core and supports HT technology.
    The chipset is HM57. Comparing to GM45, I believe the performance will be much better.

    Performance test
    OS is Windows7 Ultimate 64Bit

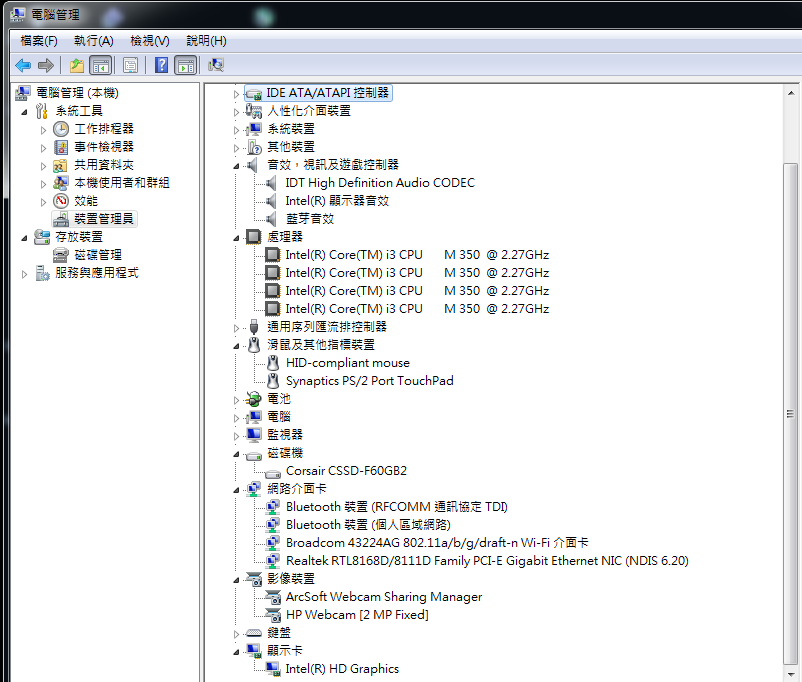

    Hardware info in Device Manager
    [​IMG]

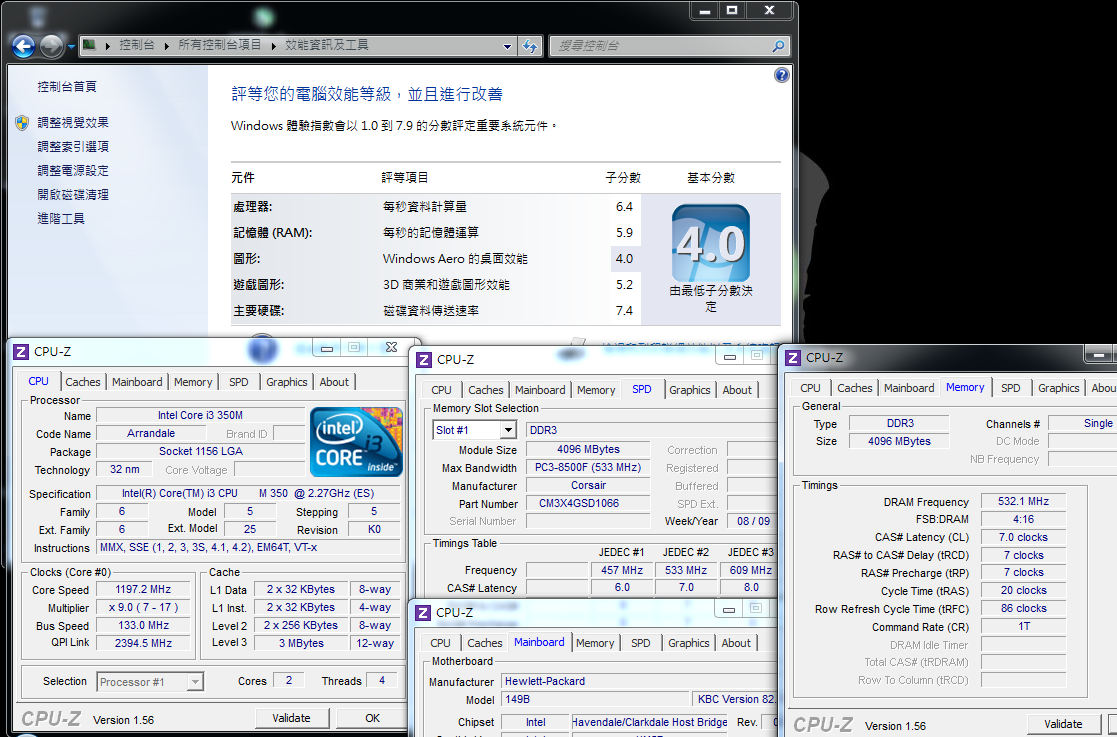

    Windows7 system performance
    [​IMG]

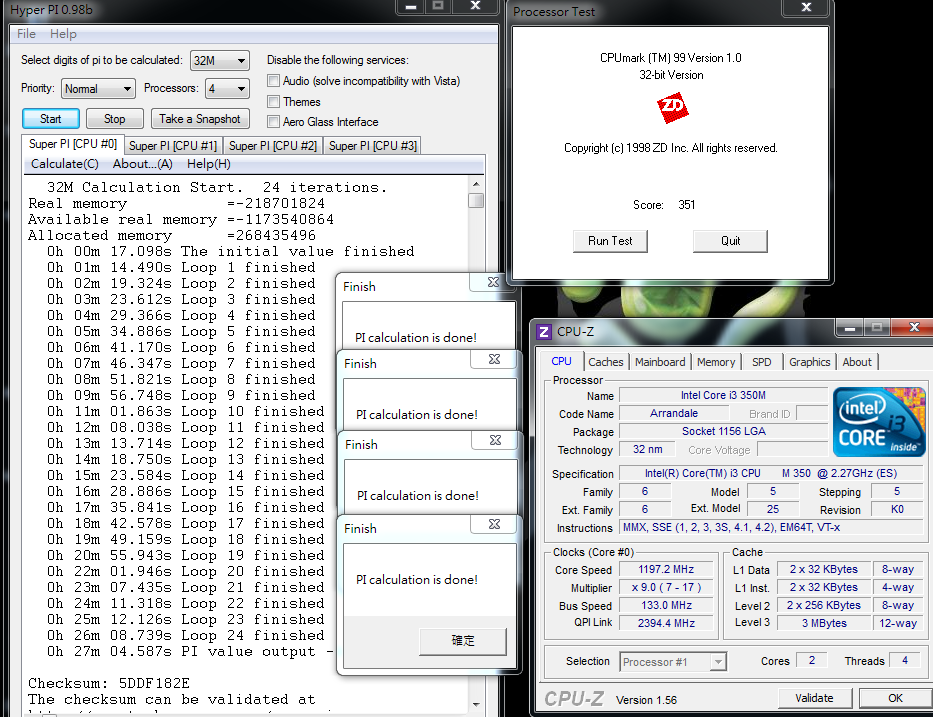

    CPU performance test
    Super PI 32M => 27m 04.587s
    CPUMARK99 => 351
    [​IMG]

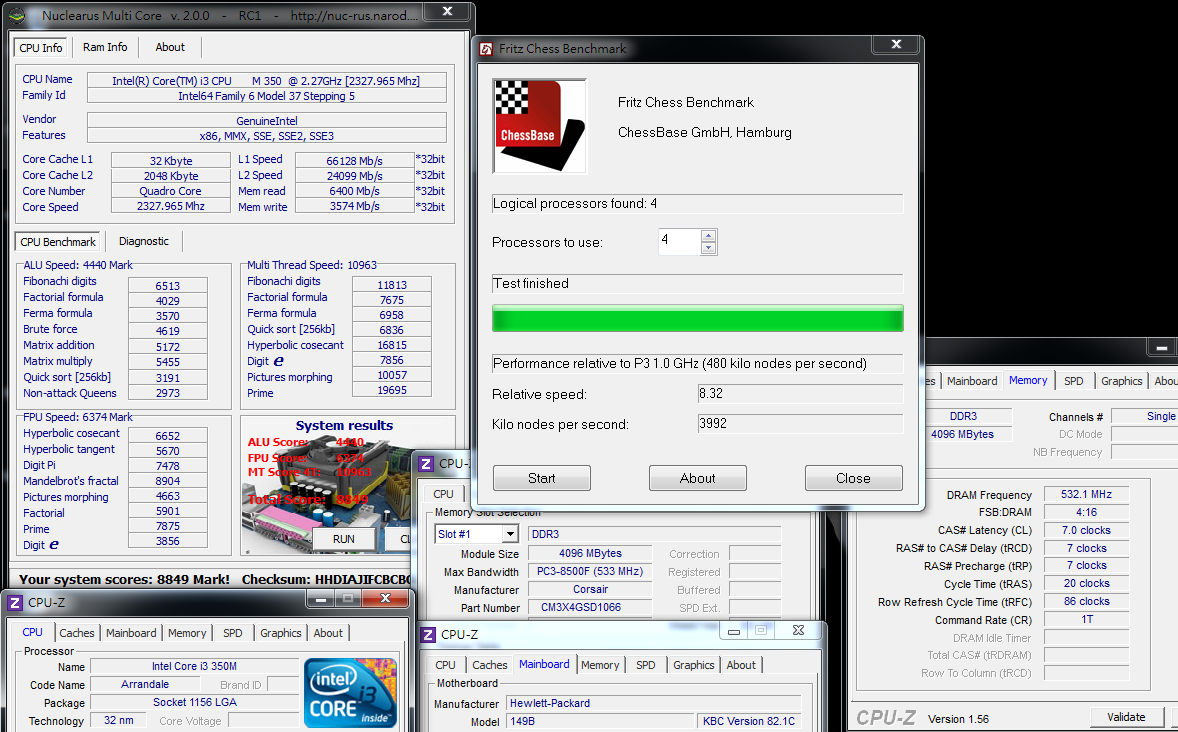

    Nuclearus Multi Core => 8849
    Fritz Chess Benchmark => 8.32/3992
    [​IMG]

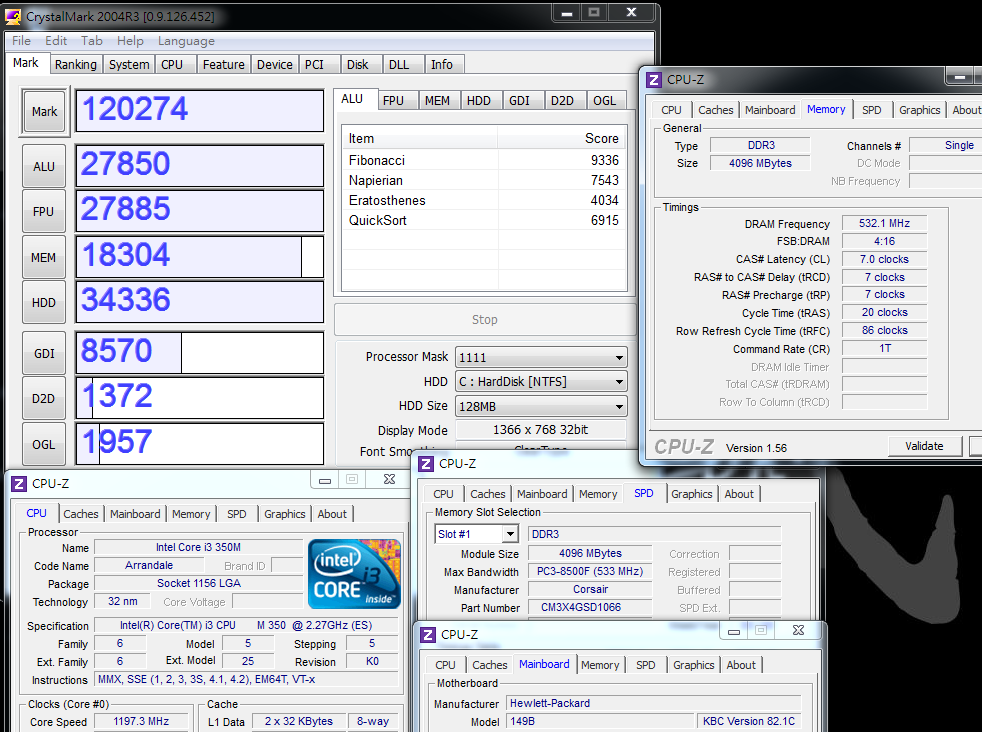

    CrystalMark 2004R3 => 120274
    [​IMG]

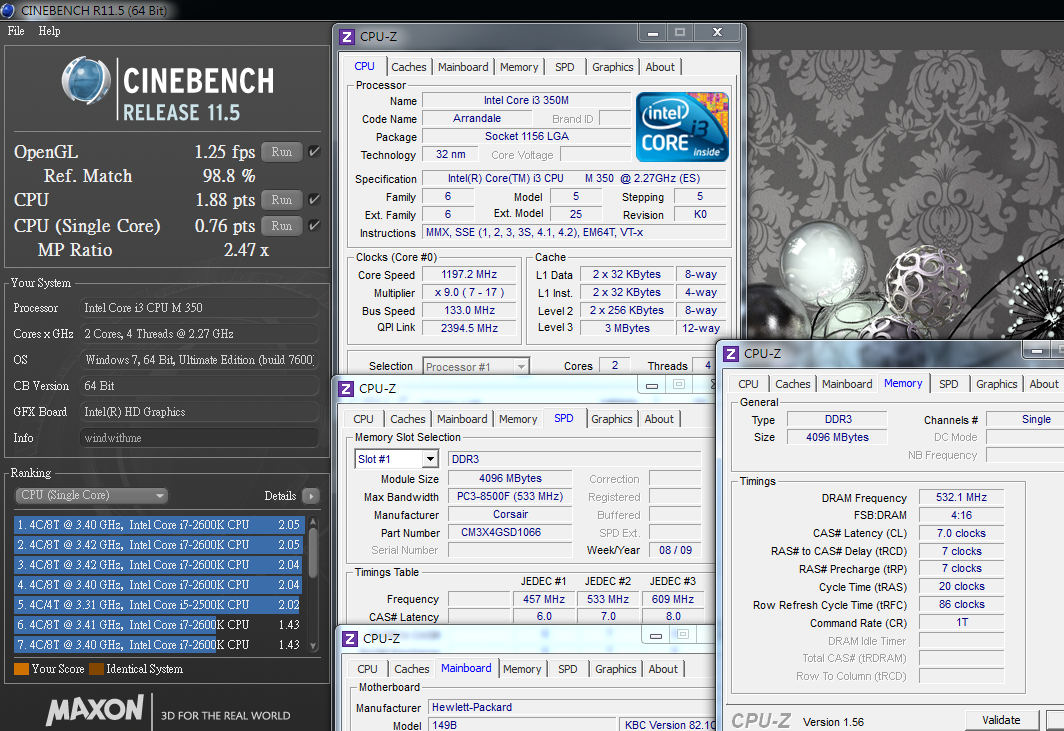

    CINEBENCH 11.5
    OpenGL 1.25fps
    CPU (Single Core) 0.76pts
    MP Ratio 2.47x
    [​IMG]

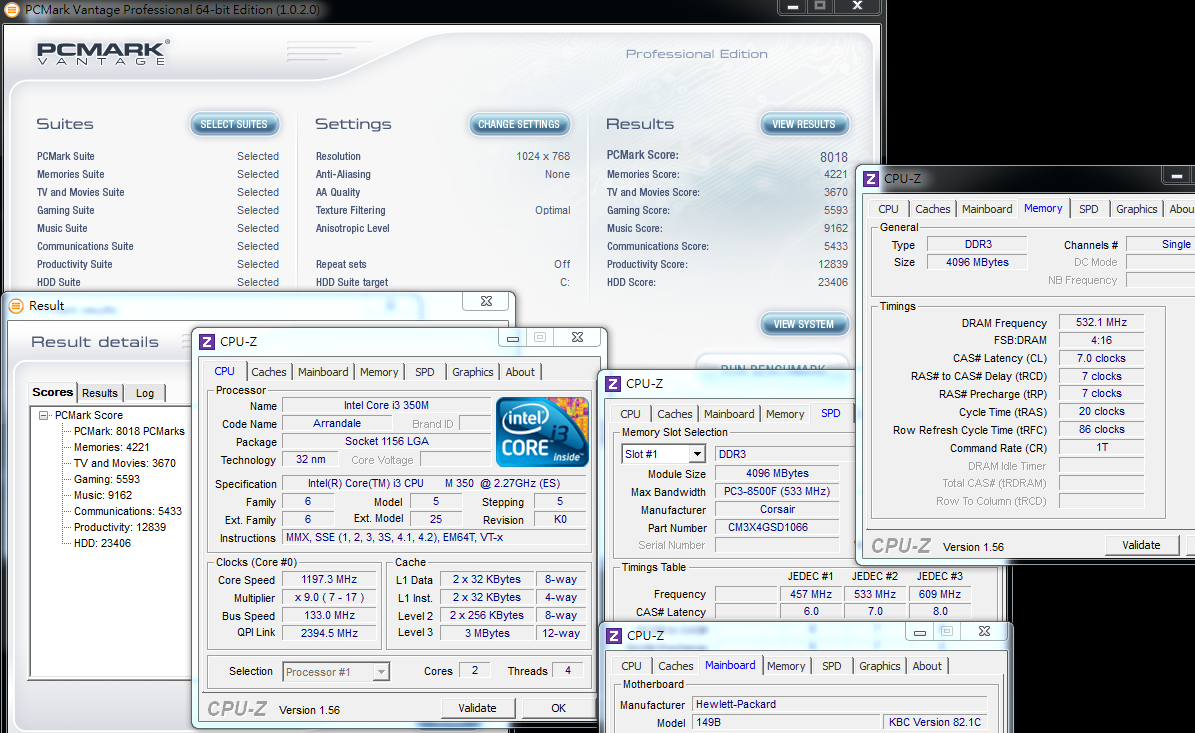

    PCMark Vantage => 8018
    [​IMG]

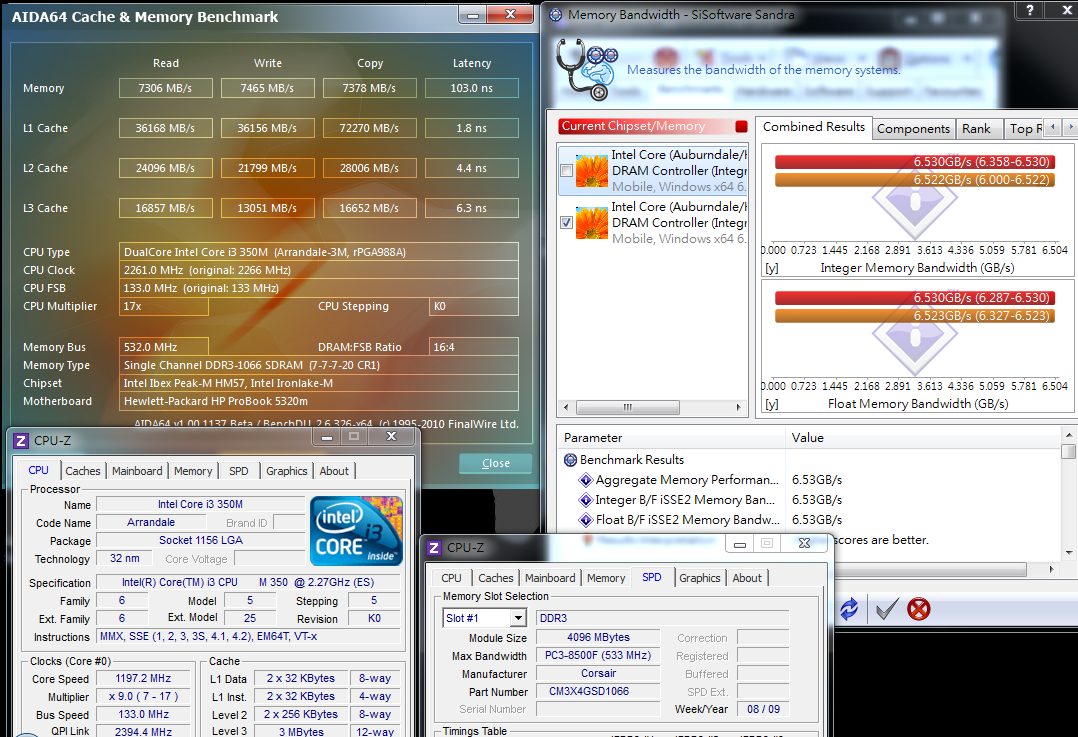

    DRAM performance
    DDR3 4GB X 1 (1 SODIMM) => 1064.2 CL7 7-7-20 1T
    ADIA64 Memory Read - 7306MB/s
    Sandra Memory Bandwidth - 6530MB/s
    [​IMG]

    CPU Temperature
    Standby - 42~44℃
    [​IMG]

    windwithme, Mar 7, 2011
    #2
  3. windwithme

    windwithme Notebook Geek

    Reputations:
    260
    Messages:
    92
    Likes Received:
    49
    Trophy Points:
    26

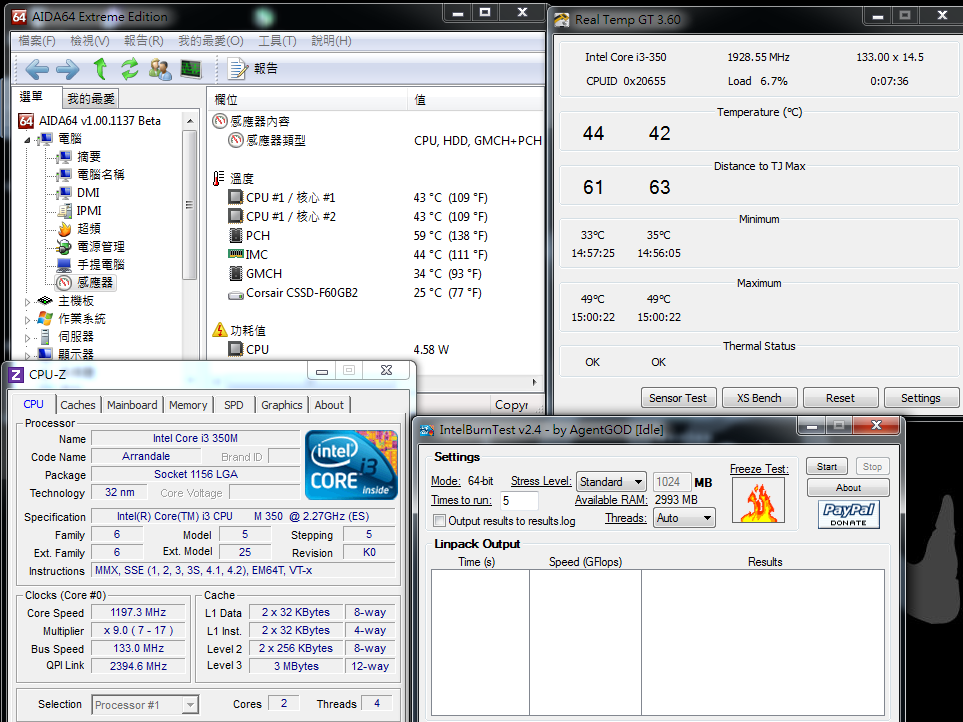

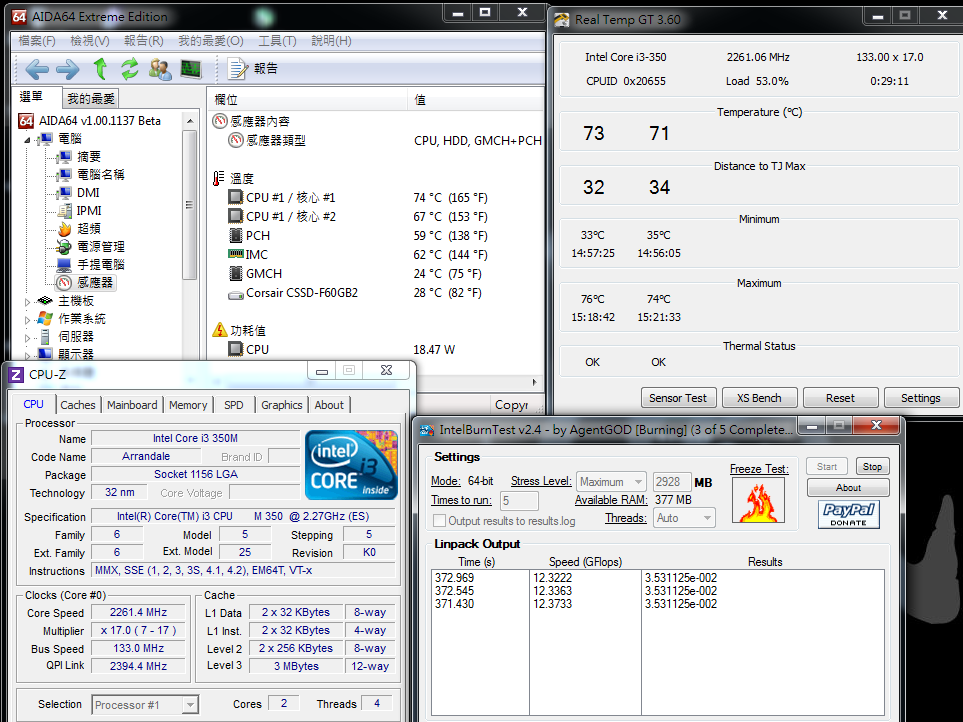

    CPU full speed - 67~74℃
    [​IMG]

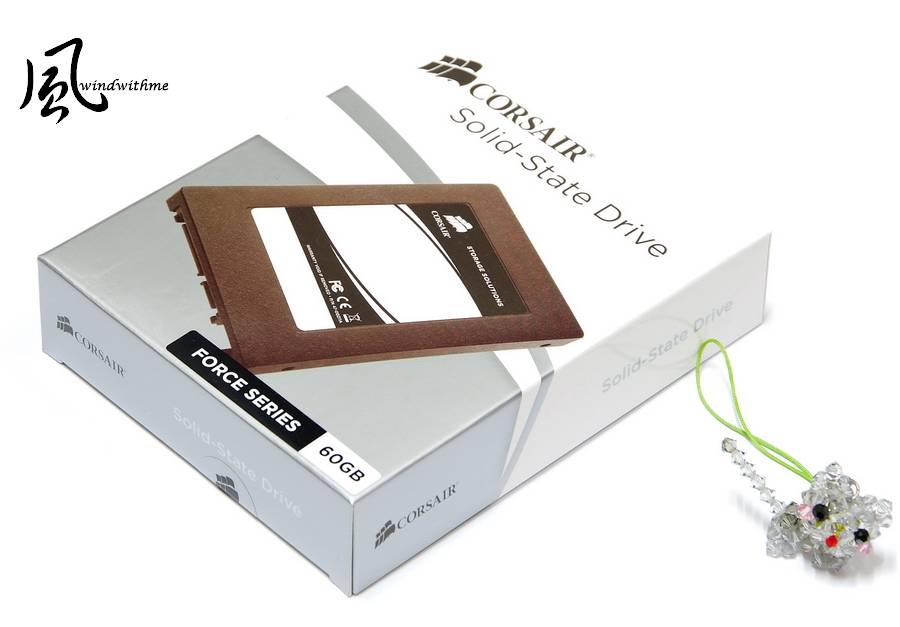

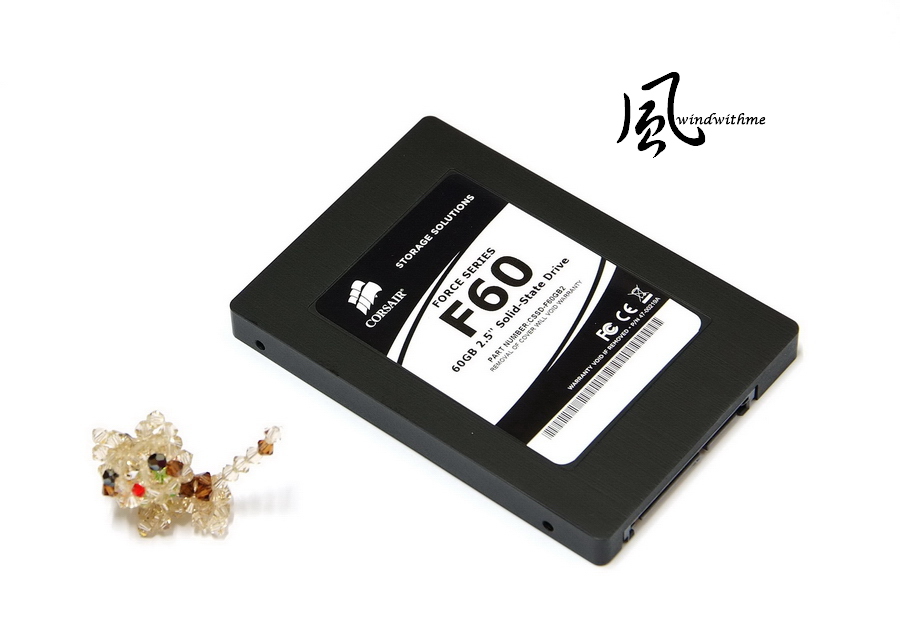

    Using high performance MLC SSD-CORSAIR F60 to test
    [​IMG]

    Size is 2.5” and ID is F60. The highest performance is 285/275 MB/s.
    Random 4K writing performance can reach 50000 IOPS which improve the 4K writing issue in past SSD.
    [​IMG]

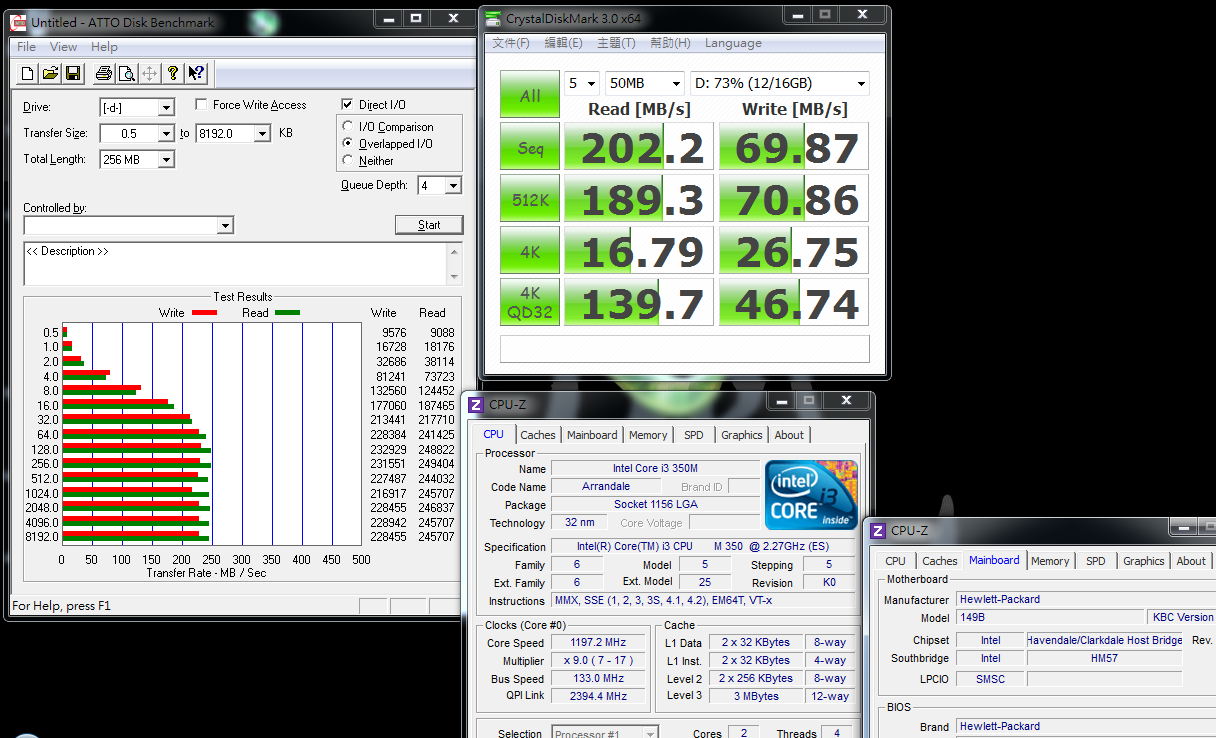

    ATTO DISK Benchmark over 64k benchmark result is max read 249.4 Mb/s and write 232.9 MB/s
    CrystalDiskMark 4K QD32 Read - 139.7 MB/s Write - 46.74 MB/s
    [​IMG]

    EVEREST File Benchmark over 1024k benchmark result also above 250 MB/s.

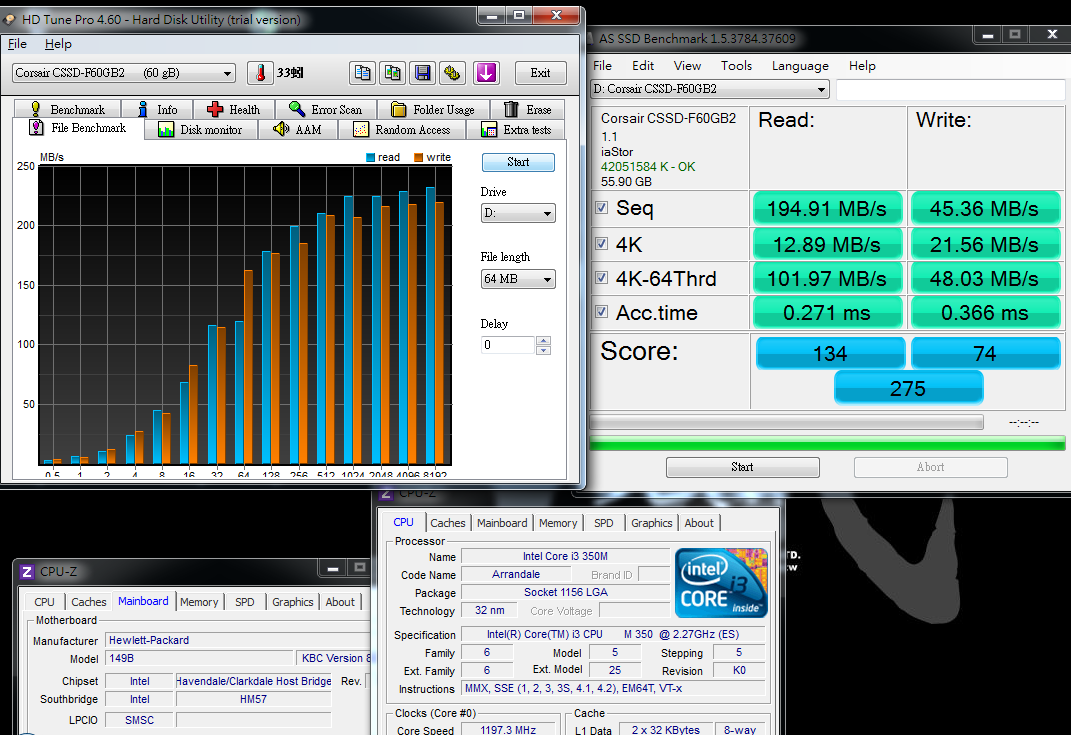

    AS SSD Benchmark
    Seq Read - 194.91 MB/s Write - 45.36 MB/s
    4K-64Thrd Read - 101.97 MB/s Write - 48.73 MB/s
    [​IMG]

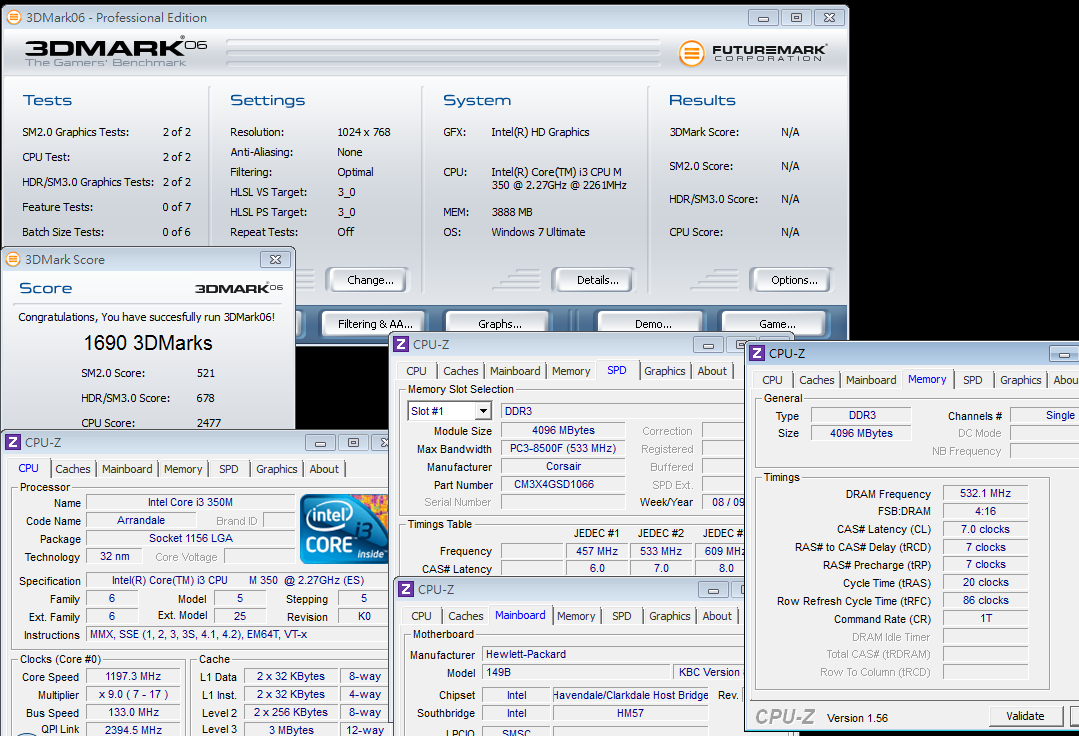

    3D is the latest Intel technology that CPU built-in GPU
    3DMARK2006 - 1690
    [​IMG]

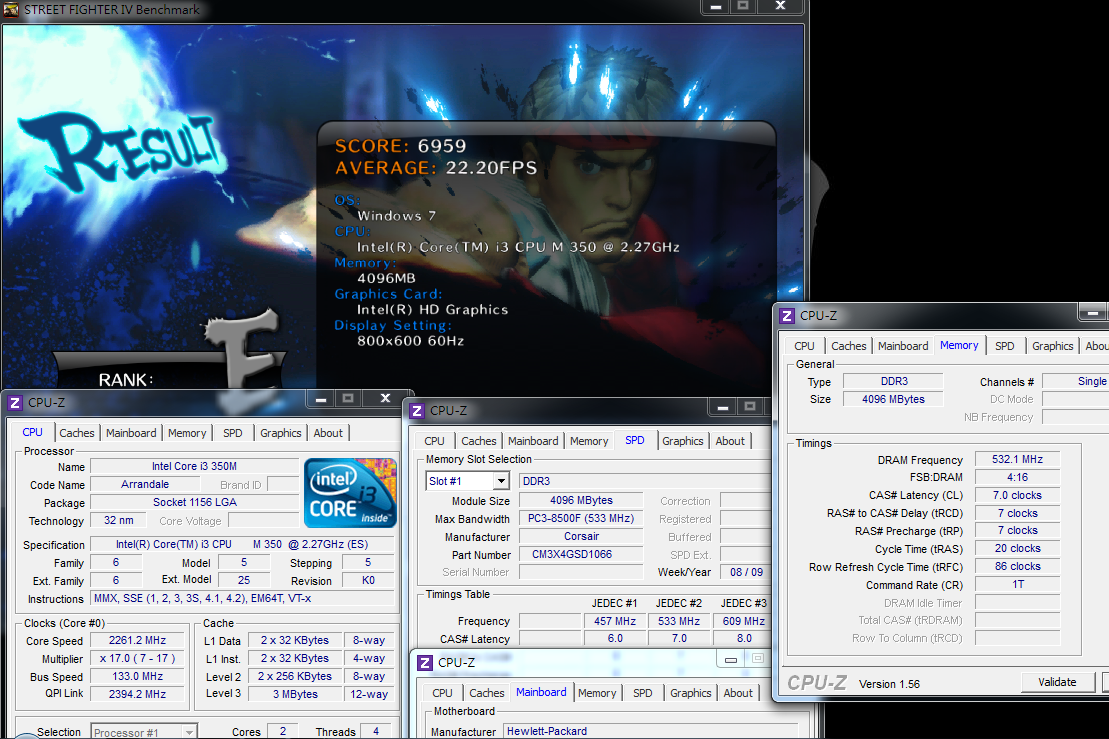

    StreetFighter IV Benchmark
    800 X 600 => 22.20FPS
    [​IMG]

    Vedio
    BD Inception/DVD Taiwanese Puppet Show
    [​IMG]

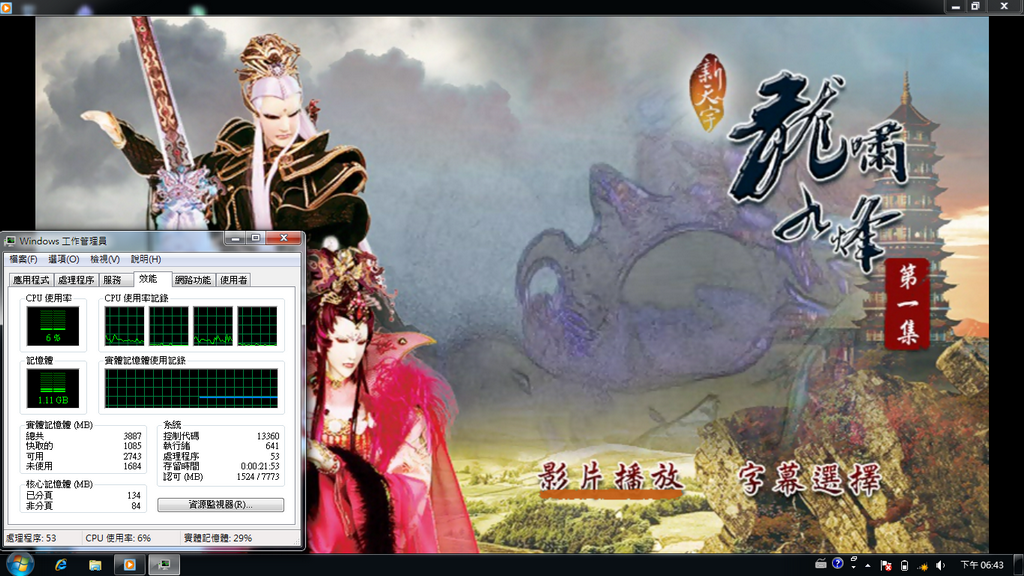

    DVD 720 X 480
    CPU => 5~8%
    [​IMG]

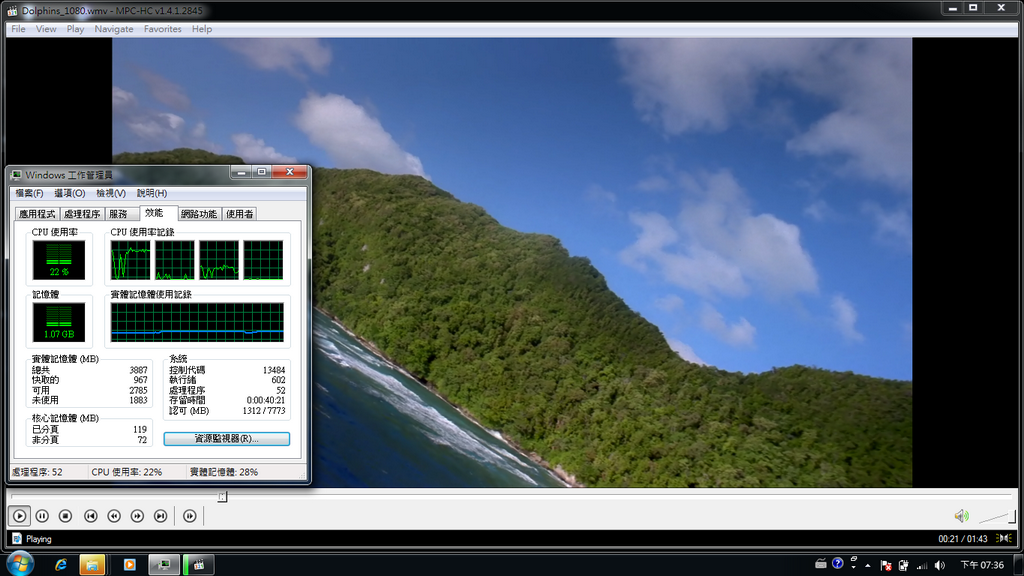

    1440 X 1080
    CPU => 20~27%
    [​IMG]

    windwithme, Mar 7, 2011
    #3
  4. windwithme

    windwithme Notebook Geek

    Reputations:
    260
    Messages:
    92
    Likes Received:
    49
    Trophy Points:
    26
    Youtube

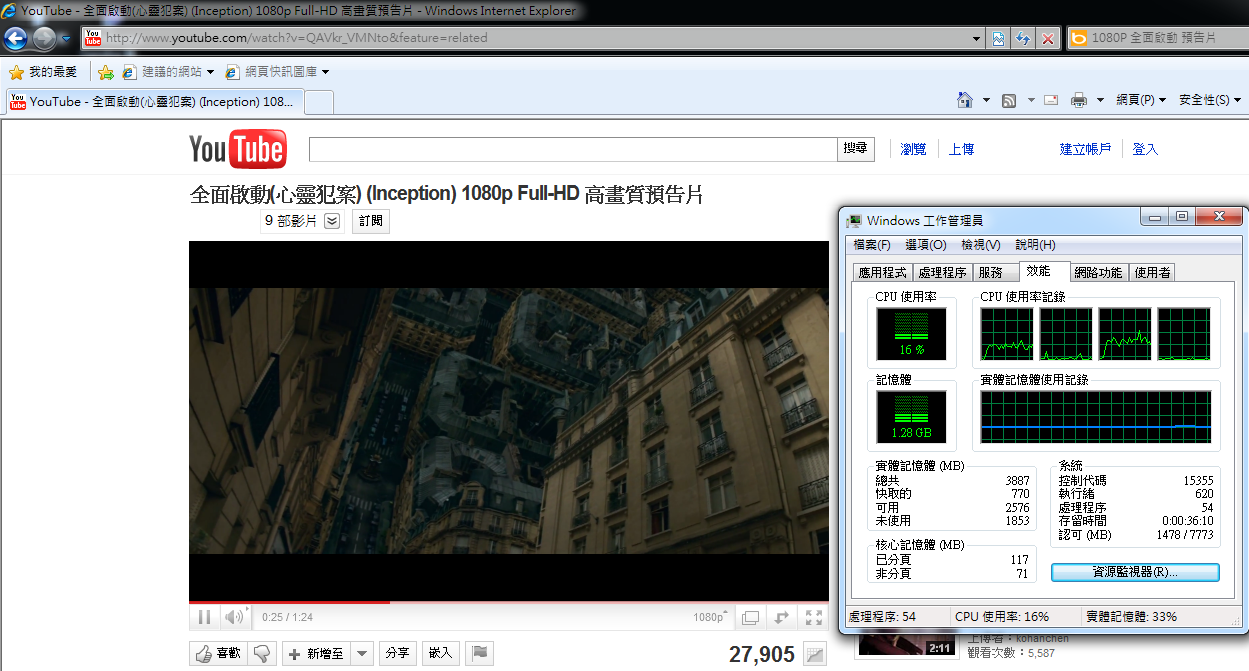

    Inception 1080P - CPU => 15~19%
    [​IMG]

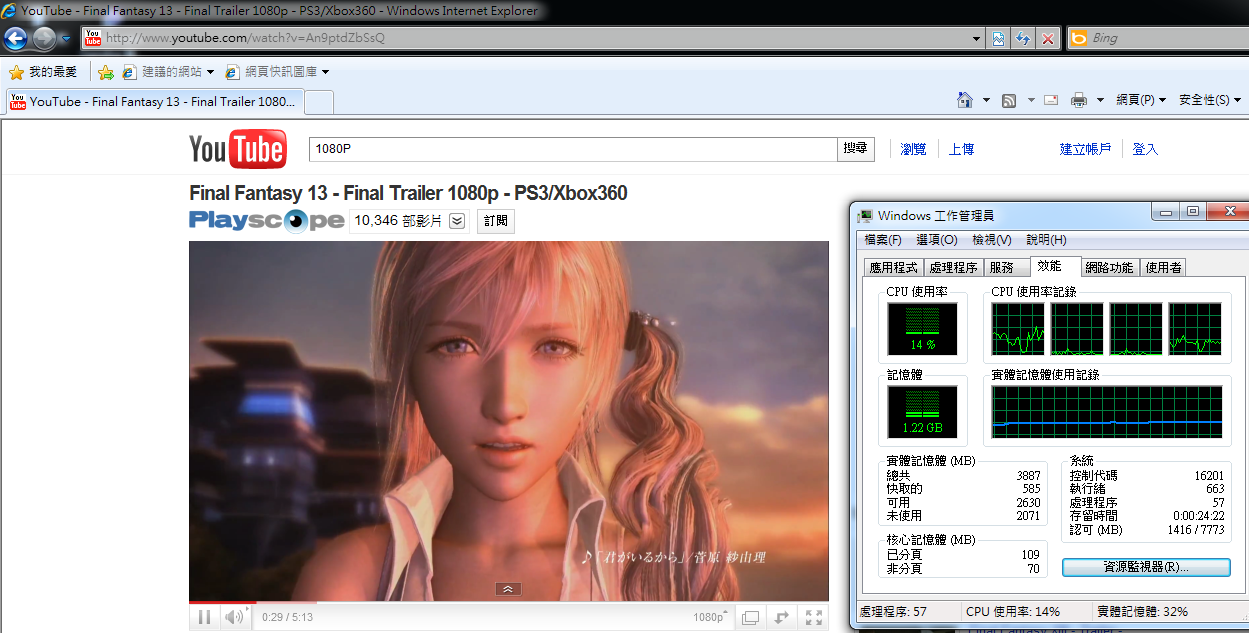

    Final Fantasy 13 1080P - CPU => 13~20%
    [​IMG]

    The copyright reserved of each vedio belongs to its original company.

    Battery Duration
    4Cell battery, Battery Eater Pro (turn on wifi and bluetooth)

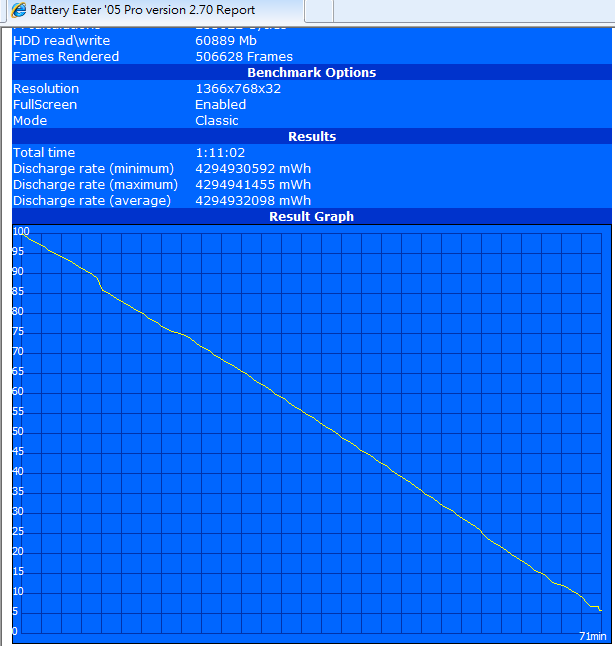

    Full Speed - 1:11:02
    [​IMG]

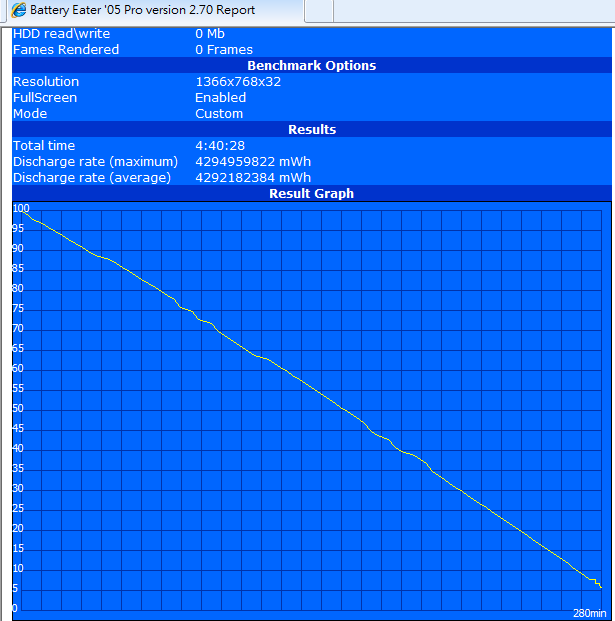

    Idle - 4:40:28
    [​IMG]


    [​IMG]

    HP ProBook 5320m
    Performance ★★★★★★★★☆☆
    Components ★★★★★★★★★☆
    Specification ★★★★★★★★☆☆
    Outlook ★★★★★★★★★☆
    C/P Value ★★★★★★★★☆☆

    [​IMG]

    This review also post in my blog WIND3C
    Welcome 3C lovers to visit and advise.
    Thanks :)
