Y580 Owners Thread

Thanks for the feedback. I'm sure it will be better than my current DV6 768 resolution screen.



That's good news! Is there one in particular I should try tonight that might squeeze a bit more out of it, or do you just mean from an overclocking standpoint?



I think he means from a driver standpoint.

As drivers mature, performance usually increases. Especially when we get final 3xx drivers from nvidia. Those should definitely give a boost to the 660m.

Hopefully Lenovo also stays on top of the driver situation.



Ah, that makes sense - should have realized that. I had thought about throwing one of the 3xx beta drivers on it to see how it performs, so that may be on the agenda tonight, as well. First things first, though, redoing everything I just did for my new SSD lol

I can try to put together an installation guide for those that have asked, but what is it exactly you're wanting to know? Just links to the correct drivers, how to partition, or what exactly? Sorry...I'm newer to the forums here but have been messing with computers all my life so something like a clean install seems like second nature to me - if I do a guide I just want to make sure it's what you are looking for



I'm getting slightly lower scores on 3dmark vantage.

P10948 Combined
9787 GPU
and 16995 CPU

My cpu score seems to be a bit low...

I also ran it before without the turbo settings from lenovo's energy management widget and I was getting 8800ish for my gpu. So thats probably where the 9300 came from before.



Any on this thread in the UK?
UK customer service just emailed me saying that the UK model doesn't have a msata port.

Can anyone confirm this?

Satpal



I guess that might help some people, but it seems like a lot of work that has already been done by plenty of others. Unless you want to do it for fun

I was thinking of trying the 304.48 beta drivers when I do my clean install, but I haven't read great things about them. Might just stick with the ones shipping for now. As long as Diablo 3 runs well and outputs to my plasma, I'll be happy for the time being.

I had one concern though. What kind of packaging does it come in? Is it just that thin Lenovo box that people have shown in youtube videos? Or is that box inside a larger box? I'm sure there is enough protection but seems like there should a bit more.

Knowing that my 580 is going to be sitting for two days at the UPS facility twenty minutes from my house is killing me. It's going to be a long weekend.



That box is inside a larger one. But even still the laptop sits in between two foam pads in the middle of the lenovo box and has plenty of room around it.



Yeah, or you could give 296.01 a try. People with the ASUS G55VW have been getting excellent scores (11492 with same GPU/CPU) with 296.01. You could find the drivers at laptopvideo2go.com



I'm still baffled as to how fuzzy penguin got above 20000 for his cpu in 3dmark vantage...



He did have a clean windows install. That can definitely make a difference, but his score was significantly higher. Not sure why.

I'll run the benchmarks before and after doing my clean install to see if that makes any difference.



well i just got word that the company who does Lenovo repairs in Trinidad might soon cut ties with Lenovo is that's the case then i might not buy the Y580 because ill have to ship it back to the US to fix cant wait that long if sum thing goes wrong. but im awaiting the reviews of the Y580 and DELL XPS 15 before i buy in August September there .... would be nice if some of you can PM me info about how you Y580 is going and your experiences gonna call Lenovo next week and see whats gonna happen to the Caribbean branch of Lenovo in regards to repairs and warranty



Have you gotten yours yet? If so have you run 3d mark? I'm starting to think my i7 might be having some issues...



Scheduled delivery isn't until Monday. As long as someone is home to receive it.

Probably wont be able to get anything done until Tuesday afternoon if all goes according to plan. Full review sometime Wednesday. Hopefully.

Will definitely run all the benchmarks before and after the clean install.

3DMark 06
3DMark Vantage
3DMark 11
PCMark
Heaven

Will try some game specific benchmarks after the clean install. I think Just Cause 2 has a demo on Steam that has a built in benchmark. Not sure which other ones to try.



Reinstalling on my SSD right now...as soon as drivers are installed I'll rerun the benchmark.



Here's a comparison I did between the Y580 and DV6TQE:

Lenovo Y580 vs. HP DV6TQE HD display comparison - YouTube

I am seriously stuck between the two. The Y580 has a bit more keyboard flex in some spots than the DV6. The palm rest on the DV6 feels firmer although the LCD panel is like rubber when moved with both hands. The Y580 has flex on the panel but as much.

And it looks like the Y580 has a lower voltage ram (1.28) while the DV6 runs a standard 1.5V



Check your background processes, etc. There's not a lot of variability with CPU, certainly no drivers to worry about. 20k 3DMARK Vantage score for CPU is standard.

Cheers



Hey. So I got the 1TB + 32 GB SSD version of y580 yesterday and I don't quite understand how the thing is configured. I think the SSD is used as cache but there are no RAID controllers, it's not Intel Rapid Storage (although it is enabled), and there is no mention of anything in the BIOS. Most partition mangers/other software recognize everything as one giant physical disk (which is a 1 TB SSD, lol, I wish), and in BIOS the boot drive is the SSD. Here is a little summary of what I mean http://img189.imageshack.us/img189/6264/questionk.png. So do you guys know how the mSSD is used? What's going on? Windows boot time is pretty neat, it's like 15-16 s, which I attribute to the mSSD.. sequential read/write is order 100MB/s which is more in line with the HDD.



I gotta thank you all for doing this topic a great place to find info on this great Laptop. I'm choosing a model for me, but it's a hard decision! Your posts surely helps me to decide!

I have some questions/requests:
1) Does anyone have a photo from the bottom of this notebook? I haven't seen it yet, even on that review you guys posted!

2) Does anyone have a photo of the components? Or just the open notebook?
To see how is the cooling system, internal ports and so...

3) Do you guys know if this mSata connection is capable of SATA3 SSD? Or will it just achieve speeds from SATA2 or SATA? I was intending to buy a SSD together... Like this one: MyDigitalSSD 128GB SandForce SATA III Smart Series mSATA SSD | My Digital Discount

Thanks guys!



The y580 config which comes with mSSD has it configured with SATA3 SSD, see link to picture I posted right above your post. Actually, speccy is a bit confused, but also I checked IRST and it says SSD is SATA III with 6GB/s transfer rate, so I think it's pretty certain that it's SATA3 for the micro connection. Anyways, it's not like your SSD will be able to utilize this transfer rate.



Thanks for your posts comparing the dv6 and y580. Like you, I'm conflicted whether to return my dv6 and get the y580. I've spent more time going back and forth with HP's service repair shop over the peeling bezel than actually using my new laptop. Does the plastic portion of your dv6 creak and pops whenever you open your laptop? How is the build quality of the y580 compared to dv6? I like the sturdiness of the dv6 keyboard and palm areas but the rest of the laptop, particularly the screen, does not feel like it would hold up over time.



Thank you for the info! And what do you mean with "it's not like your SSD will be able to utilize this transfer rate"? I'm new in this SSD world

Ohh, and nvm request#1, I just found this on Lenovo's Gallery:
http://www.lenovo.com/shop/WW/produ...Pad-Y580-Laptop-PC-Bottom-View-8L-940x475.jpg



I'm on the second replacement from HP and it feels a bit more sturdier. But like you said, the LCD cover is weak.

I wish the Y580 palm rest was sturdy as the HP. My Lenovo palm rest creaks on the right side. Other than that, I like the laptop over all but HATE the bottom casing look. It looks SO OLD.

I don't get any sort of creaking when I open the DV6. Nor did I have the speaker peeling problem. My first unit and second unit both had a sagging blu-ray drive and somewhat wavy keyboard. The second unit has a less wavy keyboard.

I'm in a love hate relationship with both..my Y580 has an SSD btw. The HP does not.



Hi all. I am a new owner of a y580. So far so good. 1080p screen is beautiful. Great viewing angles. Just a bit of backlight bleed trough in places around the bezel but only at extreme angles.

I've only tried a few games, but they run fine. I haven't installed Fraps so I don't have FPS numbers. The side exhaust does blow fairly hot air, but I guess that's its job. Diablo 3 runs with all settings maxed except shadows at 1080p. (Side note, so done with that game. Very hart broken with what they did to that franchise.)

Question. Has anyone used OneKey Recovery to make a backup? I've tried factory settings and current system settings. Both failed at the same place. The first disk burns without issue. The second disk always fails half way through. Any ideas?



Continuing on the dv6 v. y580 theme, how is the sound quality coming from the y580? I documented the horrible leveling effect from the dv6 headphone port. Did you find any similar issues with y580's audio output?



Anyone experience high HDD temps? Someone stated that the HDD is located near the heatsinks of the GPU and CPU, which leads to abnormally high HDD temps (~63C). Any truth to the matter?



The sound is rich compared to the DV. But, the bass is sometimes non existent. Also the Y580 gets considerably warm in the middle of the bottom casing making it weird to use on your lap. The DV runs cool.

I liked the screen on the 580 but the readability sucks. I like reading text better on the HP. Both 1080p panels have their perks. Just depends on what you'll use it for the most.

The 580 feels cheap next to the DV..Ironic isn't it? The build quality is good, but the materials used feel cheap. If I carry it in one arm while walking around, you can hear the blu-ray drive hit the chassis and it is noticeable.

The DV6 has some odd screen bleed (yellowish) like seen on some IPS panels. The 580 does not have screen bleed but if it does, it's usually the LED light leaking in a bit.



While I didn't stress test, I did try out Empire:TW on ultra/1080p and HDD temp went to low-mid 50s after a few hours, which is a little too hot. With dedicated card mostly unused and me installing things, after a few hours the hard drive was at 44 C. Just me browsing web right now from battery (booted ~30 minutes ago) the hard drive is 39 C and seems stable (at the same time CPU is now 39 C and motherboard is 42 C, dedicated graphics are off). I think going to 60s is a bit dangerous, but haven't seen it. I think possibly if you have GPU/CPU working and end up spinning the HDD you'll get those temps. Note the fans spin up/down in somewhat complicated fashion, I noticed on moderate load I sometimes get lower CPU/motherboard temps then on very low load because fans work harder, go figure.

Edit: After another 45 minutes of browsing web with some highly CPU intensive flash HDD is at 44 C, CPU at 40 C, motherboard at 43 C, GPU has no load but the clock oscillates between slow and high rate. When GPU is slow then it's at 33 C, when clock to full speed then 41-45C. Memory bus is overclocked to 2500MHz from standard 2000MHz giving bandwidth of 80 GB/s instead of 64 GB/s.

If you look at the link you posted in your original post, you'll see that the maximum read speed is like 0.5 GB/s with write speed of 0.2 GB/s. SATA I supports 1.5 GB/s, SATA II supports 3 GB/s, SATA III supports 6 GB/s. So essentially any SATA connection has more than enough bandwidth for your SSD. It's like connecting your gigabit Ethernet switch to a DSL modem. The switch might handle traffic at 1Gbps, but DSL will limit internet to 3Mbps!

--------------

Bump on my question, however. Can somebody explain to me how the version that comes with preconfigured 32 GB SSD works. I understand it has to be some sort of cache, but what exactly and can it be configured?



Thanks loras88 for the HDD temp readings. My gosh, my current laptop HDD (6910p) never goes over 42C even when the CPU hits 80C. It reminds me of this pic of the y580:


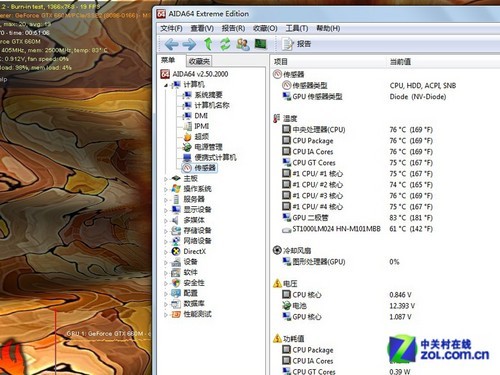

The HDD there reaches a scorching 61C!! Then again, I plan to replace the 1TB 5,000 RPM HDD with a Samsung 830 SSD I have waiting on standby. Then I'll place the HDD in a caddy and swap out the ODD like in this post: http://ideapad.it168.com/thread-2207079-1-1.html
---
As for your SSD question (mSSD I assume), doesn't the y580 come with Intel's Rapid Storage Technology program that lets one set the which drive the 32GB will serve for caching?



Does someone know what configuration of wifi n has Y580? I mean is it 1x1, 2x2, 3x3 or maybe something else? I could not find this info on their website.

Another thing. There is hidden partition for recovery purposes. Can I somehow disable it (and the dedicated button) to gain space it took from hdd? I won't use it anyway so why waste it..



Should I stick with Lenovo drivers for the y580 or am I able to use that 296.01?



I had a 580 related nightmare this morning. It's definitely going to be a long weekend



Thanks for that link, was exactly what I was looking for! A Y580 opened up!



More links!

Thread on abnormally hot HDD temps associated with y580 (english): here

y580 TEARDOWN from a chinese forum: here (1) and here (2)

Now for my dilemma, go with the y580 and experience high HDD temps that go beyond the manufacturer's operating temps (typically ~55C), thus hastening the HDD's demise, or go with the hp dv6 and have an abnormally hot exterior coupled with crappy sound drivers? For all of the criticism leveled at hp's build quality and the exterior thermal readings of their pavilion units, they at least keep the internal HDD cool.

Even the recommended environmental temp of my SSD is 60C. @ lenovo engineers.

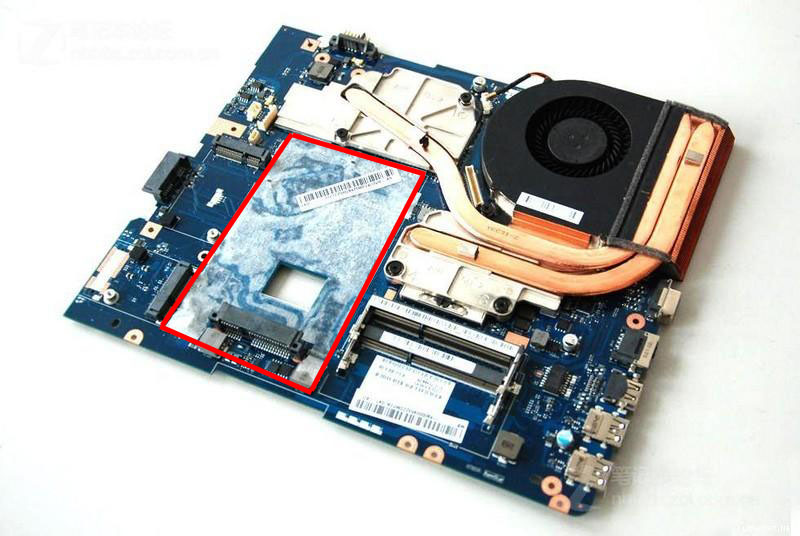

Here's a picture of the y580 mobo with the location where the HDD bakes...err lies outlined in red.

EDIT: An unverified Lenovo engineer discusses (Chinese) the HDD heat problem and apologizes.



"A common misconception is that a colder hard drive will last longer than a hotter hard drive. The Google study seems to imply the reverse—"lower temperatures are associated with higher failure rates". Hard drives with S.M.A.R.T.-reported average temperatures below 27*°C (80.6*°F) had higher failure rates than hard drives with the highest reported average temperature of 50*°C (122*°F), failure rates at least twice as high as the optimum S.M.A.R.T.-reported temperature range of 36*°C (96.8*°F) to 47*°C (116.6*°F).[87]"

Hard disk drive - Wikipedia, the free encyclopedia



Well, the study you quoted only measures temperatures up to 50C, which is well within the tolerances for HDD. Even at 50C, the AFR (annualized failure rate) starts to rise, but the variation for those data points are high, so I doubt any conclusion that bears statistical significance can be reached (fig. 4). Furthermore, the study did not address operating temperatures that exceeded manufacturers' specifications, here >60C. I would be wary at making blanket statements based on some of the data points alone. Moreover, the materials and methods portion of any proper scientific or engineering paper was strangely missing here, but I saw that it was published as a meeting proceedings, so that is understandable but otherwise frustrating. It simply reads as any meeting abstract. Just don't hold it up as the definitive answer on the subject or you'll be laughed out of the room.



It comes with mSSD and Intel's RST but within RST control menu there is no "accelerate" option which usually control caching (as far as I understand). In RST both drives are marked as internal system drives with no RAID and there is no way to do anything to them. This makes me think that RST doesn't actually do much (in terms of caching, at least).

You have a huge HDD, do you really care about that small partition? Anyways, just add it to the main partition using EaseUS or any other free partition manager... maybe you can even do it using window's own partition manager..

The issue with high density storage is that the magnetic anisotropy energy is pretty low, indeed, this is the primary reason that's holding back HDD storage density (well, that and write heads not being able to produce very strong localized fields). Thus increasing thermal level will push you towards superparamagnetic limit and you'll start to slowly lose data... remember, switching rate ~ exp(-E/kT) so increasing T by say 10% (from operating at 310 K to 340 K) can have quite a bit of impact. As another person mentioned, these things might not matter below say 50 or 60 C but above that they will become important. I don't think mechanical aspect of HDD will suffer too much from the high temperatures (in terms of thermal expansion of moving parts), although they might.



the original google study is here for your convenience

http://static.usenix.org/event/fast07/tech/full_papers/pinheiro/pinheiro.pdf

there is a chart that associates the failure rate (figure 4) to the temp from 10 to 50 +. I am sure they are not the idle temp.



Oh, that's great. Thx.
I just thought it is somehow protected for such a simple manipulation. Space on hdd is not so important for me like having control over my hardware - yes, I know - it's my little..thing...for which I don't know proper word in English



I am really new to SSDs and am a bit confused regarding a self install upgrade. I saw in the translated post from the Chinese site that the new SSD replaced the original HD's spot and the original HD replaced the CD slot. Is there a way to keep both the CD drive as well as the original HD? As in: is there a way to get the speed of the SSD, the spare storage of the original HD, and the utility of the CD drive?
If so, does anyone want to link me to such an SSD?

Thanks in advance~



Is this the thing that can help me? An SSD that connects through miniSATA?

MyDigitalSSD 128GB SandForce SATA III Smart Series mSATA SSD | My Digital Discount



So, I picked up my y580 from Fry's today (209942U). I noticed that it had 2 USB 3.0 ports rather than 3 I've seen in a few reviews. Also, an early pet peeve is the inability of OneKey Recovery to create a USB recovery stick, c'mon Lenovo it's 2012!

Here's the output from HWiNFO64. I forgot run it with the Nvidia GTX 660M 2GB activated. Anyways, you get the general idea:

Code:

HWiNFO64 Version 4.00-1680

ADMIN-PC ------------------------------------------------------------------

 [Current Computer]
  Computer Name:                          Y580
  Computer Brand Name:                    LENOVO Lenovo IdeaPad Y580
 [Operating System]
  Operating System:                       Microsoft Windows 7 Home Premium (x64) Build 7601
  Service Pack:                           Service Pack 1

Central Processor(s) ------------------------------------------------------

 [CPU Unit Count]
  Number Of Processor Packages (Physical): 1
  Number Of Processors Cores:             4
  Number Of Logical Processors:           8

Intel Core i7-3610QM ------------------------------------------------------

 [General Information]
  Processor Name:                         Intel Core i7-3610QM
  Original Processor Frequency:           2300.0 MHz
  Original Processor Frequency [MHz]:     2300
  CPU ID:                                 000306A9
  CPU Brand Name:                         Intel(R) Core(TM) i7-3610QM CPU @ 2.30GHz
  CPU Vendor:                             GenuineIntel
  CPU Stepping:                           E1
  CPU Code Name:                          Ivy Bridge-MB SV
  CPU S-Spec:                             SR0MN
  CPU Thermal Design Power (TDP):         45.0 W
  CPU IA Cores Thermal Design Current (TDC): 112.0 A
  CPU GT Cores Thermal Design Current (TDC): 50.0 A
  CPU Power Limits (Max):                 Power = Unlimited, Time = 64.00 sec
  CPU Power Limit 1 (Long Duration):      Power = 45.00 W, Time = 28.00 sec [Locked]
  CPU Power Limit 2 (Short Duration):     Power = 56.25 W, Time = 0.00 sec [Locked]
  CPU Type:                               Production Unit
  CPU Platform:                           rPGA988B
  Microcode Update Revision:              12
  Number of CPU Cores:                    4
  Number of Logical CPUs:                 8
 [Operating Points]
  CPU LFM (Minimum):                      1200.0 MHz = 12.00 x 100.0 MHz
  CPU HFM (Maximum):                      2300.0 MHz = 23.00 x 100.0 MHz
  CPU Turbo:                              3300.0 MHz = 33.00 x 100.0 MHz [Locked]
  CPU Current:                            2095.5 MHz = 21.00 x 99.8 MHz @ 0.8906 V
  CPU Bus Type:                           Intel Direct Media Interface (DMI) v2.0
  Maximum DMI Link Speed:                 5.0 GT/s
  Current DMI Link Speed:                 5.0 GT/s
 [Cache and TLB]
  L1 Cache:                               Instruction: 32 KBytes, Data: 32 KBytes
  L2 Cache:                               Integrated: 256 KBytes
  L3 Cache:                               6 MBytes
  Instruction TLB:                        4 KB Pages, 4-way set associative, 64 entries
  Data TLB:                               4 KB Pages, 4-way set associative, 64 entries
 [Standard Feature Flags]
  FPU on Chip                             Present
  Enhanced Virtual-86 Mode                Present
  I/O Breakpoints                         Present
  Page Size Extensions                    Present
  Time Stamp Counter                      Present
  Pentium-style Model Specific Registers  Present
  Physical Address Extension              Present
  Machine Check Exception                 Present
  CMPXCHG8B Instruction                   Present
  APIC On Chip / PGE (AMD)                Present
  Fast System Call                        Present
  Memory Type Range Registers             Present
  Page Global Feature                     Present
  Machine Check Architecture              Present
  CMOV Instruction                        Present
  Page Attribute Table                    Present
  36-bit Page Size Extensions             Present
  Processor Number                        Not Present
  CLFLUSH Instruction                     Present
  Debug Trace and EMON Store              Present
  Internal ACPI Support                   Present
  MMX Technology                          Present
  Fast FP Save/Restore (IA MMX-2)         Present
  Streaming SIMD Extensions               Present
  Streaming SIMD Extensions 2             Present
  Self-Snoop                              Present
  Multi-Threading Capable                 Present
  Automatic Clock Control                 Present
  IA-64 Processor                         Not Present
  Signal Break on FERR                    Present
  Streaming SIMD Extensions 3             Present
  Carryless Multiplication (PCLMULQDQ)/GFMUL Present
  64-Bit Debug Store                      Present
  MONITOR/MWAIT Support                   Present
  CPL Qualified Debug Store               Present
  Virtual Machine Extensions              Present
  Safer Mode Extensions (Intel TXT)       Not Present
  Thermal Monitor 2                       Present
  Supplemental Streaming SIMD Extensions 3 Present
  Enhanced SpeedStep Technology           Present
  L1 Context ID                           Not Present
  Segment Limit Checking                  Not Present
  Fused Multiply Add                      Not Present
  CMPXCHG16B Support                      Present
  Send Task Priority Messages Disabling   Present
  Performance/Debug Capability MSR        Present
  Processor Context ID                    Present
  Direct Cache Access                     Not Present
  Streaming SIMD Extensions 4.1           Present
  Streaming SIMD Extensions 4.2           Present
  Extended xAPIC                          Present
  MOVBE Instruction                       Not Present
  POPCNT Instruction                      Present
  TSC-deadline Timer                      Present
  AES Cryptography Support                Present
  XSAVE/XRSTOR/XSETBV/XGETBV Instructions Present
  XGETBV/XSETBV OS Enabled                Present
  AVX Support                             Present
  Float16 Instructions                    Present
  Random Number Read Instruction          Present
 [Extended Feature Flags]
  64-bit Extensions                       Present
  RDTSCP and TSC_AUX Support              Present
  1 GB large page support                 Not Present
  No Execute                              Present
  SYSCALL/SYSRET Support                  Present
  Read/Write FS/GS Base Instructions      Present
  TSC_THREAD_OFFSET                       Not Present
  Bit Manipulation Instructions Set 1     Not Present
  Hardware Lock Elision                   Not Present
  AVX2 Instructions                       Not Present
  Supervisor Mode Execution Protection    Present
  Bit Manipulation Instructions Set 2     Not Present
  Enhanced Performance String Instruction Present
  INVPCID                                 Not Present
  RTM                                     Not Present
  RDSEED Instruction                      Not Present
  Multi-precision Add Carry Instructions  Not Present
 [Enhanced Features]
  Thermal Monitor 1:                      Supported, Enabled
  Thermal Monitor 2:                      Supported, Enabled
  Enhanced Intel SpeedStep (GV3):         Supported, Enabled
  Bi-directional PROCHOT#:                Enabled
  Extended Auto-HALT State C1E:           Enabled
  Extended Stop Grant State C2E:          N/A
  Enhanced Halt State C3E:                N/A
  Enhanced Halt State C4E:                N/A
  Enhanced Halt State Hard C4E:           N/A
  Hardware Prefetcher:                    Not Supported
  DCU Prefetcher:                         Not Supported
  IP Prefetcher:                          Not Supported
  Adjacent Cache Line Prefetch:           Not Supported
  MLC Streamer Prefetcher                 Supported, Enabled
  MLC Spatial Prefetcher                  Supported, Enabled
  DCU Streamer Prefetcher                 Supported, Enabled
  DCU IP Prefetcher                       Supported, Enabled
  Intel Dynamic Acceleration (IDA) Technology: Not Supported
  Intel Dynamic FSB Switching:            Not Supported
  Enhanced Multi Threaded Thermal Management: N/A
  Intel Turbo Boost Technology:           Supported, Enabled
  Programmabe Ratio Limits:               Not Supported
  Programmabe TDC/TDP Limits:             Supported, Disabled
 [CPU IVB Features]
  Internal Graphics:                      Supported
  2 DIMMS per Channel:                    Supported
  DMI Gen2 (5.0 GT/s):                    Not Supported
  VT-d:                                   Not Supported
  ECC:                                    Not Supported
  DDR Overclocking:                       Supported
  IA Overclocking:                        Not Supported
  On-die DDR Write Vref Generation:       Supported
  DDR3L:                                  Supported
  DDR3 Frequency Support (133 MHz RefClk): 800 MHz (DDR3-1600)
  Additive Graphics:                      Supported
  Additive Graphics:                      Disabled
  PCIe Gen 3:                             Enabled
 [Memory Ranges]
  Maximum Physical Address Size:          36-bit (64 GBytes)
  Maximum Virtual Address Size:           48-bit (256 TBytes)
 [MTRRs]
  Range 0-80000000 (0MB-2048MB) Type:     Write Back (WB)
  Range 80000000-C0000000 (2048MB-3072MB) Type: Write Back (WB)
  Range BB000000-BC000000 (2992MB-3008MB) Type: Uncacheable (UC)
  Range BC000000-C0000000 (3008MB-3072MB) Type: Uncacheable (UC)
  Range FFC00000-100000000 (4092MB-4096MB) Type: Write Protected (WP)
  Range 100000000-200000000 (4096MB-8192MB) Type: Write Back (WB)
  Range 200000000-240000000 (8192MB-9216MB) Type: Write Back (WB)
  Range 23F600000-23F800000 (9206MB-9208MB) Type: Uncacheable (UC)

Motherboard ---------------------------------------------------------------

 [Computer]
  Computer Brand Name:                    LENOVO Lenovo IdeaPad Y580
 [Motherboard]
  Motherboard Model:                      LENOVO Product Name
  Motherboard Chipset:                    Intel HM76 (Panther Point)
  Motherboard Slots:                      6xPCI Express x1, 2xPCI Express x16
  PCI Express Version Supported:          v3.0
  USB Version Supported:                  v3.0
 [PCH Features]
  USB Port Count:                         12 ports
  RAID Capability:                        Not Supported
  SATA Ports 2 and 3:                     Supported
  SATA Port 1 6 Gb/s:                     Supported
  SATA Port 0 6 Gb/s:                     Supported
  PCI Interface:                          Not Supported
  PCI Express Ports 5 and 6:              Supported
  USB Redirect (USBr):                    Not Supported
  Intel Anti-Theft Technology:            Not Supported
  PCI Express Ports 7 and 8:              Supported
  PCH Integrated Graphics Support:        Supported
  Data Center Manageability Interface (DCMI): Supported
  Node Manager:                           Supported
 [BIOS]
  BIOS Manufacturer:                      Insyde Software
  BIOS Date:                              05/03/2012
  BIOS Version:                           5DCN36WW(V2.03)
  EFI BIOS:                               Capable
  Super-IO/LPC Chip:                      Unknown

ACPI Devices --------------------------------------------------------------


Microsoft AC Adapter ------------------------------------------------------

  Device Name:                            Microsoft AC Adapter

ACPI Fixed Feature Button -------------------------------------------------

  Device Name:                            ACPI Fixed Feature Button

Intel Processor -----------------------------------------------------------

  Device Name:                            Intel Processor

Intel Processor -----------------------------------------------------------

  Device Name:                            Intel Processor

Intel Processor -----------------------------------------------------------

  Device Name:                            Intel Processor

Intel Processor -----------------------------------------------------------

  Device Name:                            Intel Processor

Intel Processor -----------------------------------------------------------

  Device Name:                            Intel Processor

Intel Processor -----------------------------------------------------------

  Device Name:                            Intel Processor

Intel Processor -----------------------------------------------------------

  Device Name:                            Intel Processor

Intel Processor -----------------------------------------------------------

  Device Name:                            Intel Processor

Intel(R) 82802 Firmware Hub Device ----------------------------------------

  Device Name:                            Intel(R) 82802 Firmware Hub Device
 [Assigned Resources]
  Memory Location:                        FF010000 - FFFFFFFF
 [Alternative 1]
  Memory Location:                        FF010000 - FFFFFFFF

Motherboard resources -----------------------------------------------------

  Device Name:                            Motherboard resources

Motherboard resources -----------------------------------------------------

  Device Name:                            Motherboard resources
 [Assigned Resources]
  I/O Port:                               0454 - 0457
 [Alternative 1]
  I/O Port:                               0454 - 0457

Programmable interrupt controller -----------------------------------------

  Device Name:                            Programmable interrupt controller
 [Assigned Resources]
  I/O Port:                               0020 - 0021
  I/O Port:                               0030 - 0031
  I/O Port:                               00A0 - 00A1
  I/O Port:                               00B0 - 00B1
  IRQ:                                    1114369
  IRQ:                                    1114369
  IRQ:                                    1114369
  IRQ:                                    1114369
 [Alternative 1]
  I/O Port:                               0020 - 0021
  I/O Port:                               0024 - 0025
  I/O Port:                               0028 - 0029
  I/O Port:                               002C - 002D
  I/O Port:                               0030 - 0031
  I/O Port:                               0034 - 0035
  I/O Port:                               0038 - 0039
  I/O Port:                               003C - 003D
  I/O Port:                               00A0 - 00A1
  I/O Port:                               00A4 - 00A5
  I/O Port:                               00A8 - 00A9
  I/O Port:                               00AC - 00AD
  I/O Port:                               00B0 - 00B1
  I/O Port:                               00B4 - 00B5
  I/O Port:                               00B8 - 00B9
  I/O Port:                               00BC - 00BD
  I/O Port:                               04D0 - 04D1

System timer --------------------------------------------------------------

  Device Name:                            System timer
 [Assigned Resources]
  I/O Port:                               0040 - 0043
  DMA:                                    0
 [Alternative 1]
  I/O Port:                               0040 - 0043
  I/O Port:                               0050 - 0053
  IRQ:                                    0

High precision event timer ------------------------------------------------

  Device Name:                            High precision event timer
 [Assigned Resources]
  Memory Location:                        FED00000 - FED003FF
 [Alternative 1]
  Memory Location:                        FED00000 - FED003FF

Direct memory access controller -------------------------------------------

  Device Name:                            Direct memory access controller
 [Assigned Resources]
  I/O Port:                               0000 - 001F
 [Alternative 1]
  I/O Port:                               0000 - 001F
  I/O Port:                               0081 - 0091
  I/O Port:                               0093 - 009F
  I/O Port:                               00C0 - 00DF
  DMA:                                    4

Standard PS/2 Keyboard ----------------------------------------------------

  Device Name:                            Standard PS/2 Keyboard
 [Assigned Resources]
  I/O Port:                               0060
  I/O Port:                               0000
 [Alternative 1]
  I/O Port:                               0060
  I/O Port:                               0064
  IRQ:                                    1

PCI bus -------------------------------------------------------------------

  Device Name:                            PCI bus
 [Assigned Resources]
  I/O Port:                               0000 - FFFFFFFF
  Memory Location:                        000A0000 - 000BFFFF
 [Alternative 1]
  I/O Port:                               0000 - 0CF7
  I/O Port:                               0D00 - FFFF
  Memory Location:                        000A0000 - 000BFFFF
  Memory Location:                        BFA00000 - FEAFFFFF

System CMOS/real time clock -----------------------------------------------

  Device Name:                            System CMOS/real time clock
 [Assigned Resources]
  I/O Port:                               0070 - 0077
 [Alternative 1]
  I/O Port:                               0070 - 0077
  IRQ:                                    8

System board --------------------------------------------------------------

  Device Name:                            System board
 [Assigned Resources]
  Memory Location:                        20000000 - 201FFFFF
 [Alternative 1]
  Memory Location:                        20000000 - 201FFFFF
  Memory Location:                        40004000 - 40004FFF

Motherboard resources -----------------------------------------------------

  Device Name:                            Motherboard resources
 [Assigned Resources]
  Memory Location:                        FED1C000 - FED1FFFF
  Memory Location:                        F0000000 - F3FFFFFF
  Memory Location:                        FF010000 - FFFFFFFF
 [Alternative 1]
  Memory Location:                        FED1C000 - FED1FFFF
  Memory Location:                        FED10000 - FED17FFF
  Memory Location:                        FED18000 - FED18FFF
  Memory Location:                        FED19000 - FED19FFF
  Memory Location:                        F0000000 - F3FFFFFF
  Memory Location:                        FED20000 - FED3FFFF
  Memory Location:                        FED90000 - FED93FFF
  Memory Location:                        FF000000 - FF000FFF
  Memory Location:                        FF010000 - FFFFFFFF
  Memory Location:                        FEE00000 - FEEFFFFF
  Memory Location:                        BFA00000 - BFA00FFF

Motherboard resources -----------------------------------------------------

  Device Name:                            Motherboard resources
 [Assigned Resources]
  I/O Port:                               002E - 002F
  I/O Port:                               0065
  I/O Port:                               0000 - 006F
  I/O Port:                               0092
  I/O Port:                               FFFF
  I/O Port:                               0000 - 03FF
  IRQ:                                    1114369
  IRQ:                                    1114369
 [Alternative 1]
  I/O Port:                               002E - 002F
  I/O Port:                               004E - 004F
  I/O Port:                               0061
  I/O Port:                               0063
  I/O Port:                               0065
  I/O Port:                               0067
  I/O Port:                               0070
  I/O Port:                               0080
  I/O Port:                               0092
  I/O Port:                               00B2 - 00B3
  I/O Port:                               0680 - 069F
  I/O Port:                               1100 - 110F
  I/O Port:                               FFFF
  I/O Port:                               FFFF
  I/O Port:                               0400 - 0453
  I/O Port:                               0458 - 047F
  I/O Port:                               0500 - 057F
  I/O Port:                               164E - 164F
  I/O Port:                               FD60 - FD63

Numeric data processor ----------------------------------------------------

  Device Name:                            Numeric data processor
 [Assigned Resources]
  I/O Port:                               00F0
 [Alternative 1]
  I/O Port:                               00F0
  IRQ:                                    13

Microsoft ACPI-Compliant Embedded Controller ------------------------------

  Device Name:                            Microsoft ACPI-Compliant Embedded Controller
 [Assigned Resources]
  I/O Port:                               0062
 [Alternative 1]
  I/O Port:                               0062
  I/O Port:                               0066

Microsoft ACPI-Compliant Control Method Battery ---------------------------

  Device Name:                            Microsoft ACPI-Compliant Control Method Battery

ACPI Power Button ---------------------------------------------------------

  Device Name:                            ACPI Power Button

ACPI Lid ------------------------------------------------------------------

  Device Name:                            ACPI Lid

ACPI Sleep Button ---------------------------------------------------------

  Device Name:                            ACPI Sleep Button

Lenovo pointing device ----------------------------------------------------

  Device Name:                            Lenovo pointing device
 [Assigned Resources]
  IRQ:                                    12
 [Alternative 1]
  IRQ:                                    12

ACPI Thermal Zone ---------------------------------------------------------

  Device Name:                            ACPI Thermal Zone

Lenovo ACPI-Compliant Virtual Power Controller ----------------------------

  Device Name:                            Lenovo ACPI-Compliant Virtual Power Controller

SMBIOS DMI ----------------------------------------------------------------


BIOS ----------------------------------------------------------------------

  BIOS Vendor:                            LENOVO
  BIOS Version:                           5DCN36WW(V2.03)
  BIOS Release Date:                      05/03/2012
  BIOS Start Segment:                     E000
  BIOS Size:                              4608 KBytes
  System BIOS Version:                    0.36
  Embedded Controller Firmware Version:   2.54
  ISA Support:                            Not Present
  MCA Support:                            Not Present
  EISA Support:                           Not Present
  PCI Support:                            Present
  PC Card (PCMCIA) Support:               Not Present
  Plug-and-Play Support:                  Not Present
  APM Support:                            Not Present
  Flash BIOS:                             Present
  BIOS Shadow:                            Present
  VL-VESA Support:                        Not Present
  ESCD Support:                           Not Present
  Boot from CD:                           Present
  Selectable Boot:                        Present
  BIOS ROM Socketed:                      Not Present
  Boot from PC Card:                      Not Present
  EDD Support:                            Present
  NEC PC-98 Support:                      Not Present
  ACPI Support:                           Present
  USB Legacy Support:                     Present
  AGP Support:                            Not Present
  I2O Boot Support:                       Not Present
  LS-120 Boot Support:                    Not Present
  ATAPI ZIP Drive Boot Support:           Not Present
  IEE1394 Boot Support:                   Not Present
  Smart Battery Support:                  Not Present
  BIOS Boot Specification Support:        Present
  Function key-initiated Network Service Boot Support: Not Present
  Targeted Content Distribution Support:  Present
  UEFI Specification Support:             Present

System --------------------------------------------------------------------

  System Manufacturer:                    LENOVO
  Product Name:                           Lenovo IdeaPad Y580
  Product Version:                        Lenovo IdeaPad Y580
  Product Serial Number:
  UUID:
  SKU Number:
  Family:                                 IDEAPAD

Mainboard -----------------------------------------------------------------

  Mainboard Manufacturer:                 LENOVO
  Mainboard Name:                         Product Name
  Mainboard Version:                      Mainboard version
  Mainboard Serial Number:
  Asset Tag:                              No Asset Tag
  Location in chassis:                    Type2 - Board Chassis Location

System Enclosure ----------------------------------------------------------

  Manufacturer:                           LENOVO
  Case Type:                              Notebook
  Version:                                Lenovo IdeaPad Y580
  Serial Number:
  Asset Tag Number:                       No Asset Tag

Processor -----------------------------------------------------------------

  Processor Manufacturer:                 Intel(R) Corporation
  Processor Version:                      Intel(R) Core(TM) i7-3610QM CPU @ 2.30GHz
  External Clock:                         100 MHz
  Maximum Clock Supported:                4000 MHz
  Current Clock:                          2300 MHz
  CPU Socket:                             Populated
  CPU Status:                             Enabled
  Processor Type:                         Central Processor
  Processor Voltage:                      0.9 V
  Processor Upgrade:                      Socket rPGA988B
  Socket Designation:                     U3E1

Memory Devices ------------------------------------------------------------


Memory Controller ---------------------------------------------------------

  Error Detecting Method:                 None
  Error Correction:                       None
  Supported Interleave:                   1-Way
  Current Interleave:                     1-Way
  Max. Memory Module Size:                8192 MBytes
  Supported Memory Speed:
  Supported Memory Type:
  Supported Memory Voltage:
  Associated Memory Slots:                2

DIMM0 ---------------------------------------------------------------------

  Socket Designation:                     DIMM0
  Memory Type:                            DIMM
  Memory Speed:                           Unknown
  Installed size:                         4096 MBytes
  Enabled size:                           4096 MBytes

DIMM1 ---------------------------------------------------------------------

  Socket Designation:                     DIMM1
  Memory Type:                            DIMM
  Memory Speed:                           Unknown
  Installed size:                         4096 MBytes
  Enabled size:                           4096 MBytes

L1 Cache ------------------------------------------------------------------

  Socket Designation:                     L1 Cache
  Cache State:                            Enabled
  Cache Type:                             Internal, Data
  Cache Scheme:                           Write-Through
  Supported SRAM Type:
  Current SRAM Type:
  Cache Speed:                            Unknown
  Error Correction Type:
  Maximum Cache Size:                     32 KBytes
  Installed Cache Size:                   32 KBytes
  Cache Associativity:                    8-way Set-Associative

L1 Cache ------------------------------------------------------------------

  Socket Designation:                     L1 Cache
  Cache State:                            Enabled
  Cache Type:                             Internal, Instruction
  Cache Scheme:                           Write-Through
  Supported SRAM Type:
  Current SRAM Type:
  Cache Speed:                            Unknown
  Error Correction Type:
  Maximum Cache Size:                     32 KBytes
  Installed Cache Size:                   32 KBytes
  Cache Associativity:                    8-way Set-Associative

L2 Cache ------------------------------------------------------------------

  Socket Designation:                     L2 Cache
  Cache State:                            Enabled
  Cache Type:                             Internal, Unified
  Cache Scheme:                           Write-Through
  Supported SRAM Type:
  Current SRAM Type:
  Cache Speed:                            Unknown
  Error Correction Type:                  Unknown
  Maximum Cache Size:                     256 KBytes
  Installed Cache Size:                   256 KBytes
  Cache Associativity:                    8-way Set-Associative

L3 Cache ------------------------------------------------------------------

  Socket Designation:                     L3 Cache
  Cache State:                            Enabled
  Cache Type:                             Internal, Unified
  Cache Scheme:                           Write-Back
  Supported SRAM Type:
  Current SRAM Type:
  Cache Speed:                            Unknown
  Error Correction Type:                  Unknown
  Maximum Cache Size:                     6144 KBytes
  Installed Cache Size:                   6144 KBytes
  Cache Associativity:                    Unknown

Port Connectors -----------------------------------------------------------


Keyboard Port -------------------------------------------------------------

  Port Type:                              Keyboard Port
  Internal Reference:                     J1A1
  Internal Connector Type:                None
  External Reference:                     Keyboard
  External Connector Type:                PS/2

Mouse Port ----------------------------------------------------------------

  Port Type:                              Mouse Port
  Internal Reference:                     J1A1
  Internal Connector Type:                None
  External Reference:                     Mouse
  External Connector Type:                PS/2

Serial Port 16550A Compatible ---------------------------------------------

  Port Type:                              Serial Port 16550A Compatible
  Internal Reference:                     J2A2
  Internal Connector Type:                None
  External Reference:                     COM 1
  External Connector Type:                DB-9 pin male

USB -----------------------------------------------------------------------

  Port Type:                              USB
  Internal Reference:                     J3A1
  Internal Connector Type:                None
  External Reference:                     USB
  External Connector Type:                Access Bus (USB)

USB -----------------------------------------------------------------------

  Port Type:                              USB
  Internal Reference:                     J3A1
  Internal Connector Type:                None
  External Reference:                     USB
  External Connector Type:                Access Bus (USB)

USB -----------------------------------------------------------------------

  Port Type:                              USB
  Internal Reference:                     J3A1
  Internal Connector Type:                None
  External Reference:                     USB
  External Connector Type:                Access Bus (USB)

USB -----------------------------------------------------------------------

  Port Type:                              USB
  Internal Reference:                     J5A1
  Internal Connector Type:                None
  External Reference:                     USB
  External Connector Type:                Access Bus (USB)

USB -----------------------------------------------------------------------

  Port Type:                              USB
  Internal Reference:                     J5A1
  Internal Connector Type:                None
  External Reference:                     USB
  External Connector Type:                Access Bus (USB)

Network Port --------------------------------------------------------------

  Port Type:                              Network Port
  Internal Reference:                     J5A1
  Internal Connector Type:                None
  External Reference:                     Network
  External Connector Type:                RJ-45

Port Connector ------------------------------------------------------------

  Port Type:                              Unknown
  Internal Reference:                     J9G2
  Internal Connector Type:                On Board Floppy
  External Reference:                     OnBoard Floppy Type
  External Connector Type:                None

Port Connector ------------------------------------------------------------

  Port Type:                              Unknown
  Internal Reference:                     J7J1
  Internal Connector Type:                On Board IDE
  External Reference:                     OnBoard Primary IDE
  External Connector Type:                None

Video Port ----------------------------------------------------------------

  Port Type:                              Video Port
  Internal Reference:                     J2A1
  Internal Connector Type:                None
  External Reference:                     TV OUT
  External Connector Type:                Mini-DIN

Video Port ----------------------------------------------------------------

  Port Type:                              Video Port
  Internal Reference:                     J2A2
  Internal Connector Type:                None
  External Reference:                     CRT
  External Connector Type:                DB-15 pin female

Audio Port ----------------------------------------------------------------

  Port Type:                              Audio Port
  Internal Reference:                     J30
  Internal Connector Type:                None
  External Reference:                     Microphone In
  External Connector Type:                Mini-jack (headphones)

Audio Port ----------------------------------------------------------------

  Port Type:                              Audio Port
  Internal Reference:                     J30
  Internal Connector Type:                None
  External Reference:                     Line In
  External Connector Type:                Mini-jack (headphones)

Audio Port ----------------------------------------------------------------

  Port Type:                              Audio Port
  Internal Reference:                     J30
  Internal Connector Type:                None
  External Reference:                     Speaker Out
  External Connector Type:                Mini-jack (headphones)

System Slots --------------------------------------------------------------


J5C1 ----------------------------------------------------------------------

  Slot Designation:                       J5C1
  Slot Type:                              PCI Express x16
  Slot Usage:                             Empty
  Slot Data Bus Width:                    16x / x16
  Slot Length:                            Unknown

J6C1 ----------------------------------------------------------------------

  Slot Designation:                       J6C1
  Slot Type:                              PCI Express x1
  Slot Usage:                             Empty
  Slot Data Bus Width:                    1x / x1
  Slot Length:                            Unknown

J6C2 ----------------------------------------------------------------------

  Slot Designation:                       J6C2
  Slot Type:                              PCI Express x1
  Slot Usage:                             Empty
  Slot Data Bus Width:                    1x / x1
  Slot Length:                            Unknown

J6D2 ----------------------------------------------------------------------

  Slot Designation:                       J6D2
  Slot Type:                              PCI Express x1
  Slot Usage:                             Empty
  Slot Data Bus Width:                    1x / x1
  Slot Length:                            Unknown

J7C1 ----------------------------------------------------------------------

  Slot Designation:                       J7C1
  Slot Type:                              PCI Express x1
  Slot Usage:                             Empty
  Slot Data Bus Width:                    1x / x1
  Slot Length:                            Unknown

J7D2 ----------------------------------------------------------------------

  Slot Designation:                       J7D2
  Slot Type:                              PCI Express x1
  Slot Usage:                             Empty
  Slot Data Bus Width:                    1x / x1
  Slot Length:                            Unknown

J8C1 ----------------------------------------------------------------------

  Slot Designation:                       J8C1
  Slot Type:                              PCI Express x1
  Slot Usage:                             Empty
  Slot Data Bus Width:                    1x / x1
  Slot Length:                            Unknown

J8C2 ----------------------------------------------------------------------

  Slot Designation:                       J8C2
  Slot Type:                              PCI Express x16
  Slot Usage:                             Empty
  Slot Data Bus Width:                    16x / x16
  Slot Length:                            Unknown

OEM Strings ---------------------------------------------------------------







System Configuration Options ----------------------------------------------






BIOS Language -------------------------------------------------------------




System Event Log ----------------------------------------------------------


Physical Memory Array -----------------------------------------------------

  Array Location:                         System board
  Array Use:                              System memory
  Error Detecting Method:                 None
  Memory Capacity:                        16777216 KBytes
  Memory Devices:                         2

Memory Device -------------------------------------------------------------

  Total Width:                            64 bits
  Data Width:                             64 bits
  Device Size:                            4096 MBytes
  Device Form Factor:                     SODIMM
  Device Locator:                         DIMM0
  Bank Locator:                           BANK 0
  Device Type:                            DDR3 SDRAM
  Device Type Detail:                     Synchronous
  Memory Speed:                           800 MHz
  Manufacturer:                           Micron Technology
  Serial Number:
  Part Number:                            16KTF51264HZ-1G6M1
  Asset Tag:                              Unknown

Memory Device -------------------------------------------------------------

  Total Width:                            64 bits
  Data Width:                             64 bits
  Device Size:                            4096 MBytes
  Device Form Factor:                     SODIMM
  Device Locator:                         DIMM1
  Bank Locator:                           BANK 2
  Device Type:                            DDR3 SDRAM
  Device Type Detail:                     Synchronous
  Memory Speed:                           800 MHz
  Manufacturer:                           Micron Technology
  Serial Number:
  Part Number:                            16KTF51264HZ-1G6M1
  Asset Tag:                              Unknown

32-bit Memory Error Information -------------------------------------------


32-bit Memory Error Information -------------------------------------------


32-bit Memory Error Information -------------------------------------------


Memory Array Mapped Address -----------------------------------------------

  Starting Address:                       00000000
  Ending Address:                         007FFFFF
  Partition Width:                        2

Memory Device Mapped Address ----------------------------------------------

  Starting Address:                       00000000
  Ending Address:                         003FFFFF
  Partition Row Position:                 Unknown
  Interleave Position:                    1
  Interleave Data Depth:                  1

Memory Device Mapped Address ----------------------------------------------

  Starting Address:                       00000000
  Ending Address:                         003FFFFF
  Partition Row Position:                 Unknown
  Interleave Position:                    2
  Interleave Data Depth:                  1

Built-in Pointing Device --------------------------------------------------

  Device Type:                            Touch Pad
  Interface Type:                         PS/2
  Nuber of Buttons:                       4

Portable Battery ----------------------------------------------------------

  Battery Location:                       Fake
  Battery Manufacturer:                   -Virtual Battery 0-
  Manufacture Date:                       07/07/2010
  Serial Number:                          Battery 0
  Device Name:                            CRB Battery 0
  Device Chemistry:                       Lithium-ion
  Design Capacity:                        Unknown
  Design Voltage:                         Unknown
  SBDS Verison Number:                    Unknown
  Max. Error in Battery Data:             Unknown
  SBDS Serial Number:                     Unknown
  SBDS Manufacture Date:                  Unknown
  SBDS Device Chemistry:                  Unknown

Voltage Probe -------------------------------------------------------------

  Description:                            Voltage Probe Description.
  Location:                               Unknown
  Status:                                 Unknown
  Maximum Value:                          Unknown
  Minimum Value:                          Unknown
  Resolution:                             Unknown
  Tolerance:                              Unknown
  Accuracy:                               Unknown

Cooling Device ------------------------------------------------------------

  Type:                                   Fan
  Description:                            Cooling Device Description.
  Status:                                 OK
  Nominal Speed:                          2000 RPM

System Boot Information ---------------------------------------------------

  Boot Status:                            No error occured

System Power Supply -------------------------------------------------------

  Location:                               OEM_Define0
  Device Name:                            OEM_Define1
  Manufacturer:                           OEM_Define2
  Serial Number:                          OEM_Define3
  Asset Tag Number:                       OEM_Define4
  Model Part Number:                      OEM_Define5
  Revision Level:                         OEM_Define6
  Max Power Capacity:                     75 mW
  Power Supply Status:                    Present
  Power Supply Type:                      Regulator
  Power Status:                           OK
  Hot replaceable:                        No
  Unplugged from wall:                    Yes

Unknown -------------------------------------------------------------------


On Board Device -----------------------------------------------------------

  Device Description:
  Device Type:                            Unknown
  Device Status:                          Disabled
  Device Description:                     Unknown
  Device Type:                            Unknown
  Device Status:                          Disabled
  Device Description:                     Unknown
  Device Type:                            Unknown
  Device Status:                          Disabled

Intel ASF -----------------------------------------------------------------

  Intel ASF Status:                       Enabled

Intel AMT -----------------------------------------------------------------

  Intel AMT Support:                      Supported
  Intel AMT Status:                       Enabled
  IDE-R Status:                           Enabled
  SOL Status:                             Enabled
  Network Interface:                      Enabled

Intel ICC -----------------------------------------------------------------

 [ICC Record 0: DIV1-S]
  Clock Usage:                            Display
  Clock Range:                            120.0000 - 120.0000 MHz
  SSC Change:                             Fixed
  Current Clock:                          120.0000 MHz
 [ICC Record 1: DIV2-S]
  Clock Usage:                            BCLK/DMI/PEG/PCIe/PCI33/SATA/USB3
  Clock Range:                            100.0000 - 100.0000 MHz
  SSC Change:                             Down, Max = 0.50%
  Current Clock:                          100.0000 MHz
 [ICC Record 2: DIV3]
  Clock Usage:                            Not Used
  Clock Range:                            100.0000 - 100.0000 MHz
  SSC Change:                             Down, Max = 0.50%
  Current Clock:                          133.3333 MHz
 [ICC Record 3: DIV4]
  Clock Usage:                            Display Bending
  Clock Range:                            119.3473 - 120.6599 MHz
  SSC Change:                             Down/Center, Max = 2.50%
  Current Clock:                          119.9063 MHz
 [ICC Record 4: DIV1-NS]
  Clock Usage:                            Display
  Clock Range:                            120.0000 - 120.0000 MHz
  SSC Change:                             Fixed
  Current Clock:                          120.0000 MHz
 [ICC Record 5: DIV2-NS]
  Clock Usage:                            BCLK/DMI/PEG/PCIe/PCI33/SATA/USB3
  Clock Range:                            100.0000 - 100.0000 MHz
  SSC Change:                             Fixed
  Current Clock:                          100.0000 MHz
 [General Properties]
  PCI Clock Source:                       SSC2 Spread (Non-OC)
  DMI Port Clock Source:                  Non-Overclockable PXP PLL
  CLKOUT_SRC[3:0] Clock Source:           SSC2 Spread (Non-OC)
  CLKOUT_SRC[7:4] Clock Source:           SSC2 Spread (Non-OC)
  FLEXCLK3 Clock Source:                  Disabled
  FLEXCLK2 Clock Source:                  Disabled
  FLEXCLK1 Clock Source:                  14.31818 MHz
  FLEXCLK0 Clock Source:                  27 MHz SSC, from DPLLA
  CSSCn Source for PXP PLL:               SSC2 (Non-OC)
  SATA PLL Reference Clock:               SSC2 (Non-OC)
  PEG_B Output Clock:                     Disabled
  PEG_A Output Clock:                     Enabled
  CLKOUT_DP Output Clock:                 Disabled
  CLKOUT_ITPXDP Output Clock:             Disabled
  SRC7 Output Clock:                      Disabled
  SRC6 Output Clock:                      Disabled
  SRC5 Output Clock:                      Disabled
  SRC4 Output Clock:                      Disabled
  SRC3 Output Clock:                      Enabled
  SRC2 Output Clock:                      Disabled
  SRC1 Output Clock:                      Enabled
  SRC0 Output Clock:                      Enabled
  CLKOUT_PCI4 Output Clock:               Disabled
  CLKOUT_PCI3 Output Clock:               Disabled
  CLKOUT_PCI2 Output Clock:               Disabled
  CLKOUT_PCI1 Output Clock:               Enabled
  CLKOUT_PCI0 Output Clock:               Enabled
  FLEXCLK3 Output Clock:                  Disabled
  FLEXCLK2 Output Clock:                  Disabled
  FLEXCLK1 Output Clock:                  Disabled
  FLEXCLK0 Output Clock:                  Disabled
  DIV7:                                   Disabled
  DIV5 Stage 2:                           Enabled
  DIV5 Stage 1:                           Enabled
  DIV4:                                   Enabled
  DIV3:                                   Disabled
  DIV2-S:                                 Enabled
  DIV2-NS:                                Disabled
  DIV1-S:                                 Enabled
  DIV1-NS:                                Enabled

Memory --------------------------------------------------------------------

 [General information]
  Total Memory Size:                      8 GBytes
  Total Memory Size [MB]:                 8192
 [Current Performance Settings]
  Maximum Supported Memory Clock:         800.0 MHz
  Current Memory Clock:                   798.3 MHz (8 : 1 ratio)
  Current Timing (tCAS-tRCD-tRP-tRAS):    11.0-11-11-28
  Memory Runs At:                         Dual-Channel
  Command Rate:                           1T
  Read to Read Delay (tRD_RD) Different Rank: 1T
  Read to Read Delay (tRD_RD) Different DIMM: 3T
  Write to Write Delay (tWR_WR) Different Rank: 3T
  Write to Write Delay (tWR_WR) Different DIMM: 3T
  Read to Write Delay (tRD_WR) Same Rank: 3T
  Read to Write Delay (tRD_WR) Different Rank: 5T
  Read to Write Delay (tRD_WR) Different DIMM: 5T
  Write to Read Delay (tWR_RD) Same Rank (tWTR): 6T
  Write to Read Delay (tWR_RD) Different Rank: 1T
  Write to Read Delay (tWR_RD) Different DIMM: 1T
  Read to Precharge Delay (tRTP):         6T
  Write to Precharge Delay (tWTP/tWR):    12T
  RAS# to RAS# Delay (tRRD):              5T
  Refresh Cycle Time (tRFC):              128T
  Four Activate Window (tFAW):            24T

Row: 0 - 4096 MB PC3-12800 DDR3 SDRAM Micron Tech. 16KTF51264HZ-1G6M1 -----

 [General Module Information]
  Module Number:                          0
  Module Size:                            4096 MBytes
  Memory Type:                            DDR3 SDRAM
  Module Type:                            SO-DIMM
  Memory Speed:                           800.0 MHz (PC3-12800)
  Module Manufacturer:                    Micron Tech.
  Module Part Number:                     16KTF51264HZ-1G6M1
  Module Revision:                        12621
  Module Serial Number:                   4159333097
  Module Manufacturing Date:              Year: 2012, Week: 17
  Module Manufacturing Location:          15
  SDRAM Manufacturer:                     Micron Tech.
  Error Check/Correction:                 None
 [Module characteristics]
  Row Address Bits:                       15
  Column Address Bits:                    10
  Number Of Banks:                        8
  Module Density:                         2048 Mb
  Number Of Ranks:                        2
  Device Width:                           8 bits
  Bus Width:                              64 bits
  Module Nominal Voltage (VDD):           1.5 V, 1.35 V
 [Module timing]
  Minimum SDRAM Cycle Time (tCKmin):      1.250 ns
  CAS# Latencies Supported:               5, 6, 7, 8, 9, 10, 11
  Minimum CAS# Latency Time (tAAmin):     13.125 ns
  Minimum RAS# to CAS# Delay (tRCDmin):   13.125 ns
  Minimum Row Precharge Time (tRPmin):    13.125 ns
  Minimum Active to Precharge Time (tRASmin): 35.000 ns
  Supported Module Timing at 800.0 MHz:   11-11-11-28
  Supported Module Timing at 666.7 MHz:   9-9-9-24
  Supported Module Timing at 533.3 MHz:   7-7-7-19
  Supported Module Timing at 400.0 MHz:   6-6-6-14
  Supported Module Timing at 333.3 MHz:   5-5-5-12
  Minimum Write Recovery Time (tWRmin):   15.000 ns
  Minimum Row Active to Row Active Delay (tRRDmin): 6.000 ns
  Minimum Active to Active/Refresh Time (tRCmin): 48.125 ns
  Minimum Refresh Recovery Time Delay (tRFCmin): 160.000 ns
  Minimum Internal Write to Read Command Delay (tWTRmin): 7.500 ns
  Minimum Internal Read to Precharge Command Delay (tRTPmin): 7.500 ns
  Minimum Four Activate Window Delay Time (tFAWmin): 30.000 ns
 [Features]
  On-die Thermal Sensor (ODTS) Readout:   Not Supported
  Auto Self Refresh (ASR):                Supported
  Extended Temperature Refresh Rate:      Not Supported
  Extended Temperature Range:             Supported
  Module Temperature Sensor:              Not Supported
  Module Nominal Height:                  29 - 30 mm
  Module Maximum Thickness (Front):       1 - 2 mm
  Module Maximum Thickness (Back):        1 - 2 mm

Row: 2 - 4096 MB PC3-12800 DDR3 SDRAM Micron Tech. 16KTF51264HZ-1G6M1 -----

 [General Module Information]
  Module Number:                          2
  Module Size:                            4096 MBytes
  Memory Type:                            DDR3 SDRAM
  Module Type:                            SO-DIMM
  Memory Speed:                           800.0 MHz (PC3-12800)
  Module Manufacturer:                    Micron Tech.
  Module Part Number:                     16KTF51264HZ-1G6M1
  Module Revision:                        12621
  Module Serial Number:                   48980713
  Module Manufacturing Date:              Year: 2012, Week: 17
  Module Manufacturing Location:          15
  SDRAM Manufacturer:                     Micron Tech.
  Error Check/Correction:                 None
 [Module characteristics]
  Row Address Bits:                       15
  Column Address Bits:                    10
  Number Of Banks:                        8
  Module Density:                         2048 Mb
  Number Of Ranks:                        2
  Device Width:                           8 bits
  Bus Width:                              64 bits
  Module Nominal Voltage (VDD):           1.5 V, 1.35 V
 [Module timing]
  Minimum SDRAM Cycle Time (tCKmin):      1.250 ns
  CAS# Latencies Supported:               5, 6, 7, 8, 9, 10, 11
  Minimum CAS# Latency Time (tAAmin):     13.125 ns
  Minimum RAS# to CAS# Delay (tRCDmin):   13.125 ns
  Minimum Row Precharge Time (tRPmin):    13.125 ns
  Minimum Active to Precharge Time (tRASmin): 35.000 ns
  Supported Module Timing at 800.0 MHz:   11-11-11-28
  Supported Module Timing at 666.7 MHz:   9-9-9-24
  Supported Module Timing at 533.3 MHz:   7-7-7-19
  Supported Module Timing at 400.0 MHz:   6-6-6-14
  Supported Module Timing at 333.3 MHz:   5-5-5-12
  Minimum Write Recovery Time (tWRmin):   15.000 ns
  Minimum Row Active to Row Active Delay (tRRDmin): 6.000 ns
  Minimum Active to Active/Refresh Time (tRCmin): 48.125 ns
  Minimum Refresh Recovery Time Delay (tRFCmin): 160.000 ns
  Minimum Internal Write to Read Command Delay (tWTRmin): 7.500 ns
  Minimum Internal Read to Precharge Command Delay (tRTPmin): 7.500 ns
  Minimum Four Activate Window Delay Time (tFAWmin): 30.000 ns
 [Features]
  On-die Thermal Sensor (ODTS) Readout:   Not Supported
  Auto Self Refresh (ASR):                Supported
  Extended Temperature Refresh Rate:      Not Supported
  Extended Temperature Range:             Supported
  Module Temperature Sensor:              Not Supported
  Module Nominal Height:                  29 - 30 mm
  Module Maximum Thickness (Front):       1 - 2 mm
  Module Maximum Thickness (Back):        1 - 2 mm

Bus -----------------------------------------------------------------------


PCI Bus #0 ----------------------------------------------------------------


Intel Ivy Bridge-MB - Host Bridge/DRAM Controller [E1/L1/N0/P0] -----------

 [General Information]
  Device Name:                            Intel Ivy Bridge-MB - Host Bridge/DRAM Controller [E1/L1/N0/P0]
  Original Device Name:                   Intel Ivy Bridge-MB - Host Bridge/DRAM Controller [E1/L1/N0/P0]
  Device Class:                           Host-to-PCI Bridge
  Revision ID:                            9
  Bus Number:                             0
  Device Number:                          0
  Function Number:                        0
  PCI Latency Timer:                      0
  Hardware ID:                            PCI\VEN_8086&DEV_0154&SUBSYS_397717AA&REV_09
 [System Resources]
  Interrupt Line:                         N/A
  Interrupt Pin:                          N/A
 [Features]
  Bus Mastering:                          Enabled
  Running At 66 MHz:                      Not Capable
  Fast Back-to-Back Transactions:         Capable
 [Driver Information]
  Driver Manufacturer:                    Intel
  Driver Description:                     3rd Gen Core processor DRAM Controller - 0154
  Driver Provider:                        Intel
  Driver Version:                         9.3.0.1011
  Driver Date:                            25-Aug-2011
  DeviceInstanceId                        PCI\VEN_8086&DEV_0154&SUBSYS_397717AA&REV_09\3&11583659&0&00

Intel Ivy Bridge-DT - PCI Express Graphics Root Port [E1/L1/N0/P0] --------

 [General Information]
  Device Name:                            Intel Ivy Bridge-DT - PCI Express Graphics Root Port [E1/L1/N0/P0]
  Original Device Name:                   Intel Ivy Bridge-DT - PCI Express Graphics Root Port [E1/L1/N0/P0]
  Device Class:                           PCI-to-PCI Bridge
  Revision ID:                            9
  Bus Number:                             0
  Device Number:                          1
  Function Number:                        0
  PCI Latency Timer:                      0
  Hardware ID:                            PCI\VEN_8086&DEV_0151&SUBSYS_00000000&REV_09
 [PCI Express]
  Version:                                3.0
  Maximum Link Width:                     16x
  Current Link Width:                     16x
  Maximum Link Speed:                     8.0 Gb/s
  Current Link Speed:                     2.5 Gb/s
  Device/Port Type:                       Root Port of PCI Express Root Complex
  Slot Implemented:                       Yes
  Hot-Plug:                               Not Capable
  Hot-Plug Surprise:                      Not Capable
  Slot Power Limit:                       75.000 W
  Active State Power Management (ASPM) Support: L0s and L1
  Active State Power Management (ASPM) Status: L0s and L1 Entry
 [System Resources]
  Interrupt Line:                         IRQ16
  Interrupt Pin:                          INTA#
 [Features]
  Bus Mastering:                          Enabled
  Running At 66 MHz:                      Not Capable
  Fast Back-to-Back Transactions:         Not Capable
 [Driver Information]
  Driver Manufacturer:                    Intel
  Driver Description:                     Xeon(R) processor E3-1200 v2/3rd Gen Core processor PCI Express Root Port - 0151
  Driver Provider:                        Intel
  Driver Version:                         9.3.0.1011
  Driver Date:                            25-Aug-2011
  DeviceInstanceId                        PCI\VEN_8086&DEV_0151&SUBSYS_397717AA&REV_09\3&11583659&0&08

PCI Express x16 Bus #1 ----------------------------------------------------


Intel Ivy Bridge-MB GT2 - Integrated Graphics Controller [E1/L1/N0/P0] ----

 [General Information]
  Device Name:                            Intel Ivy Bridge-MB GT2 - Integrated Graphics Controller [E1/L1/N0/P0]
  Original Device Name:                   Intel Ivy Bridge-MB GT2 - Integrated Graphics Controller [E1/L1/N0/P0]
  Device Class:                           VGA Compatible Adapter
  Revision ID:                            9
  Bus Number:                             0
  Device Number:                          2
  Function Number:                        0
  PCI Latency Timer:                      0
  Hardware ID:                            PCI\VEN_8086&DEV_0166&SUBSYS_397717AA&REV_09
 [System Resources]
  Interrupt Line:                         N/A
  Interrupt Pin:                          INTA#
  Memory Base Address 0                   D3000000
  Memory Base Address 2                   E0000000
  I/O Base Address 4                      4000
 [Features]
  Bus Mastering:                          Enabled
  Running At 66 MHz:                      Not Capable
  Fast Back-to-Back Transactions:         Capable
 [Driver Information]
  Driver Manufacturer:                    Intel Corporation
  Driver Description:                     Intel(R) HD Graphics 4000
  Driver Provider:                        Intel Corporation
  Driver Version:                         8.15.10.2656
  Driver Date:                            16-Feb-2012
  DeviceInstanceId                        PCI\VEN_8086&DEV_0166&SUBSYS_397717AA&REV_09\3&11583659&0&10

Intel Panther Point PCH - USB 3.0 xHCI Controller [C1] --------------------

 [General Information]
  Device Name:                            Intel Panther Point PCH - USB 3.0 xHCI Controller [C1]
  Original Device Name:                   Intel Panther Point PCH - USB 3.0 xHCI Controller [C1]
  Device Class:                           Universal Serial Bus (USB)
  Revision ID:                            4
  Bus Number:                             0
  Device Number:                          20
  Function Number:                        0
  PCI Latency Timer:                      0
  Hardware ID:                            PCI\VEN_8086&DEV_1E31&SUBSYS_397717AA&REV_04
 [System Resources]
  Interrupt Line:                         N/A
  Interrupt Pin:                          INTA#
  Memory Base Address 0                   D3700000
 [Features]
  Bus Mastering:                          Enabled
  Running At 66 MHz:                      Not Capable
  Fast Back-to-Back Transactions:         Capable
 [Driver Information]
  Driver Manufacturer:                    Intel(R) Corporation
  Driver Description:                     Intel(R) USB 3.0 eXtensible Host Controller
  Driver Provider:                        Intel(R) Corporation
  Driver Version:                         1.0.4.220
  Driver Date:                            26-Feb-2012
  DeviceInstanceId                        PCI\VEN_8086&DEV_1E31&SUBSYS_397717AA&REV_04\3&11583659&0&A0

USB Root Hub --------------------------------------------------------------


[Port1] : No Device Connected ---------------------------------------------


[Port2] : No Device Connected ---------------------------------------------


[Port3] : No Device Connected ---------------------------------------------


[Port4] : No Device Connected ---------------------------------------------


[Port5] : No Device Connected ---------------------------------------------


[Port6] : No Device Connected ---------------------------------------------


[Port7] : No Device Connected ---------------------------------------------


[Port8] : No Device Connected ---------------------------------------------


Intel Panther Point PCH - Host Embedded Controller Interface 1 (HECI1) [C1]

 [General Information]
  Device Name:                            Intel Panther Point PCH - Host Embedded Controller Interface 1 (HECI1) [C1]
  Original Device Name:                   Intel Panther Point PCH - Host Embedded Controller Interface 1 (HECI1) [C1]
  Device Class:                           Unknown Communication Device
  Revision ID:                            4
  Bus Number:                             0
  Device Number:                          22
  Function Number:                        0
  PCI Latency Timer:                      0
  Hardware ID:                            PCI\VEN_8086&DEV_1E3A&SUBSYS_397717AA&REV_04
 [System Resources]
  Interrupt Line:                         IRQ16
  Interrupt Pin:                          INTA#
  Memory Base Address 0                   D3714000
 [Features]
  Bus Mastering:                          Enabled
  Running At 66 MHz:                      Not Capable
  Fast Back-to-Back Transactions:         Not Capable
 [Driver Information]
  Driver Manufacturer:                    Intel
  Driver Description:                     Intel(R) Management Engine Interface
  Driver Provider:                        Intel
  Driver Version:                         8.0.0.1262
  Driver Date:                            08-Nov-2011
  DeviceInstanceId                        PCI\VEN_8086&DEV_1E3A&SUBSYS_397717AA&REV_04\3&11583659&0&B0

Intel Panther Point PCH - USB 2.0 EHCI Controller #2 [C1] -----------------

 [General Information]
  Device Name:                            Intel Panther Point PCH - USB 2.0 EHCI Controller #2 [C1]
  Original Device Name:                   Intel Panther Point PCH - USB 2.0 EHCI Controller #2 [C1]
  Device Class:                           Universal Serial Bus (USB)
  Revision ID:                            4
  Bus Number:                             0
  Device Number:                          26
  Function Number:                        0
  PCI Latency Timer:                      0
  Hardware ID:                            PCI\VEN_8086&DEV_1E2D&SUBSYS_397717AA&REV_04
 [System Resources]
  Interrupt Line:                         IRQ16
  Interrupt Pin:                          INTA#
  Memory Base Address 0                   D3719000
 [Features]
  Bus Mastering:                          Enabled
  Running At 66 MHz:                      Not Capable
  Fast Back-to-Back Transactions:         Capable
 [Driver Information]
  Driver Manufacturer:                    Intel
  Driver Description:                     Intel(R) 7 Series/C216 Chipset Family USB Enhanced Host Controller - 1E2D
  Driver Provider:                        Intel
  Driver Version:                         9.3.0.1011
  Driver Date:                            25-Aug-2011
  DeviceInstanceId                        PCI\VEN_8086&DEV_1E2D&SUBSYS_397717AA&REV_04\3&11583659&0&D0

USB Root Hub --------------------------------------------------------------


[Port1] : USB Hub ---------------------------------------------------------


[Port1] : No Device Connected ---------------------------------------------


[Port2] : No Device Connected ---------------------------------------------


[Port3] : No Device Connected ---------------------------------------------


[Port4] : No Device Connected ---------------------------------------------


[Port5] : No Device Connected ---------------------------------------------


[Port6] : Broadcom Bluetooth 4.0 USB --------------------------------------

 [Device Information]
  Device Manufacturer:                    Broadcom Corp
  Product Name:                           BCM20702A0
  Serial Number:                          08EDB9D73CBA
  USB Version Supported:                  2.00
  USB Device Speed:                       USB 1.1 Full-speed
  Driver Description:                     Broadcom Bluetooth 4.0 USB
  Hardware ID:                            USB\VID_0489&PID_E042
 [Driver Information]
  Driver Manufacturer:                    Broadcom
  Driver Description:                     Broadcom Bluetooth 4.0 USB
  Driver Provider:                        Broadcom Corporation
  Driver Version:                         6.5.1.1785
  Driver Date:                            26-Jan-2012
  DeviceInstanceId                        USB\VID_0489&PID_E042\08EDB9D73CBA

[Port2] : No Device Connected ---------------------------------------------


Intel Panther Point PCH - High Definition Audio Controller [C1] -----------

 [General Information]
  Device Name:                            Intel Panther Point PCH - High Definition Audio Controller [C1]
  Original Device Name:                   Intel Panther Point PCH - High Definition Audio Controller [C1]
  Device Class:                           Mixed mode device
  Revision ID:                            4
  Bus Number:                             0
  Device Number:                          27
  Function Number:                        0
  PCI Latency Timer:                      0
  Hardware ID:                            PCI\VEN_8086&DEV_1E20&SUBSYS_397717AA&REV_04
 [PCI Express]
  Version:                                1.0
  Current Link Width:                     Not negotiated
  Device/Port Type:                       Root Complex Integrated Endpoint
  Slot Implemented:                       No
  Active State Power Management (ASPM) Support: None
  Active State Power Management (ASPM) Status: Disabled
 [System Resources]
  Interrupt Line:                         IRQ22
  Interrupt Pin:                          INTA#
  Memory Base Address 0                   D3710000
 [Features]
  Bus Mastering:                          Enabled
  Running At 66 MHz:                      Not Capable
  Fast Back-to-Back Transactions:         Not Capable
 [Driver Information]
  Driver Manufacturer:                    Microsoft
  Driver Description:                     High Definition Audio Controller
  Driver Provider:                        Microsoft
  Driver Version:                         6.1.7601.17514
  Driver Date:                            18-Nov-2010
  DeviceInstanceId                        PCI\VEN_8086&DEV_1E20&SUBSYS_397717AA&REV_04\3&11583659&0&D8

Intel Panther Point PCH - PCI Express Port 1 ------------------------------

 [General Information]
  Device Name:                            Intel Panther Point PCH - PCI Express Port 1
  Original Device Name:                   Intel Panther Point PCH - PCI Express Port 1
  Device Class:                           PCI-to-PCI Bridge
  Revision ID:                            C4
  Bus Number:                             0
  Device Number:                          28
  Function Number:                        0
  PCI Latency Timer:                      0
  Hardware ID:                            PCI\VEN_8086&DEV_1E10&SUBSYS_00000000&REV_C4
 [PCI Express]
  Version:                                2.0
  Maximum Link Width:                     1x
  Current Link Width:                     1x
  Maximum Link Speed:                     5.0 Gb/s
  Current Link Speed:                     2.5 Gb/s
  Device/Port Type:                       Root Port of PCI Express Root Complex
  Slot Implemented:                       Yes
  Hot-Plug:                               Not Capable
  Hot-Plug Surprise:                      Not Capable
  Slot Power Limit:                       10.000 W
  Active State Power Management (ASPM) Support: L0s and L1
  Active State Power Management (ASPM) Status: L1 Entry
 [System Resources]
  Interrupt Line:                         IRQ17
  Interrupt Pin:                          INTA#
 [Features]
  Bus Mastering:                          Enabled
  Running At 66 MHz:                      Not Capable
  Fast Back-to-Back Transactions:         Not Capable
 [Driver Information]
  Driver Manufacturer:                    Intel
  Driver Description:                     Intel(R) 7 Series/C216 Chipset Family PCI Express Root Port 1 - 1E10
  Driver Provider:                        Intel
  Driver Version:                         9.3.0.1011
  Driver Date:                            25-Aug-2011
  DeviceInstanceId                        PCI\VEN_8086&DEV_1E10&SUBSYS_397717AA&REV_C4\3&11583659&0&E0

PCI Express x1 Bus #2 -----------------------------------------------------


Atheros AR8161/8165 PCI-E Gigabit Ethernet Controller ---------------------

 [General Information]
  Device Name:                            Atheros AR8161/8165 PCI-E Gigabit Ethernet Controller
  Original Device Name:                   Atheros AR8161/8165 PCI-E Gigabit Ethernet Controller
  Device Class:                           Ethernet Adapter
  Revision ID:                            8
  Bus Number:                             2
  Device Number:                          0
  Function Number:                        0
  PCI Latency Timer:                      0
  Hardware ID:                            PCI\VEN_1969&DEV_1091&SUBSYS_397917AA&REV_08
 [PCI Express]
  Version:                                1.0
  Maximum Link Width:                     1x
  Current Link Width:                     1x
  Maximum Link Speed:                     2.5 Gb/s
  Current Link Speed:                     2.5 Gb/s
  Device/Port Type:                       PCI Express Endpoint
  Slot Implemented:                       No
  Active State Power Management (ASPM) Support: L0s and L1
  Active State Power Management (ASPM) Status: L1 Entry
 [System Resources]
  Interrupt Line:                         IRQ16
  Interrupt Pin:                          INTA#
  Memory Base Address 0                   D3600000
  I/O Base Address 2                      2000
 [Features]
  Bus Mastering:                          Enabled
  Running At 66 MHz:                      Not Capable
  Fast Back-to-Back Transactions:         Not Capable
 [Driver Information]
  Driver Manufacturer:                    Atheros
  Driver Description:                     Atheros AR8161/8165 PCI-E Gigabit Ethernet Controller (NDIS 6.20)
  Driver Provider:                        Atheros
  Driver Version:                         2.0.9.9
  Driver Date:                            13-Nov-2011
  DeviceInstanceId                        PCI\VEN_1969&DEV_1091&SUBSYS_397917AA&REV_08\4&8F8BD4C&0&00E0

Intel Panther Point PCH - PCI Express Port 2 ------------------------------

 [General Information]
  Device Name:                            Intel Panther Point PCH - PCI Express Port 2
  Original Device Name:                   Intel Panther Point PCH - PCI Express Port 2
  Device Class:                           PCI-to-PCI Bridge
  Revision ID:                            C4
  Bus Number:                             0
  Device Number:                          28
  Function Number:                        1
  PCI Latency Timer:                      0
  Hardware ID:                            PCI\VEN_8086&DEV_1E12&SUBSYS_00000000&REV_C4
 [PCI Express]
  Version:                                2.0
  Maximum Link Width:                     1x
  Current Link Width:                     1x
  Maximum Link Speed:                     5.0 Gb/s
  Current Link Speed:                     2.5 Gb/s
  Device/Port Type:                       Root Port of PCI Express Root Complex
  Slot Implemented:                       Yes
  Hot-Plug:                               Not Capable
  Hot-Plug Surprise:                      Not Capable
  Slot Power Limit:                       10.000 W
  Active State Power Management (ASPM) Support: L0s and L1
  Active State Power Management (ASPM) Status: L1 Entry
 [System Resources]
  Interrupt Line:                         IRQ16
  Interrupt Pin:                          INTB#
 [Features]
  Bus Mastering:                          Enabled
  Running At 66 MHz:                      Not Capable
  Fast Back-to-Back Transactions:         Not Capable
 [Driver Information]
  Driver Manufacturer:                    Intel
  Driver Description:                     Intel(R) 7 Series/C216 Chipset Family PCI Express Root Port 2 - 1E12
  Driver Provider:                        Intel
  Driver Version:                         9.3.0.1011
  Driver Date:                            25-Aug-2011
  DeviceInstanceId                        PCI\VEN_8086&DEV_1E12&SUBSYS_397717AA&REV_C4\3&11583659&0&E1

PCI Express x1 Bus #3 -----------------------------------------------------


Intel, Device ID: 0891 ----------------------------------------------------

 [General Information]
  Device Name:                            Intel, Device ID: 0891
  Original Device Name:                   Intel, Device ID: 0891
  Device Class:                           Unknown Network Adapter
  Revision ID:                            C4
  Bus Number:                             3
  Device Number:                          0
  Function Number:                        0
  PCI Latency Timer:                      0
  Hardware ID:                            PCI\VEN_8086&DEV_0891&SUBSYS_42228086&REV_C4
 [PCI Express]
  Version:                                1.0
  Maximum Link Width:                     1x
  Current Link Width:                     1x
  Maximum Link Speed:                     2.5 Gb/s
  Current Link Speed:                     2.5 Gb/s
  Device/Port Type:                       PCI Express Endpoint
  Slot Implemented:                       No
  Active State Power Management (ASPM) Support: L0s and L1
  Active State Power Management (ASPM) Status: L1 Entry
 [System Resources]
  Interrupt Line:                         N/A
  Interrupt Pin:                          INTA#
  Memory Base Address 0                   D3500000
 [Features]
  Bus Mastering:                          Enabled
  Running At 66 MHz:                      Not Capable
  Fast Back-to-Back Transactions:         Not Capable
 [Driver Information]
  Driver Manufacturer:                    Intel Corporation
  Driver Description:                     Intel(R) Centrino(R) Wireless-N 2200
  Driver Provider:                        Intel
  Driver Version:                         15.0.0.75
  Driver Date:                            28-Nov-2011
  DeviceInstanceId                        PCI\VEN_8086&DEV_0891&SUBSYS_42228086&REV_C4\4&18901DAC&0&00E1

Intel Panther Point PCH - PCI Express Port 4 ------------------------------

 [General Information]
  Device Name:                            Intel Panther Point PCH - PCI Express Port 4
  Original Device Name:                   Intel Panther Point PCH - PCI Express Port 4
  Device Class:                           PCI-to-PCI Bridge
  Revision ID:                            C4
  Bus Number:                             0
  Device Number:                          28
  Function Number:                        3
  PCI Latency Timer:                      0
  Hardware ID:                            PCI\VEN_8086&DEV_1E16&SUBSYS_00000000&REV_C4
 [PCI Express]
  Version:                                2.0
  Maximum Link Width:                     1x
  Current Link Width:                     1x
  Maximum Link Speed:                     5.0 Gb/s
  Current Link Speed:                     2.5 Gb/s
  Device/Port Type:                       Root Port of PCI Express Root Complex
  Slot Implemented:                       Yes
  Hot-Plug:                               Not Capable
  Hot-Plug Surprise:                      Not Capable
  Slot Power Limit:                       10.000 W
  Active State Power Management (ASPM) Support: L0s and L1
  Active State Power Management (ASPM) Status: Disabled
 [System Resources]
  Interrupt Line:                         IRQ19
  Interrupt Pin:                          INTD#
 [Features]
  Bus Mastering:                          Enabled
  Running At 66 MHz:                      Not Capable
  Fast Back-to-Back Transactions:         Not Capable
 [Driver Information]
  Driver Manufacturer:                    Intel
  Driver Description:                     Intel(R) 7 Series/C216 Chipset Family PCI Express Root Port 4 - 1E16
  Driver Provider:                        Intel
  Driver Version:                         9.3.0.1011
  Driver Date:                            25-Aug-2011
  DeviceInstanceId                        PCI\VEN_8086&DEV_1E16&SUBSYS_397717AA&REV_C4\3&11583659&0&E3

PCI Express x1 Bus #4 -----------------------------------------------------


JMicron Technology JMB392 SD/MMC Card Host Controller ---------------------

 [General Information]
  Device Name:                            JMicron Technology JMB392 SD/MMC Card Host Controller
  Original Device Name:                   JMicron Technology JMB392 SD/MMC Card Host Controller
  Device Class:                           Unknown Peripheral Device
  Revision ID:                            30
  Bus Number:                             4
  Device Number:                          0
  Function Number:                        0
  PCI Latency Timer:                      0
  Hardware ID:                            PCI\VEN_197B&DEV_2392&SUBSYS_397617AA&REV_30
 [PCI Express]
  Version:                                1.0
  Maximum Link Width:                     1x
  Current Link Width:                     1x
  Maximum Link Speed:                     2.5 Gb/s
  Current Link Speed:                     2.5 Gb/s
  Device/Port Type:                       PCI Express Endpoint
  Slot Implemented:                       No
  Active State Power Management (ASPM) Support: L0s and L1
  Active State Power Management (ASPM) Status: Disabled
 [System Resources]
  Interrupt Line:                         IRQ19
  Interrupt Pin:                          INTA#
  Memory Base Address 0                   D3403000
 [Features]
  Bus Mastering:                          Enabled
  Running At 66 MHz:                      Not Capable
  Fast Back-to-Back Transactions:         Not Capable
 [Driver Information]
  Driver Manufacturer:                    JMicron Technology Corp.
  Driver Description:                     JMicron PCIe SD/MMC Host Controller
  Driver Provider:                        JMicron Technology Corp.
  Driver Version:                         1.0.64.1
  Driver Date:                            24-Aug-2011
  DeviceInstanceId                        PCI\VEN_197B&DEV_2392&SUBSYS_397617AA&REV_30\4&1570C37F&0&00E3

JMicron Technology JMB391 SD Card Host Controller -------------------------

 [General Information]
  Device Name:                            JMicron Technology JMB391 SD Card Host Controller
  Original Device Name:                   JMicron Technology JMB391 SD Card Host Controller
  Device Class:                           SD Host Controller
  Revision ID:                            30
  Bus Number:                             4
  Device Number:                          0
  Function Number:                        2
  PCI Latency Timer:                      0
  Hardware ID:                            PCI\VEN_197B&DEV_2391&SUBSYS_397617AA&REV_30
 [PCI Express]
  Version:                                1.0
  Maximum Link Width:                     1x
  Current Link Width:                     1x
  Maximum Link Speed:                     2.5 Gb/s
  Current Link Speed:                     2.5 Gb/s
  Device/Port Type:                       PCI Express Endpoint
  Slot Implemented:                       No
  Active State Power Management (ASPM) Support: L0s and L1
  Active State Power Management (ASPM) Status: Disabled
 [System Resources]
  Interrupt Line:                         IRQ19
  Interrupt Pin:                          INTA#
  Memory Base Address 0                   D3402000
 [Features]
  Bus Mastering:                          Enabled
  Running At 66 MHz:                      Not Capable
  Fast Back-to-Back Transactions:         Not Capable
 [Driver Information]
  Driver Manufacturer:                    JMicron Technology Corp.
  Driver Description:                     JMicron PCIe SD Host Controller
  Driver Provider:                        JMicron Technology Corp.
  Driver Version:                         1.0.64.1
  Driver Date:                            24-Aug-2011
  DeviceInstanceId                        PCI\VEN_197B&DEV_2391&SUBSYS_397617AA&REV_30\4&1570C37F&0&02E3

JMicron Technology JMB393 MS Card Host Controller -------------------------

 [General Information]
  Device Name:                            JMicron Technology JMB393 MS Card Host Controller
  Original Device Name:                   JMicron Technology JMB393 MS Card Host Controller
  Device Class:                           Unknown Peripheral Device
  Revision ID:                            30
  Bus Number:                             4
  Device Number:                          0
  Function Number:                        3
  PCI Latency Timer:                      0
  Hardware ID:                            PCI\VEN_197B&DEV_2393&SUBSYS_397617AA&REV_30
 [PCI Express]
  Version:                                1.0
  Maximum Link Width:                     1x
  Current Link Width:                     1x
  Maximum Link Speed:                     2.5 Gb/s
  Current Link Speed:                     2.5 Gb/s
  Device/Port Type:                       PCI Express Endpoint
  Slot Implemented:                       No
  Active State Power Management (ASPM) Support: L0s and L1
  Active State Power Management (ASPM) Status: Disabled
 [System Resources]
  Interrupt Line:                         IRQ19
  Interrupt Pin:                          INTA#
  Memory Base Address 0                   D3401000
 [Features]
  Bus Mastering:                          Enabled
  Running At 66 MHz:                      Not Capable
  Fast Back-to-Back Transactions:         Not Capable
 [Driver Information]
  Driver Manufacturer:                    JMicron Technology Corp.
  Driver Description:                     JMicron PCIe MS Host Controller
  Driver Provider:                        JMicron Technology Corp.
  Driver Version:                         1.0.64.1
  Driver Date:                            24-Aug-2011
  DeviceInstanceId                        PCI\VEN_197B&DEV_2393&SUBSYS_397617AA&REV_30\4&1570C37F&0&03E3

JMicron Technology JMB394 xD Card Host Controller -------------------------

 [General Information]
  Device Name:                            JMicron Technology JMB394 xD Card Host Controller
  Original Device Name:                   JMicron Technology JMB394 xD Card Host Controller
  Device Class:                           Unknown Peripheral Device
  Revision ID:                            30
  Bus Number:                             4
  Device Number:                          0
  Function Number:                        4
  PCI Latency Timer:                      0
  Hardware ID:                            PCI\VEN_197B&DEV_2394&SUBSYS_397617AA&REV_30
 [PCI Express]
  Version:                                1.0
  Maximum Link Width:                     1x
  Current Link Width:                     1x
  Maximum Link Speed:                     2.5 Gb/s
  Current Link Speed:                     2.5 Gb/s
  Device/Port Type:                       PCI Express Endpoint
  Slot Implemented:                       No
  Active State Power Management (ASPM) Support: L0s and L1
  Active State Power Management (ASPM) Status: Disabled
 [System Resources]
  Interrupt Line:                         IRQ19
  Interrupt Pin:                          INTA#
  Memory Base Address 0                   D3400000
 [Features]
  Bus Mastering:                          Enabled
  Running At 66 MHz:                      Not Capable
  Fast Back-to-Back Transactions:         Not Capable
 [Driver Information]
  Driver Manufacturer:                    JMicron Technology Corp.
  Driver Description:                     JMicron PCIe xD Host Controller
  Driver Provider:                        JMicron Technology Corp.
  Driver Version:                         1.0.64.1
  Driver Date:                            24-Aug-2011
  DeviceInstanceId                        PCI\VEN_197B&DEV_2394&SUBSYS_397617AA&REV_30\4&1570C37F&0&04E3

Intel Panther Point PCH - USB 2.0 EHCI Controller #1 [C1] -----------------

 [General Information]
  Device Name:                            Intel Panther Point PCH - USB 2.0 EHCI Controller #1 [C1]
  Original Device Name:                   Intel Panther Point PCH - USB 2.0 EHCI Controller #1 [C1]
  Device Class:                           Universal Serial Bus (USB)
  Revision ID:                            4
  Bus Number:                             0
  Device Number:                          29
  Function Number:                        0
  PCI Latency Timer:                      0
  Hardware ID:                            PCI\VEN_8086&DEV_1E26&SUBSYS_397717AA&REV_04
 [System Resources]
  Interrupt Line:                         IRQ23
  Interrupt Pin:                          INTA#
  Memory Base Address 0                   D3718000
 [Features]
  Bus Mastering:                          Enabled
  Running At 66 MHz:                      Not Capable
  Fast Back-to-Back Transactions:         Capable
 [Driver Information]
  Driver Manufacturer:                    Intel
  Driver Description:                     Intel(R) 7 Series/C216 Chipset Family USB Enhanced Host Controller - 1E26
  Driver Provider:                        Intel
  Driver Version:                         9.3.0.1011
  Driver Date:                            25-Aug-2011
  DeviceInstanceId                        PCI\VEN_8086&DEV_1E26&SUBSYS_397717AA&REV_04\3&11583659&0&E8

USB Root Hub --------------------------------------------------------------


[Port1] : USB Hub ---------------------------------------------------------


[Port1] : No Device Connected ---------------------------------------------


[Port2] : No Device Connected ---------------------------------------------


[Port3] : No Device Connected ---------------------------------------------


[Port4] : No Device Connected ---------------------------------------------


[Port5] : No Device Connected ---------------------------------------------


[Port6] : USB Composite Device --------------------------------------------

 [Device Information]
  Device Manufacturer:                    Vimicro corp.
  Product Name:                           Lenovo EasyCamera
  Serial Number:                          N/A
  USB Version Supported:                  2.00
  USB Device Speed:                       USB 2.0 High-speed
  Driver Description:                     USB Composite Device
  Hardware ID:                            USB\VID_5986&PID_0296
 [Driver Information]
  Driver Manufacturer:                    (Standard USB Host Controller)
  Driver Description:                     USB Composite Device
  Driver Provider:                        Microsoft
  Driver Version:                         6.1.7601.17586
  Driver Date:                            20-Jun-2006
  DeviceInstanceId                        USB\VID_5986&PID_0296\6&2CAE7568&0&6

[Port2] : No Device Connected ---------------------------------------------


Intel HM76 Express Chipset - LPC Interface Controller Base [C1] -----------

 [General Information]
  Device Name:                            Intel HM76 Express Chipset - LPC Interface Controller Base [C1]
  Original Device Name:                   Intel HM76 Express Chipset - LPC Interface Controller Base [C1]
  Device Class:                           PCI-to-ISA Bridge
  Revision ID:                            4
  Bus Number:                             0
  Device Number:                          31
  Function Number:                        0
  PCI Latency Timer:                      0
  Hardware ID:                            PCI\VEN_8086&DEV_1E59&SUBSYS_397717AA&REV_04
 [System Resources]
  Interrupt Line:                         N/A
  Interrupt Pin:                          N/A
 [Features]
  Bus Mastering:                          Enabled
  Running At 66 MHz:                      Not Capable
  Fast Back-to-Back Transactions:         Not Capable
 [Driver Information]
  Driver Manufacturer:                    Intel
  Driver Description:                     Intel(R) HM76 Express Chipset LPC Controller - 1E59
  Driver Provider:                        Intel
  Driver Version:                         9.3.0.1011
  Driver Date:                            25-Aug-2011
  DeviceInstanceId                        PCI\VEN_8086&DEV_1E59&SUBSYS_397717AA&REV_04\3&11583659&0&F8

Intel Panther Point-M PCH - SATA AHCI Controller [C1] ---------------------

 [General Information]
  Device Name:                            Intel Panther Point-M PCH - SATA AHCI Controller [C1]
  Original Device Name:                   Intel Panther Point-M PCH - SATA AHCI Controller [C1]
  Device Class:                           Serial ATA Controller
  Revision ID:                            4
  Bus Number:                             0
  Device Number:                          31
  Function Number:                        2
  PCI Latency Timer:                      0
  Hardware ID:                            PCI\VEN_8086&DEV_1E03&SUBSYS_397717AA&REV_04
 [System Resources]
  Interrupt Line:                         IRQ19
  Interrupt Pin:                          INTB#
  I/O Base Address 0                      4088
  I/O Base Address 1                      4094
  I/O Base Address 2                      4080
  I/O Base Address 3                      4090
  I/O Base Address 4                      4060
  Memory Base Address 5                   D3717000
 [Features]
  Bus Mastering:                          Enabled
  Running At 66 MHz:                      Capable
  Fast Back-to-Back Transactions:         Capable
 [Driver Information]
  Driver Manufacturer:                    Intel
  Driver Description:                     Intel(R) 7 Series Chipset Family SATA AHCI Controller
  Driver Provider:                        Intel
  Driver Version:                         11.0.0.1032
  Driver Date:                            28-Nov-2011
  DeviceInstanceId                        PCI\VEN_8086&DEV_1E03&SUBSYS_397717AA&REV_04\3&11583659&0&FA

Intel Panther Point PCH - SMBus Controller [C1] ---------------------------

 [General Information]
  Device Name:                            Intel Panther Point PCH - SMBus Controller [C1]
  Original Device Name:                   Intel Panther Point PCH - SMBus Controller [C1]
  Device Class:                           SMBus (System Management Bus)
  Revision ID:                            4
  Bus Number:                             0
  Device Number:                          31
  Function Number:                        3
  PCI Latency Timer:                      0
  Hardware ID:                            PCI\VEN_8086&DEV_1E22&SUBSYS_397717AA&REV_04
 [System Resources]
  Interrupt Line:                         IRQ10
  Interrupt Pin:                          INTC#
  Memory Base Address 0                   D3715000
  I/O Base Address 4                      4040
 [Features]
  Bus Mastering:                          Disabled
  Running At 66 MHz:                      Not Capable
  Fast Back-to-Back Transactions:         Capable
 [Driver Information]
  Driver Manufacturer:                    Intel
  Driver Description:                     Intel(R) 7 Series/C216 Chipset Family SMBus Host Controller - 1E22
  Driver Provider:                        Intel
  Driver Version:                         9.3.0.1011
  Driver Date:                            25-Aug-2011
  DeviceInstanceId                        PCI\VEN_8086&DEV_1E22&SUBSYS_397717AA&REV_04\3&11583659&0&FB

Intel Panther Point PCH - Thermal Management Controller [C1] --------------

 [General Information]
  Device Name:                            Intel Panther Point PCH - Thermal Management Controller [C1]
  Original Device Name:                   Intel Panther Point PCH - Thermal Management Controller [C1]
  Device Class:                           Unknown Data Acquisition/Signal Processing Controller
  Revision ID:                            4
  Bus Number:                             0
  Device Number:                          31
  Function Number:                        6
  PCI Latency Timer:                      0
  Hardware ID:                            PCI\VEN_8086&DEV_1E24&SUBSYS_397717AA&REV_04
 [System Resources]
  Interrupt Line:                         IRQ7
  Interrupt Pin:                          INTA#
  Memory Base Address 0                   0
 [Features]
  Bus Mastering:                          Disabled
  Running At 66 MHz:                      Not Capable
  Fast Back-to-Back Transactions:         Not Capable

Video Adapter -------------------------------------------------------------


Intel HD Graphics 4000 (Ivy Bridge GT2) -----------------------------------

 [Video chipset]
  Video Chipset:                          Intel HD Graphics 4000 (Ivy Bridge GT2)
  Video Memory:                           Unknown
 [Video Card]
  Video Card:                             Intel Ivy Bridge-MB GT2 - Integrated Graphics Controller [E1/L1/N0/P0] [Lenovo]
  Video Bus:                              Integrated
  Video BIOS Version:                     2126 PC 14.34  11/18/2011  01:49:23
 [Performance]
  Processor Clock:                        350.0 MHz
  Memory Clock:                           798.0 MHz
  Hardware ID:                            PCI\VEN_8086&DEV_0166&SUBSYS_397717AA&REV_09
 [Driver Information]
  Driver Manufacturer:                    Intel Corporation
  Driver Description:                     Intel(R) HD Graphics 4000
  Driver Provider:                        Intel Corporation
  Driver Version:                         8.15.10.2656
  Driver Date:                            16-Feb-2012
  DeviceInstanceId                        PCI\VEN_8086&DEV_0166&SUBSYS_397717AA&REV_09\3&11583659&0&10

Monitor -------------------------------------------------------------------


LG Philips [Unknown Model: LGD01E9] ---------------------------------------

 [General information]
  Monitor Name:                           LG Philips [Unknown Model: LGD01E9]
  Monitor Name (Manuf):                   LG Display   LP156WF1-TLC1
  Serial Number:                          Unknown
  Date Of Manufacture:                    Week: 0, Year: 2009
  Monitor Hardware ID:                    Monitor\LGD01E9
  Max. Vertical Size:                     19 cm
  Max. Horizontal Size:                   35 cm
 [Advanced parameters]
  Input Signal:                           Digital
  Display Type:                           RGB color
  Gamma Factor:                           2.20
 [DPMS Modes]
  Standby:                                Not Supported
  Suspend:                                Not Supported
  Active Off:                             Not Supported
  Standard Colour Space:                  Not Supported
  Preferred Timing Mode:                  Supported
  Default GTF Supported:                  Not Supported
  DFP 1.x Compatible:                     No
 [Supported Video Modes]
  1920 x 1080                             345 x 194 mm, Pixel Clock 138.50 MHz

Drives --------------------------------------------------------------------


Floppy Drives -------------------------------------------------------------


(S)ATA/ATAPI Drives -------------------------------------------------------


ST1000LM024 HN-M101MBB ----------------------------------------------------

 [General Information]
  Drive Controller:                       Serial ATA 3Gb/s
  Drive Model:                            Seagate ST1000LM024 HN-M101MBB
  Drive Revision:                         2AR10001
  Drive Serial Number:
  Drive Capacity:                         953,869 MBytes (1000 GB)
  Drive Capacity [MB]:                    953869
  Media Rotation Rate:                    5400 RPM
 [Drive Geometry]
  Number of Cylinders:                    16383
  Number of Heads:                        16
  Sectors Per Track:                      63
  Bytes Per Sector:                       Unknown
  Bytes Per Track:                        Unknown
  Number Of ECC Bytes:                    4
  Number of Sectors:                      16514064
  Total 32-bit LBA Sectors:               268435455
  Total 48-bit LBA Sectors:               1953525168
  Cache Buffer Size:                      8192 KBytes
  Controller Type:                        Not Specified
 [Transfer Modes]
  Sectors Per Interrupt:                  Total: 16, Active: 0
  Max. PIO Transfer Mode:                 4
  Multiword DMA Mode:                     Total: 2, Active: -
  Singleword DMA Mode:                    Total: -, Active: -
  Ultra-DMA Mode:                         Total: 5 (ATA-100), Active: 5 (ATA-100)
  Max. Multiword DMA Transfer Rate:       16.7 MBytes/s
  Max. PIO with IORDY Transfer Rate:      16.7 MBytes/s
  Max. PIO w/o IORDY Transfer Rate:       16.7 MBytes/s
  Transfer Width:                         Unknown
  Native Command Queuing:                 Supported, Max. Depth: 32
  TRIM Command:                           Not Supported
 [Device flags]
  Fixed Drive:                            Present
  Removable Drive:                        Not Present
  Magnetic Storage:                       Present
  LBA Mode:                               Supported
  DMA Mode:                               Supported
  IORDY:                                  Supported
  IORDY Disableable:                      Supported
 [Features]
  Write Cache:                            Present, Active
  S.M.A.R.T. Feature:                     Present, Active
  Security Feature:                       Present, Inactive
  Removable Media Feature:                Not Present, Disabled
  Power Management:                       Present, Active
  Advanced Power Management:              Present, Active
  Packet Interface:                       Not Present, Disabled
  Look-Ahead Buffer:                      Present, Active
  Host Protected Area:                    Present, Enabled
  Power-Up In Standby:                    Not Suppported, Inactive
  Automatic Acoustic Management:          Not Suppported, Inactive
  48-bit LBA:                             Supported, Active
 [Self-Monitoring, Analysis and Reporting Technology]
  Raw Read Error Rate:                    100/51, Worst: 100 (Data = 1)
  Throughput Performance:                 252/Always OK, Worst: 252
  Spin Up Time:                           89/25, Worst: 89 (Data = 3467)
  Start/Stop Count:                       100/Always OK, Worst: 100 (Data = 13)
  Reallocated Sector Count:               252/10, Worst: 252
  Seek Error Rate:                        252/51, Worst: 252
  Seek Time Performance:                  252/15, Worst: 252
  Power-On Hours/Cycle Count:             100/Always OK, Worst: 100 (Data = 5)
  Spin Retry Count:                       252/51, Worst: 252
  Calibration Retry Count:                100/Always OK, Worst: 100 (Data = 1)
  Power Cycle Count:                      100/Always OK, Worst: 100 (Data = 20)
  G-Sense Error Rate:                     252/Always OK, Worst: 252
  Power-Off Retract Count:                252/Always OK, Worst: 252
  Temperature                             55/Always OK, Worst: 42 (Data = 45.0 °C)
  Hardware ECC Recovered:                 100/Always OK, Worst: 100
  Reallocation Event Count:               252/Always OK, Worst: 252
  Current Pending Sector Count:           252/Always OK, Worst: 252
  Off-Line Uncorrectable Sector Count:    252/Always OK, Worst: 252
  UltraDMA/SATA CRC Error Rate:           200/Always OK, Worst: 200
  Write/Multi-Zone Error Rate:            100/Always OK, Worst: 100 (Data = 3)
  Load/Unload Retry Count:                100/Always OK, Worst: 100 (Data = 1)
  Load/Unload Cycle Count / Host Writes:  100/Always OK, Worst: 100 (Data = 145)

MATABD-MLT UJ260 ------------------------------------------------------

 [General Information]
  Drive Model:                            MATABD-MLT UJ260
  Drive Revision:                         1.00
  Drive Serial Number:                    WM77  003830
  Serial Number:                          WM77  003830
  Drive Type:                             BD-RE
  Drive Controller:                       Serial ATA 1.5Gb/s
 [Transfer Modes]
  Max. PIO Transfer Mode:                 4
  Multiword DMA Mode:                     Total: 2, Active: -
  Singleword DMA Mode:                    Total: -, Active: -
  Ultra-DMA Mode:                         Total: 6 (ATA-133), Active: 6 (ATA-133)
  Max. Multiword DMA Transfer Rate:       16.7 MBytes/s
  Max. PIO with IORDY Transfer Rate:      16.7 MBytes/s
  Max. PIO w/o IORDY Transfer Rate:       16.7 MBytes/s
 [Device flags]
  Fixed Drive:                            Present
  Removable Drive:                        Present
  Magnetic Storage:                       Not Present
  LBA Mode:                               Supported
  DMA Mode:                               Supported
  IORDY:                                  Supported
  IORDY Disableable:                      Supported
 [Device capabilities]
  Drive can read:                         CD-R, CD-RW, DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM, DVD+R DL, BD, BD-RE
  Drive can write:                        CD-RW, DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM, DVD+R DL, BD, BD-RE

Audio ---------------------------------------------------------------------


Intel Panther Point PCH - High Definition Audio Controller [C1] -----------

  Audio Adapter:                          Intel Panther Point PCH - High Definition Audio Controller [C1]
  Audio Controller Hardware ID:           PCI\VEN_8086&DEV_1E20&SUBSYS_397717AA&REV_04
  High Definition Audio Codec:            RealTek ALC269
  Audio Codec Hardware ID:                HDAUDIO\FUNC_01&VEN_10EC&DEV_0269&SUBSYS_00000000
 [Driver Information]
  Driver Manufacturer:                    Realtek
  Driver Description:                     Realtek High Definition Audio
  Driver Provider:                        Realtek Semiconductor Corp.
  Driver Version:                         6.0.1.6543
  Driver Date:                            02-Jan-2012
  DeviceInstanceId                        HDAUDIO\FUNC_01&VEN_10EC&DEV_0269&SUBSYS_17AAC022&REV_1002\4&3A3FC0BE&0&0001

Network -------------------------------------------------------------------


Atheros AR8161/8165 PCI-E Gigabit Ethernet Controller ---------------------

 [General information]
  Network Card:                           Atheros AR8161/8165 PCI-E Gigabit Ethernet Controller
  Vendor Description:                     Atheros L1C PCI-E Ethernet Controller
  MAC Address:                            DC-0E-A1-F0-7F-C7
 [Capabilities]
  Maximum Link Speed:                     1000 Mbps
  Transmit Buffer Size:                   389632 Bytes
  Receive Buffer Size:                    779264 Bytes
  Hardware ID:                            PCI\VEN_1969&DEV_1091&SUBSYS_397917AA&REV_08
 [Driver Information]
  Driver Manufacturer:                    Atheros
  Driver Description:                     Atheros AR8161/8165 PCI-E Gigabit Ethernet Controller (NDIS 6.20)
  Driver Provider:                        Atheros
  Driver Version:                         2.0.9.9
  Driver Date:                            13-Nov-2011
  DeviceInstanceId                        PCI\VEN_1969&DEV_1091&SUBSYS_397917AA&REV_08\4&8F8BD4C&0&00E0

Intel, Device ID: 0891 ----------------------------------------------------

 [General information]
  Network Card:                           Intel, Device ID: 0891
  Vendor Description:                     Microsoft
  MAC Address:                            9C-4E-36-17-A8-84
 [Capabilities]
  Maximum Link Speed:                     54 Mbps
  Transmit Buffer Size:                   6201344 Bytes
  Receive Buffer Size:                    6201344 Bytes
  Hardware ID:                            PCI\VEN_8086&DEV_0891&SUBSYS_42228086&REV_C4
 [Driver Information]
  Driver Manufacturer:                    Intel Corporation
  Driver Description:                     Intel(R) Centrino(R) Wireless-N 2200
  Driver Provider:                        Intel
  Driver Version:                         15.0.0.75
  Driver Date:                            28-Nov-2011
  DeviceInstanceId                        PCI\VEN_8086&DEV_0891&SUBSYS_42228086&REV_C4\4&18901DAC&0&00E1

Ports ---------------------------------------------------------------------


Serial Ports --------------------------------------------------------------


Parallel Ports ------------------------------------------------------------


USB -----------------------------------------------------------------------


Intel(R) 7 Series/C216 Chipset Family USB Enhanced Host Controller - 1E2D -


Root Hub ------------------------------------------------------------------


[Port1] : USB Hub ---------------------------------------------------------


[Port1] : No Device Connected ---------------------------------------------


[Port2] : No Device Connected ---------------------------------------------


[Port3] : No Device Connected ---------------------------------------------


[Port4] : No Device Connected ---------------------------------------------


[Port5] : No Device Connected ---------------------------------------------


[Port6] : Broadcom Bluetooth 4.0 USB --------------------------------------

 [Device Information]
  Device Manufacturer:                    Broadcom Corp
  Product Name:                           BCM20702A0
  Serial Number:
  USB Version Supported:                  2.00
  USB Device Speed:                       USB 1.1 Full-speed
  Driver Description:                     Broadcom Bluetooth 4.0 USB
  Hardware ID:                            USB\VID_0489&PID_E042
 [Driver Information]
  Driver Manufacturer:                    Broadcom
  Driver Description:                     Broadcom Bluetooth 4.0 USB
  Driver Provider:                        Broadcom Corporation
  Driver Version:                         6.5.1.1785
  Driver Date:                            26-Jan-2012
  DeviceInstanceId                        USB\VID_0489&PID_E042\08EDB9D73CBA

[Port2] : No Device Connected ---------------------------------------------


Intel(R) 7 Series/C216 Chipset Family USB Enhanced Host Controller - 1E26 -


Root Hub ------------------------------------------------------------------


[Port1] : USB Hub ---------------------------------------------------------


[Port1] : No Device Connected ---------------------------------------------


[Port2] : No Device Connected ---------------------------------------------


[Port3] : No Device Connected ---------------------------------------------


[Port4] : No Device Connected ---------------------------------------------


[Port5] : No Device Connected ---------------------------------------------


[Port6] : USB Composite Device --------------------------------------------

 [Device Information]
  Device Manufacturer:                    Vimicro corp.
  Product Name:                           Lenovo EasyCamera
  Serial Number:                          N/A
  USB Version Supported:                  2.00
  USB Device Speed:                       USB 2.0 High-speed
  Driver Description:                     USB Composite Device
  Hardware ID:                            USB\VID_5986&PID_0296
 [Driver Information]
  Driver Manufacturer:                    (Standard USB Host Controller)
  Driver Description:                     USB Composite Device
  Driver Provider:                        Microsoft
  Driver Version:                         6.1.7601.17586
  Driver Date:                            20-Jun-2006
  DeviceInstanceId                        USB\VID_5986&PID_0296\6&2CAE7568&0&6

[Port2] : No Device Connected ---------------------------------------------


Intel(R) USB 3.0 eXtensible Host Controller -------------------------------


Root Hub ------------------------------------------------------------------


[Port1] : No Device Connected ---------------------------------------------


[Port2] : No Device Connected ---------------------------------------------


[Port3] : No Device Connected ---------------------------------------------


[Port4] : No Device Connected ---------------------------------------------


[Port5] : No Device Connected ---------------------------------------------


[Port6] : No Device Connected ---------------------------------------------


[Port7] : No Device Connected ---------------------------------------------


[Port8] : No Device Connected ---------------------------------------------


Smart Battery -------------------------------------------------------------


Battery #0 ----------------------------------------------------------------

 [General Properties]
  Device Name:                            PABAS0241231
  Manufacturer Name:                      SANYO
  Serial Number:                          41167
  Unique ID:                              41167SANYO PABAS0241231
  Chemistry:                              Lithium Ion
  Designed Capacity:                      7236 mWh
  Full Charged Capacity:                  7325 mWh
  Wear Level:                             0.0 %
 [Current Power Status]
  Power Status:                           On AC Power
  Current Capacity:                       7325 mWh (100.0 %)
  Current Voltage:                        12.551 V



Is it possible to install an SSD in the y580 and keep the stock hard drive installed?



from what I understand you can either install an ssd drive in the msata II slot or remove the optical drive and put one there



Is it (the mSATA) SATA II with 3Gb/s or SATA III with 6Gb/s? I'd love to have more speed!



I can do that in the optical bay? I'm assuming I'd need a casing and a proper caddy. I might just opt for that..I'd love to have another ssd. I have an mSata as a cache and boot drive from factory.

Any good deals on SSD's?



I can't find any caddys
If anyone finds one, mind linking it?



im pretty sure the msata port is only sata II but that is only based on what ive heard from other users. it shouldnt make a huge difference on user experience but it will definitely show up while benchmarking. it'd be great if someone could verify this.

yup! i only purchased the 1tb version so im looking for a good deal on a ssd or msata ssd too. ive seen some decent deals but im still not sure what type of setup i want to go for.



msata is sata III on my y580-20994HU.



that's great! thanks for the info. guess that means im going the msata route. now to decide whether to buy for os/main apps or cache
