    Intel 7260?

    Discussion in 'Networking and Wireless' started by Aeny, Apr 19, 2013.

  1. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    6300 should be a 3 wire card, 7260 is only two, that is probably why you lose some signal. 5GHz is good for line of sight, but not real great through walls. I can get 40-50MB/sec with 5GHz line of sight (yes 50 MB/sec ~ 400 Mbps), but go through a couple walls and it drops more than half.

  2. Qing Dao

    Qing Dao Notebook Deity

    Reputations:
    1,600
    Messages:
    1,771
    Likes Received:
    304
    Trophy Points:
    101
    I really can't wait to finally try out 5Ghz AC once I get back to Shanghai. At my apartment the 2.4Ghz band is extremely crowded while the 5Ghz band was completely free last time I checked. The apartment is kind of small and there would be at most one wall in the way.

  3. tomsliwowski

    tomsliwowski Notebook Guru

    Reputations:
    21
    Messages:
    53
    Likes Received:
    6
    Trophy Points:
    16
    I think it depends on what your house is made of. My house is an 90yr old Brick + plaster construction and I get the same speeds from my P34G running a AC-7260 to my router 1 floor up. I tested this by transferring about 30GB of data from my laptop to a hardwired NAS server and got from 45MB/s to 55MB/s during the entire transfer.

  4. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    My house is also all brick and plaster and while it can go through my wood floors just fine it can't penetrate the plaster. Plaster has a metal mesh which can mess up the signal. Outside only 20 feet from my router I only get about 2 bars and 10 mb/s if I'm next to my house.

  5. NovaTornado

    NovaTornado Notebook Consultant

    Reputations:
    20
    Messages:
    205
    Likes Received:
    9
    Trophy Points:
    31
    New driver out 17.12.0.4 out Station-Drivers. Installing now. Hope its better.

    WhatsThePoint and adnanone like this.
  6. WhatsThePoint

    WhatsThePoint Notebook Virtuoso

    Reputations:
    3,338
    Messages:
    3,322
    Likes Received:
    809
    Trophy Points:
    181
    For me on my MSI GS60 and GT780DX with an AC-7260 installed both notebooks still have the issue of no networks available after coming out of sleep mode just as with the previous driver,version 17.1.0

    After a reboot the available networks reappear.

    Rolling back to 17.0.6 ....again!

    :( :( :(

  7. NovaTornado

    NovaTornado Notebook Consultant

    Reputations:
    20
    Messages:
    205
    Likes Received:
    9
    Trophy Points:
    31
    :\ Works for me, though 17.1 did as well. Noticing no significant differences from 17.1 so far.

  8. smitty123

    smitty123 Notebook Evangelist

    Reputations:
    110
    Messages:
    622
    Likes Received:
    15
    Trophy Points:
    31
    WTP, NovaTornado

    What is your OS ?

    maybe it might have something to do with it.

    My mother's laptop is an HP , it has Win7 and an Intel Centrino card and it too won't reconnect from sleep until done manually no reboot necessary tho.

    In my experience with my GT780DXR, none of the wifi cards in it would reconnect by itself after sleep.

    - Intel Centrino 150n card that came with it wouldn't reconnect.
    - Killer Networks 1103 card, with both KN's drivers and Qualcomms/Atheros
    - Intel 7260 doen't either.

    I wonder if win7 itself is the culprit. it was the only OS i used on that laptop.
    Either the os is too slow at reconnecting (more than 30 sec we all get impatient) or just doesn't do it ?

    All i can say for now is i'm using 8.1 on an Acer Aspire E1 with a Qualcomm Atheros AR956 and it reconnects fine after sleep.

    i've never had win8.1 on my gaming laptop with any of the wifi cards in it, but i might just test it out for fun, fresh install, new drivers. if i can find a good 8.1 iso to use.

  9. NovaTornado

    NovaTornado Notebook Consultant

    Reputations:
    20
    Messages:
    205
    Likes Received:
    9
    Trophy Points:
    31
    I using Windows 8 on a Razer Blade 14" 2013. Used to have a killer card, but the bluetooth didn't work very well in that one so I swapped.

  10. cbautis2

    cbautis2 Notebook Consultant

    Reputations:
    210
    Messages:
    268
    Likes Received:
    45
    Trophy Points:
    41
    Intel 7260 on my Windows 7 64-bit SP1 fully updated reconnects instantly after sleep. It isn't Windows 7. Maybe some PCI-E settings prevent the adapter from waking up after sleep

  11. WhatsThePoint

    WhatsThePoint Notebook Virtuoso

    Reputations:
    3,338
    Messages:
    3,322
    Likes Received:
    809
    Trophy Points:
    181
    I'm on Windows 8.1 update 2 on both MSI notebooks.

    Drivers 17.0.6 all the way back to the 1st 16 series that supported the AC-7260 worked without issues.They only differed in link speed.

    Connection issues only started with 17.1.0

    If I close the lid putting it in sleep mode and then open the lid there's no white bars or SSIDs when the desktop appears.

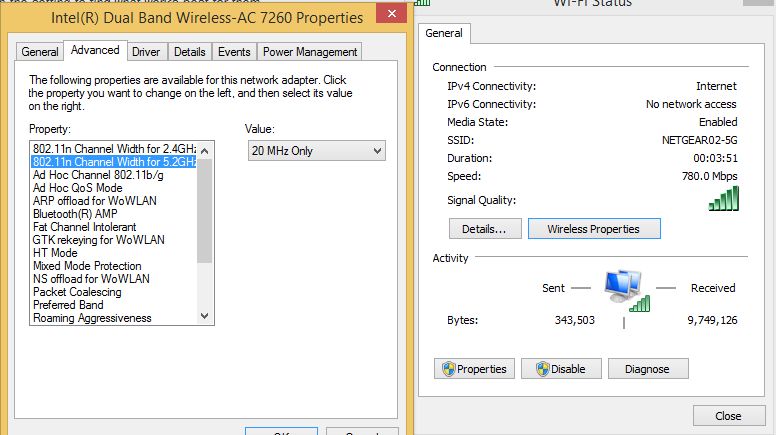

    Normally I have 5 bars and link speeds between 702 Mbps and 866.7 Mbps

    sfc /scannow was clean
    500 pings to the router very good
    router and card setting OK

    I'll do a clean install on a spare drive to see if I have a software issue.

  12. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    I have sleep issues too with my 7260AC also, Windows 8.1. Coming out of sleep, it doesn't recognize the card. Only with the latest driver, but in general performance is more stable. I have to reboot my machine coming out of sleep to get the card working again. Come on Intel! You can do better.

    WhatsThePoint likes this.
  13. davidricardo86

    davidricardo86 Notebook Deity

    Reputations:
    2,376
    Messages:
    1,774
    Likes Received:
    109
    Trophy Points:
    81
    So many issues with something you'd think is so simple. Y'all are scaring me to even install and use my AC 7260.

    Sent from my XT1049 using Tapatalk

  14. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    It's not horrible, but it seems Intel seems to fix one thing and break something else with each driver release. I was happy because performance has become reasonably stable with the last driver for gaming (i.e minimal to no ping drops). But the sleep issues is annoying.

  15. baii

    baii Sone

    Reputations:
    1,420
    Messages:
    3,925
    Likes Received:
    201
    Trophy Points:
    131
    My take is to install the Intel proset software, using the restart proset option let me keep using the card w.o reboot. But yea, it doesn't really "solve " the problem...

    HTWingNut likes this.
  16. WhatsThePoint

    WhatsThePoint Notebook Virtuoso

    Reputations:
    3,338
    Messages:
    3,322
    Likes Received:
    809
    Trophy Points:
    181
    I've again tried out the 17.12.0.4 driver in both Windows 8.1 Update 2 MSI notebooks with an AC-7260.

    Now the old Sandy Bridge GT780DX notebook works after coming out of sleep mode with 5 bars and the normal 702 Mbps to 867 Mbps link speed.

    The new GS60 is still having connection issues after coming out of sleep mode.

    Why the one notebook has resolved the issue and the other has not is unknown to me.

    Both have all the Windows Updates and have been cleaned of old updates using the KUC 8.1 Update Checker.
    KUC a utility to check you Windows 7; 2008 R2; WMS; or Win embedded update status

  17. clanderson

    clanderson Notebook Guru

    Reputations:
    188
    Messages:
    74
    Likes Received:
    4
    Trophy Points:
    16
    MrPromaster likes this.
  18. Qing Dao

    Qing Dao Notebook Deity

    Reputations:
    1,600
    Messages:
    1,771
    Likes Received:
    304
    Trophy Points:
    101
    I've had some issues with the card not working after sleep. Sometimes it works but sometimes it doesn't. The hardware wireless switch doesn't change anything. If I open up my network adapters and disable and then re-enable it, it works again.

  19. davidricardo86

    davidricardo86 Notebook Deity

    Reputations:
    2,376
    Messages:
    1,774
    Likes Received:
    109
    Trophy Points:
    81
    Let us see what the difference is versus a non-revised with some pictures please!


    I apologize if this seems like a foolish question but do I have to download a separate Bluetooth driver package for the Intel Dual Band AC 7260 or are the Bluetooth drivers already bundled with the WiFi driver?

    clanderson likes this.
  20. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    Download the separate bluetooth package.

    I'm curious what this "revised" adapter is all about too. ??? I hope this card doesn't require a hardware fix. But if it's a solid update, non ping drops, no sleep issues, etc, it'll be worth $30.

    davidricardo86 and clanderson like this.
  21. MrPromaster

    MrPromaster Notebook Enthusiast

    Reputations:
    7
    Messages:
    41
    Likes Received:
    14
    Trophy Points:
    16
    It would be really interesting to see some comparison photos between the two revisions! please make it happen @clanderson :)

    clanderson likes this.
  22. Qing Dao

    Qing Dao Notebook Deity

    Reputations:
    1,600
    Messages:
    1,771
    Likes Received:
    304
    Trophy Points:
    101
    The difference could even just be a firmware update.

  23. clanderson

    clanderson Notebook Guru

    Reputations:
    188
    Messages:
    74
    Likes Received:
    4
    Trophy Points:
    16
    As I don't have a previous 7260 for reference, I can only provide pictures/stats regarding this "new revision", but I will gladly do so!
    It's scheduled to arrive tomorrow (9/16/14).

    Let me know if anybody else would like some sort of testing done with it. I'd love to give back to a community that helped me so much!

  24. viper1337s

    viper1337s Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    Just returned my 15 day old card and ordered this new one. I had disconnect problems with 5 ghz band and that was a June production. Just have to hope that amazon wont try to ship out old stock since its fulfilled by them.

  25. WhatsThePoint

    WhatsThePoint Notebook Virtuoso

    Reputations:
    3,338
    Messages:
    3,322
    Likes Received:
    809
    Trophy Points:
    181
  26. davidricardo86

    davidricardo86 Notebook Deity

    Reputations:
    2,376
    Messages:
    1,774
    Likes Received:
    109
    Trophy Points:
    81
    How can I check my date code or revision number? I'm curious to know which I have

    Sent from my XT1049 using Tapatalk

  27. WhatsThePoint

    WhatsThePoint Notebook Virtuoso

    Reputations:
    3,338
    Messages:
    3,322
    Likes Received:
    809
    Trophy Points:
    181
    In my post above link there's an example of date silkscreened on the reverse side of the wireless card.

    "PCB text (date code 4712, Nov. 2012) is silkscreened on the back of the module)

    So I gather it to be the 47th week in year 2012

    Mine shows 2314 silk screened so I gather it to mean the 23rd week of 2014.(Mid June,2014)

    The suffix G and WB denotes the amount of pieces in a bulk pack the card is from...10 to 100 or 1000?

    7260.HMW​
    Intel® Dual Band Wireless-AC 7260​
    2.4/5 Ghz 802.11 ac/a/b/g/n Bluetooth 4.0 ​
    HMC Form factor (M.2 Format 7260.NGW)​

    7260.HMW AN ​
    Intel® Dual Band Wireless-N 7260​
    2.4/5 Ghz 802.11 a/b/g/n Bluetooth 4.0 ​
    HMC Form factor (M.2 Format 7260.NGW AN)​

    7260.HMW NB​
    Intel® Dual Band Wireless-N 7260​
    2.4/5 Ghz 802.11 a/b/g/n ​
    HMC Form factor (M.2 Format 7260.NGW NB)​

    7260.HMW BN​
    Intel® Wireless-N 7260 Plus Bluetooth​
    2.4 Ghz 802.11 b/g/n Bluetooth 4.0 ​
    HMC Form factor (M.2 Format 7260.NGW BN)​

  28. clanderson

    clanderson Notebook Guru

    Reputations:
    188
    Messages:
    74
    Likes Received:
    4
    Trophy Points:
    16
    I'm not sure I understand how you got from PB#G83349 to 4712 - can you elaborate?

  29. WhatsThePoint

    WhatsThePoint Notebook Virtuoso

    Reputations:
    3,338
    Messages:
    3,322
    Likes Received:
    809
    Trophy Points:
    181
    On the rear of the AC-7260 along the bottom edge there's silkscreened numbers

    Click on the 'one card' reverse side image and look on the bottom edge of the card right above the pins

    In the example on the linked page besides the PB#G83349 there's other numbers;that's the date code 4712

    Mine are PB#H17074 and date code 2314 0:01

  30. nbrguy

    nbrguy Notebook Enthusiast

    Reputations:
    0
    Messages:
    27
    Likes Received:
    2
    Trophy Points:
    6
    Here's further proof that there is a new revision of the 7260 card. I stumbled onto this by accident.

    The FRU parts list for the Lenovo ThinkPad 11e has 2 7260's listed. Note that these cards are M.2 form factor.

    04W3845 - 2 Intel Wilkins Peak 2 7260 2*2 11agn+BT4.0 M.2 Card Indonesia SKU
    04X6008 - 2 Intel Wilkins Peak 2 7260 2*2 11agn+BT4.0 M.2 Card Wake# Issue Fix SKU

    The second one says "Wake Issue Fix".

    The question is whether Lenovo or any other laptop manufacturer will give you a new card if you have sleep problems with your current card. This remains to be seen.

    WhatsThePoint and davidricardo86 like this.
  31. WhatsThePoint

    WhatsThePoint Notebook Virtuoso

    Reputations:
    3,338
    Messages:
    3,322
    Likes Received:
    809
    Trophy Points:
    181
    If my AC-7260 in a new MSI GS60 has sleep issue with the new 17.1 and 17.12 drivers but not with 17.0.6 and prior versions I don't think it's a hardware problem.

    EDIT:the card I'm having sleep issues with is an
    M.2 Format AC-7260NGW

    WP2 E10
    PB#17087 001
    Date 1114 088

  32. davidricardo86

    davidricardo86 Notebook Deity

    Reputations:
    2,376
    Messages:
    1,774
    Likes Received:
    109
    Trophy Points:
    81
    Any chance of Intel doing a recall on the "bad" batch? Could it be fixed by firmware and driver updates?

    Sent from my XT1049 using Tapatalk

  33. clanderson

    clanderson Notebook Guru

    Reputations:
    188
    Messages:
    74
    Likes Received:
    4
    Trophy Points:
    16
    Still a little confused. I don't see 4712 anywhere in this image. I do see 1113 - is that the date code?

    davidricardo86 likes this.
  34. WhatsThePoint

    WhatsThePoint Notebook Virtuoso

    Reputations:
    3,338
    Messages:
    3,322
    Likes Received:
    809
    Trophy Points:
    181
    @clanderson

    Yes,that's the date code(1113) in the image.

    The 4712 Nov 2012 is the example without image stated at the beginning of the article


    @ davidricardo86

    I have no information but I'll notify MSI and my reseller of my issue and see what they say.

    I advise anyone else with a card that's giving them sleep issues to do the same.

    They'll probably say this is the first we're hearing about it.

    I don't want to RMA the whole notebook and lose the use of it for weeks just to do a 5 minute job swapping out the card.

  35. clanderson

    clanderson Notebook Guru

    Reputations:
    188
    Messages:
    74
    Likes Received:
    4
    Trophy Points:
    16
    Got the card in today! I was about to post images up but wasn't sure if I should blur anything out as far as S/N's or anything - any help there before I upload?

  36. clanderson

    clanderson Notebook Guru

    Reputations:
    188
    Messages:
    74
    Likes Received:
    4
    Trophy Points:
    16
    What should my wireless speed be? I'm getting between 540Mbps and 780Mbps, with a throughput of a disappointing 30MBps...

    Also, I don't see any ac options listed in my NIC properties in device manager - just b/g/n.. Is there something wrong there?

  37. WhatsThePoint

    WhatsThePoint Notebook Virtuoso

    Reputations:
    3,338
    Messages:
    3,322
    Likes Received:
    809
    Trophy Points:
    181
    In my AC-7260 Advanced Properties my option is a/b/g

    Right now I'm using these settings but I'm sometimes trying others

    802.11n Channel Width for 2.4Ghz = Auto
    802.11n Channel Width for 5.2Ghz = 20Mhz Only
    Ad Hoc Channel = 802.11 b/g
    Ad Hoc Qos Mode = Disabled
    ARP offload for WoWLAN = Disabled
    Bluetooth = Enabled
    Fat Channel Intolerant = Enabled
    GTK rekeying for WoWLAN = Disabled
    HT Mode = HT Mode
    Mixed Mode Portection = CTS-t-self Enable
    NS offload for WoWLAN = Disabled
    Packed Coalescing = Disabled
    Preffered Band = 5.2Ghz band
    Roaming Aggressiveness = Lowest
    Sleep on WoWLAN Disconnect = Disabled
    Transmit Power = Highest
    U-APSD support = Disabled
    Wake on Magic Packet = Disabled
    Wake on Pattern Match = Disabled
    Wireless Mode = 802.11a/b/g

    When the notebook with the AC-7260 is paired with a quality AC router and in line of sight with the router at 5' to 10' distance you should get the max 866.7 Mbps.

    Further distance and going through walls and floor will almost always lower the link speeds.

    So what's the production date on the new revision card you received?

    Is it mini pcie or M.2?

  38. clanderson

    clanderson Notebook Guru

    Reputations:
    188
    Messages:
    74
    Likes Received:
    4
    Trophy Points:
    16
    Thanks for the info pal.

    The date code on mine is 2314, so between June 2 and June 8 of 2014.
    This seems to be contrary to the "new revision" description.
    It's mini pcie.

    I can also no longer see my neighbors SSID broadcasts like I could with my Intel 6235 card. But - my mistake - my card does in fact say a/b/g, not b/g/n like I mentioned earlier.
    As for my speed, I'm about ~20' from my router, which is on a different floor. I suppose this is the issue.
    Are there any reliable ac repeaters?

    Also, can I ask you to explain why you have your card set to 20MHz only on the 5GHz band as well as why you have your WoWLAN settings configured the way they are? Learning as I go :).

  39. WhatsThePoint

    WhatsThePoint Notebook Virtuoso

    Reputations:
    3,338
    Messages:
    3,322
    Likes Received:
    809
    Trophy Points:
    181
    My setting are set after a lot of experimenting changing one at a time over the course of a few day and comparing performance before and after the change.

    The AC-7260 will do little to nothing to change results of speedtest.net and download/upload speed that rely on your ISP and the sites you are connecting to.

    The AC-7260 shines in transferring files across your home network.

    While I'm showing a link speed of 866.7 Mbps I can transfer a Windows 8.1 ISO file from my desktop to my notebook at an average 45 MB/s and between 2 notebooks

    with AC-7260 cards installed at nearly the same speeds.

    When not in line of sight and less than 866.7 Mbps transfer speeds will be slower.

    Transfer speeds are measured with TeraCopy


    Floor are tougher to penetrate than most walls.
    I have no first hand knowledge on extenders so I recommend you visit smallnetbuilder.com

    downloads and clanderson like this.
  40. baii

    baii Sone

    Reputations:
    1,420
    Messages:
    3,925
    Likes Received:
    201
    Trophy Points:
    131
    If have have ~ 75+ mbps internet connection and the machine is in medium/end of 5ghz range. AC can help.

  41. WhatsThePoint

    WhatsThePoint Notebook Virtuoso

    Reputations:
    3,338
    Messages:
    3,322
    Likes Received:
    809
    Trophy Points:
    181
    My experience is a bit different.

    A while back while I was still residing in Korea and had great cheap Internet I did a lot of testing my Internet connections and downloading with an early AC-7260,Killer 1103(3x3),Killer 1102 and a 6230.

    The differences I observed were due mostly to time and day and the sites I was connecting to and not the wireless card in use.

    The tests were with the same router and settings from the same location in the apartment.

    When I changed ISP from LG to SK my Internet speeds all dropped a wee bit.

    The big difference experienced with the AC-7260 is in file transfers across devices on the home network.The AC-7260 was the clear winner over the closest rival 1103 by at least 15 MB/s.

  42. viper1337s

    viper1337s Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    Looks like amazon gave you an old product (should be a September unit). if it was not fullfilled by amazon you would have got the newest revision.

  43. clanderson

    clanderson Notebook Guru

    Reputations:
    188
    Messages:
    74
    Likes Received:
    4
    Trophy Points:
    16
    Well, I contacted Amazon about the issue. After telling them my card has an old date on it, I was assured, in broken English, that the card would not expire any time soon :rolleyes:...
    I'll be returning it for another go as soon as I can.

    On a side note, would some larger antennas possibly help my speed problem?

    HTWingNut and WhatsThePoint like this.
  44. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    LOL! Sigh. Did you tell them you were not buying produce?

    clanderson likes this.
  45. lepa71

    lepa71 Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    1
    Trophy Points:
    6
    I'm not sure you settings are correct on 5.2Ghz = 20Mhz Only

    I always thought that 20Mhz is 150Mbps max. 40Mhz is 300 and 80Mhz( believe required for AC) is 866

    May be I'm wrong. Also I hope you SSDs in those laptops when you perform your laptop to laptop speed test, otherwise you may have a bottleneck at HD level.

    btw which router do you have?



  46. WhatsThePoint

    WhatsThePoint Notebook Virtuoso

    Reputations:
    3,338
    Messages:
    3,322
    Likes Received:
    809
    Trophy Points:
    181
    Yes,I have only SSDs in my notebooks.

    The spinners I have are used for external storage

    My router is a Netgear R7000

    Everyone will need to experiment with the setting to find what works best for them .

    Settings I used a few days ago may not be those that I'm using today.

    The 802.11n Channel Width for 5.2Ghz setting like the rest of them should be tried on AUTO and 20hz and see if it makes a difference on your AC card.

    The U-APSD support = Disabled is one setting I suggest you leave as disabled.

  47. clanderson

    clanderson Notebook Guru

    Reputations:
    188
    Messages:
    74
    Likes Received:
    4
    Trophy Points:
    16
    That's strange...
    The reason AC can achieve such high speeds is because of the 80MHz channel width. 20 MHz should severely limit you

  48. WhatsThePoint

    WhatsThePoint Notebook Virtuoso

    Reputations:
    3,338
    Messages:
    3,322
    Likes Received:
    809
    Trophy Points:
    181
    I'm in my living room about 20' from the R7000 router with 1 sheet rock wall in between


    Attached Files:

  49. lepa71

    lepa71 Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    1
    Trophy Points:
    6
    That's what I'm saying. Unless intel drivers ignoring their own settings. I wouldn't be surprised


    what intel drivers version are you on? Are you using official Netgear fw?

  50. clanderson

    clanderson Notebook Guru

    Reputations:
    188
    Messages:
    74
    Likes Received:
    4
    Trophy Points:
    16
    Yea, real weird. I can also set mine to 20MHz and get "ac speeds". Not sure what's in play there.

← Previous pageNext page →
