Intel 7260?

Have you tried switching to Open dns or google dns? If not, give it a try.



Which Router?

Check that both antenna wires are connected
Pull out the AC-7260 and reseat it in the mini pcie slot
Router is set to WPA2 AES ONLY
5ghz channel selection...try different channel(I use 161
W-APSD is disabled in the AC-7260 Advanced Settings
Wireless Mode set to 802.11a/b/g in the AC-7260 Advanced Settings
In AC-7260 Power Management uncheck "Turn off to save power"
Control Panel power option while plugged in on High Performance
Router QOS settings WMM should be enabled on both bands
Try turning off Speed Steeping if enabled in the bios

Unplug the router power for 20 seconds to clear cache

Reset the router if needed

If Windows 10,who is managing WiFi Intel or Windows



Thanks for the replies, guys. As for @ellalan's and @WhatsThePoint 's suggestions - I have fixed the issue by rolling back drivers to those from last September. Works fine and I get fairly high speeds of 200-300 Mb/s with an Ookla SpeedTest check. But that's obviously not the best solution - rolling back drivers.

To address @WhatsThePoint 's post specifically:

1) Router is an ASUS RT-AC87U with the latest firmware installed.

2) Yep, both antennae are connected. I haven't touched the chip since it was installed.

3) As for the rest, I need to check on those.

4) Not on Windows 10 - still using Windows 8.1.
Thanks very much guys.



Nothing wrong with rolling back drivers tbh.

Sent from my 306SH



I have a Netgear R7000 paired with an AC-7260 in a 4 year old Sandy Bridge Notebook and a gaming desktop using driver 18.12.1.2 without issue.

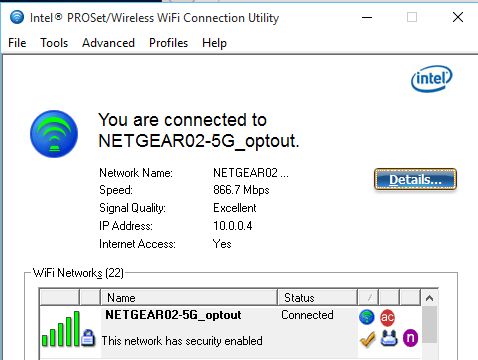

I'm 10' from the router and in line of site.I connect at 866.7Mbps on the 5ghz band but it sometimes drops to 780Mbps

I have an AC-7265 in a different notebook using driver 18.12.1.2

I have Windows 10 Insider Preview build 10525,Windows 8.1 and Windows 7 on 3 SSDs in this notebook with all 3 using 18.12.1.2

I might suggest "completely" uninstalling the Intel Wireless ProSet and Bluetooth software>rebooting and then installing 18.12.1.2 again.

Right click on AC-7260 in Network Adapters and Uninstall device/software/settings
In Control Panel>Programs and Features >uninstall all Intel Wireless and Bluetooth
In Program Files>Intel>delete Intel WiFi,WiFi drivers



I have acer aspire e5-572g-56f2 and replace atheros con intel 7260 but i need new antena , for good semnal replace antena , my old antena work 2,4gh and new antena work dual band 2,4 gh and 5 gh and signal it's more power . sorry for my bad english .

http://www.delock.com/produkte/F_701_Antennen_88983/merkmale.html



I've always read antenna's don't matter. There's no gain in them? Anyone who knows more about this subject??

I also have a E5-572g which comes with a Qualcomm Atheros QCWB335. It is said to be a 1x1 card but uses 2 antennas (main+alt, Then what is alt used for? Bluetooth?). I'm planning to upgrade with the eventual successor of the 7260. That's going to be an Intel Dual Band Wireless-AC 9260 Plus Bluetooth which uses PCIe (NGFF) as do some of the 7620's. So my question is the following, Is your 7620 a NGFF card or mPCIe, and if NGFF, what sort of adapter did you use to make it work?

~Aeny



Intel PROSet/Wireless 18.20.0.9 WHQL

https://downloadmirror.intel.com/25275/eng/Wireless_18.20.0_all.zip

download size 363.76MB

This download is valid for the products listed below:

Windows 10, 8.1, and 7 (32/64) - 18.20.0.9
Intel® Dual Band Wireless-AC 7260
Intel® Dual Band Wireless-N 7260
Intel® Wireless-N 7260
Intel® Dual Band Wireless-AC 3160
Intel® Dual Band Wireless-AC 3165
Intel® Dual Band Wireless-AC 7260 for Desktop
Intel® Dual Band Wireless-AC 7265
Intel® Dual Band Wireless-N 7265
Intel® Wireless-N 7265

Windows 7 (32/64) - 15.17.0.1
Windows 8 and 8.1 (32/64) - 15.18.0.1
Intel® Centrino® Wireless-N 105
Intel® Centrino® Wireless-N 135
Intel® Centrino® Wireless-N 2230
Intel® Centrino® Advanced-N 6235
Intel® Centrino® Advanced-N 6205
Intel® Centrino® Ultimate-N 6300

Windows 7, 8, and 8.1 (32/64) - 15.17.0.1
Intel® Centrino® Advanced-N 6200
Intel® Centrino® Advanced-N 6230



hi guys .... just wondering if the covering pin 20 trick works on ac7260 with a thinkpad T430 for Whitelist trick

my problem is that i dont know which one is pin 20 ....on the back side there are fewer pins than in all documentation i could find

so ...can someone post a pic pointing the pin 20 if there is still one ?

thanks



Have you looked on the thinkpad forum for modded bios?

Maybe this will help in taping pin # 20 and pin # 51



I have a "noraml" 7260ac working in x200, don't really think you need a lenovo brand one. The pin trick wont pass a whitelist.



You need Lenovo card for most Lenovo notebooks - yours might not have a white list to begin with, but you are right that taping the pin won't help with the white-list.



What drivers did you go back to??/ My three laptops lose connections daily, and Comcast/xfinity has looked at all gear, and I have used three modems and two wifi routers. Nothing changed.



New drivers WTP posted working fine for 7260AC, 5GHz band performs better than combined



Yeap,IMO the 18.20.0.9 is a keeper

I have installed them on a desktop Ac-7260,notebook AC-7260HMW and a notebook AC-7265NWG

If you prefer an exe instead of the zip file get them at link below
https://downloadcenter.intel.com/product/72252/Intel-PROSet-Wireless-Software

18.12.2.2 is not a keeper



Quick question, which of these zip's do i use to update my ac7265 cards wifi drivers? I don't want Intel proset on my pc. Thanks
Edit: I'm on win10 64bit



Which file should you download for Windows 10?
For the following adapters:
Intel® Dual Band Wireless-AC 3165
Intel® Dual Band Wireless-AC 7265
Intel® Dual Band Wireless-N 7265
Intel® PROSet/Wireless Software
Intel® Tri-Band Wireless-AC 17265
Intel® Wireless-N 7265

Windows 10 32-bit and 64-bit driver only:
Windows 10 32-Bit: Wireless_(version)_Dt32.zip
Windows 10 64-Bit: Wireless_(version)_Dt64.zip

For the following adapters:
Intel® Dual Band Wireless-AC 3160
Intel® Dual Band Wireless-AC 7260
Intel® Dual Band Wireless-AC 7260 for Desktop
Intel® Dual Band Wireless-N 7260
Intel® Wireless-N 7260

Windows 10 32-bit and 64-bit drivers only: (use the Windows 8.1 drivers which are dual signed drivers for both Windows 8.1 and 10)
Windows 8.1 32-Bit: Wireless_(version)_De132.zip
Windows 8.1 64-Bit: Wireless_(version)_De164.zip

These files include Windows 10, 8.1 and 7 "application software and drivers".
Windows 10, 8.1 and 7 32-Bit: Wireless_(version)_Win32.zip
Windows 10, 8.1 and 7 64-Bit: Wireless_(version)_Win64.zip



yeah found that picture .... does not work ... ac7260 does not have all the pins on the back .... maybe they changed it

i wanted a actual pic of the card with that pin highlighted...


anyway i modded T430 bios so all works now



This driver turned out to be a disaster for me on Win 7 64bit with Intel 7260.
More specifically 5GHz upload (when the notebook is transmitting) went down to 3MB/s. Download speeds on 5GHz were fine and both upload and download were fine on 2.4GHz as well.



I haven't tried on my Windows 7 x64 Ultimate since I mainly use the drive for color management software,photo editing and printing.

My old expensive programs and hardware aren't well supported in Win8.1 and even less in 10

I'll give it a shot a bit later in the day.



I'm looking forward to your test although I won't be surprised at all if you won't experience any issues.
It would be way too easy if you would as well

I spent quite some time playing with all sort of settings (assuming Windows networking settings were at fault) but rolling back the driver to 18.0.0.11 did the trick.



I use these drivers, 18.20.0.9, and W7 Home premium 64 bit. Are there setting that it should be set to for best performance, or leave defaulted. I am having comcast come to my house for loss of connection daily on all three laptops, and slow speeds (11Mbs vice 75Mbs when connected via cable to), same wifi adapter, and want to ensure everything is as is recommended so there is no gotcha moment by the tech



Do you have your own wireless router connected to the Comcast equipment in bridge or access point mode or do you just use their equipment?

The 18,20.0.9 is the latest release but you may want to try 18.12.4 that Intel posted a few days ago,09/17/15, but is a bit older than the 18.20.0 posted on 09/09/15

18.12.4 compiled 8/25/15
https://downloadcenter.intel.com/download/25296

18.20.0 compiled 9/8/15
https://downloadcenter.intel.com/download/25275



I use there equpiment with mine plugged into their. I bridged theirs so mine is the sole wifi provider.



Hi! I was thinking of getting this card to replace my Intel 6230 (got a problem and the notebook still fine, so just i'll just change). Broadcom or Atheros have better solutions (with BT)? I have an AC1200 router in case. I was looking for a card that captures good signal



No one really test and compared them as far as I know, but availability and price is a issue for Broadcom and atheros card. And their driver update is almost in existent, so any bug you encounter may stay for a while.

Sent from my SM-T700 using Tapatalk



So far I've only seen the AC-8260 as the WiFi on new Z170 Desktop motherboards from Gigabyte(G1,WiFi models) but there may be others.

Intel has now released a Bluetooth driver with the AC-8260 listed as the only supported wireless card.

https://downloadcenter.intel.com/download/25351

The AC-8260 is listed as supported in Wireless ProSet 18.12.4 but not in 18.20.0



Using an Intel AC7260 card on an old Alienware M11xR1 notebook.
The notebook is running Win7 Pro SP1 64bit.

Intel WiFi Driver: 18.20.0.9 (Device Manager)
Intel Wireless Bluetooth: 17.1.1507.528 (Device Manger)

Is there any way to detect if the Bluetooth audio is using aptX® codec in Win7?
Does the current 17.1.1507.528 drivers supports aptX???... I think it does... but not found any way to confirm that.

I have both Sony GTK-N1BT and Denon Envaya Mini bluetooth speakers, which use aptX®

The Bluetooth audio sounds OK on the Denon speaker and I have no complaints, but I'm just wondering if the aptX® codec is being used...or not.

My Android Xperia Z1c phone displays a 'toast' message saying it's connecting with aptX® support when using either of the above speakers.

Thanks for any pointers/info.

Update

If I look at Device Manager -> Sound, Video and Game controllers -> Bluetooth Audio, it says it's using 17.1.1411.498 and as I look at other drivers in Network Adapters like PAN and RFCOMM, they are using divers 6.1.7600.16385.

I have just shamelessly ignored the old original integrated Bluetooth module on the MB and installed the new Intel driver for the Intel AC7260 card over any previous drivers and in my mind, it does seem to be working OK with the AC7260 card. Maybe I should strip the notebook down and remove the original Bluetooth card on the system board.

Update 2

I read the Intel wireless-AC 8x70 supports aptX

Bluetooth*
Bluetooth core 4.1
Bluetooth Features BR/EDR Secure Connections, LE Dual Mode Topology, LE Link Layer Topology, Low Duty Cycle
Directed Advertising, Train Nudging, Generalized Interlaced Scan, and more
Embedded Codec (Host offload) A2DP (Embedded SBC and aptX), HFP (CVSD and mSBC).



I used to have a integrated BT module and windows only allow one of them to work at the same time. Yellow exclamation mark.

Disabling one of them in device manner and there aren't any negative impact.
Sent from my 306SH



Intel PROSet/Wireless WiFi Software Version 18.21.0.2 WHQL

http://www.station-drivers.com/inde...tory&Itemid=352&func=fileinfo&id=1876&lang=fr

For Windows 7/8/8.1/10 (32/64bit)

I've had this installed for a few days



One thing I've learned about Windows 10 is that there are far fewer things that can be controlled by the user including forced updating.

With WiFi there's a choice when using an Intel wireless card to have Windows manage WiFi or Intel manage WiFi.

If you login with a MS account that choice is gone so logging in with a local account is may choice for a bit less spying.

WiFi Sense is turned off.

This brings me to Intel WiFi drivers.With the Official 18.20.0 downloaded from Intel Downloads I have the Intel green Intel WiFi icon in the taskbar and I can access the Intel Connection Utility

With this 18.21.0 driver I have Windows managing WiFi and I have not found a way to change it to Intel managing WiFi.

I deleted 18.21.0 and reinstalled Official 18.20.0 and got Intel managing WiFi back.

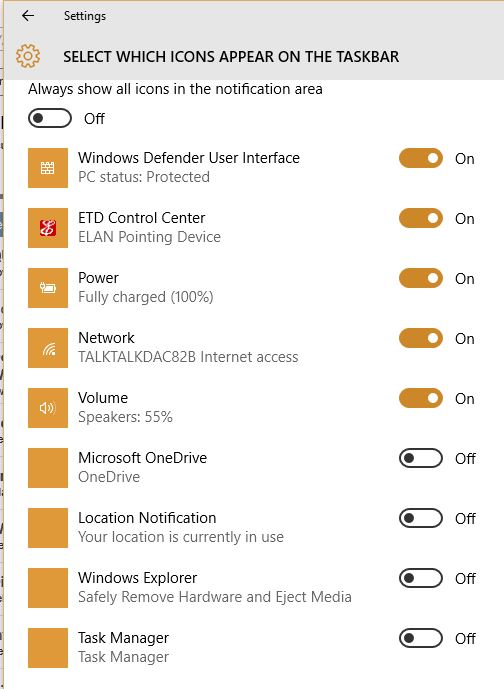

The choice for having the Intel icon appear in the taskbar is missing from the selection of which icons you want to appear in the taskbar in Windows 10 when driver version 18.21.0 that is WHQL is installed
See the attachments of the different icons that can be selected with Official driver 18.20.0.9 and WHQL 18.21.0 from MS partner



Me too, unable to make the Intel icon appear in the Taskbar and unable to start as well with 18.20.0.9 driver.



Intel PROSet/Wireless WiFi Software Version 18.30.0.9 WHQL

http://www.station-drivers.com/inde...ory&Itemid=353&func=startdown&id=1920&lang=en

Windows 7/8/8.1/10 (64bit)

This version of Intel® PROSet/Wireless WiFi Software is compatible with the adapters listed below.

****Note that newer features provided in this software release are generally not supported for older, legacy adapters.

The following adapters are supported on this release for Windows* 8 and Windows* 8.1 with Windows* 7 drivers from Intel®:

• Intel® Centrino® Wireless-N 100
• Intel® Centrino® Wireless-N 130
• Intel® Centrino® Wireless-N 1000
• Intel® Centrino® Wireless-N 1030
• Intel® Centrino® Advanced-N 6200
• Intel® Centrino® Advanced-N 6230

The following adapters are supported on this release for Windows* 8 with Windows* 8 drivers from Intel®.

• Intel® Centrino® Wireless-N 105
• Intel® Centrino® Wireless-N 135
• Intel® Centrino® Wireless-N 2200
• Intel® Centrino® Wireless-N 2230
• Intel® Centrino® Wireless-N + WiMAX 6150
• Intel® Centrino® Advanced-N 6205
• Intel® Centrino® Advanced-N 6235
• Intel® Centrino® Advanced-N + WiMAX 6250
• Intel® Centrino® Ultimate-N 6300
• Intel® Dual Band Wireless-AC 7260
• Intel® Dual Band Wireless-N 7260
• Intel® Wireless-N 7260
• Intel® Dual Band Wireless-AC 3160
• Intel® Dual Band Wireless-AC 7265
• Intel® Dual Band Wireless-N 7265
• Intel® Wireless-N 7265
• Intel® Dual Band Wireless-AC 8260

The following adapters are supported on this release for Windows* 8.1 with Windows* 8 drivers from Intel®.

• Intel® Centrino® Wireless-N 105
• Intel® Centrino® Wireless-N 135
• Intel® Centrino® Wireless-N 2200
• Intel® Centrino® Wireless-N 2230
• Intel® Centrino® Wireless-N + WiMAX 6150
• Intel® Centrino® Advanced-N 6205
• Intel® Centrino® Advanced-N 6235
• Intel® Centrino® Advanced-N + WiMAX 6250
• Intel® Centrino® Ultimate-N 6300

The following adapters are supported on this release for Windows* 8.1 with Windows* 8.1 drivers from Intel®.

• Intel® Dual Band Wireless-AC 7260
• Intel® Dual Band Wireless-N 7260
• Intel® Wireless-N 7260
• Intel® Dual Band Wireless-AC 3160
• Intel® Dual Band Wireless-AC 7265
• Intel® Dual Band Wireless-N 7265
• Intel® Wireless-N 7265
• Intel® Dual Band Wireless-AC 8260

After the update to Unofficial WHQL driver 18.30.0.9 I still have ability to have Intel manage WiFi in Windows 10 build 10586.3(TH2 1511)

Note green Intel WiFi icon in the Taskbar



Guys what is in your opinion the most stable driver for Windows 10 64 bit? I keep getting random disconnects and it is driving me crazy.... Thanks for your help.



I've been trying out unofficial WHQL version 18.30.0.9 but I've had a few disconnects using an AC-7265NGW in a notebook and mini pci-e AC-7260 in a desktop
http://www.station-drivers.com/inde...tory&Itemid=353&func=fileinfo&id=1920&lang=fr

With Official Intel version 18.21.0 I'm not experiencing any disconnects or large fluctuations in connection speeds using mini pcie AC-7260 in a notebook
https://downloadcenter.intel.com/download/25514/Intel-PROSet-Wireless-Software-for-Windows-10



Station driver version 18.30.0.9 working fine without any disconnections, ac7260 card and the OS is Win 10 Home.

EDIT: You may have to try different drivers to find perfect driver for your model, placement of antenna is a problem in this model, you can find it in this review( under Body/Design):
http://forum.notebookreview.com/threads/acer-v-nitro-vn7-791g-quick-review.768964/



Thank you both!
For me it is a Windows 10 / driver issue because it was working fine before W10 Fall Update.
Default Windows driver (don't know what version) not stable
Acer version 18.12.0.3 not stable
Official Intel version 18.21.0 not stable
I'm now on version 18.30.0.9 and it is working fine for the moment.
Update: still no more disconnects with 18.30.09 driver only. I'm very very happy



I have a Windows 10 Pro x64 build 10586.17 installation where I use a local account sign in and have Intel manage WiFi.This was an update over a Windows 8.1 Pro x64 installation on July 29th..This drive is over due for a wipe and clean install.

I normally do a wipe and clean install about every 3~4 months but this install has past the 7 months marker.

Windows 10 WiFi Sense is turned off.

On an different SSD in the same notebook on an Insider Preview installation where I use a MS account to log on,WiFi Sense is enabled and Windows is managing WiFi there 18.30.0.9 works well but I don't do any heavy downloading on it

While doing normal surfing,viewing web pages and forum posting type activities 18.30.0.9 appears to work well

I've not had any disconnect issues with any previous WHQL Intel driver versions since maybe some in the early 16 series.

As we all have learned about home networking over the years past few years is that nothing is for certain.A setup and setting that work for me may not work the same for you an vice versa but shouldn't be extremely different.The health of the OS is the big variable as is the maker's notebook firmware

MSI GT780DX
MSI GS60



Hi reviewers, have been reeding about the connections drops for a few days after purchasing an asus Tx300 with an Atheros 9485. I replaced the atheros with an ac7260HMW and the intel card is stable while using the network under 2.4 ghz with the latest official drivers provided by intel with windows 8.



Any other 802.11AC Wi-Fi + BT card 3 x MIMO with working drivers for windows 7 instead of Intel 7260 for upgrading my ASUS N550JV-CN163D notebook wi-fi card ( Intel 7260 ) ?
I have an 1300Mbps router , and i need 3 x MIMO 801.11ac wi-fi card in my Asus notebook
What do you say about : Asus Broadcom 3x3 BCM94360HMB ?
It is worth to change my Intel 7260 from my Asus notebook with BCM94360HMB or not ?
I'll have win7 drivers for wifi and BT if i'll use BCM94360HMB instead of Intel 7260 ?
I'll need an adapter to can change Intel 7260 with BCM94360HMB ?
If i'll use an adapter than i'll have a lower wifi transfer rate even with Intel 7260 ( 867Mbps link ) ?

thank you



Only a few 3x3 cards exist that are PCIe. The ones that do use different size antenna. So if your laptop doesn't take M.2 cards, NO you can't use that broadcom card because your antenna can't hook up to them.
That would mean you either must use an adapter (which will hurt performance some), pay someone to swap the antenna plug on the card (will cost you), or run external antennas with adapter to SMA which means having wires stick out laptop.

Any of those sellers selling little internal antennas won't work as well either and will result in performance loss because you won't find a good location for antenna to function.

And why do you need faster WiFi? Is your internet 1Gbps? If not it won't matter anyway, your internet wont get faster... Unless you are always moving large files non-stop it doesn't really matter.



Heads-up regarding 18.30.0.9 on Win 10 (and 8260). If I turn off the laptop while it was in Airplane mode, after turning it back on, Wifi can only be enabled by disabling and re-enabling the adapter. No such problem with 18.21.0.



Intel PROSet/Wireless WiFi Software Version 18.32.0.5 WHQL

This driver is WHQL but not on Intel's Official Downloads

Just installed it so I have no comment on it yet.

http://www.station-drivers.com/inde...tory&Itemid=352&func=fileinfo&id=1993&lang=fr



I am fine with this driver so far, no problems whatsoever



Intel PROSet/Wireless WiFi Software Version 18.32.1.2 WHQL

http://www.station-drivers.com/inde...tory&Itemid=352&func=fileinfo&id=2027&lang=en



Thanks WTP



Been using ProSet wireless Software 18.33.0.1 a few days now

http://www.station-drivers.com/inde...tory&Itemid=352&func=fileinfo&id=2041&lang=en



I have tried this driver and works well: http://www.majorgeeks.com/files/details/intel_proset.html
Software version 19.0.1 (Driver 18.33.3.2).
