I don't use many bluetooth devices, but my CF-P2 connected to my son's phone without any problems, and I've seen various people on this thread say that it works with TomTom bluetooth. Check peewee and bigbadbobs links posted on pages 9 and 10 for help



Okay, managed to get things going... Tomtom is now working with my bt gps. And I'm syncing Outlook over BT via Windows Mobile Device Center.

How to sync: first enable an incoming port on the PC via the bluetooth settings. Then allow connections in WMDC to the port just created in the bluetooth settings. Let the P2 find the PC, bond and if all goes well the shared COM port shows up as service of the PC. Select and hold the shared COM port on the P2 and select "use to connect for ActiveSync". Click the port again and syncing will start.... at least it does here....



Hi
I have a Panasonic CF-P2 and I am trying to make my own usb connector using an old GD-92 charger connector.
The problem is I am a complete newby when it comes to wiring so please please could somebody tell me where to solder the usb wires to the GD-92 connector please? I have looked at prevoius posts but they don't make much sense to me.
A diagram would be much appreciated if somebody can please do this?
Many many thanks



Open the connector end of the GD92 and remove the connector with wires attached. Unsolder the wires that are on the connector. With the connector lying on a flat surface with the notch up (you will see a small notch in the center of one side, no notch on the other), position one is on the far left. Position one is where the black (ground wire) from the USB donor cable will be soldered. Then using the wiring chart in post #84 of this thread, you will solder the other three wires. As in the notes in the posts following #84, you do not need the jumper. Just solder all four wires in the appropriate places, make sure no wires/solder are touching each other and then put the connector back together.



Thanks very much for the quick response and useful info! I wired up as instructed but nothing happens when plugged in?
I'll triple check everything but sure i have done it correctly.



Sorry about previus post, one of the wires was slightly touching another so carefully adjusted it and now it connects to pc! I'm very happy it works! thanks to everyone for the handy info!



denrosten is a gentleman and a credit to the site. good karma to the man.



I wired my car kit today but didnt want to use the chunky cradle.
if you open the cradle and remove the connector, with a bit of careful trimming you can get the insert to fit in a gd92 connector housing.
i now have a short lead coming out of the dash to connect to the p2 which sits in a small cradle clipped to the air vent.
Planning on wiring the mic and speaker to my car audio system.



Good find, i don't use the car kit becouse it's to bulky
I will try it your way, thanks



Hi,

I'm new here, just bought one of these phones today, but it has got the British gas software on it, does anybody please have a back up file for an SD card from a working phone so I can remove it's current software.

Thanks

Hanny



I do, I'll swap you!
Could you PM me your email and I'll send it



Hanny cannot PM yet as his post count is less than 15.



This has worked for me but if you both are on .ebay. post one of your user name and contact him that way........worth a try



Hanny, email me at
Sorry It's against poicy to post email addresses (I didn't know)

Hanny, get 15 posts up then PM me, I'll happily send the backup then!
Cheers,
Fraser



We don't post our email address here....it's not safe ....as soon as one of the Moderators spots it they will remove it....thats why I said just post your .ebay. user name....this is just tip



Ahh, I was planning on editing the post as soon as he'd got back to me.

Cheers,
Fraser



hi thanks for your help but i found a way to do it.

hard reset. when it comes back on just as the backup kicks in press the reset button
then when it comes back on you get a warning that says restore did not finish.
but now your on the today screen so drag the warning out of the way and go to
start. programs. panasonic backup. now put in a sd card and backup to it.
now hard reset and start form sd and BANG your in.

thanks.



Good find hanny.
I got a gd87 car charger today, suits the cf-p2 just fine without rewiring.



Same for the cheap aftermarket Euro power adapters I got some days ago. No need to rewire. They work out of the box. Moreover a screenprotector for a HTC Artemis (P3300) fits also perfectly....



hanny, could you please copy your british gas backup file to pc and share it with us when you can. i'd like to play with it's drivers and diagnostics for the car kit.
Bob.



sorry i deleted it all.



no worries mate. so did I.
If anyone else still has the british gas backup file i'd be interested.



try hard reset without sd and backup file.



I gave it a try but mine has been factory re-set.



The display protector glass of my Samsung B2700 broke last week. So I had the excuse for my girl to buy an other phone ;-)
I got also today my CF-P2 from UK. It's a unit without WLAN and a castrated OS. To get access to the normal Windows Menu I connected it via the Car-adapter via usb to my cf-29, where active-sync from my HTC was installed. After a hard reset the screen, where I have to calibrate the touchscreen on the cf-p2, will pop in front. Now I copied the content of the '...windows/start menu' folder from the phone to my laptop and after calibrating the touchscreen and the restart of the phone I copied it back and deleted the content of the '...windows/start up' folder. After an softreset now I have an normal windows mobile menu, with access to the backup point
And I could not use my sd-card. :-( So I want to look for the contact pins on the holder and by the way I disassembled the phone

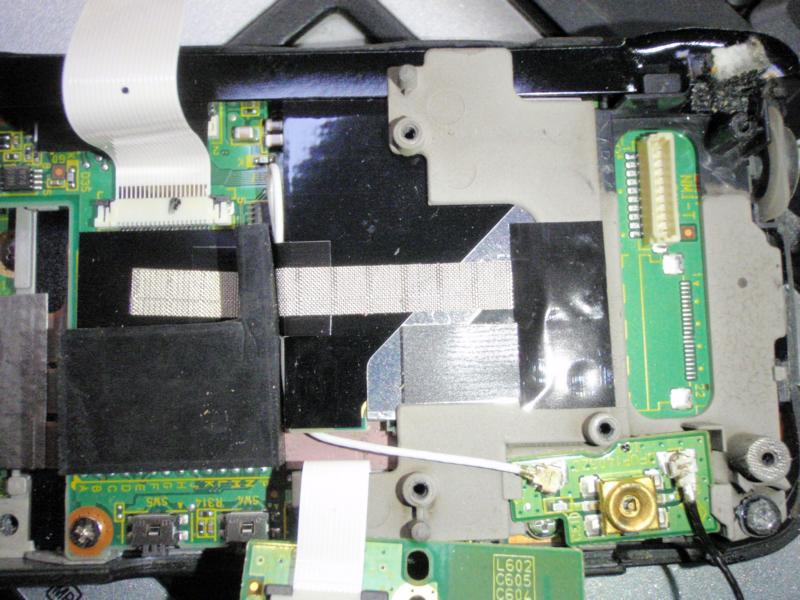

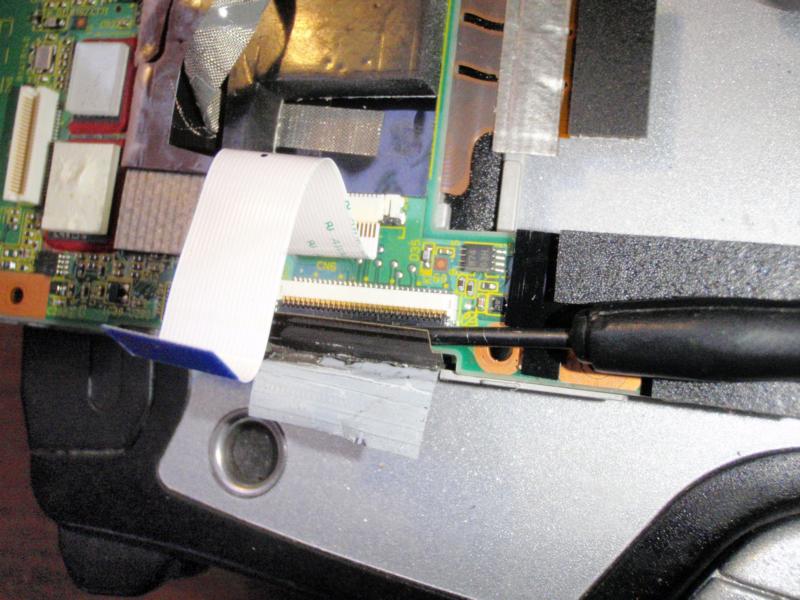

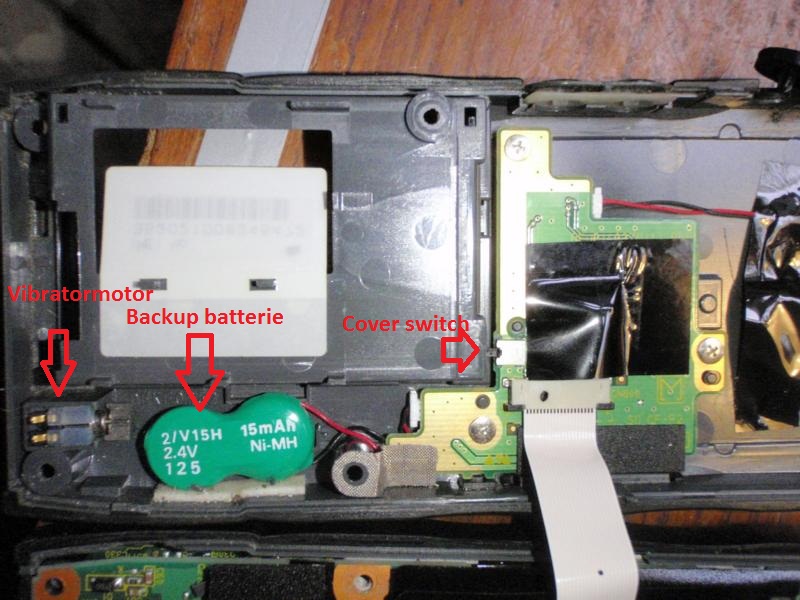

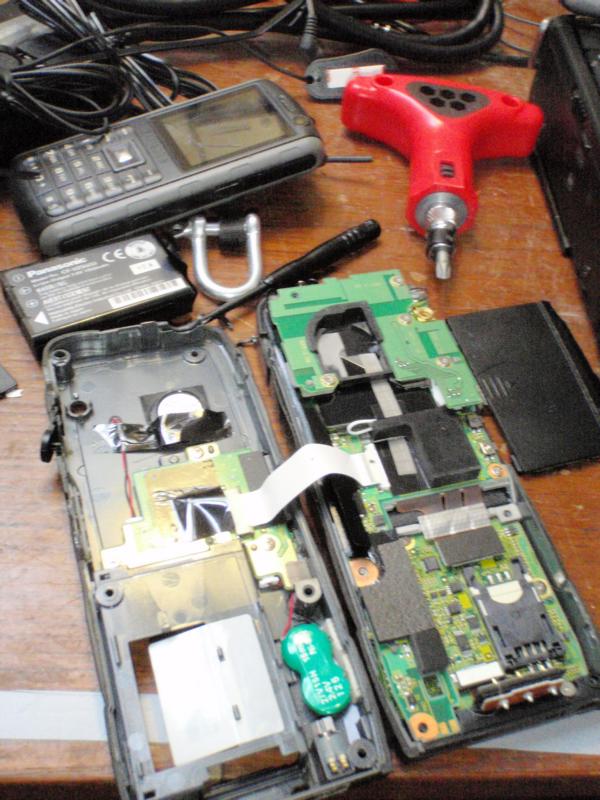

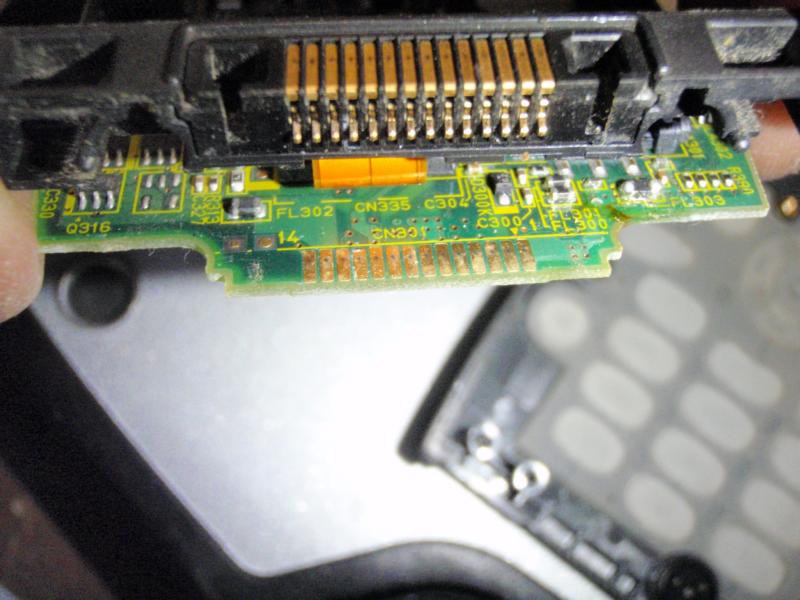

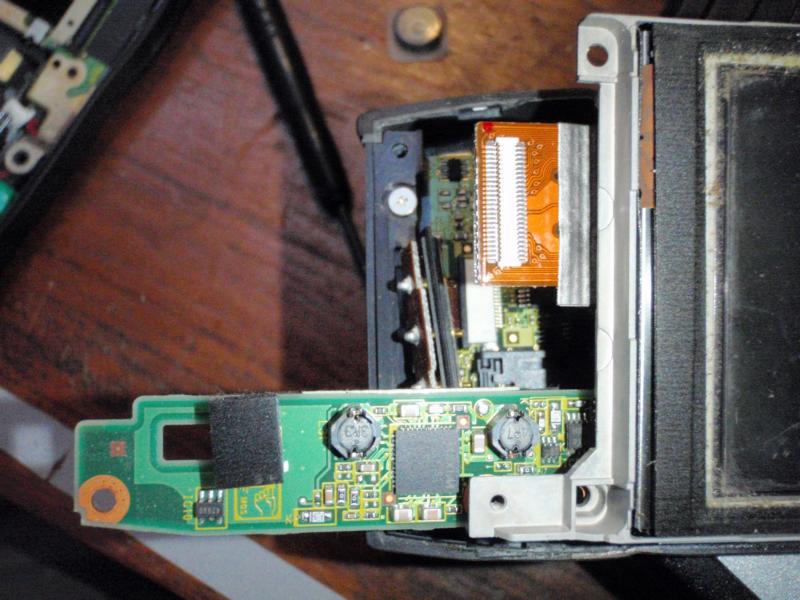

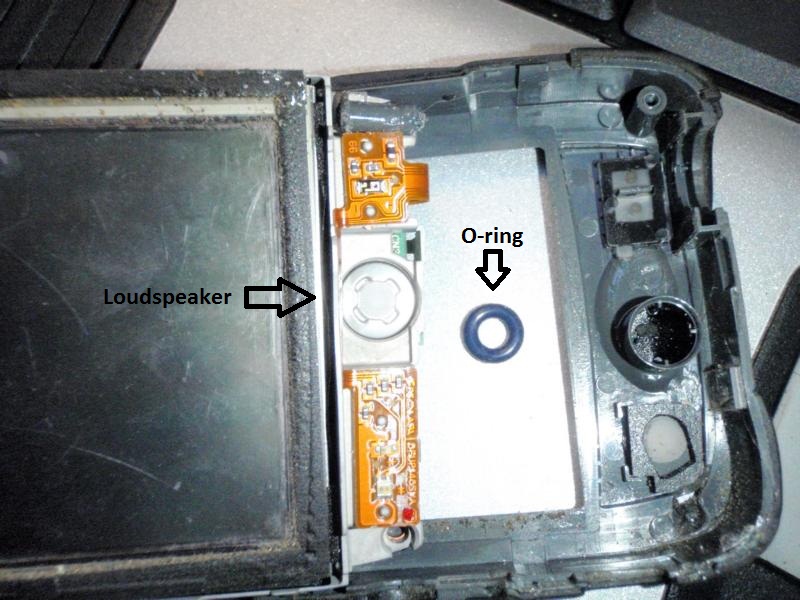

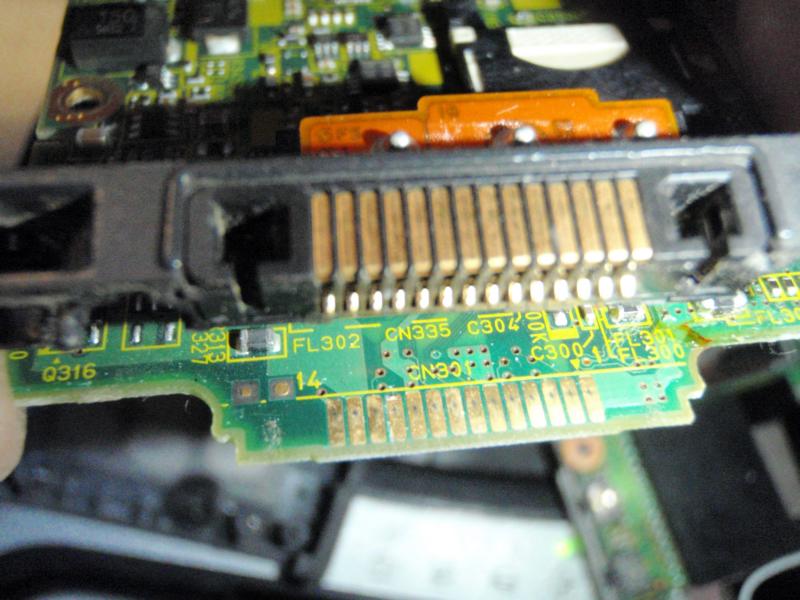

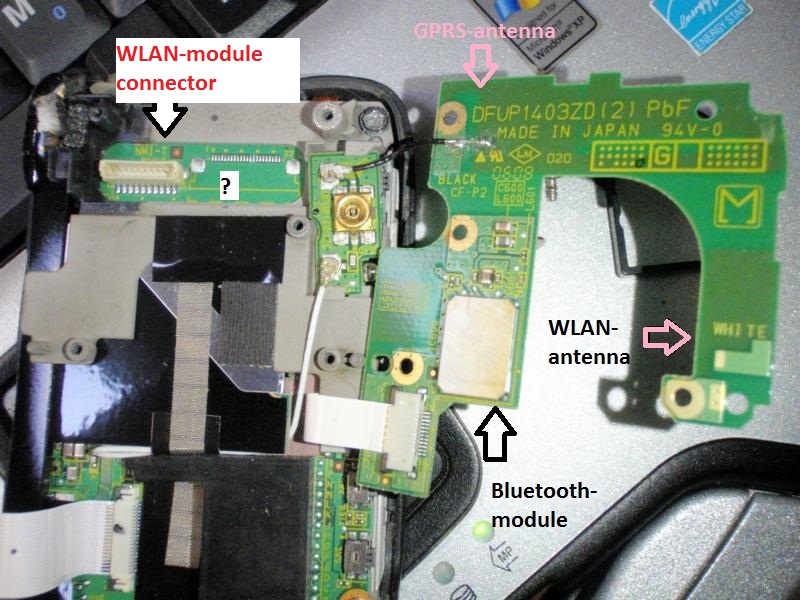

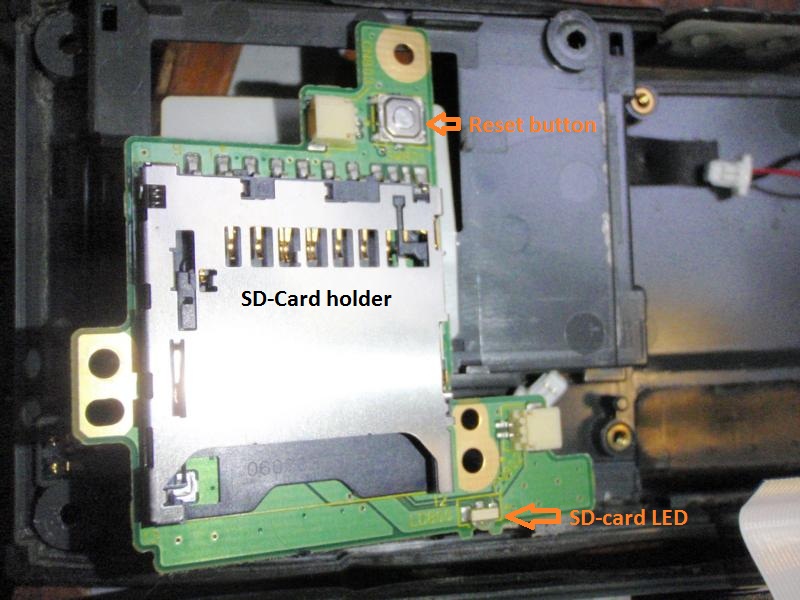

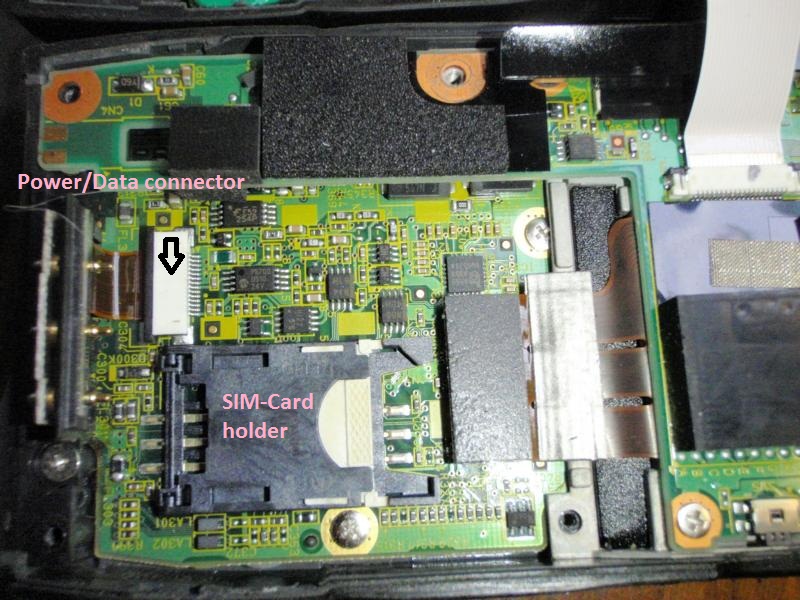

Here are the pics of the inside, boards, antennas and connectors (I also found the place for the wifi-card) :

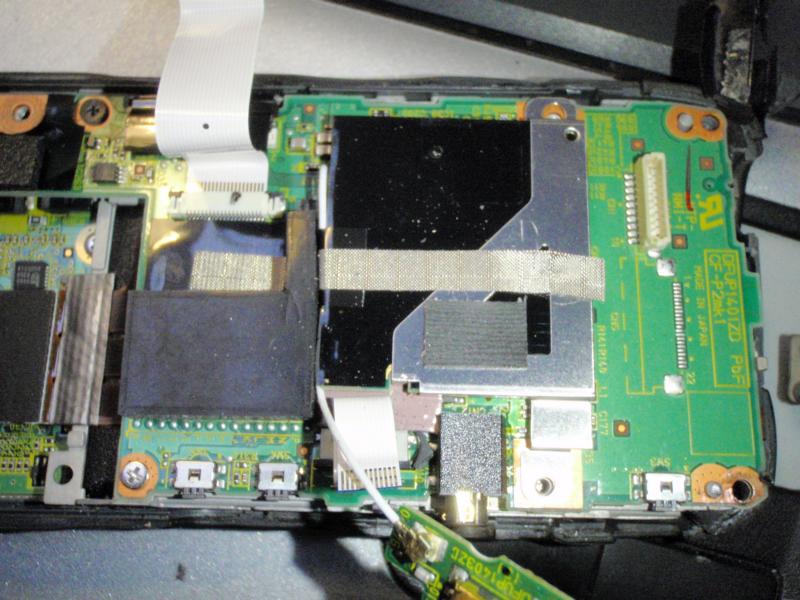

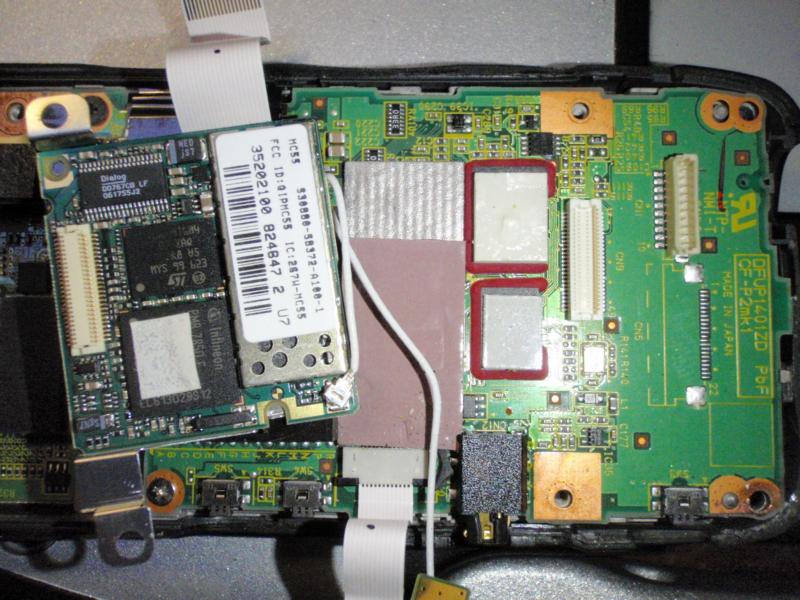

next 5 pic from the inside:

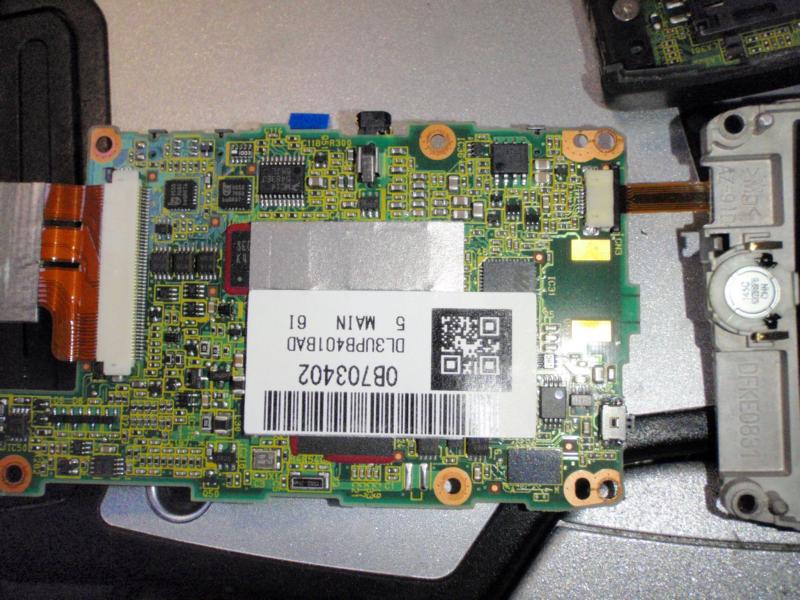

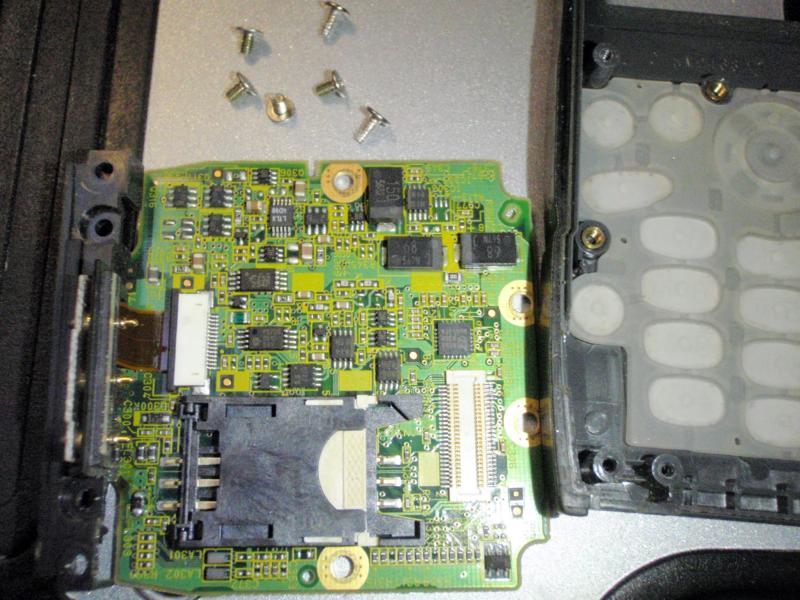

and last 5 pics:

(PS:does anyone know, which maxsize and type of sd-card will work in a cf-p2?)



"(PS:does anyone know, which maxsize and type of sd-card will work in a cf-p2?)"

I have a 2Gb Sandisk in mine that works perfectly - just plug and play.

I have just got my hands on a Pretech SDIO 802.11b Wireless LAN card. When I've had time to play around with it, I'll report back



Nice, thank u.
Anyone who know, where to find an schematic diagram for the cf-p2?



I have the user manuals for the P2 and the docking station, but not the service manual.



Just picked up one of these for a project and the lack of USB cable is annoying!

For those of us who don't DIY has anyone sourced the cable (preferably UK based)?

When I hard reset the system it goes through an install of software that just seems to remove a lot of Windows Mobile functionality, if (as I've done on other devices) I quit before this install happens I get the proper Windows Mobile, but I also get a warning dialog telling me to hard reset to do the full install.

It's impossible to lose this dialog as it seems to survive being killed in the running programs!

Any suggestions how to get full WM without the dialog?

Thank you.



As I wrote here http://forum.notebookreview.com/panasonic/462956-new-toy-4.html#post6288149 (hope u understand it



Okay, went through all the thread again and found this post from Hanny and managed to answer my second question:

This worked a treat. Thank you.



Thank you. I just solved it the other way though. Which is good as I had no access to the PDA from my PC!



Could someone make me a few of these USB cables?

Happy to pay for the parts, your time and postage....



I found some nice options for the cf-p2 in the schematic diagram (GPS,CIF-camera,wlan), which I will try in the next days.



VERY interested, keep us posted!



Schematic diagram????? please please can i have a copy?



Thanks to Onirakkiss. good karma to the man.



here's the full pinout for the 14 pin connector. (from onirakkis)

1=gnd
2=usb host D+
3=usb host D-
4=usb sync D+
5=usb sync D-
6=usb +5v in (usb detect)
7=i2c bus clock (this bus seems to output system data to somewhere???)
8=i2c bus data
9=audio out to car speaker
10=gnd
11=audio in from car mic
12=cradle detect (input,active low)
13=external power/charge
14= cradle int??? (input,active low)

pda does not supply +5v for usb device, this must be externally supplied.
there should be a radio mute signal somewhere too.



I've just splashed out on one, and also a bluetooth GPS receiver. I'm hoping that it has got good firmware.
I have a quick question: if I wanted to use USB host , would there be pins that I had to short to enable the USB host data lines? I understand that I will need an external power source for the 5V (4xAA and voltage regulator i think), but will I also need to apply this power to the phone?

Edit:
It's arrived and all looks good at the moment.



Did any of you guys tryed to look for a different panasonic USB cable? How about GD52,GD53,GD87,GD88,GD92?
Hint-use google/ebay

Good luck



You all have to modify them because the pinout is different



Received my CF-P2 last week and wired a USB cable this morning following the pin-outs posted earlier - thank you all very much. I have been thinking about the replacement battery issue and noticed that the Fujifilm NP-120 battery has identical dimensions; almost identical electrical characteristics (3.7V, 1800 mAh); and the same connector arrangement. Given that they are all likely made by Matsua (i.e. Panasonic) anyway, it seems to me to be worth an experiment. I will get hold of an NP-120 equivalent (plenty on Amazon, no doubt elsewhere too) and report back - unless of course someone has such a battery lying around and feels brave?

Ed



I have now tried an NP-120 compatible battery in the CF-P2. It powers the CF-P2 just fine and charges on the wall charger that came with the phone. The only issue was that the Panasonic original has a couple of pieces of thickish tape on the bottom which help to press the SIM card onto the contacts. I presently have a piece of card adding a little extra depth to the battery to do the same and the phone function now works as well. Seems like the NP-120 battery was (is?) used in a number of cameras so there are plenty of them about.



This has been asked countless times on other forums for other phones: unfortunately, host mode can only be supported if the hardware allows it AND the OS has drivers for it. I don't believe either of those dependancies are met in this device (but I don't know for certain).
But to answer your question, the same pins used for sync: (USB) +5v, -5v, D+, & D-. And the external 5v would need to be fed to the slave device directly, if the P2 does not output 5v at the connector.

And several people have asked about the max size sd card you can use. I don't have a P2 to try out, but (at least most of) every other WM03/03se PPC Phone I've used or been exposed to, sill support up to 4gb sd cards: NOT 4gb SDHC, just a 4gb SD card. Other than that, 2gb sd cards should work in any device from the last 10 years (well, most devices)



British gas used TomTom and a USB GPS with the car kit on these, so they DO support host mode.

I gave up on the idea of using USB host for my GPS, it had CE drivers for a USB to serial but I couldn't be bothered with making a connector and cable, as well as a battery pack. I instead got myself a Bluetooth GPS which is a less hackish solution.

As for the SD, I've got my P2 to read+write to a 2GB sandisk, if I can get my hands on a 4GB non HC type card I'll try it out and see what happens.



I don't know about the P2 cause I don't have one (But I"m excited cause they'll be on there way soon!):
Anyway, I had a PPC Phone 2002 (HTC Wallaby), and it had serial capability from the charge/dock connector. Make the cable, set the com port and what not, and stream nmea output to the port. Viola.

I failed to notice the USB HOST+ & - in that pinout further up. It's got my curousity peaked. I know there were several larger tablet style hand helds running CNET3/3.5 (??, the precursor to Windows Mobile 2002), as well as WM2002/03/03se that had USB ports and supported host mode.

I can't wait to play around with this thing!



Car cradle manual says that there is a radio mute out of the 'box' everything plugs into. It must sense sound out of the phone 14pin, and mute the stereo???



If anyone wants one I have a spare cable still sealed in original packaging to let go cheap. It's for GD87 & is the type where the connector can be unscrewed & has the full set of metal pins. (Taken already )
