    Clevo BIOS Thread

    Discussion in 'Sager and Clevo' started by Blacky, Sep 11, 2009.

  1. Zymphad

    Zymphad Zymphad

    Reputations:
    2,321
    Messages:
    4,165
    Likes Received:
    355
    Trophy Points:
    151

    Yup I do. You state your issues began when you introduced a new stick of ram. Therefore it is the ram. If you don't think it's the ram, then you must have had issues before. It's that simple. A BIOS doesn't all of a sudden go bad. And I don't care if you are a "professional computer technician."

    Zymphad, Oct 21, 2012
    #2851
  2. R3d

    R3d Notebook Virtuoso

    Reputations:
    1,515
    Messages:
    2,382
    Likes Received:
    60
    Trophy Points:
    66
    Bad day? His BIOS could have bad to begin with, but the problem just didn't manifest itself until he tried adding another stick of RAM.

    If it passes memtest and works with one stick of RAM, it might be the physical RAM slot.

    R3d, Oct 21, 2012
    #2852
  3. OriKiller

    OriKiller Notebook Enthusiast

    Reputations:
    0
    Messages:
    47
    Likes Received:
    0
    Trophy Points:
    15
    Well my reseller emailed me bios10 and EC08. Don't know if it's diferente from the one of mysn. Don't if i should flash it since i'm already using the ones from mysn. I'm uploading right now. If some one whant's to take a look and tell me if it's ok to flash the same version i would apreciate.

    OriKiller, Oct 22, 2012
    #2853
  4. OriKiller

    OriKiller Notebook Enthusiast

    Reputations:
    0
    Messages:
    47
    Likes Received:
    0
    Trophy Points:
    15
    OriKiller, Oct 22, 2012
    #2854
  5. Blacky

    Blacky Notebook Prophet

    Reputations:
    2,049
    Messages:
    5,356
    Likes Received:
    1,041
    Trophy Points:
    331
    A long time ago I had a similar issue, almost identical actually and it did turn out to be the ram. Back then I figured out it was the ram by replacing the 2 sticks with other 2 sticks of ram.

    Now, in your case it may not be the RAM, it could be the slot or MB.

    However, a BIOS flash won't hurt either, because the BIOS could also be a problem.
    What model did you say you have?

    Blacky, Oct 22, 2012
    #2855
  6. LaptopNut

    LaptopNut Notebook Virtuoso

    Reputations:
    1,610
    Messages:
    3,745
    Likes Received:
    92
    Trophy Points:
    116

    I have just successfully (/X) flashed my P170HM to the latest P150HM Bios + EC after Prema verified it would work.

    The fan ramping up issues have vanished although my Subwoofer in't working. I forgot the P150HM didn't have one of those.

    I will test further to see how it goes. My system is a lot quieter and consistent now, there are no annoying fan noise going up and down now.

    LaptopNut, Oct 22, 2012
    #2856
  7. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    umm....the p150hm DOES have a subwoofer tho.... :p

    jaybee83, Oct 22, 2012
    #2857
  8. Alkiviad

    Alkiviad Notebook Enthusiast

    Reputations:
    4
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    Same here.

    SAGER EC/KBC V 1.00.08 & BIOS V 1.00.10
    for P150EM
    from first post
    NOT WORKING!!!!

    atleast BIOS part

    Alkiviad, Oct 22, 2012
    #2858
  9. LaptopNut

    LaptopNut Notebook Virtuoso

    Reputations:
    1,610
    Messages:
    3,745
    Likes Received:
    92
    Trophy Points:
    116

    Oh,I didn't realize that. I reinstalled the RealTek Audio and the THX Studio. It activated fine but FN+5 no longer changes the mode. The audio sounds good though.


    Edit:

    Prema mentioned that I only needed to flash the P150Hm EC to get the better fan control so Ive gone back to the P170Hm Bios now too.

    LaptopNut, Oct 22, 2012
    #2859
  10. emusic

    emusic Notebook Enthusiast

    Reputations:
    45
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    Strictly speaking, BIOS may cause hardware memory problems. For example, BIOS may incorrectly read SPD values from the particular module and incorrectly program chipset memory controller. But in most cases, of course, memory problems are caused by memory ICs.

    emusic, Oct 23, 2012
    #2860
  11. Blacky

    Blacky Notebook Prophet

    Reputations:
    2,049
    Messages:
    5,356
    Likes Received:
    1,041
    Trophy Points:
    331
    I have the Sager BIOS files from hulawafu77. I think you should message him and try to figure out want is going on with him. Maybe he didn't extract the BIOS correctly. Or maybe the BIOS got corrupted when I uploaded it.

    Blacky, Oct 23, 2012
    #2861
  12. AnimalMother

    AnimalMother Notebook Evangelist

    Reputations:
    35
    Messages:
    387
    Likes Received:
    9
    Trophy Points:
    31
    Cancel Post Sorry
    (found answer to my question.

    AnimalMother, Oct 24, 2012
    #2862
  13. mahalsk

    mahalsk Notebook Consultant

    Reputations:
    262
    Messages:
    286
    Likes Received:
    6
    Trophy Points:
    31
    Hello,
    As I never flashed a new bios before, and I know its a bit more "dangerous" than updating drivers so I came here just to make sure which bios and ec is the best for me. I have a VORTEX 3 laptop but I'm not sure if its a clevo or sager.
    Is it 100% safe to do to follow the steps on the first page or would anybodty suggest me any special step on this particular model.

    Thanks.

    mahalsk, Oct 27, 2012
    #2863
  14. Anddo24

    Anddo24 Notebook Consultant

    Reputations:
    2
    Messages:
    117
    Likes Received:
    10
    Trophy Points:
    31
    Can anyone post direct links for the latest P170em bios?

    Anddo24, Oct 28, 2012
    #2864
  15. OriKiller

    OriKiller Notebook Enthusiast

    Reputations:
    0
    Messages:
    47
    Likes Received:
    0
    Trophy Points:
    15
    I found EC10 for 170EM in mySn. Has anyone tested already? maybe it fixed gpu fan

    OriKiller, Oct 29, 2012
    #2865
  16. Coca

    Coca Notebook Consultant

    Reputations:
    140
    Messages:
    186
    Likes Received:
    0
    Trophy Points:
    30
    I have Clevo P150EM (XMG P502) I just update EC from 08 to 09 (new bios) and gpu fan finally fixed.

    Coca, Oct 29, 2012
    #2866
  17. xi7

    xi7 Notebook Enthusiast

    Reputations:
    0
    Messages:
    29
    Likes Received:
    0
    Trophy Points:
    5
    Doubt: if i remove my video card model P150HM gtx 460m , and click to start the system only with my i7-2760qm , that initiate without video card ? possible ou impossible ?

    xi7, Oct 29, 2012
    #2867
  18. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    it wont start,since the HM series laptops dont support switchable graphics. the iGPU in the cpu is disabled on these machines.

    Sent from my Galaxy Nexus using Tapatalk 2

    jaybee83, Oct 29, 2012
    #2868
  19. jonny27

    jonny27 Notebook Consultant

    Reputations:
    113
    Messages:
    187
    Likes Received:
    0
    Trophy Points:
    30
    What the? EC09 for the P150, where? Did I miss something here?

    jonny27, Oct 29, 2012
    #2869
  20. king601

    king601 Notebook Consultant

    Reputations:
    55
    Messages:
    173
    Likes Received:
    0
    Trophy Points:
    30
    Can you emphasize more on this ? . I have EC08 on my laptop, I wanted to upgrade to 09 but the i saw the guy who posted artifacts who had 09 E on his screen then I decided not yo update. The gpu fan never worked on my laptop until I press fn+1 and sadly this function disappeared when I undated my bios

    king601, Oct 29, 2012
    #2870
  21. Anddo24

    Anddo24 Notebook Consultant

    Reputations:
    2
    Messages:
    117
    Likes Received:
    10
    Trophy Points:
    31
    Hi guys I need your help.

    My laptop: P170em

    Bios Revision: 1.00.04bls1
    KBC/EC firmware: 1.00.05

    are these up to date? do I need to flash my bios?

    Anddo24, Oct 29, 2012
    #2871
  22. grunnsat

    grunnsat Notebook Consultant

    Reputations:
    0
    Messages:
    219
    Likes Received:
    3
    Trophy Points:
    31
    No, latest versions:

    Bios: 1.00.10
    EC: 1.00.09

    grunnsat, Oct 29, 2012
    #2872
  23. Anddo24

    Anddo24 Notebook Consultant

    Reputations:
    2
    Messages:
    117
    Likes Received:
    10
    Trophy Points:
    31
    Okay. Can you link me to the correct ones? And how to install them.
    I've tried to run the P170EM_EC09. But I get a comparability error.

    Anddo24, Oct 29, 2012
    #2873
  24. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,486
    Trophy Points:
    681
    You have to flash to BIOS 05 and matching EC first, then only update to EC 10 & BIOS10...:hi2:

    Prema, Oct 29, 2012
    #2874
  25. Coca

    Coca Notebook Consultant

    Reputations:
    140
    Messages:
    186
    Likes Received:
    0
    Trophy Points:
    30
    Function Fn + 1 still not works (, but now fans working properly, agressive under pressure (gaming) and much quieter without gaming or any load. Artifacts on screen will be if you flash your bios by Sager version. Dont do it, flash by vanilla Clevo bios , or XMG (same). https://www.mysn.de/secure/userarea...BF2&show=Support&source=webgains&siteid=54264 XMG > P502 BX10 EC09 , boot logo will change if your laptop not xmg.

    Coca, Oct 30, 2012
    #2875
  26. OriKiller

    OriKiller Notebook Enthusiast

    Reputations:
    0
    Messages:
    47
    Likes Received:
    0
    Trophy Points:
    15
    I'm hearing that a new bios and EC came out today for 170EM and 150Em can some one confirm this?

    OriKiller, Oct 30, 2012
    #2876
  27. Montage

    Montage Notebook Evangelist

    Reputations:
    265
    Messages:
    453
    Likes Received:
    2
    Trophy Points:
    31
    Montage, Oct 30, 2012
    #2877
  28. OriKiller

    OriKiller Notebook Enthusiast

    Reputations:
    0
    Messages:
    47
    Likes Received:
    0
    Trophy Points:
    15
    I wish there was a changelog. Does it need EC10 before flashing to the new one? I'm at bios10 with EC08... if it's ok i would skip EC09 and EC10.

    OriKiller, Oct 30, 2012
    #2878
  29. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,486
    Trophy Points:
    681
    Because 1.02.xx version BIOS can't work with 1.00.xx version EC, it is necessary to make sure the EC firmware of the machine is 1.02.xx, if the EC firmware of machine is 1.00.xx then the system will not boot up after update 1.02.xx system BIOS.... ;)

    Prema, Oct 30, 2012
    #2879
  30. OriKiller

    OriKiller Notebook Enthusiast

    Reputations:
    0
    Messages:
    47
    Likes Received:
    0
    Trophy Points:
    15
    Yes i read that. The question was if i could skip ec09 and ec10, flash directly EC1.02.xx from EC08. And then the bios.

    OriKiller, Oct 30, 2012
    #2880
  31. Coca

    Coca Notebook Consultant

    Reputations:
    140
    Messages:
    186
    Likes Received:
    0
    Trophy Points:
    30
    I just update bios 1.02.14 and 1.02.11 after reboot - programm Hotkey error lol, reinstall with no effect...

    Coca, Oct 30, 2012
    #2881
  32. OriKiller

    OriKiller Notebook Enthusiast

    Reputations:
    0
    Messages:
    47
    Likes Received:
    0
    Trophy Points:
    15
    Probably only works with the hotkey v8 on win 8. Are you using win 7?

    OriKiller, Oct 30, 2012
    #2882
  33. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31
    i am running win8 and i can confirm hotkey 8.0071 is running correctly with latest bios1.02.14 and ec1.02.12 on my p170em

    littlecx, Oct 30, 2012
    #2883
  34. extide

    extide Notebook Deity

    Reputations:
    296
    Messages:
    701
    Likes Received:
    0
    Trophy Points:
    30
    Yes, you can.

    extide, Oct 30, 2012
    #2884
  35. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,486
    Trophy Points:
    681
    YES, Sorry it wasn't meant as a reply to your question, Just as a general info for everyone. ;)

    Only if a P1x0EM system is on an older BIOS/EC than 05 an update to 05 is required first.


    ONCE AGAIN:
    YOU HAVE TO UPDATE TO THE NEW EC FIRST AND THEN ONLY THE BIOS OR YOUR SYSTEM WILL BRICK!

    Prema, Oct 30, 2012
    #2885
  36. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    430
    Trophy Points:
    101
    Does the hotkey.exe for windows 7 still work after updated to 1.02.14 ?

    hackness, Oct 31, 2012
    #2886
  37. Coca

    Coca Notebook Consultant

    Reputations:
    140
    Messages:
    186
    Likes Received:
    0
    Trophy Points:
    30
    Yes Im using Windows 8 Pro x64 , hotkey 8.0071 (from mysn > XMG) after BIOS update only works correctly for me now , 6.00.69 not work now. 71 version is older thn 69 , but optimized for win8. for example backlight keyboard in 71 is version 1.4 , but in 69 - version 1.5 , and version 69 works faster and load faster. sorry my english not good : p

    Coca, Oct 31, 2012
    #2887
  38. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    huh good to know. thx for the heads-up coca!

    Sent from my Galaxy Nexus using Tapatalk 2

    jaybee83, Oct 31, 2012
    #2888
  39. OriKiller

    OriKiller Notebook Enthusiast

    Reputations:
    0
    Messages:
    47
    Likes Received:
    0
    Trophy Points:
    15
    How does the gpu fan work now? no more fan working nonstop when you exit a 3d aplication?

    OriKiller, Oct 31, 2012
    #2889
  40. Coca

    Coca Notebook Consultant

    Reputations:
    140
    Messages:
    186
    Likes Received:
    0
    Trophy Points:
    30
    thank you , hope we will get new hotkey version soon ;)

    Coca, Oct 31, 2012
    #2890
  41. Seanzky

    Seanzky Notebook Evangelist

    Reputations:
    224
    Messages:
    593
    Likes Received:
    2
    Trophy Points:
    31
    Where is the link to this new BIOS and EC? I can't find it in that link in the previous page as it's not in English. I have 1.00.10/1.00.09 with 6.0069 Hotkey. Can someone link me, please?

    Seanzky, Oct 31, 2012
    #2891
  42. OriKiller

    OriKiller Notebook Enthusiast

    Reputations:
    0
    Messages:
    47
    Likes Received:
    0
    Trophy Points:
    15
    After flashing the EC and Bios on my 170EM, my 3dmark 11 score decreased 100 points. ? geeting realy disapointed with clevo. Btw gpu fan it's not fixed

    OriKiller, Oct 31, 2012
    #2892
  43. Coca

    Coca Notebook Consultant

    Reputations:
    140
    Messages:
    186
    Likes Received:
    0
    Trophy Points:
    30
    Coca, Oct 31, 2012
    #2893
  44. vilmeister

    vilmeister Notebook Enthusiast

    Reputations:
    0
    Messages:
    42
    Likes Received:
    0
    Trophy Points:
    15
    I'm getting an error, when trying to update the new BIOS 1.02.14, the EC 1.02.12 updated fine.
    "Error 25: The host CPU does not have write access to the target flash area. To enable write access for this operation you must modify the descriptor settings to give host access to this region."
    So right now im on EC 1.02.12 and BIOS 1.00.05

    vilmeister, Oct 31, 2012
    #2894
  45. Coca

    Coca Notebook Consultant

    Reputations:
    140
    Messages:
    186
    Likes Received:
    0
    Trophy Points:
    30
    be sure , u use xmg p702 bios , try redownload bios file again. if no result , create ms-dos usb again and try

    Coca, Oct 31, 2012
    #2895
  46. Seanzky

    Seanzky Notebook Evangelist

    Reputations:
    224
    Messages:
    593
    Likes Received:
    2
    Trophy Points:
    31
    Thank you very much. I have P170EM, in sig, with Windows 7. Does it matter which HotKey?

    Sent from my SGH-T999 using Tapatalk 2

    UPDATE: Should I stick to the Win 7 drivers and just the HotKey from Windows 8 or go all Windows 8 drivers? I read somewhere back there that only the HotKey for Windows 8 will work with the latest EC/BIOS? Can someone please write a clear and concise update path for lost sheep like me? :{

    Seanzky, Oct 31, 2012
    #2896
  47. vilmeister

    vilmeister Notebook Enthusiast

    Reputations:
    0
    Messages:
    42
    Likes Received:
    0
    Trophy Points:
    15
    I forgot to run MESET.EXE first, after doing that it installed just fine :)

    vilmeister, Oct 31, 2012
    #2897
  48. Zymphad

    Zymphad Zymphad

    Reputations:
    2,321
    Messages:
    4,165
    Likes Received:
    355
    Trophy Points:
    151
    Can you look in the BIOS to see if there are options for the primary HDD/SSD to boot with EFI? Are there any options for secure boot?

    Zymphad, Oct 31, 2012
    #2898
  49. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31

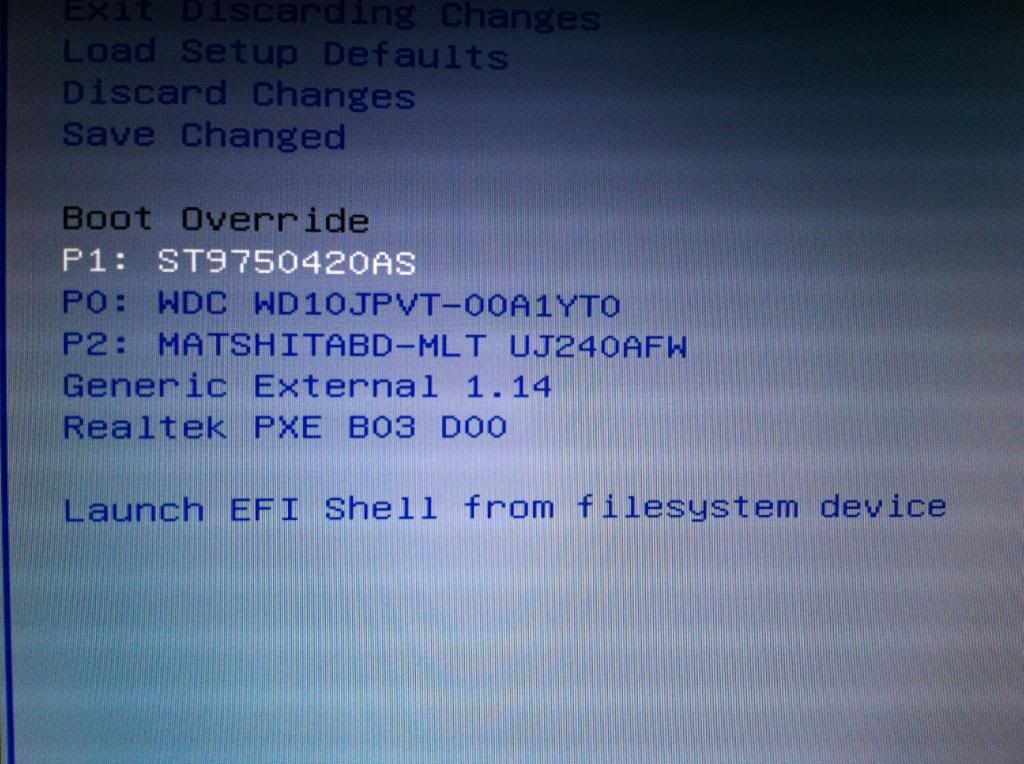

    you mean this?
    [​IMG]

    littlecx, Nov 1, 2012
    #2899
  50. Coca

    Coca Notebook Consultant

    Reputations:
    140
    Messages:
    186
    Likes Received:
    0
    Trophy Points:
    30
    XMG P702 is Clevo P170EM , with new bios for windows 8 you need use this hotkey (be sure before install , run file " RUNME" in hotkey folder) https://www.mysn.de/secure/userarea...QQXMGQQXMG_P502_und_P702QQWin8QQ06_Hotkey.zip , for windows 7 latest hotkey is 6.00.69 here you can download it Hotkey 6.0069.zip

    Coca, Nov 1, 2012
    #2900
← Previous pageNext page →
