    Clevo P870DM Drivers Mirror

    Discussion in 'Sager and Clevo' started by Spartan@HIDevolution, Dec 31, 2015.

  1. XMG

    XMG Company Representative

    Reputations:
    749
    Messages:
    1,754
    Likes Received:
    2,197
    Trophy Points:
    181
    @Loek van Kooten - we are on the job! DM2 and DM3 are no problem, they're on our internal server already but we're missing the DM which should be with us shortly.

    Might be an obvious question, but have you gone into the BIOS and in the Advanced Chipset Control / DDI Settings changed it from DP to TBT? See extract from user manual below:

    TBT P870.JPG

    Intel certifies every device from every ODM regarding Thunderbolt. For every Thunderbolt Firmware update, every device from every ODM needs to be re-certified. Yes it' the chassis manufacturer's responsiblity to make the support and updates available but the process is a lot more complicated than it may seem at first glance.


    Yes, technically correct. The discussion in the thread you linked to aren't completely accurate though. There is a complex certification process with TBT and wether there is a license cost involved or not is a black hole of certification, licensing and contractual trip wires - tbh much like other technology which is integrated from other manufacturers. Optimus systems had to be certified by Nvidia - at the end of the day the technology "owner" has a duty to ensure that their tech is functioning in to their level of satisfaction.

    There are two Firmware versions for the DM:

    1/ 29/3/16

    2/ 11/5/2016

    You can't tell which laptops would have which firmware just from the dates because you have to take the Clevo production run time into account, then shipping, then how long the reseller had stock and which batch it came from.

    Last edited: Jun 29, 2018
    XMG, Jun 29, 2018
    #448
    jclausius, Loek van Kooten and hmscott like this.
  2. Loek van Kooten

    Loek van Kooten Notebook Enthusiast

    Reputations:
    2
    Messages:
    14
    Likes Received:
    2
    Trophy Points:
    6
    Thank you very much for your reply, XMG! Hopefully you will be my savior. If this is going to work, I will definitely donate a few hundred euros to whatever project it is you are running; it is that important to me. I'm really that much of a specialist, so I didn't even know about these BIOS settings. I changed them from mDP to TBT (I assume this means the power will be routed to the TBT instead of something else?) but no difference yet.


    Attached Files:

    Loek van Kooten, Jun 29, 2018
    #449
  3. Loek van Kooten

    Loek van Kooten Notebook Enthusiast

    Reputations:
    2
    Messages:
    14
    Likes Received:
    2
    Trophy Points:
    6
    P.S. If I run FlashTBT_100.exe (without inserting a bin), the program fails, but the Thunderbolt port appears.


    Attached Files:

    Loek van Kooten, Jun 29, 2018
    #450
  4. jclausius

    jclausius Notebook Virtuoso

    Reputations:
    6,160
    Messages:
    3,265
    Likes Received:
    2,573
    Trophy Points:
    231
    I hope it works out for you. The Clevo based machines are amazing machines, and I was surprised regarding your original post.

    If it works out, perhaps you'll be able to update your post on being deceived for future readers of this thread, and also be able to educate your reseller too.

    jclausius, Jun 29, 2018
    #451
  5. Loek van Kooten

    Loek van Kooten Notebook Enthusiast

    Reputations:
    2
    Messages:
    14
    Likes Received:
    2
    Trophy Points:
    6
    Once this works, I will swallow every single word I said. You have my word. I'm here under my real name: you can find me anywhere on the internet, so you can hunt me down for eternity.

    Loek van Kooten, Jun 29, 2018
    #452
    jclausius likes this.
  6. Loek van Kooten

    Loek van Kooten Notebook Enthusiast

    Reputations:
    2
    Messages:
    14
    Likes Received:
    2
    Trophy Points:
    6

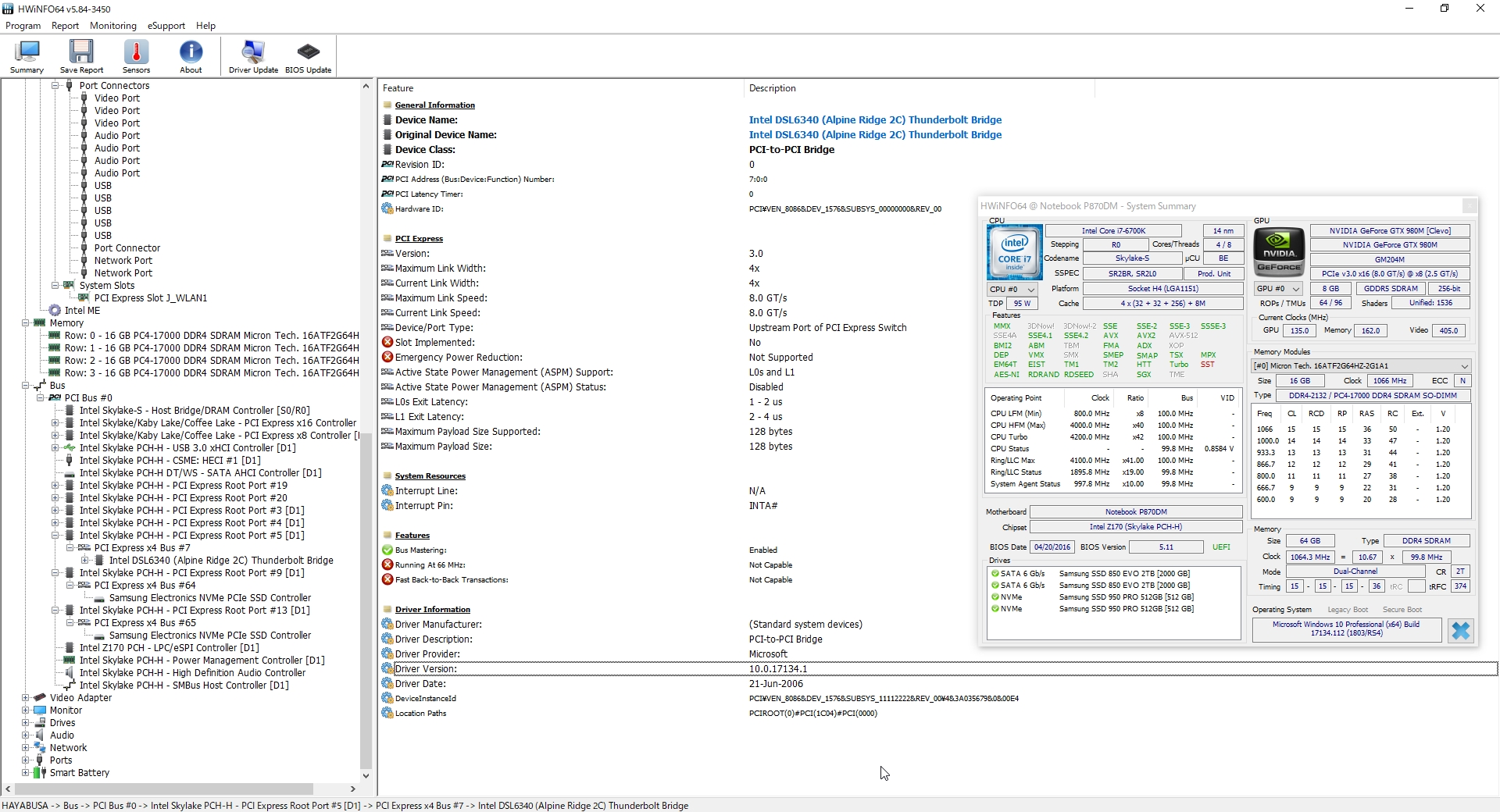

    Full info on Thunderbolt chip attached.


    Attached Files:

    Loek van Kooten, Jun 29, 2018
    #453
  7. Loek van Kooten

    Loek van Kooten Notebook Enthusiast

    Reputations:
    2
    Messages:
    14
    Likes Received:
    2
    Trophy Points:
    6
    @XMG @jclausius Completely unexpected, the reseller came up with a working bin for the Clevo DM! After I had upgraded the firmware, I had to reinstall the Thunderbolt drivers, reinstall the LAN drivers, upgrade the HP Omen firmware and turn the system off for a few minutes to let the firmware kick in... but then, suddenly, there was light.

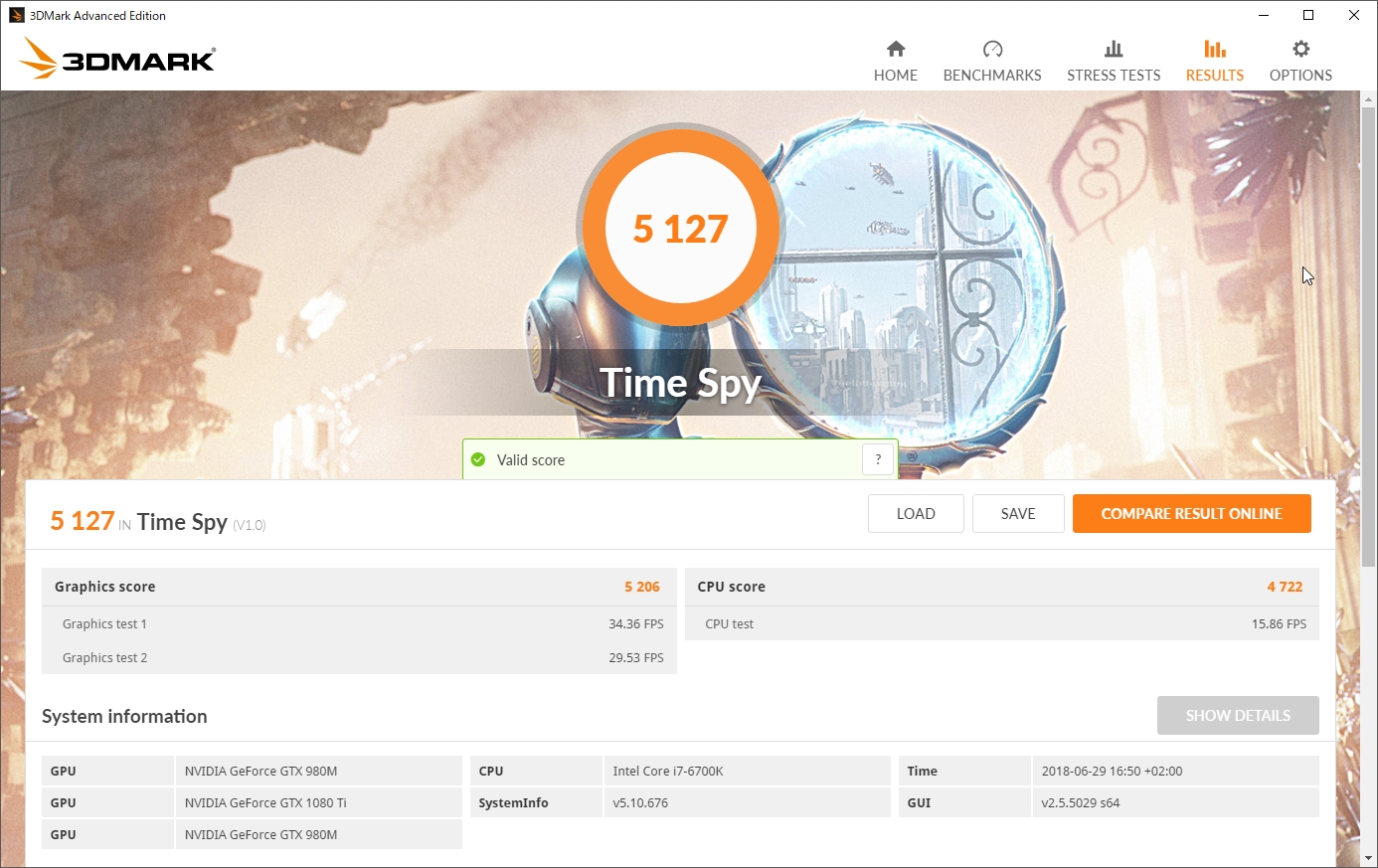

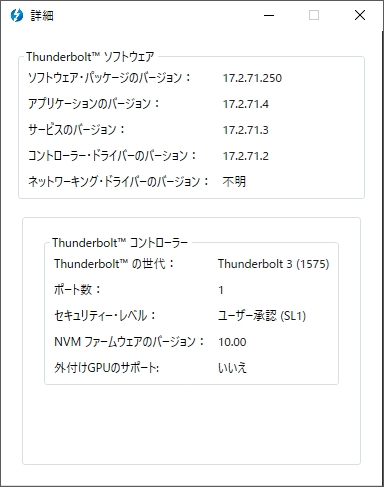

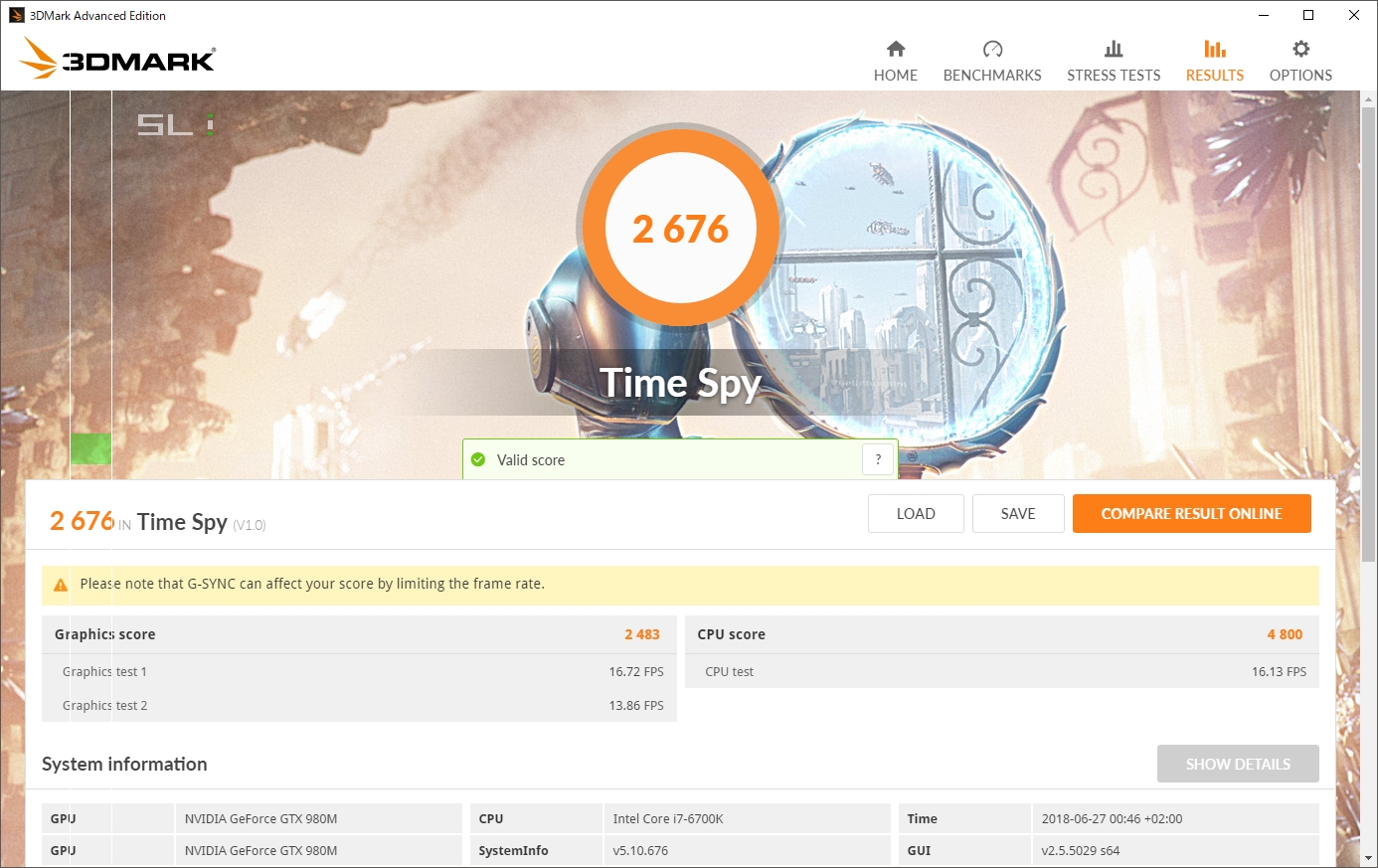

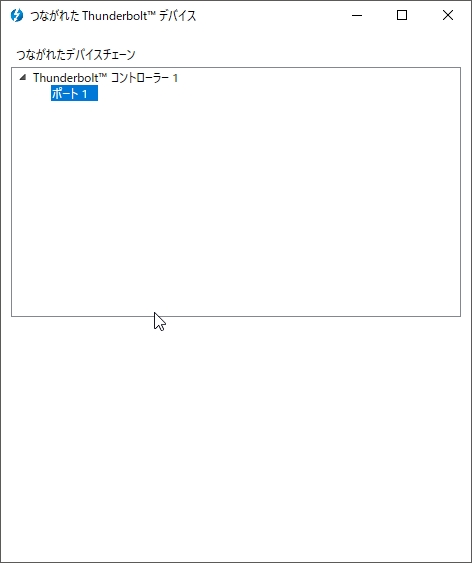

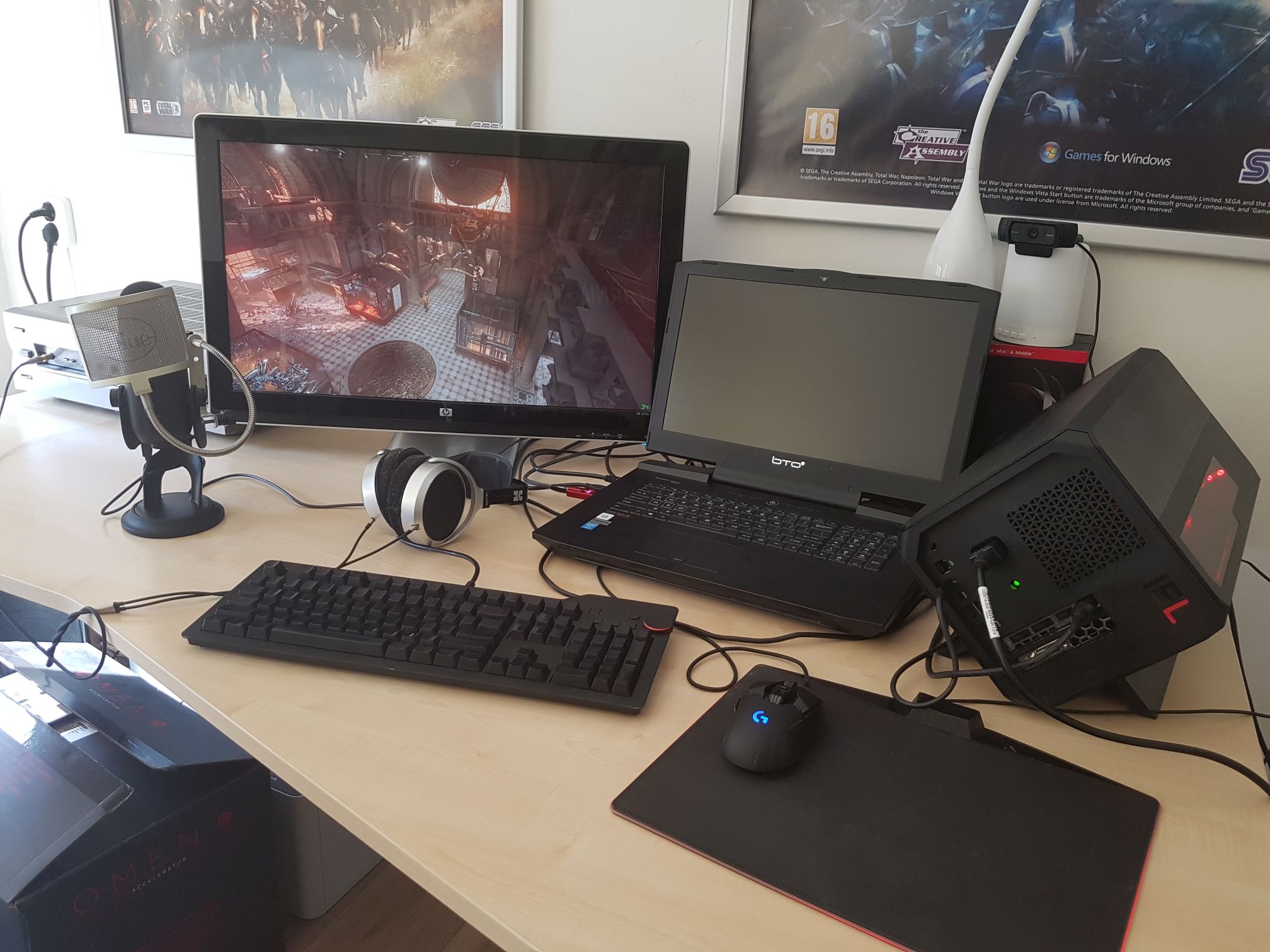

    Please find some screenshots (before and after) and pictures attached!

    As promised to jclausius: once Clevo works, it works like hell. Before you get it working though... but oh well, that's past us. I'm a very happy user now.


    Attached Files:

    Last edited: Jun 29, 2018
    Loek van Kooten, Jun 29, 2018
    #454
    jclausius likes this.
  8. jclausius

    jclausius Notebook Virtuoso

    Reputations:
    6,160
    Messages:
    3,265
    Likes Received:
    2,573
    Trophy Points:
    231
    Trust me, I know there's nothing worse than that sinking feeling of spending thousands and thousands of dollars for a large paper weight. I didn't want you to end up in that situation with a P870DM. I'm glad you were able to resolve the problem in couple of days.

    jclausius, Jun 29, 2018
    #455
    Loek van Kooten likes this.
  9. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    @Loek van Kooten Let us know how you get on with a 1080ti going over thunderbolt.

    Meaker@Sager, Jun 30, 2018
    #456
  10. Loek van Kooten

    Loek van Kooten Notebook Enthusiast

    Reputations:
    2
    Messages:
    14
    Likes Received:
    2
    Trophy Points:
    6
    Battlefield 4 Epic settings, 70-80 FPS. It works like a charm now. If there's any specific tests you would like me to do, please let me know. Quid pro quo. You help me, I help you.

    Loek van Kooten, Jun 30, 2018
    #457
  11. Loek van Kooten

    Loek van Kooten Notebook Enthusiast

    Reputations:
    2
    Messages:
    14
    Likes Received:
    2
    Trophy Points:
    6
    I now have version 16, 18 and 21 of these drivers for the 870. If someone is interested in hosting them, I can send them over.

    Loek van Kooten, Oct 17, 2018
    #458
  12. fred70

    fred70 Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Hello i have also a p870dm-g with coffee lake custom bios with thunderbolt 16 firmware and a thunderbolt 3 snpr external graphics enclosure kfa2 gtx1060.
    Loek van Kooten can you please send me the thunderbolt 18 and 21 firmware please

    fred70, Jan 4, 2019
    #459
  13. Loek van Kooten

    Loek van Kooten Notebook Enthusiast

    Reputations:
    2
    Messages:
    14
    Likes Received:
    2
    Trophy Points:
    6
    Please drop me a line at akebono AT xs4all DOT nl

    Loek van Kooten, Jan 5, 2019
    #460
  14. fred70

    fred70 Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Sorry Loek van Kooten but i don't understand Dutch. Can you send me the firmware to my email : [email protected]

    fred70, Jan 5, 2019
    #461
  15. Loek van Kooten

    Loek van Kooten Notebook Enthusiast

    Reputations:
    2
    Messages:
    14
    Likes Received:
    2
    Trophy Points:
    6
    I'm not sure what Dutch has to do with it, but I'll send you the firmware ;-)

    Loek van Kooten, Jan 5, 2019
    #462
