Clevo P870DM n00bie's guide

quick question. trying to apply the default stocks from page 1

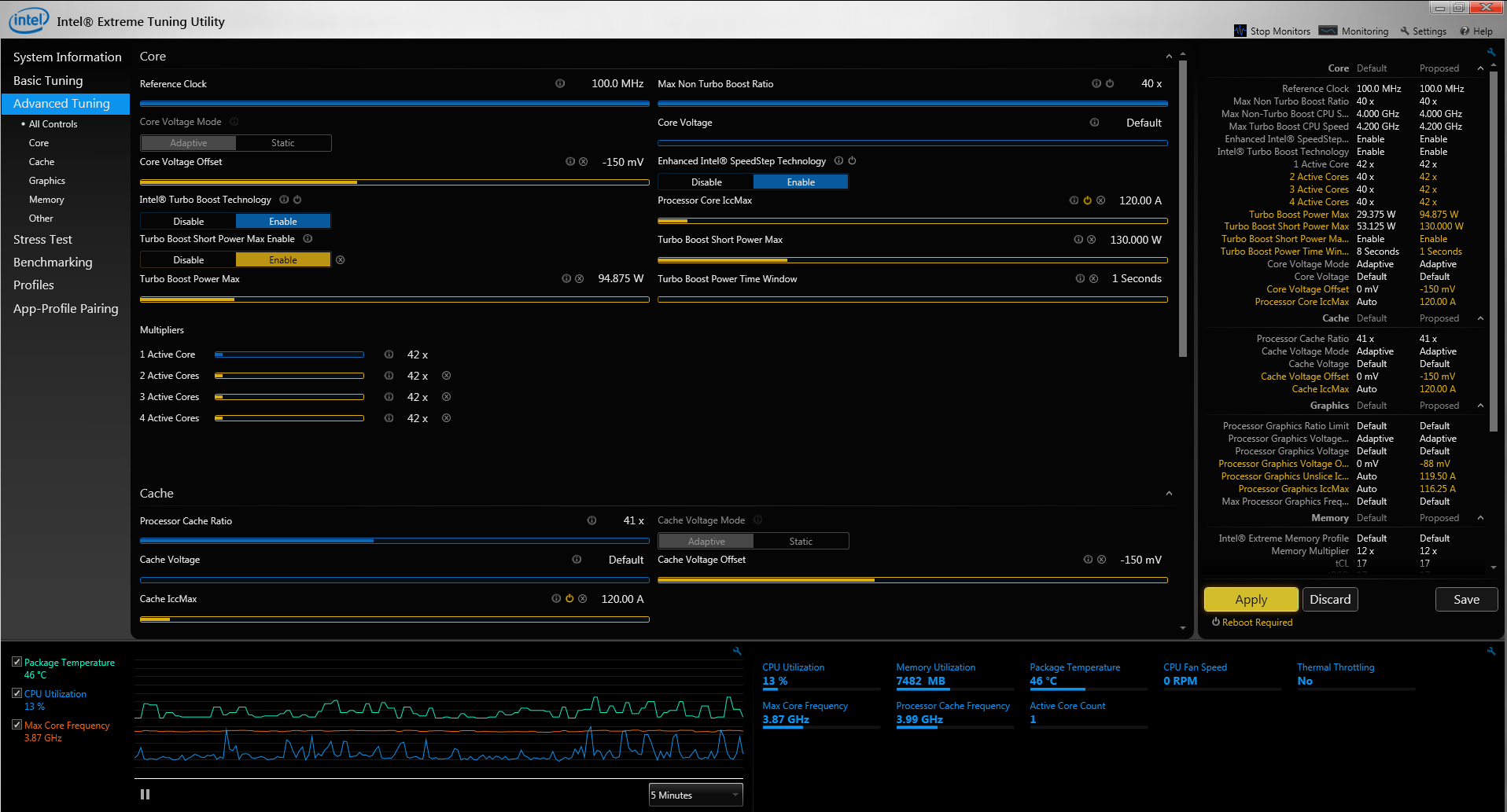

processor cache ratio, should i set that to 42 as well or leave at 41 which I'm currently at? I'm copying it from page 1 but not sure if I should change that or leave it at 41

thanks!

https://gyazo.com/15a5ba54e7f071550eb34a563629dede


https://gyazo.com/15a5ba54e7f071550eb34a563629dede



That's a matter of personal preference. You can set it to 42 or even 43. Just check the temps and stability to confirm everything works fine. Typically, you want the cache ratio to be equal to or less than the core ratio. If you have all cores set to 42, then setting the cache to 42 (not 43) should be fine. There are no hard and fast rules. It's whatever works best, and it requires trial and error to fine tune the CPU. Unless, of course, you get lucky on the first guess.



I used @Phoenix settings for 4.2 and it works great with fans on auto and Max. Highest is 76 under some stress but generally it is less.

Sent from my SM-N910G using Tapatalk



When I overclocked the cache ratio, I experienced some crackling in the speakers when playing some videos, particularly YouTube Videos that contain speech. Please check a few YouTube videos and if you experience such crackling then it's best to leave the cache ratio AKA Ring at the default multiplier but only change its voltage offset.



Thanks @Phoenix ill give it a shot tonight



It's always a good idea to run a full suite of tests to check all aspects of the machine, games, videos, and anything else you do to look for odd behavior if going for a 24/7 setting.



4.2 is stable so far and no issues with league, sc2, d3. temps are nicer with the undervolt. is there any preset gpu oc's though, like the cpu has one in page 1? i remember we had them for the alienware m11x



you can definitely push it higher. i started at 4.2, went to 4.4, then now 4.5 and they all are stable



so do i just adjust the clock values or do i need to adjust the voltages too as i'm not sure how much to increase for each time i increase speed?



try @Phoenix's settings for 4.4ghz and see how that goes.



is there a link to it? i dont see it in this topic or im blind



It's in the very first postof this thread.

Sent from my SM-T560NU using Tapatalk



ah okay i see it under the spoiler thing. i do that all in the bios then, no way to use XTU?



Most of those settings are meant for Prema BIOS users.

Check the out the FP on the Clevo Overclockers Lounge thread, that might have some XTU settings.



yea i dont have prema, i needed it built asap so i had to go with xotic pc and i got it in about 4 business days. i was returning an msi gt72 as the hybrid power thing pissed me off



Pm @Prema, he will help you



Needs more power

Nice upgrade.



yea no idea why they dont give it a proper adapter. if i have to mail it to msi every 1-2 years to have it replaced, i might as well pay 200 more for a sager and not have to deal with that. i dont mind replacing the battery but shipping back and forth and the time itll take isnt fun.



They were likely trying to save weight/expense.



Why is windows defender turned off? Is it another info gatherer?



Its an anti-virus... Don't need it if you use something like Avast...



I don't use an anti virus at all.



Manual monitoring of all running processes and kernel level optimizations plus process execution denial until approved otherwise.

I don't know my hardware, but I think I learnt some cool nerdy secrets software wise along the years.



Hey @Phoenix , to properly use an NVMe SSD do you need a special set of drivers or something like that?

I want to get a 960 Pro 512 GB for P775 and I'm not absolutely sure if it'll work properly and without much hassle



Samsung NVMe Driver If yoo need check out for a updated one later Click here



I've been having problems with my P870DM-G lately, mostly during games, but occasionally while just web browsing. The Screen goes black, the hdd starts accessing, the fans kick on high and sometimes it beeps repeatedly. Is this maybe a heat related issue? temps for cpu and gpu never really go over 75 or so

also, my laptop has both the Prema Bios and Vbios, and was bought from HIDevolution.
I was wondering what are the differences in the Prema and stock Vbios?



Beeping repeatedly is an EC panic. One of the variables it reads (fan speeds, temperatures etc) is critically out of expected range so it maxes the fans and shuts the machine down to prevent damage. Check all the fans are spinning normally and re-seat the fan cables.

I would talk to your reseller if this does not help.



fans are good, and spinning normally, no dust at all inside my laptop.
sadly I'm not the original owner so I'm not sure if they'd help me much.
just did a stress test on processor and ram, no shutdown or even full fans, cpu topped out at about 78 with all the bios settings set as they are in the tutorial here.
I'm about to run a test on the gtx 980 now



what happened to the colour profiles for the 1440p panels?



What do you mean?



My labtop originally was overclocked to 4.5ghz all cores by the manufacturer was very Stable but I made new window lost the overclock long ago I guess I will play it safe use 42,41,41,41 stock clocks since voltage is high by default what do guys recommend? just use phoenix video use -150mv since is stock clocks I don't need change the numbers in prema bios? or use same settings on XTU settings screen to prema?



If it is gone, it most probably means that you were using TSstop or something like that instead of XTU

-150mV is fairly aggressive, I'd do some testing and see if it is stable



If it is stable then that's a very good undervolt, jump up by the smallest step each time and test the same thing that was causing the crashing.



I don't know when I try stress cpu with aida 64 cpu usage only at 65% not 100% don't know why so hard for me test voltage or this is normal? notice when stress cpu in aida only stressing 2.62ghz? Nevermind shutdown computer than power back on not getting good temps with unvolt tho I guess going need some help with this using stock clocks.



Try changing one variable at a time and looking at tweaking guides.



Thanks for reply but I guess I have take out cmios battery (labtop won't boot) but I have no idea how I don't want break it so how do to Take it out safety?

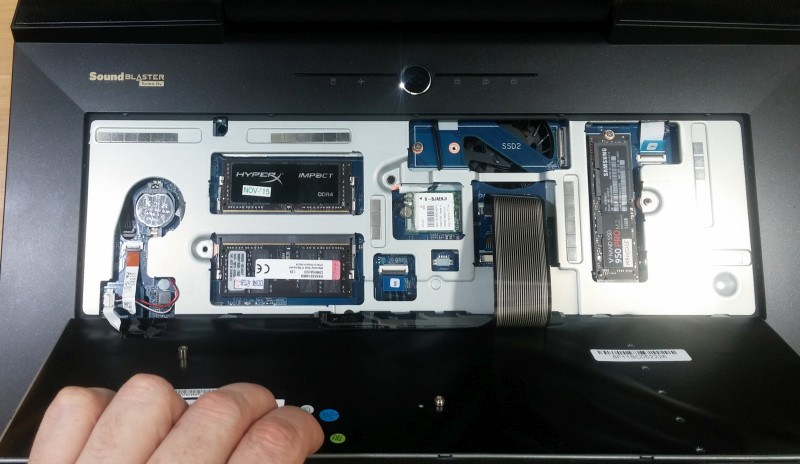

push it towards you (in that picture) so the lip of the battery is past the plastic holder at the top and lift it up.



Thank you will try it out but what screw driver I have to use open back panel? A M3?



Any decently sized Phillips will do, the holes are quite deep in some places so just make sure you have one with a long enough tip to reach down into it.
