Coffee Lake BIOS updates P751DM2-G

so based on this i assume that the i5 8600K would be the top option working at the moment...?



HERE'S THE LIST



So is it just not possible to activate HT with i7 CPUs? Is it something that can be fixed or is it just technically not possible?



It can be fix by flashing z370 bios



Can u explain this a bit more?
As far as i understand this, u just took the z370 bios (P7xxTM) and modified something to get it working with 8th gen CPUs. Is this right?
I read that u have problems with ethernet when using i7 CPUs. Is that still the case?
The bios for p7xxDM2 seems to work with i7 if i look at ur list. Why doesnt it work with DM3? The DM2 uses a z170 if i remember correctly. Is this the difference?
I got a ch341a at home and i am willing to try out the bios...



Can u explain this a bit more?
As far as i understand this, u just took the z370 bios (P7xxTM) and modified something to get it working with 8th gen CPUs. Is this right? improve HT function only/ before you flash the p751tm bios you can only use 6C6T processor
I read that u have problems with ethernet when using i7 CPUs. Is that still the case? NO after flash 751tm bios whatever cpu you use the ethernet will still not work
The bios for p7xxDM2 seems to work with i7 if i look at ur list. Why doesnt it work with DM3? The DM2 uses a z170 if i remember correctly. Is this the difference?
I got a ch341a at home and i am willing to try out the bios... cuz I only have p751dm2 (proting a z370 bios to z170 is nat a easy work you have to find how to fix something like sata port wifi card port )so that is why only the p751dm2 and p775dm2 have HT improve bios ​



Such improvement in short period of time! Congrats! I have a 775dm3 with an old bios - KBL not supported - I cannot wait to use this bios, but I need ethernet Is it difficult to upgrade the bios? Can I save mine for security / Backup reasons? thx



I guess you can go for this http://forum.notebookreview.com/threads/coffee-lake-bios-updates-p775dm3-g.814442/ use win flash BUT　you should have a programmer



Thank you, but I am not that advanced is there any chance to have later on a version which supports 8700k with any programmer and stuff? just update the bios and thats it



IF your guy want that I need some one for test bios

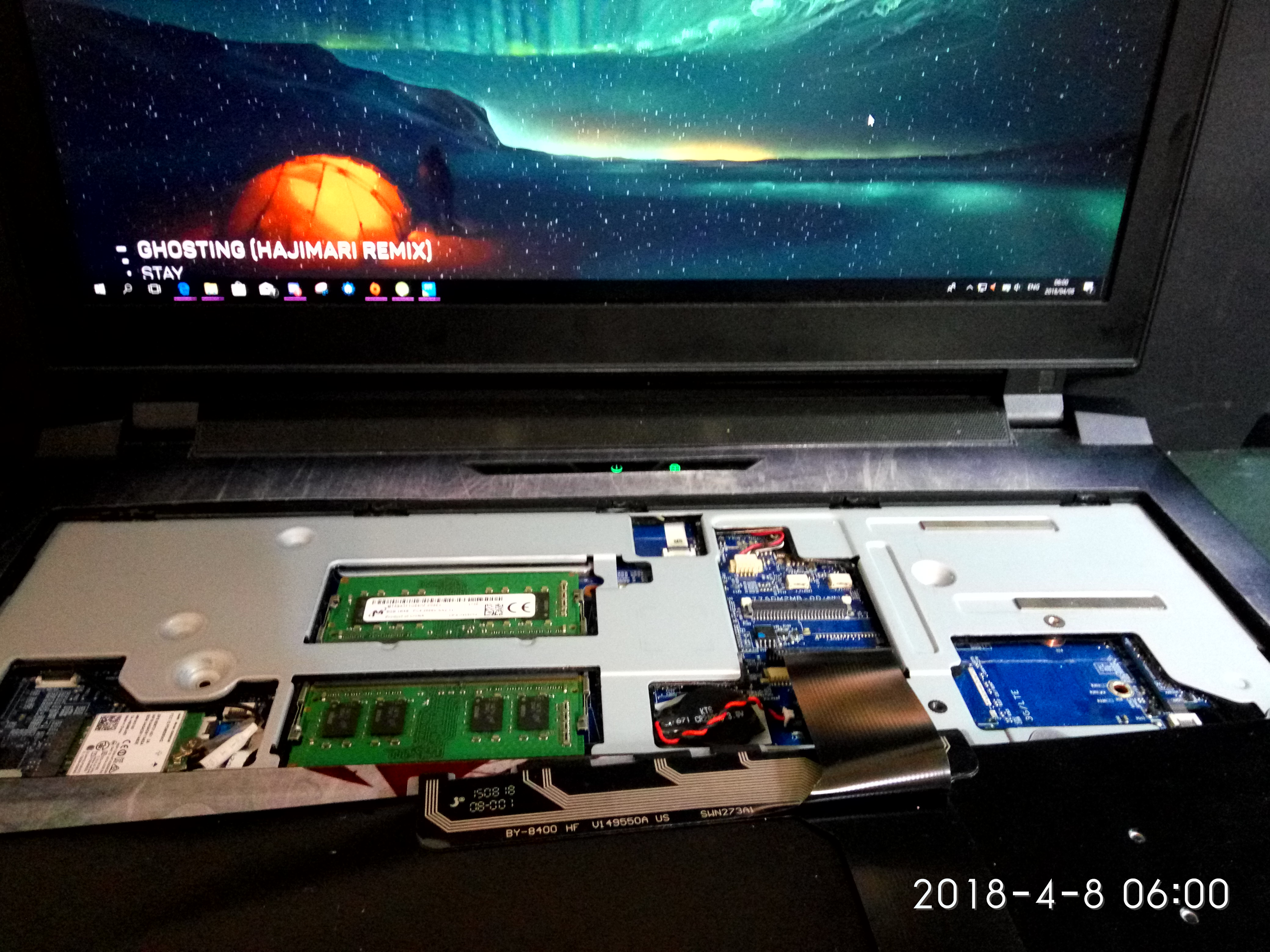

Hey，What need I do? I both have a programer and P750DM1 and I'm using i5 8400. If you need, I can help to test.
I found a strange phenomenon when I restart from hacktosh ,if I insert the headphones to the 1st jack( neat the usb ), then the speakers can work,and if I insert the headphones to headphones, the headphone then is recognized as speaker instead of headphones, and can work.

My English is not good. Sorry.



It is possible but if you go get a programmer like ch341a then we can make things more faster



I have got a programmer before. And it seems that P750DM with P750DM2 BIOS that surpports 8th 6 core ethernet work most time. Sometimes it doesn't work ,but after restart it work. above bios only supports 6 core cpu. modified bios from TM I haven't test.



Any news about that p750dm?



if you have programmer I send you test version and then you report the bugs
\



My clevo is now working 24/7 for FEM simulations. Not possible for me atm



Hey，sorry for my english.

I had flash 6.0B with a programmer.I boot my p751dm2 to windows successly，but after i unplug the mainbord battery，it can start，just a power led without hdd led.Now i buy a new MB battery，hope can fix it.
so do you think it is because of the MB battery？



sorry after unplug MB battery it can not start，just a green power led，and the screen is black. PLZ reply.
Thanks for you work.



now the p751dm2 ht fix bios still not stable we are making for more stable version now



But i had flash this： https://repo.palkeo.com/clevo-mirror/P7xxDM23G/P7xxDM2G_B11.zip ，a 8m bin ，with a programmer it is still black.



After 4.0 programmer require



I has used i7 8086k(Luckly, I bought it form Taobao, the owner thought it is QS CPU.) with P750DM1 that bios is modified from P750TM. But same with it that I flash the P750DM2's BIOS to P750DM, speaeker not work, shutdown not work. Speaker is not same with before situation.



How can I post the picture to you?

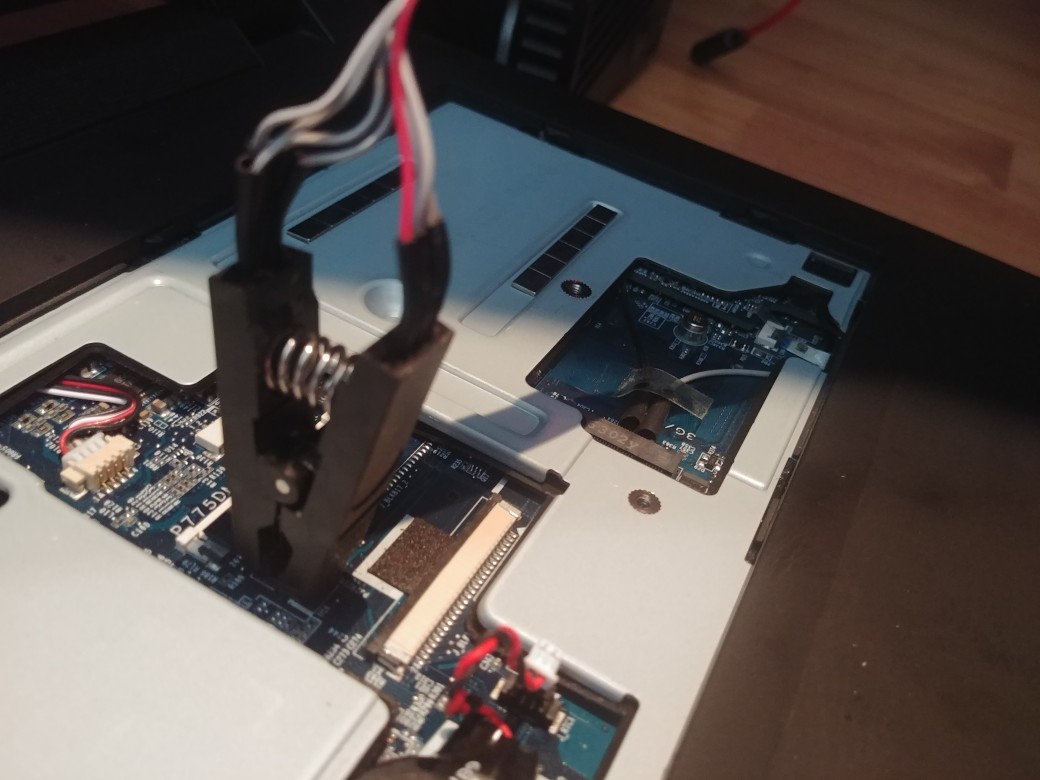

I succeeded to Ver 3.0. But I don't understand the next way. I have a CH341a and a sop 8 and know how to use it.
1. As far as I'm concerned, CH341a ch and sop8 are used in BIOS ROM chips, right?
If this is true, where is the ROM chip located on the main board?
2. After applying 3.0, can I apply 6.0B bin file directly using CH341a? + I understand cpu picture ( isolate, sort)

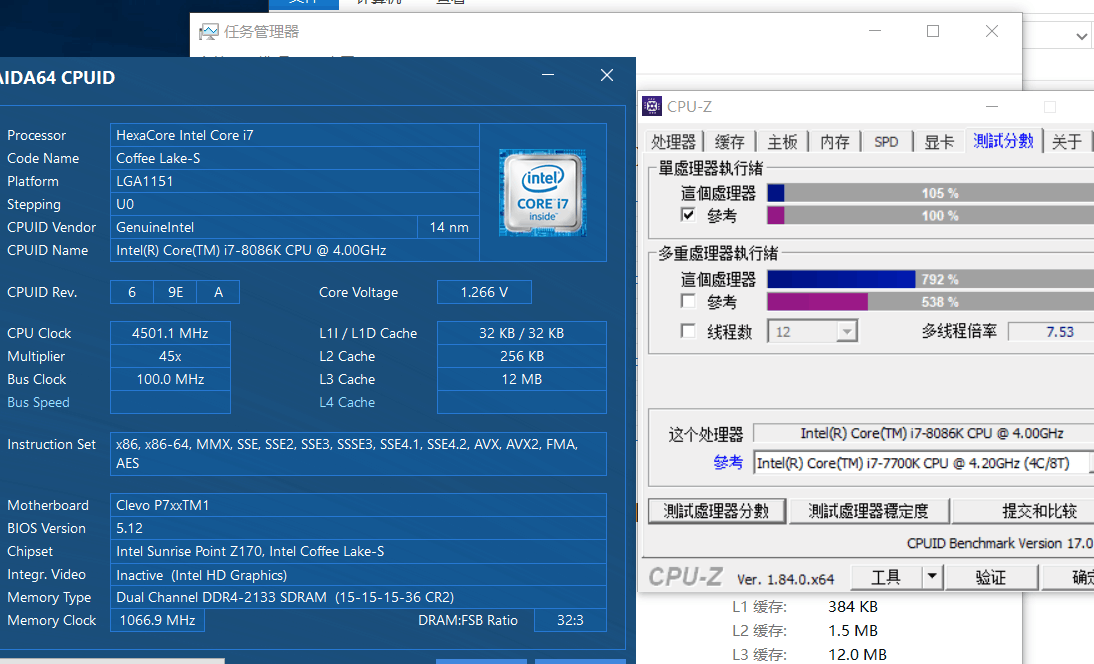

Since the processor you mentioned is only rumoured, would you mind sharing some proof that you actually received it? Getting a photo of the heat spreader and/or a CPU-Z screenshot would be really cool.



+1 i think a LOT of users would be VERY interested to see more of this



Bios parttion was changed so after4.0 bios you need ch341a. And I can tech you how to use that



571dm2under the key board if you are using 775dm2 you have to teardown whole laptop to find it



this not mine

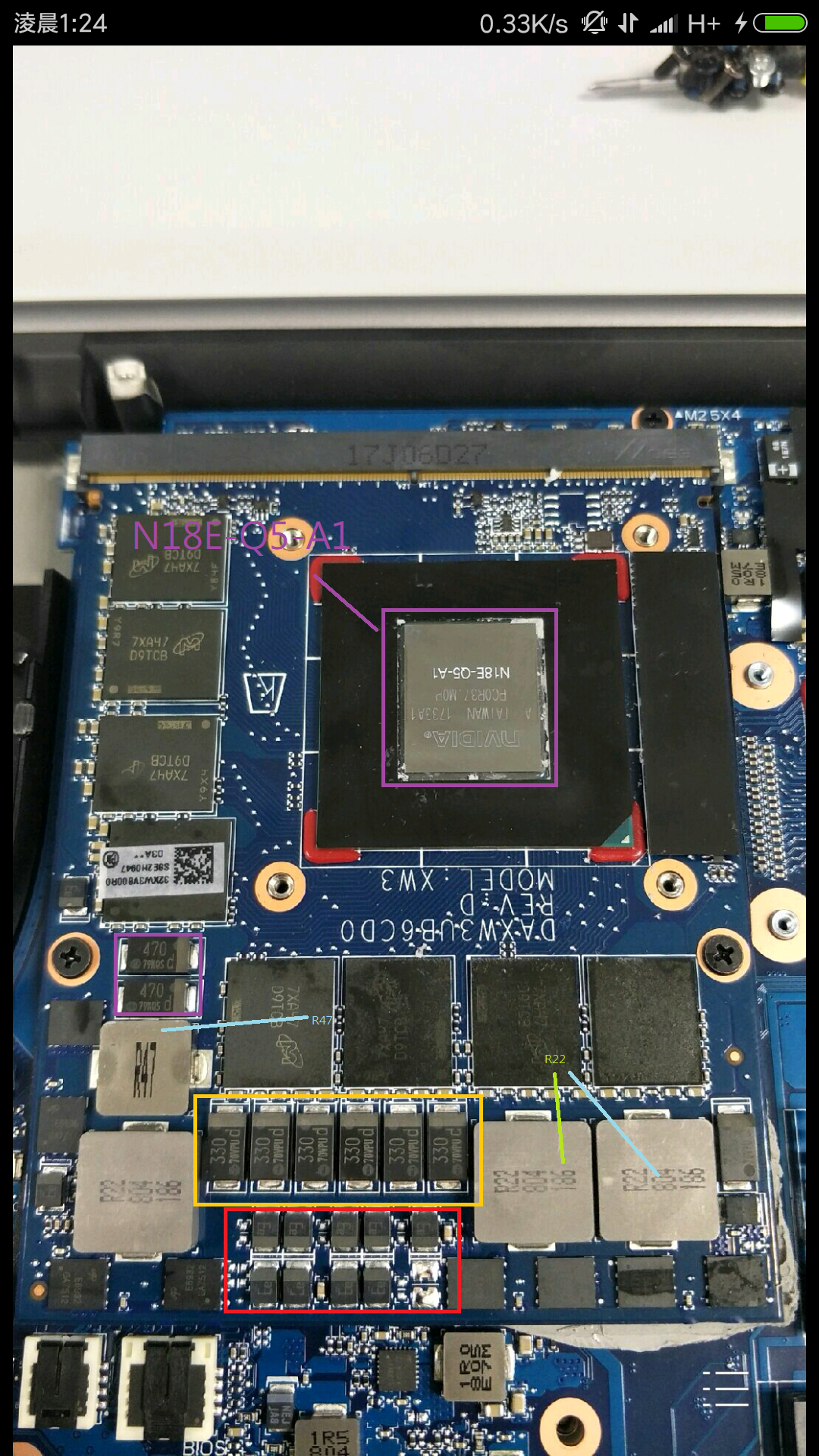

next generation nvida graphic card the power supply looks similar(little stronger ) as gtx1060 so I guess this maybe is 1160 seems the MEM of this upgrade to the 8g



wait, what? standard mxm 3.0b format for nextgen mobile gpu?

Sent from my Xiaomi Mi Max 2 (Oxygen) using Tapatalk



is mater a fact gtx1070 chip is same as gtxm1070
same logic on it



normaly Nvidia uses Q... for quadros like this P5000


so that could be the successor of the P5000 imho



ok in that regard the form factor would make sense due to more conservative demands in the mobile pro sector. and that at steep pricing, naturally....

Sent from my Xiaomi Mi Max 2 (Oxygen) using Tapatalk



I succed ver 4.0 but 6core (i7 8700) not boot



The filtering won't impact the strength of the VRM, more how clean it is. Mostly it matters what chips are being used.

E6932 chips by the looks of things in a doubled chip single inductor 3 phase.

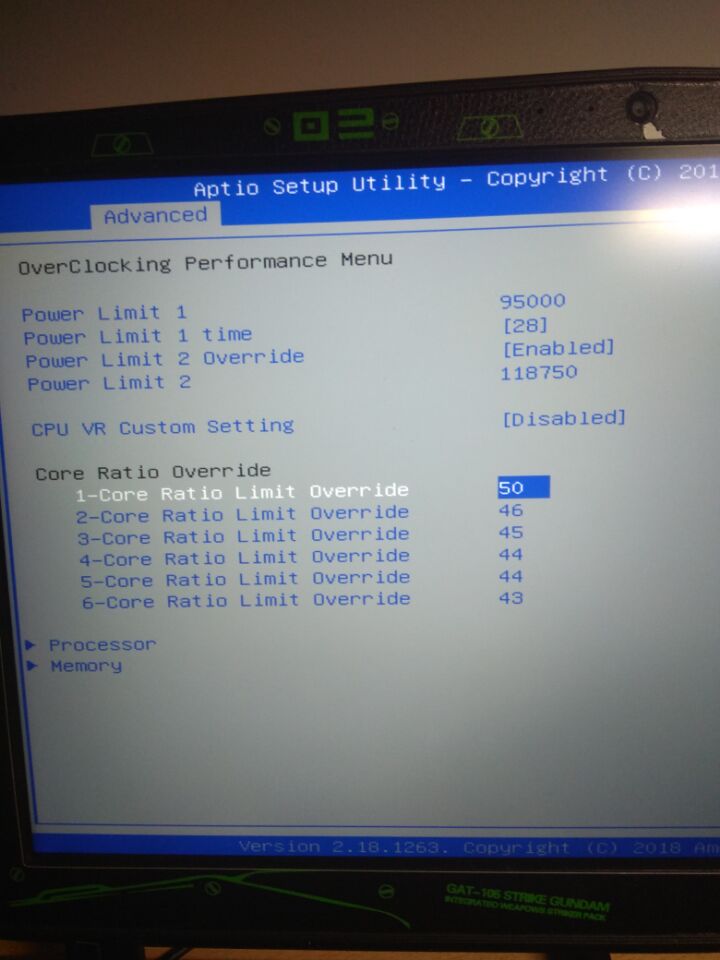

It's mine. But I have sold it to others. This cpu is cool, but same as 8700k, PxxDMx can't supports it absolutely. when it works at 4.6Ghz or more, the voltage is not stable. Although it can starts with 5.0 all core.



Early silicon can have stuff like power spikes beyond a certain voltage/frequency which could cause issues.



I didn't see anything about the P870KM1 on this list, I'll be so happy to upgrade it to 8700K, any thoughts?



FLASH P870TM BIOS ON YOU LAPTOP BUT DONT FORGOT FLASH OC VBIOS FIRST



sorry sir it only support 6c6t not support 6c12t(ver 4.0)



i dont understand what this is for?



8th gen 6 cores on z170 and z270 chipsets.



nice , so can load a i7 8700k on my p870dm3



You need to do some careful reading.



It's actually a Quadro P5200 (same pipelines as 1080 GTX), and the card most probably comes from HP Z VR Backpack:
https://www.displayport.org/products/hp-z-vr-backpack-nvidia-n18e-q5/
http://www8.hp.com/us/en/campaigns/vrbackpack/overview.html
https://www.notebookcheck.net/NVIDIA-Quadro-P5200-Workstation-GPU.239818.0.html



yep, @Prema already pointed towards the same shame that this card isnt available for sale anywhere yet! at least not that ive seen...

btw, here i thought the P5200 was just a higher clocked P5000, thus based off 1070 and not 1080? it also states that on the NBC link u posted



You're right! Typo mistake...



I am sorry if I make mistake friends
