Official Coffee Lake Refresh Thread/BIOS for ALL Clevo Laptops - RTX CARDS NOW SUPPORTED

I have not bought this processor yet, in Russia it costs a lot about $ 485. I look forward to a better offer to buy.



First:
- check if your 1070gtx is gsync card
- check if your vbios is gsync vbios
- if you have km1 board, check if it is gsync Mb
- you can still check stock 870tm1-g bios (this is what I use, with 1080 and with AUO3.1 panel I have gsync)



On processors i5-9400f, i5-9500 G-SYNC works)))



-P870KM Dsanke BIOS Version - 05/05/11
-EC version - 1.05.02
-VBIOS Version - 86.04.2A.00.27
-Panel AOU B173HAN03.1 144GHZ
-ID GOP Graphics Card GTX 1070: 0x3000A

G-Sync starts to work only on i5-9500 / 9600F / 9400F processors



Have you had gsync on your laptop? Still it is a mistery for me what your posts mean.... (sry)



Guys,
I have tried to reinstall realtek driver, but no luck. Only digital output works, when I plug in the jack it is also dead silent The output light with red, the sound option shows the green bar when I play youtube but no sound at all

I have used the latest bios from the 1st thread download:


Can anybody confirms that with this bios the sound works?

It can also happen that when it was disassembled sthing was not plugged back properly. Where I can find speaker or soundboard plugs?

THX for the help in advance!



I think I know the issue:

I have used this bios: P7xxDM_10.bin

I should have used P7xxDMx.bin, right? for 775dm3....

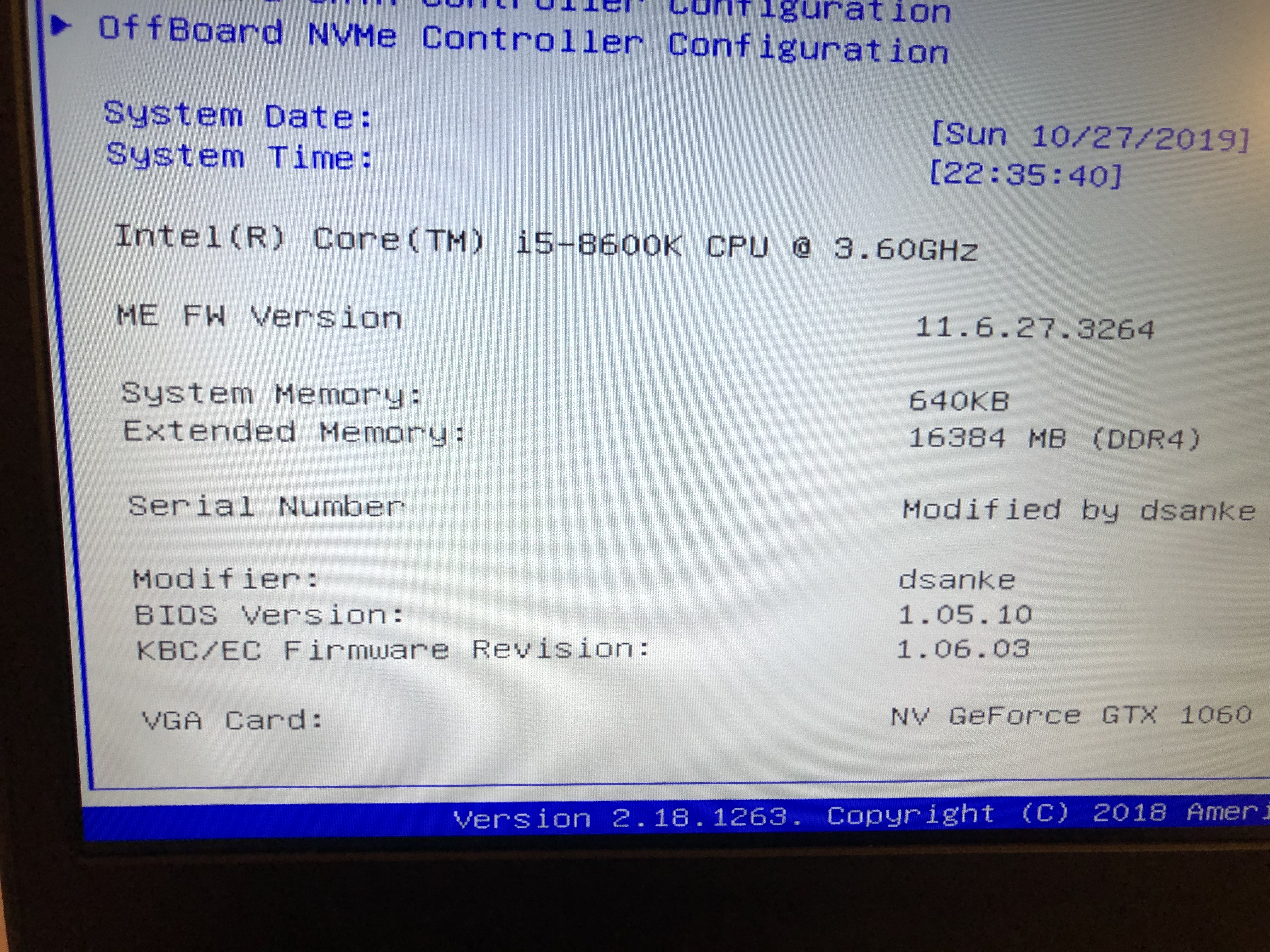

can i check somewhere that i used i wrong one? - i attached photo of my bios



Don't mix bios from other models. What model do you have? I don't reply to pm's sorry



It was a mistake i guess... quickly chose the wrong one...

I have clevo p775dm3-g... I think we used the dm_10.bin by mistake. Could you check your version? Or how I can check it I used that (not 100% sure).

Apologize for the pm, I thought it was faster.



Flash the P7xDMx_RTX.rom. Supports 8th gen cpu and audio out of the box. You are lucky that one even boots. You have a excel inside the zip. Read it next time before blindly flashing the BIOS. it says what supports and which audio and gpu supports. The one I recommend supports GTX and RTX gpu's



i5 8600k

Do you have the same bios version and bootscreen? If no that I am almost sure I have used the 775_10.bin which is the old dm version - which had issues with the sound, what I have...



Thx, do you have the same version / bootscreen? just to be sure it was the wrong bios... Yeah, interesting that boots and works fine but the sound... thx for your superfast help!



I have a modded dsanke BIOS for obsidian pc. But yes I flashed the 1.07.26 BIOS of dsanke first then @John@OBSIDIAN-PC modded it for me to work with his software. But yes I'm running a dsanke BIOS above all and I'm running that same BIOS I told u to flash with no issues at all



Thx! I will flash this bios: P7xxDMx_RTX.rom Can I do it without programmer or I need programmer again?



I did flash with programmer. You can try without

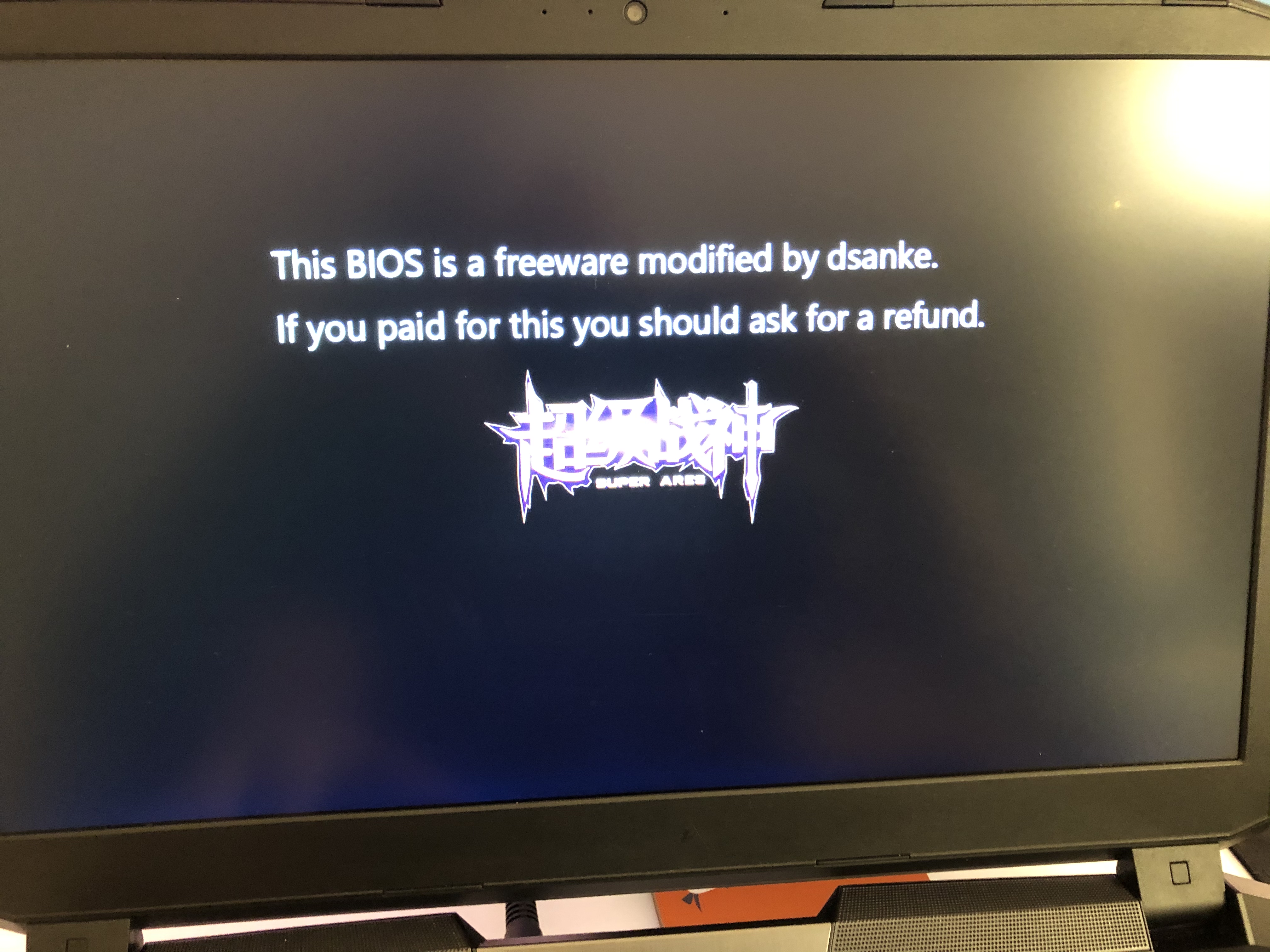

THX, I did it, and VOILA, it is working has sound and a nice boot logo



Glad to help
Now you know, next time read and re-read OP over and over before blindly flash



The fun factor, that I have read, but it was late night so I made a mistake. But thx for the help, now it works so the new owner could be fully happy with it. I have put a silicon lotter 8600k inside, it runs 5ghz flawlessy under 80C.



awesome! Happens to all of us. Thank god you have a programmer in case anything goes wrong



Anyone here running a stock 9700K here? Wondering about the thermals on it on a P870DM2. I was supposed to head over to Microcenter this past weekend but ended up having a change of plans and won't be heading there until Friday.

I'm wondering if delidding it is even worth the risk since the 9th gen is soldered.



Good afternoon everyone.
No one has experience installing high-frequency memory in clevo P870DM? G-skill with XMP profile at 3800, I was able to run only at 3200.
By the way, no one knows what the DllBwEn parameter is in the memory overclocking options in the BIOS (dsanke mod)?



Hello guy, the laptop ram frequency max supported is 3200 Mhz for exemple i use 128Go to 3000Mhz. The ram controller is inside the processor and is suport natif 2666Mhz but if you overclock the controller you obtain 3000mhz or 3200 maybe but no more.



hello guy if you want use creative Sound Blaster X360 with custom bios by dsanke check my link:

https://1drv.ms/u/s!Ah9hbgXoTEfC5mWJwnWHupf3fNhK?e=zhaE25
https://1drv.ms/u/s!Ah9hbgXoTEfCrg51uGEspsSzExZO?e=6h3x0i (dont execute setup bat)

This mod is compatible with realtek UAD drivers.

@joluke (I tested with my P775DM3 and 9900k)



Awesome find!



have the same ram kit, max i can get out of them is 3400 mhz. problem is the laptop motherboard, the cpu imc is actually capable of higher frequencies. so same cpu and same ram on a desktop motherboard would result in higher ram clocks!

Sent from my Xiaomi Mi Max 2 (Oxygen) using Tapatalk



Hm, can you take a photo of the memory settings in the BIOS, please? I even managed to achieve 3200 with difficulty (I managed to start the laptop with this memory frequency, but now, with the same settings, the laptop does not start... wtf)



check this previous post of mine for more details

http://forum.notebookreview.com/thr...ers-welcome-too.810490/page-562#post-10910030



Those that have delidded their 8700K, have you sealed yours back after applying the LM? Or is the pressure from the heatsink strong enough to hold it in place without needing to reseal?



Sealing only helps handling outside of the socket and could undo some of the temperature improvements.



Good Day. G-Sync doesn’t work on i7-9700, 9700F, 9700K, but on i5-9600 / 9500/9400 and i7-8700 / 8700k G-Sync works.
Bios Dsanke



then try to use a stock tm1 bios, I assume with it works, but it is just a guess

can it be that you use some old dsanke bios by chance?



BIOS from tm I think it will work with errors.
I use the Dsanke bios from the beginning of this branch.



I use a TM1 bios from OP in my DM3. Open their excel and see if there is one compatible with your model and cpu. Mine as been working flawlessly for months now



Bios from OP? Is it dsanke or another mod?



I use tm1 without any issue, so I do not know what you are referring to



Dsanke
This bios on my DM3: P7xxDMx_RTX
1.07.26



You usb c port and card reader work ? Because my dm3 with 128Go ram mod dosent work



Hmm . . . there are Diferent Ds@nke bi0s here across this Thread . . . Diferences to Clear wich bi0s is just maybe call the Date . ! ?

Found - #1 - #798 - #816 - #821 - #828 - #892

@ joluke you use Bios from Post #1 ( OP for 0riginal Post ;-) ?



I use the version 1.07.27 from the post you first quoted: http://forum.notebookreview.com/index.php?posts/10939159

I use the TM1 modified for DM3: P7xxDMx_RTX.ROM

The differences are just updates. Usually Clevo doesn't release what they changed in between BIOS versions. But i'm using the first one you quoted without any issues on my P775DM3-G with a 8700k and a nVidia 1080



Hey all i hope someone could help me .
i have flashed last version from the bios of dsanke but no gsync at all .

Bios ver : 1.05.11 Modified by dsanke
Bios Date: 05/12/2019
Video BIOS Version: 86.04.2a.00.2b
Display : 144hz AUO B173HAN03.1 (AUO319D)
CPU : 7700k
is the issue the cpu? couse before flashing and changing display my g-sync worked perfectly i as comming from 4k 60hz gsync display ith 7700 non k.

i want to buy next month new cpu not sure 8700k or 9700k depents on wich cpu g-sync will work



1.05.11 doesn't support g-sync on that panel.

Which laptop do you have? Buy a 8700k. It will have a working g-sync. But read Op excel inside the files you download. There are modified TM versions that bring compability for that LCD g-sync (I know because I have that same LCD and only a modified TM1 bios for my DM3 brought gsync back to life with the 8700k)



I have the p870km-g .
So i Need to downgrade BIOS to have G-sync Work on the 144hz Pannel?



No idea. I don't have the same laptop. Maybe someone can give some light



I think it is a cpu issue... alll mod bios is derived from TM1 bios... so that bios obviously does not support 7th gen. I think with 8/9 gen cpu u will have gsync. I have km1 and have it



What CPU do u have installed ? And what pannel ?
U have the exact bios version like me ?



I have stock TM1 bios, works perferctly in KM1.
Cpu, 8086k but I had 8700k as well
panel: AUO 3.1 gsync



So I can flash the stock tm1 bios on to my km machine ?
U also have the ec flashed ?
Audio works?



Read the excel... Don't flash any ec from another model in your laptop. You will end up with a hard brick. Read the excel from OP and see what it is compatible with your cpu or if you need a 8th or 9th generation cpu to flash a newer BIOS. READ THE EXCEL



I recommend reading the questions and answers too, so you get the FULL experience
