    P870TM1 - Upgrade possibility from 1080 to 2080?

    Discussion in 'Sager and Clevo' started by v8n3t, Sep 17, 2018.

  1. v8n3t

    v8n3t Notebook Consultant

    Reputations:
    19
    Messages:
    115
    Likes Received:
    23
    Trophy Points:
    31
    Hello,

    I was just curious to see if there will be any support for upgrading the 1080 to the 2080 once it makes its way around to the mobile side.

    Just wondering is all.

    Thanks to all in advance!

    v8n3t, Sep 17, 2018
    #1
    Dr. AMK likes this.
  2. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Since nothing has been officially seen yet on what might happen with cards it's too early for this kind of discussion.

    Meaker@Sager, Sep 17, 2018
    #2
    raz8020 and Dr. AMK like this.
  3. Arrrrbol

    Arrrrbol Notebook Deity

    Reputations:
    3,235
    Messages:
    707
    Likes Received:
    1,054
    Trophy Points:
    156
    More than likely, Clevo will likely try changing the chassis as little as possible for 9900K and 2080 as its cheaper than a redesign.

    Arrrrbol, Sep 17, 2018
    #3
    Papusan, raz8020 and Dr. AMK like this.
  4. GrandesBollas

    GrandesBollas Notebook Evangelist

    Reputations:
    370
    Messages:
    417
    Likes Received:
    563
    Trophy Points:
    106
    Take a look at this thread:

    http://forum.notebookreview.com/thr...ix-gets-an-8700k-and-gtx-1080-upgrade.814711/

    Specifically, consider this:

    "The front frame has to be trimmed due to the massive Clevo GTX 1080 form factor. One of the stand-offs for the retainer screws has to be removed from the metal bracket. A stand-off underneath the GPU (attached to the palm rest) has to be chopped off so the GPU can lay flat in the chassis."

    "Custom Heat Sink"
    [​IMG]

    These are just examples of mods you could make to upgrade from older models (DM3 in this case). These mods are not available out of the box nor with necessary BIOS updates.

    If the 2080 specs match up closely with those of the 1080, including thermal load, plug and play may work. With DTRs, we need to keep in mind they aren't as upgradeable as desktops.

    GrandesBollas, Sep 17, 2018
    #4
  5. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    this is a perfect thread to use my crystal ball for :)

    jaybee83, Sep 17, 2018
    #5
    t6nn_k and raz8020 like this.
  6. yrekabakery

    yrekabakery Notebook Virtuoso

    Reputations:
    1,470
    Messages:
    3,438
    Likes Received:
    3,688
    Trophy Points:
    331
    What does your crystal ball say? ;)

    yrekabakery, Sep 18, 2018
    #6
    raz8020 and jaybee83 like this.
  7. Danishblunt

    Danishblunt Guest

    Reputations:
    0
    considering how the MXM form factor is being made nowadays I'd not use the term "more than likely", manufacturers are clearly making it harder and harder to upgrade. Look at the crap mr.fox had to go through to get clevo GTX 1080 working on his P870DM.

    Danishblunt, Sep 18, 2018
    #7
  8. BrightSmith

    BrightSmith Notebook Evangelist

    Reputations:
    143
    Messages:
    640
    Likes Received:
    383
    Trophy Points:
    76
    I'm very skeptical with regard to the power and cooling required for a 9900K + 2800RTX combo if the chassis remains the same.

    BrightSmith, Sep 18, 2018
    #8
  9. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    from a technical standpoint its not a big deal, considering the 1080 sli machines, thats a total of 180+180+95 w tdp with the cpu = 455 w nominal tdp. surely doable with one rtx2080 and a 9900k.

    Sent from my Xiaomi Mi Max 2 (Oxygen) using Tapatalk

    jaybee83, Sep 18, 2018
    #9
    Papusan, joluke and raz8020 like this.
  10. Arrrrbol

    Arrrrbol Notebook Deity

    Reputations:
    3,235
    Messages:
    707
    Likes Received:
    1,054
    Trophy Points:
    156
    Unless they change the form factor again the 2080 should be compatible, but who knows what they will do for sure. It depends on the cost of designing a new motherboard/cooling against how much they would make from selling new machines.

    Arrrrbol, Sep 18, 2018
    #10
    Papusan likes this.
  11. Danishblunt

    Danishblunt Guest

    Reputations:
    0
    Exacly, guess what they probably will do ._.

    Danishblunt, Sep 18, 2018
    #11
  12. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    A lot of it will depend on the recommended memory layout from Nvidia as to the physical layout.

    Meaker@Sager, Sep 18, 2018
    #12
    jaybee83, raz8020 and Arrrrbol like this.
  13. rainer124

    rainer124 Notebook Guru

    Reputations:
    55
    Messages:
    59
    Likes Received:
    159
    Trophy Points:
    41

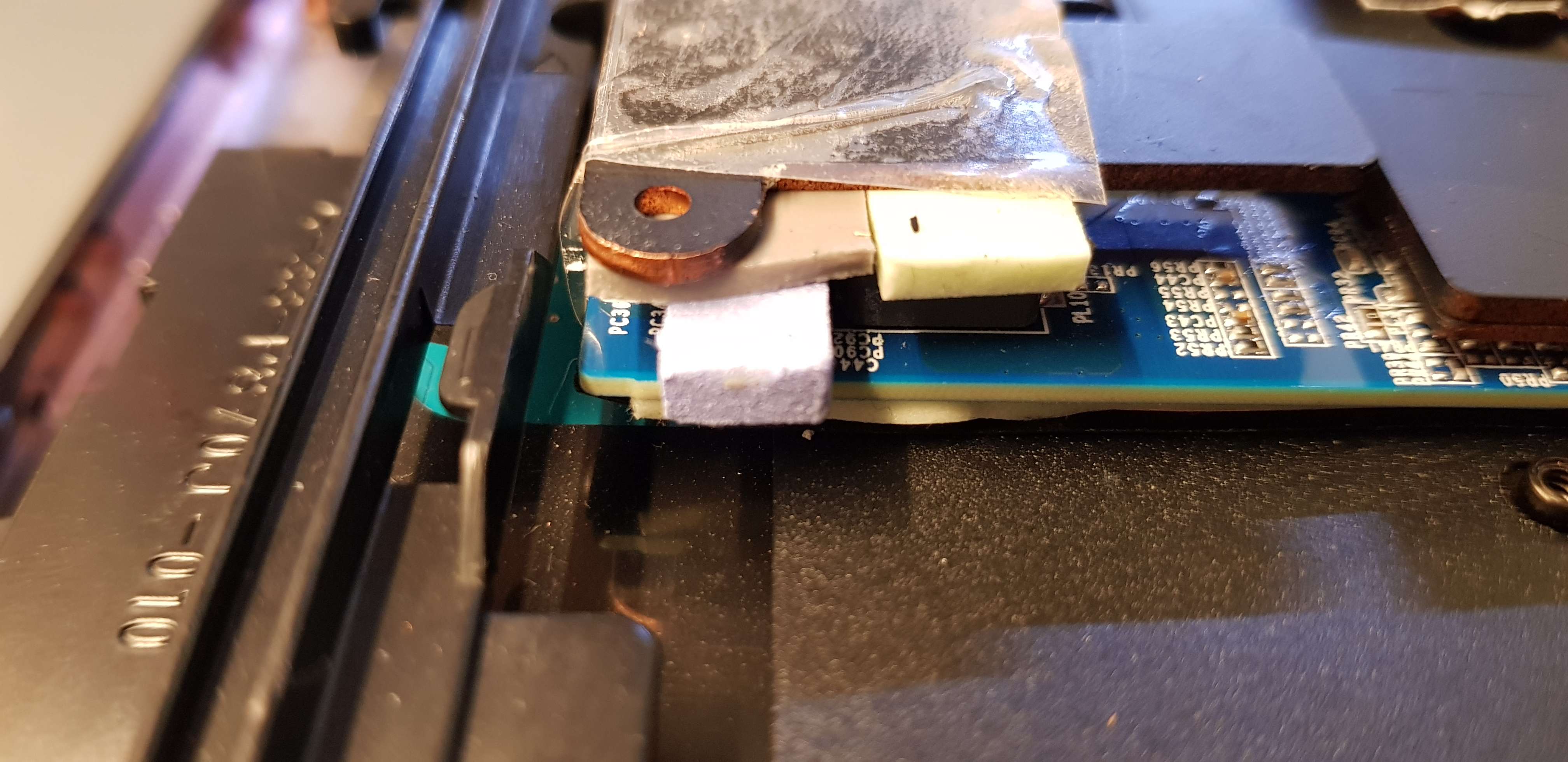

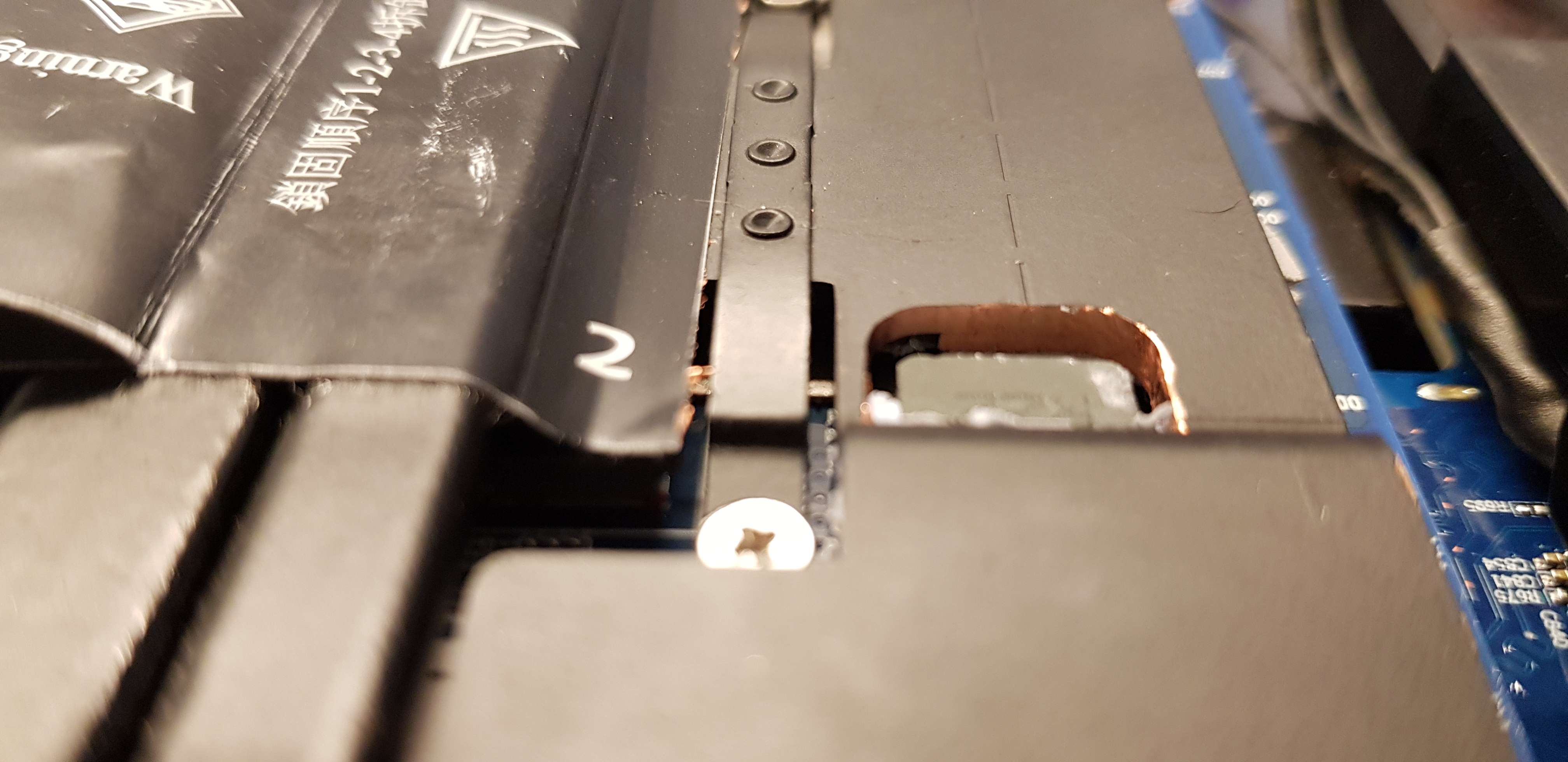

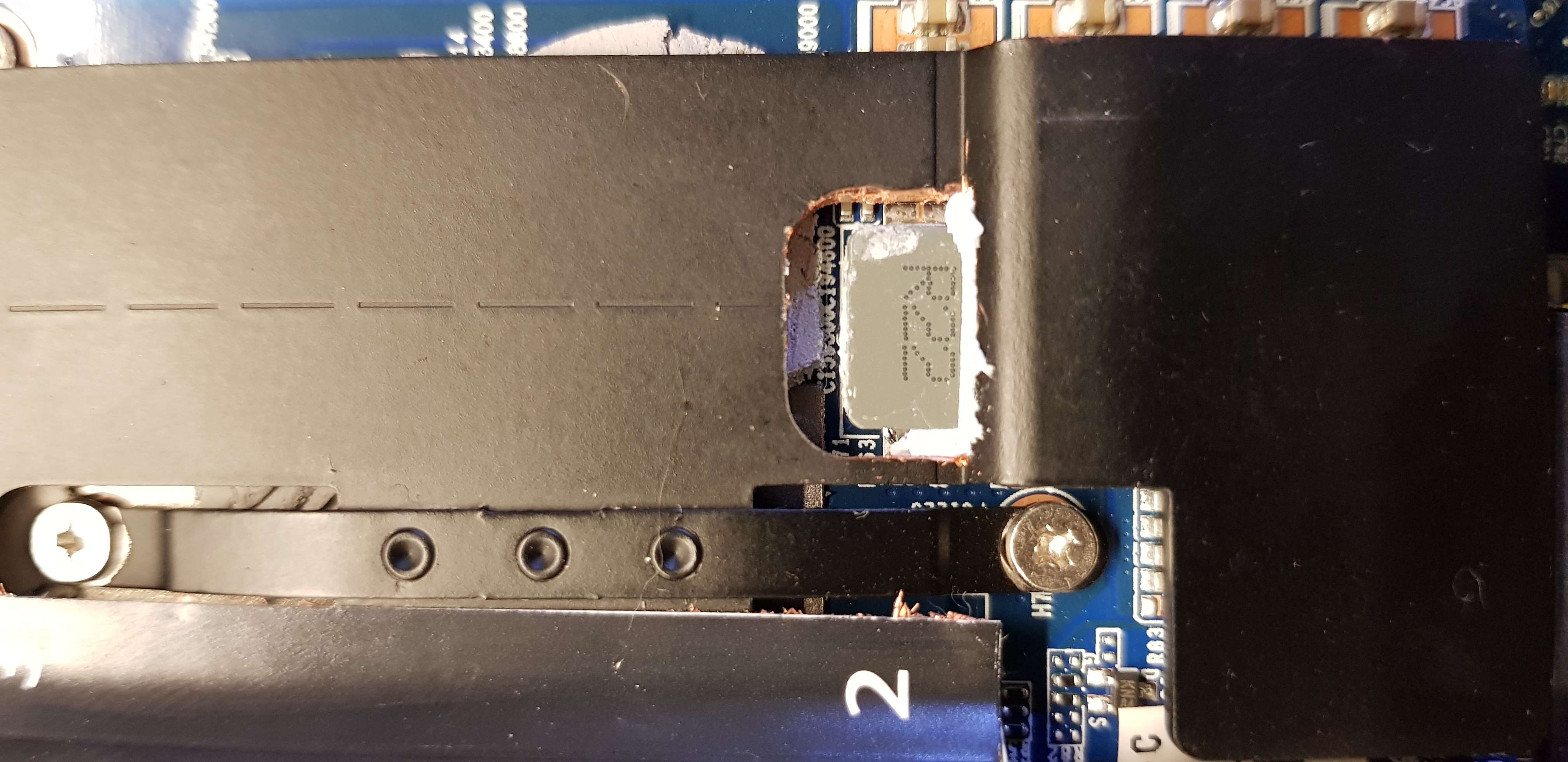

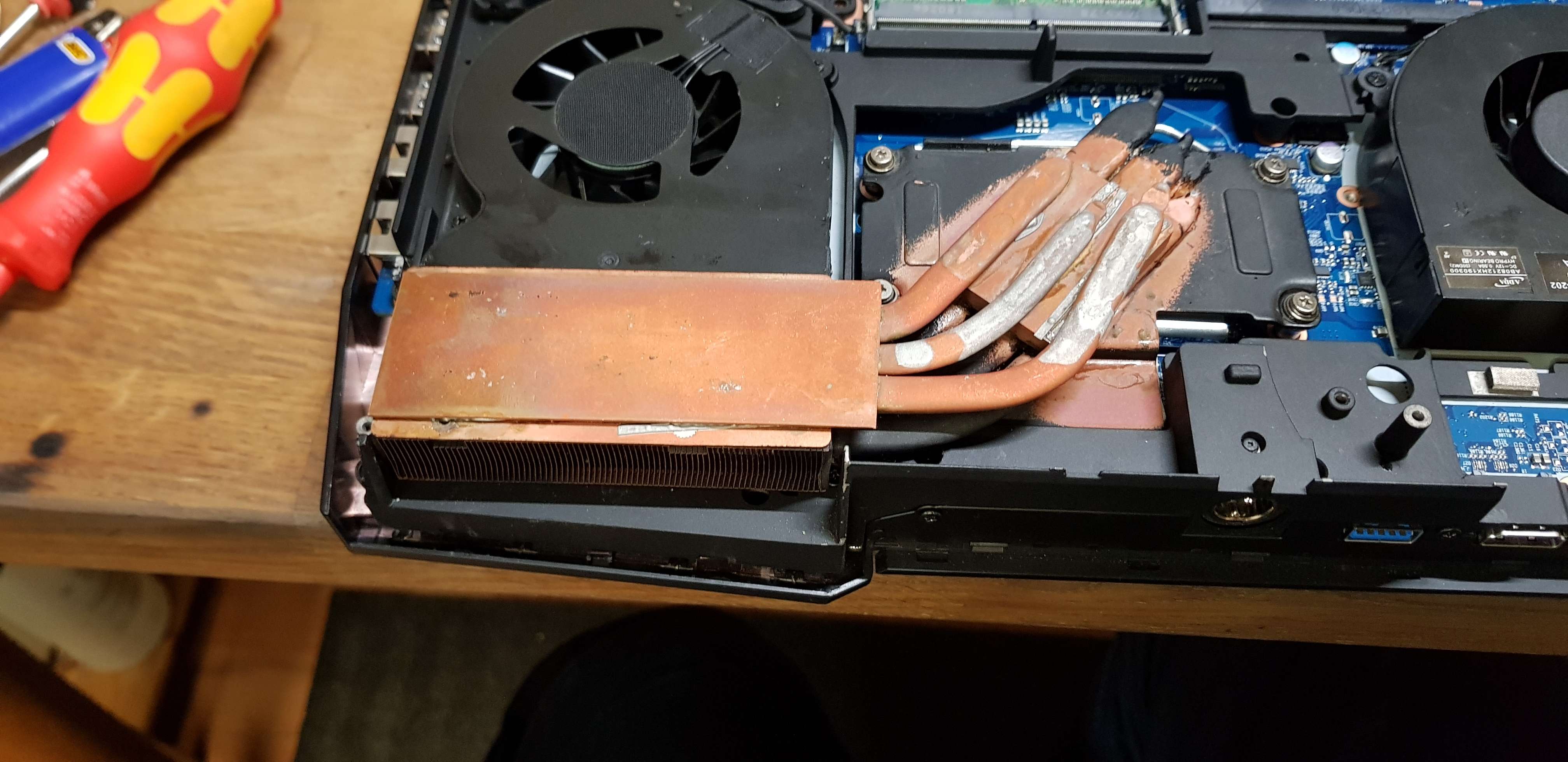

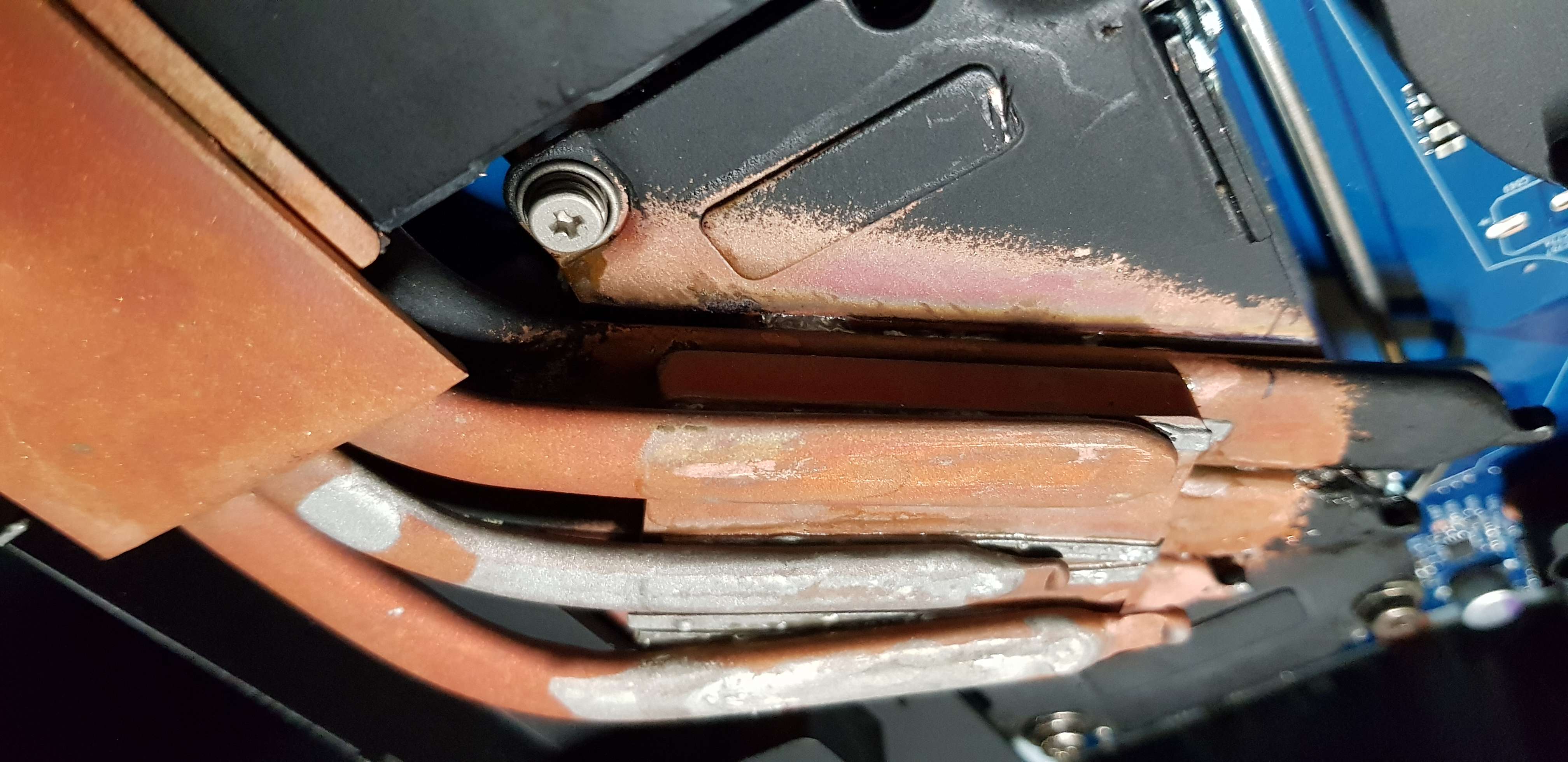

    Hi All here is a Picture it is my RTX2080 with Standart Headpipe from 1070\1080 with modification to RTX.
    There are 2 points that have to modification 20190403_223801.jpg 20190403_223801.jpg


    Attached Files:

    Last edited: Apr 3, 2019
    rainer124, Apr 3, 2019
    #13
    almostoast, Rahego, Dr. AMK and 2 others like this.
  14. rainer124

    rainer124 Notebook Guru

    Reputations:
    55
    Messages:
    59
    Likes Received:
    159
    Trophy Points:
    41

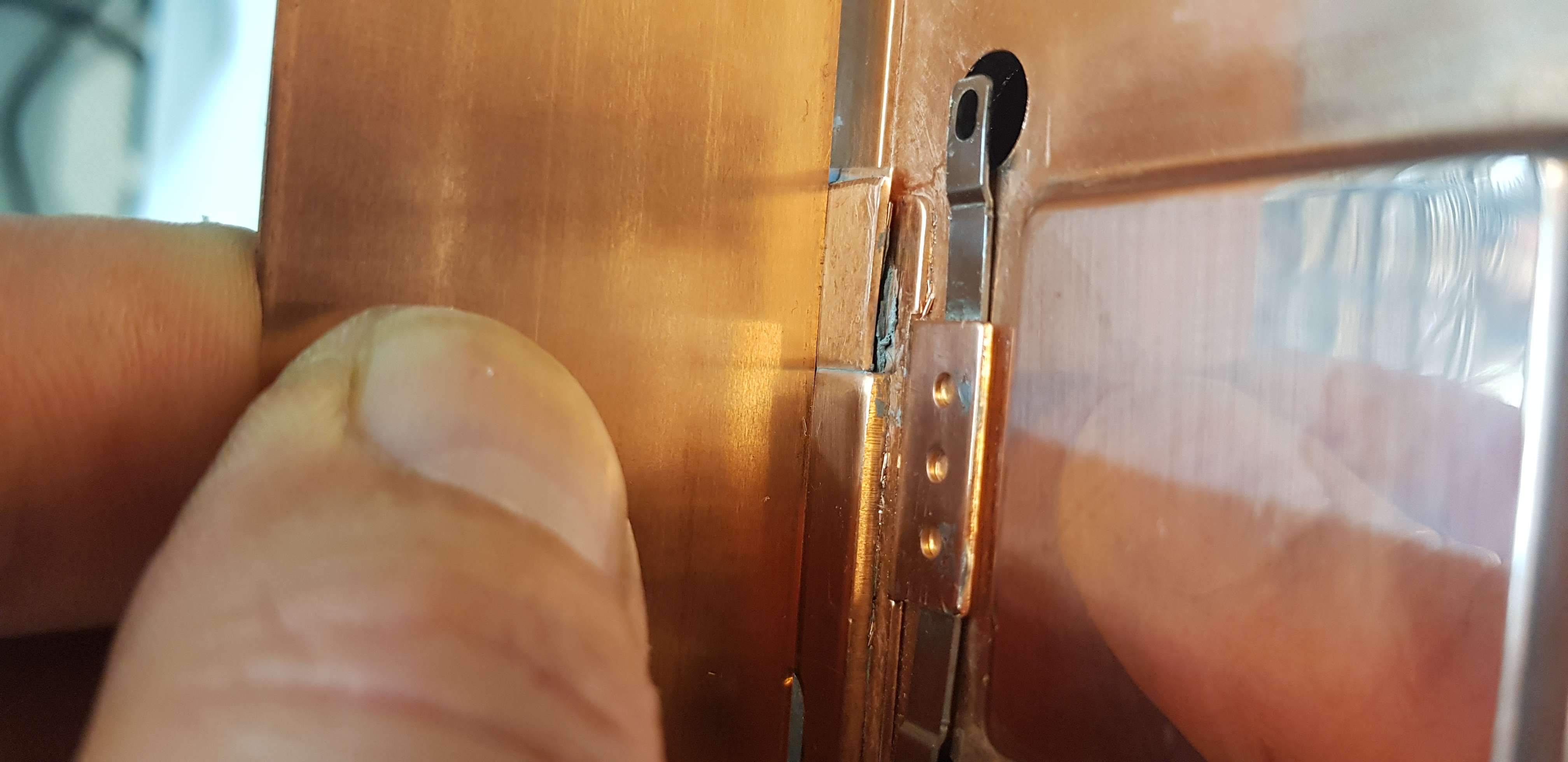

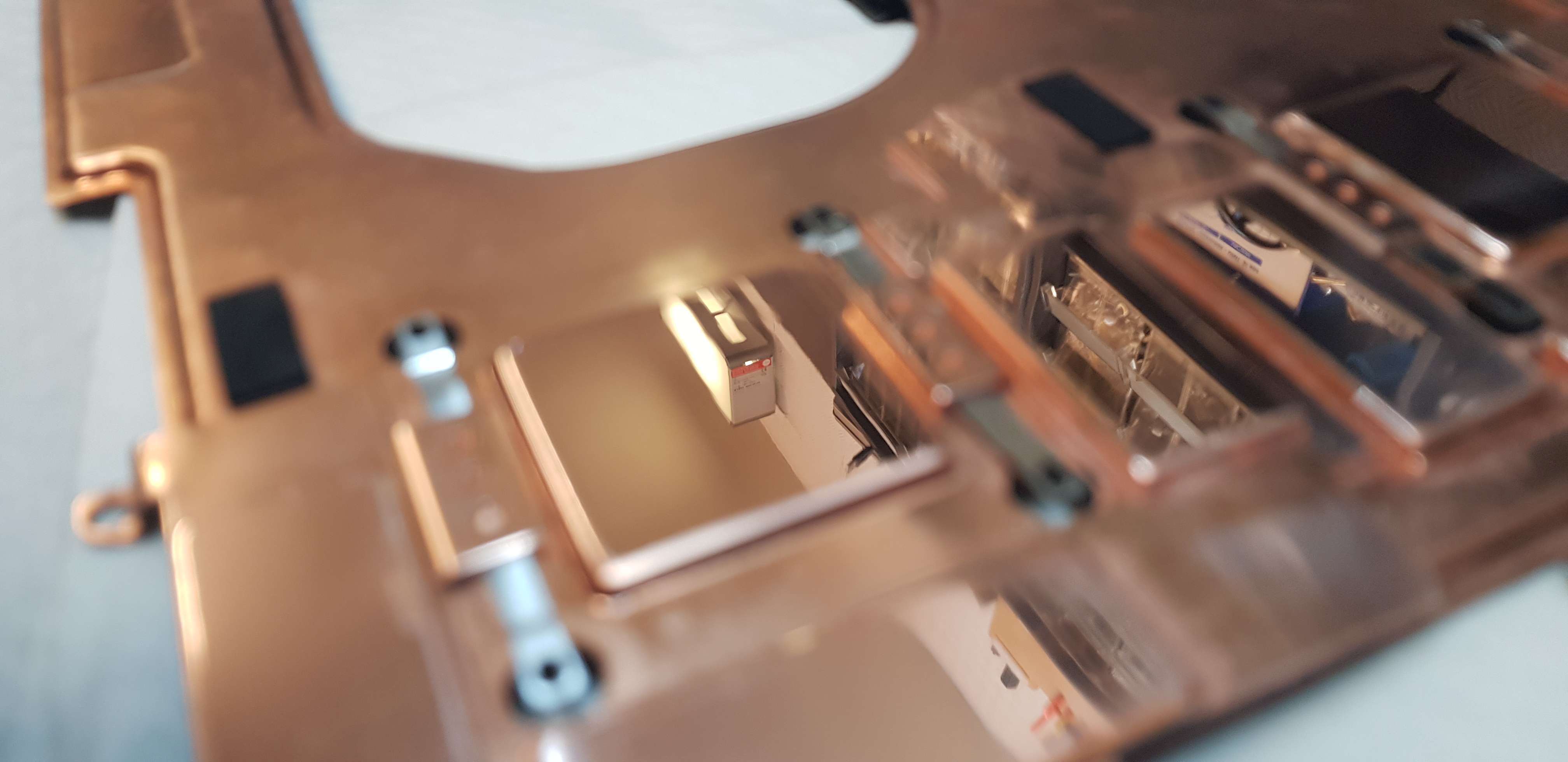

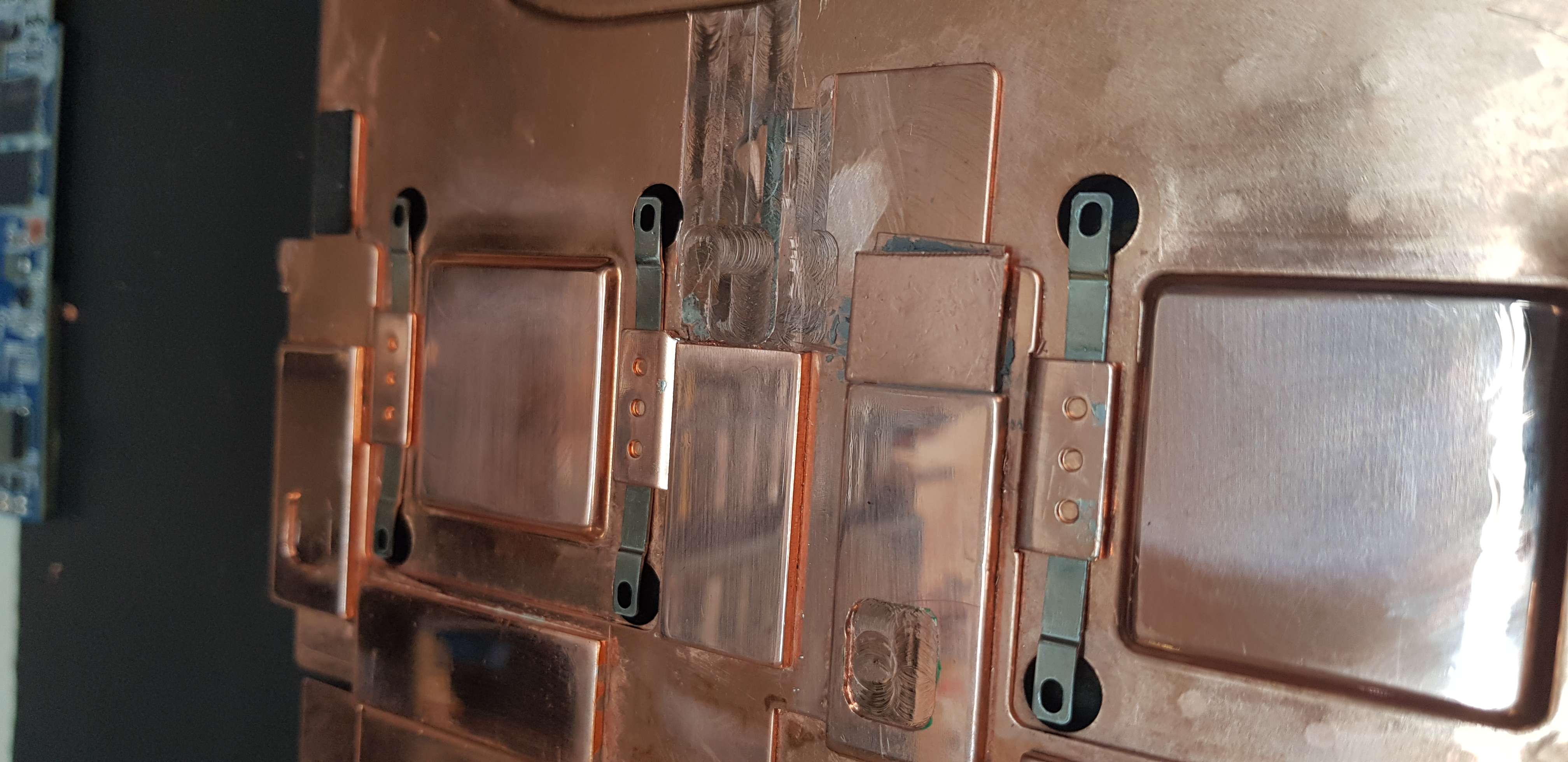

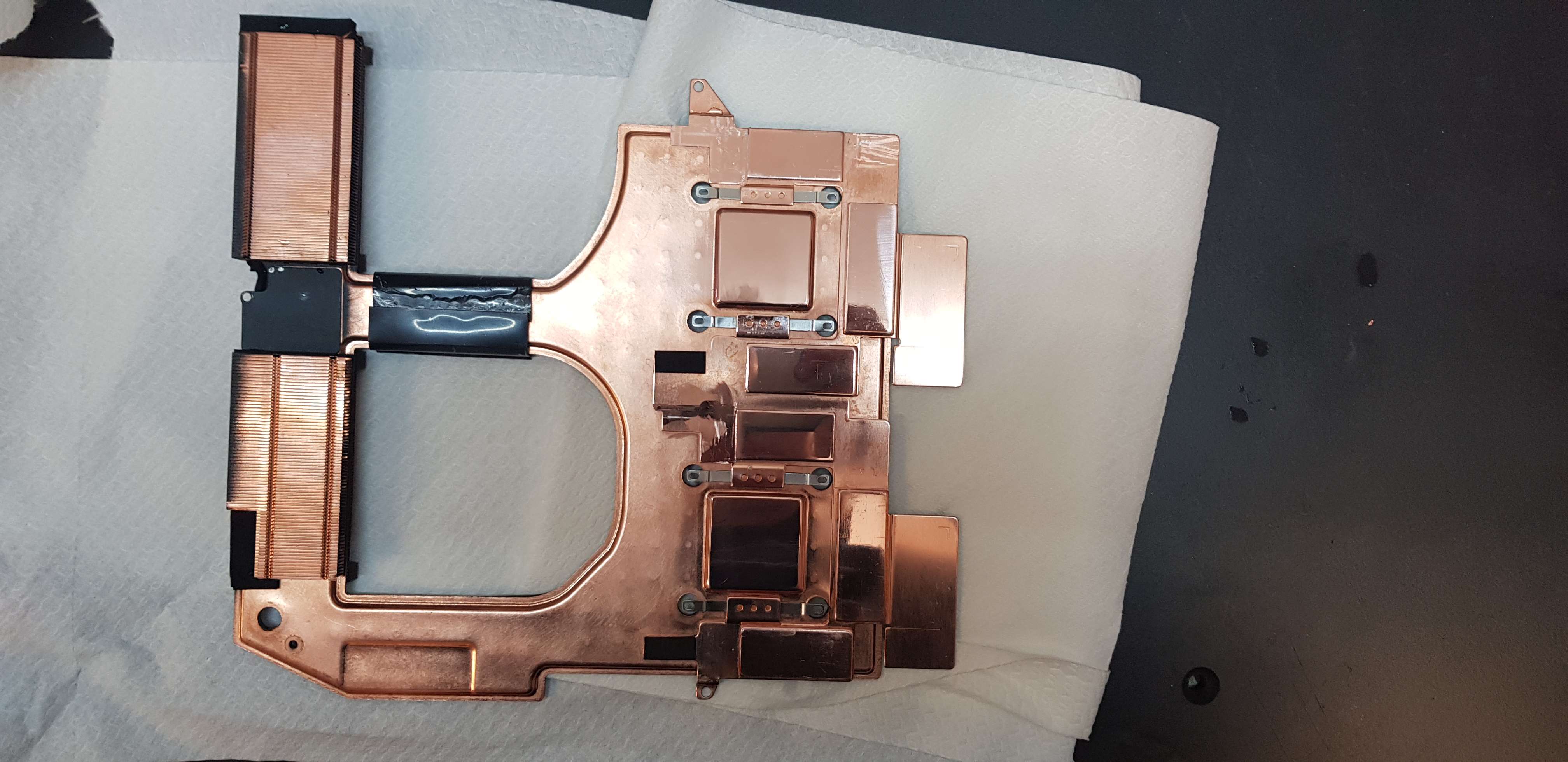

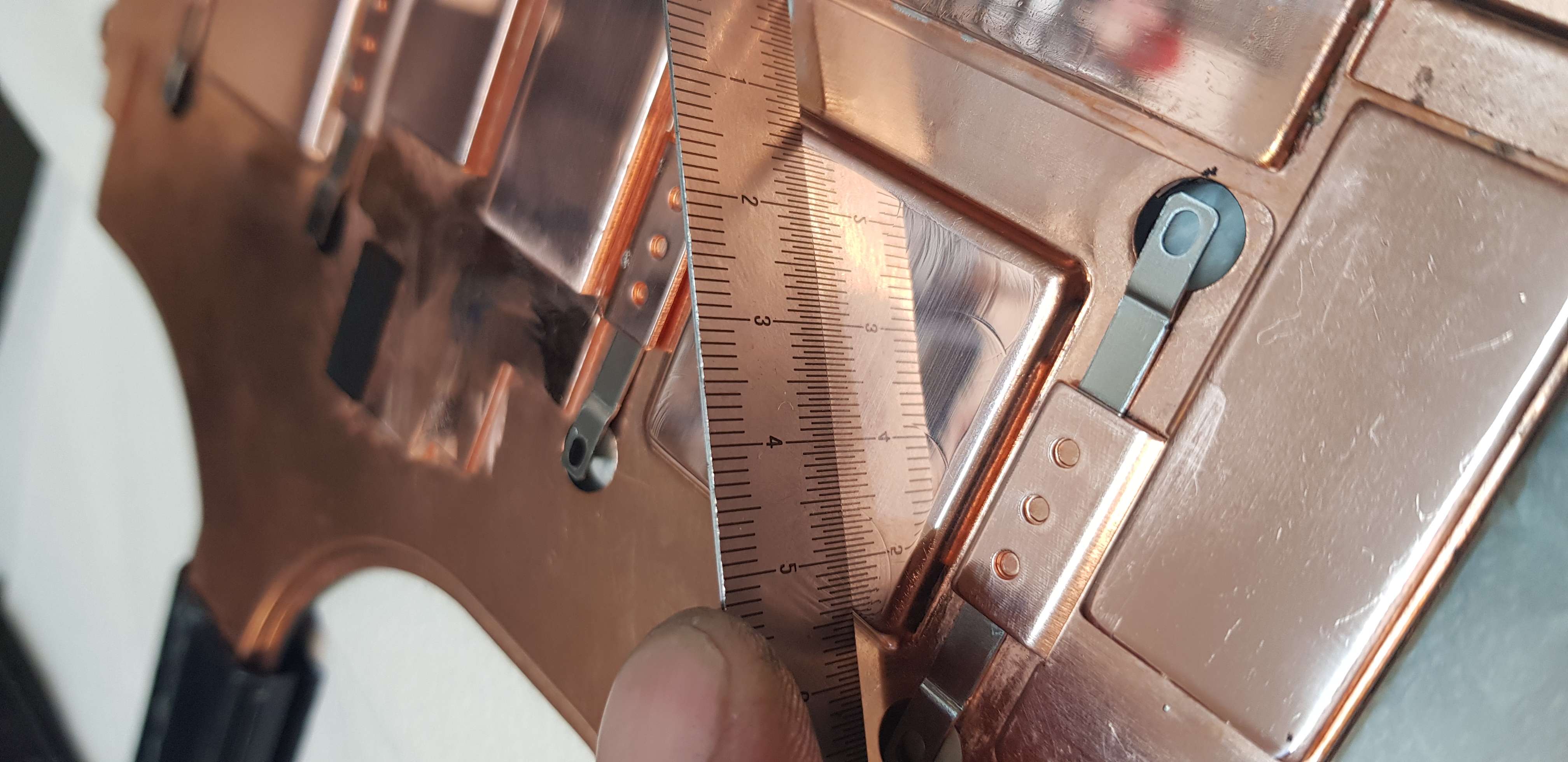

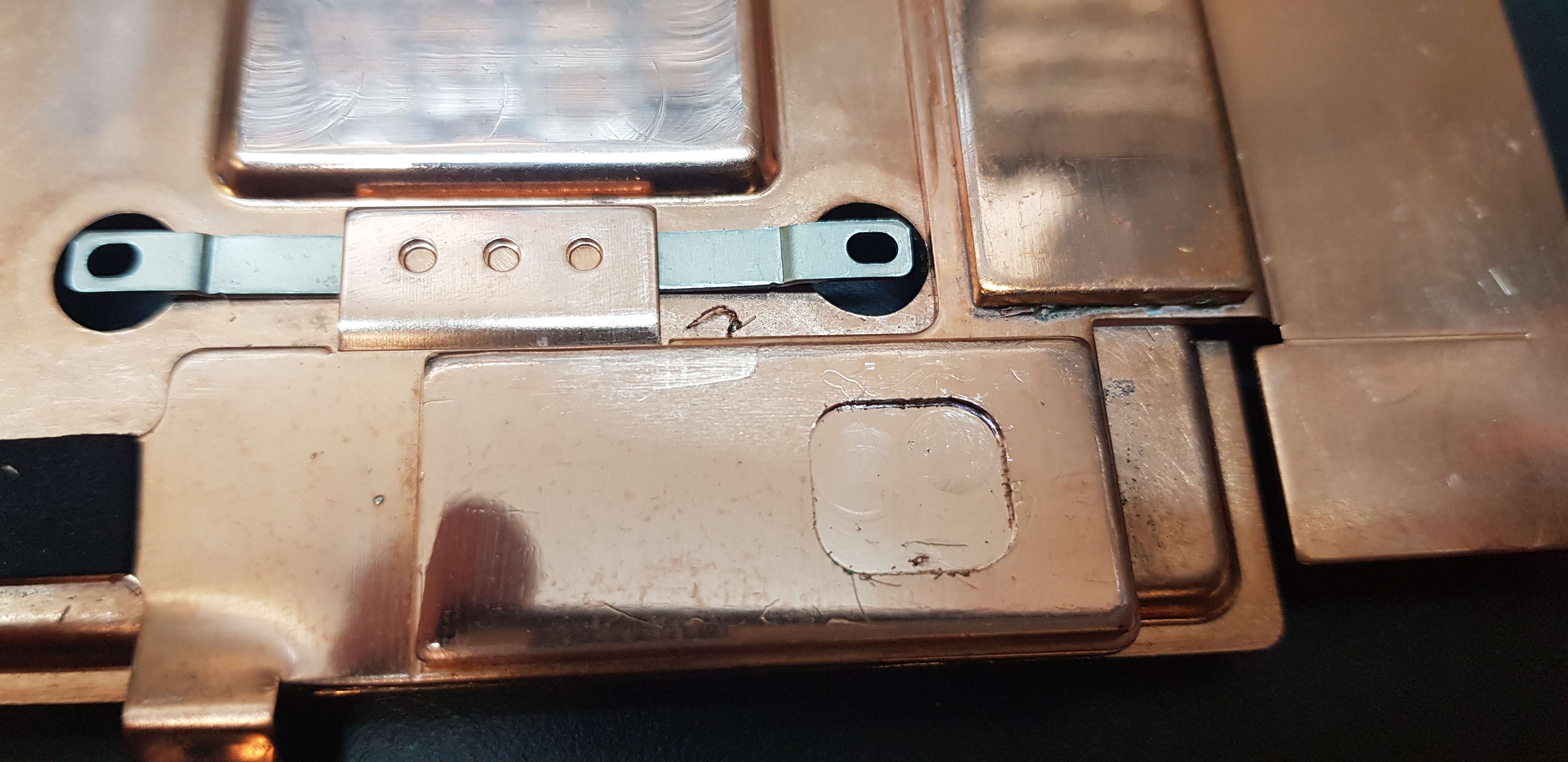

    or the Dual Headpipe modification for RTX.

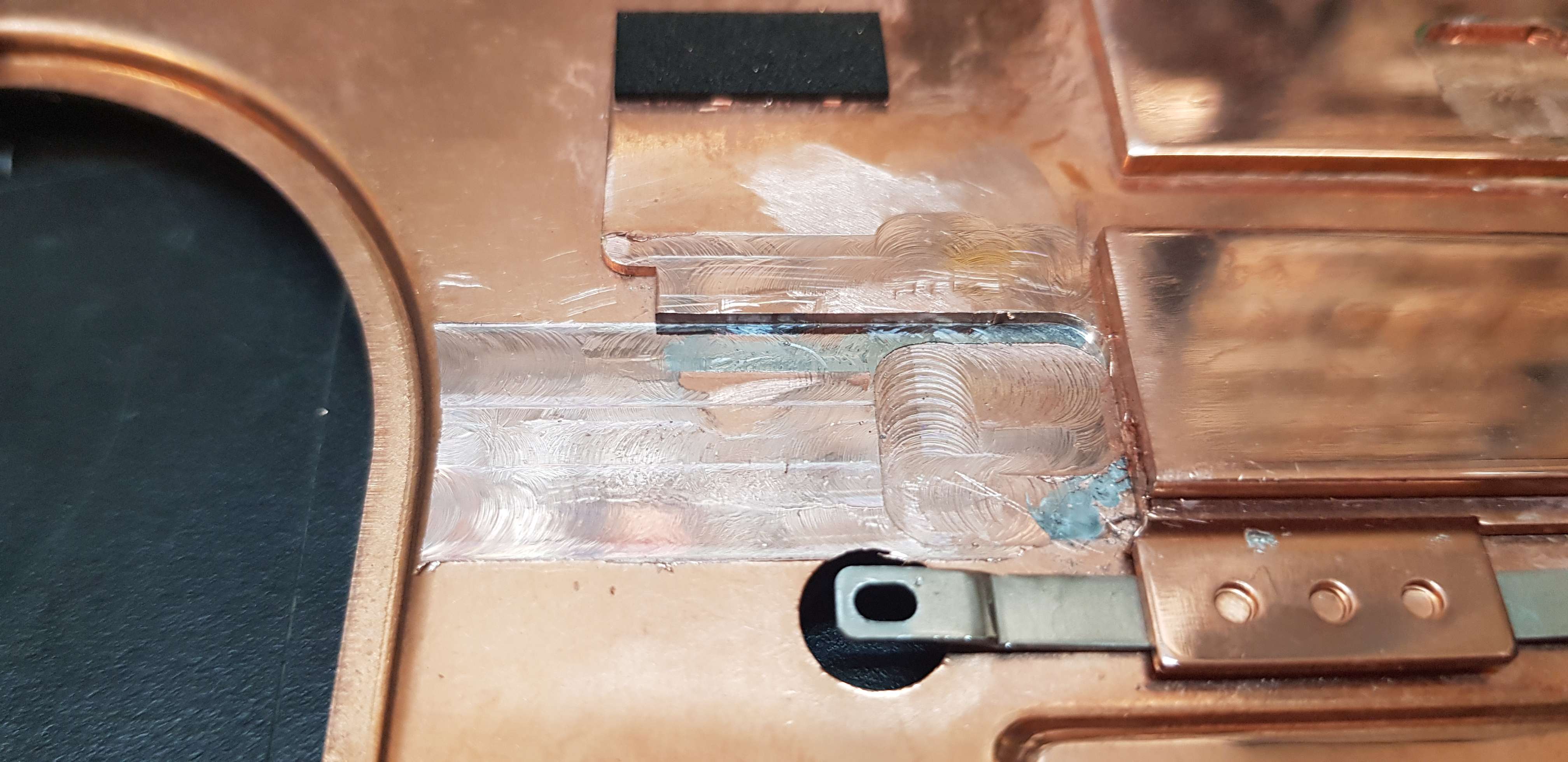

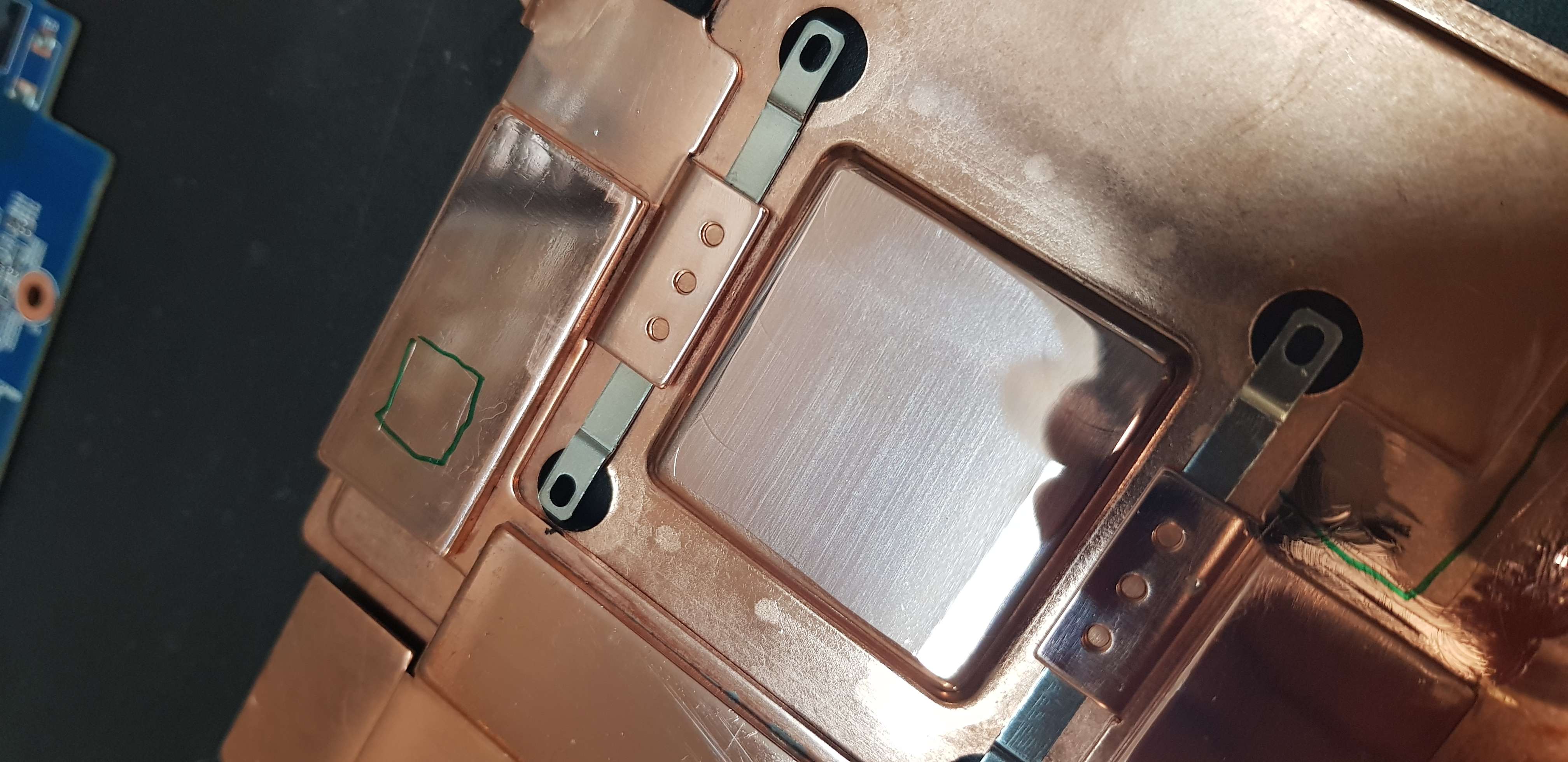

    so plan for the cpu core . milling so straight.

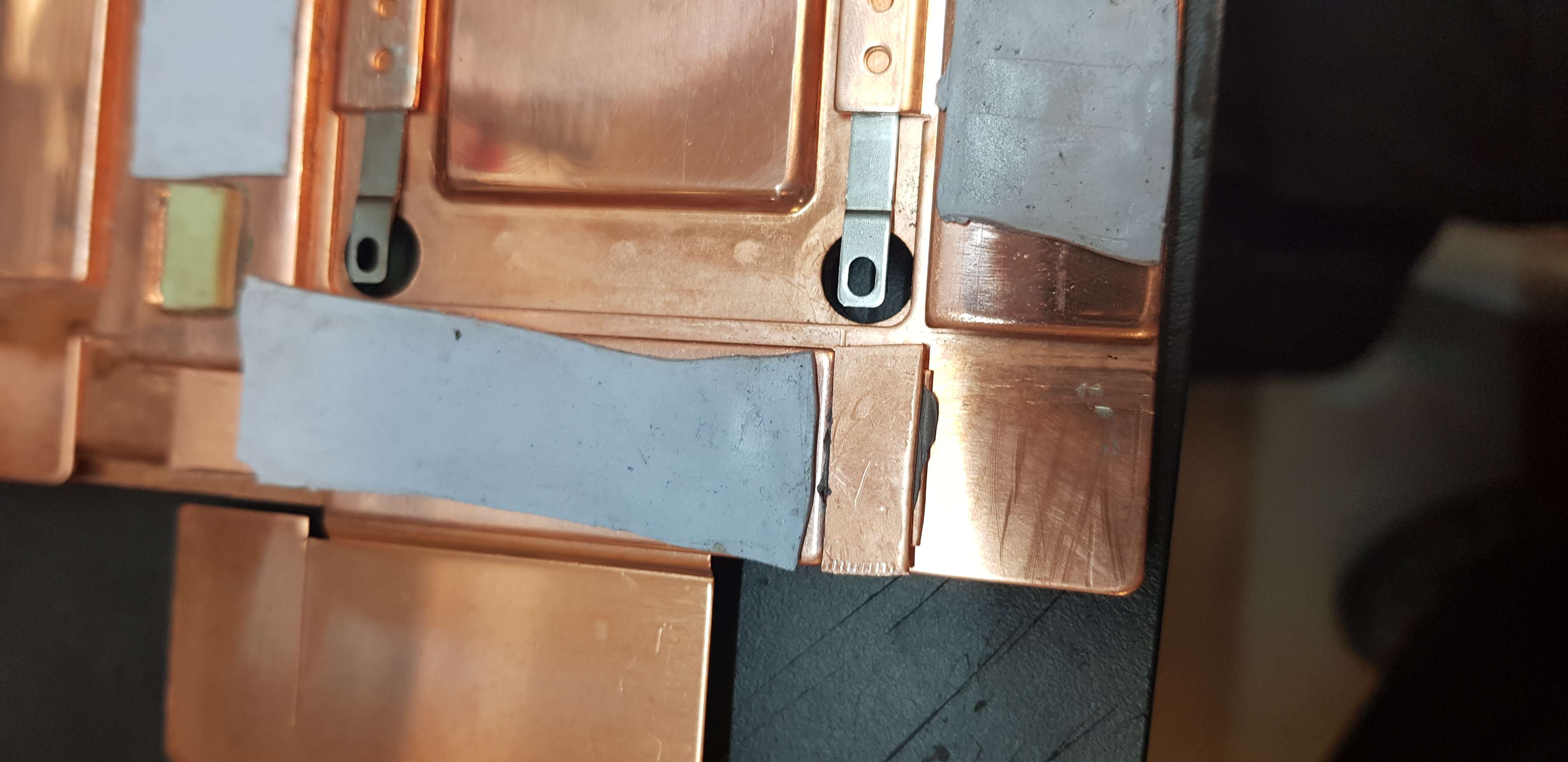

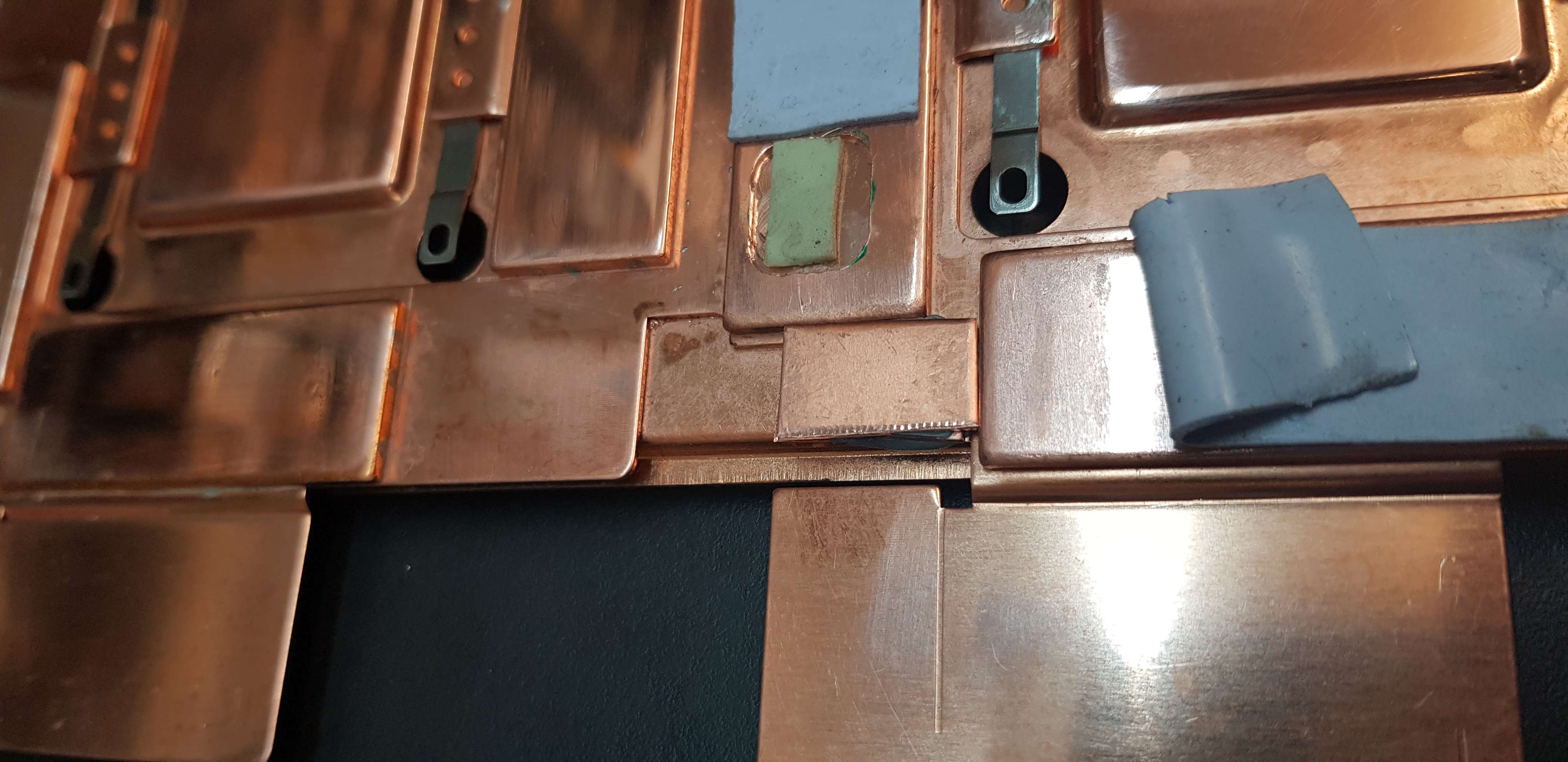

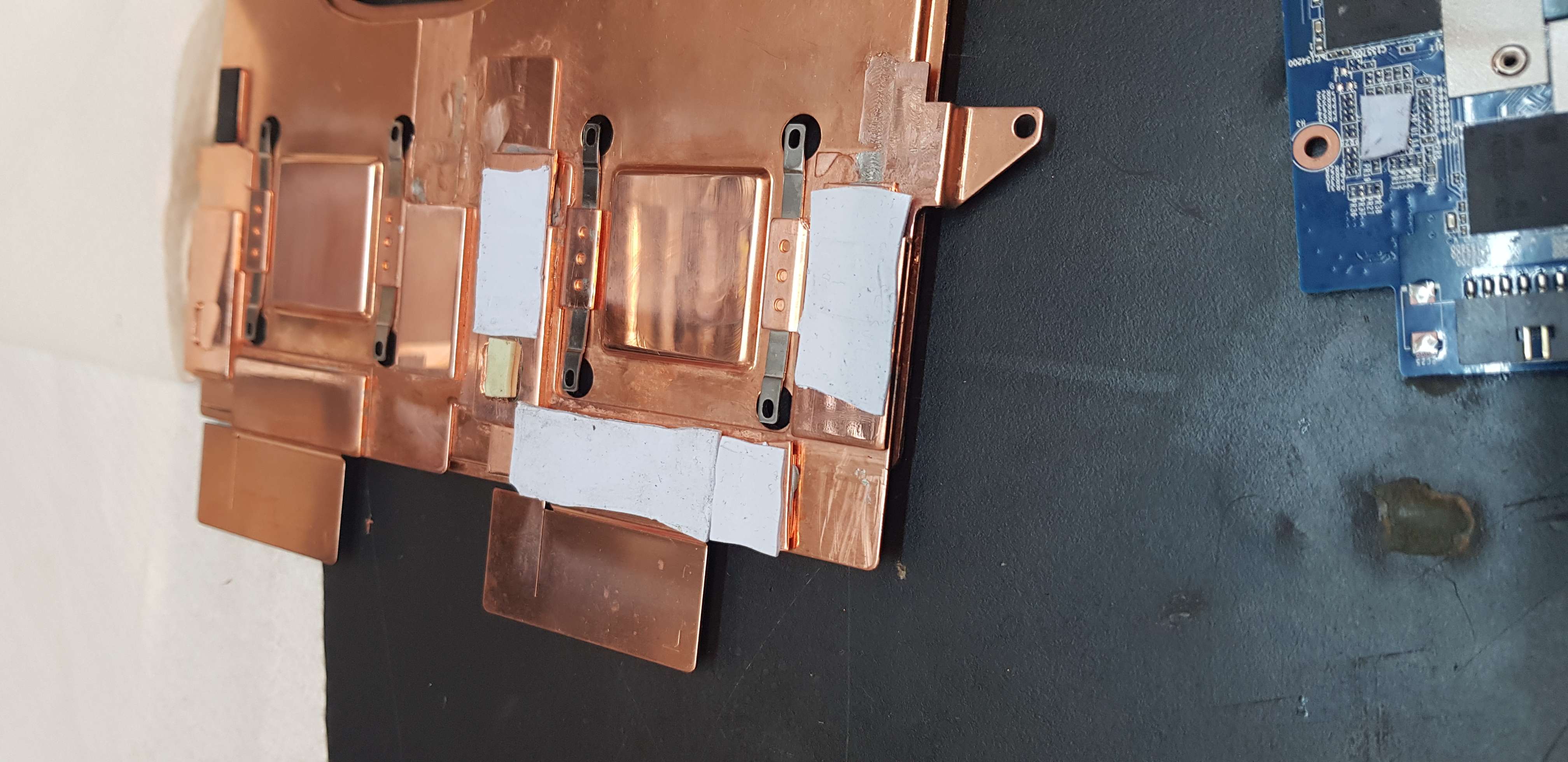

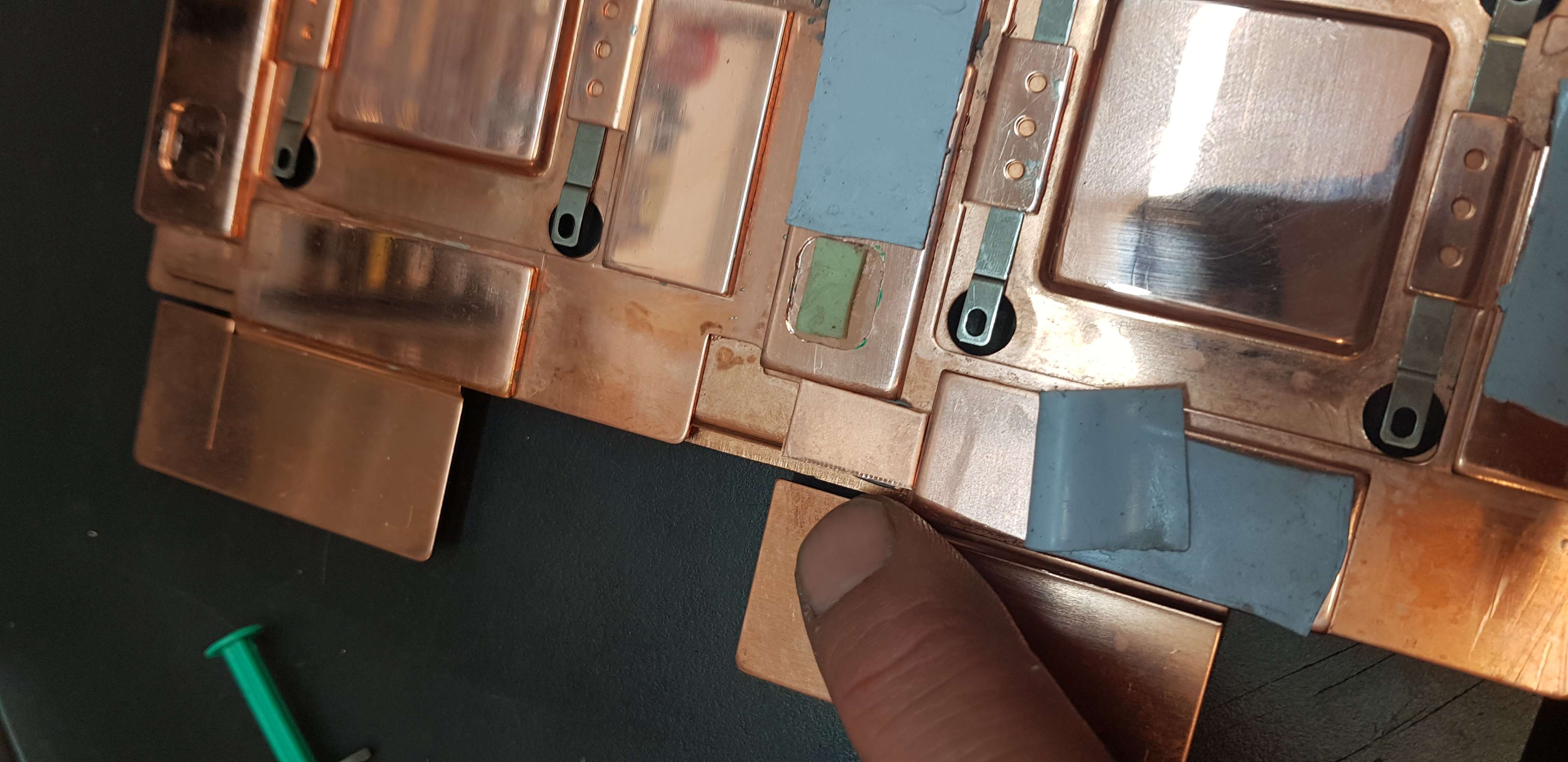

    and build up copper for the ram building blocks ! important !


    Attached Files:

    rainer124, Apr 3, 2019
    #14
    almostoast, Rahego, Dr. AMK and 3 others like this.
  15. rainer124

    rainer124 Notebook Guru

    Reputations:
    55
    Messages:
    59
    Likes Received:
    159
    Trophy Points:
    41
    and...


    Attached Files:

    rainer124, Apr 3, 2019
    #15
    almostoast, Rahego, Dr. AMK and 3 others like this.
  16. rainer124

    rainer124 Notebook Guru

    Reputations:
    55
    Messages:
    59
    Likes Received:
    159
    Trophy Points:
    41

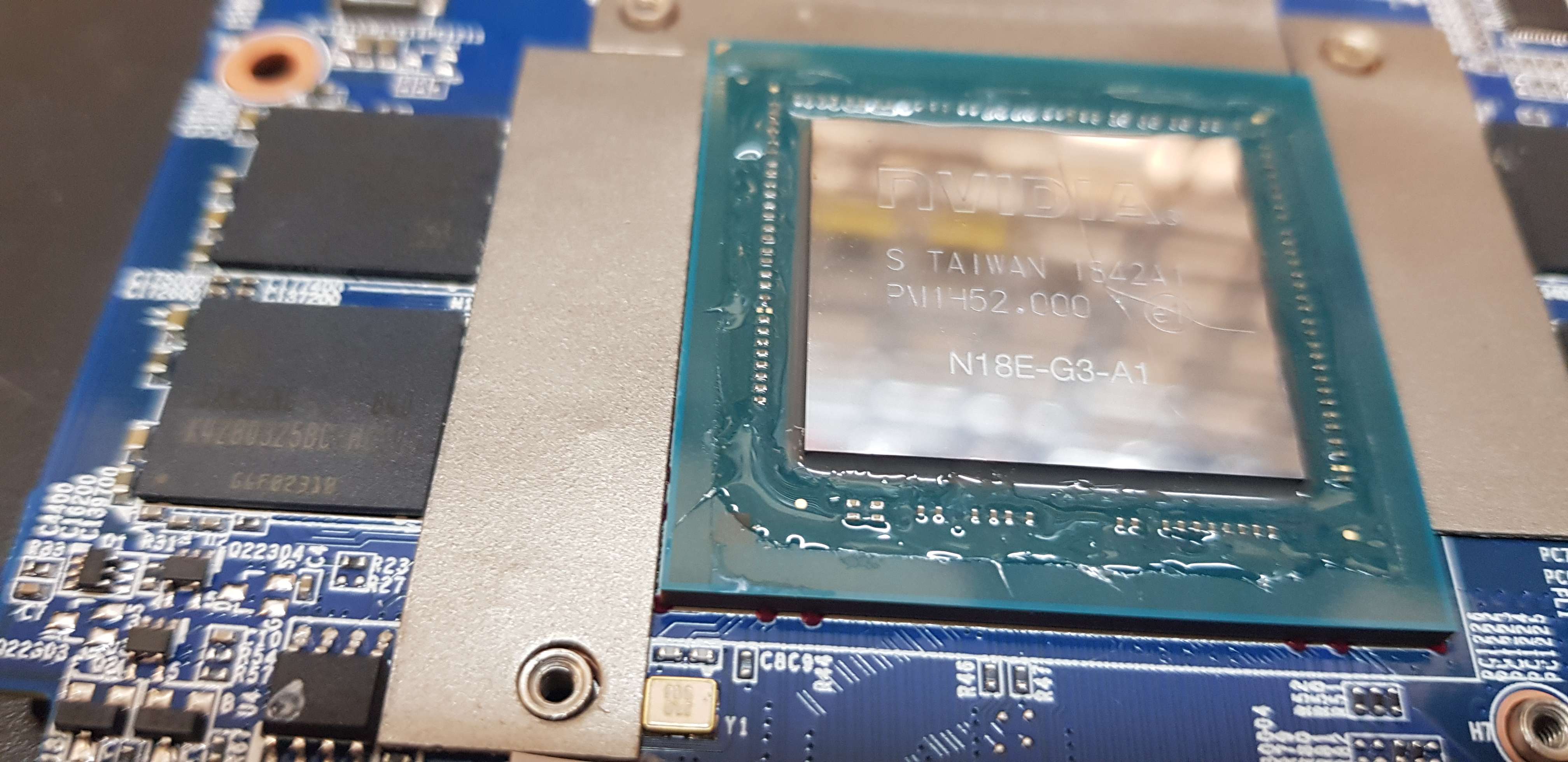

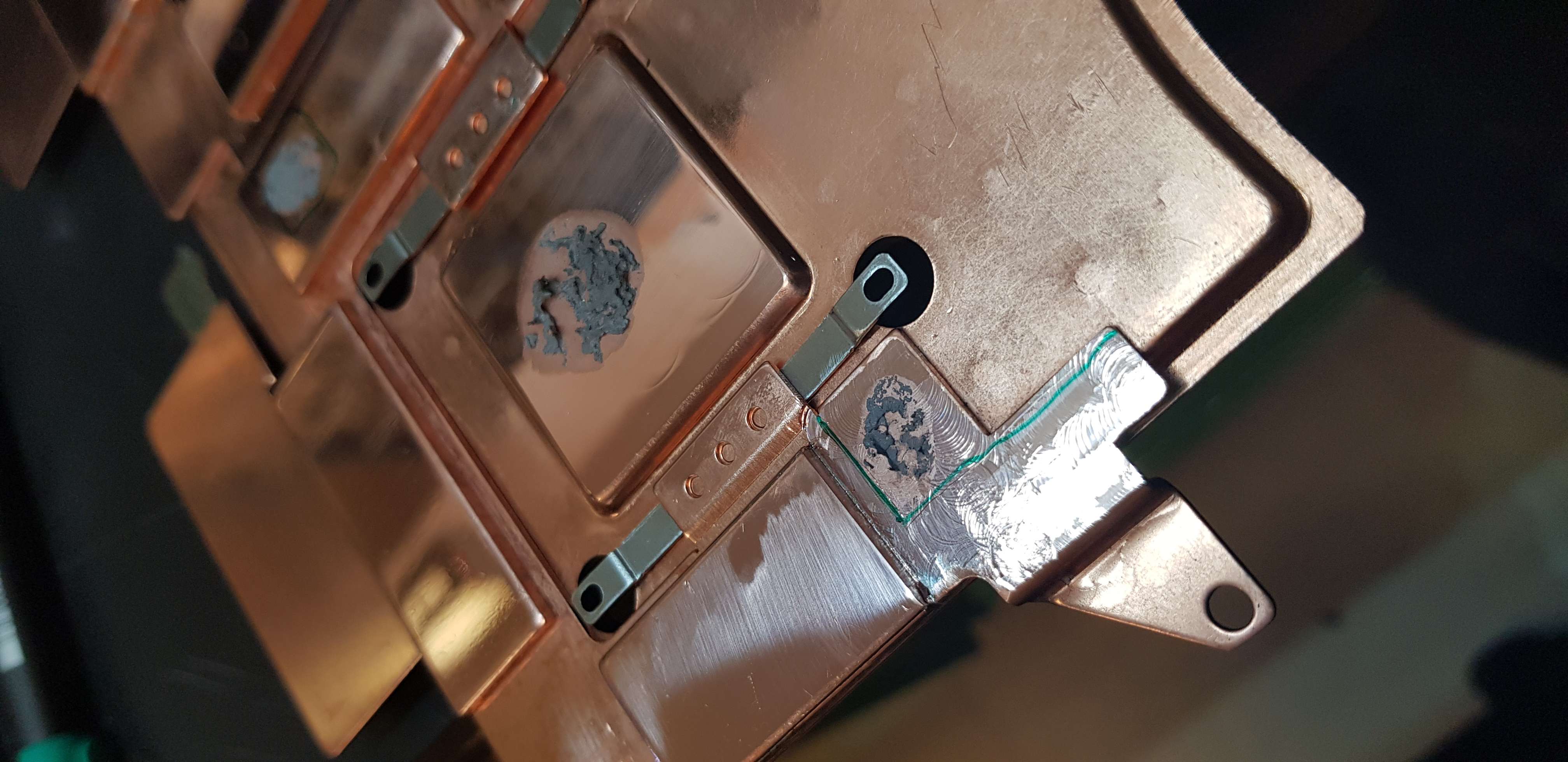

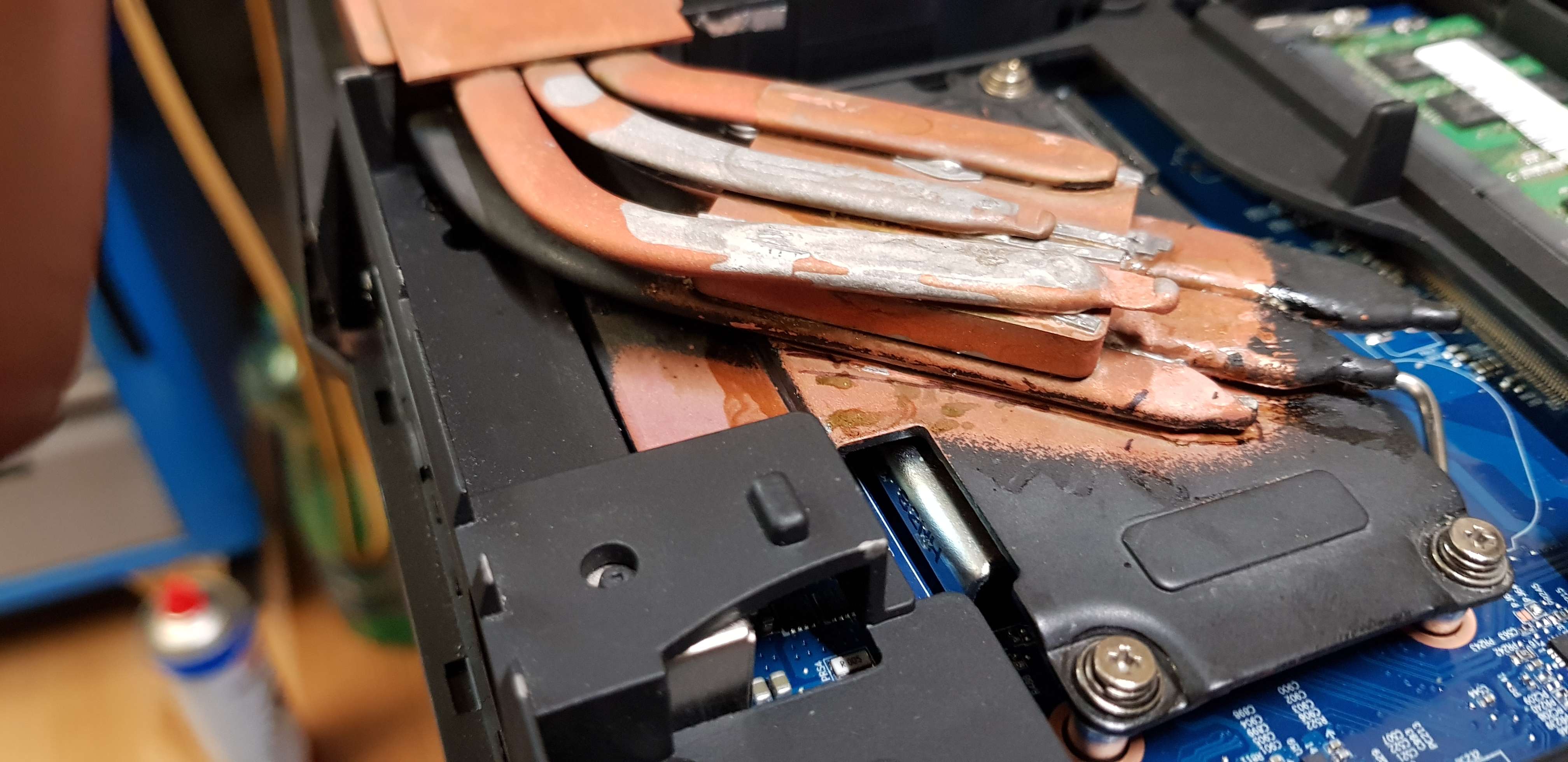

    and .. :) with liquid metal, but you must work with adpter for cpu core !!


    Attached Files:

    rainer124, Apr 3, 2019
    #16
    almostoast, Rahego, Dr. AMK and 6 others like this.
  17. rainer124

    rainer124 Notebook Guru

    Reputations:
    55
    Messages:
    59
    Likes Received:
    159
    Trophy Points:
    41

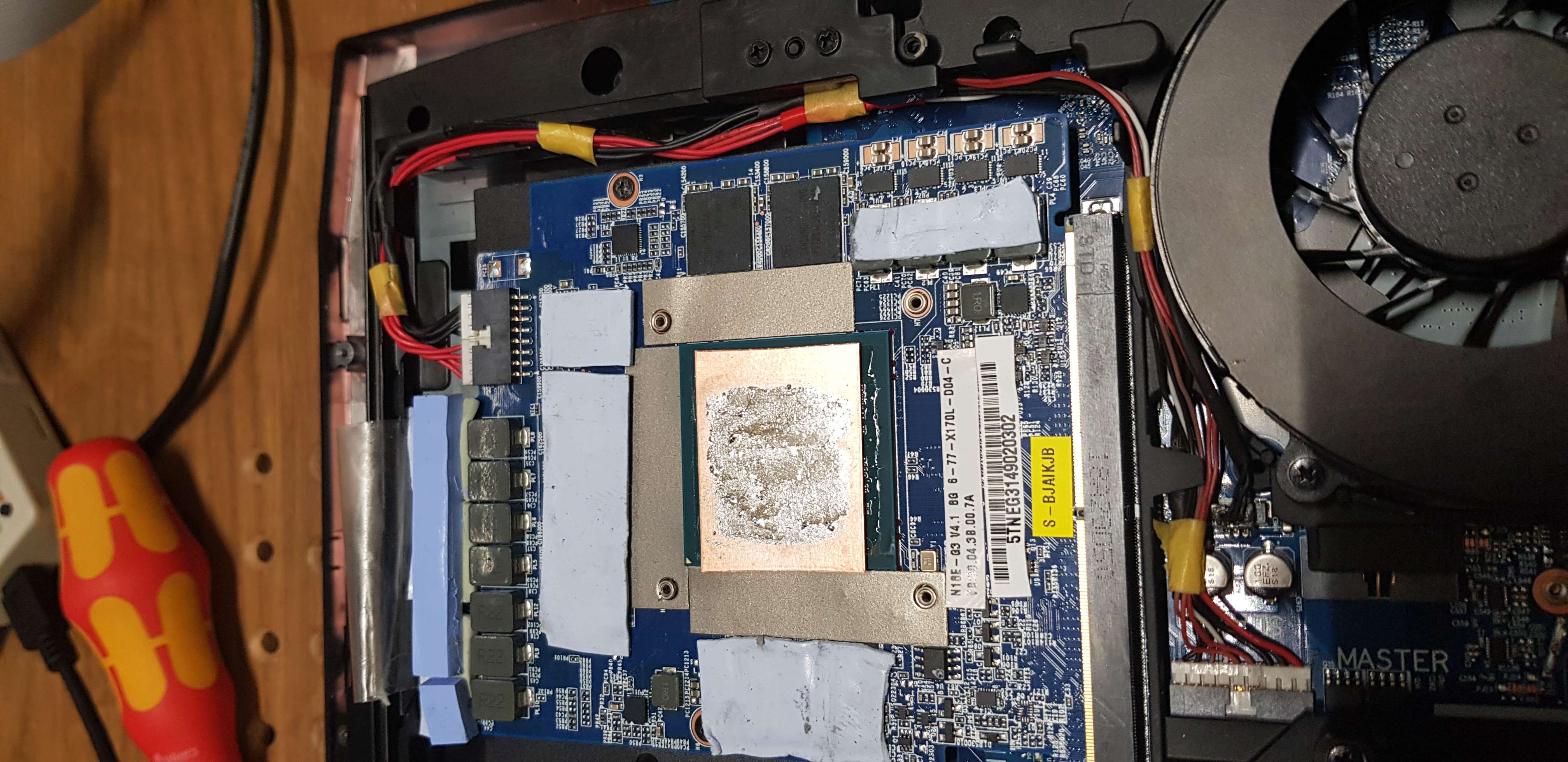

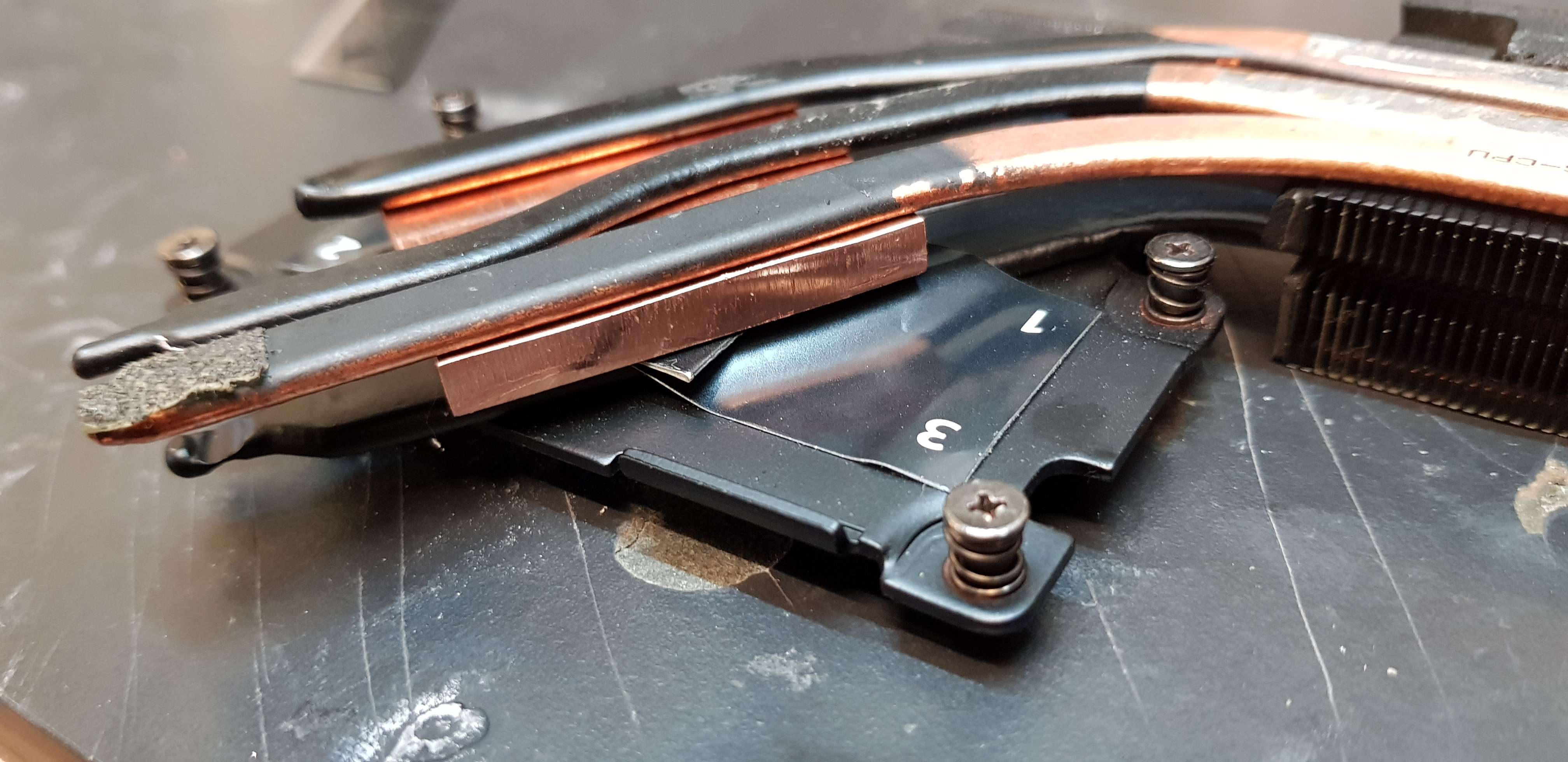

    The Core Adapter is a copper plate with 0,30 mm (core-adapter.jpg)

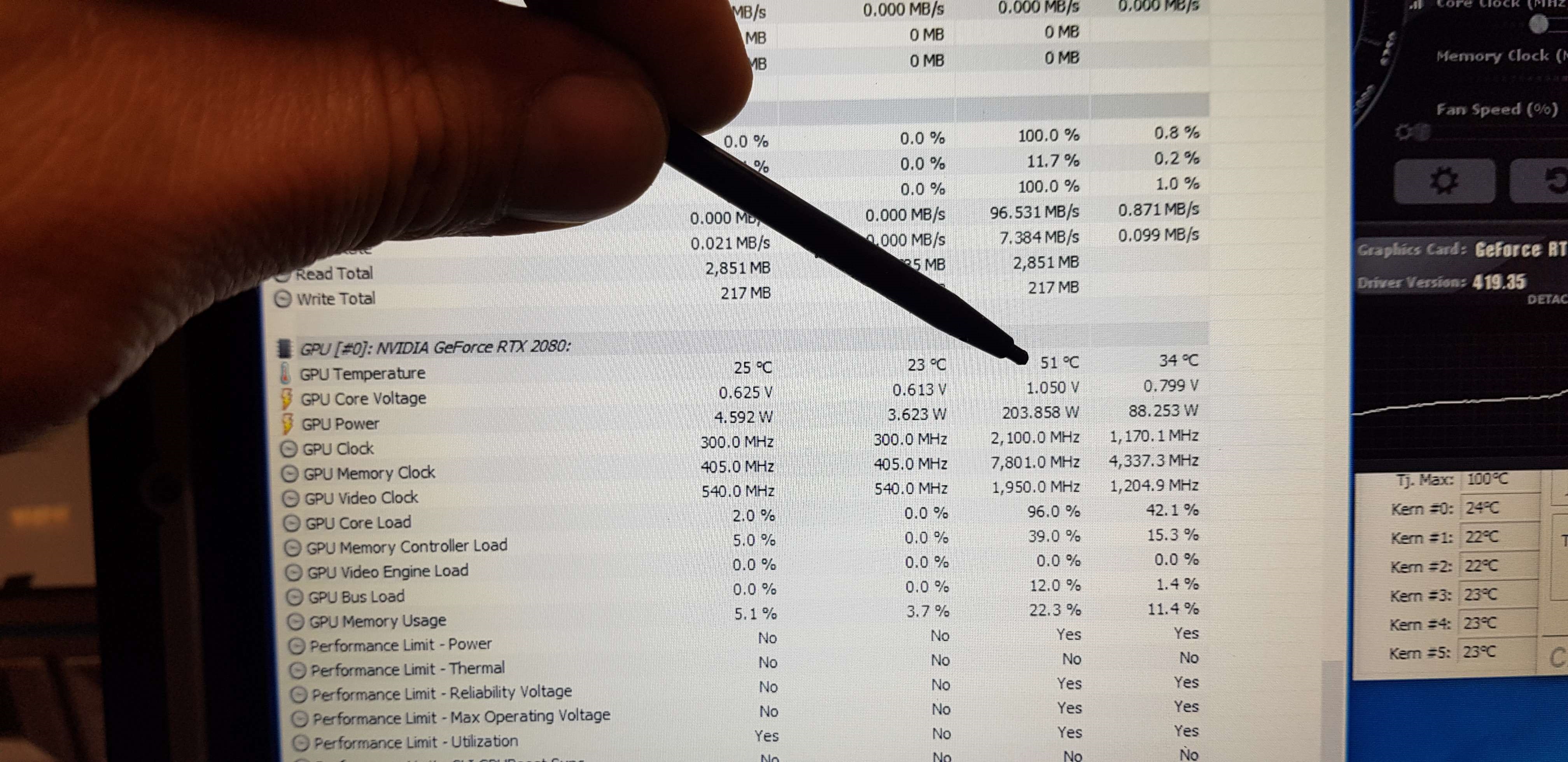

    and here is a Picture from working Headpipe and beautiful Temp.

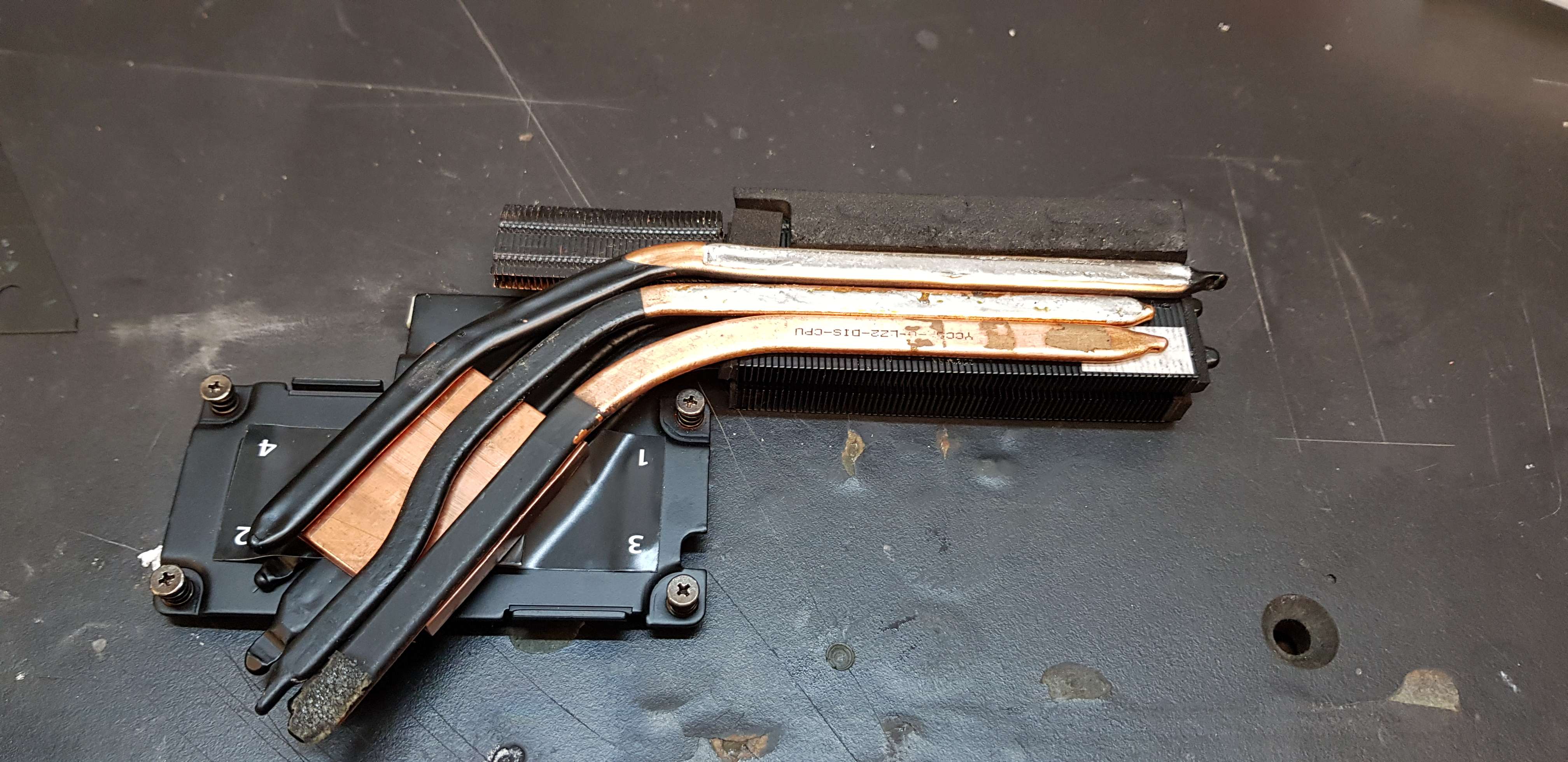

    and for best Performance with i9 9900k is the special CPU Headpipe


    Attached Files:

    rainer124, Apr 3, 2019
    #17
    almostoast, Rahego, Dr. AMK and 4 others like this.
  18. rainer124

    rainer124 Notebook Guru

    Reputations:
    55
    Messages:
    59
    Likes Received:
    159
    Trophy Points:
    41

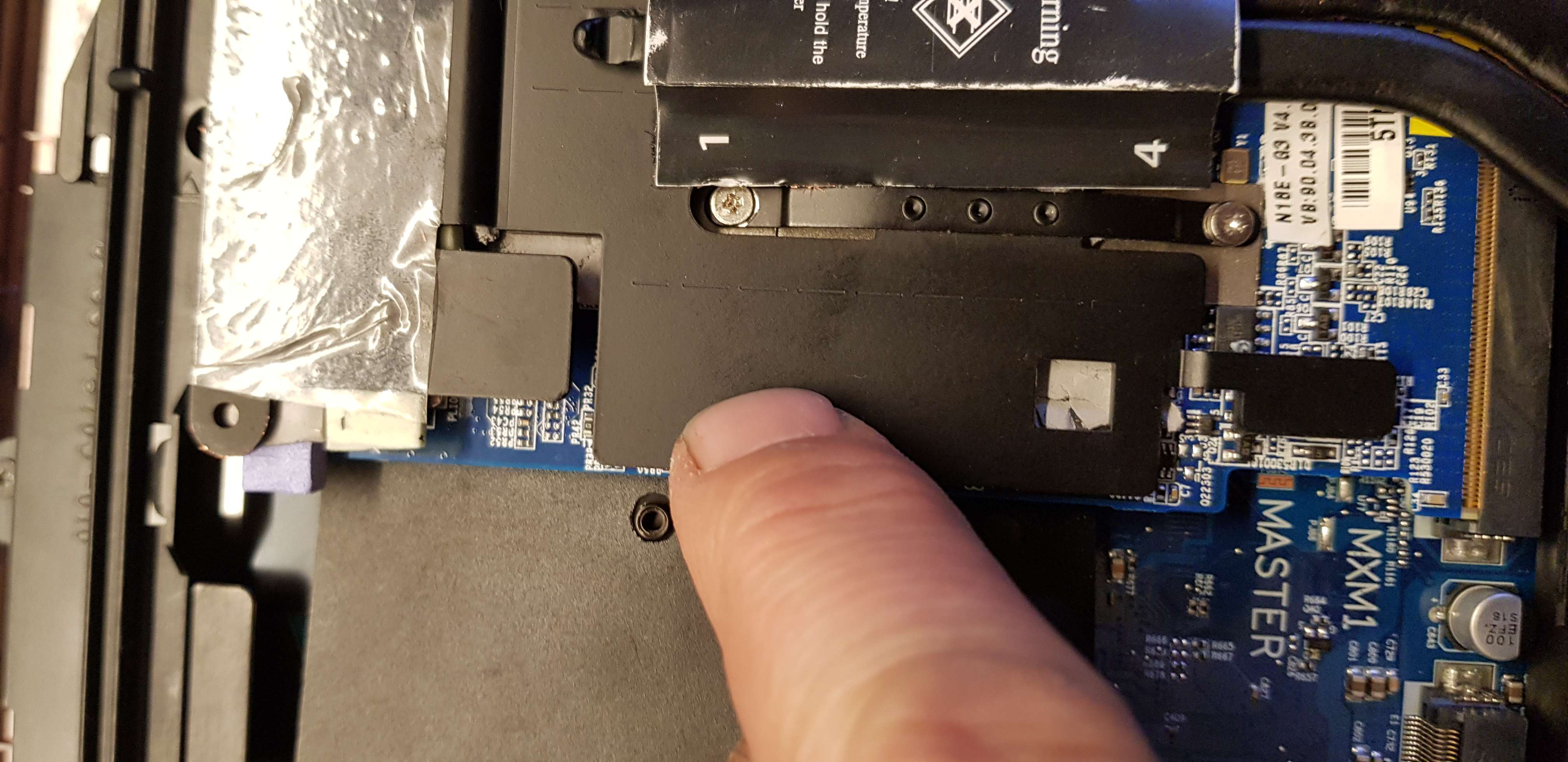

    or another verion is in planning


    Attached Files:

    rainer124, Apr 3, 2019
    #18
    almostoast, Rahego, Dr. AMK and 3 others like this.
  19. rainer124

    rainer124 Notebook Guru

    Reputations:
    55
    Messages:
    59
    Likes Received:
    159
    Trophy Points:
    41

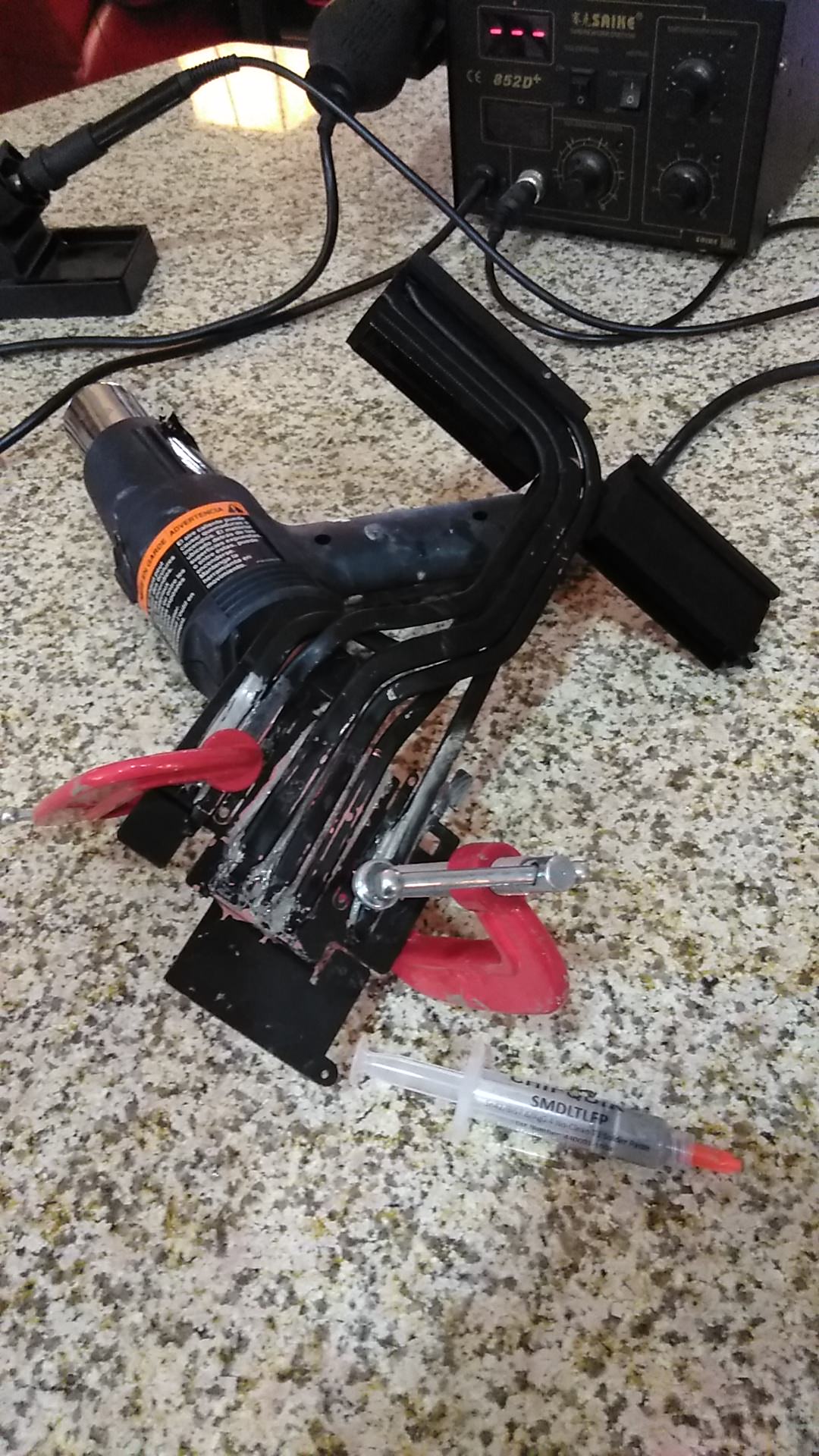

    But Please The Headgun not make a Temp over 300 Degress !!!
    This Deastroyd the Headpipe !! it is better to slow HEAT, TO FAST IS BAD ;-)

    rainer124, Apr 3, 2019
    #19
    almostoast, Rahego, Dr. AMK and 1 other person like this.
  20. rainer124

    rainer124 Notebook Guru

    Reputations:
    55
    Messages:
    59
    Likes Received:
    159
    Trophy Points:
    41


    Attached Files:

    rainer124, Apr 3, 2019
    #20
    almostoast, Rahego, Dr. AMK and 2 others like this.
  21. rainer124

    rainer124 Notebook Guru

    Reputations:
    55
    Messages:
    59
    Likes Received:
    159
    Trophy Points:
    41
    And Yes The RTX 2080 From Clevo Work in a P870DM-G and P870KM/1 But only With Correct Vbios Bios !!
    self tested and works :)

    rainer124, Apr 3, 2019
    #21
    almostoast, TheLuddite, Dr. AMK and 6 others like this.
  22. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931

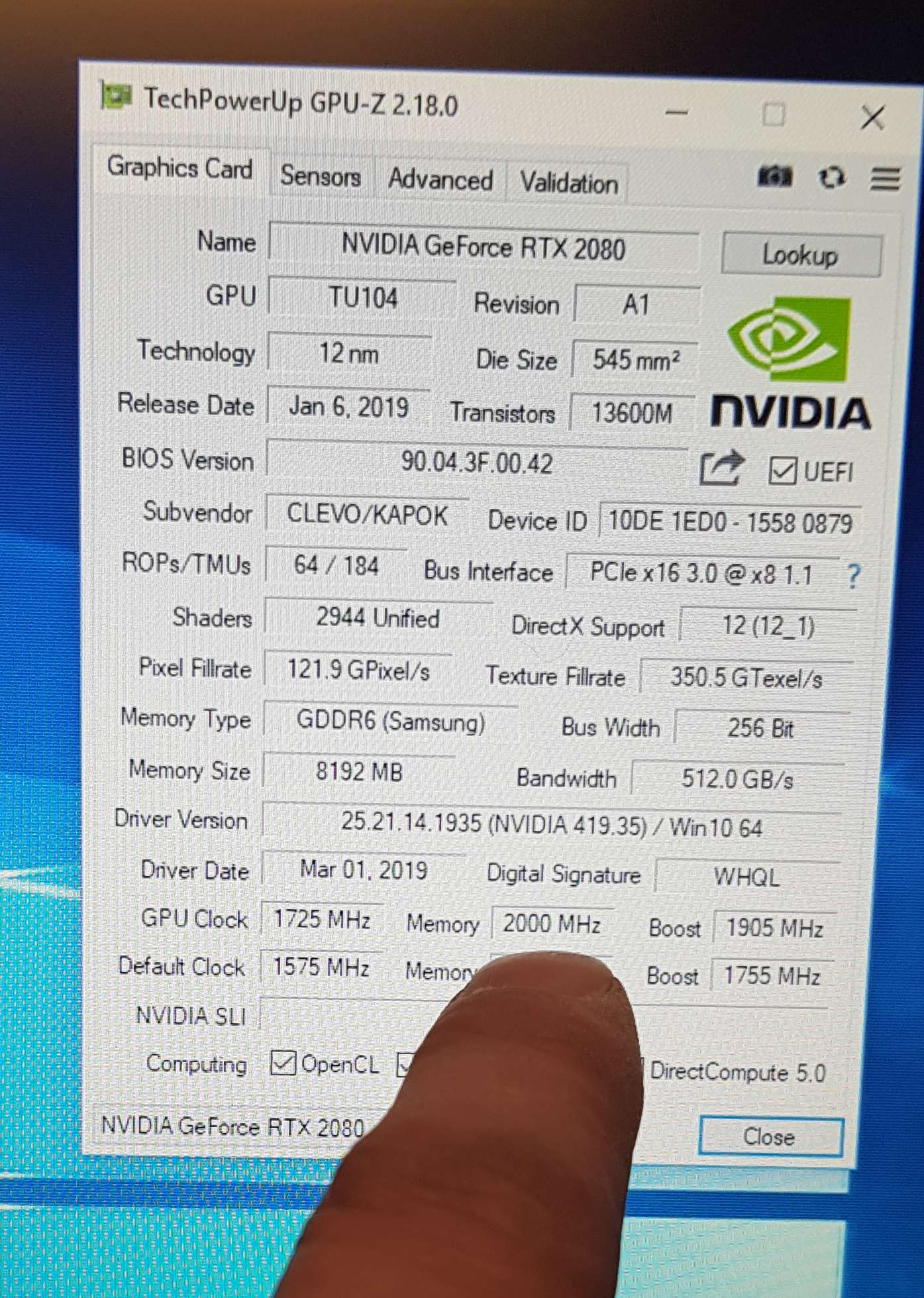

    impressive work, kudos! :) and i see your 2080 goes up to 203 watts, nice ;)

    Sent from my Xiaomi Mi Max 2 (Oxygen) using Tapatalk

    jaybee83, Apr 3, 2019
    #22
    Dr. AMK likes this.
  23. Dr. AMK

    Dr. AMK Living with Hope

    Reputations:
    3,961
    Messages:
    2,182
    Likes Received:
    4,654
    Trophy Points:
    281
    This really impressive, great job and well done.

    Dr. AMK, Apr 27, 2019
    #23
  24. cooldex

    cooldex Notebook Consultant

    Reputations:
    26
    Messages:
    114
    Likes Received:
    35
    Trophy Points:
    41
    nice work, im looking forward to getting a i9-9900k but i wait till next gen rtx cards, i feel like there's much potential in my 1080

    cooldex, May 2, 2019
    #24
    Dr. AMK likes this.
  25. MrClippy

    MrClippy Notebook Enthusiast

    Reputations:
    5
    Messages:
    27
    Likes Received:
    33
    Trophy Points:
    16
    Was there any VBIOS issues that you needed to do, or did it work with inserting the MXM GPU in and applying your hardware mod, no software changes needed?

    MrClippy, Aug 7, 2019
    #25
