SLI MSI 1070 MXM in P370EM... An adventure

Anyone have a link, I wanna buy a single 1070 to put in my p377



This SLI bridge was from early on in this model's life... Fermi 670M's. Maybe the cards can determine the speed.

Re AotS I think it was just the GPU focused benchmark for some reason. Playing the actual game in dx12 mGPU it was bumping up against 120hz limit with Extreme preset + 8xMSAA. 120hz on a RTS is pointless so I limited to 60fps anyway as the slave card cooling isnt good enough to keep it below 90C at >100W draw.



this is the one im going for
http://www.ebay.com/itm/Clevo-P570W...727281?hash=item1a37683a71:g:lfkAAOSw7klZ3oU~

my only doubt is will it work with the p375sm gpu heatsink, will it hold the 1070???

my notebook heatsink is the same as this and right now im using a 4930MX



Mxm 3.0b?



if you're willing to do a bit of case modding and cut out bits of the internal structure.



This card doesn't seem to be any different than the 980m that i have its the same size double checked before, so i think so there's no need to make such changes



Are you talking about eurocom/gecube gtx1070?



For real... i don't know lol i got from this guy here based on the size of it

http://www.ebay.com/itm/Clevo-P570W...727281?hash=item1a37683a71:g:lfkAAOSw7klZ3oU~



Yes, that is an eurocom/gecube mxm 3.0b card



it's a good thing right??! Please this got to be good!! (￣ﾛ￣)



Eurocom is testing that card in many old clevos and alienwares atm.
so ask @Eurocom Support for ypur model



yes 3.0b



Check that eurocom/gecube gtx1070 card too. It is mxm 3.0b



The green eurocom/gecube 1070 will not need any case modding it's the standard 3.0b 82x105mm rectangle

See the pics at the start of this thread for the shape of the MSI 1070's I used



If you guys look at the pics the eurocom 1070 does not have an SLI connector so buying 2 in the hope to do SLI is delusional.

Sent from my SM-T560NU using Tapatalk



That's fine I'll call eurocom on Monday and see what they say



Also try nbr user @woodzstack - he is a eurocom reseller iirc



Thats why i wanted that one i don't want SLI... most games don't work well with it :/ and i will play most of the time in FHD



What can I do to help you or whomever ?

Yeah I am an official reseller of EUROCOM products, I am not them though, I have my own business, we consider ourselves partners though, and are relatively close, even physically we're like an hour away from eachother.



you might need to figure out how to disappate the heat then....gluing down some extra heat pipes might do it.



Temp test on master GPU:

AOTS GPU DX11 benchmark @ 3840x2160 60Hz (DSR). Single 1070 @ 1975mhz/0.975V (dropping to ~1920mhz under temp throttle), 40-55 fps average though I realised later I had a 60fps limit through RTSS. 3 minute benchmark

90C max, *average* power draw 160W (peak 179W) which pretty much matches my vBIOS TDP mods of 161W avg/180W peak

I think the master GPU heatsink will do fine with 115W

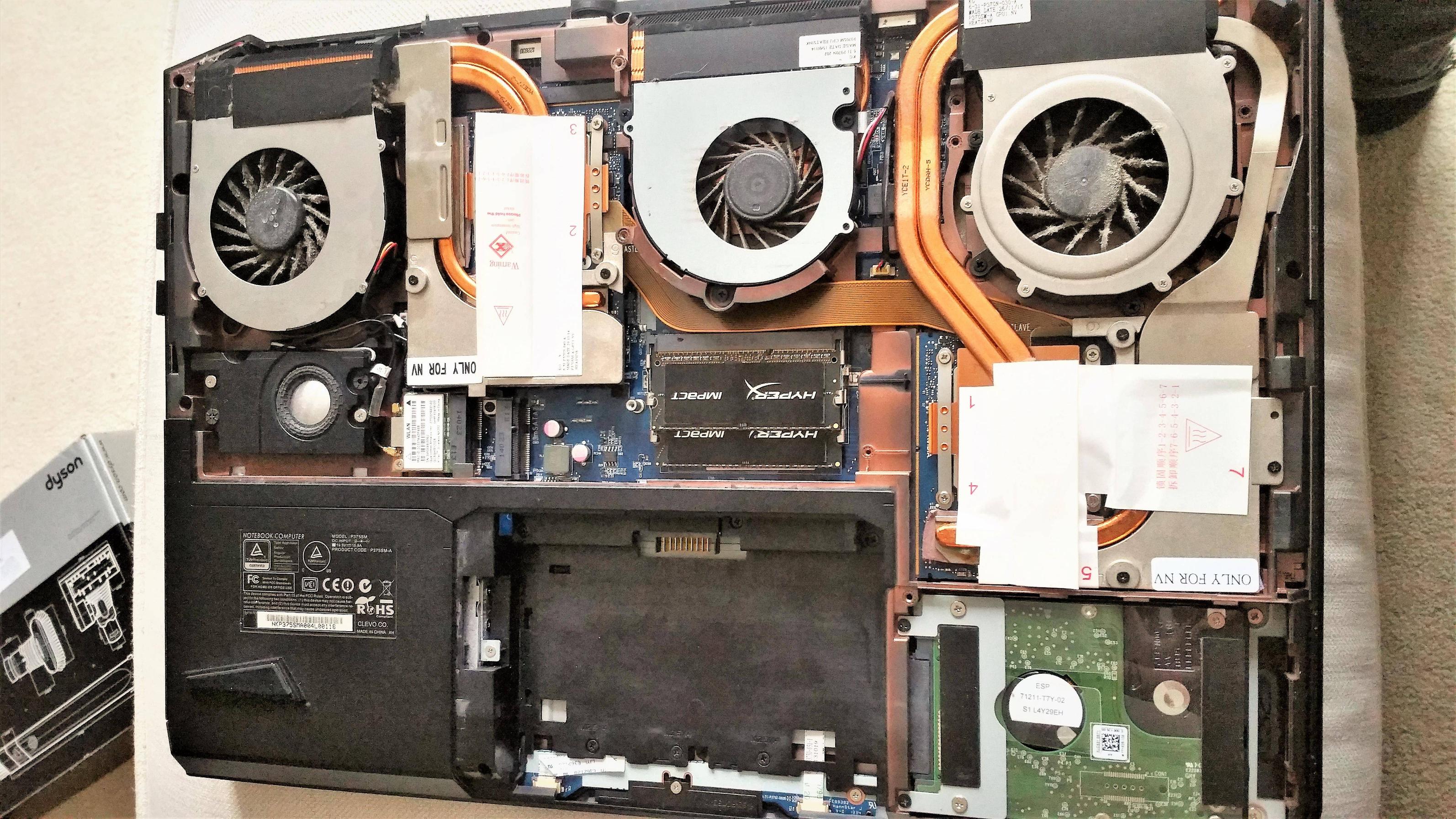

Mods:
max fans (prema bios function)
liquid metal
tape mod between fan housing and rad grills and foam chunks in the corners (all to try and stop escaping airflow of which the EMs have A LOT stock)
mesh mod on bottom case under fan intakes (adds only 2-3C on the master GPU)



Users above asking about Eurocom's standard 3.0b size mxm 1070

The size of the rads is also a problem, not only are they split (separate for gpu core and memory/vrms) they are less than half the depth of the rads on the P870DM.



Eurocom confirmed that there will be no SLI support for 1070/1080 upgrades.



of course, you can tell from the images.



Didn't saw a 1080 pic. Could you share?



I've checked all of those mods on my part and will only use one 1070 (for now at least maybe going for 1080) cause i will only play games in FHD, does someone know any 4k compatible screen for the p375sm??!?



Hey there guys, sooo yeah its working... the only problem is windows right now... not detecting the card.

Windows detects as Microsoft vga adapter..

Anyone has some ideas into how can i make it work?

Installing nvidia drivers did not work as well should i change the dll from the installer then it will work?

Should i go for a new bios for my p375sm (right now using premamod)?



Which 1070 and where'd you get it?

Windows not recognising? or nvidia driver installer? What does device manager show under Display Adapters?



Heyyy bennyg!!

So i got from this link https://www.ebay.com/itm/Clevo-P570...e=STRK:MEBIDX:IT&_trksid=p2060353.m2749.l2649

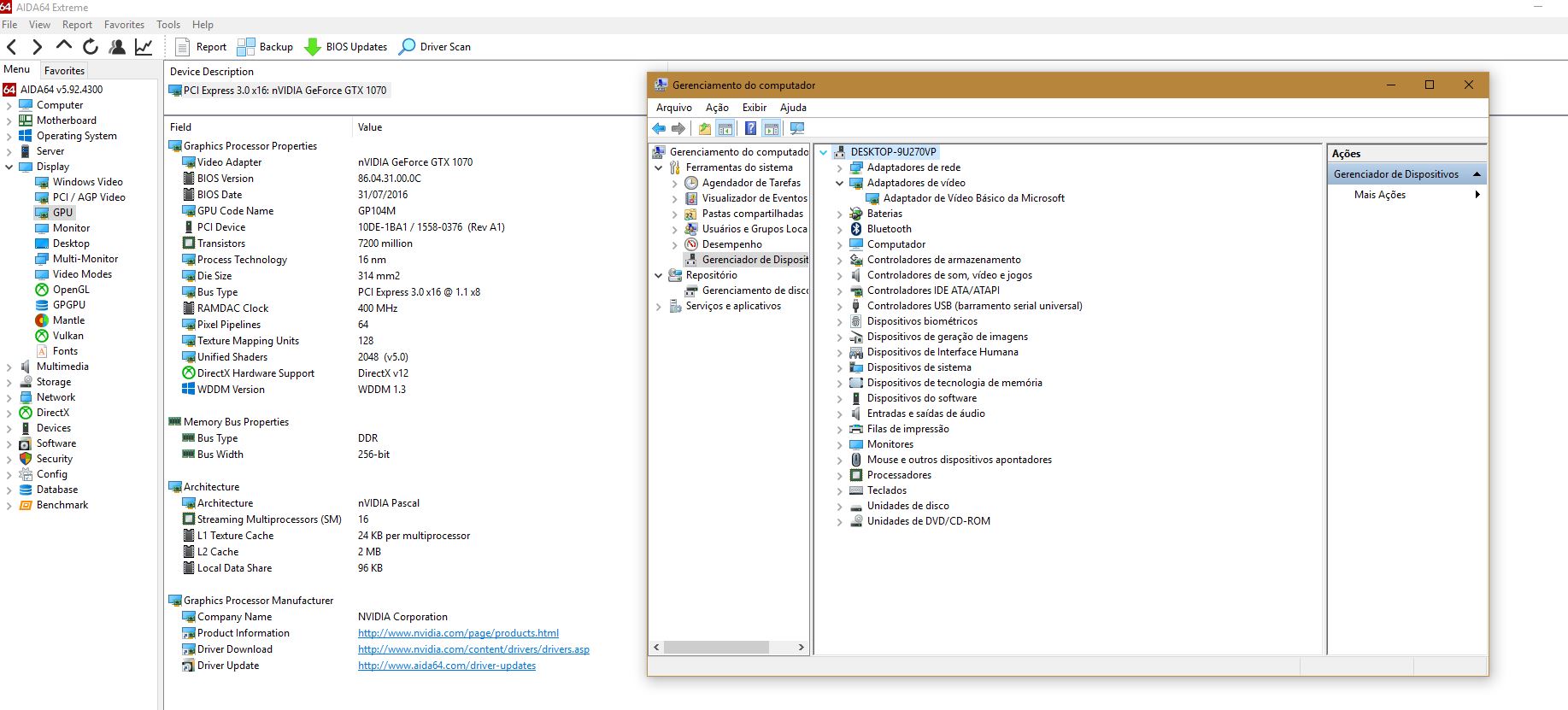

and here is an image with my windows and i used aida64 extreme and it detects it!



What can i do... will i need to change my bios or something for it to work?



OK the main thing is it works and displays!

I think you just need an INF modded driver. You can try the latest whql one here: http://forum.notebookreview.com/thr...ql-findings-fixes.810077/page-3#post-10620963



Do you have another link or something cause for me is appearing the protected blog and its from prema site?!? (wait WHAT?!)



You want the driver package file (from Nvidia) and the INF package for win10 for clevo, hosted on mega. I just downloaded them myself.



ohh OHHHH i get it lol sry did not read the post just got into the link

the only doubt for me right now is witch dll should i use?!

tired the
Clevo PEG: nv_dispi.inf + nvcvi.inf

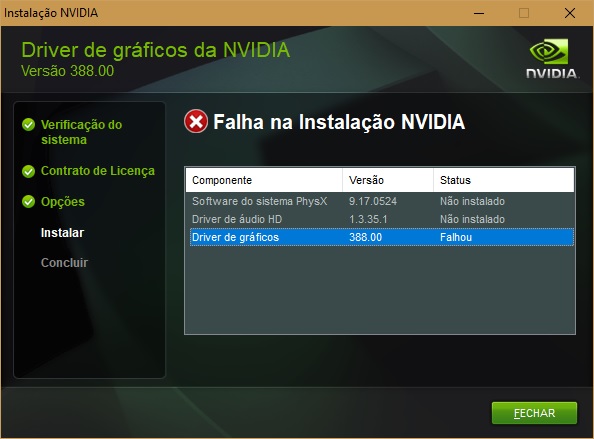

-but the driver got me an error... will try others



Yeah no clevo PEG no MSI PEG...

Will try others till i reach the sucessul install



Have you rebooted with DSE off?



this? bcdedit.exe /set nointegritychecks on

yeah...

Should i go for someother thing?



UPDATE
hey it work!! more or less,\

Put windows in testmode and driver installed

Now display is only on hdmi not on lcd screen lols!! will try another combination of files to see if it will work on display and not on hdmi only



Hmm I think user Darcoder had some issues with certain panels, he had MSI 1070 in P377SMA. Try searching his threads for ideas. Youre getting beyond what I know as I don't have any experience with SMs of any sort



Np bennyg, u helped me alooot at least i know that it`s working what i have to do right now is to find with the guys who know the way to fix it, i hope to find it :/

I will sleep now, 3AM here in Brazil!!



Downgraded vBIOS to 86.04.31.00.0C, tried various driver packages. Still can't get any driver other than 375.70 to work (i.e. not code 43).

Edited power limits so that stock is 100W and max is 200W. That way the slider % values now directly correlate with reported watts. Annoyingly though since the OS reinstall after switching to UEFI, MSI Afterburner no longer has the automatic 2D/3D selection profile options so it doesnt automatically boot to my 1975/.975v curve that avoids the 1.03V+ related crash. Curve editing is a massive PITA. Wish the values were stored in plain text I would rather manually edit an INI!

There's something in these cards that needs what is in the MSI driver package for the Vortex G65's. And 375.70 dated 18th November 2016 is the latest driver for a Vortex 1070 model, nearly a WHOLE YEAR OLD, absolutely disgusting ongoing product support for a very expensive ($3000usd+) product line.... shame on you MSI, I would be spitting copious bile at you if I were a retail customer who bought a G65.



So will this work In a p377?



?

Single card vortex 1070 with SLI worked in Darcoder's P375SMA, only on stock 1080p60 screen, but not aftermarket (120hz or 4K). Not in SLI.



And who not be about there were water coolings put on the laptop? there is a sense to put it?



Did anybody try to run dual gtx 1070 cards via PhysX Setup instead of SLI?



You mean turn sli off and run the 2nd as physx only? I tried that when getting my head around AOTS and mgpu in both dx11 & dx12. Seemed to work ok. I also tried single card firestrike running physx on the 1st gpu vs the 2nd, for no discernible difference.

Is there a specific app/game/settings combo to test?



at me unfortunately one is necessary (((



Forgot, I also ran both cards installed without sli cable for a short while early on when trying to debug what turned out to be the voltage related crashes, GTA5 ran on single gpu and I can't remember whether slave was configured to do physx or not - if gta5 even uses it



the power supply unit 330w will be enough mine for sli 1070 and 3940xm? with normal heat sinks?



Might be ok, my wall meter read 290-300W with the 3740qm and -200/+675 mining eth. Temps from memory approx 70C/80C on the GPUs at stock 115W limit.

However it's really close to some kind of limit because at zero offset on the GPU cores, sometimes the CPU would get locked to 1.2ghz until the power cable was removed and reinserted. It wasn't an adapter overload because the adapter didn't turn off. This is prema bios too btw

With dual 330W's and the joiner I've had it as high as 500W no problem at 160W per GPU (except temps of course...)
