I haven't made all results unhidden, yet...



Try bumping voltage by 12,5mv and mem clock to 1500Mhz with your last stable core clock settings. Maybe you already reached the wall regarding core clocks. There is nothing bad with this score unless you wanna play with da big ones!



@Prema power target was never disabled in the old vBIOS I used, think it was Svl7s or your old version.. Doesn't the power target of 100% cause throttling?

Sent from my LG-H811 using Tapatalk



I see that NVIDIA Inspector is launched 03/31/2016. Now also known as nvidiaProfileInspector - version
Version 2.1.2.0 - Is this a Bloated version? http://www.guru3d.com/files-details/nvidia-profile-inspector-download.html

Version 1.9.7.6 http://www.guru3d.com/files-details/nvidia-inspector-download.html

I also see that other websites advertise version 1.9.7.5 released 03/28/2016 http://www.majorgeeks.com/files/details/nvidia_inspector.html
http://www.softpedia.com/get/System/System-Info/NVIDIA-Inspector.shtml

Who of them is recommended or does it matter?



nVIDIA Inspector v1.9.7.6 also includes nVIDIA Profile Inspector v2.12 in the ZIP



Thanks. I don't want unnecessary software on my machine, LOL
What with version 1.9.7.5, which was launched two days before 1.9.7.6? Strange that they launched a version just prior. Perhaps a version with bugs?



yes they you get free bugs



Finally de-lidded this sucker -
CLU on the die and Kyronaut on the IHS.



Prime95 15 min run - 65C Tops



Small fft or blend?



Small FFT's , Blend takes it to tops 57-60C

Re-pasted my GPU as well with Kyronaut and added Fujipoly thermal pads, the GPU temps dropped by 8-10 C from the stock ICD. Im guessing it was just not a good enough application, otherwise the difference shouldn't be this much.
I got so annoyed by the TIM's getting stuck under that black gasket thing around the GPU die, i just went ahead and removed it.
Not sure if it was a good idea or not, but at least its clean now.

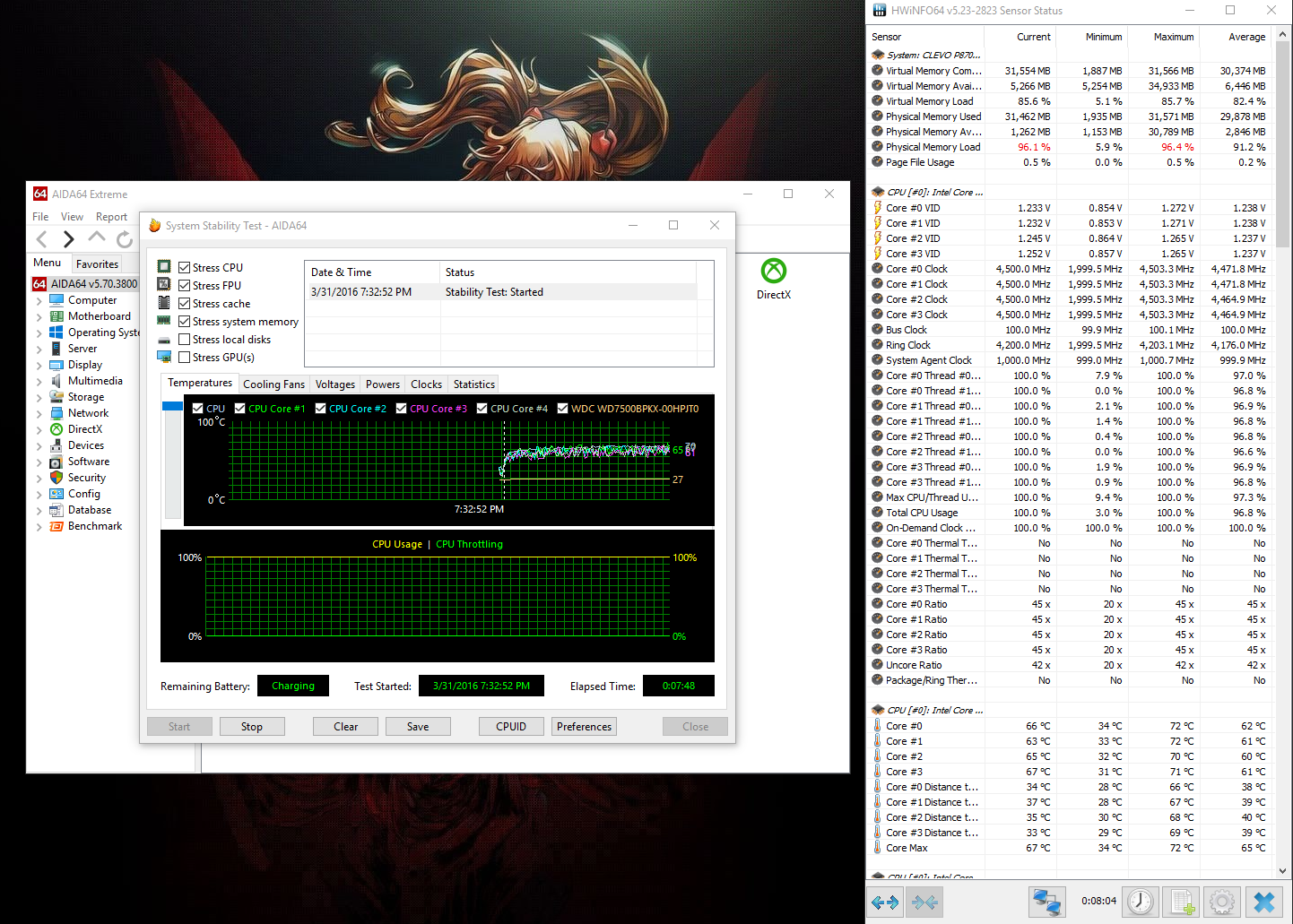

For reference these were the load temps at 4.2ghz with a -150mV under volt.


And old 4.5Ghz at the exact same settings :



@Mr. Fox @Prema
Finally. I can see that Multicom Norway now have Multicom extra 220V charger for
Kunshan P870DM for 1,226 NOR aka $ 147,767 http://www.multicom.no/multicom-ekstra-220v-lader-for/cat-p/c/p10633742 Is this an ok price? But they don't sell the power converter box I need .

Multicom sell also Multicom 220V charger for Kunshan P375S 19.5V/16.9A 330W for 799 NOK aka $ 96.3015 http://www.multicom.no/multicom-220v-lader-til-kunshan/cat-p/c/p10626987 This is a much cheaper 330w psu. Is it possible to use this cheaper 330W charger on my P870DM? The only difference I can see is that this 330w PSU has an angled connector at the end.



that is awesome man!

so are you using stock or adaptive voltage now? What is your Power Limit 1,2, 3, and 4? and what about Turbo Power Max and Short Turbo Power Max?



I'm currently getting this error from 3dmark11
DXGI call IDXGISwapChain:SetFullscreenStatefailed [ -2005270494

After I pulled the CMOS battery after a failed OC any ideas what could be causing it.



I changed back to Adaptive because my system crashed once playing Counter Strike, which is weird because it does just fine rendering stuff for 24 hours straight.

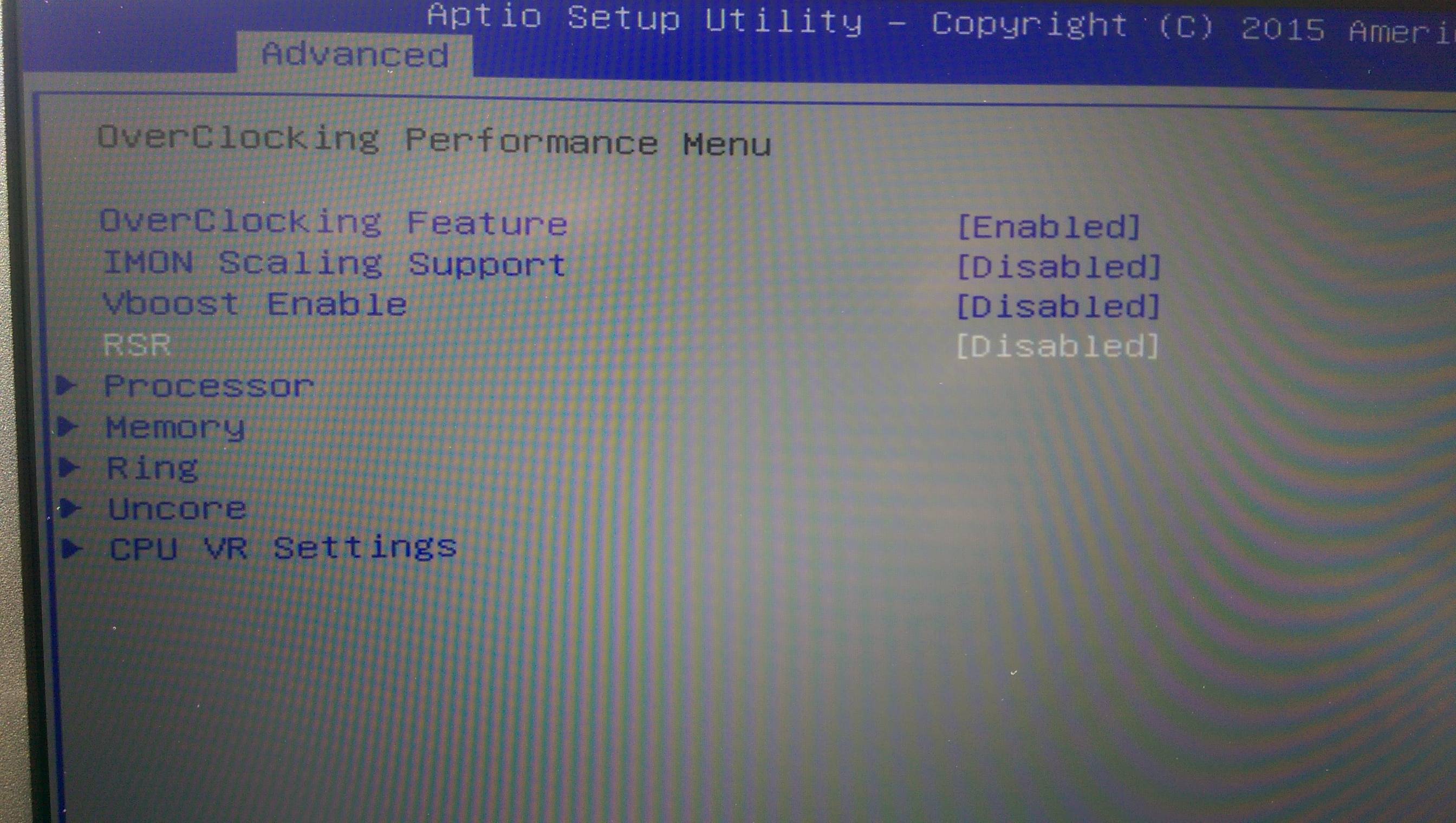

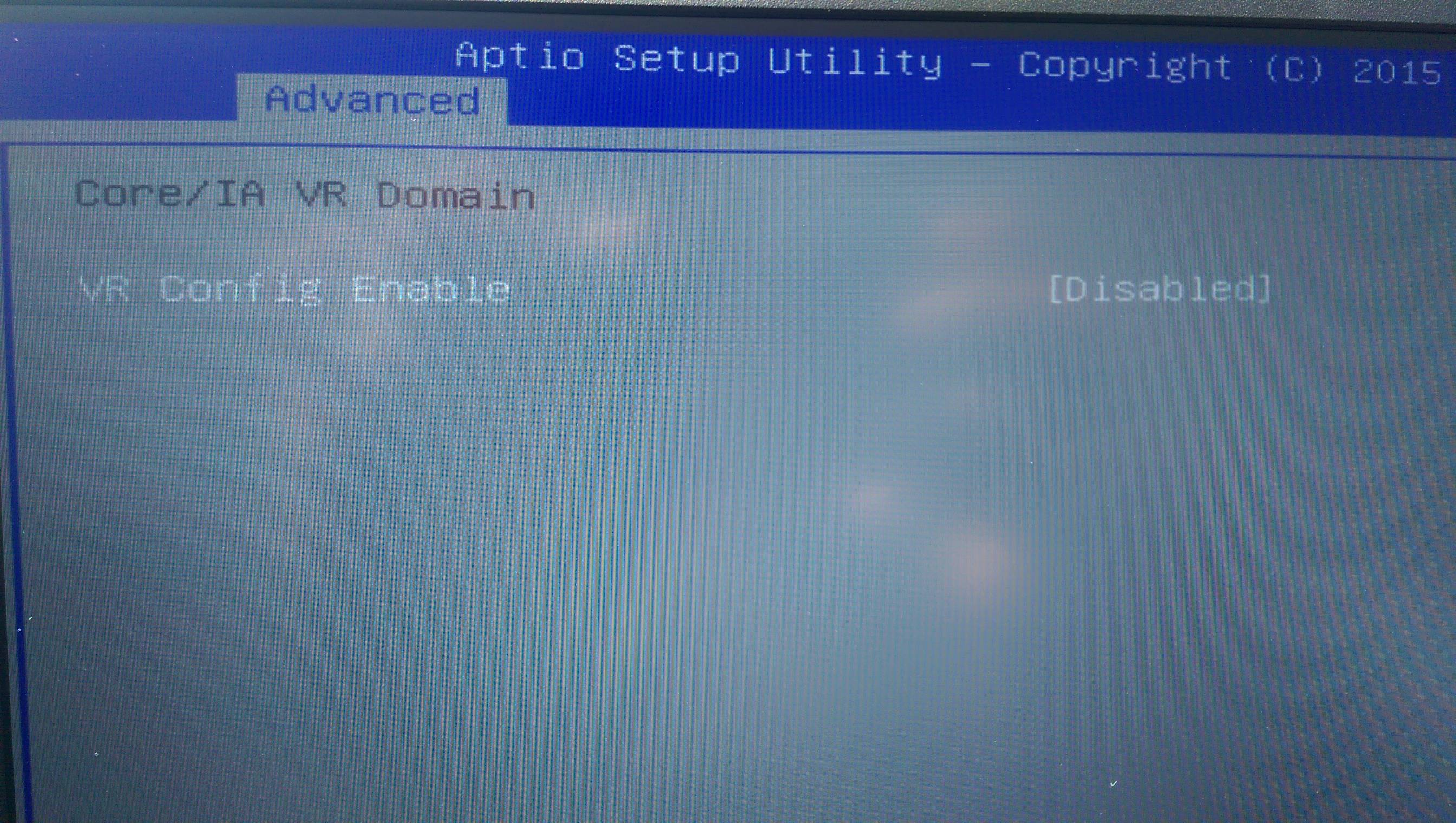

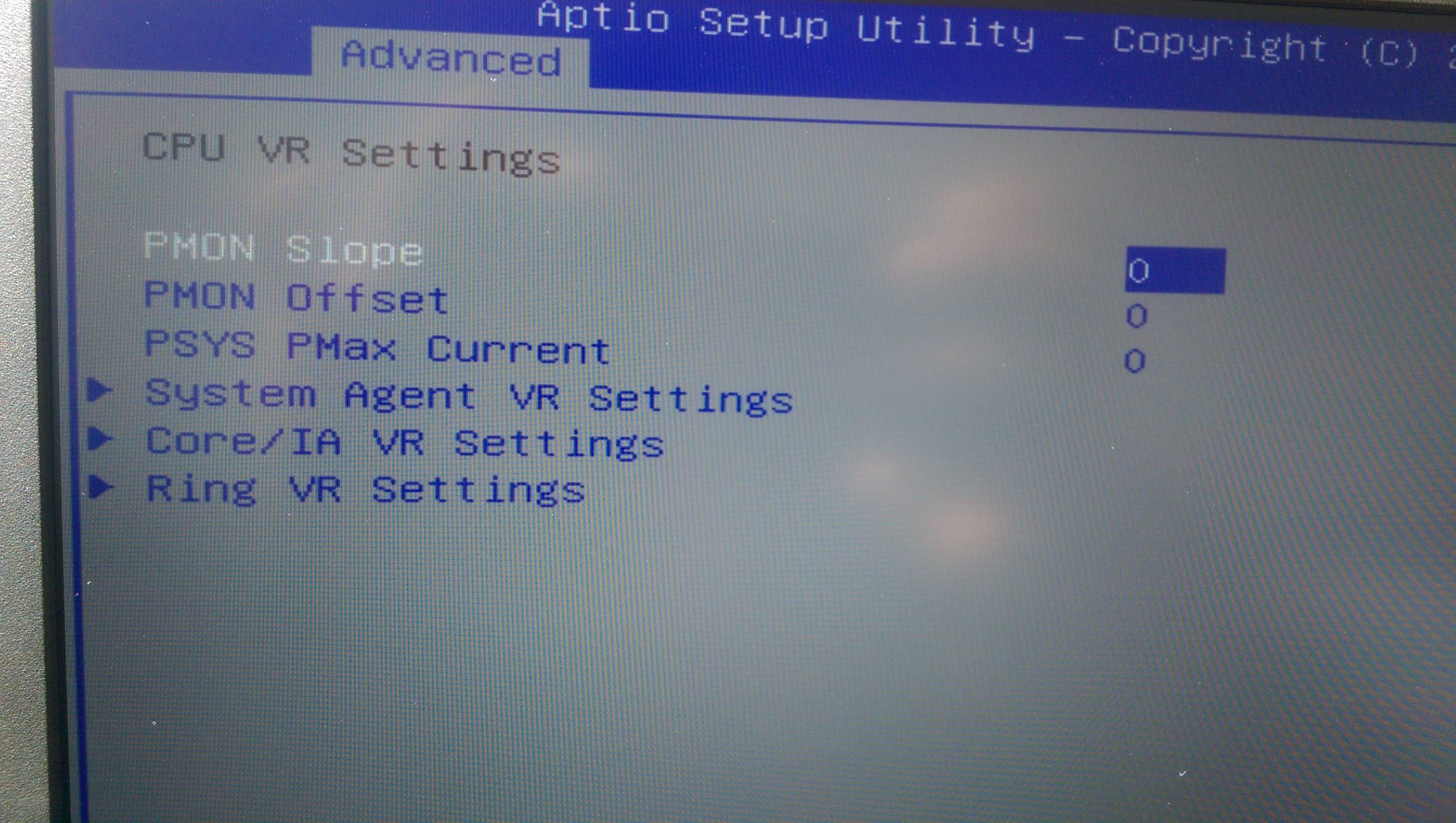

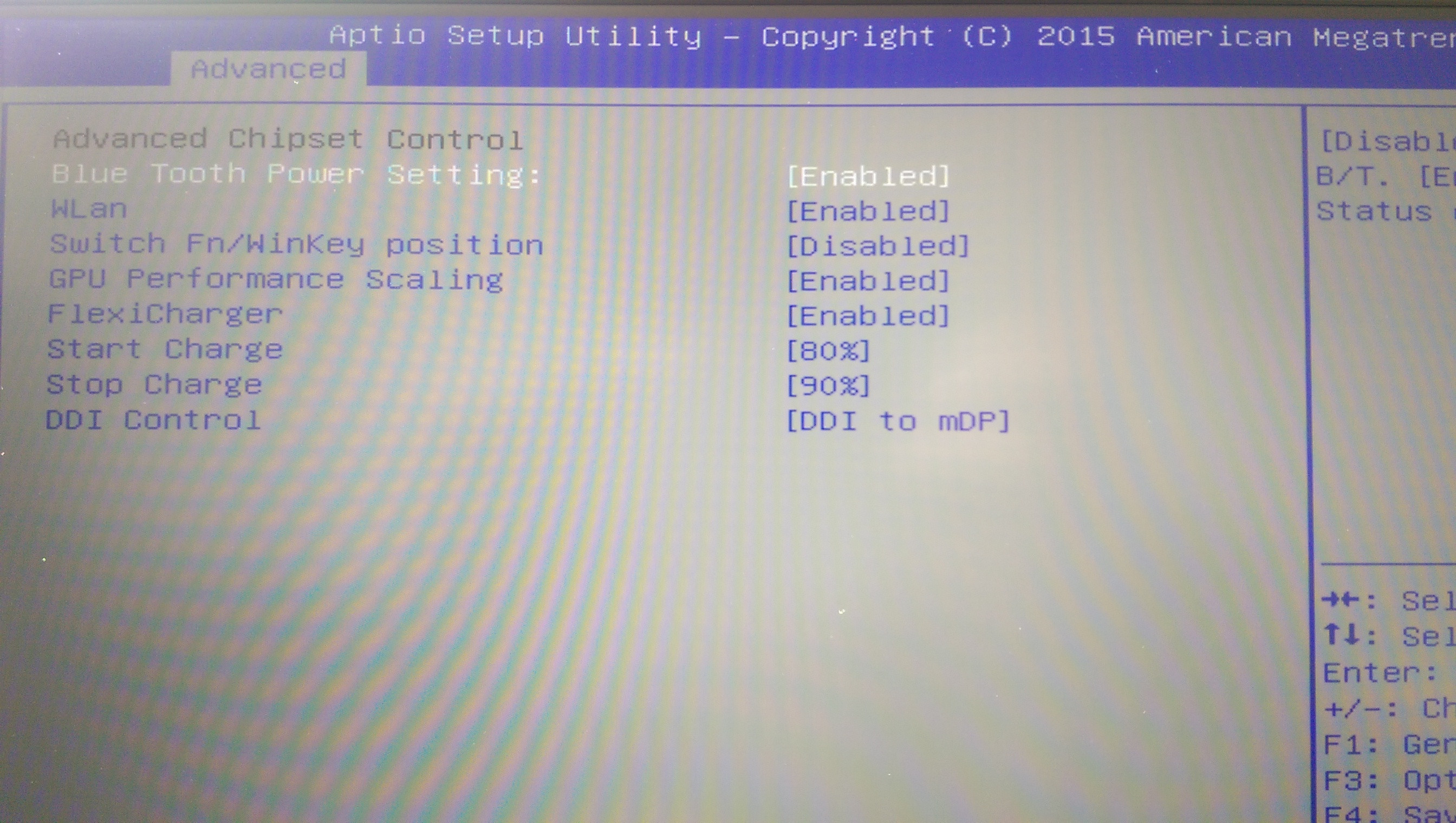

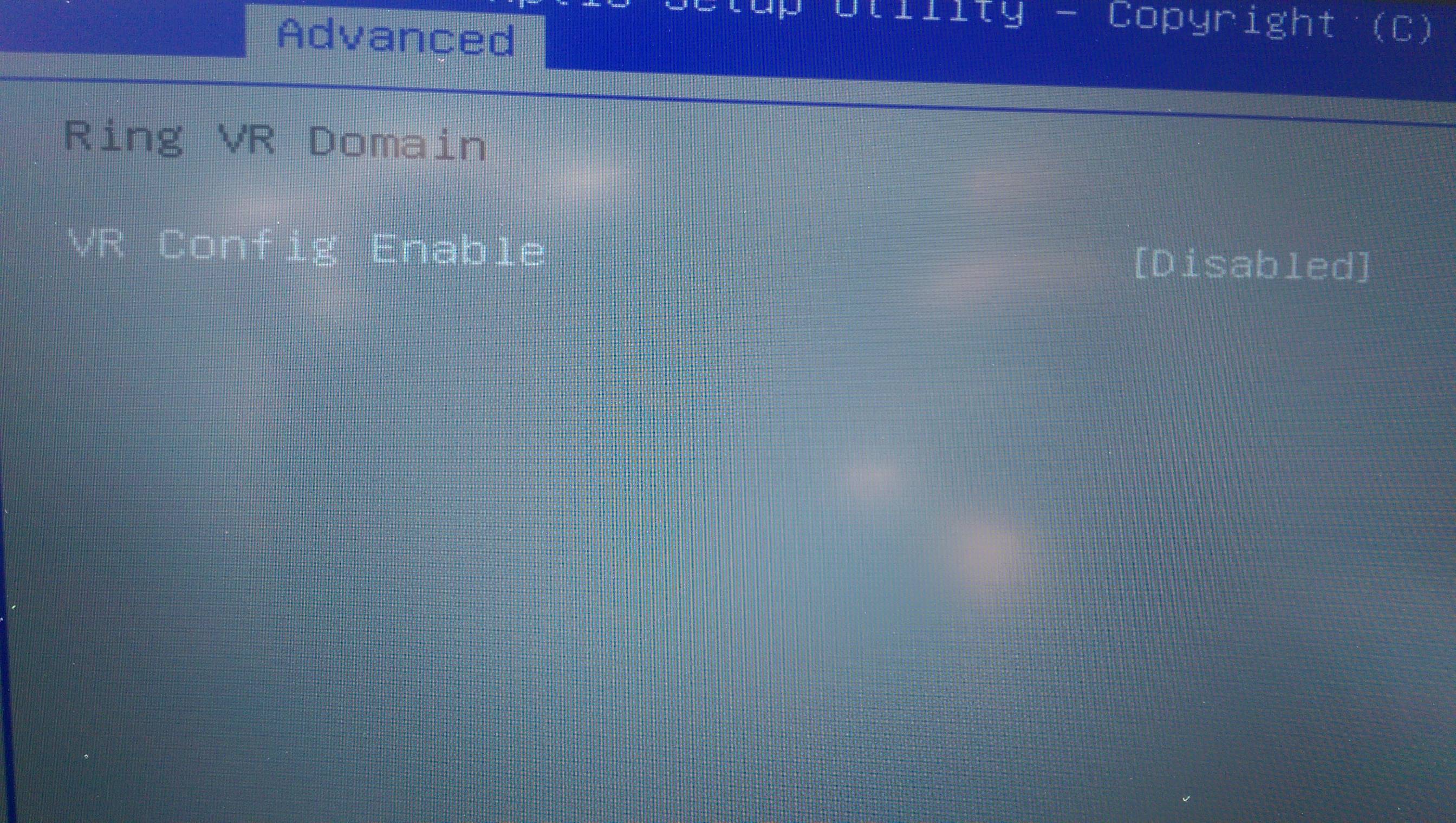

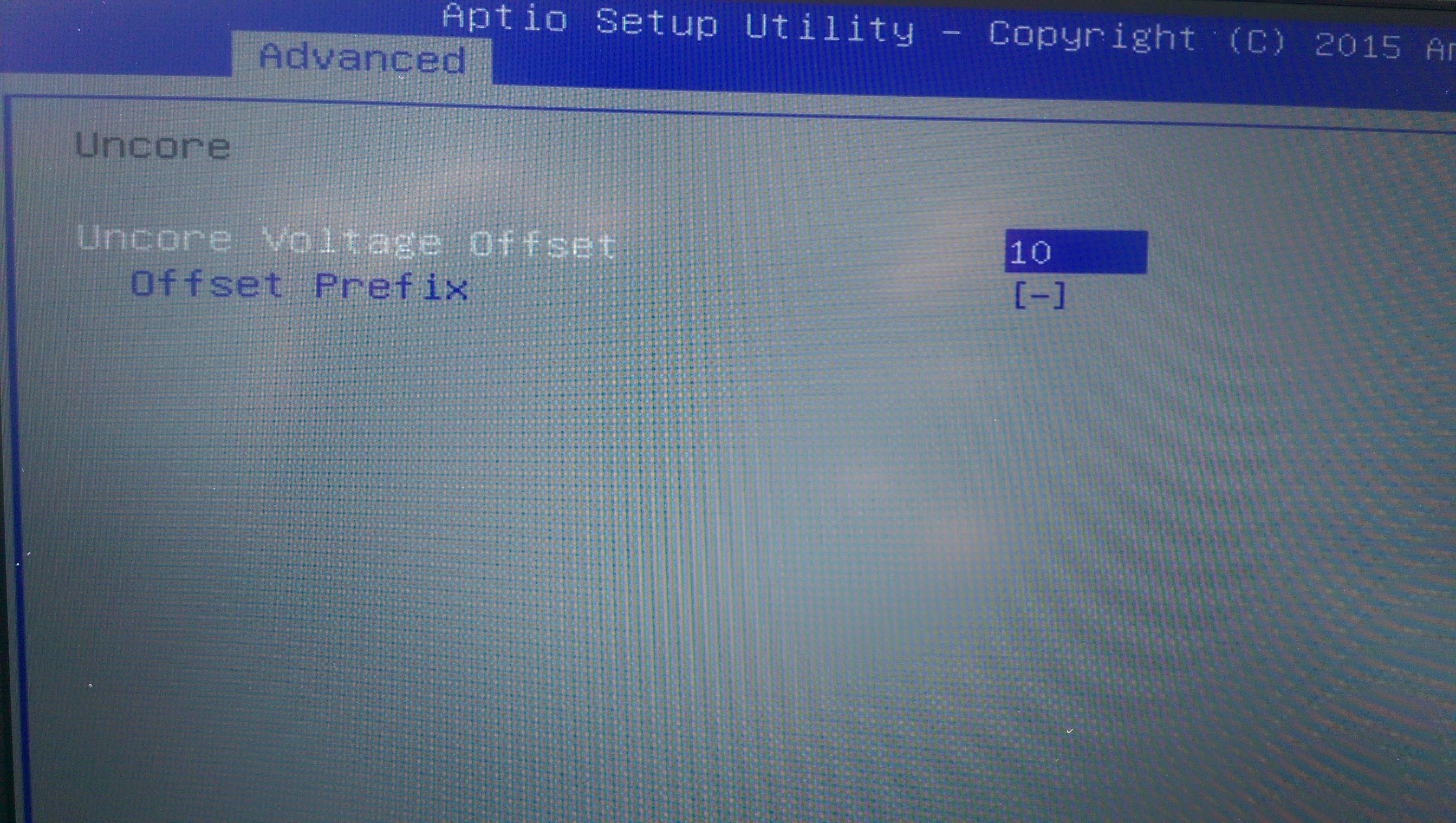

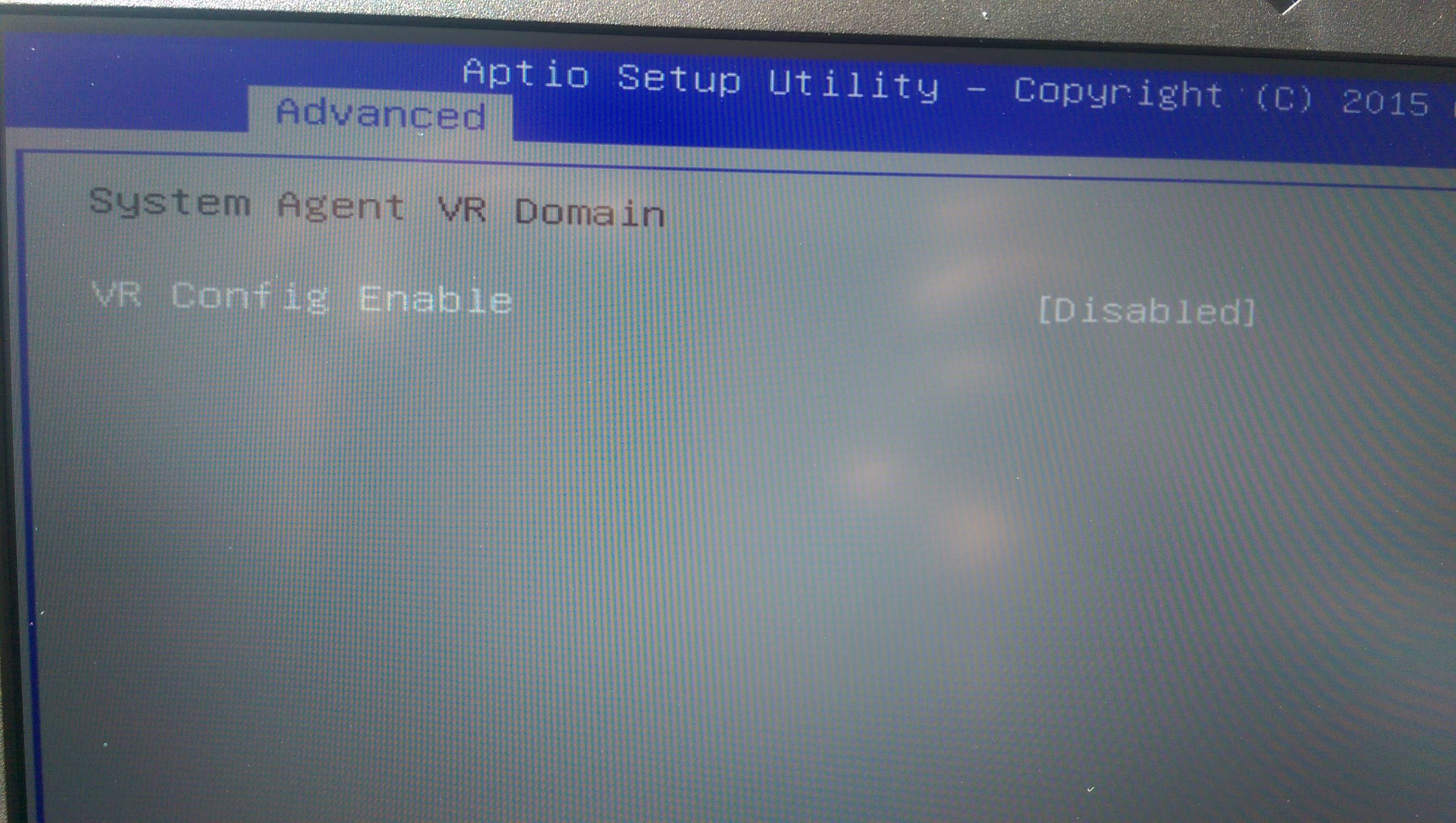

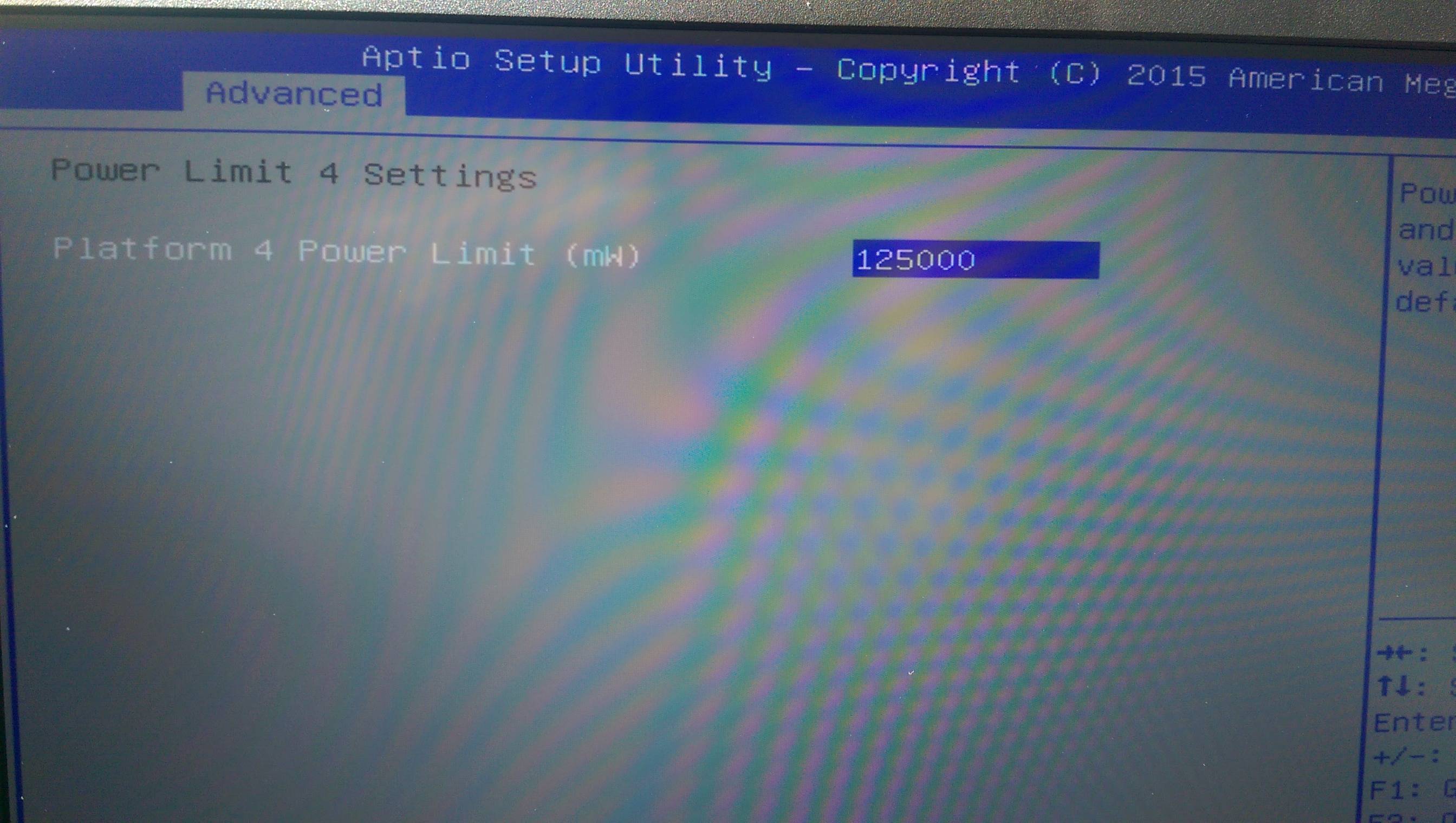

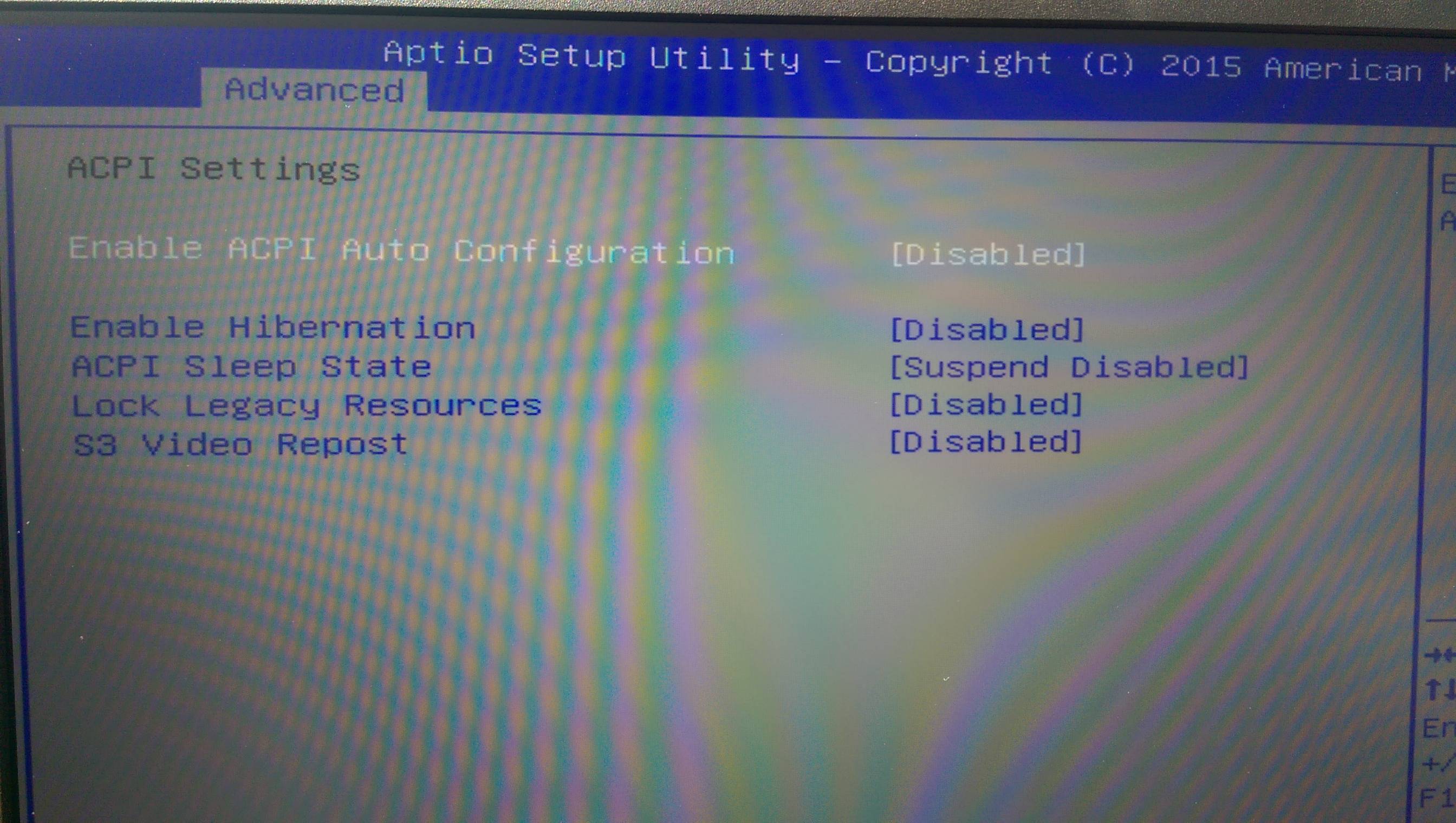

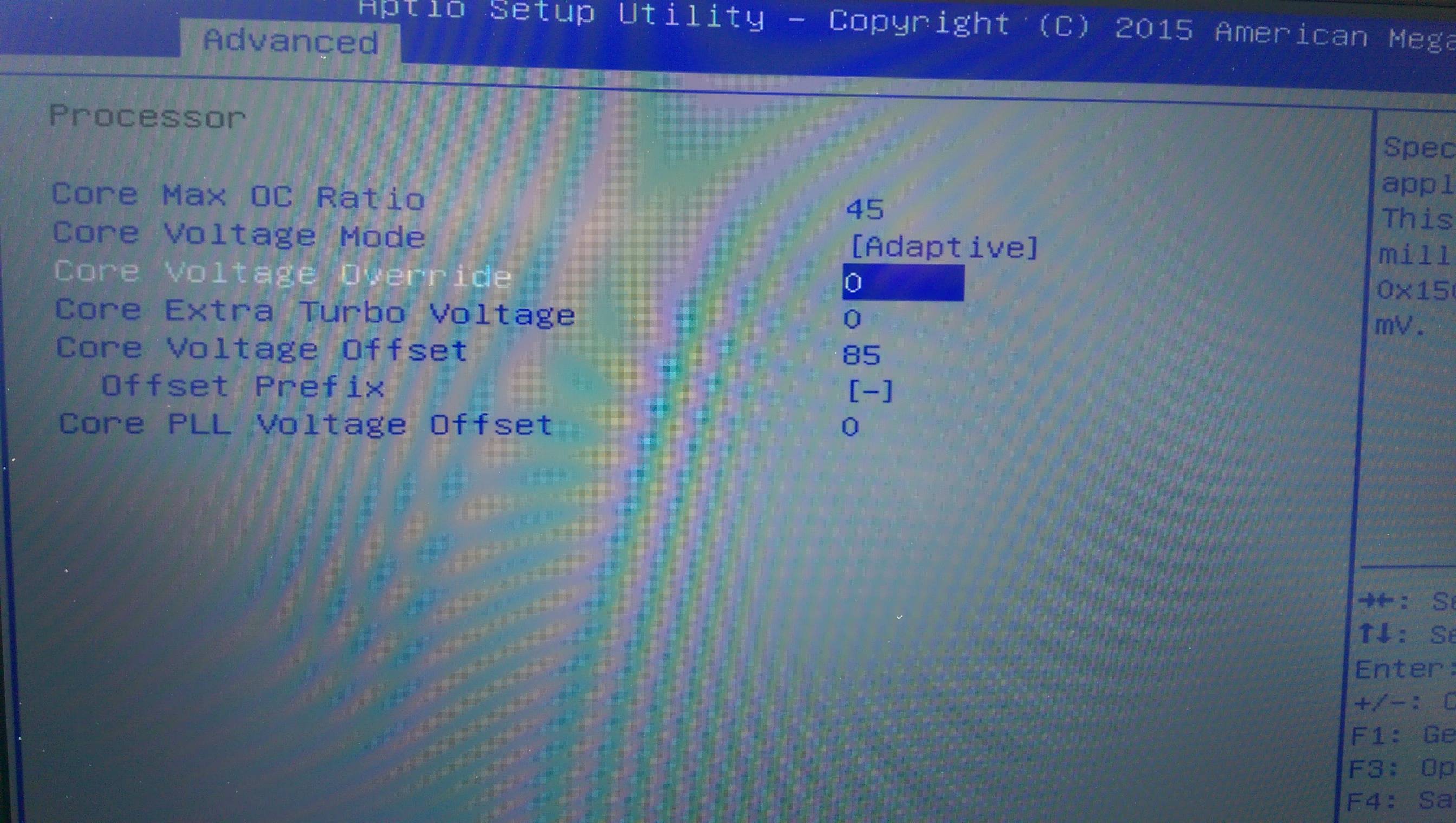

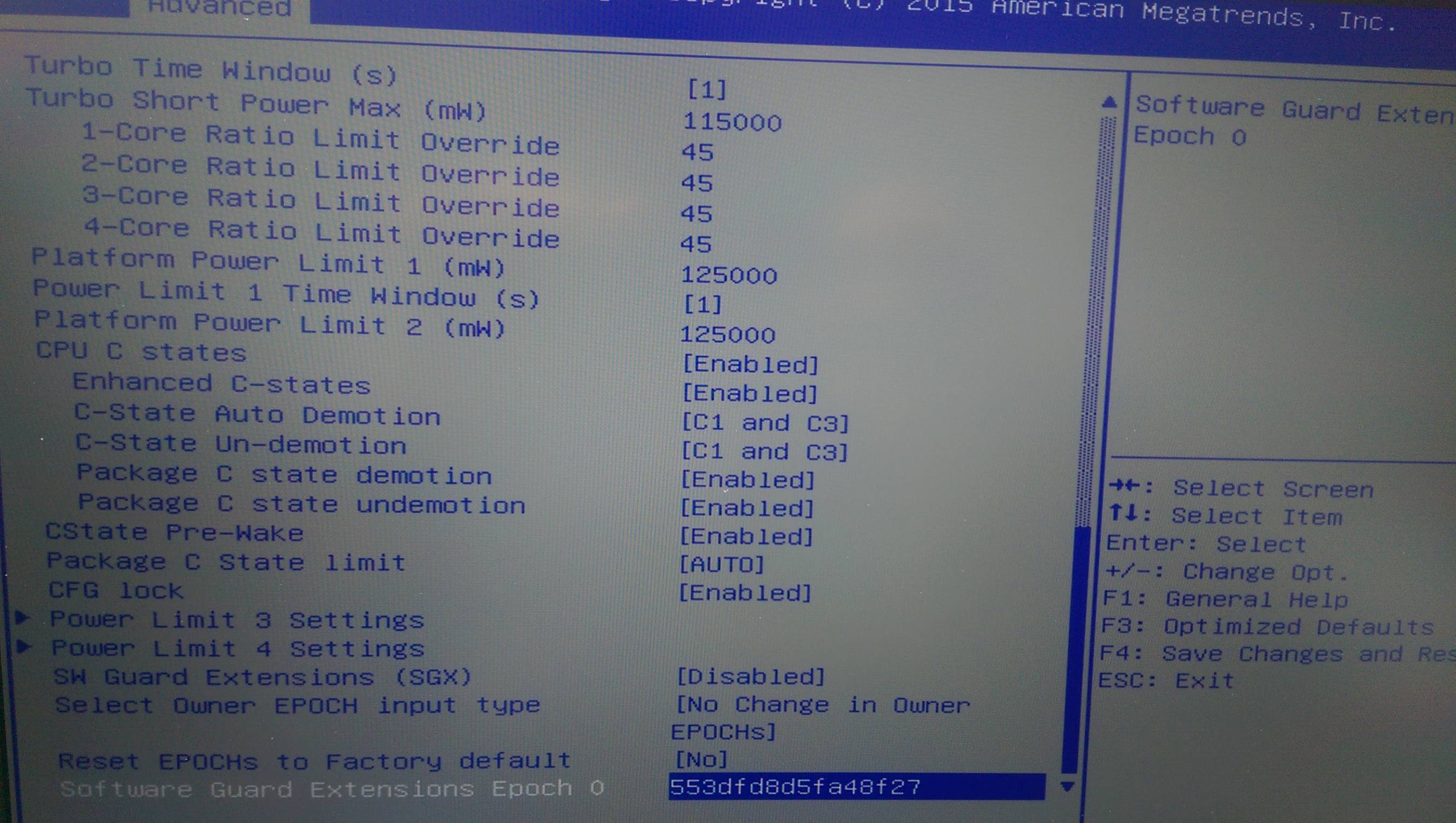

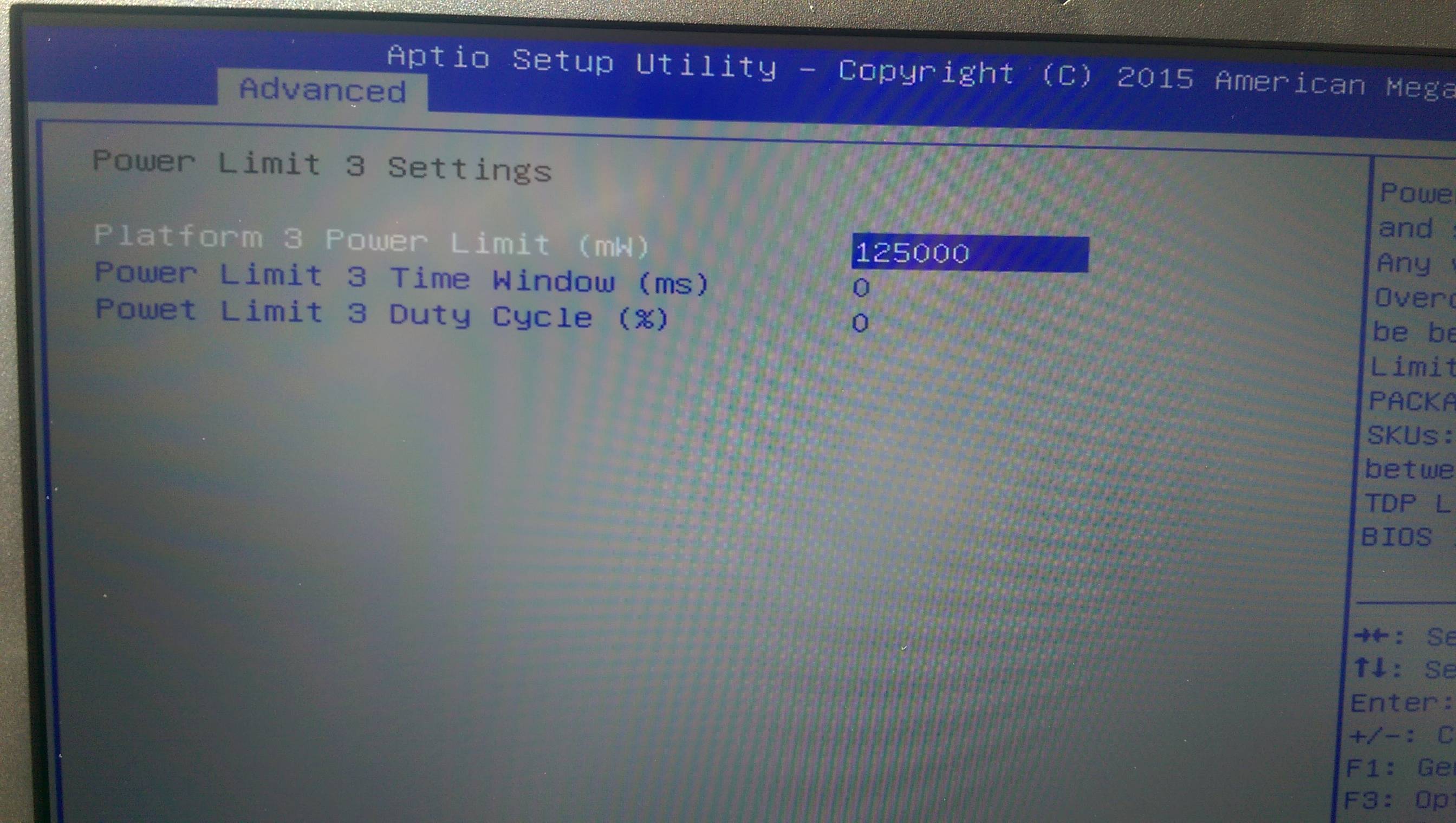

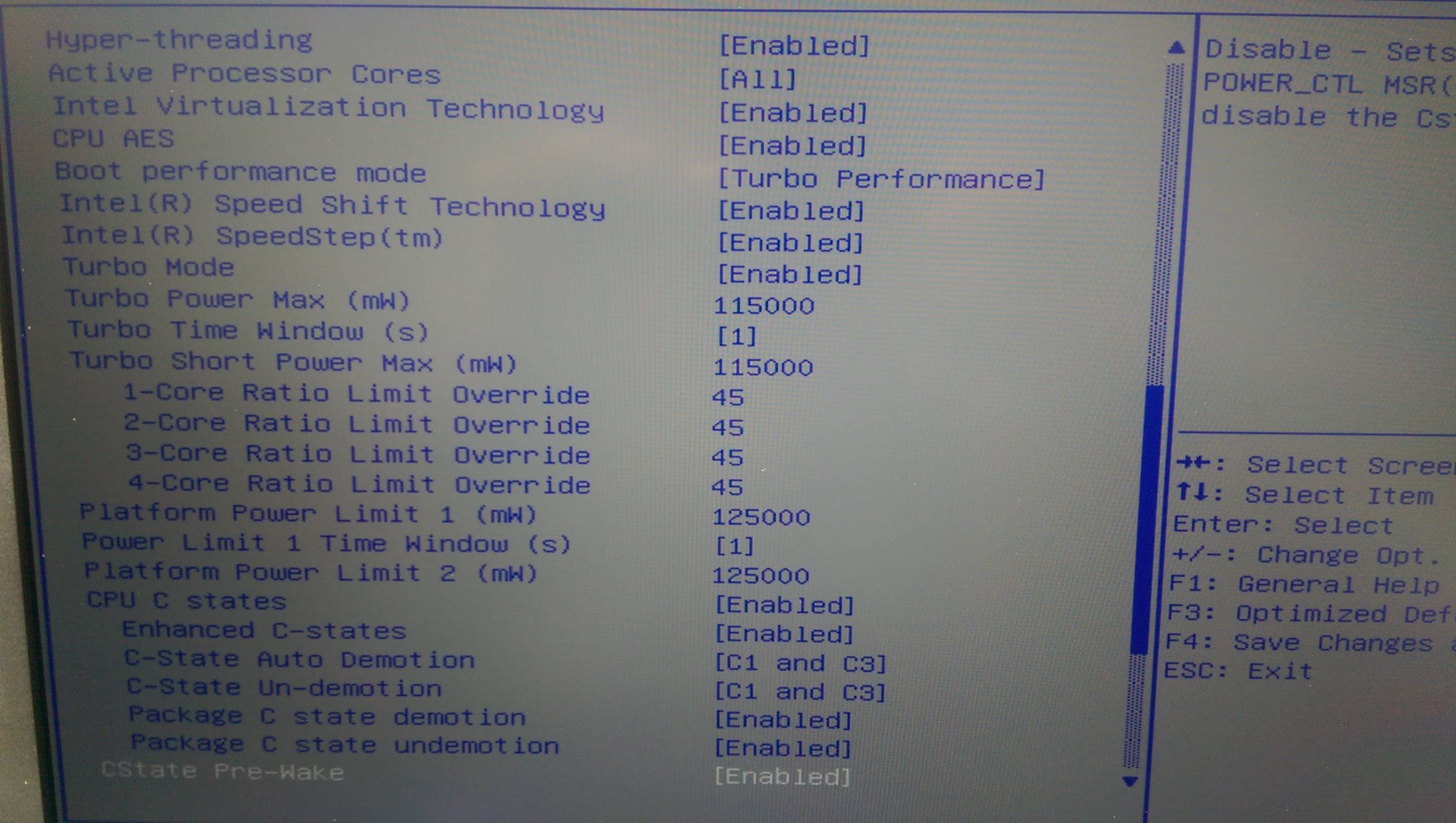

Here you go bebe , the settings.
http://imgur.com/a/MXd5E



Do a system restore to a point of a few days ago. That should get it back up and running.
Then create a new system restore point at that point. If you do not know how to do this...google "create system restore point"



Thank you so much bro! rep added!

I will try them soon and post my temps



Keep us posted. But you might need to fiddle with the voltage offset a bit, because mine loved -85 for some reason but causes a Prime95 lockup at -80 . Both are AIDA64 stable for me though.



I think mine will be fine with that offset, I am on a -60mV offset now on 44x4 / 44x cache ratio

what interests me is your power limits are way lower than mine and so is your turbo power max settings. let me see if that works and/or lowers my temps

if you are interested in my current settings, they are in the OP



@Prema @Mr. Fox New ram from G.Skill http://www.guru3d.com/news-story/g-skill-ripjaws-ddr4-3000mhz-so-dimms.html
Do you think there is support for using the new G.Skill Ripjaws DDR4-3000MHz SO-DIMMs in Clevo P870? Or even OC them?



oh darn! They had to do this the moment I purchased my 64GB 2800 MHz Kit heh?!



@Papusan

I don't see it on their website yet though



Were you tempted to buy these? Of course when they arrive in stores. Idon't know when they is ready for sale, but maybe I should wait a bit for these



Just an OT question, what do you use these high speed memory for?
They dont even come in handy for visual effects work for people like me for rendering/caching and i haven't noticed any difference in games or normal use.



1) bragging rights

2) maximizing every performance aspect of any machine I own, be it a small or big performance difference, every MHz/FPS matters



I want to remain at the top of the performance list at least in RAM department since you smoked me with the CPU benches. Not a fair fight since you live in an igloo my friend



OVERCLOCKING, OVERCLOCKING, OVERCLOCKING, Benchmarks, benchmarks, Benchmarks... Yeah. Highest possible numbers, YEEES



HAHAHA gotcha. I jut wish i had an extra system just to mess around with, when this one is busy crunching numbers.



The current Prema Mod BIOS will allow everything up to 3200Mhz.
G-Skill are usually JEDEC P'n'P up to 2600Mhz and then use XMP for the rest.
Just set BIOS to overclocking and select the XMP you want or use your own speed and timings.



You are an angel Master . This was a great confirmation. + Rep. Everything is on its way to becoming very good for me. See this link http://forum.notebookreview.com/threads/clevo-overclockers-lounge.788975/page-103#post-10231184
You offered me a time back some help with imports from Sweden. I need a power converter... But I can buy the 330W psu in Norway now for an ok price but not the power converter.



So you need the adapter box right? Did they ever change the model name?



Yeah. I need the adapter box for connecting 2x330w. I haven't seen this adapter box here in Norway. Maybe no one Overclock here ? What did you mean with change the model name?



IIRC Clevo released it for the x7200 model and I am not sure if it was ever revised when they moved from 300W to 330W Adapter...I'll find out if they have stock...



Offset is hard to compare since a different cpu even on same mobo will have a different "0" offset voltage.

I have two 6700k and these two with same -75mv offset work at differnt voltages.



My samsung stock stick works great at 2800mhz CL16 CR1, and I am pretty sure the stick is capable of higher mhz but somehow the memory voltage just doens't work. It keeps at 1.2v. You, the master of this bios, have any idea?



You can try to write an XMP profile with higher voltage in order for the system to accept it....



Regarding the difference in voltage for skylake... If this has an impact on a higher OC, I do not know. Maybe this will balance out at higher Overclock?

http://www.anandtech.com/show/9483/intel-skylake-review-6700k-6600k-ddr4-ddr3-ipc-6th-generation/6
For those who do not already know this... It is recommended that you stop using the pea method for applying the paste and instead use line method. But Liquid Ultra is still the best thermal paste if you want the lowest possible temperature



But how can I write an XMP profile? Thaiphoon burner works with your bios?
I've tried it but it didn't without your bios.



Yes, Thaiphoon works with all my Mods. We @TURBODUDE!!! removed Intel's Haswell and Skylake SPD write locks.



Yes I definitely think the stock (zero offset voltage) is highly related to silicon quality.



Hello everyone, I am a bit of a noob overclocking specially skylake since i just got this laptop couple of weeks ago. let me know your thoughts on my settings please








@Phoenix @Mr. Fox Fox got a quick question on the uncore voltage im a bit confused. according to phoneix 4.2 recommended settings he has uncore voltage off set of 0. on the 4.4 recomendation you have an uncore voltage of 20 (-) ... im i reading this wrong or did you lower the uncore voltage @ 4.4 vs 4.2??? would that be the other way a round? need more juice at 4.4 than 4.2?



What's the default frequency oF the RAM modules?



I think it's standard Samsung 2133 OEM ram.



WOW. That is one crazy OC for 2133Mhz memory.



See the leader board on first page. There is the bench results from those ram chips.



Shout out to @Prema, @Phoenix and @mythlogic for my new Prema BIOS for my P770DM-G!!! Josh @ Mythlogic called me today and got me upgraded to the latest and greatest Prema BIOS so now I can really start having fun

Total sidenote, do I need more posts or something before I can set myself up with a signature? I've looked everywhere in my profile settings and I don't see anything so that's my assumption.



Nope, we aren't like TechInferno where we require you to have posts to be able to do things. The weird thing is, though, I had a dream last night about TechInferno...
