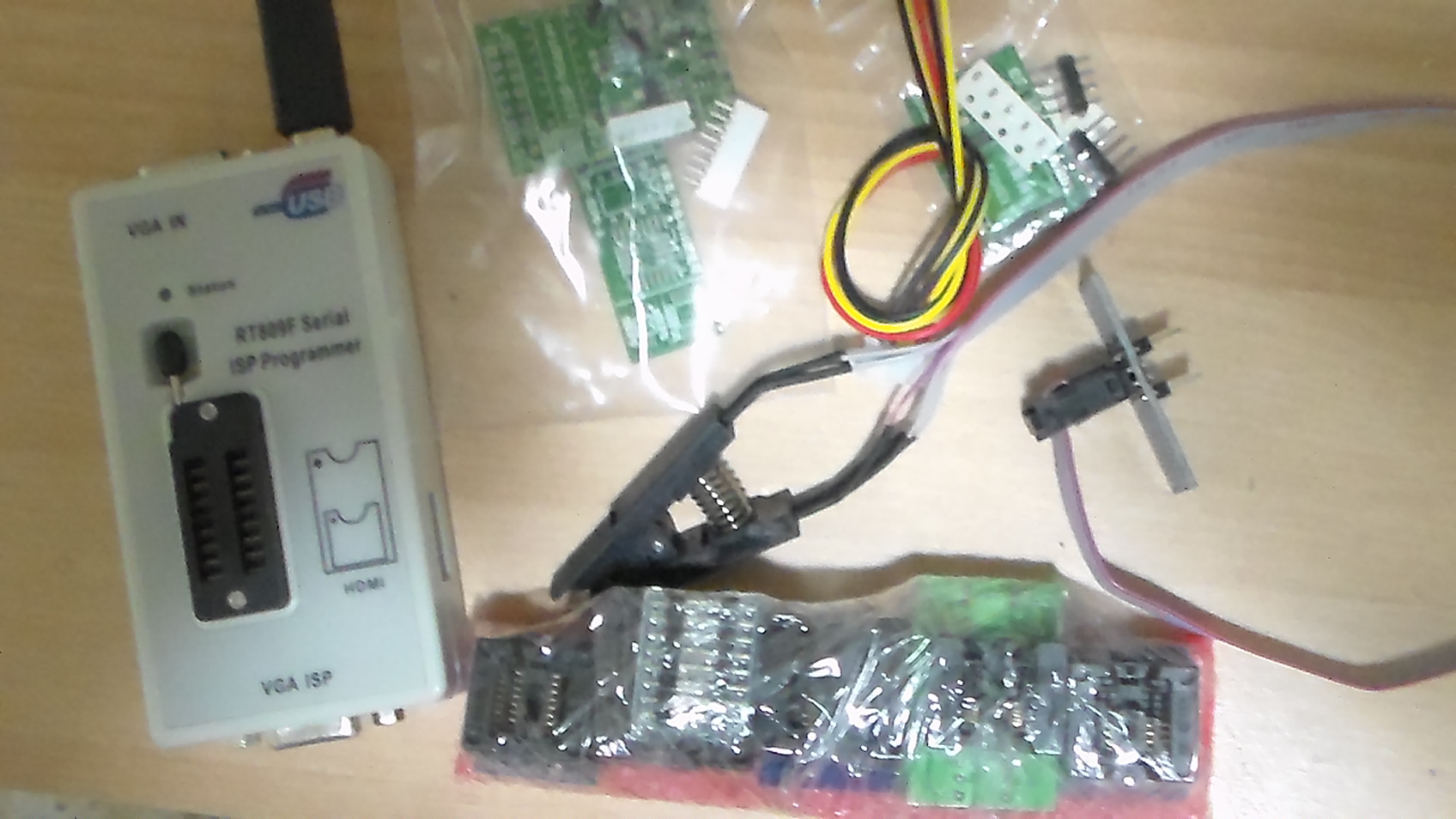

I have a RT809F flasher but I have no idea if it came with the alligator chip. I don't think it did at all.
Um I found the device
Will this be able to flash it without removing the chip?



Even if it did, if you put more than 1.8V to the vBIOS chip you'll potentially fry it. That's why I mentioned the 1.8V adapter.



Before that you will need to check which BIOS chip your GPU has. I have , mixed results flashing both MXIC and Winbond chips inline using the TL866 (2 different units), however for @Mr. Fox and a few other with older units can flash inline without issues, while i have to do a lot of shenanigans.
What actually does work for me is the Skypro programmer with the 1.8V adapter. That one flashes both without any issues at all.

End of the day, before you begin, find which CHIP your GPU has, then make sure you have the right part - Programmer, good clips, 1.8V adapter etc. And then proceed by first making a full backup and comparing it with a back up for the same vBIOS made using GPUz.



There is a good chance the RT809F will work if it has the vBIOS chip in its database.
http://topmarketingsite.com/wp-cont...V-adapter-VGA-LCD-programmer-ICSP-board-1.jpg

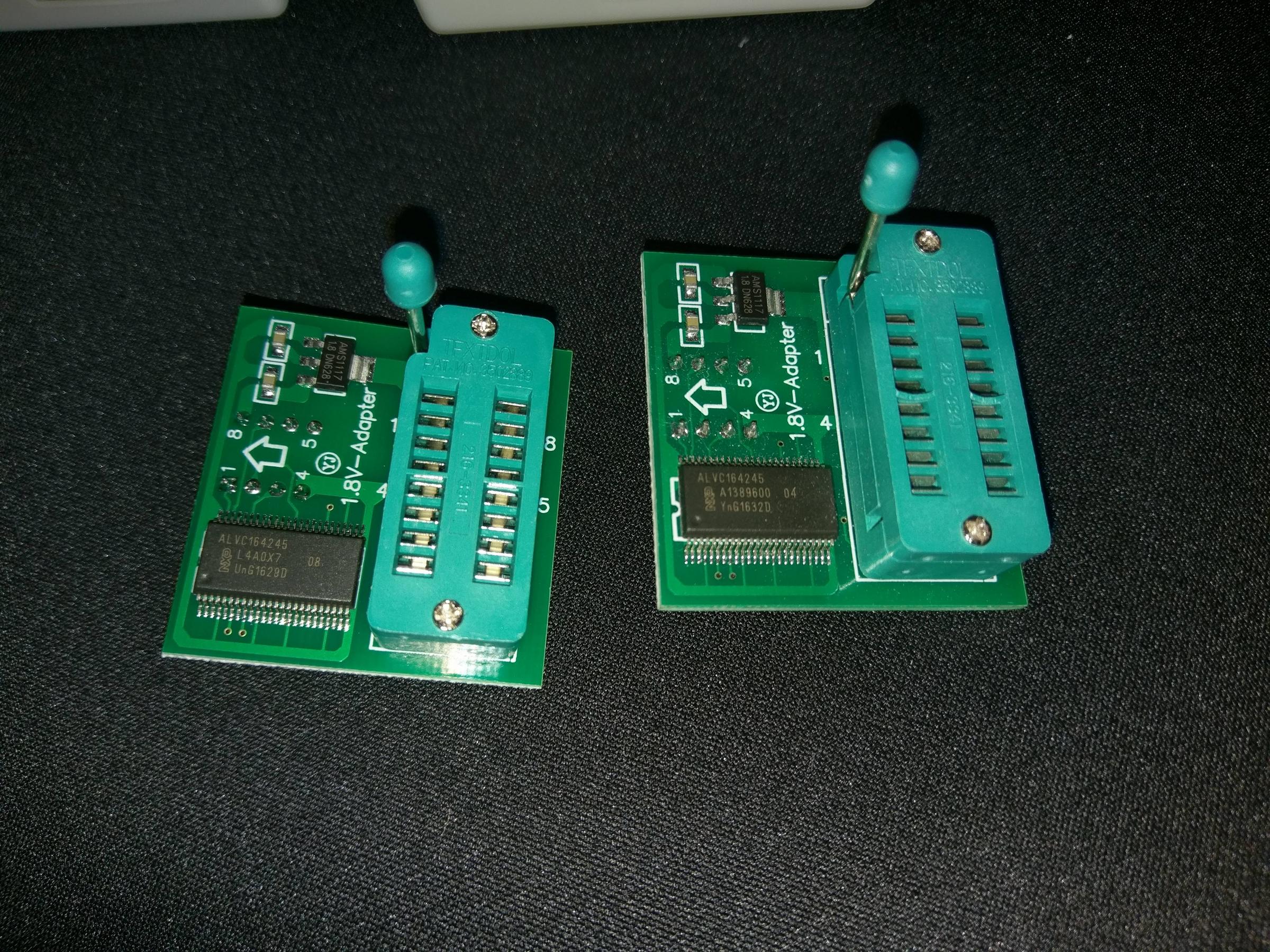

Here's a photo showing the 1.8V adapter.



I have 2 of them and both have the same issue, however if i remove overvolt protection by hard modding the programmer inline flashing works fine. And this is using 2 different TL866's. Which leads me to believe something has been changed in the newer units (last year or so). The Skypro however flashes faster and inline without any issues using the same 1.8v adapters. -
http://imgur.com/a/MvkuU



Thank you guys. I'm not going to try anything, since I don't want the Magic Smoke to appear. I'll just have to wait for NVflash developments.



That is very possible. Maybe some of our enemies got to them and effed things up on purpose with TL866A. It could be brand-specific as well, since there are several companies that sell TL866A programmers.

Good luck with that one. The NVIDIOTS screwed us all on purpose. There won't be a change of heart. Their evil deeds are premeditated and calculated, and the damage is permanent. As long as your GPU has Falcon chit on it, you'll have to use a sledgehammer to program it.

As long as the software supports the chip model that is soldered to the GPU you probably can. Unless you run into some snags like @bloodhawk did. You'll need the 1.8V adapter, but it looks like you have everything else.



I don't even have the 1.8v adapter. I have all the other IC's shown in the RT809f picture but not the 1.8v adapter...I'm doomed...



Those are very cheap on Amazon and even cheaper on eBay.



https://www.amazon.com/XINY-adapter-Iphone-motherboard-Memory/dp/B01GFMYICM

@bloodhawk - did you ever have a go at flashing 1080 vBIOS with this type of programmer?



Right now, a programmer is still needed to flash the vBIOS in. Like @bloodhawk mentioned, some programmers required a BIOS chip soldered off, some can do inline flashing. I used a Sofi SP16-B to flash it, it natively supports 1.8V and inline flashing for the MXIC 25U8033E chip. Please see below image.



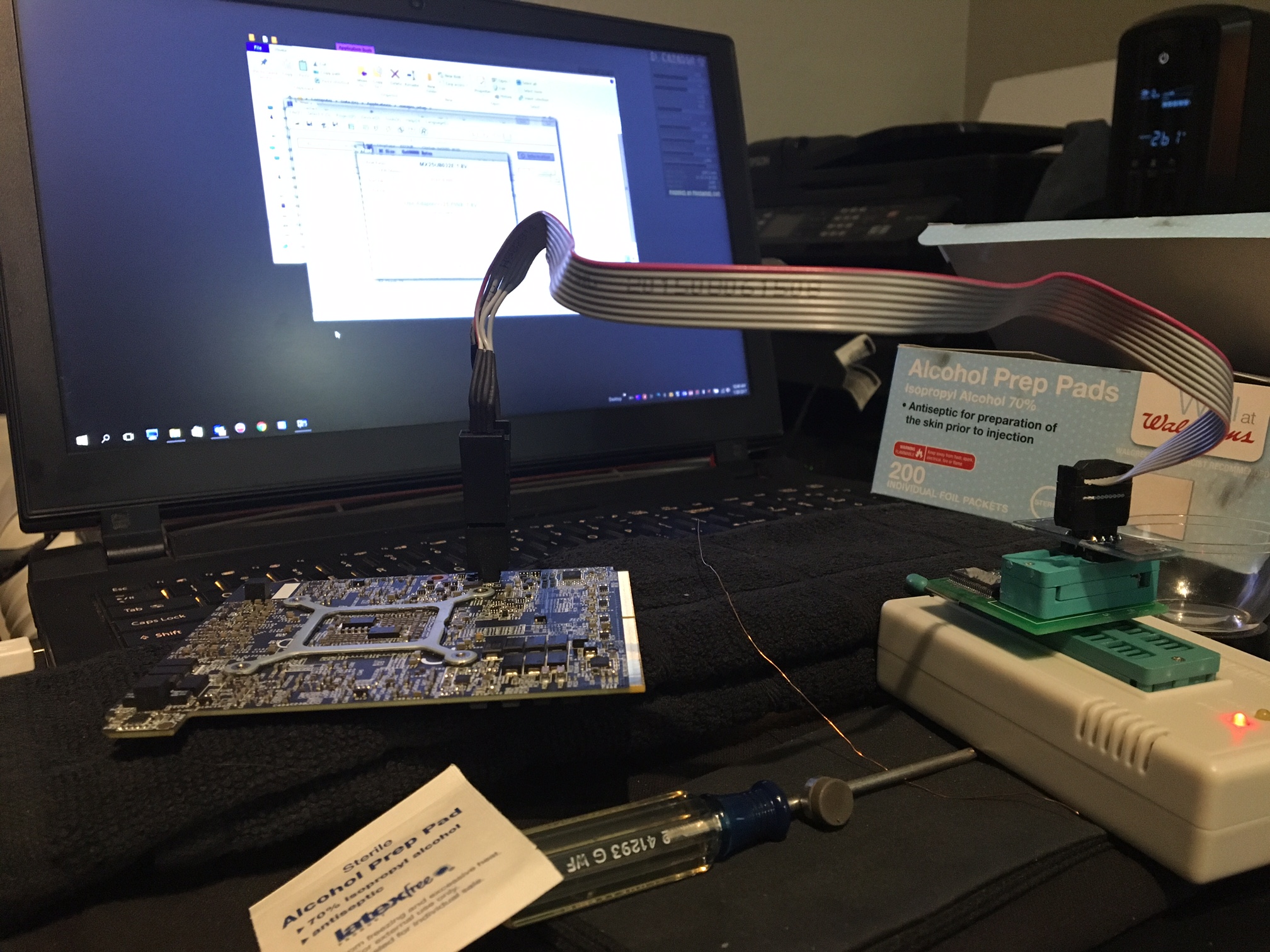

If the 8bit checksum is 00, the app will show green, otherwise it will show red.
If the official vBIOS that you are using showing red then it's okay. Showing red can be interpreted as the vBIOS maybe modded before, if you don't know where the vBIOS is from, then you might need to be careful. Showing green normally it's safe.



It is as you said, a guess.
Both mobile and non-mobile bioses indeed contain string 'BIOS Certificate Check Failed'.
In addition most (but not all) non-mobile bioses contains additional strings related to certs 'GPU Pers Req match found in cert', 'Pers Req match found in cert', 'vendor cert parse complete', 'BIOS Cert Verify Successful', 'Ready to change personality', 'Personality in Req', 'Ready to change personality' etc.
So I assumed some additional checks happen at boot in non-mobile bioses.



Yeap. Though im yet to see any Pascal vBIOS without the certificate check strings.



I wish my MSI 1080 had the vBIOS chip on the same side as the die like my Clevo 1080s are. It makes flashing so much easier. I'm able to flash in-line without removing the GPUs from their MXM slots and I have to remove both CPU and GPU heat sinks and remove the 1080 from the MXM slot on the MSI. Not very convenient in comparison.



Well, all of them (or at least entire techpowerup collection) contain string 'BIOS Certificate Check Failed', but most 1050, all mobiles and maybe 20-30% other 10xx do not contain other mentioned strings.



Can you link me to either those vBIOS' without the strings?



For example, mobile bioses https://www.techpowerup.com/vgabios/186329, https://www.techpowerup.com/vgabios/186530 do not contain additonal strings, 1080 https://www.techpowerup.com/vgabios/187224 does not contain additional strings, but 1080 https://www.techpowerup.com/vgabios/185388 does contain additional strings.
On the other hand maybe it is just different bios versions.

EDIT: Ok, it do looks like different bios versions.
Versions for bioses not containing 'Ready to change personality' and 'BIOS Cert Verify Successful' are: 86.02.15.00.xx, 86.04.2A.00.xx, 86.04.3B.00.xx, 86.04.3B.40.xx, 86.04.50.00.xx, 86.06.11.00.xx, 86.06.27.00.xx, 86.06.39.00.xx, 86.06.3C.00.xx, 86.07.22.00.xx, 86.07.2F.00.xx.
And versions for bioses containing 'Ready to change personality' and 'BIOS Cert Verify Successful' are: 86.02.39.00.xx, 86.02.3D.00.xx, 86.04.11.00.xx, 86.04.17.00.xx, 86.04.17.40.xx, 86.04.1E.00.xx, 86.04.26.00.xx, 86.04.66.00.xx, 86.06.0A.00.xx, 86.06.0E.00.xx, 86.07.39.00.xx.



Umm.. all of them seem to have that "BIOS Certificate Check Failed" string.



Yeah tried, once. I dont think that supports our chips. At least i couldnt find it in the list/database.



I said earlier that _all_ of them contain "BIOS Certificate Check Failed" but some of them contain additional strings.



Ah, i think i got confused then. Those extra could definitely be there because of the BIOS versions. End of the day they dont matter in the scheme of things as they are right now.



Updated post http://forum.notebookreview.com/threads/clevo-overclockers-lounge.788975/page-1262#post-10539707 with version lists for both cases.
Maybe these messages are just 'debug leftovers'.

EDIT: Most of 980ti contain these messages too but most of other 9xx do not.
