    Official Clevo W650KL / W650KJ1 / W650KK1 Owner's Lounge

    Discussion in 'Sager/Clevo Reviews & Owners' Lounges' started by sicily428, Mar 11, 2017.

  1. TomJGX

    TomJGX I HATE BGA!

    Reputations:
    1,456
    Messages:
    8,707
    Likes Received:
    3,315
    Trophy Points:
    431
    Would be good if you do a Hwinfo 64 screen dump of specifications... Especially the motherboard.. Interested to see what chipset Clevo has used with this!

    Sent from my LG-H850 using Tapatalk

    TomJGX, Apr 17, 2017
    #51
  2. JerryDD

    JerryDD Notebook Guru

    Reputations:
    0
    Messages:
    74
    Likes Received:
    17
    Trophy Points:
    16
    JerryDD, Apr 17, 2017
    #52
  3. Billy2789

    Billy2789 Notebook Geek

    Reputations:
    3
    Messages:
    89
    Likes Received:
    40
    Trophy Points:
    26
    It's quite warm here in Hong Kong, avg 24'C throughout the day I recon.

    There was a Chinese user on another forum who fitted a 6700K into last generation's W650DC.
    LGA1151 + NV GTX950m, but cooling should be same as W650KK.

    Without undervolt:

    -0.023v undervolt
    http://tieba.baidu.com/p/4812196593?pn=1 < link here, enter pn=2 for page 2 etc.

    And, core voltage offset slide bar is available on my w650kk.

    Billy2789, Apr 17, 2017
    #53
    jaybee83, JerryDD and sicily428 like this.
  4. Billy2789

    Billy2789 Notebook Geek

    Reputations:
    3
    Messages:
    89
    Likes Received:
    40
    Trophy Points:
    26
    Here you go:

    Billy2789, Apr 17, 2017
    #54
  5. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    Is this 6700k delidded?

    sicily428, Apr 17, 2017
    #55
  6. Billy2789

    Billy2789 Notebook Geek

    Reputations:
    3
    Messages:
    89
    Likes Received:
    40
    Trophy Points:
    26
    he never mentioned, i guess not

    Billy2789, Apr 17, 2017
    #56
    sicily428 likes this.
  7. JerryDD

    JerryDD Notebook Guru

    Reputations:
    0
    Messages:
    74
    Likes Received:
    17
    Trophy Points:
    16
    Thanks a lot, you're a golden source of information.
    Could you please also check if there's option to undervolt in BIOS?

    JerryDD, Apr 17, 2017
    #57
  8. Billy2789

    Billy2789 Notebook Geek

    Reputations:
    3
    Messages:
    89
    Likes Received:
    40
    Trophy Points:
    26
    It's with my mum now, she needs a new rig for leisure AI/PS use, this little clevo suits her perfectly. I could check later but no guarantee.

    Anyway the BIOs is extremely simple, I checked once before I did win10 installation.

    Billy2789, Apr 17, 2017
    #58
  9. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Apr 25, 2017
    #59
  10. Billy2789

    Billy2789 Notebook Geek

    Reputations:
    3
    Messages:
    89
    Likes Received:
    40
    Trophy Points:
    26
    Billy2789, Apr 25, 2017
    #60
  11. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    NP7850 now up with gtx 1060 :)

    [​IMG]

    Meaker@Sager, Apr 29, 2017
    #61
    Billy2789 and sicily428 like this.
  12. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    What clevo model is it?

    sicily428, Apr 29, 2017
    #62
  13. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    I'm not sure to be honest just yet, looks like we got it first. Same chassis as the n8 series.

    Meaker@Sager, Apr 29, 2017
    #63
    sicily428 likes this.
  14. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    may be a n850hp6-g? :)

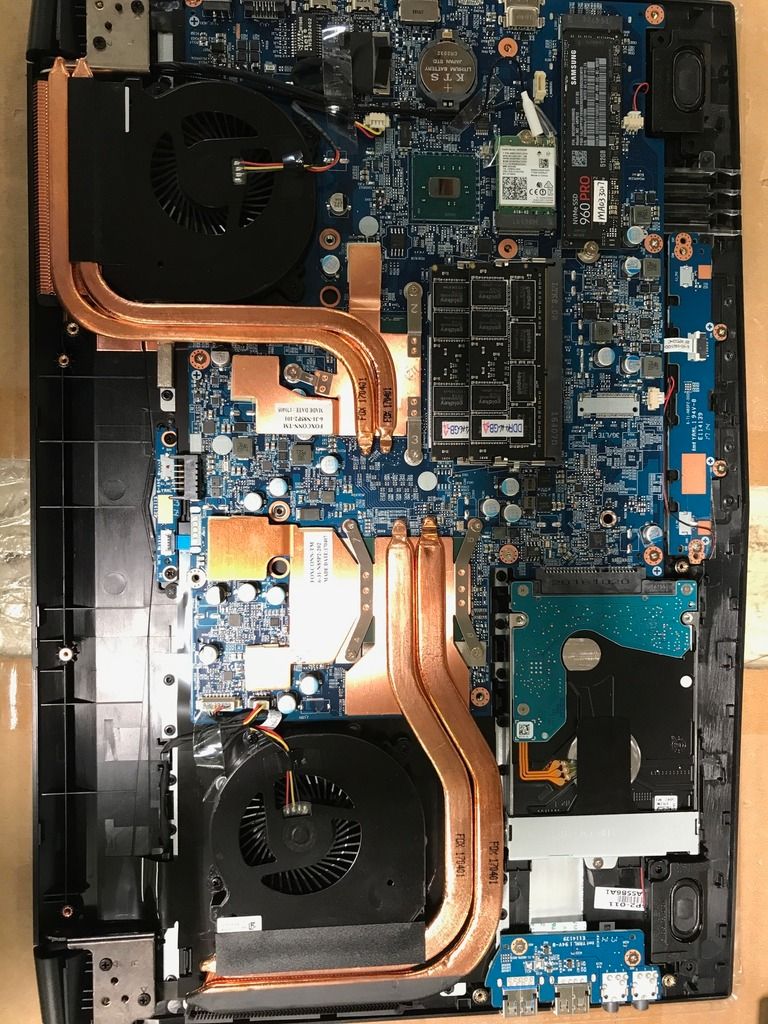

    that cooling system is an improved version of that of n850hk1
    [​IMG]

    so do you think that also n850hk1 could have an upgrade in the cooling system like this?

    sicily428, Apr 29, 2017
    #64
  15. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    There are subtle layout differences across the board along with different fans. Should the fan voltages match and mounting holes then chances are good you could do it yourself. As for moving it down the range I'm not sure.

    Meaker@Sager, Apr 29, 2017
    #65
    sicily428 likes this.
  16. Billy2789

    Billy2789 Notebook Geek

    Reputations:
    3
    Messages:
    89
    Likes Received:
    40
    Trophy Points:
    26
    Nice! Not as interesting as w650kk though. If it's upgraded with gtx1060 3/6GB I'm sure a lot of my friends would want one.

    Billy2789, Apr 29, 2017
    #66
  17. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    Now is time for a clevo w650 with gtx1060 6gb :)

    sicily428, Apr 29, 2017
    #67
  18. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    @clevo-extreme
    do you sell this w650kk1 also without cpu? could you also install an i7-7700t? what is the weight for this version with 62wh battery?

    sicily428, May 5, 2017
    #68
  19. clevo-extreme

    clevo-extreme Company Representative

    Reputations:
    72
    Messages:
    773
    Likes Received:
    477
    Trophy Points:
    76
    You can install max cpu up to tdp 65w. Thats mean i7-7700. Barebones is also possible to order. Dimensions are available on the site by configurator.

    Gesendet von meinem SM-G935F mit Tapatalk

    clevo-extreme, May 5, 2017
    #69
    jaybee83 and sicily428 like this.
  20. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    Thanks!

    sicily428, May 5, 2017
    #70
  21. AndiiiHD

    AndiiiHD Notebook Consultant

    Reputations:
    4
    Messages:
    291
    Likes Received:
    60
    Trophy Points:
    41
    does the keyboard of the w650KK1 come with LED backlit?

    AndiiiHD, May 8, 2017
    #71
  22. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    No, they are not backlit.

    Meaker@Sager, May 8, 2017
    #72
  23. AndiiiHD

    AndiiiHD Notebook Consultant

    Reputations:
    4
    Messages:
    291
    Likes Received:
    60
    Trophy Points:
    41
    @Meaker@Sager im now in the W650KK1 club too ;-D

    Could you please let me know what is the latest EC/Bios Clevo stock version for this model?

    AndiiiHD, May 12, 2017
    #73
  24. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    what's your configuration?

    Last edited: May 12, 2017
    sicily428, May 12, 2017
    #74
  25. AndiiiHD

    AndiiiHD Notebook Consultant

    Reputations:
    4
    Messages:
    291
    Likes Received:
    60
    Trophy Points:
    41
    i bought a W650KK1 with

    Pentium G4560
    1080p matte IPS-Panel
    Killer 1535 M.2 AC WLAN
    150W PSU (19.5V 7.7A)
    6-Cell 62Wh battery
    _______
    ~634€.

    I will put in my existing 500GB EVO 960 paired with 2x 4GB 2400MHz RAM and use it for light/medium work and some gaming with mid/high settings (Titanfall 2 etc.)

    If that config above works fine for me i might sell my P651HP6-G because i do not need such a power horse at the moment....

    Last edited: May 12, 2017
    AndiiiHD, May 12, 2017
    #75
    sicily428 likes this.
  26. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, May 12, 2017
    #76
  27. AndiiiHD

    AndiiiHD Notebook Consultant

    Reputations:
    4
    Messages:
    291
    Likes Received:
    60
    Trophy Points:
    41
    yes i know, but i am just going to do only light/medium workloads (i.e. surfing, word, mail and little programms like planning the rooms for the house and so on...) and maybe little gaming for example Titenfall 2 / Dying Light / Doom on med/high. So it seems the G4560 may fit my needs. I'll see if its worth or not to upgrade to an I5. But G4560+1050TI seems a good combination (budget wise) ;-D

    AndiiiHD, May 12, 2017
    #77
    sicily428 likes this.
  28. Prostar Computer

    Prostar Computer Company Representative

    Reputations:
    1,257
    Messages:
    7,426
    Likes Received:
    1,016
    Trophy Points:
    331
    You will lose some performance compared to an i5-7500, but at a $130+ dollar difference, the Pentium isn't such a bad option. :vbthumbsup:

    Prostar Computer, May 12, 2017
    #78
    AndiiiHD likes this.
  29. tanzmeister

    tanzmeister Notebook Evangelist

    Reputations:
    148
    Messages:
    670
    Likes Received:
    585
    Trophy Points:
    106
    I am sure it is n850hp6

    all new n85x models come with dual pipes now. soon n87 will follow, but not yet.

    Last edited: May 13, 2017
    tanzmeister, May 13, 2017
    #79
    sicily428 likes this.
  30. tanzmeister

    tanzmeister Notebook Evangelist

    Reputations:
    148
    Messages:
    670
    Likes Received:
    585
    Trophy Points:
    106
    are there interest for these models? I ve got a barebone here I ordered to test, but really curious if there is a market for these?

    tanzmeister, May 13, 2017
    #80
    jaybee83 and sicily428 like this.
  31. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    What's your configuration?

    sicily428, May 13, 2017
    #81
  32. tanzmeister

    tanzmeister Notebook Evangelist

    Reputations:
    148
    Messages:
    670
    Likes Received:
    585
    Trophy Points:
    106
    only white backlight is an option

    tanzmeister, May 13, 2017
    #82
    jaybee83 and AndiiiHD like this.
  33. tanzmeister

    tanzmeister Notebook Evangelist

    Reputations:
    148
    Messages:
    670
    Likes Received:
    585
    Trophy Points:
    106
    so far just barebone :p

    tanzmeister, May 13, 2017
    #83
  34. tanzmeister

    tanzmeister Notebook Evangelist

    Reputations:
    148
    Messages:
    670
    Likes Received:
    585
    Trophy Points:
    106
    just tried now to boot it with 7700k inside and it did... boot! gonna paste it now and see if it can handle it.

    tanzmeister, May 13, 2017
    #84
    jaybee83 and sicily428 like this.
  35. tanzmeister

    tanzmeister Notebook Evangelist

    Reputations:
    148
    Messages:
    670
    Likes Received:
    585
    Trophy Points:
    106

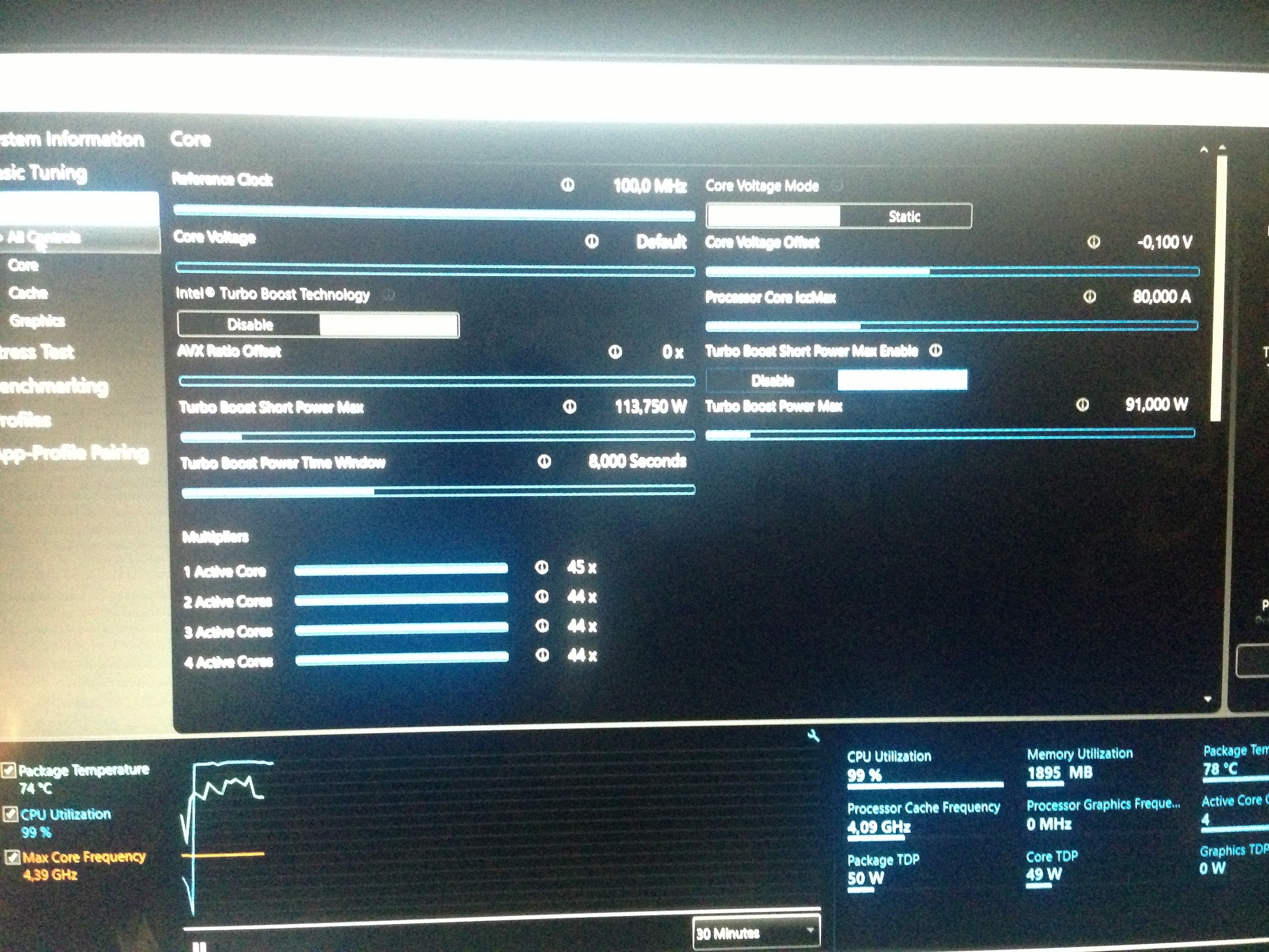

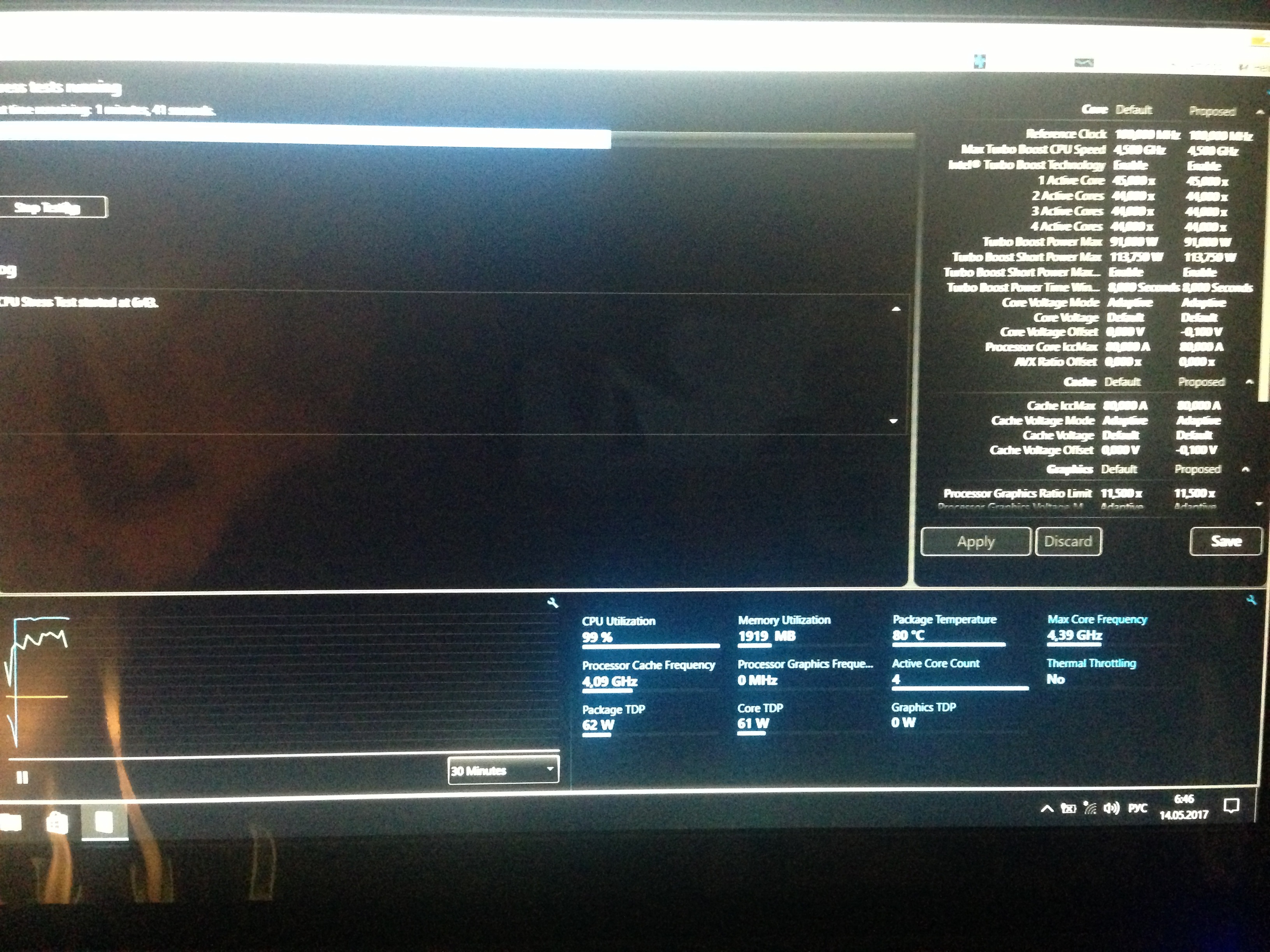

    ok, 7700k delided with CLU, 4.4ghz -100mv, original TIM film used that came with the heatsink. 5minutes XTU stress test run:



    perhaps if I use Thermal Grizzly Kryonaout between IHS and heatsink that can even improve things! but not today...


    Attached Files:

    Last edited: May 13, 2017
    tanzmeister, May 13, 2017
    #85
    jaybee83, JerryDD, AndiiiHD and 2 others like this.
  36. Billy2789

    Billy2789 Notebook Geek

    Reputations:
    3
    Messages:
    89
    Likes Received:
    40
    Trophy Points:
    26
    Insane! Operating temp is just a little bit higher than my [email protected]

    Billy2789, May 13, 2017
    #86
  37. Billy2789

    Billy2789 Notebook Geek

    Reputations:
    3
    Messages:
    89
    Likes Received:
    40
    Trophy Points:
    26
    Well, a few of my colleagues ordered one after I showed off to them.
    They'll use it mainly for on-site CAD viewing if not buying for their family like i did.
    It's cheaper compared to thinkpad or toughbook, significantly faster and maintenance friendly to us<hence reliable
    I'm hoping there'll be a 17" ver so I may leave my so-heavy Precision 7710 in office.

    Billy2789, May 13, 2017
    #87
    sicily428 likes this.
  38. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    7700k is amazing :eek:

    sicily428, May 14, 2017
    #88
  39. ElCaptainX

    ElCaptainX Notebook Consultant

    Reputations:
    17
    Messages:
    282
    Likes Received:
    68
    Trophy Points:
    41
    So do the Clevo offer this for reseller or only in china guys?

    ElCaptainX, May 14, 2017
    #89
  40. AndiiiHD

    AndiiiHD Notebook Consultant

    Reputations:
    4
    Messages:
    291
    Likes Received:
    60
    Trophy Points:
    41
    In Germany the w650kk1 is available from different resellers

    Gesendet von meinem K10000 mit Tapatalk

    AndiiiHD, May 14, 2017
    #90
  41. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    nexoc-store.de
    https://www.nexoc-store.de/notebook...tb-hdd-geforce-gtx-1050-ti-4gb-fhd-ngt?c=3547
    https://www.nexoc-store.de/notebook...tx-1050-ti-4gb-fhd-ngt-wide-view-angel?c=3547
    https://www.nexoc-store.de/notebook...tb-hdd-geforce-gtx-1050-ti-4gb-fhd-ngt?c=3547

    amazon.de
    https://www.amazon.de/Nexoc-1365512...TF8&qid=1490645706&sr=8-1&keywords=nexoc+g522
    https://www.amazon.de/Nexoc-1365472...TF8&qid=1490645706&sr=8-2&keywords=nexoc+g522
    https://www.amazon.de/Nexoc-1365471...TF8&qid=1490645706&sr=8-3&keywords=nexoc+g522
    https://www.amazon.de/Nexoc-1365461...TF8&qid=1490645706&sr=8-4&keywords=nexoc+g522

    ceg hardcore custom
    https://www.ceg-hardcorecustom.com/...intel-desktop-lga1151-ddr4-nvidia-gtx-1050-ti

    notebookguru.de
    https://www.notebookguru.de/de/Notebooks/Guru-ICE-K-Extreme-15-6-Zoll.html

    dubaro.de
    https://www.dubaro.de/Gaming-Notebooks/Gaming-Notebook-W650KK1::3229.html

    shscomputer
    https://www.shscomputer.be/fr/compu...kk1-156-full-hd-i7-7700-gf-gtx1050ti-4gb.html

    newegg
    https://www.newegg.com/Product/Product.aspx?Item=9SIA8S15K14291

    eluktronic
    http://www.eluktronics.com/w650kk1

    Last edited: May 14, 2017
    sicily428, May 14, 2017
    #91
    ElCaptainX and AndiiiHD like this.
  42. tanzmeister

    tanzmeister Notebook Evangelist

    Reputations:
    148
    Messages:
    670
    Likes Received:
    585
    Trophy Points:
    106

    sorry, my mistake! backlight is not an option at all, my bad!

    tanzmeister, May 14, 2017
    #92
    jaybee83 and AndiiiHD like this.
  43. tanzmeister

    tanzmeister Notebook Evangelist

    Reputations:
    148
    Messages:
    670
    Likes Received:
    585
    Trophy Points:
    106
    did a repaste with TGK between IHS and Heatsink, with much better results. will post some pictures when I find my camera cable, lol.

    how come p870km1 runs hotter with 7700k than this w650kk??? :0 this is insane.

    tanzmeister, May 16, 2017
    #93
    jaybee83, AndiiiHD and sicily428 like this.
  44. JerryDD

    JerryDD Notebook Guru

    Reputations:
    0
    Messages:
    74
    Likes Received:
    17
    Trophy Points:
    16
    tanzmeister, could you try w/out undervolt?
    I'm interested in this machine running Linux / BSD, which don't support undervolting recent Intel CPUs.

    JerryDD, May 16, 2017
    #94
  45. tanzmeister

    tanzmeister Notebook Evangelist

    Reputations:
    148
    Messages:
    670
    Likes Received:
    585
    Trophy Points:
    106
    you can undervolt it via Windows, after that the figures are stored in BIOS hidden setting usually, so unless you set optimal defaults in BIOS - it will keep the undervolt. usually it's like that with most machine, I will check later if this one does the same.

    btw. first I tested without undervolt and it was around 3-4 degrees higher. I will make another test for you today later with new thermal paste. this machines definitely keeps it better than p870km1 does, weird...

    tanzmeister, May 16, 2017
    #95
    JerryDD likes this.
  46. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    Because the CPU only needs a quarter of the power a pair of 1080s does. If you don't need to worry about that things get a lot easier.

    Meaker@Sager, May 16, 2017
    #96
    jaybee83 and AndiiiHD like this.
  47. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,149
    Trophy Points:
    931
    highly interesting machine, could very well be my gfs next laptop :) love the combo of midrange gpu with socketed desktop cpu, would be perfect for her needs!

    btw @clevo-extreme what happened to your barebone section? cant find it on your website anymore and i thought that was VERY enticing! :) please dont tell me youre not offering barebones anymore!

    Last edited: Jun 1, 2017
    jaybee83, May 16, 2017
    #97
  48. clevo-extreme

    clevo-extreme Company Representative

    Reputations:
    72
    Messages:
    773
    Likes Received:
    477
    Trophy Points:
    76

    only for request :)

    clevo-extreme, May 16, 2017
    #98
    jaybee83 likes this.
  49. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,149
    Trophy Points:
    931
    ok good, main thing is that its still possible ;) ill keep that in mind!

    jaybee83, May 16, 2017
    #99
  50. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    may be they could upgrade this 17" with a gtx1050ti and a desktop cpu

    W670RNQ1
    http://www.clevo.com.tw/clevo_prodetail.asp?id=924&lang=en

    [​IMG]

    Key Features

    • Built in the NVIDIA® GeForce GTX 940MX graphics card
    • One M.2 SATA SSD or PCIe Gen3 x4
    • illuminated full size keyboard
    • Sound Blaster™ Cinema 2
    • Equipped with Caddy bay
    • 2 x USB 3.1 Gen2 (Type A, Option)


    W670RNQ
    http://www.clevo.com.tw/clevo_prodetail.asp?id=923&lang=en

    [​IMG]
    • Built in the NVIDIA® GeForce GTX 940MX graphics card
    • One M.2 SATA SSD or PCIe Gen3 x4
    • illuminated full size keyboard
    • Sound Blaster™ Cinema 2
    • Equipped with Caddy bay
    • 2 x USB 3.1 Gen2 (Type A, Option)
    service manual
    https://www.mysn.de/driver/SCHENKER/SCHENKER_MEDIA_15_17/Manual/Schenker_Office 17 940M_ESM.pdf

    Processor Options
    Intel® Core™ i7 Processor
    i7-6700HQ (2.60GHz)
    8MB Smart Cache,
    14nm
    , DDR4-2133MHz, TDP 45W
    Intel® Core™ i5 Processor
    i5-6440HQ (2.60GHz), i5-6300HQ (2.30GHz)
    6MB Smart Cache, 14nm , DDR4-2133MHz, TDP 45W
    Intel® Core™ i3 Processor
    i3-6100H (2.70GHz)
    3MB Smart Cache, 14nm, DDR4- 2133MHz, TDP 35W
    Core Logic
    Intel® HM170 Chipset
    BIOS
    64Mb SPI Flash ROM
    AMI BIOS
    Memory
    Two 260 Pin SO-DIMM Sockets Supporting
    DDR4
    2133MHz
    Memory
    Memory Expandable up to 32GB
    (The real memory operati
    ng frequency depends on the FSB
    of the processor.)
    Storage
    One Changeable 2.5" 9.5mm/7.0mm (h) SATA
    HDD/SSD
    (Factory Option) One M.2 SATA/PCIe Gen3 x4
    Solid State
    Drive (SSD)
    (Factory Option) One 12.7mm(h) Optical Device Type Drive
    (Super Multi Drive)
    Or
    (Factory Option) 2.5" 9.5mm 2nd HDD/SSD caddy
    LCD Options
    17.3" (43.94cm), 16:9, HD+ (1600x900)
    /F
    HD (1920x1080)
    Video Adapter
    Intel® Integrated GPU and NVIDIA® Discrete GPU
    Supports Microsoft Hybrid Graphics
    Intel Integrated GPU
    Intel® HD Graphics 530
    Dynamic Frequency
    Intel Dynamic Video Memory Technology
    Microsoft DirectX®12 Compatible
    NVIDIA® Discrete GPU
    NVIDIA® GeForce 940MX
    2GB
    GDDR5 Video RAM on board
    Microsoft DirectX® 12 Compatible
    Audio
    High Definition Audio Compliant Interface
    2 * Built-In Speakers
    Built-In Microphone
    Or
    Sound Blaster
    ™
    Cinema 2
    Security
    Security (Kensington® Type) Lock Slot
    BIOS Password
    Intel PTT for systems without hardware TPM
    (Factory Option) TPM v 2.0
    Keyboard
    Full-size “WinKey” key
    board (with numeric keypad)
    Or(Factory Option) Full-size “WinKey”
    Illuminated
    White-LED
    Keyboard (with numeric keypad)
    Pointing Device
    Built-in Touchpad

    or W670RZW/W670RZW1

    Last edited: May 16, 2017
    sicily428, May 16, 2017
    #100
← Previous pageNext page →
