Hi,
as already stated, the US model numbers are not as easy to interpret. Acer USA has a list of model# and configuration here: ( 1410 on Acer.us) Then click on "configurations".
From what I've seen there, the 2xxx models have either a Celeron 743 or SU2300 (which is the better one), the 8xxx model has a SU3500 single core.
Other differences are: size of the HDD (160 or 250 GB), colour, warranty (some configurations have 2 years of warranty). All 2xxx models should be equipped with 2x1GB RAM, the 8xxx should have a single 2 GB module.
Michael
-
-
yea ... only off by a diget.
Bronsky
-
Yeah, but that digit makes a difference. The 751 is a turd!
-
-
-
-
Okay, then I was wrong.
Perhaps "simply manipulating" the SPD does not always work
Michael -
-
I may have just found the answer. Those remaining SPD values are stored in Hex addresses 20h-23h, 2Ch, and 2Dh. Thaiphoon Burner v6.8.1.0 lets you edit the Hexa-Decimal SPD dump in the Hex editor and when you click on each value in the layout it displays the Hex address, value, and the corresponding detail full name as displayed in the Report Browser. I'll try editing these values later to see this works. I posted a screenshot of the new version.
Attached Files:
-
-
I bought 4GB 800mhz. I have never been so happy that I did.
Bronsky
-
-
I had an SPD once. It 6 weeks to go away.
Bronsky
-
Get the latest driver from Intel.com and see if things improve
Michael -
-
-
Thanks for the response Michael, been there and done that unfortunately.. Acer wants me to perform a system restore to see if that resolves it, I was hoping it would be something small that I overlooked.
-
SUCCESS
:GEEK: I got my 2 different modules to overclock my way by simply editing the timing tables without cloning another module. The last factor that was limiting my modules to 667MHz was the SDRAM Access Time from Clock (tAC) Hex address 0Ah. It was originally set to 45 (0.45 ns) and as soon as I changed it to value 40 (0.40 ns) my laptop booted up stating 800MHz. You have to use the Hex editor Thaiphoon Burner to change that value; along with the 6 other timing values I mentioned in a previous post I thought were inaccessible.
Turns out everything is editable via the Hex editor in both Thaiphoon Burner versions; the difference is the older version requires pressing the enter key to apply the changed value. If you you move to another address without pressing enter in the old version the original value will return and no changes will take place. Also editing via the Hex editor updates the modified Hex addresses immediately to the SPD on the RAM module, in both versions, without needing to do a full write of the entire SPD. So don't reboot or press enter until you're sure you want to try your new values.Code:--------[ EVEREST Ultimate Edition Report ]----------------------------------------------------------------------------- Version EVEREST v5.50.2100 Benchmark Module 2.5.292.0 Homepage http://www.lavalys.com/ Report Type Report Wizard [ TRIAL VERSION ] Computer LAPTOP Generator Operating System Microsoft Windows Vista Home Premium 6.0.6002 (Vista RTM) Date 2010-05-25 Time 10:23 --------[ Overclock ]--------------------------------------------------------------------------------------------------- CPU Properties: CPU Type Mobile Intel Core 2 Solo SU3500 CPU Alias Penryn-3M CPU Stepping R0 Engineering Sample No CPUID CPU Name Intel(R) Core(TM)2 Solo CPU U3500 @ 1.40GHz CPUID Revision 0001067Ah CPU VID 0.9125 V CPU Speed: CPU Clock 1396.5 MHz (original: [ TRIAL VERSION ] MHz) CPU Multiplier 7x CPU FSB 199.5 MHz (original: 200 MHz) Memory Bus 399.0 MHz DRAM:FSB Ratio 12:6 CPU Cache: L1 Code Cache 32 KB L1 Data Cache [ TRIAL VERSION ] L2 Cache 3 MB (On-Die, ECC, ASC, Full-Speed) Motherboard Properties: Motherboard ID <DMI> Motherboard Name Acer Aspire 1410 Chipset Properties: Motherboard Chipset Intel Cantiga GS45 Memory Timings 6-6-6-18 (CL-RCD-RP-RAS) DIMM1: Samsung M4 70T5663EH3-CE6 2 GB DDR2-800 DDR2 SDRAM (6-6-6-18 @ 400 MHz) (5-5-5-15 @ 333 MHz) (4-4-4-12 @ 266 MHz) DIMM3: Kingston 99U5295-011.A00LF [ TRIAL VERSION ] BIOS Properties: System BIOS Date 09/24/09 Video BIOS Date 05/10/09 DMI BIOS Version v1.3303 Graphics Processor Properties: Video Adapter Intel GL40/GM45/GM47/GS45 Chipset - Graphics Controller 0 [B-3] GPU Code Name Cantiga-GM (Integrated 8086 / 2A42, Rev 07) GPU Clock 320 MHz --------[ Sensor ]------------------------------------------------------------------------------------------------------ Sensor Properties: Sensor Type CPU, ACPI Temperatures: CPU 47 °C (117 °F) CPU Diode 47 °C (117 °F) Voltage Values: CPU Core 0.91 V --------[ Motherboard ]------------------------------------------------------------------------------------------------- Motherboard Properties: Motherboard ID <DMI> Motherboard Name Acer Aspire 1410 Front Side Bus Properties: Bus Type Intel AGTL+ Bus Width 64-bit Real Clock 200 MHz (QDR) Effective Clock 800 MHz Bandwidth 6400 MB/s Memory Bus Properties: Bus Type Dual DDR2 SDRAM Bus Width 128-bit DRAM:FSB Ratio 12:6 Real Clock 400 MHz (DDR) Effective Clock 800 MHz Bandwidth [ TRIAL VERSION ] MB/s Chipset Bus Properties: Bus Type Intel Direct Media Interface Motherboard Manufacturer: Company Name Acer Inc. Product Information http://us.acer.com/acer/product.do BIOS Download http://us.acer.com/acer/service.do Driver Update http://driveragent.com?ref=59 BIOS Upgrades http://www.esupport.com/biosagent/index.cfm?refererid=40 --------[ SPD ]--------------------------------------------------------------------------------------------------------- [ DIMM1: Samsung M4 70T5663EH3-CE6 ] Memory Module Properties: Module Name Samsung M4 70T5663EH3-CE6 Serial Number Manufacture Date Week 13 / 2009 Module Size 2 GB (2 ranks, 8 banks) Module Type SO-DIMM Memory Type DDR2 SDRAM Memory Speed DDR2-800 (400 MHz) Module Width 64 bit Module Voltage SSTL 1.8 Error Detection Method None Refresh Rate Reduced (7.8 us), Self-Refresh Memory Timings: @ 400 MHz 6-6-6-18 (CL-RCD-RP-RAS) / 24-51-3-6-3-3 (RC-RFC-RRD-WR-WTR-RTP) @ 333 MHz 5-5-5-15 (CL-RCD-RP-RAS) / 20-43-3-5-3-3 (RC-RFC-RRD-WR-WTR-RTP) @ 266 MHz 4-4-4-12 (CL-RCD-RP-RAS) / 16-34-2-4-2-2 (RC-RFC-RRD-WR-WTR-RTP) Memory Module Features: Analysis Probe Not Present FET Switch External Disabled Weak Driver Supported Memory Module Manufacturer: Company Name Samsung Product Information http://www.samsung.com/global/business/semiconductor [ DIMM3: [ TRIAL VERSION ] ] Memory Module Properties: Module Name [ TRIAL VERSION ] Serial Number Manufacture Date Week 34 / 2008 Module Size 2 GB (2 ranks, 8 banks) Module Type [ TRIAL VERSION ] Memory Type DDR2 SDRAM Memory Speed DDR2-800 (400 MHz) Module Width 64 bit Module Voltage SSTL 1.8 Error Detection Method None Refresh Rate Reduced (7.8 us), Self-Refresh Memory Timings: @ 400 MHz 6-6-6-18 (CL-RCD-RP-RAS) / 24-51-3-6-3-3 (RC-RFC-RRD-WR-WTR-RTP) @ 333 MHz 5-5-5-15 (CL-RCD-RP-RAS) / 20-43-3-5-3-3 (RC-RFC-RRD-WR-WTR-RTP) @ 266 MHz 4-4-4-12 (CL-RCD-RP-RAS) / 16-34-2-4-2-2 (RC-RFC-RRD-WR-WTR-RTP) Memory Module Features: Analysis Probe Not Present FET Switch External Disabled Weak Driver Supported Memory Module Manufacturer: Company Name Kingston Technology Company, Inc. Product Information http://www.kingston.com/products/default.asp --------[ Chipset ]----------------------------------------------------------------------------------------------------- [ North Bridge: Intel Cantiga GS45 ] North Bridge Properties: North Bridge Intel Cantiga GS45 Supported FSB Speeds FSB533, FSB667, FSB800, FSB1066 Supported Memory Types DDR2-667 SDRAM, DDR2-800 SDRAM, DDR3-667 SDRAM, DDR3-800 SDRAM, DDR3-1066 SDRAM Maximum Memory Amount 8 GB Revision / Stepping 07 / B3 Package Type 1363 Pin FC-BGA Package Size 2.7 cm x 2.5 cm Core Voltage 1.05 V In-Order Queue Depth 12 Memory Controller: Type Dual Channel (128-bit) Active Mode Dual Channel (128-bit) Memory Timings: CAS Latency (CL) 6T RAS To CAS Delay (tRCD) 6T RAS Precharge (tRP) 6T RAS Active Time (tRAS) 18T Row Refresh Cycle Time (tRFC) 51T RAS To RAS Delay (tRRD) 3T Read To Precharge Delay (tRTP) 5T Four Activate Window Delay (tFAW) 15T Write CAS Latency (tWCL) 5T Refresh Period (tREF) 7.8 us Error Correction: ECC Not Supported ChipKill ECC Not Supported RAID Not Supported ECC Scrubbing Not Supported Memory Slots: DRAM Slot #1 2 GB (DDR2-800 DDR2 SDRAM) DRAM Slot #2 2 GB (DDR2-800 DDR2 SDRAM) Integrated Graphics Controller: Graphics Controller Type Intel GMA 4500MHD Graphics Controller Status Enabled Chipset Manufacturer: Company Name Intel Corporation Product Information http://www.intel.com/products/chipsets Driver Download http://support.intel.com/support/chipsets BIOS Upgrades http://www.esupport.com/biosagent/index.cfm?refererid=40 Driver Update http://driveragent.com?ref=59 [ South Bridge: [ TRIAL VERSION ] ] South Bridge Properties: South Bridge [ TRIAL VERSION ] Revision / Stepping 93 / A3 Package Type 676 Pin mBGA Package Size 3.1 cm x 3.1 cm Core Voltage 1.05 V High Definition Audio: Codec Name Realtek ALC269 Codec ID 10EC0269h / 1025029Bh Codec Revision 00100004h Codec Type Audio Supported Sound Formats 32 kHz, 44 kHz, 48 kHz, 88 kHz, 96 kHz, 192 kHz, 16-bit, 20-bit, 24-bit High Definition Audio: Codec Name Intel HDMI Codec ID 80862802h / 80860101h Codec Revision 00100000h Codec Type Audio PCI Express Controller: PCI-E 1.0 x1 port #1 In Use @ x1 (Atheros AR8131 PCI-E Gigabit Ethernet Controller) PCI-E 1.0 x1 port #4 In Use @ x1 (Intel WiFi Link 5100 AGN) Chipset Manufacturer: Company Name Intel Corporation Product Information http://www.intel.com/products/chipsets Driver Download http://support.intel.com/support/chipsets BIOS Upgrades http://www.esupport.com/biosagent/index.cfm?refererid=40 Driver Update http://driveragent.com?ref=59 --------[ Memory Read ]------------------------------------------------------------------------------------------------- Core i7 Extreme 965 3333 MHz Asus P6T Deluxe X58 Triple DDR3-1333 9-9-9-24 CR1 13339 MB/s Xeon X5550 2666 MHz Supermicro X8DTN+ i5520 Triple DDR3-1333 9-9-9-24 CR1 12894 MB/s Xeon X3430 2400 MHz Supermicro X8SIL-F i3420 Dual DDR3-1333 9-9-9-24 CR1 11584 MB/s Core i5 650 3466 MHz Supermicro C7SIM-Q Q57 Int. Dual DDR3-1333 9-9-9-24 CR1 9482 MB/s Athlon64 X2 Black 6400+ 3200 MHz MSI K9N SLI Platinum nForce570SLI Dual DDR2-800 4-4-4-11 CR1 8899 MB/s Sempron 140 2700 MHz Gigabyte GA-790FXTA-UD5 AMD790FX Unganged Dual DDR3-1066 8-8-8-20 CR1 8265 MB/s Pentium EE 955 3466 MHz Intel D955XBK i955X Dual DDR2-667 4-4-4-11 8036 MB/s P4EE 3733 MHz Intel SE7230NH1LX iE7230 Dual DDR2-667 5-5-5-15 7920 MB/s Phenom II X4 Black 940 3000 MHz Asus M3N78-EM GeForce8300 Int. Ganged Dual DDR2-800 5-5-5-18 CR2 7463 MB/s Core 2 Extreme QX9650 3000 MHz Gigabyte GA-EP35C-DS3R P35 Dual DDR3-1066 8-8-8-20 CR2 7171 MB/s Core 2 Extreme X6800 2933 MHz Abit AB9 P965 Dual DDR2-800 5-5-5-18 CR2 7040 MB/s Core 2 Extreme QX6700 2666 MHz Intel D975XBX2 i975X Dual DDR2-667 5-5-5-15 6742 MB/s Athlon64 X2 4000+ 2100 MHz ASRock ALiveNF7G-HDready nForce7050-630a Int. Dual DDR2-700 5-5-5-18 CR2 6293 MB/s Pentium D 820 2800 MHz Abit Fatal1ty F-I90HD RS600 Int. Dual DDR2-800 5-5-5-18 CR2 6205 MB/s Athlon64 3200+ 2000 MHz ASRock 939S56-M SiS756 Dual DDR400 2.5-3-3-8 CR2 5989 MB/s Core 2 Duo P8400 2266 MHz MSI MegaBook PR201 GM45 Int. Dual DDR2-667 5-5-5-15 5788 MB/s Opteron HE 2210 1800 MHz Tyan Thunder h2000M BCM5785 Dual DDR2-600R 5-5-5-15 CR1 5333 MB/s 12x Opteron 2431 2400 MHz Supermicro H8DI3+-F SR5690 Unganged Dual DDR2-800R 6-6-6-18 CR1 5169 MB/s Core 2 Solo SU3500 1400 MHz [ TRIAL VERSION ] GS45 Int. Dual DDR2-800 6-6-6-18 5161 MB/s Opteron 2378 2400 MHz Tyan Thunder n3600R nForcePro-3600 Unganged Dual DDR2-800R 6-6-6-18 CR1 5115 MB/s Phenom X4 9500 2200 MHz Asus M3A AMD770 Ganged Dual DDR2-800 5-5-5-18 CR2 5082 MB/s Celeron 420 1600 MHz Intel DQ965CO Q965 Int. Dual DDR2-667 5-5-5-15 5050 MB/s Core 2 Duo T5600 1833 MHz Asus F3000Jc Notebook i945PM Dual DDR2-667 5-5-5-15 4757 MB/s Xeon 3400 MHz Intel SE7320SP2 iE7320 Dual DDR333R 2.5-3-3-7 4593 MB/s P4EE 3466 MHz ASRock 775Dual-880Pro PT880Pro Dual DDR2-400 3-3-3-8 CR2 4355 MB/s Core Duo T2500 2000 MHz Asus N4L-VM DH i945GT Int. Dual DDR2-667 5-5-5-15 4106 MB/s Celeron D 326 2533 MHz ASRock 775Twins-HDTV RC410 Ext. DDR2-533 SDRAM 4-4-4-11 4016 MB/s Opteron 248 2200 MHz MSI K8T Master1-FAR K8T800 Dual DDR266R 2-3-3-6 CR1 3946 MB/s Opteron 240 1400 MHz MSI K8D Master3-133 FS AMD8100 Dual DDR400R 3-4-4-8 CR1 3919 MB/s Xeon 3066 MHz Asus PCH-DL i875P + PAT Dual DDR333 2-2-2-5 3813 MB/s Pentium M 730 1600 MHz AOpen i915Ga-HFS i915G Int. Dual DDR2-533 4-4-4-12 3731 MB/s Atom 230 1600 MHz Intel D945GCLF i945GC DDR2-533 SDRAM 4-4-4-12 3565 MB/s Xeon E5462 2800 MHz Intel S5400SF i5400 Quad DDR2-640FB 5-5-5-15 3540 MB/s Nano L2200 1600 MHz VIA VB8001 CN896 Int. DDR2-667 SDRAM 5-5-5-15 CR2 3516 MB/s P4 2400 MHz Abit SI7 SiSR658 Dual PC1066 RDRAM - 3459 MB/s Opteron HE 2344 1700 MHz Supermicro H8DME-2 nForcePro-3600 Unganged Dual DDR2-667R 5-5-5-15 CR1 3355 MB/s Xeon 5140 2333 MHz Intel S5000VSA i5000V Dual DDR2-667FB 5-5-5-15 3348 MB/s Xeon L5320 1866 MHz Intel S5000VCL i5000V Dual DDR2-533FB 4-4-4-12 3155 MB/s P4 2800 MHz MSI 848P Neo-S i848P DDR400 SDRAM 2.5-3-3-8 2981 MB/s Sempron 2600+ 1600 MHz ASRock K8NF4G-SATA2 GeForce6100 Int. DDR400 SDRAM 2.5-3-3-8 CR2 2911 MB/s Celeron 2000 MHz Gigabyte GA-8TRS350MT RS350 Int. Dual DDR400 2-2-4-6 CR1 2767 MB/s P4 1600 MHz Abit TH7II i850 Dual PC800 RDRAM - 2760 MB/s Celeron 215 1333 MHz Intel D201GLY SiS662 Int. DDR2-533 5-4-4-12 2694 MB/s Celeron M 320 1300 MHz DFI 855GME-MGF i855GME Int. DDR333 SDRAM 2.5-3-3-7 2438 MB/s Efficeon 8600 1000 MHz ECS 532 Notebook Efficeon DDR266 SDRAM 1544 MB/s Duron 1600 MHz Biostar M7VIQ KM266 Int. DDR266 SDRAM 2.5-2-2-6 CR2 1348 MB/s Athlon 1400 MHz PCChips M817LMR MAGiK1 DDR266 SDRAM 2-3-3-7 1303 MB/s Duron 600 MHz Abit KG7-Lite AMD-760 DDR200R SDRAM 2-2-2-5 1135 MB/s C7 1500 MHz VIA EPIA EN CN700 Int. DDR2-533 SDRAM 4-4-4-12 CR2 1117 MB/s Celeron 1700 MHz Asus P4B i845 PC133 SDRAM 3-3-3-6 1051 MB/s PIII-E 733 MHz Tyan Thunder 2500 ServerSet3HE PC133R SDRAM 3-3-3-6 1046 MB/s PIII-S 1266 MHz MSI Pro266TD Master-LR ApolloPro266TD DDR266 SDRAM 2-3-3-6 CR2 1042 MB/s Crusoe 5800 1000 MHz ECS A530 DeskNote Crusoe DDR266 SDRAM 846 MB/s Athlon 750 MHz Epox EP-7KXA KX133 PC133 SDRAM 3-3-3-6 767 MB/s C3 1333 MHz VIA EPIA SP CN400 Int. DDR400 SDRAM 3-3-3-8 CR2 689 MB/s PIII 500 MHz Epox KP6-BS i440BX PC100R SDRAM 3-3-3-? 621 MB/s C3 800 MHz VIA EPIA PLE133 Int. PC133 SDRAM 3-3-3-6 597 MB/s PIII 450 MHz Asus P3C-S i820 PC600 RDRAM - 525 MB/s PII 333 MHz Intel DK440LX i440LX PC66 SDRAM 3-2-2-? 371 MB/s Celeron 266 MHz Epox P2-100B ApolloPro PC66 SDRAM 3-2-2-5 361 MB/s K6-III 400 MHz Epox EP-MVP3G-M MVP3 PC100 SDRAM 2-2-2-5 262 MB/s PentiumPro 200 MHz Compaq ProLiant 800 i440FX Dual EDO - 258 MB/s MediaGXm 233 MHz ALD NPC6836 Cx5520 PC60 SDRAM 3-3-3-6 230 MB/s Pentium 166 MHz Asus TX97-X i430TX PC66 SDRAM 2-2-3-4 228 MB/s PentiumMMX 200 MHz Gigabyte GA-586DX i430HX Dual EDO - 188 MB/s K5 PR166 116 MHz Asus P5A ALADDiN5 PC66 SDRAM 2-2-2-6 168 MB/s K6-2 333 MHz Amptron PM-9100LMR SiS5597 Ext. PC66 SDRAM 3-3-3-6 150 MB/s Celeron 700 MHz PCChips M758LT SiS630ET Int. PC100 SDRAM 3-3-3-6 117 MB/s --------[ Memory Write ]------------------------------------------------------------------------------------------------ Core i7 Extreme 965 3333 MHz Asus P6T Deluxe X58 Triple DDR3-1333 9-9-9-24 CR1 12004 MB/s Core i5 650 3466 MHz Supermicro C7SIM-Q Q57 Int. Dual DDR3-1333 9-9-9-24 CR1 9920 MB/s Xeon X3430 2400 MHz Supermicro X8SIL-F i3420 Dual DDR3-1333 9-9-9-24 CR1 9464 MB/s Athlon64 X2 Black 6400+ 3200 MHz MSI K9N SLI Platinum nForce570SLI Dual DDR2-800 4-4-4-11 CR1 8844 MB/s Sempron 140 2700 MHz Gigabyte GA-790FXTA-UD5 AMD790FX Unganged Dual DDR3-1066 8-8-8-20 CR1 7523 MB/s Core 2 Extreme QX9650 3000 MHz Gigabyte GA-EP35C-DS3R P35 Dual DDR3-1066 8-8-8-20 CR2 7087 MB/s Xeon E5462 2800 MHz Intel S5400SF i5400 Quad DDR2-640FB 5-5-5-15 6693 MB/s Xeon X5550 2666 MHz Supermicro X8DTN+ i5520 Triple DDR3-1333 9-9-9-24 CR1 6371 MB/s Phenom II X4 Black 940 3000 MHz Asus M3N78-EM GeForce8300 Int. Ganged Dual DDR2-800 5-5-5-18 CR2 5969 MB/s Athlon64 X2 4000+ 2100 MHz ASRock ALiveNF7G-HDready nForce7050-630a Int. Dual DDR2-700 5-5-5-18 CR2 5690 MB/s Pentium EE 955 3466 MHz Intel D955XBK i955X Dual DDR2-667 4-4-4-11 5634 MB/s P4EE 3733 MHz Intel SE7230NH1LX iE7230 Dual DDR2-667 5-5-5-15 5620 MB/s Core 2 Duo P8400 2266 MHz MSI MegaBook PR201 GM45 Int. Dual DDR2-667 5-5-5-15 5492 MB/s P4EE 3466 MHz ASRock 775Dual-880Pro PT880Pro Dual DDR2-400 3-3-3-8 CR2 5399 MB/s Core 2 Extreme X6800 2933 MHz Abit AB9 P965 Dual DDR2-800 5-5-5-18 CR2 4867 MB/s Core 2 Extreme QX6700 2666 MHz Intel D975XBX2 i975X Dual DDR2-667 5-5-5-15 4852 MB/s Opteron HE 2210 1800 MHz Tyan Thunder h2000M BCM5785 Dual DDR2-600R 5-5-5-15 CR1 4485 MB/s Pentium D 820 2800 MHz Abit Fatal1ty F-I90HD RS600 Int. Dual DDR2-800 5-5-5-18 CR2 4252 MB/s Xeon 3400 MHz Intel SE7320SP2 iE7320 Dual DDR333R 2.5-3-3-7 4195 MB/s Core 2 Solo SU3500 1400 MHz [ TRIAL VERSION ] GS45 Int. Dual DDR2-800 6-6-6-18 4154 MB/s Athlon64 3200+ 2000 MHz ASRock 939S56-M SiS756 Dual DDR400 2.5-3-3-8 CR2 4104 MB/s Opteron 2378 2400 MHz Tyan Thunder n3600R nForcePro-3600 Unganged Dual DDR2-800R 6-6-6-18 CR1 3923 MB/s Phenom X4 9500 2200 MHz Asus M3A AMD770 Ganged Dual DDR2-800 5-5-5-18 CR2 3864 MB/s Opteron 248 2200 MHz MSI K8T Master1-FAR K8T800 Dual DDR266R 2-3-3-6 CR1 3826 MB/s 12x Opteron 2431 2400 MHz Supermicro H8DI3+-F SR5690 Unganged Dual DDR2-800R 6-6-6-18 CR1 3806 MB/s Celeron 420 1600 MHz Intel DQ965CO Q965 Int. Dual DDR2-667 5-5-5-15 3639 MB/s Core Duo T2500 2000 MHz Asus N4L-VM DH i945GT Int. Dual DDR2-667 5-5-5-15 3447 MB/s Nano L2200 1600 MHz VIA VB8001 CN896 Int. DDR2-667 SDRAM 5-5-5-15 CR2 3164 MB/s P4 2800 MHz MSI 848P Neo-S i848P DDR400 SDRAM 2.5-3-3-8 3110 MB/s Core 2 Duo T5600 1833 MHz Asus F3000Jc Notebook i945PM Dual DDR2-667 5-5-5-15 3005 MB/s Opteron HE 2344 1700 MHz Supermicro H8DME-2 nForcePro-3600 Unganged Dual DDR2-667R 5-5-5-15 CR1 2909 MB/s Xeon 3066 MHz Asus PCH-DL i875P + PAT Dual DDR333 2-2-2-5 2839 MB/s P4 2400 MHz Abit SI7 SiSR658 Dual PC1066 RDRAM - 2837 MB/s Pentium M 730 1600 MHz AOpen i915Ga-HFS i915G Int. Dual DDR2-533 4-4-4-12 2834 MB/s Atom 230 1600 MHz Intel D945GCLF i945GC DDR2-533 SDRAM 4-4-4-12 2832 MB/s Celeron D 326 2533 MHz ASRock 775Twins-HDTV RC410 Ext. DDR2-533 SDRAM 4-4-4-11 2786 MB/s Xeon 5140 2333 MHz Intel S5000VSA i5000V Dual DDR2-667FB 5-5-5-15 2485 MB/s Sempron 2600+ 1600 MHz ASRock K8NF4G-SATA2 GeForce6100 Int. DDR400 SDRAM 2.5-3-3-8 CR2 2370 MB/s Xeon L5320 1866 MHz Intel S5000VCL i5000V Dual DDR2-533FB 4-4-4-12 2321 MB/s Celeron 2000 MHz Gigabyte GA-8TRS350MT RS350 Int. Dual DDR400 2-2-4-6 CR1 2148 MB/s P4 1600 MHz Abit TH7II i850 Dual PC800 RDRAM - 2133 MB/s Celeron M 320 1300 MHz DFI 855GME-MGF i855GME Int. DDR333 SDRAM 2.5-3-3-7 2126 MB/s Opteron 240 1400 MHz MSI K8D Master3-133 FS AMD8100 Dual DDR400R 3-4-4-8 CR1 2023 MB/s Celeron 215 1333 MHz Intel D201GLY SiS662 Int. DDR2-533 5-4-4-12 1878 MB/s C7 1500 MHz VIA EPIA EN CN700 Int. DDR2-533 SDRAM 4-4-4-12 CR2 1591 MB/s Athlon 1400 MHz PCChips M817LMR MAGiK1 DDR266 SDRAM 2-3-3-7 1333 MB/s Duron 1600 MHz Biostar M7VIQ KM266 Int. DDR266 SDRAM 2.5-2-2-6 CR2 1306 MB/s Duron 600 MHz Abit KG7-Lite AMD-760 DDR200R SDRAM 2-2-2-5 1205 MB/s C3 1333 MHz VIA EPIA SP CN400 Int. DDR400 SDRAM 3-3-3-8 CR2 1057 MB/s PIII-S 1266 MHz MSI Pro266TD Master-LR ApolloPro266TD DDR266 SDRAM 2-3-3-6 CR2 1054 MB/s Celeron 1700 MHz Asus P4B i845 PC133 SDRAM 3-3-3-6 1043 MB/s Athlon 750 MHz Epox EP-7KXA KX133 PC133 SDRAM 3-3-3-6 1033 MB/s PIII-E 733 MHz Tyan Thunder 2500 ServerSet3HE PC133R SDRAM 3-3-3-6 848 MB/s PIII 500 MHz Epox KP6-BS i440BX PC100R SDRAM 3-3-3-? 781 MB/s PIII 450 MHz Asus P3C-S i820 PC600 RDRAM - 762 MB/s PentiumMMX 200 MHz Gigabyte GA-586DX i430HX Dual EDO - 690 MB/s Pentium 166 MHz Asus TX97-X i430TX PC66 SDRAM 2-2-3-4 658 MB/s MediaGXm 233 MHz ALD NPC6836 Cx5520 PC60 SDRAM 3-3-3-6 592 MB/s Efficeon 8600 1000 MHz ECS 532 Notebook Efficeon DDR266 SDRAM 552 MB/s K5 PR166 116 MHz Asus P5A ALADDiN5 PC66 SDRAM 2-2-2-6 496 MB/s Crusoe 5800 1000 MHz ECS A530 DeskNote Crusoe DDR266 SDRAM 356 MB/s C3 800 MHz VIA EPIA PLE133 Int. PC133 SDRAM 3-3-3-6 248 MB/s PII 333 MHz Intel DK440LX i440LX PC66 SDRAM 3-2-2-? 177 MB/s Celeron 700 MHz PCChips M758LT SiS630ET Int. PC100 SDRAM 3-3-3-6 171 MB/s Celeron 266 MHz Epox P2-100B ApolloPro PC66 SDRAM 3-2-2-5 140 MB/s K6-III 400 MHz Epox EP-MVP3G-M MVP3 PC100 SDRAM 2-2-2-5 128 MB/s PentiumPro 200 MHz Compaq ProLiant 800 i440FX Dual EDO - 87 MB/s K6-2 333 MHz Amptron PM-9100LMR SiS5597 Ext. PC66 SDRAM 3-3-3-6 79 MB/s --------[ Memory Copy ]------------------------------------------------------------------------------------------------- Core i7 Extreme 965 3333 MHz Asus P6T Deluxe X58 Triple DDR3-1333 9-9-9-24 CR1 14727 MB/s Xeon X3430 2400 MHz Supermicro X8SIL-F i3420 Dual DDR3-1333 9-9-9-24 CR1 12034 MB/s Core i5 650 3466 MHz Supermicro C7SIM-Q Q57 Int. Dual DDR3-1333 9-9-9-24 CR1 11041 MB/s Xeon X5550 2666 MHz Supermicro X8DTN+ i5520 Triple DDR3-1333 9-9-9-24 CR1 9489 MB/s Sempron 140 2700 MHz Gigabyte GA-790FXTA-UD5 AMD790FX Unganged Dual DDR3-1066 8-8-8-20 CR1 9391 MB/s Phenom II X4 Black 940 3000 MHz Asus M3N78-EM GeForce8300 Int. Ganged Dual DDR2-800 5-5-5-18 CR2 8400 MB/s Athlon64 X2 Black 6400+ 3200 MHz MSI K9N SLI Platinum nForce570SLI Dual DDR2-800 4-4-4-11 CR1 7222 MB/s Opteron 2378 2400 MHz Tyan Thunder n3600R nForcePro-3600 Unganged Dual DDR2-800R 6-6-6-18 CR1 7052 MB/s Athlon64 X2 4000+ 2100 MHz ASRock ALiveNF7G-HDready nForce7050-630a Int. Dual DDR2-700 5-5-5-18 CR2 6858 MB/s 12x Opteron 2431 2400 MHz Supermicro H8DI3+-F SR5690 Unganged Dual DDR2-800R 6-6-6-18 CR1 6747 MB/s Core 2 Extreme QX9650 3000 MHz Gigabyte GA-EP35C-DS3R P35 Dual DDR3-1066 8-8-8-20 CR2 6305 MB/s Pentium EE 955 3466 MHz Intel D955XBK i955X Dual DDR2-667 4-4-4-11 6218 MB/s P4EE 3733 MHz Intel SE7230NH1LX iE7230 Dual DDR2-667 5-5-5-15 6170 MB/s Phenom X4 9500 2200 MHz Asus M3A AMD770 Ganged Dual DDR2-800 5-5-5-18 CR2 5479 MB/s Xeon E5462 2800 MHz Intel S5400SF i5400 Quad DDR2-640FB 5-5-5-15 5441 MB/s Core 2 Extreme X6800 2933 MHz Abit AB9 P965 Dual DDR2-800 5-5-5-18 CR2 5433 MB/s Core 2 Duo P8400 2266 MHz MSI MegaBook PR201 GM45 Int. Dual DDR2-667 5-5-5-15 5110 MB/s Pentium D 820 2800 MHz Abit Fatal1ty F-I90HD RS600 Int. Dual DDR2-800 5-5-5-18 CR2 4843 MB/s Athlon64 3200+ 2000 MHz ASRock 939S56-M SiS756 Dual DDR400 2.5-3-3-8 CR2 4632 MB/s Core 2 Extreme QX6700 2666 MHz Intel D975XBX2 i975X Dual DDR2-667 5-5-5-15 4606 MB/s Xeon 3400 MHz Intel SE7320SP2 iE7320 Dual DDR333R 2.5-3-3-7 4165 MB/s Celeron 420 1600 MHz Intel DQ965CO Q965 Int. Dual DDR2-667 5-5-5-15 4139 MB/s Opteron HE 2344 1700 MHz Supermicro H8DME-2 nForcePro-3600 Unganged Dual DDR2-667R 5-5-5-15 CR1 4022 MB/s Opteron HE 2210 1800 MHz Tyan Thunder h2000M BCM5785 Dual DDR2-600R 5-5-5-15 CR1 3945 MB/s Core 2 Solo SU3500 1400 MHz [ TRIAL VERSION ] GS45 Int. Dual DDR2-800 6-6-6-18 3824 MB/s Opteron 248 2200 MHz MSI K8T Master1-FAR K8T800 Dual DDR266R 2-3-3-6 CR1 3700 MB/s Celeron D 326 2533 MHz ASRock 775Twins-HDTV RC410 Ext. DDR2-533 SDRAM 4-4-4-11 3157 MB/s P4EE 3466 MHz ASRock 775Dual-880Pro PT880Pro Dual DDR2-400 3-3-3-8 CR2 3146 MB/s Core 2 Duo T5600 1833 MHz Asus F3000Jc Notebook i945PM Dual DDR2-667 5-5-5-15 3130 MB/s Core Duo T2500 2000 MHz Asus N4L-VM DH i945GT Int. Dual DDR2-667 5-5-5-15 3129 MB/s Xeon 3066 MHz Asus PCH-DL i875P + PAT Dual DDR333 2-2-2-5 3124 MB/s Xeon 5140 2333 MHz Intel S5000VSA i5000V Dual DDR2-667FB 5-5-5-15 2977 MB/s Xeon L5320 1866 MHz Intel S5000VCL i5000V Dual DDR2-533FB 4-4-4-12 2895 MB/s Nano L2200 1600 MHz VIA VB8001 CN896 Int. DDR2-667 SDRAM 5-5-5-15 CR2 2847 MB/s P4 2800 MHz MSI 848P Neo-S i848P DDR400 SDRAM 2.5-3-3-8 2643 MB/s Pentium M 730 1600 MHz AOpen i915Ga-HFS i915G Int. Dual DDR2-533 4-4-4-12 2629 MB/s Sempron 2600+ 1600 MHz ASRock K8NF4G-SATA2 GeForce6100 Int. DDR400 SDRAM 2.5-3-3-8 CR2 2616 MB/s P4 2400 MHz Abit SI7 SiSR658 Dual PC1066 RDRAM - 2521 MB/s Atom 230 1600 MHz Intel D945GCLF i945GC DDR2-533 SDRAM 4-4-4-12 2424 MB/s Opteron 240 1400 MHz MSI K8D Master3-133 FS AMD8100 Dual DDR400R 3-4-4-8 CR1 2337 MB/s P4 1600 MHz Abit TH7II i850 Dual PC800 RDRAM - 2231 MB/s Celeron 2000 MHz Gigabyte GA-8TRS350MT RS350 Int. Dual DDR400 2-2-4-6 CR1 2021 MB/s Celeron 215 1333 MHz Intel D201GLY SiS662 Int. DDR2-533 5-4-4-12 1965 MB/s Celeron M 320 1300 MHz DFI 855GME-MGF i855GME Int. DDR333 SDRAM 2.5-3-3-7 1662 MB/s Duron 1600 MHz Biostar M7VIQ KM266 Int. DDR266 SDRAM 2.5-2-2-6 CR2 1332 MB/s C7 1500 MHz VIA EPIA EN CN700 Int. DDR2-533 SDRAM 4-4-4-12 CR2 1312 MB/s Athlon 1400 MHz PCChips M817LMR MAGiK1 DDR266 SDRAM 2-3-3-7 1256 MB/s Duron 600 MHz Abit KG7-Lite AMD-760 DDR200R SDRAM 2-2-2-5 1185 MB/s Celeron 1700 MHz Asus P4B i845 PC133 SDRAM 3-3-3-6 880 MB/s PIII-E 733 MHz Tyan Thunder 2500 ServerSet3HE PC133R SDRAM 3-3-3-6 865 MB/s PIII-S 1266 MHz MSI Pro266TD Master-LR ApolloPro266TD DDR266 SDRAM 2-3-3-6 CR2 808 MB/s C3 1333 MHz VIA EPIA SP CN400 Int. DDR400 SDRAM 3-3-3-8 CR2 784 MB/s Efficeon 8600 1000 MHz ECS 532 Notebook Efficeon DDR266 SDRAM 636 MB/s Athlon 750 MHz Epox EP-7KXA KX133 PC133 SDRAM 3-3-3-6 570 MB/s PIII 500 MHz Epox KP6-BS i440BX PC100R SDRAM 3-3-3-? 522 MB/s PIII 450 MHz Asus P3C-S i820 PC600 RDRAM - 503 MB/s Crusoe 5800 1000 MHz ECS A530 DeskNote Crusoe DDR266 SDRAM 477 MB/s C3 800 MHz VIA EPIA PLE133 Int. PC133 SDRAM 3-3-3-6 282 MB/s PII 333 MHz Intel DK440LX i440LX PC66 SDRAM 3-2-2-? 243 MB/s Pentium 166 MHz Asus TX97-X i430TX PC66 SDRAM 2-2-3-4 183 MB/s PentiumMMX 200 MHz Gigabyte GA-586DX i430HX Dual EDO - 181 MB/s K6-III 400 MHz Epox EP-MVP3G-M MVP3 PC100 SDRAM 2-2-2-5 164 MB/s Celeron 266 MHz Epox P2-100B ApolloPro PC66 SDRAM 3-2-2-5 141 MB/s Celeron 700 MHz PCChips M758LT SiS630ET Int. PC100 SDRAM 3-3-3-6 133 MB/s PentiumPro 200 MHz Compaq ProLiant 800 i440FX Dual EDO - 111 MB/s K6-2 333 MHz Amptron PM-9100LMR SiS5597 Ext. PC66 SDRAM 3-3-3-6 105 MB/s K5 PR166 116 MHz Asus P5A ALADDiN5 PC66 SDRAM 2-2-2-6 83 MB/s MediaGXm 233 MHz ALD NPC6836 Cx5520 PC60 SDRAM 3-3-3-6 83 MB/s --------[ Memory Latency ]---------------------------------------------------------------------------------------------- Athlon64 X2 Black 6400+ 3200 MHz MSI K9N SLI Platinum nForce570SLI Dual DDR2-800 4-4-4-11 CR1 47.4 ns Sempron 140 2700 MHz Gigabyte GA-790FXTA-UD5 AMD790FX Unganged Dual DDR3-1066 8-8-8-20 CR1 54.6 ns Athlon64 3200+ 2000 MHz ASRock 939S56-M SiS756 Dual DDR400 2.5-3-3-8 CR2 55.4 ns Xeon X3430 2400 MHz Supermicro X8SIL-F i3420 Dual DDR3-1333 9-9-9-24 CR1 57.4 ns Sempron 2600+ 1600 MHz ASRock K8NF4G-SATA2 GeForce6100 Int. DDR400 SDRAM 2.5-3-3-8 CR2 59.3 ns Core i7 Extreme 965 3333 MHz Asus P6T Deluxe X58 Triple DDR3-1333 9-9-9-24 CR1 59.9 ns Athlon64 X2 4000+ 2100 MHz ASRock ALiveNF7G-HDready nForce7050-630a Int. Dual DDR2-700 5-5-5-18 CR2 60.8 ns Phenom II X4 Black 940 3000 MHz Asus M3N78-EM GeForce8300 Int. Ganged Dual DDR2-800 5-5-5-18 CR2 63.1 ns Core 2 Extreme X6800 2933 MHz Abit AB9 P965 Dual DDR2-800 5-5-5-18 CR2 68.0 ns Xeon X5550 2666 MHz Supermicro X8DTN+ i5520 Triple DDR3-1333 9-9-9-24 CR1 68.3 ns Core 2 Extreme QX6700 2666 MHz Intel D975XBX2 i975X Dual DDR2-667 5-5-5-15 71.6 ns Core 2 Extreme QX9650 3000 MHz Gigabyte GA-EP35C-DS3R P35 Dual DDR3-1066 8-8-8-20 CR2 74.7 ns Core i5 650 3466 MHz Supermicro C7SIM-Q Q57 Int. Dual DDR3-1333 9-9-9-24 CR1 79.7 ns Pentium EE 955 3466 MHz Intel D955XBK i955X Dual DDR2-667 4-4-4-11 80.3 ns Opteron 248 2200 MHz MSI K8T Master1-FAR K8T800 Dual DDR266R 2-3-3-6 CR1 80.7 ns Opteron HE 2210 1800 MHz Tyan Thunder h2000M BCM5785 Dual DDR2-600R 5-5-5-15 CR1 82.1 ns P4EE 3733 MHz Intel SE7230NH1LX iE7230 Dual DDR2-667 5-5-5-15 85.4 ns Core 2 Duo P8400 2266 MHz MSI MegaBook PR201 GM45 Int. Dual DDR2-667 5-5-5-15 85.5 ns Pentium M 730 1600 MHz AOpen i915Ga-HFS i915G Int. Dual DDR2-533 4-4-4-12 89.5 ns Celeron 420 1600 MHz Intel DQ965CO Q965 Int. Dual DDR2-667 5-5-5-15 90.5 ns Core 2 Solo SU3500 1400 MHz [ TRIAL VERSION ] GS45 Int. Dual DDR2-800 6-6-6-18 94.1 ns Opteron 2378 2400 MHz Tyan Thunder n3600R nForcePro-3600 Unganged Dual DDR2-800R 6-6-6-18 CR1 94.4 ns Celeron M 320 1300 MHz DFI 855GME-MGF i855GME Int. DDR333 SDRAM 2.5-3-3-7 95.2 ns Core Duo T2500 2000 MHz Asus N4L-VM DH i945GT Int. Dual DDR2-667 5-5-5-15 98.9 ns Pentium D 820 2800 MHz Abit Fatal1ty F-I90HD RS600 Int. Dual DDR2-800 5-5-5-18 CR2 101.4 ns Atom 230 1600 MHz Intel D945GCLF i945GC DDR2-533 SDRAM 4-4-4-12 102.0 ns Xeon 3066 MHz Asus PCH-DL i875P + PAT Dual DDR333 2-2-2-5 104.6 ns Opteron 240 1400 MHz MSI K8D Master3-133 FS AMD8100 Dual DDR400R 3-4-4-8 CR1 104.7 ns 12x Opteron 2431 2400 MHz Supermicro H8DI3+-F SR5690 Unganged Dual DDR2-800R 6-6-6-18 CR1 105.4 ns Core 2 Duo T5600 1833 MHz Asus F3000Jc Notebook i945PM Dual DDR2-667 5-5-5-15 105.5 ns PIII-S 1266 MHz MSI Pro266TD Master-LR ApolloPro266TD DDR266 SDRAM 2-3-3-6 CR2 108.2 ns Xeon 5140 2333 MHz Intel S5000VSA i5000V Dual DDR2-667FB 5-5-5-15 108.9 ns Xeon E5462 2800 MHz Intel S5400SF i5400 Quad DDR2-640FB 5-5-5-15 110.5 ns Phenom X4 9500 2200 MHz Asus M3A AMD770 Ganged Dual DDR2-800 5-5-5-18 CR2 112.8 ns Nano L2200 1600 MHz VIA VB8001 CN896 Int. DDR2-667 SDRAM 5-5-5-15 CR2 113.2 ns P4 2800 MHz MSI 848P Neo-S i848P DDR400 SDRAM 2.5-3-3-8 113.5 ns PIII-E 733 MHz Tyan Thunder 2500 ServerSet3HE PC133R SDRAM 3-3-3-6 117.7 ns Crusoe 5800 1000 MHz ECS A530 DeskNote Crusoe DDR266 SDRAM 124.2 ns P4EE 3466 MHz ASRock 775Dual-880Pro PT880Pro Dual DDR2-400 3-3-3-8 CR2 124.8 ns Xeon L5320 1866 MHz Intel S5000VCL i5000V Dual DDR2-533FB 4-4-4-12 125.9 ns K6-III 400 MHz Epox EP-MVP3G-M MVP3 PC100 SDRAM 2-2-2-5 139.2 ns Xeon 3400 MHz Intel SE7320SP2 iE7320 Dual DDR333R 2.5-3-3-7 145.2 ns C7 1500 MHz VIA EPIA EN CN700 Int. DDR2-533 SDRAM 4-4-4-12 CR2 145.2 ns Celeron D 326 2533 MHz ASRock 775Twins-HDTV RC410 Ext. DDR2-533 SDRAM 4-4-4-11 147.8 ns P4 2400 MHz Abit SI7 SiSR658 Dual PC1066 RDRAM - 147.9 ns C3 1333 MHz VIA EPIA SP CN400 Int. DDR400 SDRAM 3-3-3-8 CR2 156.2 ns Efficeon 8600 1000 MHz ECS 532 Notebook Efficeon DDR266 SDRAM 156.9 ns C3 800 MHz VIA EPIA PLE133 Int. PC133 SDRAM 3-3-3-6 158.3 ns Celeron 1700 MHz Asus P4B i845 PC133 SDRAM 3-3-3-6 159.8 ns MediaGXm 233 MHz ALD NPC6836 Cx5520 PC60 SDRAM 3-3-3-6 160.6 ns Celeron 2000 MHz Gigabyte GA-8TRS350MT RS350 Int. Dual DDR400 2-2-4-6 CR1 161.2 ns P4 1600 MHz Abit TH7II i850 Dual PC800 RDRAM - 163.0 ns Celeron 215 1333 MHz Intel D201GLY SiS662 Int. DDR2-533 5-4-4-12 165.7 ns Duron 1600 MHz Biostar M7VIQ KM266 Int. DDR266 SDRAM 2.5-2-2-6 CR2 165.7 ns PIII 500 MHz Epox KP6-BS i440BX PC100R SDRAM 3-3-3-? 165.8 ns PentiumMMX 200 MHz Gigabyte GA-586DX i430HX Dual EDO - 169.4 ns Opteron HE 2344 1700 MHz Supermicro H8DME-2 nForcePro-3600 Unganged Dual DDR2-667R 5-5-5-15 CR1 171.5 ns Athlon 1400 MHz PCChips M817LMR MAGiK1 DDR266 SDRAM 2-3-3-7 176.0 ns Duron 600 MHz Abit KG7-Lite AMD-760 DDR200R SDRAM 2-2-2-5 183.3 ns Athlon 750 MHz Epox EP-7KXA KX133 PC133 SDRAM 3-3-3-6 207.2 ns K6-2 333 MHz Amptron PM-9100LMR SiS5597 Ext. PC66 SDRAM 3-3-3-6 208.0 ns PIII 450 MHz Asus P3C-S i820 PC600 RDRAM - 215.5 ns PentiumPro 200 MHz Compaq ProLiant 800 i440FX Dual EDO - 234.0 ns Pentium 166 MHz Asus TX97-X i430TX PC66 SDRAM 2-2-3-4 238.6 ns PII 333 MHz Intel DK440LX i440LX PC66 SDRAM 3-2-2-? 248.5 ns K5 PR166 116 MHz Asus P5A ALADDiN5 PC66 SDRAM 2-2-2-6 275.8 ns Celeron 700 MHz PCChips M758LT SiS630ET Int. PC100 SDRAM 3-3-3-6 276.7 ns Celeron 266 MHz Epox P2-100B ApolloPro PC66 SDRAM 3-2-2-5 317.0 ns --------[ Debug - PCI ]------------------------------------------------------------------------------------------------- B00 D00 F00: Intel GL40/GM45/GM47/GS45/PM45 Chipset - Memory Controller Hub [B-3] Offset 000: 86 80 40 2A 06 00 90 20 07 00 00 06 00 00 00 00 Offset 010: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 00 00 00 00 00 00 00 00 00 00 00 00 25 10 9B 02 Offset 030: 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 Offset 040: 01 90 D1 FE 00 00 00 00 01 00 D1 FE 00 00 00 00 Offset 050: 00 00 70 03 19 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 05 00 00 F8 00 00 00 00 01 80 D1 FE 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 01 04 00 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 10 11 11 11 11 33 33 00 40 00 4F 00 00 1A 39 00 Offset 0A0: 20 00 00 14 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 20 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 40 02 00 00 Offset 0E0: 09 00 0A 11 88 70 00 1C 01 80 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 A0 0F 07 00 00 00 00 00 B00 D02 F00: Intel GL40/GM45/GM47/GS45 Chipset - Graphics Controller 0 [B-3] Offset 000: 86 80 42 2A 07 04 90 00 07 00 00 03 00 00 80 00 Offset 010: 04 00 00 D0 00 00 00 00 0C 00 00 C0 00 00 00 00 Offset 020: D1 30 00 00 00 00 00 00 00 00 00 00 25 10 9B 02 Offset 030: 00 00 00 00 90 00 00 00 00 00 00 00 00 01 00 00 Offset 040: 00 00 00 00 48 00 00 00 09 00 0A 11 88 70 00 1C Offset 050: 01 80 70 03 19 00 00 00 00 00 00 00 00 00 00 BC Offset 060: 00 00 00 00 00 00 02 00 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 05 D0 01 00 00 00 E0 FE B0 40 00 00 00 00 00 00 Offset 0A0: 00 00 00 00 09 00 06 20 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 E4 00 00 00 Offset 0D0: 01 00 23 00 00 00 00 00 00 00 00 00 34 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 80 00 1A 41 20 00 00 Offset 0F0: 09 08 34 07 FF 00 00 00 A0 0F 07 00 18 A0 F8 B9 B00 D02 F01: Intel GL40/GM45/GM47/GS45 Chipset - Graphics Controller 1 [B-3] Offset 000: 86 80 43 2A 06 00 90 00 07 00 80 03 00 00 80 00 Offset 010: 04 00 40 D2 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 00 00 00 00 00 00 00 00 00 00 00 00 25 10 9B 02 Offset 030: 00 00 00 00 D0 00 00 00 00 00 00 00 00 00 00 00 Offset 040: 00 00 00 00 48 00 00 00 09 00 0A 11 88 70 00 1C Offset 050: 01 80 70 03 19 00 00 00 00 00 00 00 00 00 00 BC Offset 060: 00 00 00 00 00 00 02 00 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 E4 00 00 00 Offset 0D0: 01 00 23 00 00 00 00 00 00 00 00 00 34 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 09 08 34 07 FF 00 00 00 A0 0F 07 00 00 00 00 00 B00 D1A F00: Intel 82801IB ICH9 - USB Universal Host Controller [A-3] Offset 000: 86 80 37 29 05 00 90 02 03 00 03 0C 00 00 80 00 Offset 010: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: A1 30 00 00 00 00 00 00 00 00 00 00 25 10 9B 02 Offset 030: 00 00 00 00 50 00 00 00 00 00 00 00 10 01 00 00 Offset 040: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 050: 13 00 06 03 00 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 2F 00 00 00 00 00 00 00 00 01 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 03 00 00 00 00 00 B00 D1A F07: Intel 82801IB ICH9 - USB2 Enhanced Host Controller [A-3] Offset 000: 86 80 3C 29 06 00 90 02 03 20 03 0C 00 00 00 00 Offset 010: 00 4C 50 D4 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 00 00 00 00 00 00 00 00 00 00 00 00 25 10 9B 02 Offset 030: 00 00 00 00 50 00 00 00 00 00 00 00 13 04 00 00 Offset 040: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 050: 01 58 C2 C9 00 00 00 00 0A 98 A0 20 00 00 00 00 Offset 060: 20 20 FF 01 00 00 00 00 01 00 00 01 00 20 00 00 Offset 070: 00 00 C7 03 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 21 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 13 00 06 03 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 AA FF 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 88 85 40 00 86 0F 03 00 0A 17 02 20 B00 D1B F00: Intel 82801IB ICH9 - High Definition Audio Controller [A-3] Offset 000: 86 80 3E 29 06 00 10 00 03 00 03 04 10 00 00 00 Offset 010: 04 00 50 D4 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 00 00 00 00 00 00 00 00 00 00 00 00 25 10 9B 02 Offset 030: 00 00 00 00 50 00 00 00 00 00 00 00 16 01 00 00 Offset 040: 01 00 00 07 07 00 00 00 00 00 00 00 00 80 00 00 Offset 050: 01 60 42 C8 00 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 05 70 80 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 10 00 91 00 00 00 00 10 00 08 10 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 04 00 01 00 00 00 00 31 00 A3 02 00 00 00 00 Offset 0D0: 61 00 A3 02 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 03 00 00 00 00 00 B00 D1C F00: Intel 82801IB ICH9 - PCI Express Root Port 1 [A-3] Offset 000: 86 80 40 29 07 00 10 00 03 00 04 06 10 00 81 00 Offset 010: 00 00 00 00 00 00 00 00 00 01 01 00 20 20 00 00 Offset 020: 50 D3 40 D4 41 D0 31 D1 00 00 00 00 00 00 00 00 Offset 030: 00 00 00 00 40 00 00 00 00 00 00 00 11 01 00 00 Offset 040: 10 80 41 01 00 80 00 00 00 00 11 00 11 2C 11 01 Offset 050: 42 00 11 30 E0 A0 00 00 00 00 48 01 00 00 00 00 Offset 060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 05 90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 0D A0 00 00 25 10 9B 02 00 00 00 00 00 00 00 00 Offset 0A0: 01 00 02 C8 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 11 08 00 00 00 00 Offset 0E0: 00 0F C7 00 06 07 08 00 33 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 03 00 00 00 00 00 B00 D1C F03: Intel 82801IB ICH9 - PCI Express Root Port 4 [A-3] Offset 000: 86 80 46 29 07 00 10 00 03 00 04 06 10 00 81 00 Offset 010: 00 00 00 00 00 00 00 00 00 02 02 00 F0 F0 00 00 Offset 020: 50 D2 40 D3 41 D1 31 D2 00 00 00 00 00 00 00 00 Offset 030: 00 00 00 00 40 00 00 00 00 00 00 00 13 04 00 00 Offset 040: 10 80 41 01 00 80 00 00 00 00 10 00 11 2C 11 04 Offset 050: 42 00 11 30 E0 A0 18 00 00 00 48 01 00 00 00 00 Offset 060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 05 90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 0D A0 00 00 25 10 9B 02 00 00 00 00 00 00 00 00 Offset 0A0: 01 00 02 C8 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 11 08 00 00 00 00 Offset 0E0: 00 0F C7 00 06 07 08 00 33 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 03 00 00 00 00 00 B00 D1D F00: Intel 82801IB ICH9 - USB Universal Host Controller [A-3] Offset 000: 86 80 34 29 05 00 90 02 03 00 03 0C 00 00 80 00 Offset 010: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 81 30 00 00 00 00 00 00 00 00 00 00 25 10 9B 02 Offset 030: 00 00 00 00 50 00 00 00 00 00 00 00 17 01 00 00 Offset 040: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 050: 13 00 06 03 00 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 2F 00 00 00 00 00 00 00 00 01 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 03 00 00 00 00 00 B00 D1D F01: Intel 82801IB ICH9 - USB Universal Host Controller [A-3] Offset 000: 86 80 35 29 05 00 90 02 03 00 03 0C 00 00 00 00 Offset 010: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 61 30 00 00 00 00 00 00 00 00 00 00 25 10 9B 02 Offset 030: 00 00 00 00 50 00 00 00 00 00 00 00 13 02 00 00 Offset 040: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 050: 13 00 06 03 00 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 2F 00 00 00 00 00 00 00 00 01 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 03 00 00 00 00 00 B00 D1D F02: Intel 82801IB ICH9 - USB Universal Host Controller [A-3] Offset 000: 86 80 36 29 05 00 90 02 03 00 03 0C 00 00 00 00 Offset 010: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 41 30 00 00 00 00 00 00 00 00 00 00 25 10 9B 02 Offset 030: 00 00 00 00 50 00 00 00 00 00 00 00 10 04 00 00 Offset 040: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 050: 13 00 06 03 00 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 2F 00 00 00 00 00 00 00 00 01 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 03 00 00 00 00 00 B00 D1D F07: Intel 82801IB ICH9 - USB2 Enhanced Host Controller [A-3] Offset 000: 86 80 3A 29 06 00 90 02 03 20 03 0C 00 00 00 00 Offset 010: 00 48 50 D4 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 00 00 00 00 00 00 00 00 00 00 00 00 25 10 9B 02 Offset 030: 00 00 00 00 50 00 00 00 00 00 00 00 17 01 00 00 Offset 040: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 050: 01 58 C2 C9 00 00 00 00 0A 98 A0 20 00 00 00 00 Offset 060: 20 20 FF 01 00 00 00 00 01 00 00 01 00 20 00 00 Offset 070: 00 00 DF 3F 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 21 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 13 00 06 03 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 AA FF 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 88 85 40 00 86 0F 03 00 0A 17 02 20 B00 D1E F00: Intel 82801IBM I/O Controller Hub 9 (ICH9M) [A-3] Offset 000: 86 80 48 24 07 00 10 00 93 01 04 06 00 00 01 00 Offset 010: 00 00 00 00 00 00 00 00 00 03 03 20 F0 00 80 22 Offset 020: F0 FF 00 00 F1 FF 01 00 00 00 00 00 00 00 00 00 Offset 030: 00 00 00 00 50 00 00 00 00 00 00 00 FF 00 00 00 Offset 040: 00 00 00 00 00 00 00 00 00 00 00 00 00 12 00 00 Offset 050: 0D 00 00 00 25 10 9B 02 00 00 00 00 00 00 00 00 Offset 060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 03 00 00 00 00 00 B00 D1F F00: Intel 82801IEM ICH9M-E - LPC Bridge [A-3] Offset 000: 86 80 17 29 07 00 10 02 03 00 01 06 00 00 80 00 Offset 010: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 00 00 00 00 00 00 00 00 00 00 00 00 25 10 9B 02 Offset 030: 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 Offset 040: 01 04 00 00 80 00 00 00 01 05 00 00 10 00 00 00 Offset 050: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 8B 8B 8B 8A D0 00 00 00 80 80 8B 8B F8 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 10 00 03 1C 69 00 04 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: A4 0A 00 00 00 00 80 00 2B 1C 0A 00 00 03 00 40 Offset 0B0: 00 00 F0 00 00 00 00 00 04 20 02 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 03 00 00 00 67 45 00 00 CF FF 00 00 08 00 00 00 Offset 0E0: 09 00 0C 10 00 02 C4 03 04 00 00 00 00 00 00 00 Offset 0F0: 01 C0 D1 FE 00 00 00 00 86 0F 03 00 00 00 00 00 B00 D1F F02: Intel 82801IB ICH9 - 4-port SATA AHCI Controller [A-3] Offset 000: 86 80 29 29 07 00 B0 02 03 01 06 01 00 00 00 00 Offset 010: C9 30 00 00 DD 30 00 00 C1 30 00 00 D9 30 00 00 Offset 020: 21 30 00 00 00 40 50 D4 00 00 00 00 25 10 9B 02 Offset 030: 00 00 00 00 80 00 00 00 00 00 00 00 13 02 00 00 Offset 040: 00 80 00 80 00 00 00 00 00 00 00 00 00 00 00 00 Offset 050: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 01 A8 03 40 08 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 05 70 08 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 60 00 01 81 93 01 00 4C 00 00 01 00 0C 00 00 00 Offset 0A0: AC 00 00 00 0A 00 12 00 12 B0 10 00 48 00 00 00 Offset 0B0: 13 00 06 03 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 03 00 00 00 00 00 B00 D1F F03: Intel 82801IB ICH9 - SMBus Controller [A-3] Offset 000: 86 80 30 29 03 00 80 02 03 00 05 0C 00 00 00 00 Offset 010: 04 50 50 D4 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 01 30 00 00 00 00 00 00 00 00 00 00 25 10 9B 02 Offset 030: 00 00 00 00 00 00 00 00 00 00 00 00 0B 03 00 00 Offset 040: 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 050: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 02 04 04 00 F0 00 08 08 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 04 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 86 0F 03 00 00 00 00 00 B01 D00 F00: Atheros AR8131 PCI-E Gigabit Ethernet Controller Offset 000: 69 19 63 10 07 00 10 00 C0 00 00 02 10 00 00 00 Offset 010: 04 00 50 D3 00 00 00 00 01 20 00 00 00 00 00 00 Offset 020: 00 00 00 00 00 00 00 00 00 00 00 00 25 10 9B 02 Offset 030: 00 00 00 00 40 00 00 00 00 00 00 00 10 01 00 00 Offset 040: 01 48 C3 F9 08 00 00 00 05 58 80 00 00 00 00 00 Offset 050: 00 00 00 00 00 00 00 00 10 6C 01 00 85 FF 04 05 Offset 060: 00 20 1B 00 11 FC 07 00 42 01 11 10 03 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 69 19 63 10 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 B02 D00 F00: Intel WiFi Link 5100 AGN Offset 000: 86 80 32 42 00 00 10 00 00 00 80 02 10 00 00 00 Offset 010: 04 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 020: 00 00 00 00 00 00 00 00 00 00 00 00 86 80 01 13 Offset 030: 00 00 00 00 C8 00 00 00 00 00 00 00 00 01 00 00 Offset 040: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 050: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0C0: 00 00 00 00 00 00 00 00 01 D0 23 C8 03 00 00 0D Offset 0D0: 05 E0 80 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 0E0: 10 00 01 00 C0 8E 00 10 10 08 19 00 11 9C 06 00 Offset 0F0: 42 01 11 10 00 00 00 00 00 00 00 00 00 00 00 00 PCI-8086-2A40: Intel i45M MCHBAR Offset C00: 52 40 64 00 01 01 01 01 00 80 00 00 00 00 00 00 Offset C10: 00 00 00 00 02 00 90 30 00 00 00 00 00 00 00 00 Offset C20: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset C30: 00 00 00 00 00 80 00 00 94 11 94 11 00 00 00 00 Offset C40: 00 00 00 00 00 00 00 00 00 00 00 3F 00 00 00 00 Offset C50: 01 01 01 01 00 00 00 00 00 00 00 00 00 00 00 00 Offset C60: 00 00 00 80 80 40 00 00 00 00 00 00 00 00 00 00 Offset C70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset C80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset C90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset CA0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset CB0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset CC0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset CD0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset CE0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset CF0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 PCI-8086-2A40: Intel i45M MCHBAR Offset 1000: 00 00 01 00 00 00 FF 00 00 00 00 00 00 00 00 00 Offset 1010: 00 00 00 00 00 00 00 00 7E 00 00 00 00 FE 00 00 Offset 1020: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 1030: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 1040: 00 00 01 00 00 00 FF 00 00 00 00 00 00 00 00 00 Offset 1050: 00 00 00 00 00 00 00 00 00 00 00 00 00 80 00 00 Offset 1060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 1070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 1080: 06 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 1090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 10A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 10B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 10C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 10D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Offset 10E0: 01 01 01 01 00 00 00 00 00 00 00 00 00 00 00 00 Offset 10F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 PCI-8086-2A40: Intel i45M MCHBAR Offset 1200: 20 00 40 00 40 00 40 00 33 00 09 00 03 00 00 00 Offset 1210: 41 0C C1 3C 84 84 40 12 53 10 1E 22 83 62 86 01 Offset 1220: 28 38 8C 50 44 8A 02 63 00 68 00 00 02 00 00 00 Offset 1230: 08 02 00 43 00 18 0C 91 00 10 00 0C 00 00 00 00 PCI-8086-2A40: Intel i45M MCHBAR Offset 1300: 20 00 40 00 40 00 40 00 33 00 09 00 03 00 00 00 Offset 1310: 41 0C C1 3C 84 84 40 12 53 10 1E 22 83 62 86 01 Offset 1320: 28 38 8C 50 44 8A 02 63 00 68 00 00 02 00 00 00 Offset 1330: 08 02 00 43 00 18 0C 91 00 10 00 0C 00 00 00 00 PCI-8086-2A40: Intel i45M MCHBAR Offset 1400: 00 50 11 00 00 00 00 00 00 80 07 04 01 10 05 08 Offset 1410: 10 20 00 00 03 99 07 23 00 00 00 00 00 00 00 00 Offset 1420: A2 22 22 22 00 00 00 00 01 18 55 00 0A 03 33 07 Offset 1430: 00 03 00 00 C2 00 00 80 00 00 00 00 00 00 00 00 --------[ Debug - Video BIOS ]------------------------------------------------------------------------------------------ C000:0000 U.~...000000000000p"[email protected] VGA Compatible BIOS. .Z.j.x... C000:0040 PCIR..B*................................t.............\......... C000:0080 ...................................d......d......d.....0d......d C000:00C0 ......d......d......d.....0d......d.....0d......d......d......d. C000:0100 .....d.....0d......d......d.....0$......$......d.......... ....` C000:0140 ".......N... ....@............ ...88.......... .1X. (.........V. C000:0180 .1X. .P.......... .0X. @........d..@A.&0..6.......... A. 0.`.. C000:01C0 .......$.`A.(00`........0*..Q.*@0p.........4..Q.*@...........=.. C000:0200 Q.0@@[email protected]@@[email protected]@@[email protected]@@..... C000:0240 ....h[..r.<P...........t..r.<P..........0.6..2.l..4....8....:... C000:0280 .<.D..A.6..C.l..E....I....K....M.D..P 6..R l..T ...X ...Z ...\ D C000:02C0 ..`....a....b ...c....d....e ...f....g....h ...i....j....k ...l. C000:0300 5..m.5..n 5..o.O..p.O..q O...................................... C000:0340 ........................................................For Eval C000:0380 uation Use Only....(........c-'(.+.............................. C000:03C0 ...................(........c-'(.+.............................. ------------------------------------------------------------------------------------------------------------------------ The names of actual companies and products mentioned herein may be the trademarks of their respective owners.
After I stress test this RAM for stability I'll try tweaking those other 6 timing values and see if I can boost performance. So far from making tAC=0.45ns down to 0.40ns I got a 200MB/s boost in the Read benchmark. Do you guys believe the Windows Memory Diagnostic in the Windows Recovery Environment is sufficient for stress testing or should I use Prime95?
Another discovery I made last night is you will get double the battery life if you limit your laptop to a single memory DIMM/Stick/Module. I have included screen shots. This means if you don't need dual channel but prefer longer battery life it's worth buying a single 1x4GB So-DIMM.Attached Files:
-
-
-
-
Congrats
Another discovery I made last night is you will get double the battery life if you limit your laptop to a single memory DIMM/Stick/Module.[/quote]This is physically impossible.Windows battery life estimation is simply a joke. Battery bar gives a much more realistic guess.
According to Battery Bar, my 1810TZ (with 2+1 GB RAM, SU4100) needs ~5W idle. The rest is math (would result in a theoretical battery life time of 12:35 on this system).
The difference in power consumption between 1x 4GB and 2x2 GB is only marginal. The price difference is not.
1x4GB: 186 USD ( Newegg.com - Kingston ValueRAM 4GB 200-Pin DDR2 SO-DIMM DDR2 800 (PC2 6400) Laptop Memory Model KVR800D2S6/4G)
2x2GB: 100 USD ( Newegg.com - Kingston 4GB (2 x 2GB) 200-Pin DDR2 SO-DIMM DDR2 800 (PC2 6400) Dual Channel Kit Laptop Memory Model KVR800D2S6K2/4G)
I guess, you get a very fine battery for these 86 bucks
Michael -
-
PROOF! although not really double in the end.
Attached Files:
-
-
The values given by Windows internal battery guess tool are extremely variable. Reason is, that it thinks, the system will keep the current discharge rate until shutdown (or the battery is empty). This discharge rate is extremely variable. Even when doing nothing (in Powersave mode) it will vary about 1.5 W (or even more) around an average value of 5.5 W. Thus, Windows guestimation tool will show highly variable values also, changing by 50% within 5 minutes.
How did you test? Perhaps Battery Eater ( http://www.batteryeater.com) gives more reliable results
Sorry for being thick - I don't see any proof for something
(Yes, I see the pictures)
Michael -
the reason the battery life in vista's native tool varies is because the discharge rate while on battery also varies. Lavalys Everest Ultimate v5.50 shows me the discharge rate changes every second and it jumps up to 7-11W when I do activity like going through the start menu and launching an app.
my rundown test was simple, I turned the screen down to 20% as I always use it indoors. I disabled LCD shutoff, disabled sleep timer, disabled critical and low battery actions, I took note of what time I started using the battery at 100% charge and how long vista estimated the battery will last. I either left the laptop idle or I was browsing forums but no videos, no music, I think I had flashblock already installed by then too. Most like Wifi off and LAN connected but possible I was using WiFi. The battery ran out within the hour and possibly within the 30mins of the estimated battery life. 6hrs, and this was when I was using the stock 5400RPM Toshiba drive too.
The pictures show you the discharge rate and capacity of the battery at the moment I took the shot. I've seen discharging rate go as low as just over 4000mW, while Lavalys Everest Ultimate v5.50 was running the entire time, kept on that power management page.
the previous 2 photos demonstrate the difference in power consumption when the HDMI is in use with just the wallpaper displayed vs no HDMI connected both with a single 2GB Samsung running at DDR2-667. The 2 pictures in this post show the diff in power consumption with the 2GB Samsung at 800MHz vs 667MHzAttached Files:
-
-
-
Hi,
That's exactly what I wrote. Unfortunately, this method is not useful to find out if a certain change of the system configuration has an effect on battery life.
So does Battery Bar which is what I am using. But this has a totally different method of calculating (or estimating/guessing) the battery life. From my experience, the results are much more realistic than those of Windows guesstimator (same with Win7 btw).
Not precise enough to detect any effect on battery life. There was too much variation in usage. That's why I suggested some automated test (like Battery Eater) since this warrants exactly the same usage scenario.
These are good settings apart from the low and critical battery events. These prevent your battery from deep discharging (LiIon batterys don't like deep discharges at all).
To shorten the test time, you may adjust the low battery settings in a way that the system hibernates at - let's say - 50% battery level. You can even create a custom power plan for these tests.
Michael -
-
The discharge rates are okay.But the way Windows and probably Everest (if Everest does calculate at all) calculate the battery life is wrong. Otherwise you wouldn't have such strong variations.
For a useful prediction of battery life, you need a statistical approach.
--> http://osirisdevelopment.com/BatteryBar/index.html
That's normal. Everest is simply displaying the data acquired and guestimated by Windows
Michael -
-
-
Interesting, I did not know that the 1810TZ could do 2 x 4 GB of RAM?
I do not know if it was already mentioned here, but I got the Packard Bell Dot M/U which seems to be very similar to the 1810TZ and 1410.
Would it be possible to add this fact, for reference, to this thread? Sorry if it was already mentioned before.
Packard Bell Dot M/U - Netbook Reviews
Those Packard Bell Dot M/U systems with the SU4100 Dual Core Pentium 1.3 GHz with 4 GB RAM installed running Windows 7 Home Premium 64bit and 320 GB HD sell for about 550 Swiss Francs in Switzerland (about 500 USD).
Despite the fact that I have huge issues with the HDMI out (picture goes on and off all the time which is very annoying, works fine with the VGA out), the Packard Bell Dot M/U is really cool.
According to my power meter, the system uses about 13 watts in idle (internal screen is off). -
Yes, the reason why it is similar is because Acer bought out Gateway, EMachines and Packard Bell and releases machines with all three brandings of them. The Gateway brand is used in the U.S and Japan as far as I know and Packard Bell is used in Europe.
The Packard Bell Dot M/U is identical to the Gateway EC14/18 series, only the logo is different of course.
Gateway Dot M/U
![[IMG]](images/storyImages/dot-mu-06_hd.jpg)

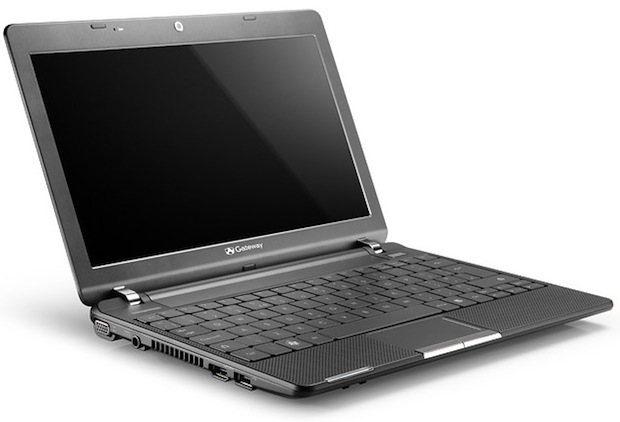

Gateway EC14/18
![[IMG]](images/storyImages/598076.jpg)
The Gateway is then mostly similar to the Acer models, slightly different in design though, such as the touchpad being slightly recessed on the Gateway vs flush on the Acer, having a matte bezel around the screen vs glossy on the Acer, having a textured design on the palmrest vs brushed design on the Acer, etc. -
-
I agree. I find it to look more professional, stylish and high-end, just my opinion. I find it funny considering that Acer bought out Gateway and I like their rebranded design better than the original one!
-
Hi,
I am not aware if anyone really tested this - mainly due to the ridiculously prices of 4GB DDR2 modules.
You simply stumbled upon a theoretical discussion
Michael -
Acer Aspire 1410 and 1810 Timeline 11.6" Thread
