*OFFICIAL* M17x Benchmark Thread - Part 3

Intel XTU for manipulating the bios but last I checked that didn't work either. Besides he's doing it within Windows. Must be throttle stop as scook mentioned.



I know I tried ~ 4-5 of the old FSB windows apps (softfsb, coolfsb..ect) on my old R2 and couldn't get any of them to work at all. Some wouldn't even instal.



i never said you said it wasn't. im just saying that's what is needed to be done.

im not most, i would have tore it down completely. no since in even taking it apart for that purpose if your not going to do that to begin with right? but since the vga's are right there, it's a partial tear down. no need for most to attempt to go farther.

didn't work on an i3m or an i5m either..i tried that as well, just for kicks.



I have an idea or two.
I just don't think anyone should make accusations of 'manipulating' screenshots just like that.



It is pretty abstract....but he could also just have a custom BIOS from Dell

In his vantage submission, you cannot see if it is a submittable score or not - he may have modified a setting in the program making it non submittable

It is proper form to show the entire 3DMark 06 or Vantage window when submitting a screen shot to avoid any ambiguity



Mandrake, educate me on this since I don't have the R2, what are the options available on the BIOS and what on the E-LEET that you can actually change?



ram voltage, cpu voltage, cpu fsb overclock (5%), and enabling and disabling turbo. On e-leet you can only change the multi



Thanks codebreaker



You get limited voltage options with the CPU and Memory along with an up to 5% bclk OC on the CPU frequency.



That means the BCLK will get a max value with that 5% from the BIOS unless there is a software that will increase it from windows, correct?



What are all of the BIOS options, not just the overclocking ones

If it was in the overclocking menu it would be obvious don't you think?



Scook, I believe that those mentioned by TheCodeBreaker and Mandrake can really make the difference...
The biggest gain would be from the BCLK. The higher clocks in turbo mode don't really give that much of an increase...



Yeah the 5% is the max value in the bios. We discussed this last night. CPU OC'ing for the M17x is pretty useless for the most part because Intel's TDP limit kicks in way too early. I had to remove the bottom cover on mine last night + point a fan at it just to let it run cool enough to get some good wprime numbers in. The core reaches 72+C too fast and then throttles itself. Now if someone is clever enough to figure out a way to disable the Intel TDP limiter, THAT will truly be an awesome breakthrough.

BTW guys, the CPU OC'ing I did isn't some new information. You guys will kick yourselves for not figuring it out right away, at least I was like, "duh" as soon as I realized it. I'm going to write up a quick guide in a few mins for the experienced users and then add pictures later for everyone else.



Thanks for the information Joker

I am interested to see what the trick was. Is it just a loophole in the BIOS coding or something we all overlooked?



On the Main tab, there are no values to change other than the System Date and Time.
On the advanced Tab, you get to enable and disable the following, wired network, wireles network, bluetooth receiver, high definition audio, USB emulation, Firewire. and you get to go into the Performance option for the ocing features. As well as a few hard disk options.
Security Tab, for a system password, unless you use that the rest is disabled or not active.
Power Tab, enable and disable the A/C adapter warnings, USB wake Support, USB Powershare.
Boot tab, your boot options
and your exit tab



Hmmmm

Nothing jumping out at me...but I also have 0 experience hands on with the mobile i7 parts

At least that information is out to be analyzed now

Thanks!



Joker did you try to use an air conditioning unit like the ones on the wall that they have in the appartments? It will be much better than a simple fan.
This way I' ve managed to run it OCed through all the tests without the CPU or the GPU fans to go to the second or third stage (this is the only way I can think of to prevent the TDP limiter to kick in).



Here is my first run with overclocked 4870s (620-1050) and the i920xm at 3.715ghz

the first time i reach over 20000 points

http://i50.tinypic.com/ftk57o.jpg

hope its good

what is more interesting is that the 4870s seem to be more reliable than the stock clock speeds.....! really running flawlessly. i really didnt expect this

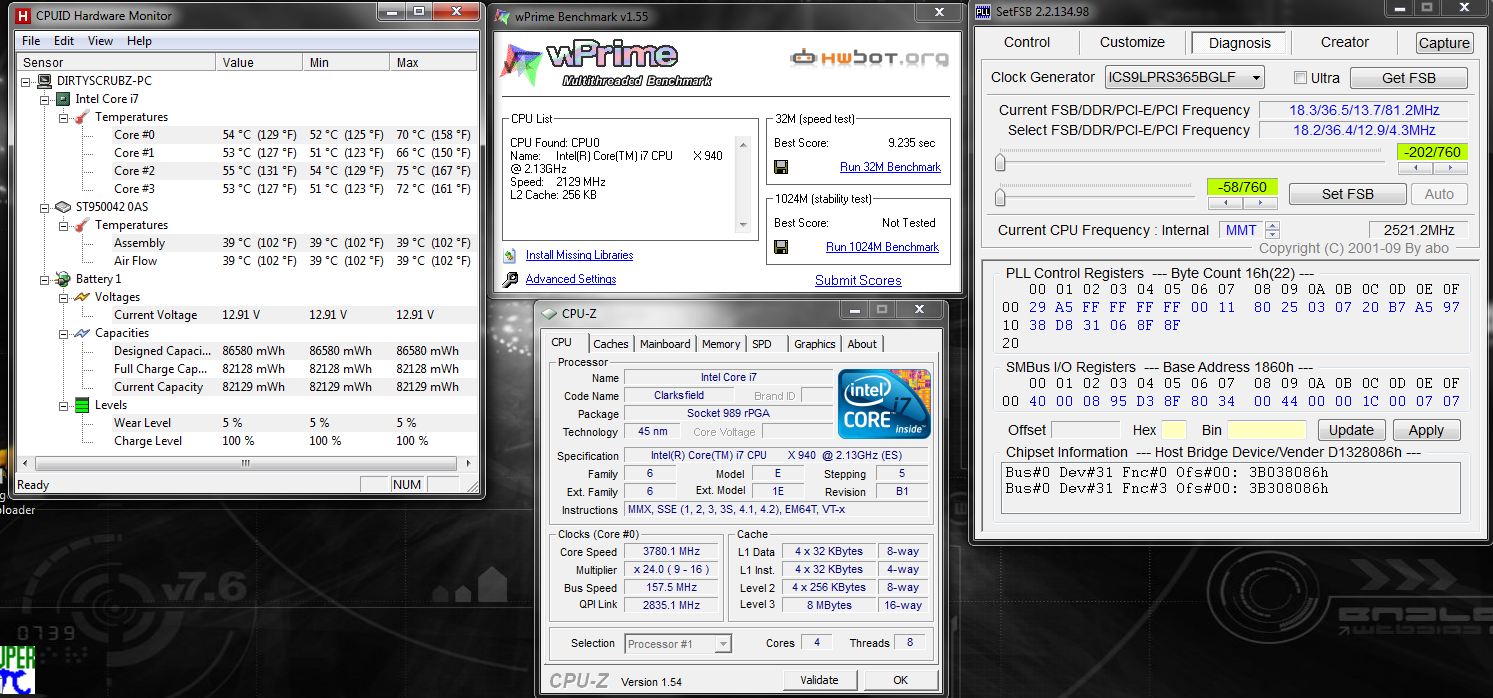

Ok someone asked for a run using WPrime 1.55. Here you go:



Well, now this has been quite a treat. Having to come in here and remove pointless bickering posts is not something I want to do. Guys, you all know better and already are well aware of the forum rules - if you have an issue, take it to PM and leave it out of the thread.

This thread has had more issues than any other and because of that here is how we are going to work it moving forward...

Since this is not some benchmarker only site, benchmark submissions/result posts can be anything. It does not need to have some official stamp from Futuremark saying 'Validated'. If you choose not to believe someone, fine. Keep it to yourself or kindly take it to PM.

We are going to keep this thread as simple as possible. If someone posts a score and provides a screenshot - then fine, its in there. Obviously photoshopped shots are easy to spot. If you all want a more 'validated' arena I suggest looking elsewhere. NBR is a place for a novice as well as a seasoned user and this thread is not going to be the exception.

Any questions on this need to be sent to me via PM. DO NOT post comment or question relating to my post. Send it via PM if you have an issue.

Thanks.



a little of topic i downloaded the new version of setfsb, so where do i get the code to unlock it after i donate?



Yay it works!...but I don't have 3dmark06, only vantage

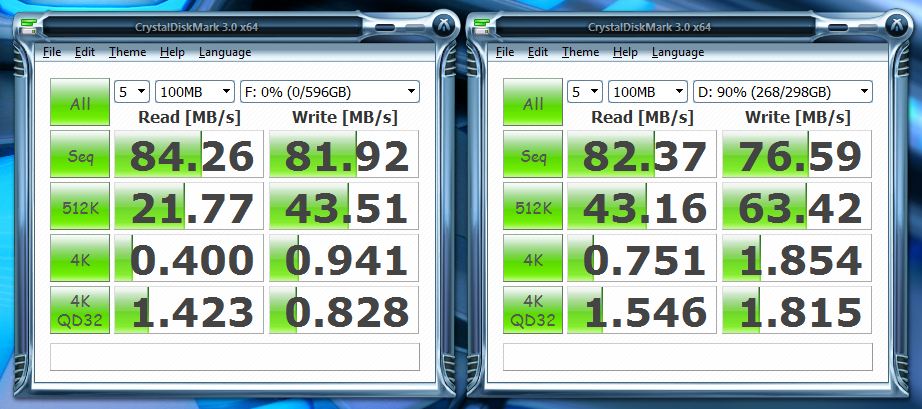

For anyone interested, here is my new 640gb (scorpio blue) drive that is replacing the 320gb (scorpio black)

Needed more space but apparently not sacrificing much speed



ewwww. it halved your 512/4k

shame on you going from 7200RPM to 5400RPM.



It is just my storage drive, I was willing to take that hit since it is not an OS drive, also has half the cache and lower spindle speed



If it's just storage then yeah, not much of a difference.



Got the Intel G2 for my system drive, it screams



its me being a troll.



you're alive? lol



of course. lol. i just don't have a laptop so i wouldn't be productive here that's why i'm not on here as much. plus i'm looking how to tweak my desktop for the best performance.



Alot of the same tweaks as laptops



So what do you guys think, is my 940xm doing okay?

CoreMark 2010 worldwide rankings:

1. Multi Cores
2. Eight Cores
3. Six Cores
4. Quad Cores
5. Dual Cores
6. Singe Core



I dont get it, is it working?
I am not ocing through the bios with this screenshot, if that makes a difference. Im goning to try different clock gens soon. any thoughts?


Uploaded with ImageShack.us



LOL! that is awesome good job



have a bunch of thoughts actually.

I still can't get mine to work, it looks like last night was a fluke, or just from being awake for 26 hours.



congrats good score for a mobile cpu i am #7 on multi cores



Turn on 5% OC through the bios and then turn setfsb back on and click "get fsb" and see if the registers populate.



Thanks, I noticed the bclk boost really helped with 4 threads and below.

Yeah I noticed that was you up there, good job. The highest I can OC right now is a bit over 2600 mhz before the system locks up unfortunately.



same thing, hopefully it gets unlocked soon



Well it all comes down to having the proper PLL in setfsb. I guess this pretty much confirms that they use more than one in their systems. Some of us lucked out with this PLL and others are still locked unfortunately.



So Lozz, are you going to open it up



oh yes. tonight infact.



ROTFLOL should have saw that coming guess thats a no



I might open up the other M17x and rip off the black stuff to find the PLL chip since it's going back to Dell (it had several defects and is being replaced). But a full tear down like that entails a lot of work and I'm feeling very lazy lately.



same, I might tear it down to look under the black stuff. I haven't fully removed a M17x mainboard before, so if it's more work than I think it is, I might just stop there for tonight.



I've done it before. You essentially have to remove everything if you want to take the mainboard out. It's a PITA to do.



yeah, the heck with that then. I'll wait till tomorrow.



I had to get my motherboard replaced in my R1...it was not fun....



Have people posted vids of their lappys actually playing the games, as opposed to the buttload of e-pen scores?



videos no, benchmark scores of the same games yes

videos are not something that can be compared between users because there are so many variables within gameplay - the point of a benchmark is to completely remove these variables so that the only thing changing is the system running the test
