Studio Illuminated Keyboard into XPS M1530? They look identical! - DOES NOT WORK!

but not illuminated



hope this works.



fillerfiller



I think the whole point of this thread is figuring out how to get an illuminated keyboard, not just a black one.

Right?



yeh basically.
if it was just a black one then we would have all just taken one out of a vostro and put it on!
we want illumination, lol!



****, I cant wait to see the results .



I rest my case.



Read the title: Studio Illuminated Keyboard into XPS M1530? They look identical!

I rest my case



He was answering a question that appeared on another page. Give him a break guys, sheesh.

@ MikeyMike01: Thanks!



They might look same at the first glance, but in reality they are not. Look at the distances between screws, they are clearly different. Therefore I don’t think you can fix a Studio 15 keyboard to a XPS M1530. If you also look carefully you can also see that the curvature of the top edges are different too. These images were taken from DCSE (DELL Certified System Expert) Disassembly guide.



I made the above image by resizing both keyboards to roughly the same width, not very accurate I know, but you can still see that they are not identical.



Well, this was an edit I made which kind of resembles an illuminated m1330 to keep your hopes up

http://img524.imageshack.us/img524/760/backlighthf9.png



http://support.dell.com/support/edocs/systems/1535/en/SM/keyboard.htm#wp1180346

Not only that but the M1530 will be missing the connector for the cable powering the backlight from the system board...



why stop at that?

HDR image + photoshop.... lemme make one...
EDIT:


if i have a tripod and a SLR, it would be godly... too bad



lol...yeah...just keep the *fake* ones coming ^^

We could probably set up a gallery of the prototype M1330 and M1530s after this thread...xD



I still cant believe that this thread is still going. Nice photo shops though



Wow 22 pages? Lol nice photoshops guys.



bendsley,

I crack the box on a brand new XPS M1530 tomorrow. I'll be decrapifying it and either doing an XP install or a dual boot Vista/XP modification. With acknowledgment to PhoenixFx for his fine work showing it likely won't work, I would love to buy this keyboard and put it on the machine before giving it to my wife if you determine it can be done.

Please post back with your results as soon as you get it done. Heck, please let us know when you even receive the keyboard and tell us your initial impression before trying to install it!

Thanks,

Phil



This might might be usless info at this stage but just called dell in the states (or india) 1-800-456-3355 and asked about D794C. this is what i was told : exactly nothing!!!! the tosser told me to hold and i did... for 38mins!!! and then cut me off in true dell customer support style. grrrrr... its very dissapointing to see that cust. services have not improved over the years and in fact have gotten worse a stiff complaint email will be sent!!!

oh well no further on in the quest.



It all depends on the rep. Some reps are not helpful, while others are.

@paper_wastage
That keyboard looks AWESOME!



Who's ready for bad news? Ok, the keyboard does fit into the chassis area, however, the screw holes at the top do not line up at all. Also, the Studio 15 keyboard has a wider primary ribbon cable than the m1530 keyboard.

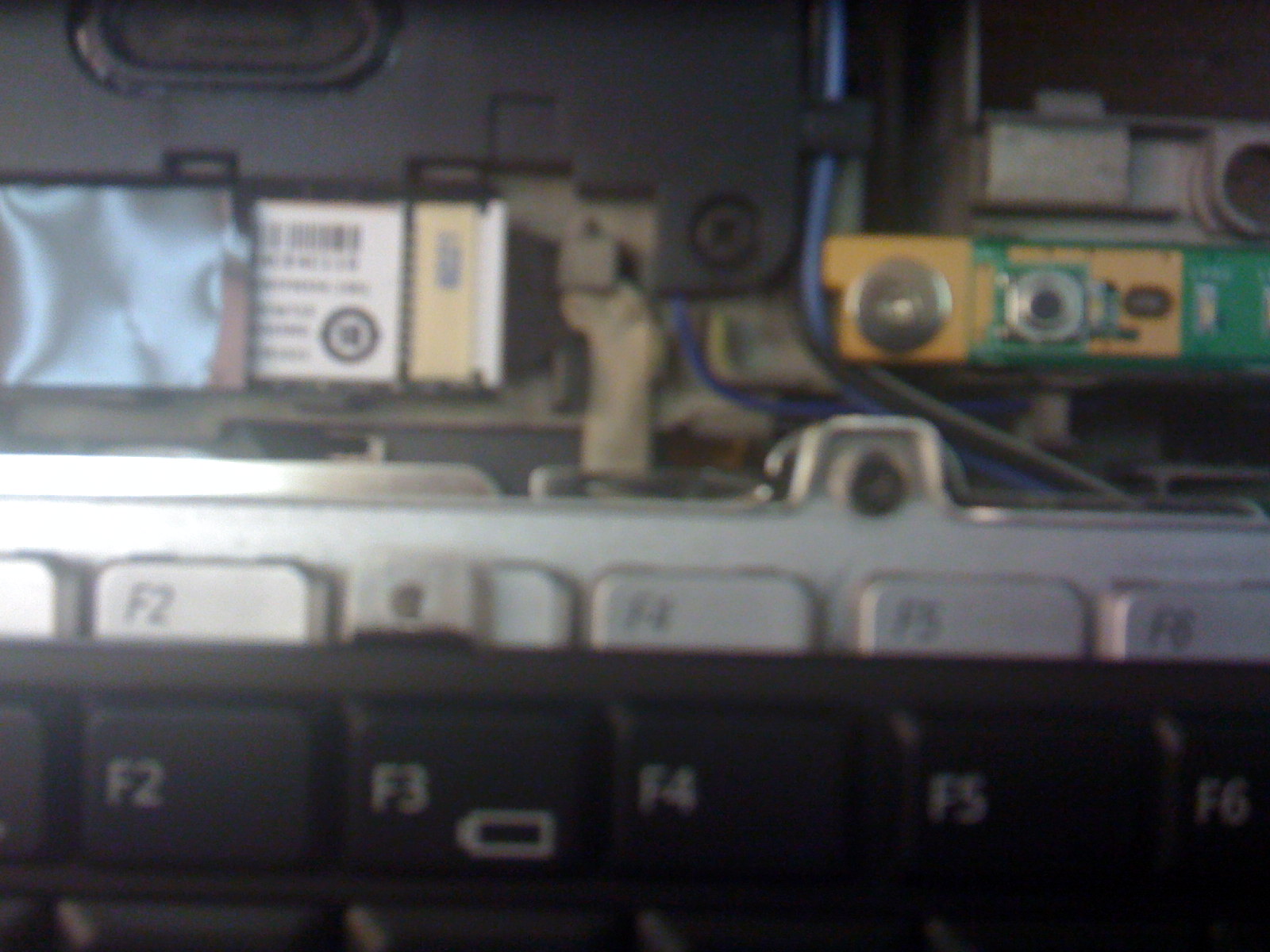

Left side of Studio 15 keyboard. You can see the holes do not come close to lining up. (note: the Studio 15 keyboard is lower for illustration purposes of the screw holes. I can slide the keyboard up and make it fit into the keyboard area though.)

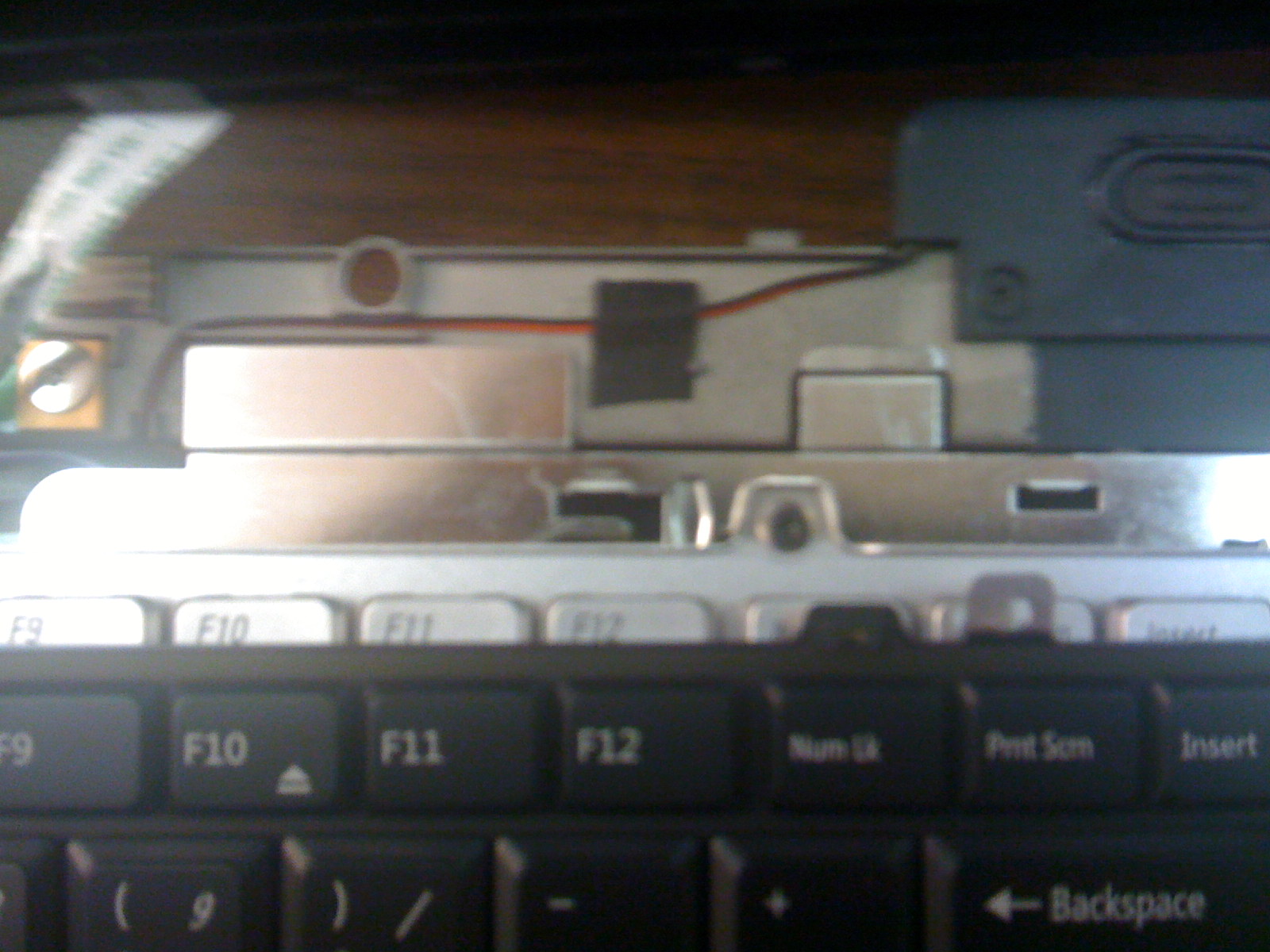

Right side of Studio 15 keyboard. You can see the holes do not come close to lining up.

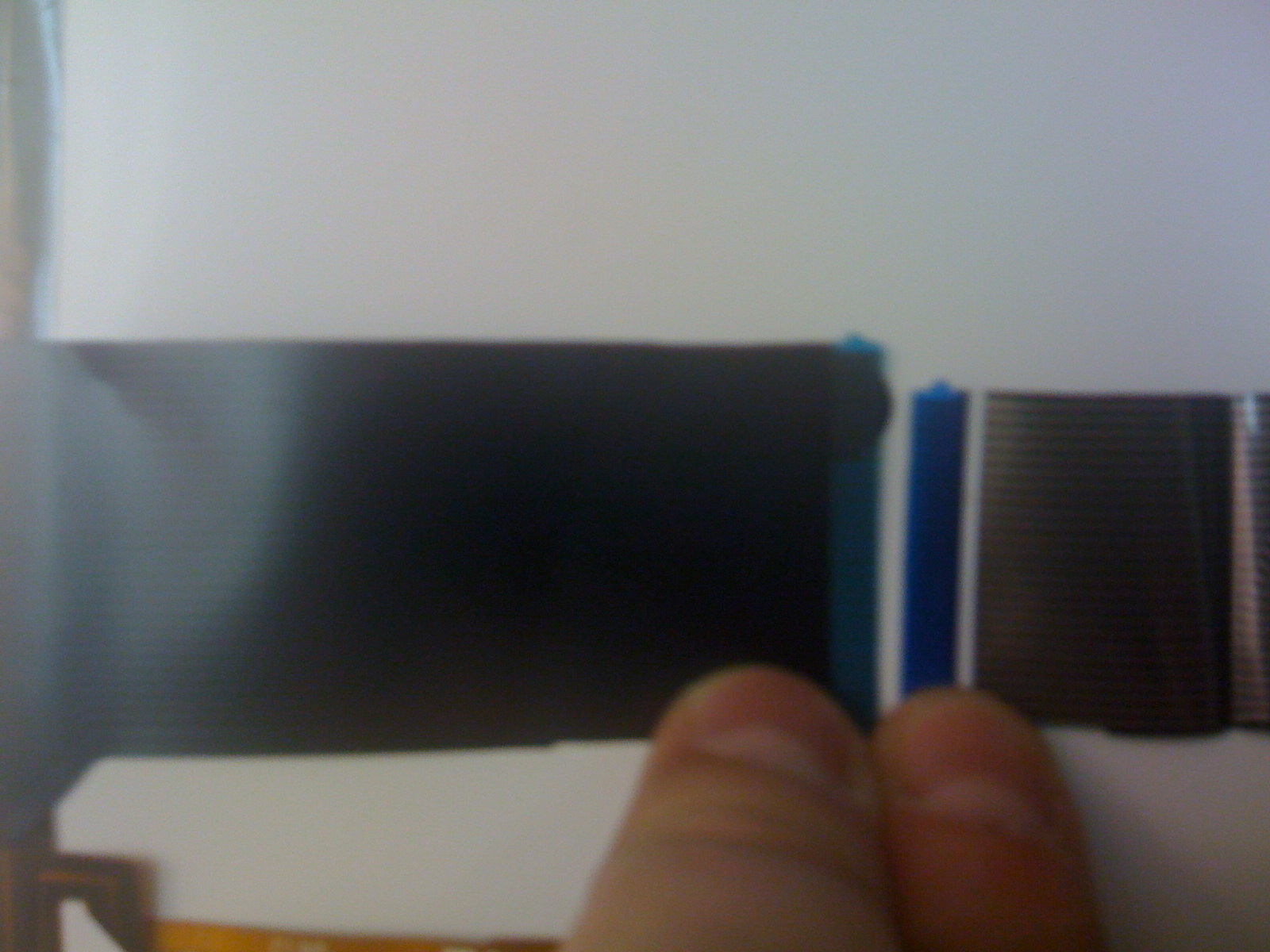

Studio 15 keyboard on the left. M1530 keyboard on the right. The Studio 15 ribbon cable is obviously wider.

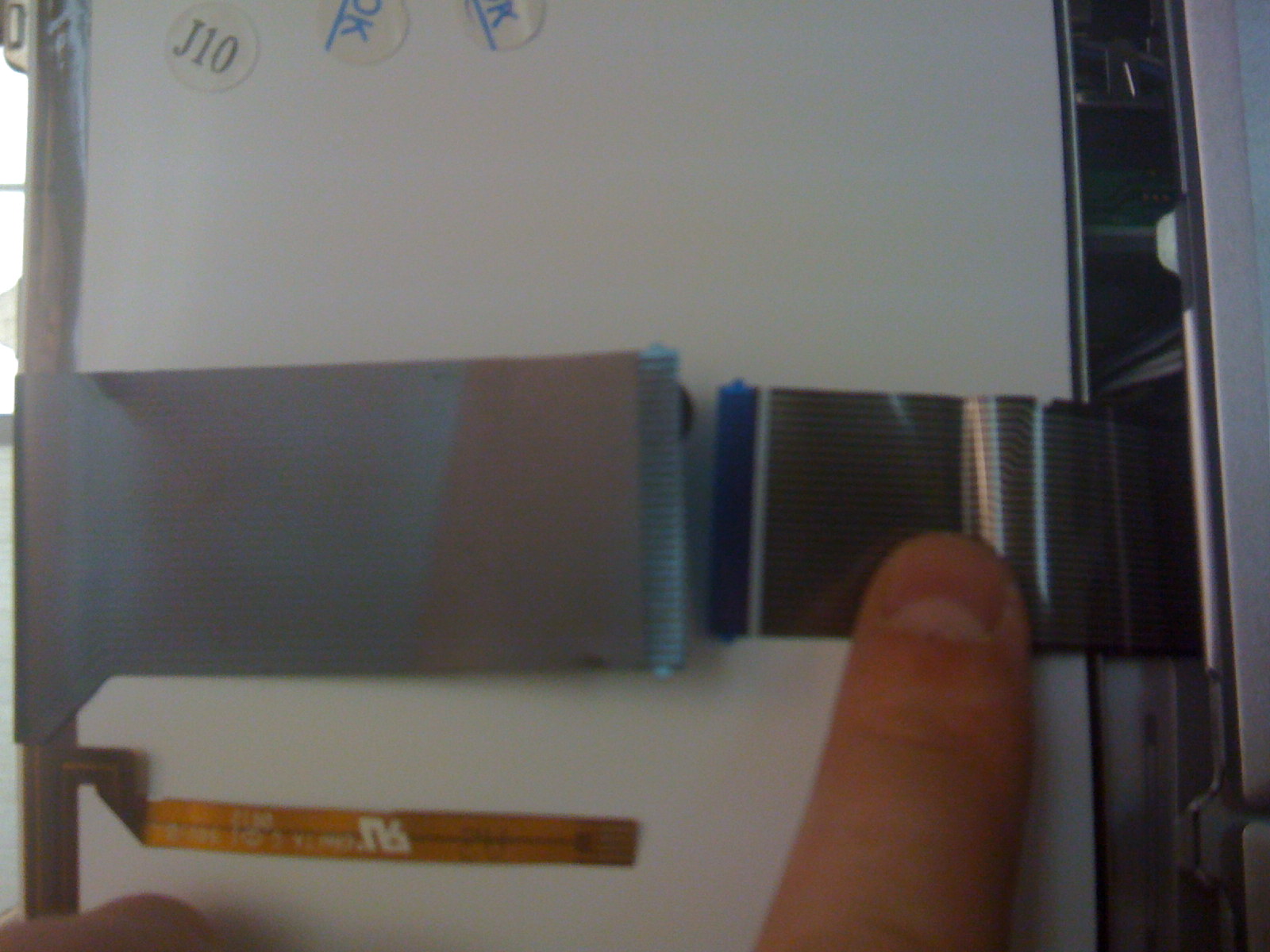

Another shot of the two ribbon cables. Studio 15 on the left, M1530 on the right.

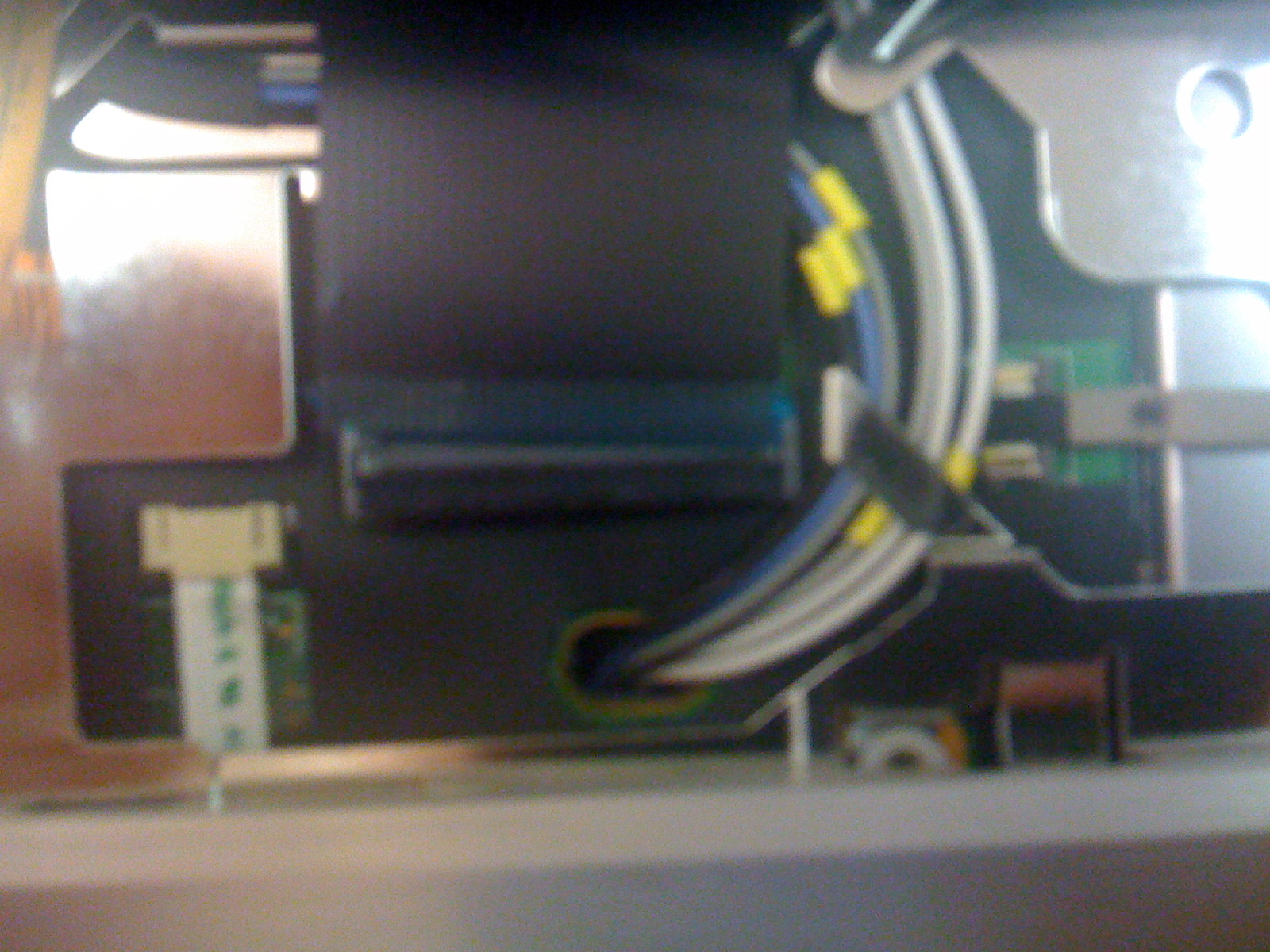

This is the Studio 15 keyboard over the ribbon cable connector in the M1530 laptop.

I've packed it back up and sending back to Dell for my refund.



Well there's an end to that then!
Why am I even following this thread - I ordered a Studio!?



This begs the question...would it fit on a Vostro 1500...or an Inspiron?

Looks like the Ribbon is the key, you could always fashion a way to fasten it yourself if the screwholes don't line up.



Bummer :/

Nope. The XPS and Insprion/vostro keyboards are interchangeable so the Studio keyboard wouldn't be.



DAMMIT!!! does that mean im stuck with this sh*ty silever keyboard :| :< DAM DELL.....DAM DELL TO HELLLLLLLLL!!!!!!!!!



theres a BLACK replacement keyboard, though no LED backlight



ummmmmmmm....NO.

As per the post right above yours you could get a different keyboard from a different laptop model...just not the backlit one.

Happy Times



i was pointing to the post above mine that hes not stuck with a SILVER keyboard

http://forum.notebookreview.com/showthread.php?t=285012

^^ black keyboard, and as i said, NO LED BACKLIGHT



paper wastage > i know there is a black keyboard i could use i was just expressing my disappointment that the studio BLKB wont work but thank you for suggesting though

here is a (prob silly question) is there a 3rd party company that customizes laptop keyboards? maybe there is a LED BLKB that isnt a dell KB we could buy.



Nooooooooo **** I wanted a backlit keyboard on my m1330... okay then .



but it still doesnt solve the problem of powering the LED backlit.... dell must have had power problems to need a second connector to the keyboard....

i guess a dimmer version could be made by a 3rd party...



It doesn't seem necesary to make fun of a serious mental illness. Maybe edit your post...



Well even though the keyboard won't work here is my photoshop version.



I demand a studio 17 to vostro/XPS1730!



Thats a good edit!
just shows how gd it wud look!



that looks so awesome...dangit i really wish the keyboard fit



so just to confirm,

the studio 15 keyboard fits..

the holes dont line up

the ribbon is different; hence will not work with the XPS 1330/1530?

backlit does not work, and will never be able to be modifed to work?

-Nathan



well lets hope dell see sense and make some money on all of us that wish a backlit keyboard. its been a blast ppl and now im off to spray paint this crappy silver kb Ta-Ra



my english isn't so good so I am asking..Is it possible have backlight keyboard from Studio 15 on XPS 1530?
I have read thist thread, but I don't understand every word, sentence... so I am asking



no it is not



After reading every post I went ahead and ordered a lighted keyboard for a Studio. My reason for checking out this thread was trying to determine if my
Studio 1536-117W I purchased from wall mart could be upgraded to a back lit one. I was told by no it could not, but from what I read here I think it can.
BY the way they only have refurbished keyboards for now.



do you have a link? how much did it cost?



http://accessories.us.dell.com/sna/...&cs=19&sku=D794C&mfgpid=197160&chassisid=8477



any updates???



It won't work.



are you sure?



Read some of the previous posts in this tread, it won't work !



Well it could work, it all depends on how motivated you are to getting it to.
- Simple answer nope, you can't just swap and change.
- long answer, maybe



I am looking for an effective answer.



Screws are at different places, so you can’t put it in without cutting off some parts, even if you manage to hold it in place without the screws maybe with some double sided tape, what about the connector ? Well I guess you could try to manually connect each and every wire in the ribbon cable, but even then there is absolutely no guarantee that it will work; seriously .. you guys still considering this ? Just put in a black keyboard and get it over with already... 25 pages long and still not giving up...



Vostro black keyboard for the win!
