The hopeful of keeping MXM 3.0b alive thread!

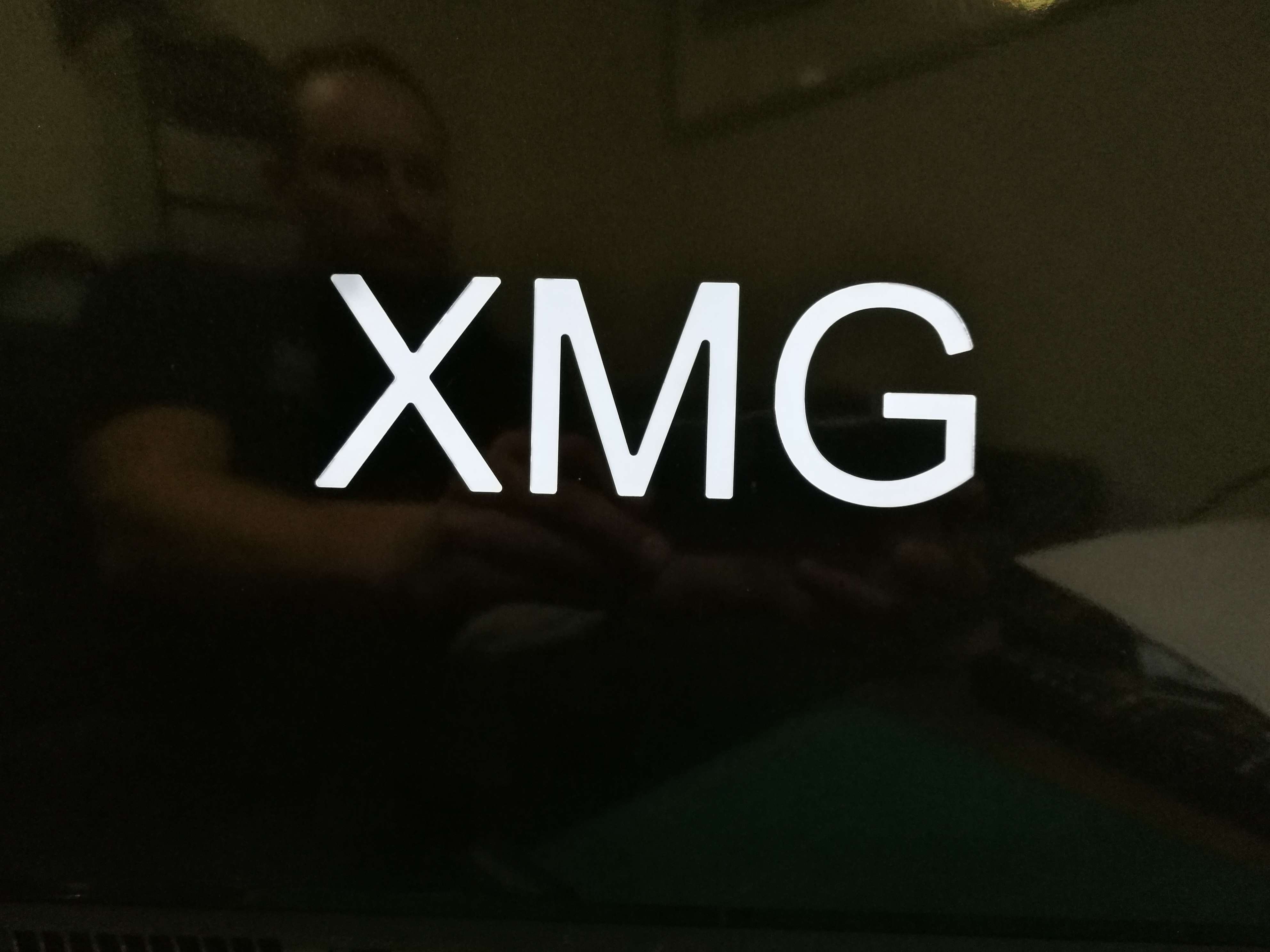

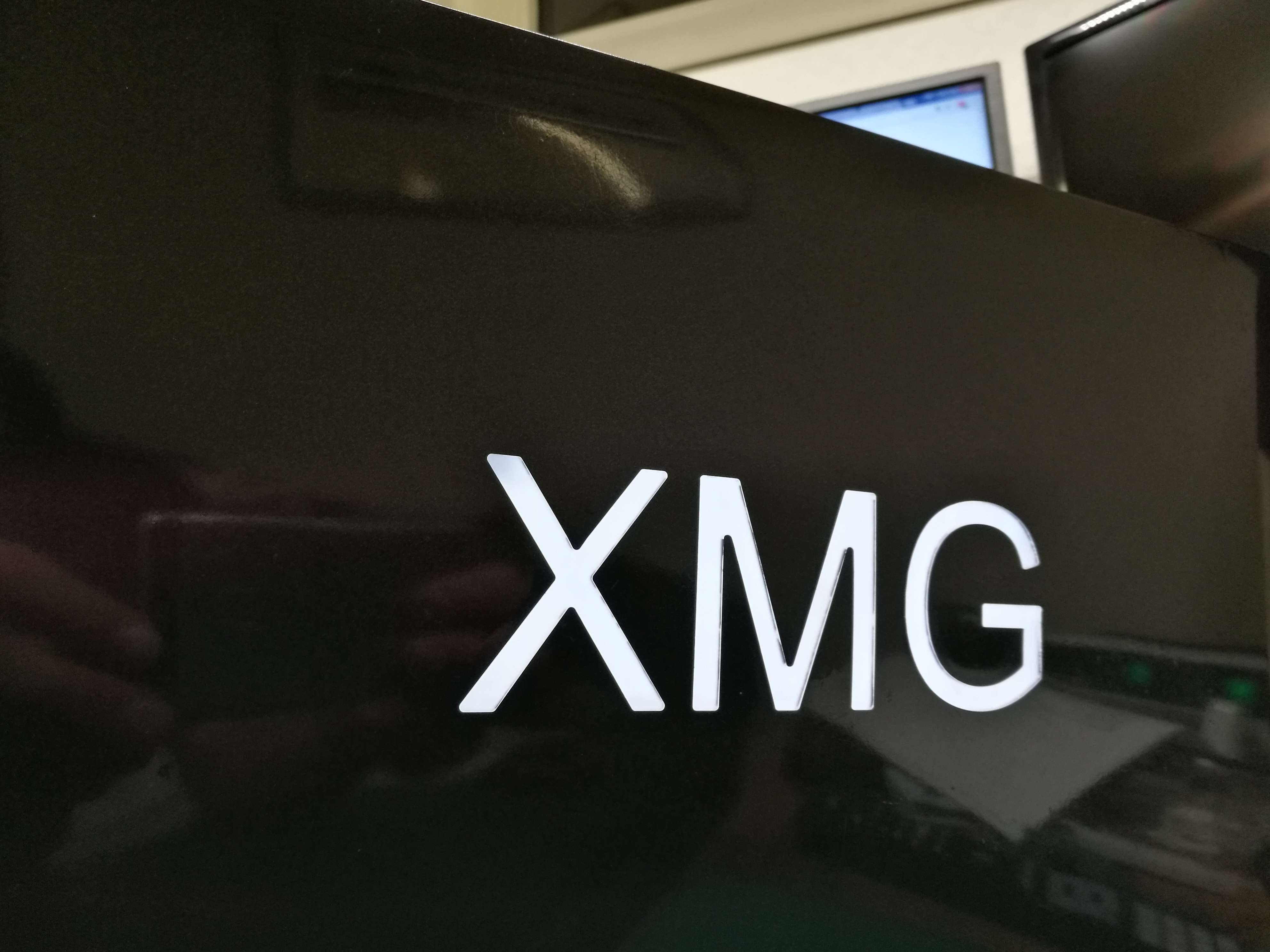

Or self made logo with cnc Machine with

lighting

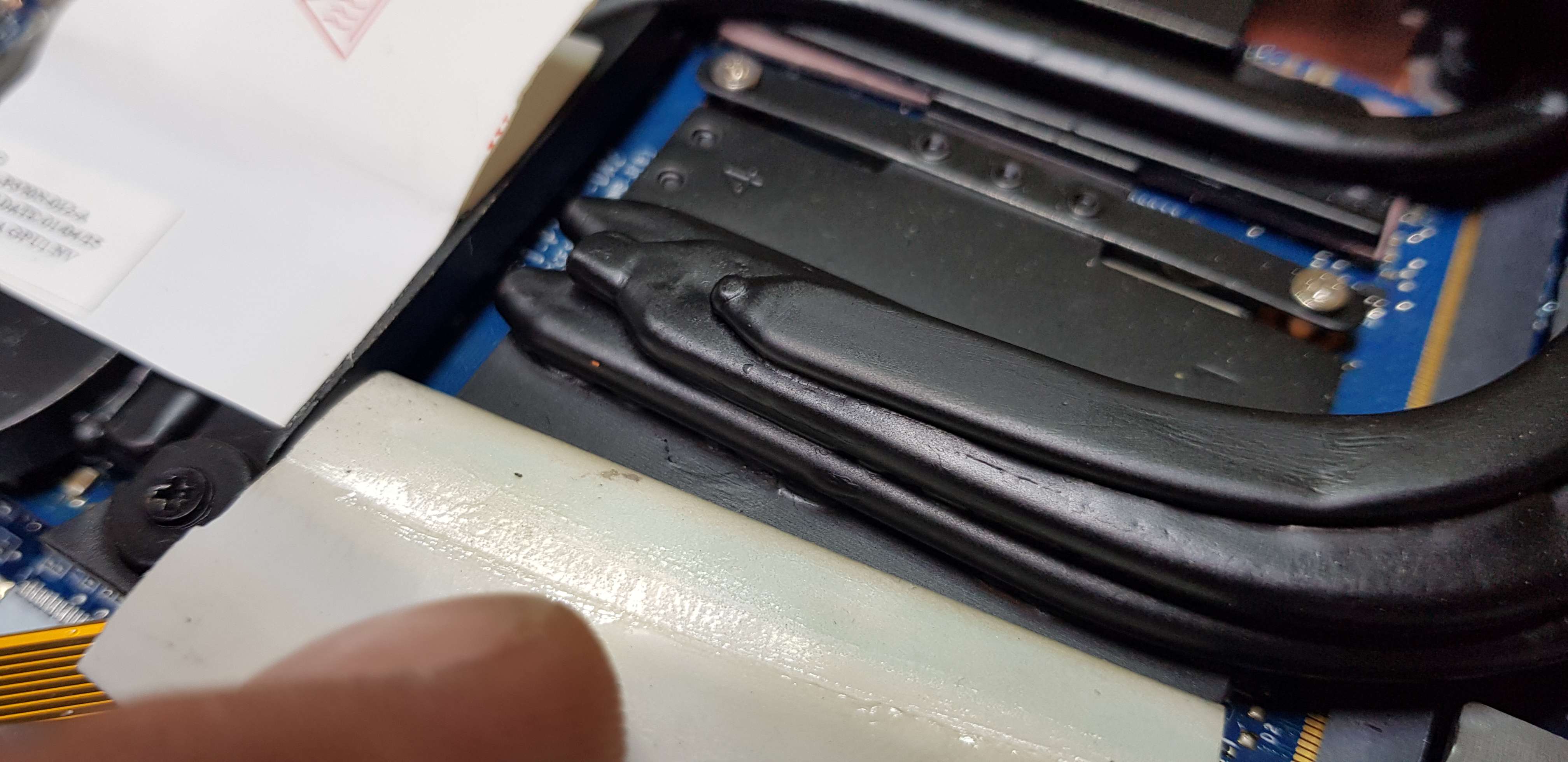

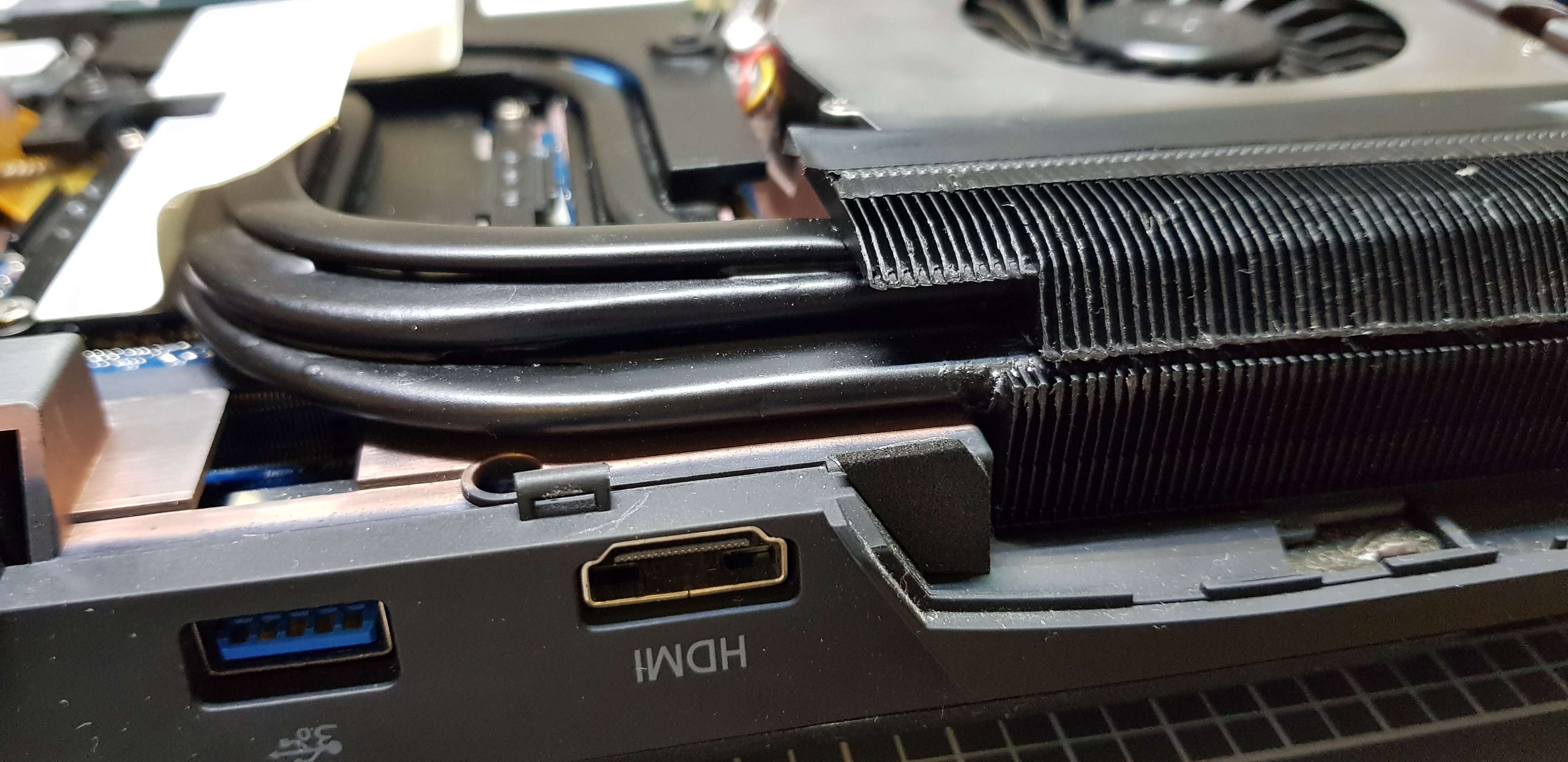

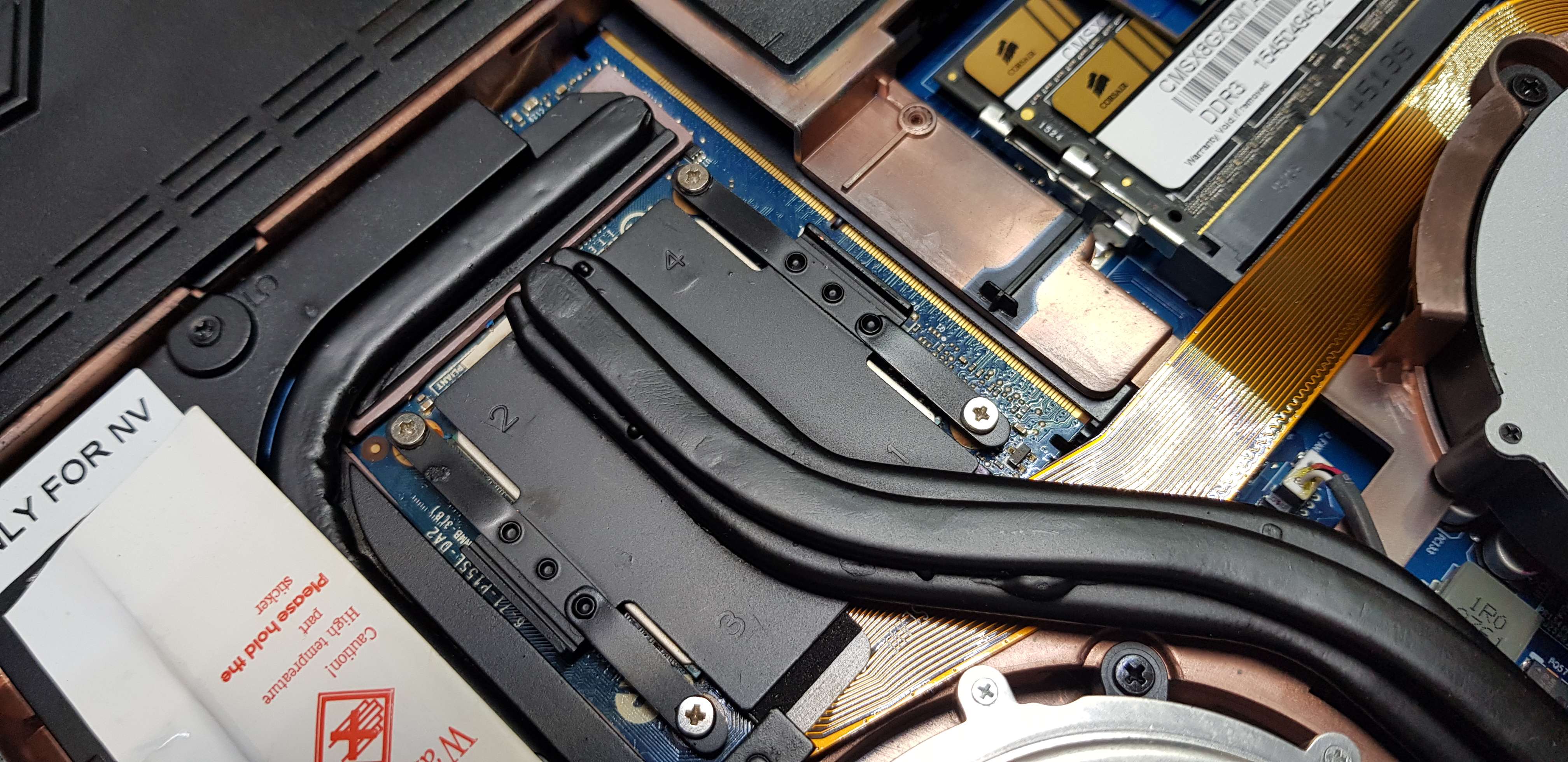

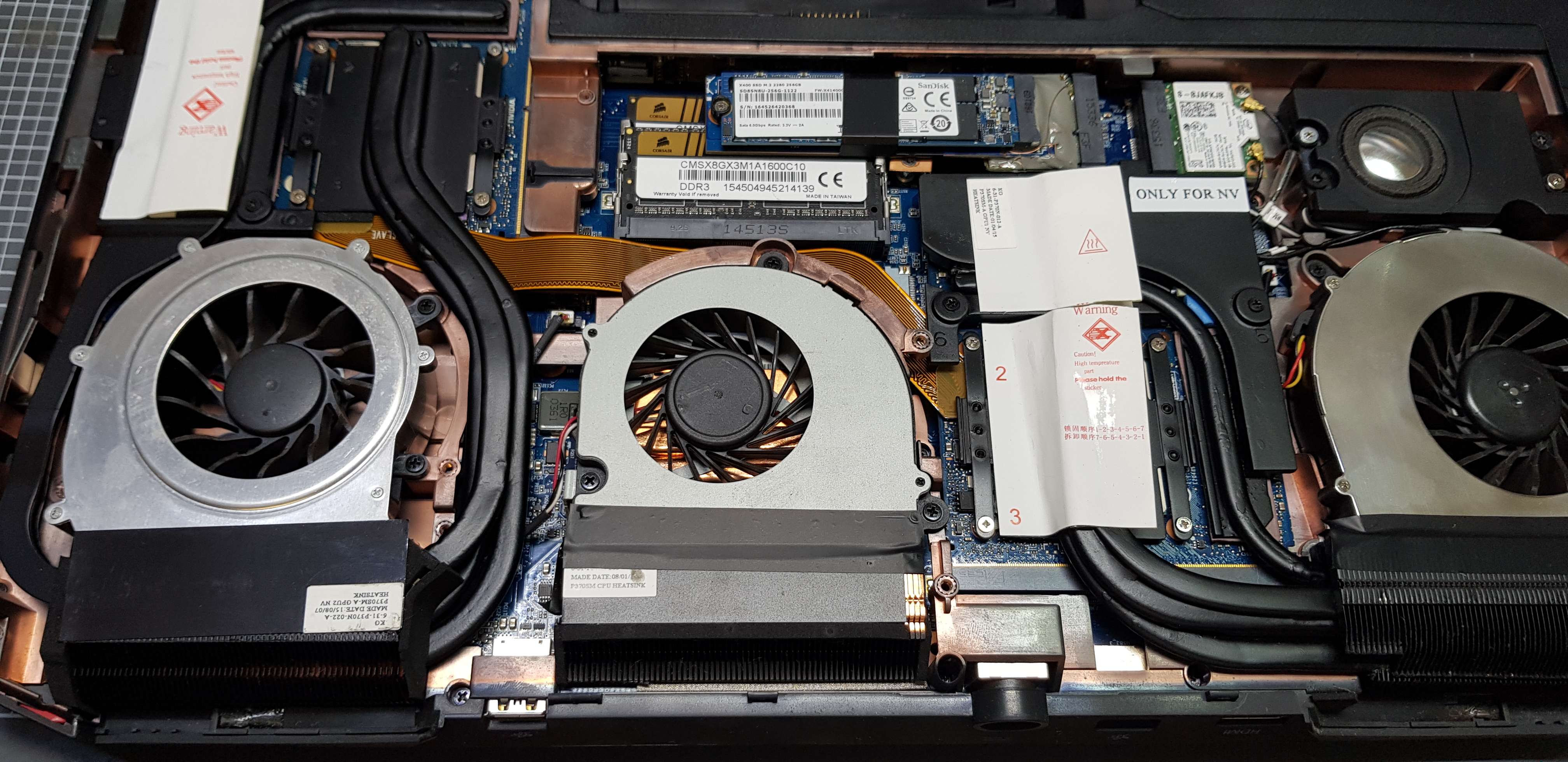

Or P375SM-A 2x 980m SLI only AIR Cooling

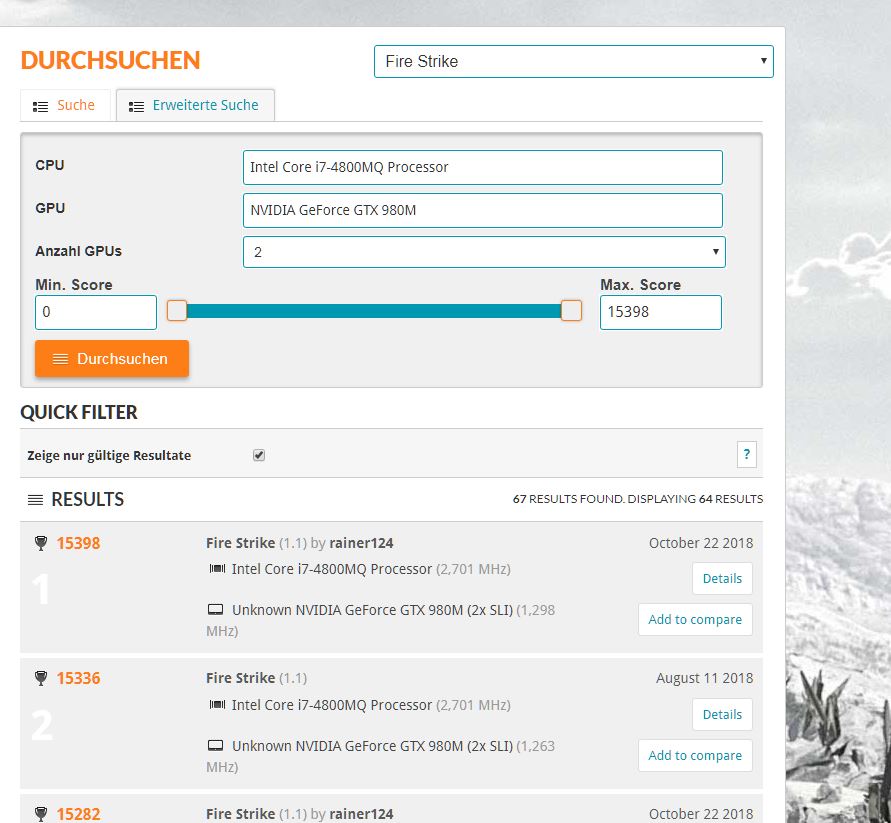

and the P375 benchmark

Unfortunately, the 4800qm slows down :-(

the P375 needs 430 watts



It'd be interesting if you sold those heatpipe, I bet a lot of people on the forum would buy them



now if we could just get a heatsink for a 1080.

anyway, so any temp under 80 degrees is ok for a 1070?



Thats the Clevo 1070 with the 980DT heatsink, like Mr. Fox's P870DM-G (except 1080 instead of 1070, now sold), albiet heavily modified



@rainer124 did you create also modded HS for P7xx?



Bro, anything under 90C is fine. Pascal temp throttles at 91C to protect itself. Dunno why you're so worked up about it.



i know i just feel like it's gonna melt itself to death if it went over 80 degrees C LUL



did you create also modded HS for P7xx?


No


but for the P570wm I have to do one!

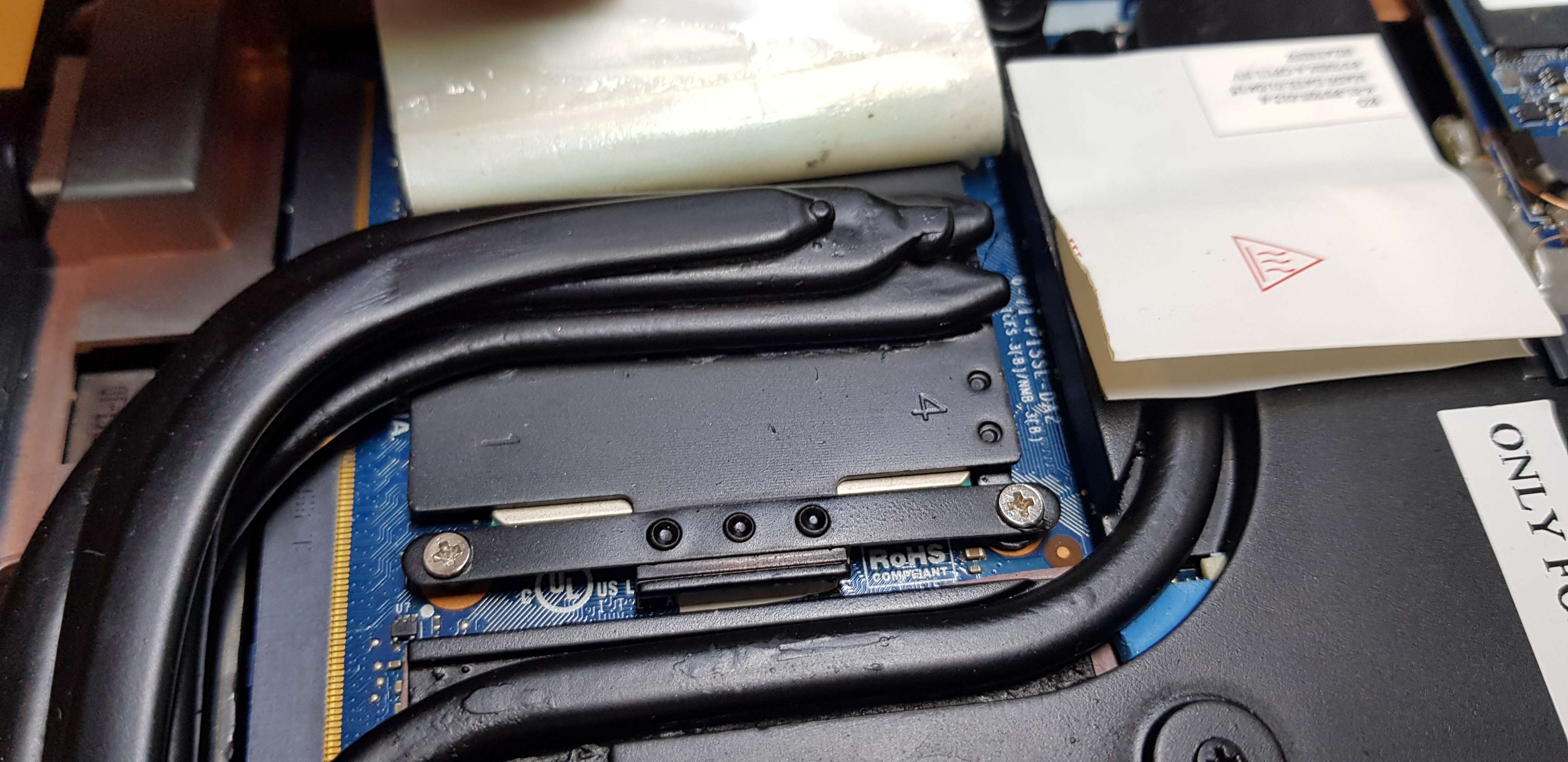

here ist th first place

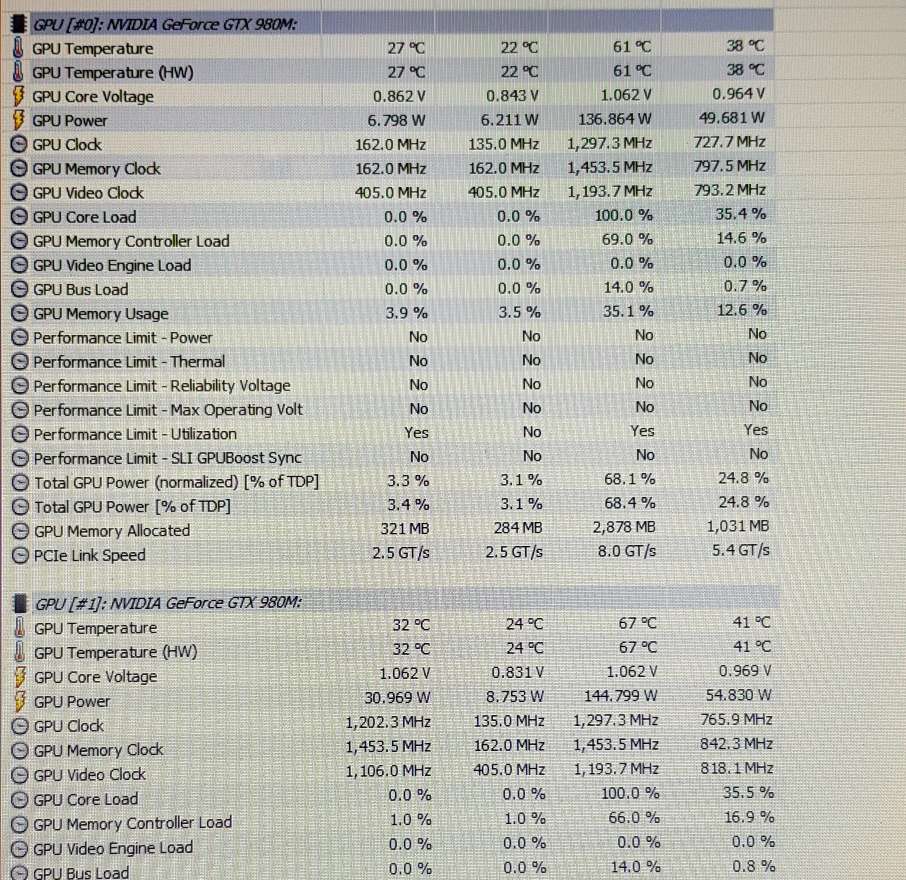

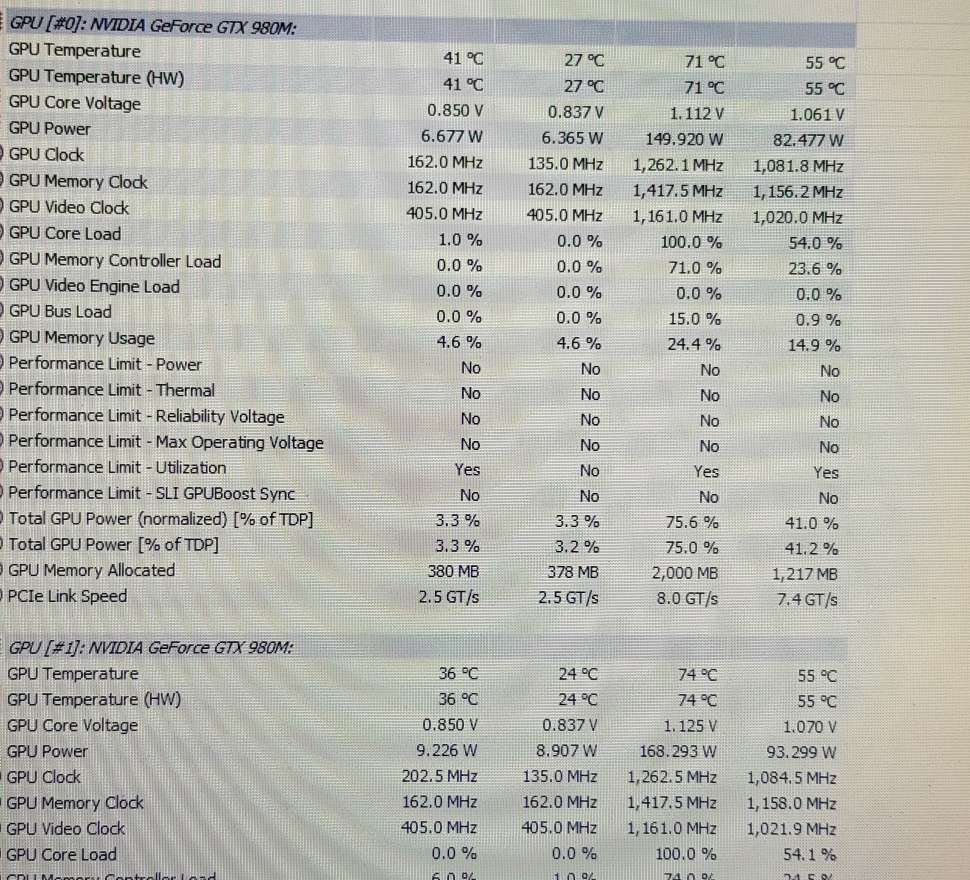

and Temp
max 1x 168 Watt 1x 149 Watt (P375sm-s SLI 980m)



I mean, the desktop reference cards since Kepler are designed to run at 80-85C, 8 hours a day, for several years.



Asrock Gtx1070?
https://www.ebay.co.uk/itm/Nvidia-G...h=item41f1368d55:g:6ZsAAOSwszFbzn7w:rk:6f:0





it is really similar to a Asrock Gtx1060 (this should be an Aetina card)



^ can run for clevo p150sma @180w?



Still does not appear as robust as the MSI version. Less mosfets, less phases, probably lower TGP rating, not safe to raise.



id buy a 3.0b vega card. my 980m is having issues with thermals. P377-SM-A



A worthy vega card would need to be 150w, if you're having issues with a 980m replacing with a hotter card isnt likely to help.



If an MXM Vega where to exist, hopefully it would be like the Helios 700 with it's Vega 56M



There's a Helios 700 now?



*Helios 500*
There is a Triton 700 however



The Vega 56 on the Helios 500 is 120w TDP and performs mostly right below the 1070 iirc

It probably needs 150w to attract buyers to switch to AMD.



The Vega 56 in the Helios 500 is BGA:



That is well known.



Is it small enough to fit into the mxm 3.0b form factor without changing the x-bracket etc?



No way, look at the size of that die



maybe if you rotate it by 45 degrees, as most of AMD MXM boards have been before, anyways



But it's a square die?



The full package included HBM2 memory, yees



so....? i was talking about 45 degrees, not a 90 degree angle. in that case ure right, wouldnt make a difference for a square package/die but im talking about letting it "stand on its tip/corner" with regards to the lenght of the board



I'm not having temp issues anymore, gonna repaste the cpu with Thermal Grizzly Kryonaut as the Condutonaut evaporated a little due to the space between heatsink and chip. Just have to turn the fans to max a few minutes before launching the game.

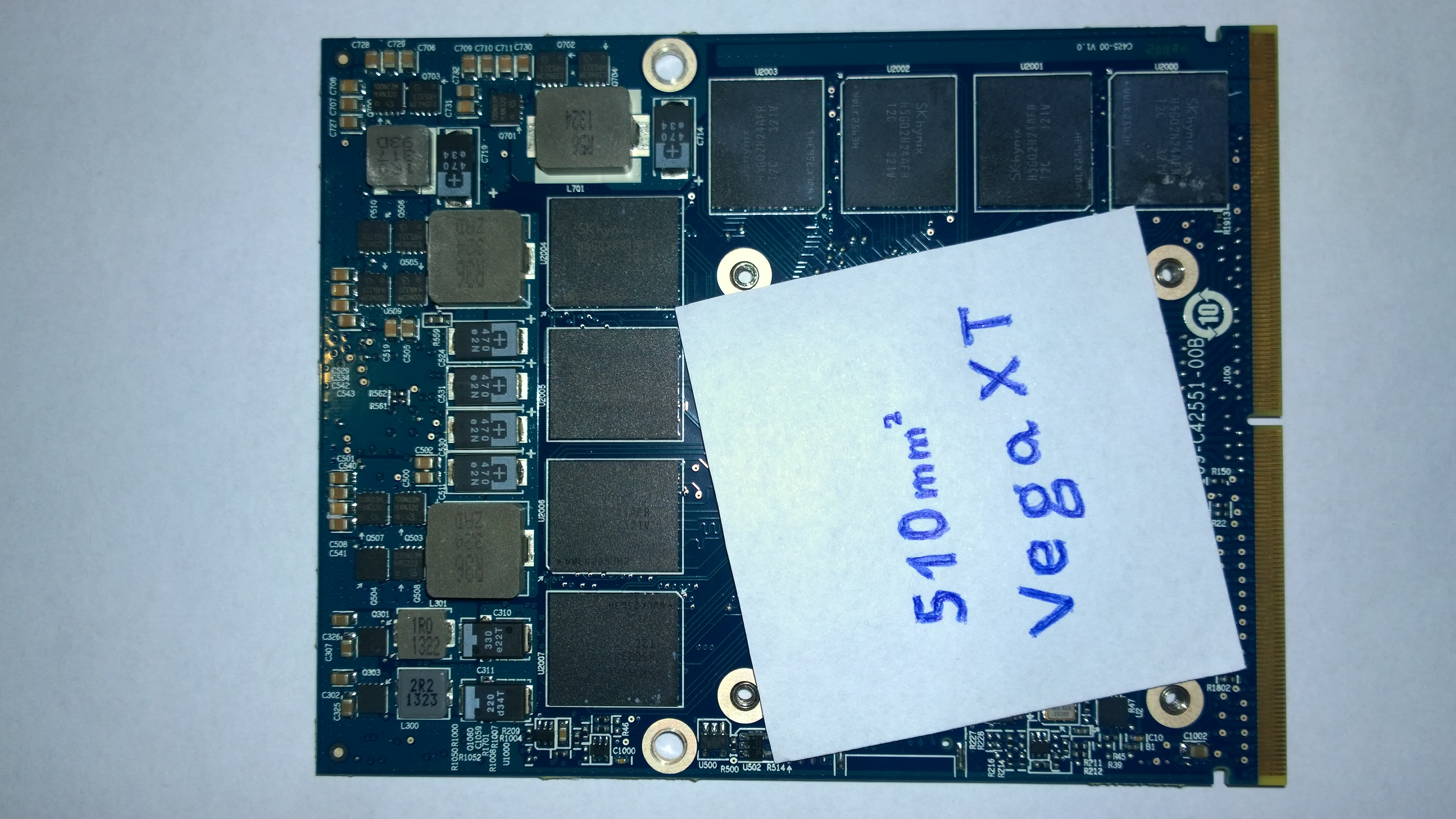

I've played a bit to get an idea of how HBM interposer would fit on MXM.

http://imgur.com/gallery/DaJxeg2



Could be used with another shape to reduce space requirements in a notebook.

vs



I've made a mistake in the calculations. It's a bit smaller than that - 48 x 48 mm instead of 51 x 51 mm. That's from the images and scaling and etc, since I don't have access to the exact chip size, only the GPU part.

Anyway, it's not that imposible after all, especially in the configuration that you've provided.



nice



Other than that you need to consider signal influence, interference and cost, etc. You might be able to get a 15 layer PCB with Vega Core at $1500 that has 20% hazard rate over one year and 30% chance of haveing flickering screen.

Javi-Jie worked on the FHD kits for T420/T430 and it's not an easy thing. Otherwise Gecube shouldn't have struggled a lot



Have you tried polaris BIOS tools? Those worked fine for my miners. I modded my WX7100 to [email protected] /1950 and it's ETHash is ~28Mhs
OFC, f*** winbugs 10 and secure boot and all that ****ing bulls***. I used atikmdag patcher to deal with that s***hole.
https://www.monitortests.com/atikmdag-patcher-1.4.6.zip

And f*** winbugs 10 again.



China is a slow piece of #/(¤&)!/(¤ to ship my 4k monitor eDP, and then Bhiner F****** up the pricing on it, so I said well screw it I take the 1080p 120hz next best thing too in colour accuracy and contrast ratio.
It appears that it is indeed ENDURO that is the real bastard when it comes to limitations here, I also theorise it is indeed ENDURO that screws me over when it comes to vBIOS checker, why would my Vega 56 not have that yet the WX 7100 for laptop have it? Makes no sense, Vega has even more limitations when it comes to vBIOS hacks.
When Bhiner hurry up and ship my stupid monitor that I been waiting for two months now I will report back and test if W7 drivers will actually work this time around in W8.1, there no way I am using W10 on any of my main systems, LOL there no way, I rather like my files intact.



You might not need to fix the signature check. atikmdag patcher can do that for you automatically



Did not work when I tried it in enduro mode, but I need the eDP display in order to run it in PEG, Bhiner just shipped my **** as well so hopefully I have it in two weeks



Have you tried Superbuy yet? Similar to Bhiner but prices for me have seemed to be a little lower.
And if only the WX7100 worked in Clevo's..
Still haven't ruled out W7170M though, might give it a shot



I heard of Superbuy but never read much about it, might try it out in the future if the prices are lower, biggest problem for me is whether they accept PayPal, Norwegian banks are completely useless for chargebacks in case I get really screwed over.

W7170M does not work with any Clevo machine, I can confirm this, the Chinese have tested it on the P150EM and got the same issue as usual, boots and then you get black screen and the usual warning sounds because its temperature reader is not compatible with Clevo it is built to Dell standard only.

Its one of the main reasons why I got rid of my P150EM beside the obnoxious audio issues.



Of course it supports PayPal, otherwise I wouldnt use it. They also have really fast shipping.

Shame about the W7170M, I would have gotten two, for my P377SMA (CFX?) and one for my M6700. I would have no reason to not believe it can be Crossfired, as shown by my M6100 XDMA CFX (with eDP screen)
I don't really want to get rid of it because it's kind of rare to find these for a good enough price compared to the M17X R4/17 R1

Might get a WX7100 for my M6700 eventually



both W7170m and WX7100 have no fan control on M6700.
You might need some hardware mod



As a very famous person said, "cut the blue wire!" Of course, all the wire's are black, so I'll figure it out as I go
Or I could just HWinfo, but its a little buggy. Speedfan seems to work less and less on my machines with each passing day



looks like my clevo is on the frits with random shutdowns so if i can't get someone to look at it here in Canada I may just have to part out the laptop.



Where are you guys able to find these WX7100's for 300ish USD ?

Im more interested in AMD since I am moving to Linux. Appreciate it.



Taobao
I'll see if I can find a listing
edit: https://item.taobao.com/item.htm?sp...l0hcaf&id=562532737439&ns=1&abbucket=5#detail
They state in their description the price is 1699, which is around $300



Hmm still the only way eh?

I wonder if they can be sourced from Dell?



If you buy their workstation with the WX7100, it comes in MXM format I think, as there is no way its a full desktop card and I don't believe it's soldered. Might be able to ask for pricing



They are closed for tonight on Live Chat but ill ask them tomorrow.

iirc its a 120w card unless I am mistaken? its a RX 480 but as a 1200 core boost clock, stock desk cards pull about 150w(or more if modded I would think).

I know the 980m's are easy to source and priced pretty well but I hear nvidia + linux are a match made in hell for linux and I am tired of fighting my computer lol.
