    Successful MXM GPU Upgraded Laptops

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by sicily428, May 21, 2017.

  1. Khenglish

    Khenglish Notebook Deity

    Reputations:
    799
    Messages:
    1,127
    Likes Received:
    979
    Trophy Points:
    131
    Khenglish, Nov 30, 2017
    #201
    Scerate and sicily428 like this.
  2. yeoldegamer1979

    yeoldegamer1979 Notebook Guru

    Reputations:
    2
    Messages:
    59
    Likes Received:
    11
    Trophy Points:
    16
    Hello all! A buddy of mine is giving me a great deal on a set of GTX980m gpu's I plan to install in my SagerNP9377/ CLEVO P377SMA. I know I will need to install new drivers, but also saw I need to flash a new bios?

    yeoldegamer1979, Dec 1, 2017
    #202
  3. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Dec 6, 2017
    #203
    ssj92 likes this.
  4. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Dec 8, 2017
    #204
  5. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    Last edited: Dec 10, 2017
    sicily428, Dec 10, 2017
    #205
  6. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    @Eurocom Support

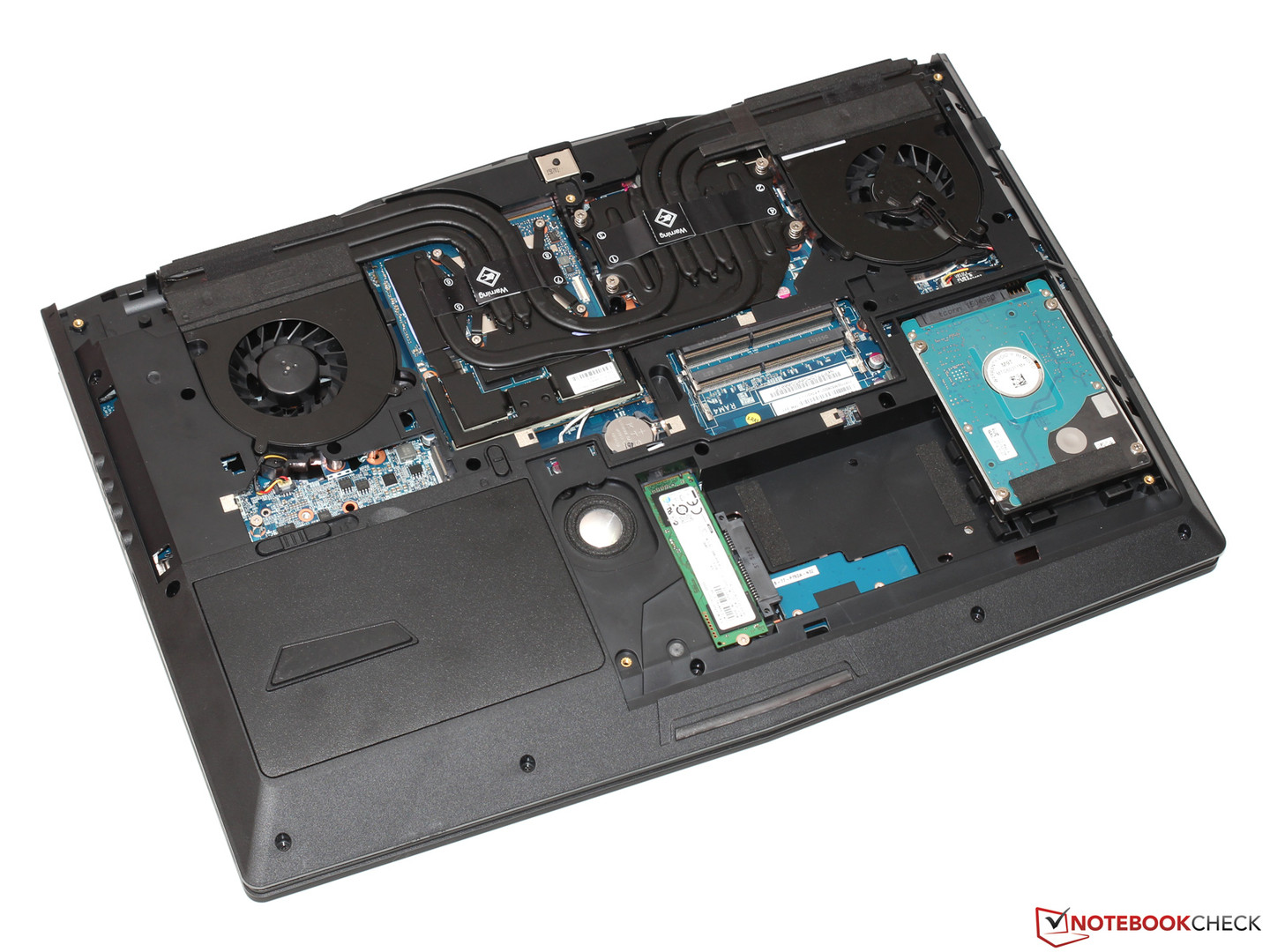

    Hi! that heatsink (in that P770DM) needs some modifications for those P3000 or P5000?

    sicily428, Dec 10, 2017
    #206
  7. ssj92

    ssj92 Neutron Star

    Reputations:
    2,446
    Messages:
    4,446
    Likes Received:
    5,690
    Trophy Points:
    581
    Quadro cards normally follow standard mxm 3.0b format. Should need no modifications.

    ssj92, Dec 10, 2017
    #207
    sicily428 likes this.
  8. Padraig O Cuinn

    Padraig O Cuinn Notebook Consultant

    Reputations:
    13
    Messages:
    246
    Likes Received:
    38
    Trophy Points:
    41
    Has anyone tried putting a gtx 1080 in a zbook 17 g3 or g4, If there is success I can swap a p5000 or m5000m :)

    Padraig O Cuinn, Dec 11, 2017
    #208
  9. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    what's your laptop?

    sicily428, Dec 11, 2017
    #209
  10. Padraig O Cuinn

    Padraig O Cuinn Notebook Consultant

    Reputations:
    13
    Messages:
    246
    Likes Received:
    38
    Trophy Points:
    41
    I have both zbook 17 g3 and g4

    Sent from my SM-G950F using Tapatalk

    Padraig O Cuinn, Dec 11, 2017
    #210
  11. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    what are your gpus?

    sicily428, Dec 11, 2017
    #211
  12. Padraig O Cuinn

    Padraig O Cuinn Notebook Consultant

    Reputations:
    13
    Messages:
    246
    Likes Received:
    38
    Trophy Points:
    41
    P5000 and m5000m

    Sent from my SM-G950F using Tapatalk

    Padraig O Cuinn, Dec 11, 2017
    #212
  13. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231

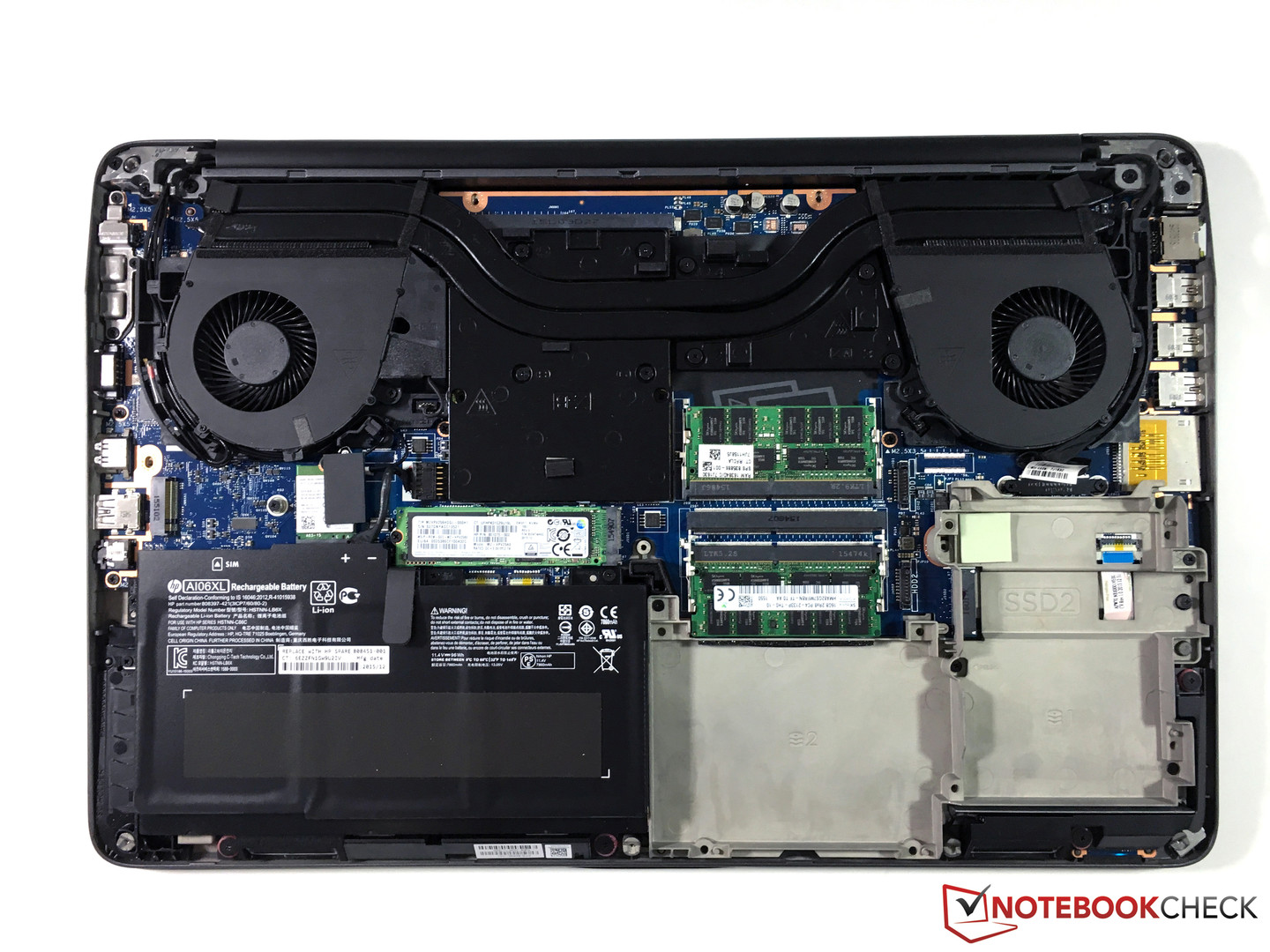

    you can certaily upgrade your G4 17 with a P5000 because it is in the list of parts for zbook G4

    P3000 Y3J90AV
    Part No: 917110-001 Description: SPS-GFX NVIDIA Quadro P3000 6GB


    P4000
    Part No: 917111-001 Description: SPS-GFX NVIDIA Quadro P4000 8GB


    P5000
    Part No: 917112-001 Description: SPS-GFX NVIDIA Quadro P5000 16GB

    M5000M should be the same for your G3 17. A P5000 in your G3 could be great but you should test it. I don't know if that is compatible

    sicily428, Dec 11, 2017
    #213
  14. Padraig O Cuinn

    Padraig O Cuinn Notebook Consultant

    Reputations:
    13
    Messages:
    246
    Likes Received:
    38
    Trophy Points:
    41
    I actually wanted to know if I could throw a GTX 1080 in either of them but its great news know9ng I could upgrade to a p5000 in the g3 if possible

    Sent from my SM-G950F using Tapatalk

    Padraig O Cuinn, Dec 11, 2017
    #214
  15. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    A gtx1080 requires a really good cooling system (150+W of TDP) and a lot of power, so that is not so simple

    sicily428, Dec 11, 2017
    #215
  16. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    @Padraig O Cuinn

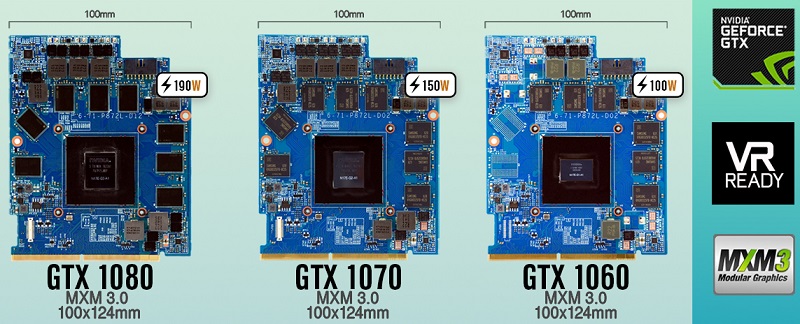

    there aren't mxm 3.0b gtx1080 cards at the moment

    MSI
    [​IMG]

    Clevo
    [​IMG]

    Aetina
    [​IMG]

    sicily428, Dec 11, 2017
    #216
  17. Padraig O Cuinn

    Padraig O Cuinn Notebook Consultant

    Reputations:
    13
    Messages:
    246
    Likes Received:
    38
    Trophy Points:
    41
    Thanks @sicily428 I was kicking myself looking for something that will fit. Is there an alternative GTX with good power and good speed that equates to the Quadro

    Sent from my SM-G950F using Tapatalk

    Padraig O Cuinn, Dec 11, 2017
    #217
  18. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    you are welcome!

    what softwares?

    sicily428, Dec 11, 2017
    #218
  19. Padraig O Cuinn

    Padraig O Cuinn Notebook Consultant

    Reputations:
    13
    Messages:
    246
    Likes Received:
    38
    Trophy Points:
    41
    I work in game dev so I'm needing something decent. I basically use Maya ZBrush substance and unreal sometime unity

    Sent from my SM-G950F using Tapatalk

    Padraig O Cuinn, Dec 11, 2017
    #219
  20. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Dec 11, 2017
    #220
  21. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    may be an Eurocom gtx1070 because it is a standard mxm 3.0b card
    [​IMG]

    sicily428, Dec 11, 2017
    #221
  22. Padraig O Cuinn

    Padraig O Cuinn Notebook Consultant

    Reputations:
    13
    Messages:
    246
    Likes Received:
    38
    Trophy Points:
    41
    Yeah I would gear more towards that eurocom myself it would be the most reliable. But I don't have any i would definitely try tho. Any if anyone is willing to transform their gaming unit into a workstation I am here for the trade.

    Sent from my SM-G950F using Tapatalk

    Padraig O Cuinn, Dec 11, 2017
    #222
  23. bennyg

    bennyg Notebook Virtuoso

    Reputations:
    1,567
    Messages:
    2,370
    Likes Received:
    2,375
    Trophy Points:
    181
    The MSI is extremely solid. Many of us have power boosted it well beyond its 115W stock, for many many months. Eurocom used to stock the MSI 1070 before they came out with their 1070.

    bennyg, Dec 11, 2017
    #223
  24. Padraig O Cuinn

    Padraig O Cuinn Notebook Consultant

    Reputations:
    13
    Messages:
    246
    Likes Received:
    38
    Trophy Points:
    41
    Then I should be spoiled for choice. Is the 1070 Maxwell or pascal

    Sent from my SM-G950F using Tapatalk

    Padraig O Cuinn, Dec 12, 2017
    #224
  25. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    pascal

    sicily428, Dec 12, 2017
    #225
  26. Falkentyne

    Falkentyne Notebook Prophet

    Reputations:
    8,396
    Messages:
    5,992
    Likes Received:
    8,633
    Trophy Points:
    681
    @sicily428 Ok, what's the difference between the MSI 1080 type 1 and type 2?
    What MSI laptops even use type 2? what is the TDP of type 2? 200W? 195W? 190W?

    It looks like Type 2 does not use an auxiliary power connector while type 1 does use an auxiliary power connector. Type 1 is on GT73VR 6RF and 7RF.
    But what is type 2? Is this the 1080 used in the MSI 16L13 / Tornado F5? And what is the TDP if it does not have an auxiliary power connector?

    Last edited: Dec 13, 2017
    Falkentyne, Dec 13, 2017
    #226
  27. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Dec 15, 2017
    #227
    FTW_260 likes this.
  28. origin17em

    origin17em Notebook Enthusiast

    Reputations:
    17
    Messages:
    23
    Likes Received:
    29
    Trophy Points:
    16
    One for the OP

    sager NP9170/P170EM 680M to Eurocom 980M with prema v3b bios OCTOBER 2016
    ^ looking to upgrade to eurocom 1070

    origin17em, Dec 31, 2017
    #228
    sicily428 likes this.
  29. thegh0sts

    thegh0sts Notebook Nobel Laureate

    Reputations:
    949
    Messages:
    7,700
    Likes Received:
    2,819
    Trophy Points:
    331
    yeah, not gonna happen considering similar standard MXM cards are having issues. You may as well get the MSI 1060 instead and see if that will work.

    thegh0sts, Dec 31, 2017
    #229
    sicily428 likes this.
  30. origin17em

    origin17em Notebook Enthusiast

    Reputations:
    17
    Messages:
    23
    Likes Received:
    29
    Trophy Points:
    16
    1060 not worth the dosh for 12-25% increase at lower temps and watts (over a 980m)
    been trying to find any and all documents stating the 1070 process for 2 days......thanks tho :D

    origin17em, Dec 31, 2017
    #230
  31. thegh0sts

    thegh0sts Notebook Nobel Laureate

    Reputations:
    949
    Messages:
    7,700
    Likes Received:
    2,819
    Trophy Points:
    331
    A 1060 is the same as a 980DT which is more powerful than the 980M. It is better than having a board die in a few months. There are a few people that have had the standard MXM 1070 that had it fail within a few months due to either too much TDP in the vBIOS, poor design, or poor components.

    If @Eurocom Support hasn't said anything lately, there's probably a reason for it.

    That's why I say go with the MSI 1060 because the design is more robust and you won't have issues later on.

    Sent from my SM-T560NU using Tapatalk

    Last edited: Dec 31, 2017
    thegh0sts, Dec 31, 2017
    #231
    woodzstack likes this.
  32. bennyg

    bennyg Notebook Virtuoso

    Reputations:
    1,567
    Messages:
    2,370
    Likes Received:
    2,375
    Trophy Points:
    181
    Eurocom have tested and offer mxm 3.0b 1070 as an upgrade for p170em and p150em which is almost identical (see OP of this thread)

    bennyg, Dec 31, 2017
    #232
  33. origin17em

    origin17em Notebook Enthusiast

    Reputations:
    17
    Messages:
    23
    Likes Received:
    29
    Trophy Points:
    16
    well since my 980M has been working flawless for 1+ year i only recently began to surf around and see whats happening with updates/bios/mods etc
    thats when i noticed the 1070 works on the P170EM
    (as well as Nvidia's FAIL for not naming them 10xxM *highlight MOBILE/NOTEBOOK card*) -- makes it harder to research the card itself.

    i contacted Eurocom yesterday for information..

    Today I decidied to finally try Prema's MXM 9xxM v2 OC vbios (not G)
    this whole time ive been running on stock :D

    this apparently adds 0.07volt
    up from .9875volt

    origin17em, Dec 31, 2017
    #233
  34. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    @Eurocom Support
    did you test mxm 3.0b p3000/p4000/p5000 with this new P775TM? is that compatible?

    sicily428, Jan 13, 2018
    #234
  35. elisons

    elisons Notebook Consultant

    Reputations:
    0
    Messages:
    137
    Likes Received:
    4
    Trophy Points:
    31
    elisons, Jan 14, 2018
    #235
  36. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    those should be Gecube cards

    [​IMG]

    [​IMG]

    sicily428, Jan 14, 2018
    #236
  37. Falkentyne

    Falkentyne Notebook Prophet

    Reputations:
    8,396
    Messages:
    5,992
    Likes Received:
    8,633
    Trophy Points:
    681
    Gecube cards.....you mean the "Magic smoke appears if you TDP mod them" cards?

    Falkentyne, Jan 14, 2018
    #237
  38. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Jan 22, 2018
    #238
  39. Padraig O Cuinn

    Padraig O Cuinn Notebook Consultant

    Reputations:
    13
    Messages:
    246
    Likes Received:
    38
    Trophy Points:
    41
    How much did you pay for the p5000

    Padraig O Cuinn, Jan 22, 2018
    #239
  40. woodzstack

    woodzstack Alezka Computers , Official Clevo reseller.

    Reputations:
    1,201
    Messages:
    3,495
    Likes Received:
    2,593
    Trophy Points:
    231
    You always have me here, if needed.

    woodzstack, Jan 23, 2018
    #240
  41. woodzstack

    woodzstack Alezka Computers , Official Clevo reseller.

    Reputations:
    1,201
    Messages:
    3,495
    Likes Received:
    2,593
    Trophy Points:
    231
    here's a Gecube card for you :
    [​IMG]

    woodzstack, Jan 23, 2018
    #241
    sicily428 likes this.
  42. dellienware owner

    dellienware owner Notebook Evangelist

    Reputations:
    26
    Messages:
    351
    Likes Received:
    11
    Trophy Points:
    31
    Anyone have a link to what eurocomm was selling?

    dellienware owner, Jan 23, 2018
    #242
    woodzstack likes this.
  43. dellienware owner

    dellienware owner Notebook Evangelist

    Reputations:
    26
    Messages:
    351
    Likes Received:
    11
    Trophy Points:
    31
    Looking to install 1080m in a p377sm

    dellienware owner, Jan 23, 2018
    #243
  44. Padraig O Cuinn

    Padraig O Cuinn Notebook Consultant

    Reputations:
    13
    Messages:
    246
    Likes Received:
    38
    Trophy Points:
    41
    I'd love to install one in my zbook but they aren't strong enough. Not even sure a 1070 would be good

    Padraig O Cuinn, Jan 23, 2018
    #244
  45. woodzstack

    woodzstack Alezka Computers , Official Clevo reseller.

    Reputations:
    1,201
    Messages:
    3,495
    Likes Received:
    2,593
    Trophy Points:
    231
    Sure, but not allowed to link that here, sometimes comes off as promoting.
    I'll send you via PM if you actually want it.

    woodzstack, Jan 23, 2018
    #245
  46. bennyg

    bennyg Notebook Virtuoso

    Reputations:
    1,567
    Messages:
    2,370
    Likes Received:
    2,375
    Trophy Points:
    181
    I don't know what the individual slot limit is but my p370 can do 170W sustained draw on each slot stress test stable and the platform power limit CPU throttle doesn't kick in until I get well over 500W wall draw (NB this is P370EM I can't imagine clevo would go backwards with the SM iterations)

    So power should be no issue since most 1080Ms are 150W.

    I imagine temps will be your main problem

    That is, after you source a compatible 1080 ;p

    Eurocom have not said a thing about their MXM 1080 for a loooooong time I'd assume its vaporware

    bennyg, Jan 24, 2018
    #246
    sicily428 likes this.
  47. woodzstack

    woodzstack Alezka Computers , Official Clevo reseller.

    Reputations:
    1,201
    Messages:
    3,495
    Likes Received:
    2,593
    Trophy Points:
    231
    there was enough difficulty getting the 1070 working properly. 1080 haven't heard much of it since. It's over 1 year late.

    woodzstack, Jan 24, 2018
    #247
    sicily428 likes this.
  48. su35

    su35 Notebook Guru

    Reputations:
    0
    Messages:
    67
    Likes Received:
    2
    Trophy Points:
    16
    what map is this?model card

    su35, Jan 24, 2018
    #248
  49. bennyg

    bennyg Notebook Virtuoso

    Reputations:
    1,567
    Messages:
    2,370
    Likes Received:
    2,375
    Trophy Points:
    181
    Rx480/rx580

    Not compatible with Clevos

    Unobtainium due to bloody crypto miners

    bennyg, Jan 24, 2018
    #249
    su35 likes this.
  50. su35

    su35 Notebook Guru

    Reputations:
    0
    Messages:
    67
    Likes Received:
    2
    Trophy Points:
    16
    06_amd_embedded_radeon_e9260_e9550.jpg 06_amd_embedded_radeon_e9260_e9550.jpg
    what about this map?

    su35, Jan 25, 2018
    #250
← Previous pageNext page →
