Installing Windows XP on the Intel based dvx500t Series

the remote works in windows media player and i guess winamp

havent used the spdif out

i thought i stated that in my guide... maybe it was the older version

well done dude



I've attempted to use this guide for my Sager NP5791, which has the same SATA chipset as this guide uses. It worked, sort of. Upon rebooting after the initial install it said it couldn't detect the hard drive again, stating "Hardware failure...etc". I did some more poking around and found this site:

http://downloadcenter.intel.com/Det...&OSFullName=Windows* XP Professional&lang=eng

It appears there are newer SATA drivers then the ones you include in your package. I haven't tried them to see if they work for me, but it's good FYI.



if its the same chipset and SATA as our notebooks, then it should have worked no problem, regardless of whether there is a newer version or not.

try this link:

http://downloadcenter.intel.com/Det...&OSFullName=Windows* XP Professional&lang=eng

but youll have to install that after you install Windows XP.

it doesnt make sense to keep reburning a Windows XP CD when new SATA drivers come out. thats why the older drivers are slipstreamed (and they work just fine) and later updated simultaneously while the chipset is being installed.

did you select the correct driver during the slipstream process?



When I install XP on my dv9500t, I'm thinking I don't want to install the QuickLaunch/QuickPlay software (as I posted previously -- I think the QuickLaunch/QuickPlay button is too sensitive to the touch). But if I don't install that, can I still get my volume control and volume mute buttons to work? Or are they all part of the same thing?

Also, are *all* the steps (and updates/alterations to them) discussed in this thread now a part of Post #1 with all the instructions? If not, is there any easy way to find those updated instructions without reading the entire thread?

Thanks!



Not all buttons work.. Maybe they can somehow be programmed to be used in other programs like Media Portal...



Thanks for the guide, I just downgraded to XP and DAM its way faster and more stable than vista. It also runs wayyyyy cooler (less hotter), runs much quieter (fans don't go crazy anymore) and the battery life increased by about 2-5% so I'm very happy with my downgrade.



No, the Quicklaunch buttons have their own driver, which is necessary to get any of the buttons working (including volume and mute). I actually found the driver for mine off the HP website, its one of the few they make for XP. At the moment you dont have the choice to install QuickPlay anyway because it doesn't work under XP.

Grand Admiral



The quick play buttons driver will give you play/stop, next,previous, mute and volume in XP. Those on the left (quickplay, dvd) is for quickplay and do not work in XP.



quickplay and quicklaunch are two different things. with quicklaunch, you can get your play/pause, forward, volume, etc. buttons to work.

the first post is updated with major findings.

correction: you mean upgrade



hello i followed the directions however when i go the wifi switch stays orange on both on and off setting. I have the 2600t with the intel proset 3945abg. when i go to device manager it is listed under the network adapters? how can i resolve this situation?



ive heard of that problem before. i dont know how to fix it though.



Just a small doubt... will this guide work for a compaq lappy bought recently (not sure of the model no.. its a friend's). My friend has requested me to help him make a downgrade from vista to xp in the new compaq he bought a week ago.. So is it possible..?? I'll be making it a dual boot machine.



I just checked it and didn't see any change. Is it possible to call out the changes with a different color? (Or list what the changes are here?)

Thanks!



First of all I want to thank the topic starter for this great guide.
But I could use some more help atm
I installed XP a few weeks ago but I seem to have random Blue Screens of death followed by a reboot. No way for me to see the exact error because my PC reboots way to fast. What could this be ?



i dont know if i can solve your problem. this thread is primarily about installing XP, not solving BSoD's as a result of installing XP on your computer.

im going to bet that it is a driver issue, thats why you posted here.

boot into safe mode (hold F8 key before the Windows XP boot screen comes up, select Safe Mode), and go into your "system properties". click on the "advanced" tab, then click on "settings" under "start up and recovery". uncheck "restart automatically"

----

as for updates, they are included in the OP, i didnt colorize them or anything.
i have finals for the next two weeks



oh about the BSoD's note down the error numbers you get and please post them here.

also please install Everest and list your hardware name and model #s if you can.
also post where u got the drivers from (whether you got them from here or else where)

the drivers from here and from Robvia's site are known to work with these laptops.



i just remembered something. you can go into your System Events and find out the error code too, but you have to search and have to know where to look



I tried to integrate the driver in nlite but it display a message which contains

Error!

Incorrect parameter. However this driver may still work.

and successfully burns the data in the CD.

when i tried to boot the computer using the cd it says iastor.sys is corrupted. setup cannot continue.

what should i do ?



Hmmm... I don't see any differences. Can anybody post what the updates were to the first post?

http://forum.notebookreview.com/showpost.php?p=2424166&postcount=1


Also, is there any difference at all between these two downloads?

"Driverpak_1.02_dvX500.zip"
http://www.megaupload.com/?d=DSN728K5

"Driverpak_1.02_DVX500Series.zip"
http://hp-drivers.hansmast.com/Driver_Pack_1.02_DV95XX_Series.zip

Thanks!

Good luck with finals, mujjuman!



i think you slipstreamed wrong.
go back into nlite, and make sure you choose "multiple driver folder" and choose the folder in which iastor.sys is located. then choose the mobile ich8m driver.

hey thanks man.

there is no difference between the two files. they are located on two different locations because some people could not access the megaupload site (due to national restrictions in their country, or work restrictions at their place of employment)



Fantastic directions. Here's what I did, maybe it'll give some people a bit more help. I forgot to save a digital copy of my Everest report originally, so I typed out what I thought to be important. Some of the steps originally outlined in mujjuman's directions either didn't apply, didn't even exist as an option, or I just opted to skip. Also, I installed a few extra things (the AMD Processor update and BIOS update). So far everything is working perfectly (device manager is completely clean, no exclamations), I'll post if any changes occur. One thing interesting however...apparently I gained an additional 128 MB of video memory for my GeForce 6150 after XP was installed...any ideas why this happened?

Again, much thanks to mujjuman's and Hackez.

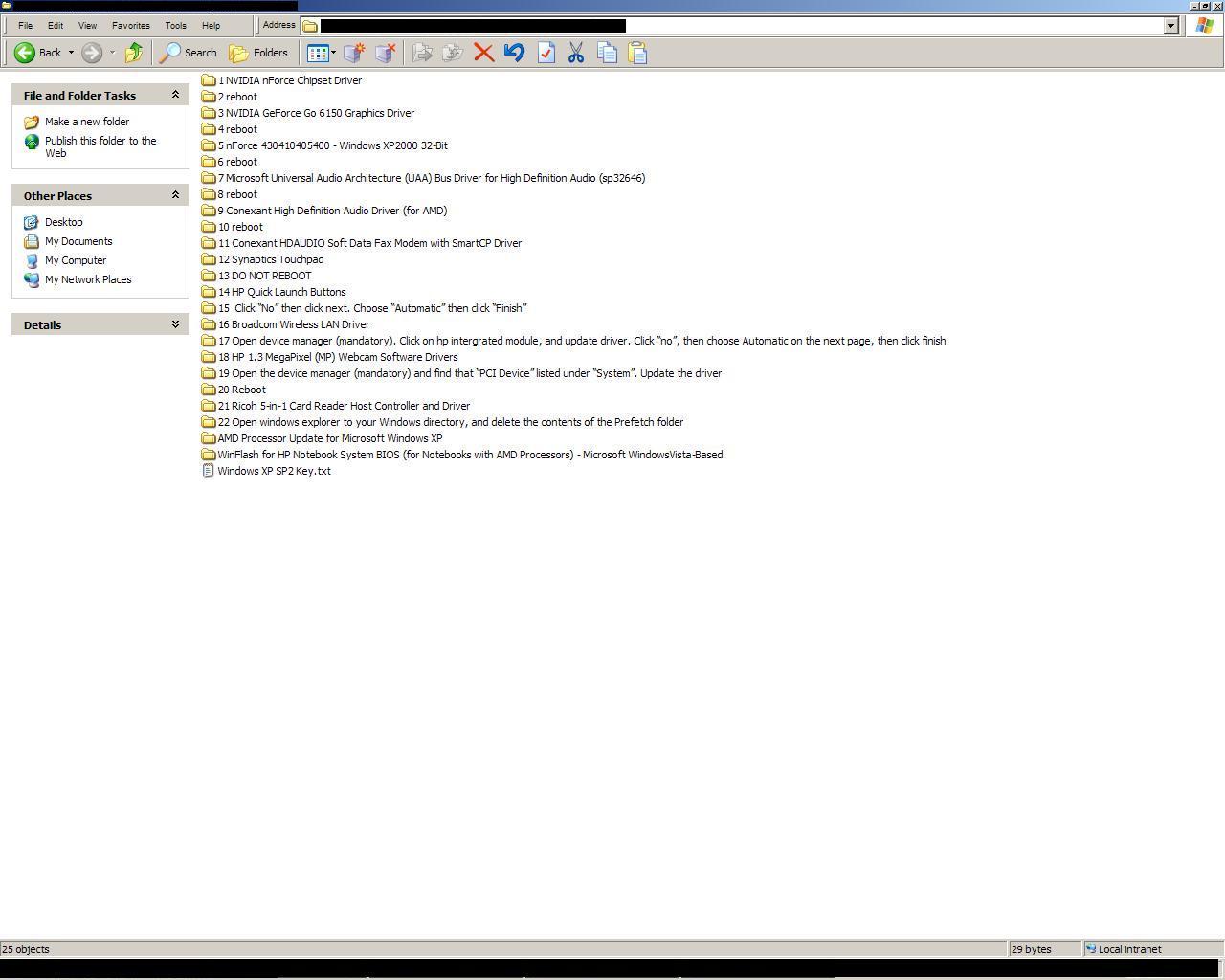

EDIT: I originally had a picture of my filetree where I kept my drivers...but it was too big and I'm too lazy to resize. Here is the url: http://image.bayimg.com/hainiaaba.jpg

HP dv2313cl

Before

After



nice man.

what steps did you skip/omit/didnt apply?



hello, i have a problem with mi dv2500 (dv2621la)
it's a pentium dual core 1.46ghz, 2gb ram,120gb hd

I've followed the guides and succesfully installed winxp, but there's an exclamation sign next to "conexant setup api" in the device manager. sound works (some stuttering) and a couple of times I got BSOD at the "welcome screen".

I don't know what i'm doing wrong.

hope you can help me



My CD already had SP2, and I didn't need to slipstream anything else into it.

Most of my steps differed simply because I had completely different drivers. I'll outline them anyways:

-Didn't have to install Intel Matrix Storage Manager Drivers (probably because of AMD, I don't even know what this does).

-I had no Realtek drivers, and had no need to install any extra ethernet drivers (they were installed with the chipset drivers).

-Had no WDM drivers.

-Skipped modem drives altogether (had no use for them).

-Accidentally rebooted after installing Synaptics, though no problems arose.

-Did not have to update HP Integrated Module.

-Did not have to update PCI Device under System (didn't even have this device listed, though my webcam works perfectly).

-In the end I had 3 unknown hardware exclamation points but after a reboot they disappeared.

I can upload the same file directory I had in my original post somewhere if anyone needs.

Did you get any kind of hardware printout of your components? I noticed some of the drivers differed greatly between models, even if they are in the same series (especially true for my older notebook). It might just be a bad driver install.



this is what everest reports:
(sorry, it's in spanish, i'm from Chile)
Ordenador:
Tipo de ordenador Equipo multiprocesador ACPI (Mobile)
Sistema operativo Microsoft Windows XP Professional
Service Pack del Sistema Operativo [ TRIAL VERSION ]
Internet Explorer 6.0.2900.2180 (IE 6.0 SP2)
DirectX 4.09.00.0904 (DirectX 9.0c)
Nombre del sistema OBIWAN (notebook Rodrigo)
Nombre de usuario Rodrigo
Nombre de dominio [ TRIAL VERSION ]
Fecha / Hora 2007-12-08 / 10:44

Placa base:
Tipo de procesador Mobile DualCore Intel Pentium T2310, 1466 MHz (11 x 133)
Nombre de la Placa Base Wistron 30CD
Chipset de la Placa Base Intel Crestline-GM GM965
Memoria del Sistema [ TRIAL VERSION ]
Tipo de BIOS Phoenix (08/10/07)

Monitor:
Tarjeta gráfica Mobile Intel(R) 965 Express Chipset Family (384 MB)
Tarjeta gráfica Mobile Intel(R) 965 Express Chipset Family (384 MB)
Acelerador 3D Intel GMA X3100
Monitor Samsung LTN141W1-L04 [14.1" LCD]
Monitor Samsung LTN141W1-L04 [14.1" LCD]
Monitor Samsung LTN141W1-L04 [14.1" LCD]

Multimedia:
Tarjeta de sonido Conexant Cx20549 @ Intel 82801HBM ICH8M - High Definition Audio Controller

Almacenamiento:
Controlador IDE Intel(R) 82801HEM/HBM SATA AHCI Controller
Controlador IDE Intel(R) ICH8M Ultra ATA Storage Controllers - 2850
Controlador IDE Ricoh Memory Stick Host Controller
Controlador IDE Ricoh MMC Host Controller
Controlador IDE Ricoh xD-Picture Card Host Controller
Disco duro FUJITSU MHW2120BH (120 GB, 5400 RPM, SATA)
Lector óptico Slimtype DVD A DS8A1H
Estado de los discos duros SMART OK

Particiones:
C: (NTFS) [ TRIAL VERSION ]
D: (NTFS) 93471 MB (68727 MB libre)
Tamaño total [ TRIAL VERSION ]

Dispositivos de entrada:
Teclado Dispositivo de teclado HID
Teclado Teclado estándar de 101/102 teclas o Microsoft Natural PS/2 Keyboard
Ratón Alps Pointing-device
Ratón Microsoft USB Wheel Mouse Optical

Red:
Dirección IP principal [ TRIAL VERSION ]
Dirección MAC principal 00-1A-73-A0-FF-B2
Tarjeta de Red Marvell Yukon 88E8039 PCI-E Fast Ethernet Controller
Tarjeta de Red WLAN Broadcom 802.11b/g (192. [ TRIAL VERSION ])
Modem HDAUDIO Soft Data Fax Modem with SmartCP

Dispositivos:
Impresora Detectando automáticamente Canon Bubble-Jet BJC-2000 en TARRO
Controlador FireWire Ricoh RL5C832 IEEE1394 Controller (PHY: Ricoh RL5C832)
Controlador USB1 Intel 82801HBM ICH8M - USB Universal Host Controller
Controlador USB1 Intel 82801HBM ICH8M - USB Universal Host Controller
Controlador USB1 Intel 82801HBM ICH8M - USB Universal Host Controller
Controlador USB1 Intel 82801HBM ICH8M - USB Universal Host Controller
Controlador USB1 Intel 82801HBM ICH8M - USB Universal Host Controller
Controlador USB2 Intel 82801HBM ICH8M - USB2 Enhanced Host Controller
Controlador USB2 Intel 82801HBM ICH8M - USB2 Enhanced Host Controller
Dispositivos USB AuthenTec Inc. AES2501A
Dispositivos USB Dispositivo compuesto USB
Dispositivos USB Dispositivo de vídeo USB
Dispositivos USB Microsoft USB Wheel Mouse Optical
Batería Adaptador de CA de Microsoft
Batería Batería con método de control compatible con ACPI de Microsoft

DMI:
DMI Distribuidor de la BIOS Phoenix
DMI Versión de la BIOS F.13
DMI Fabricante del Sistema Hewlett-Packard
DMI Nombre del Sistema HP Pavilion dv2500 Notebook PC
DMI Versión del sistema F.13
DMI Número de serie del Sistema [ TRIAL VERSION ]
DMI UUID del Sistema [ TRIAL VERSION ]
DMI Fabricante de la Placa Base Wistron
DMI Nombre de la Placa Base 30CD
DMI Versión de la Placa Base 80.39
DMI Número de serie de la Placa Base [ TRIAL VERSION ]
DMI Fabricante del chasis Hewlett-Packard
DMI Versión del chasis N/A
DMI Número de serie del chasis [ TRIAL VERSION ]
DMI Identificador del chasis [ TRIAL VERSION ]
DMI Tipo de chasis Notebook



you are not following the directions completely. you have to go here:

http://h10025.www1.hp.com/ewfrf/wc/...n&cc=us&dlc=en&product=3195733&os=228&lang=en
and install the driver for your laptop. i hope you did not install any not-applicable drivers. make sure you uninstall all drivers that do not apply to the dv2500 model

thats because you have a dv2000 not a dv2500. the process is much easier for you



I bought my Dv2500t a few days ago.

I tried to install XP on it according to the instruction.

But after installation completed and restarted, a blue screen came up with

"STOP 0x0000007B"

Please help me.

Thanks.



mujjuman: that's exactly the driver that i have installed on my notebook.
i followed this guide: http://www.nogodforme.com/HPDV6500T.htm
with the exceptions for the dv2500. (lan, sound, touchpad)



could be a virus.... maybe the SATA driver is wrong.



Hi does anybody know how to install XP on dv6575us cuz i was trying to disable the SATA thing but i couldnt find it on the BIOS so how do i get this done ... cuz i thought that just by partitioning and then booting from a xp installer would work but then it wouldnt find my new xp partition i made for it ... i guess disabling SATA made that happen so .. did anybody get to make it?
Pls help me!



no dude u have to slipstream the SATA drivers onto your CD. did u read the guide at all? lol



You're right mujjuman. A lot of people scan through the guide without actually reading it.



rofl. because most of the answers are right there, if im not mistaken. i know the guide is really long though, but if you follow it step by step then its worth it.

anyway, if i could, i would make the disk for them and install it for them too, they just have to be in the same area as me

sometimes i feel as if thats the only answer.

anyway, i live in Albany, NY, USA. so if anyone is nearby, feel free to contact me anytime and come on over with your disks, laptop, and power cord

i see a ton of students at my college with the dv6000 and dv9000 series laptops and i wonder if they installed XP on it, and if they saw this guide. i actually counted..... about 1/3 are dvx000 series laptops, about 1/3 are macs, and 1/3 are dells. and a small number of thinkpads (like a couple)

hp and mac seem to be selling alot of laptops in my area. years ago i only saw dells



it would be awesome if Windows Updates had driver updates



Hello again !

Windows XP working fine on HP DV9580EG since September.

I wonder if there is a way to slipstream the SATA Driver onto a Windows XP 64-bit platform. I have tried with the x64 edition of the drivers provided by HP from C:\Swsetup, but they don´t actually work.

If there is no solution to this, maybe someone could give me a link to a 64-bit SATA driver for me to slipstream.

I appreciate all your work ! Getting the 1.02 version of drivers right now, I hope there will be some improovements.

Thank you and happy holidays !



no real improvements noted.... just a different file version i guess.

happy holidays to you too



try this driver for the 64bit edition:

http://downloadcenter.intel.com/Det...Windows* XP Professional x64 Edition&lang=eng

extract the file in your 32bit windows, and then slipstream it. reboot with the slipstreamed 64bit OS CD, and proceed to install.

i dont know if there are 64bit versions of the rest of the drivers



Hello everyone, thank you for such a great forum! I finally went ahead and ordered a DV9500T since A) they had a 30 percent off coupon and B) this forum has shown that it is possible to get XP working on it! It should arrive in about a month.

Anyhoo, a couple of questions (and I apologize in advance if this is in the wrong forum). With the release of Service Pack 3, which I have heard is supposed to include sata drivers, will we still have to go through the process of slipstreaming?
My second question is, has anyone tried to take advantage of the Vista Ultimate to XP Pro downgrade program through HP? I keep getting the run around from them and I now am resigned to the possibility of borrowing my friend's XP cd and having to call MS themselves to get the proper activation code. Has anyone gone through this process? HP is clearly not living up to their obligations WRT supplying Vista Ultimate buyers with a Windows XP oem/restore CD.



no idea about SP3 since i never worked with SP3. no idea if MS plans on even releasing the final version. i heard alot of rumors that they might cancel it last minute in favor of Vista. so i dunno.

i dont know why you would even try to go through some "program" to get XP from hp...... they dont even support it for the Santa Rosa laptops as far as i know. they will just turn you down and say "its not possible" then say "it will void your warranty". its just easier to use your own disk and your own key, with your own drivers IMO. the drivers and the simple process is all mentioned here and on robvia's website.



I'm getting 2-3 e-mails a day from people with the knock off brands asking me if I can find drivers for them. Yes, it appears they don't even read the guide, because all over it I tell people to find their own drivers, have links to Everest at the bottom, and explain my guide is for the DV6500T. They'll have a DV6602AU (AMD version sold in India) or a DV6580EE (similar to a DV6500T).

So yeah, it appears these people scan the guide, see all the stuff involved, and fire off an e-mail asking if I can do it all for them. I reply back that I have a full time job. But it's getting to the point where I may take my e-mail address off the page because this is getting ridiculous.

The only other legit problems I'm hearing about are those with sound issues. They install the drivers and it doesn't work. I tell them to install the UAA driver and do it all again making sure they get the Realtek drivers from the site. Somehow this magically works and they eventually get it.

I do get one or two e-mails a week from people who say they got it, but the rest don't even try, even with all my disclaimers about the drivers.



same exact situation as you man.... i agree its getting ridiculous. after my finals, ill change the guide a bit.

its not that robvia and i dont want to answer questions, its just that if you have a non-USA model, you will have to find your own drivers using Everest's help. we cannot list the links for, nor provide packages of hundreds of different laptop versions from india, greece, israel, brazil, france, singapore, antarctica, etc. (the last one was a joke).

btw, im pretty sure both our guides state to install UAA first, and then the realtek driver. i guess when they see the simple XP desktop, they get excited and install any driver they can get their cursor on . the thing is, 70% of the work is already done. the drivers are there, and the process is there. just follow it and there is a 99% chance that there will be no problem.

----

and for those who actually tried and followed the guide (or not) and got it, major props to you.
wow i sound like one of my teachers.



[UPDATE]

k im finished with most of my finals...... i have 1 more to go but ill start on some updates.



Mujjman - Hey good luck on your last final! Yes, I am now convinced that it is not worth it to go through HP for the MS downgrade program. I have been studying the guide in preparation for my DV9500T's arrival and I can't wait to follow the guide POINT-by-POINT!



werd dude.

new Driver Pack is uploading right now. Alot of changes...

Oh btw, the guide is going to change a bit..... after i have dinner

---------
also, i apologize if i seemed nasty and unkind. i did not mean to sound that way.



Is anyone going to offer the new driver pack as separate components? I know someone did with the previous pack, and i havent go the access time or speed to download the full thing. What i really need at the moment is new display drivers. My current drivers have died again. Well, not exactly died but its no longer detecting the maximum resolution my screen is capable of again. Which gets reported to my games, which try doing things they shouldn't and it all gets ugly. Has anyone experienced this problem and can they recommend a particular driver to download?

And to mujjuman and robvia, its fair enough that you have to tell people to give you a break. Its not like you're paid to do this. THANK YOU!

Grand Admiral



hey do you have AOL Instant messenger or something? ill send it to you via AIM for now.

can you give me some details about ur graphics driver? where did u get it, what version, filename? just wondering because there are about 3 drivers out right now and i want to pick the good one. also, what problems are you having, just a failed standby and hibernation?

oh wait, you stated your problem. im so dumb lol. its snowing like crazy outside and while coming home my car got stuck and i was busy shoveling literally 1/4 of the road to get my car home. it was actually really fun, but my brain is still frozen.
anyway, do you get the standby/hibernate problem too?



k ill be online from 8:50PM to 12AM Eastern Time.. just send me an IM

screenname sent via PM



txx!!!!
muito bom o tutorial!!!
instalei em 2 hp dv6573 - versão brasileira
o pack de drivers está 100% compativel!

vlw mujjuman, Hackez!



Hola como estas? yo me puse se espanol, pero pienso este proceso trabajado para usted. si hizo, yo contento. es usted diciendo que todos los driveros trabajados? entendi no.



i meant to say:

hi how are you? i dont know spanish, but i think this process worked for you. if it did, then im happy. did you say that ALL the drivers worked? i didnt understand.
