Great thermal review!
Do you think there would be any positive to doing a hole in the side of the fan enclosure pointing towards the ram and m.2? It would expel air towards those components and lose some toward the heat sink. But with the increased air flow availability with the hole in the cover maybe it would be okay? Thoughts?
Maybe you friends @Eurocom Support could send you another fan to test it with?
-
-
-
That might work. If I had a spare fan I would certainly try that. The only potential issue could be the fans are already kind of weak and that could reduce static pressure to a detrimental extent. The RAM doesn't seem to get warm, but NVMe certainly does. If this little bugger had crazy opened can of whoop-ass monster fans like the P870DM3 I bet it would run super cool as well made as the heat sinks are. I think one of the reasons it gets warm is because the fans are overly sedate. But, that would also make the people that like quiet laptops pretty upset.UsmanKhan likes this. -
@yotano21 Have a vBIOS for you that might fix your 1070 crashing issues.
vBIOS 86.04.5B.00.8A
https://drive.google.com/file/d/0B15_BuSjR26WV0NrbldGVzhlWnc/view -
I've been watching your videos in regards to your tear down and was wondering, do you I need to worry about the lack of airflow to CPU+GPU in the long term as there are no vents directly on top of the fans which was unusual. I'm not confident in taking apart my laptop and generally it runs pretty cool and I barely hear the fans. I get about 78c CPU and 72c GPU max went playing Witcher 3 for extended periods... -
Anyway, I noticed I would be getting these random microsoft.net framework error messages when I power my laptop on or coming off standby/sleep. I noticed often times it would flash up on the screen then disappear, other times it will stay on the screen and I would have to hit either the "continue" button or "exit," neither of which does anything. I copied and pasted the error here, am wondering if anyone knows how to get rid of it? I tried using the framework repair tool off of microsoft's website but I don't think that did anything...
System.Configuration.ConfigurationErrorsException: Configuration system failed to initialize ---> System.Configuration.ConfigurationErrorsException: '.', hexadecimal value 0x00, is an invalid character. Line 10, position 1. (C:\Users\chris\AppData\Local\MSI\SCM.exe_Url_zv0ikcohnhzptbjtykvepncdk0ijftla\13.16.6153.0\user.config line 10) ---> System.Xml.XmlException: '.', hexadecimal value 0x00, is an invalid character. Line 10, position 1.
at System.Xml.XmlTextReaderImpl.Throw(Exception e)
at System.Xml.XmlTextReaderImpl.ParseText(Int32& startPos, Int32& endPos, Int32& outOrChars)
at System.Xml.XmlTextReaderImpl.ParseText()
at System.Xml.XmlTextReaderImpl.ParseElementContent()
at System.Xml.XmlTextReaderImpl.Skip()
at System.Configuration.XmlUtil.StrictSkipToNextElement(ExceptionAction action)
at System.Configuration.BaseConfigurationRecord.ScanSectionsRecursive(XmlUtil xmlUtil, String parentConfigKey, Boolean inLocation, String locationSubPath, OverrideModeSetting overrideMode, Boolean skipInChildApps)
at System.Configuration.BaseConfigurationRecord.ScanSectionsRecursive(XmlUtil xmlUtil, String parentConfigKey, Boolean inLocation, String locationSubPath, OverrideModeSetting overrideMode, Boolean skipInChildApps)
at System.Configuration.BaseConfigurationRecord.ScanSections(XmlUtil xmlUtil)
at System.Configuration.BaseConfigurationRecord.InitConfigFromFile()
--- End of inner exception stack trace ---
at System.Configuration.ConfigurationSchemaErrors.ThrowIfErrors(Boolean ignoreLocal)
at System.Configuration.BaseConfigurationRecord.ThrowIfParseErrors(ConfigurationSchemaErrors schemaErrors)
at System.Configuration.ClientConfigurationSystem.OnConfigRemoved(Object sender, InternalConfigEventArgs e)
--- End of inner exception stack trace ---
at System.Configuration.ConfigurationManager.PrepareConfigSystem()
at System.Configuration.ConfigurationManager.RefreshSection(String sectionName)
at System.Configuration.ClientSettingsStore.ReadSettings(String sectionName, Boolean isUserScoped)
at System.Configuration.LocalFileSettingsProvider.GetPropertyValues(SettingsContext context, SettingsPropertyCollection properties)
at System.Configuration.SettingsBase.GetPropertiesFromProvider(SettingsProvider provider)
at System.Configuration.SettingsBase.SetPropertyValueByName(String propertyName, Object propertyValue)
at System.Configuration.SettingsBase.set_Item(String propertyName, Object value)
at System.Configuration.ApplicationSettingsBase.set_Item(String propertyName, Object value)
at MSI.SCM.SCMII.SetECOtoEC()
at MSI.SCM.SCMII.WndProc(Message& m)
at System.Windows.Forms.NativeWindow.Callback(IntPtr hWnd, Int32 msg, IntPtr wparam, IntPtr lparam)
************** Loaded Assemblies **************
mscorlib
Assembly Version: 4.0.0.0
Win32 Version: 4.6.1586.0 built by: NETFXREL2
CodeBase: file:///C:/Windows/Microsoft.NET/Framework64/v4.0.30319/mscorlib.dll
----------------------------------------
SCM
Assembly Version: 13.16.6153.0
Win32 Version: 13.016.06153.0
CodeBase: file:///C:/Program%20Files%20(x86)/SCM/SCM.exe
----------------------------------------
System.Configuration
Assembly Version: 4.0.0.0
Win32 Version: 4.6.1586.0 built by: NETFXREL2
CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Configuration/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.Configuration.dll
----------------------------------------
System
Assembly Version: 4.0.0.0
Win32 Version: 4.6.1586.0 built by: NETFXREL2
CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System/v4.0_4.0.0.0__b77a5c561934e089/System.dll
----------------------------------------
System.Core
Assembly Version: 4.0.0.0
Win32 Version: 4.6.1586.0 built by: NETFXREL2
CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Core/v4.0_4.0.0.0__b77a5c561934e089/System.Core.dll
----------------------------------------
System.Windows.Forms
Assembly Version: 4.0.0.0
Win32 Version: 4.6.1586.0 built by: NETFXREL2
CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Windows.Forms/v4.0_4.0.0.0__b77a5c561934e089/System.Windows.Forms.dll
----------------------------------------
System.Drawing
Assembly Version: 4.0.0.0
Win32 Version: 4.6.1586.0 built by: NETFXREL2
CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Drawing/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.Drawing.dll
----------------------------------------
System.Xml
Assembly Version: 4.0.0.0
Win32 Version: 4.6.1586.0 built by: NETFXREL2
CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Xml/v4.0_4.0.0.0__b77a5c561934e089/System.Xml.dll
----------------------------------------
WPFOSD
Assembly Version: 1.0.0.0
Win32 Version: 1.0.0.0
CodeBase: file:///C:/Program%20Files%20(x86)/SCM/WPFOSD.DLL
----------------------------------------
PresentationFramework
Assembly Version: 4.0.0.0
Win32 Version: 4.6.1586.0
CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/PresentationFramework/v4.0_4.0.0.0__31bf3856ad364e35/PresentationFramework.dll
----------------------------------------
PresentationCore
Assembly Version: 4.0.0.0
Win32 Version: 4.6.1586.0 built by: NETFXREL2
CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_64/PresentationCore/v4.0_4.0.0.0__31bf3856ad364e35/PresentationCore.dll
----------------------------------------
WindowsBase
Assembly Version: 4.0.0.0
Win32 Version: 4.6.1586.0 built by: NETFXREL2
CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/WindowsBase/v4.0_4.0.0.0__31bf3856ad364e35/WindowsBase.dll
----------------------------------------
System.Xaml
Assembly Version: 4.0.0.0
Win32 Version: 4.6.1586.0 built by: NETFXREL2
CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Xaml/v4.0_4.0.0.0__b77a5c561934e089/System.Xaml.dll
----------------------------------------
System.Management
Assembly Version: 4.0.0.0
Win32 Version: 4.6.1586.0 built by: NETFXREL2
CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Management/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.Management.dll
----------------------------------------
PresentationFramework.Aero2
Assembly Version: 4.0.0.0
Win32 Version: 4.6.1586.0 built by: NETFXREL2
CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/PresentationFramework.Aero2/v4.0_4.0.0.0__31bf3856ad364e35/PresentationFramework.Aero2.dll
----------------------------------------
UIAutomationTypes
Assembly Version: 4.0.0.0
Win32 Version: 4.6.1586.0 built by: NETFXREL2
CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/UIAutomationTypes/v4.0_4.0.0.0__31bf3856ad364e35/UIAutomationTypes.dll
----------------------------------------
MSIECO
Assembly Version: 1.0.1308.2003
Win32 Version: 1.0.1308.2003
CodeBase: file:///C:/Program%20Files%20(x86)/SCM/MSIECO.DLL
----------------------------------------
************** JIT Debugging **************
To enable just-in-time (JIT) debugging, the .config file for this
application or computer (machine.config) must have the
jitDebugging value set in the system.windows.forms section.
The application must also be compiled with debugging
enabled.
For example:
<configuration>
<system.windows.forms jitDebugging="true" />
</configuration>
When JIT debugging is enabled, any unhandled exception
will be sent to the JIT debugger registered on the computer
rather than be handled by this dialog box. -
-
Well you guys I have to say I'm pretty happy with this screen. It's 120hz only has one stuck red pixel, nothing dead. Although I honestly don't think I notice the 120hz vs the 60hz on the desktop when moving around my mouse? Any ideas why? Also thank you @Mr. Fox for the video on how to do this!
Edit: never mind I definitely feel the 120hz difference when playing a game
Sent from my iPhone using TapatalkLast edited: Feb 18, 2017 -
Sent from my iPhone using Tapatalk -
Anyone know if we can use an eGPU on the Tornado F5 using the Thunderbolt 3 USB c port?
-
Also this new vBIOS is great. It looks as if they undervolted each clock level like I was doing manually with prior vbios.
Now with a +200mhz overclock the GPU holes 1840mhz all day in BF1 at lower temps. The clock speeds are very stable and fluctuate little to none.hmscott likes this. -
Wait, a new Vbios?
-
hmscott likes this.
-
how hard is it to install that vbios? Is it just an executable and let it all run by itself?
-
-
-
"Out of the box" the clocks go straight to the Nvidia spec boost clocks of 1645mhz when under load and just sits there with no fluctuations. Overclocking allows the GPU to boost to that value more accurately and hold it without fluctuations.
It's entirely possible they raised the TDP a tad while modifying the clocks boost table to hit higher clocks at lower voltages.
I'll see if I have some time to tweak its boost tables soon.hmscott likes this. -
woodzstack Alezka Computers , Official Clevo reseller.
-
-
The vBIOS is official. In fact there are a few others but this is the newest and best. It appears to also solve the crashing issues some MSI 1070s were having (I never had any crashing).UsmanKhan likes this. -
Got an idea?
Edit : Nevermind, that was idle clock, went up to 1800 in game
Seem's super stable for me.
Last edited: Feb 19, 2017birdyhands, Papusan, UsmanKhan and 2 others like this. -
If anyone is experiencing undervolts set with Intel XTU or BIOS not holding or resetting themselves after waking the laptop from sleep. Sleep is the issue, and has been shown to cause issues with Skylake and is a BIOS bug that needs to be addressed. I fixed the issue, but the only way to do that is to use hibernate or simply shut down every single time you close the laptop lid. After selecting hibernate the issues resolves itself, and can be replicated 100% of the time when using sleep mode.
UsmanKhan likes this. -
@Talon I did some Benchmarking testing with my machine.
New vbios vs old vbios
It somehow show -139 core clock speed with the new vbios while offering me similar performance.
I can't overclock it more than before, past 265/500 it just crashes for me,
Got any idea why i'm getting that -139 core clock read on 3dmark?
1645 + 265 = 1910 so idk why i'm getting 1823 base clock now and was getting 1962 with old vbios ... seem's strange to me ..
My new test :
http://www.3dmark.com/3dm/18082679
Setting is :
7700k @ 4.5 GHZ with -0,100v undervolt
Gtx 1070 @ +265/500 with +0.100v voltage
My old test :
http://www.3dmark.com/fs/11327201
Setting was :
7700k @ 4.5 GHZ with -0,150v undervolt
Gtx 1070 @ +265/500
Tldr : I'm not getting any gains.Last edited: Feb 19, 2017 -
Robbo99999 Notebook Prophet
UsmanKhan likes this. -

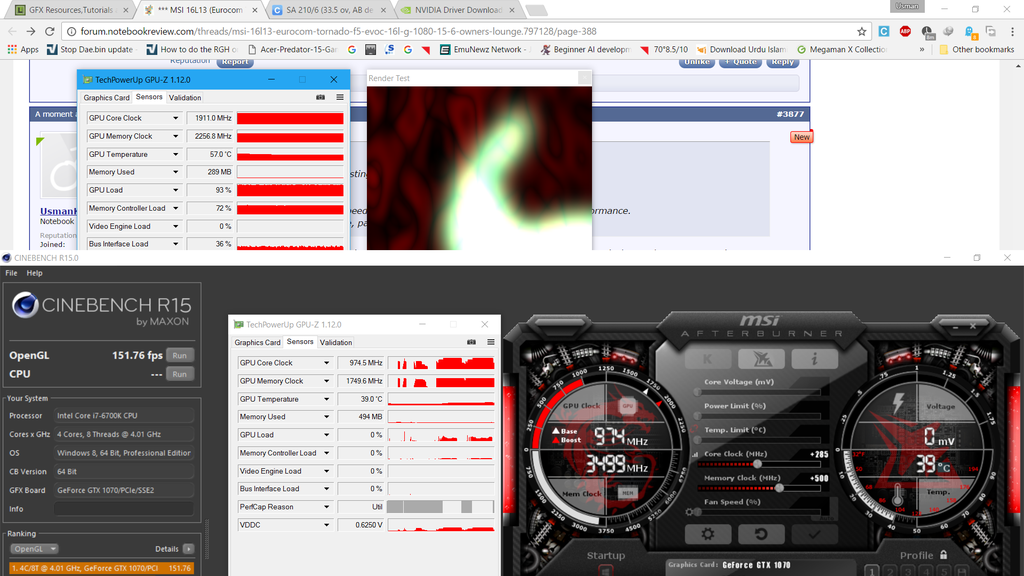

edit: wow @Talon these are great. temps are much better and i can hold 1900+ during gpu z test even that was fluctuating before and check the voltage its much lower thn before.

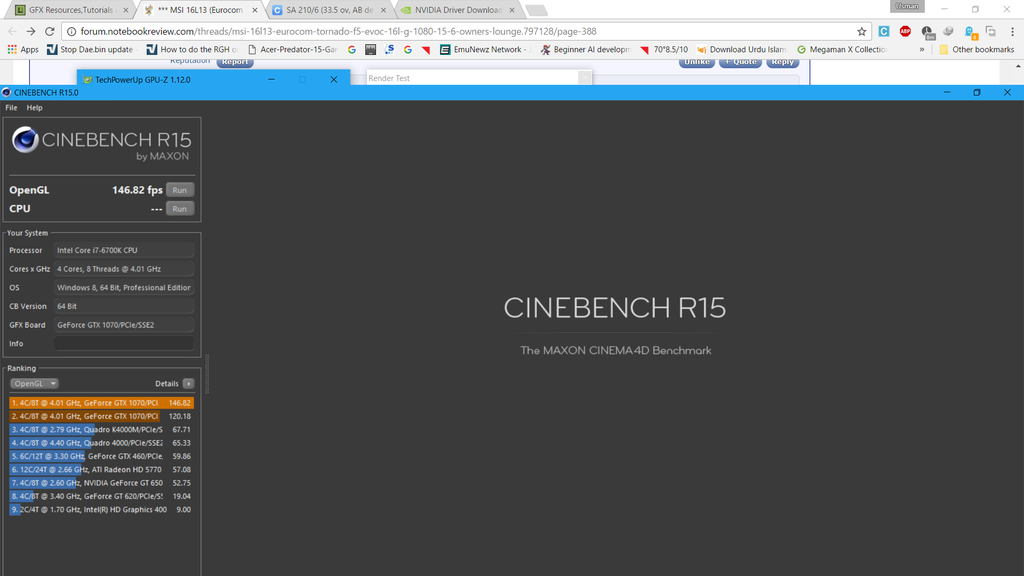

edit: cinebench r15 fps from 120 from before to 140+ its amazing.
Last edited: Feb 19, 2017 -
I'm getting better Graphic score with newest Vbios, i'm able to do 265/575 overclock on the card (was doing 265/500 before)
But clock wise, i'm currently getting 1840 average while i was getting score up to 1960 before.
Look like they made it more stable but reduced our OC'ing ability once again.
I don't get why they'd do that ... the card is running so ridiculously low in temperature they should allow us to bump the voltage and play with the clock a little more.Last edited: Feb 19, 2017UsmanKhan likes this. -
-
downloading will take over 8 hours. can check some games if u want.
edit: it seems i cant do more thn +270 on core clock and around +600 on memory. any number bigger and it crashes. but its significantly higher thn my previous limit of +255 and +520 on old bios and temps are alot better now too.Last edited: Feb 19, 2017 -
most stable settings for me now, anything higher crashes, sometimes not immediately but after some time but these seems good for now. will check watch dogs 2 now and see if it gives any better frames. will also check with the newest 378.66.
ps: disregard the upper portion not sure where it came :/. -
unfortunately games wont accept same clocks as the used for becnhs, watchdogs 2, bf1 all crashing. have to do +265 on core and +500 on memory. but there is huge fps boast now. watch dogs everything crank to max and 4k DSR im getting 25-30 now where 15-25 before. min fps is much better.
-
I updated to that new vbios and everything seems to be working great for me.
I keep getting that darn framework error everytime I power up and logon... any ideas?
Sent from my SM-N920T using Tapatalk -
-
I am coming to the tail end of a major project, so I will have some free time hopefully in two weeks to truly tinker again with my Tornado, P775DM3 (once it arrives) and finish my research on my new DT builds. I have a Rockit 88 Delid tool coming in (I was going to do the razor method again, but a certain forum member's delid results made me think otherwise). After the delid, I'll try to conquer or at least come near @Mr. Fox's scores (I didn't forget bro! Hahaha).
Robbo99999, Papusan and Mr. Fox like this. -
There seems to be a lack of quantitative, apples-to-apples comparison between the stock and new vbios. I will run some tests...
Mr. Fox likes this. -
Ok, finished!

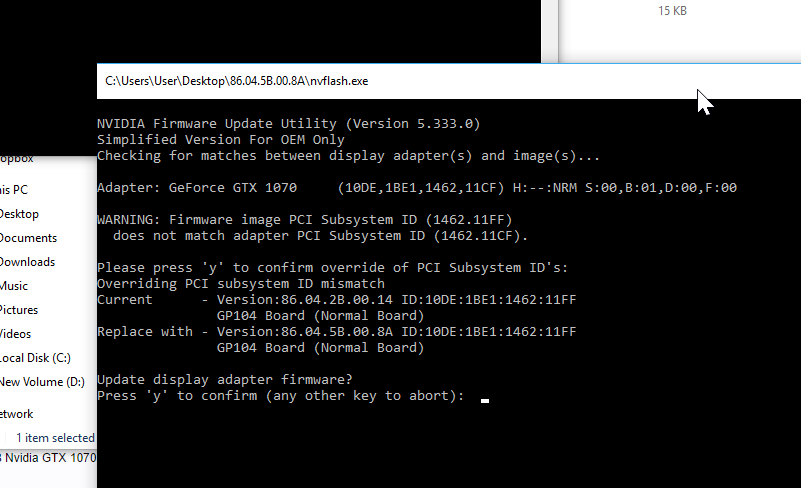

Steps to flash:
- Open Device Manager -> Display adapters -> Right click -> Disable NVIDIA GeForce GTX 1070
- Unpack the vBIOS files -> Right click nvflash.exe -> Compatibility -> Run this program as an administrator (if you skip this step, nvflash will "run", but it won't actually flash the vBIOS)
- Run the batch file

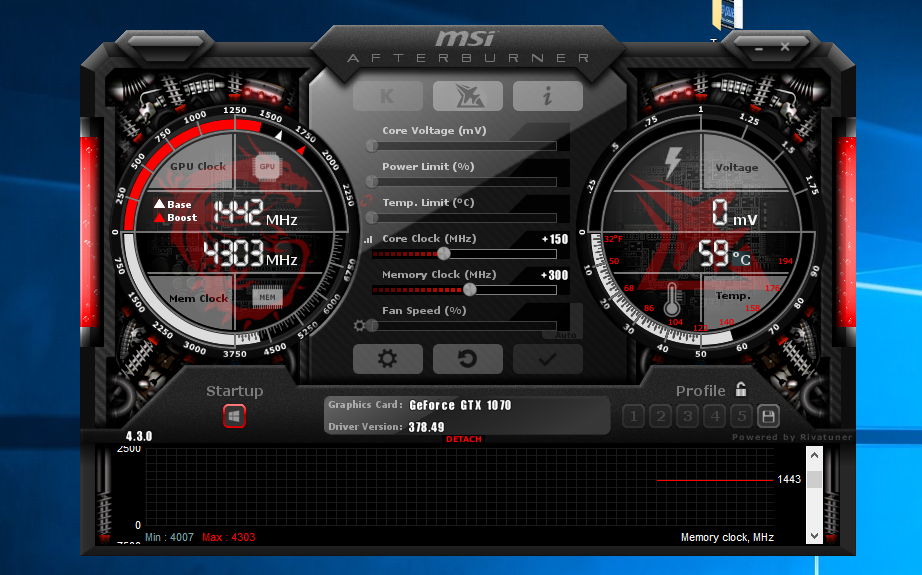

- Enable the NVIDIA GeForce GTX 1070 in the Device Manager -> Open GPU-Z to confirm a successful flash
Here are the test results:
Firestrike GPU Score (Stock vBIOS): 18163
Firestrike GPU Score (New vBIOS): 17526
Thoughts
The vBIOS seems to underclock the GTX 1070N just slightly. The performance difference is minor, with the stock vBIOS being faster by ~3.6%. Performing my Black Ops 3 crash test which I detailed several pages back, I encounter a black screen on both the stock, and new vBIOS. In other words, I still require an undervolt... (but this only affects me).
In conclusion, unless you have a good reason (e.g. encountering issues), I would just stick with the stock vBIOS.

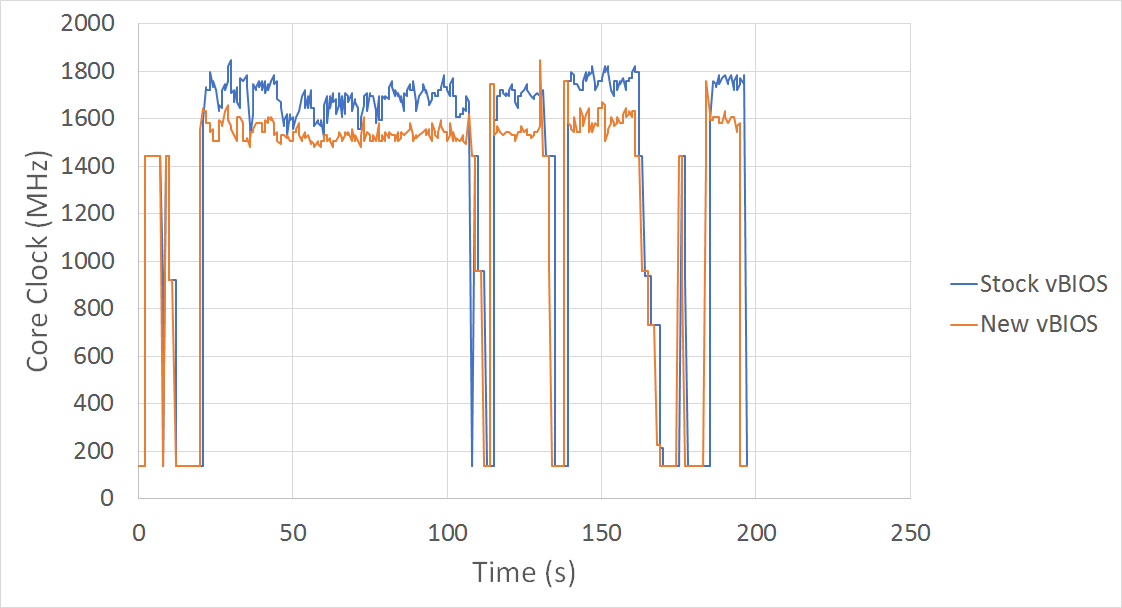

Edit: Looking closer at the core frequency, you can see there is less fluctuation using the new vBIOS, but this comes at a small performance cost. So I will revise my statement: It's up to your personal preference if you want a higher performance potential, or better clock stability. Keep in mind that regardless of vBIOS version, manual undervolting is still the best way to achieve clock stability.
Thanks to @Talon for bringing this vBIOS to my attention. It's good to know that we are not being neglected, and MSI is still working on the 1070N.Last edited: Feb 19, 2017birdyhands, UsmanKhan and Rage Set like this. -

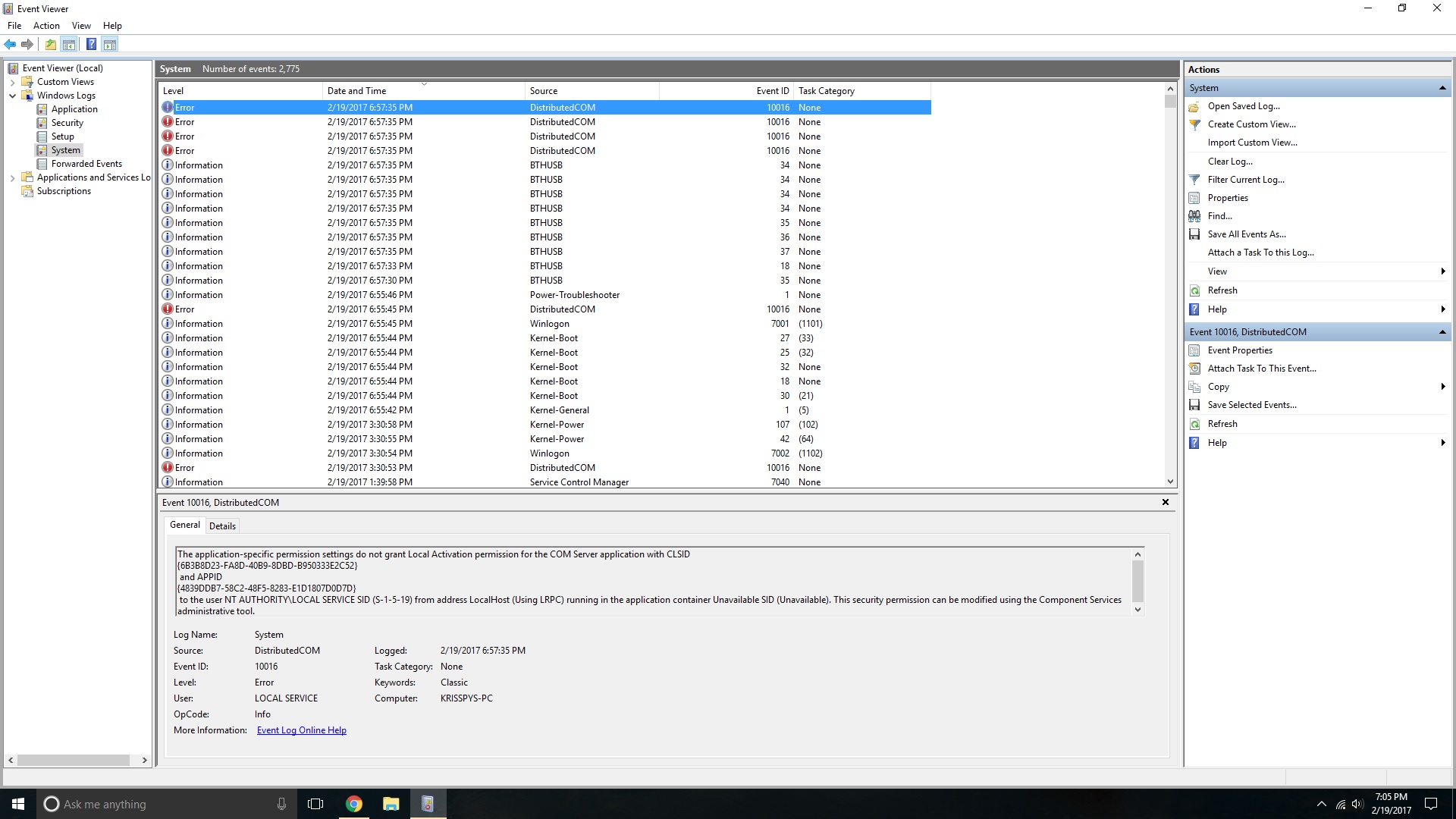

These 2 below seems like to be the usual errors...
- The application-specific permission settings do not grant Local Activation permission for the COM Server application with CLSID
and APPID
{9CA88EE3-ACB7-47C8-AFC4-AB702511C276}
to the user NT AUTHORITY\SYSTEM SID (S-1-5-18) from address LocalHost (Using LRPC) running in the application container Unavailable SID (Unavailable). This security permission can be modified using the Component Services administrative tool.
- The application-specific permission settings do not grant Local Activation permission for the COM Server application with CLSID
{8D8F4F83-3594-4F07-8369-FC3C3CAE4919}
and APPID
{F72671A9-012C-4725-9D2F-2A4D32D65169}
to the user NT AUTHORITY\SYSTEM SID (S-1-5-18) from address LocalHost (Using LRPC) running in the application container Unavailable SID (Unavailable). This security permission can be modified using the Component Services administrative tool.
Not sure what to do...Attached Files:
-
Looks like standard errors there.
-
-
See amuzeinis reply in this thread: https://answers.microsoft.com/en-us...rmission/9ff8796f-c352-4da2-9322-5fdf8a11c81e
I don't know if there are any security issues in doing this, so it's at your own risk. -

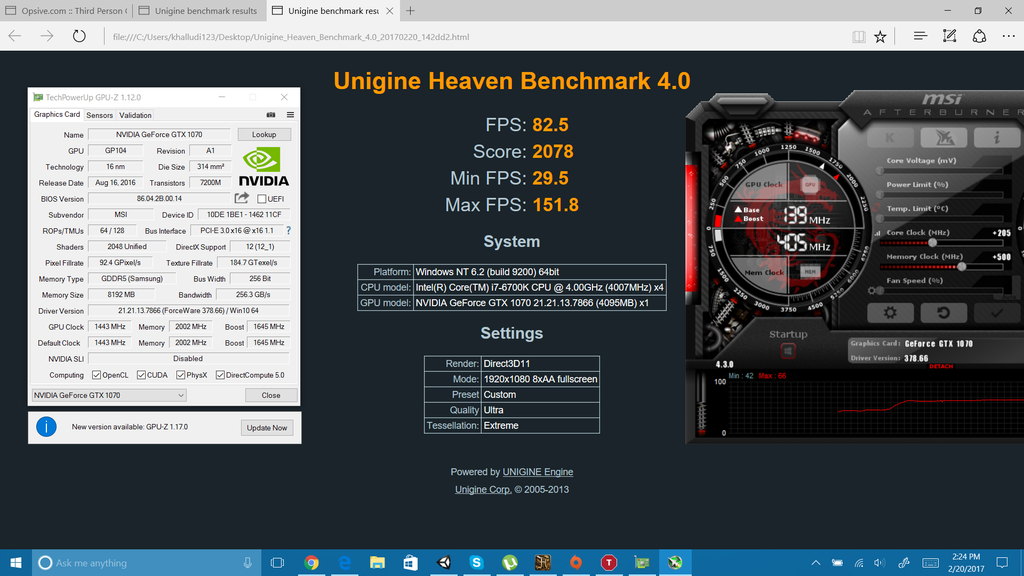

New bios.

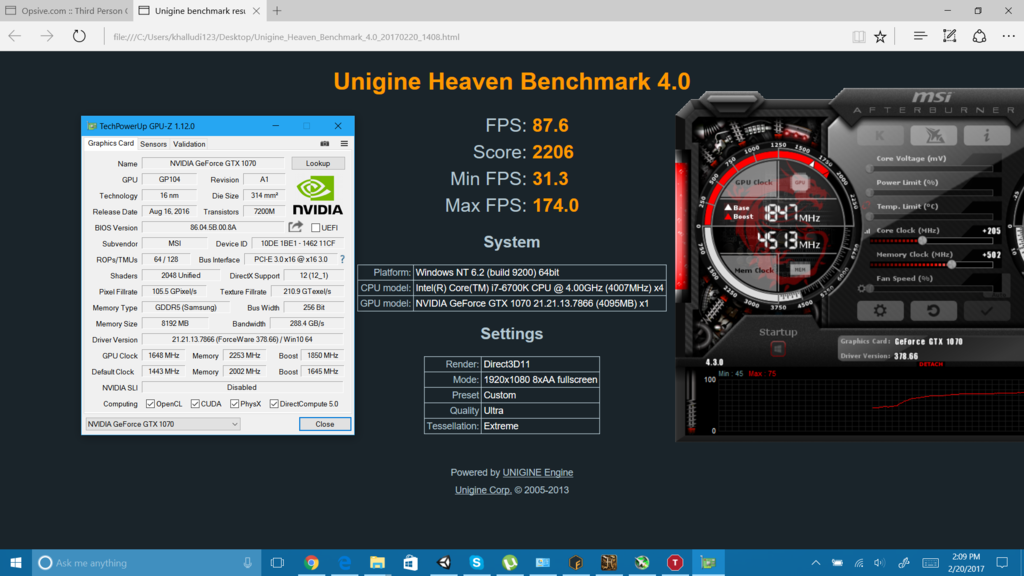

stock bios.
-
Robbo99999 Notebook Prophet
UsmanKhan likes this. -
I have big problem .

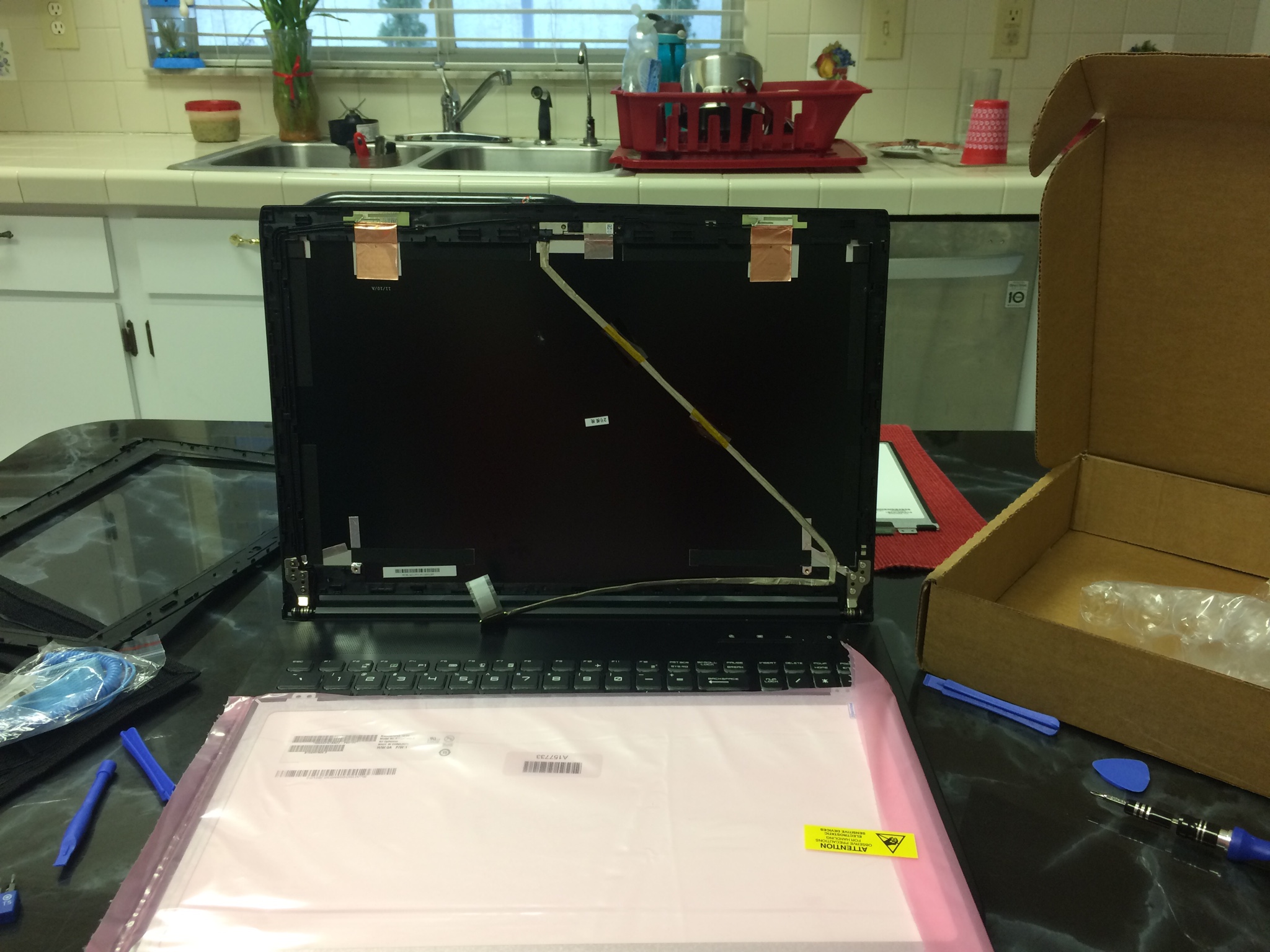

I buyed laptop upgrade 120hz for my tornado F5 from 4K panel , and i have this surprise !!
The tongue is too small
http://imgur.com/a/3EBlS
Can any help me ? @woodzstack @Mr. Fox -
-
-
It has been talked about in this thread alot that the 4k panel received a different cable. -
My recommendation would be to see if you can get your money back on the panel and get a 1080p 120Hz. 4K resolution is a pretty miserable experience on a 17-inch notebook display and on 15-inch it is beyond miserable. There is no point in having 4K on a screen this small. You would have to use it at 200% scaling, which would essentially negate the purpose or benefit of having the higher resolution.
-
Sounds like he purchased the 120hz panel post purchase and went to remove his 4k panel and install the 1080p 120hz panel and ran into the connector difference.
I wish there was a way to get a hold of that 40 to 40 pin connector, but still am unable to.
