Comprehensive MSi unlocked BIOS with XMP support thread

Just had one question:

Will the unlocked bios for 16F2 also unlock the manual fan control like the GX660R unlocked bios did it?

I dont know if it does make much difference but willing to ask.

cheers



I had issues running the 683 BIOS on my 16F2, that's why they are split. If you want the unlocked BIOS, then use the 1761 one I have posted. Rob pretty much nailed it. Although, it seems that the first-gen i7 notebooks are able use either without problems, not so much 2nd-gen i7.

THRM controls are unlocked; it is not manual fan control. You can change the 'trip' points where the fan kicks into low speed and high speed. They are all (at least should be) completely unlocked.



Does it mean a manual control through HWinfo for example according to the GPU temps ? say at 75°C GPU I want to kick the fan into high speed - for the moment I heard the fan were automatically controlled by CPU temp



No, the EC is responsible for fan control. I don't know what determines exactly when the fans kick in, but you could always trying messing with the trip points to see if you find anything, if you're up for it.



Xonar you are right about the EC, basically you need to set the temp trip points and it will adjust the speed of the fan.

Best bet it to set the CPU trip points down low like me and that way the fan will kick up before the GPU gets hot. thats how i hve set it up on the MS-16F2 of my mates. It works wonders but there is a down side to it.

The down side is that it will be louder then normal and battery life takes a slight hammering too. Best bet is really to get a Notebook cooler. I use it on my MS-16F2 and my temps on furmark doesn't hit more then 77c and that is 10c hotter then any game will get the GPU to reach during normal game play.



Many thx Xonar,

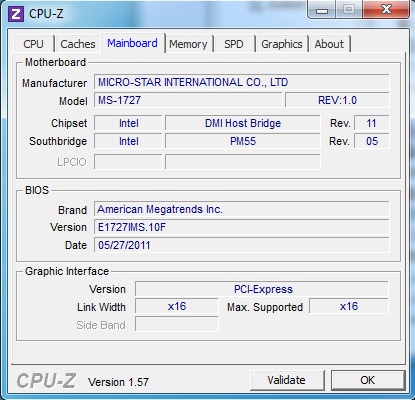

got the GX740/MS-1727 unlocked BIOS to work on my

Medion Akoya X7811!!! YEAH

all works fine and stable so far...huge mount of options in there

even the Touchkey Bar works great (other MSI Bios´s on the X7811 didnt get the Touchkey Bar work right)

Everbody with a X7811 get that BIOS



Awesome, glad I could help.



Does anybody taken the unlocked Bios noticed differences to the Original one?

Mean not the options

In my case two things changed extremly after Updating:

1. my WLAN connection is better than ever (got 3of5 bars before now full 5 everytime @ home)

2. my Battery has much more reserves (got 1 Hour before now 90 Minutes of Office work and surfing)

Anyone else such things?



Power User Menu:
ImageShack® - Online Photo and Video Hosting
ImageShack® - Online Photo and Video Hosting
ImageShack® - Online Photo and Video Hosting
ImageShack® - Online Photo and Video Hosting
ImageShack® - Online Photo and Video Hosting



Hello Xonar, would it be possible to unlock the GX640 bios?

I tried backing up my bios with the backup tool you provided, but unfortunately the program crashes on my system.
(possibly conflicts due to me running a Win7 Japanese and the bios extractor being written in simplified Chinese?)

So instead I tried dumping the BIOS rom from DOS and this is the file I got.

MEGAUPLOAD - The leading online storage and file delivery service

Not really sure this will suffice, hoping it would
Thanks in advance for the efforts.



@Xonar
Hello. I have question for you. Are you able to unlock memory multiplier in ms-16f1 - msi GX660 for 1600 MHz . I know that there is option in bios to change memory frequency but after setting at 1600 MHz it is only 1333 MHz. BTW hidden options we can unlock by pressing special configurations of keys on keyboard but there is problem with 1600 MHz, also on your unlocked bios issue exist. Please give replay. Best regards.



First gen i7 processors do not support anything higher than 1333



Hmmm so why ther is an option 1600 MHz in BIOS . When we overclock via bus from 133MHz and up we get more MHz on DDR3. For sure you right that i7 920xm doesn`t support officialy more tahan 1333 MHz but for example desktops CPU`s - i7 720 support 1600MHz via changing multiplier. I think there is option to run 1600 MHz on 1st i7 core processors on MSI 16F1.



Hello, I just flashed the bios without any problem, and now I would like to make changes in the bios (why not to activate optimus technology ? or decrease the fan speed).

But as I'm french I don't understand all the words. Could someone explain the most important options and the changes I can do ?

Thank you



Decrese the fan speed = shorter life of GPU,CPU . In my opinion bad idea.



I have a GT780DX and im trying to flash the 780 bios but it gives me an error everytime. any ideas ? it always says bios id's dont match



Do you have oryginal msi notebook or AKOYA or something else? On oryginal msi nb everything was all right. There is several revision of mainboard.



In my GT683DXR-646 , the bios for whitebook , rules moooooooore nice than U30 Unlocked :S



The issues only are with sound , i´m fixed this reinstalling Realtek 2.66
And OEM SLP Activation , that fixes with WAT FIX in seconds :=)



i have the original laptop from MSI. GT780DX



高手，能帮忙做一个MSI 1656 就是GX640的BIOS解锁的吗？这是下载链接：
http://download2.msi.com/files/downloads/bos_exe/1656_10e.zip

谢谢！Thanks！



Do you have Unlock Bios for MSI 1656? I really need that, thx~
http://download2.msi.com/files/downloads/bos_exe/1656_10e.zip



楼主一直不在吗？怎么不见你上线呢



Hello is there a unlocked bios for my MSI GT740?
should i use the bios for gx740? In everest shows mainboard as : MSI MegaBook GT740 ( MS-1727) and bios revision E1727IMS.10F



hello

after successfully flashed the unlocked bios, i play around with settings . . .and that ended up badly.

-black blank screen with no activity whatsoever from the screen-

all the led activity seems OK, hence i try to force flash (ctrl+fn+pg up) but no result.

now i want to unplug the bios batteries in order to reset it.

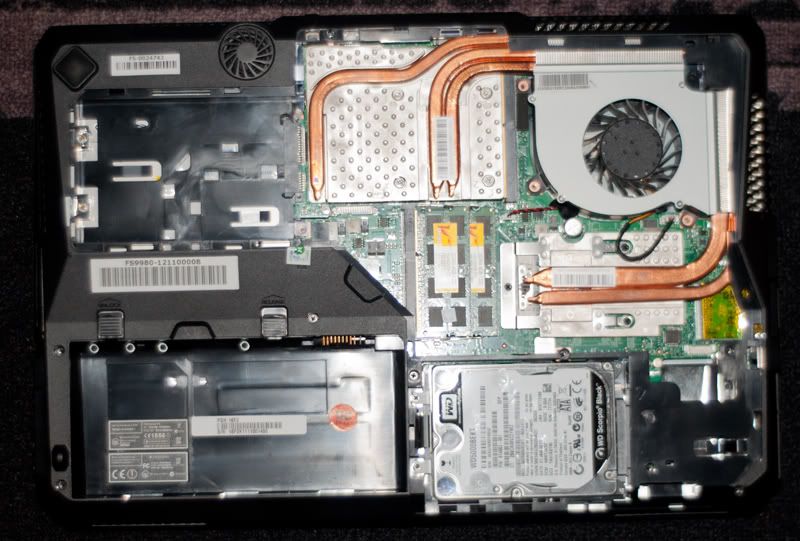

can you show me where exactly the bios battery located

my laptop brand is Forsa, a local one which used the MS-16F2 BAREBONE

terribly sorry for the pic [i don't know how to make spoiler] and the bad english.
thank you



Next to the fan you can see connector red and black cable. Take off and do an shorcuit of 2 pins in that connector. After plug in cable to connector and be happy. Probably you wantet to overclock memory modules to 1600MHz . With elixir modules you can forget about overclocking.



indeed works like a charm. Thank you very much you just save me from a hassle dealer repair :wink:



His name is not majster msi for nothing



I dont think you need to short the two pins, I think removing the battery and waiting 5 seconds will work.



yap, he got a reputations to keep based on his name :yes:

hi Meaker,
i only know how to reset the bios based on my desktop motherboard via short some pins or removing the battery but i don't see any battery on 16F2 and i don't know what pins to shorted. After majster msi told me then i'm sure which the pins are.

can you point me where's the battery located ?



The battery is connected to that 2 pin connector with the black and red wires, it's stuck on the other side of the PCB with tape

So you are unplugging the battery by removing that.



I have Medion Erazer X6817. My BIOS freezes up when trying to save settings. Only force shutdown helps, but settings aren't saved. I've reseted the CMOS and emptied the capacitors, but with no luck of saving the settings.

This leads to a problem; I cannot change the boot order (on every boot I must alter the first boot device to boot up into Windows) and the second issue; I can't boot from USB as legacy USB support is off by default.

I have the BIOS version "E16F2IM7 V5.09" dated 10/20/10 (as told by Everest Ultimate edition). The BIOS is obviously an AMI BIOS, but what I'd like to know is can an update of the either unlocked (preferred) or default BIOS allow me to save the altered BIOS settings without freeze issue? Also, the ability to boot off USB pen drive would be neat again.

So, is it safe to try and flash the "MS-16F2 BAREBONE (+rep Hacktrix2006 for his help!)

v3.05 Unlocked: http://www.megaupload.com/?d=4RNBXMWY" BIOS on my lappie or not? As I can't boot up from the USB currently, can I flash the BIOS from a CD for example? Any details on how to? Anything else I might be aware of?

Thanks in advance, this seems to be the most helpful forum ever!

EDIT: the current BIOS in my laptop is dated 08/15/2011, stated by CPU-Z 1.59. And there was one more thing to mention I just remembered but managed to vanish it out of my head...!

EDIT 2: oh yeah, I've made a backup of my current BIOS with the Universal BIOS backup tool which was mentioned in this thread.



GT780X bios - 30e
I have had a look at the GT780dx/r bios in regards to seeing if a larger ac adaptor would help benefit the laptop from the current 180watt adaptor to say using a 230watt adaptor for those whom like to overclock GPU etc...
I have located the string in the bios and the max option setting is 90w a/c brick what I am asking is there anyway to increase this? can I modify the string to allow this to be increased? anyone tried? I want to increase it 115w option



Very interesting..Have you experienced any throttling issues with your 180w adapter?



Yeah she is throttling



Hm very very interesting, so yours is set to 90W AC, I assume mine would be either set to 90W or rather 75W as it came with the GTX460M lower TDP..

Can you send me your AMIBCP ? Can't find it on google...

@Heatagramm
Not sure flashing the bios mentioned early in this thread will actually help as they are older than the one you've got...but upload your bios and let Xonar have a look at it because If I'm right your MS16F2 came with the 570M so maybe the bios has changed somehow to accomodate it (especially the power enveloppe)



Just had a look at your bios xonars unlocked one and it' set @ 90w ac, would appear we some how need to modify the string to increase it to 115w/120w for a 230/240watt ac adaptor



Would be really awesomeee as my 580M will be even more power hungry when I will overclock it !! No way to change this string directly with the software ? (don't do it lol but just wanna know)



Currently looking into to see if I can adjust the string



xonar do you have any idea what needs to be modified to allow 230watt ac adaptor?



Here is the file link for you to check: Medion Erazer X6817 BIOS

Can you check this bios out, Xonar?

By the way, I've got i7 2670QM, 16 GB of 1333 MHz ram and a 1.5 GB GTX560M, not a 570M... If it matters any.

I wouldn't mind if the BIOS would be older than the current one, because the most important settings are now disabled (USB boot and boot order).



ok I can tell you that it is safe to flash both BIOS MS16F2 (Unlocked 3.05 and Original 3.0) but Xonar will probably confirm.



OK, so is the only possibility for me to flash via CD-rom, as I can't boot off USB?

How to do it? I've lost my track on these things as the last BIOS mod I've done was back in the days when I modded my Powercolor Radeon X800 Pro to XT...

So every detailed info is great, as I wouldn't want to spend 150 euros to repair the laptop.



According to Rob there was a new motherboard revision for the 570M and 580M notebooks, while the 460M and 560M ones are limited to those cards and their factory specified power limits.

You have a 16F2, use the 16F2 BIOS, not 683.



Nooo that means i cant use the 580m ((



better give it to me



Or me

Seriously though, we are all eager to know how your experience with it unfolds



If i can clock mine this high you shoyld be ok with stock volts at least.



Hmm sorry but I'm kind of new to this, can someone explain to me what will I benefit if I flash the modded BIOS in plain English?



You get extra settings to play around with.

If you don't really get this thread maybe you should just leave it alone for now.
