GT780R and GT683R already available in GentechPC, Finally!

Because I want it bad and you go and make a list of how awesome it was jamming it further into my head that I neeeed it. ...Waiting for things sucks.



man i just wish the gt683r had the light keyboard...its the only thing thats holding me back u.u



Does this laptop support AHCI mode within the BIOS? If I get this, I would probably pair it up with a OCZ Vertex 3.

Thanks.



As to the touchpad, do you already have a GT780R, or is this your experience with MSI touchpads in general?

This is a good question for Ken. He just got a shipment of these, and he is presently working on a review video. I am sure we will know the answer to this soon!

Totally agree on the Vertex 3..... precisely my choice, as a 'primary'!



I have the GT683R, im assuming the trackpad is the same but could be wrong.



Hi Forge,
The Vantage score on GT780R overclocked with stock driver 268.12, PPU Disable, Turbo Fan Off:

Yes it supports AHCI, just go to BIOS>Advanced>SATA Mode Selection and change from RAID to AHCI.

Also here is the screen information of GT780R:

[ Generic PnP Monitor [NoDB] ]

Monitor Properties:
Monitor Name Generic PnP Monitor [NoDB]
Monitor ID CMO1720
Manufacturer N173HGE-L11
Manufacture Date Week 2 / 2011
Serial Number None
Max. Visible Display Size 38 cm x 21 cm (17.1")
Picture Aspect Ratio 16:9
Gamma 2.20
DPMS Mode Support None

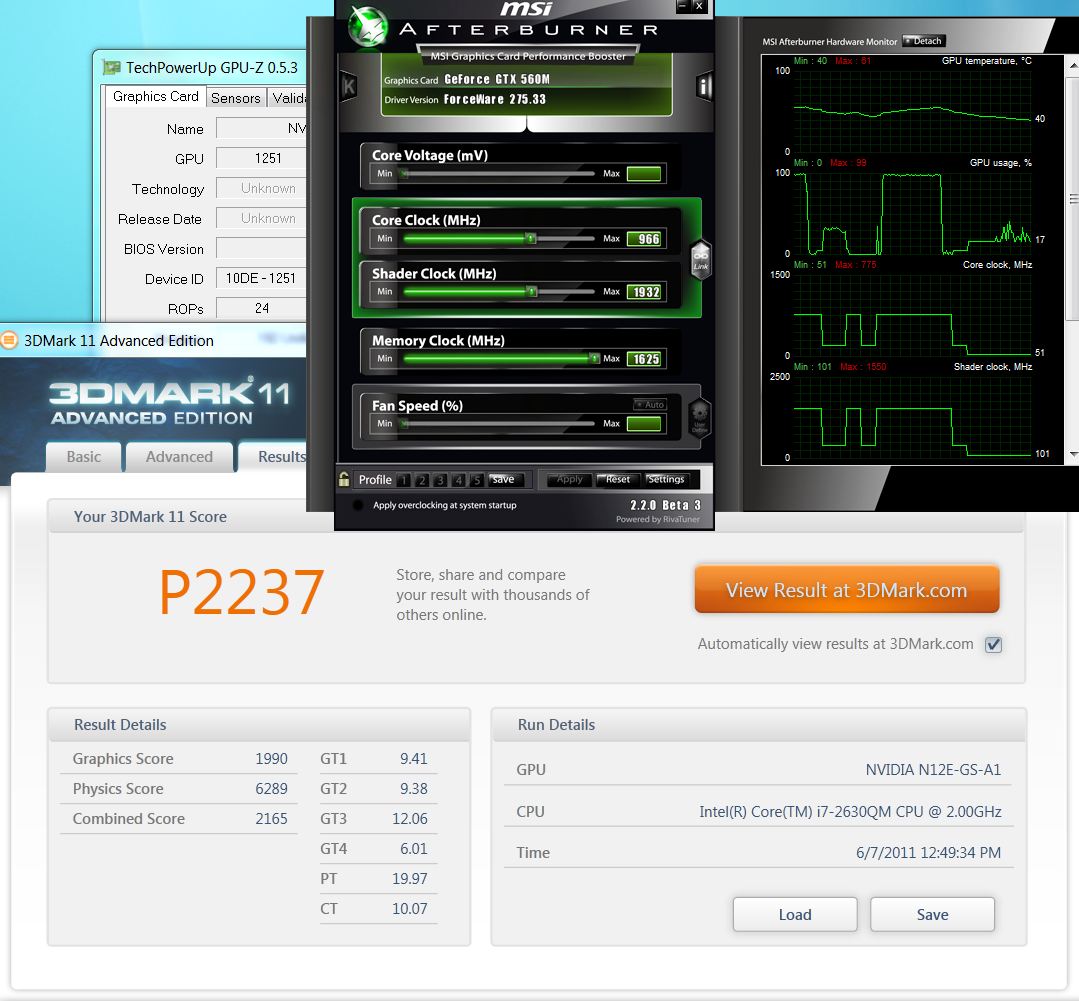

Thanks Ken. You are very helpful as always. I reach P2236 with my GX660 at 3DMark11 with no overclocking. So, I guess 5870 is still one of the best in field of top rated mobile GPUs.



When listing the advantages of the MSI GT780R don't forget the better warranty package.

MSI US & Canada 3 Year* + 1 Year Global Parts & Labor Warranty + 1 Year Accidental Coverage + Lifetime Tech Support (*To get the 3rd year of warranty you have to register your warranty within 30 days of your ship date)

Here are the LCD panel specs:
Panel ID is CMO1720 by CMO (Chi Mei Optoelectronics).
Model is N173HGE-L11
Chimei Innolux Corporation - 17.3\"FHD(N173HGE-L11/L21)

Model Name N173HGE-L11/L21
Panel Size 17.3" FHD
Technology TN
Resolution 1920 x 1080
Aspect Ratio 16:09
Pixel Pitch(mm) 0.1989
Active Area(mm) 381.88 x 214.81
Outline(mm) 398.1 x 232.8 x 5.7
PPI 128
Luminance(nits) 300
View Angle (U/D/R/L) 70/70/60/60
Contrast Ratio 500:1
Support Color 262K
Power Consumption (w) 9.3
Response Time(ms) 8
Weight (g) 600
Electrical Interface LVDS
Backlight LED
Mass Production Jan. 2011



Agree, the 5870 still one of the best out there, have you try Crisis 2 yet? I would like to play it but just been too busy.


Note, the clolor of WASD keys can not be change independently on the actual GT780R unit, I ask MSI they said it's on the roadmap of future software update.



Yep. The only thing I really want on my GX660 is keyboard from GT780R. Visually the keyboards are the same. Ken, can you please check how many cables GT780 keyboard has? Two(one for led backlit) or one? And if they are the same in dimensions and have same connections I will consider to find one for my GX660.

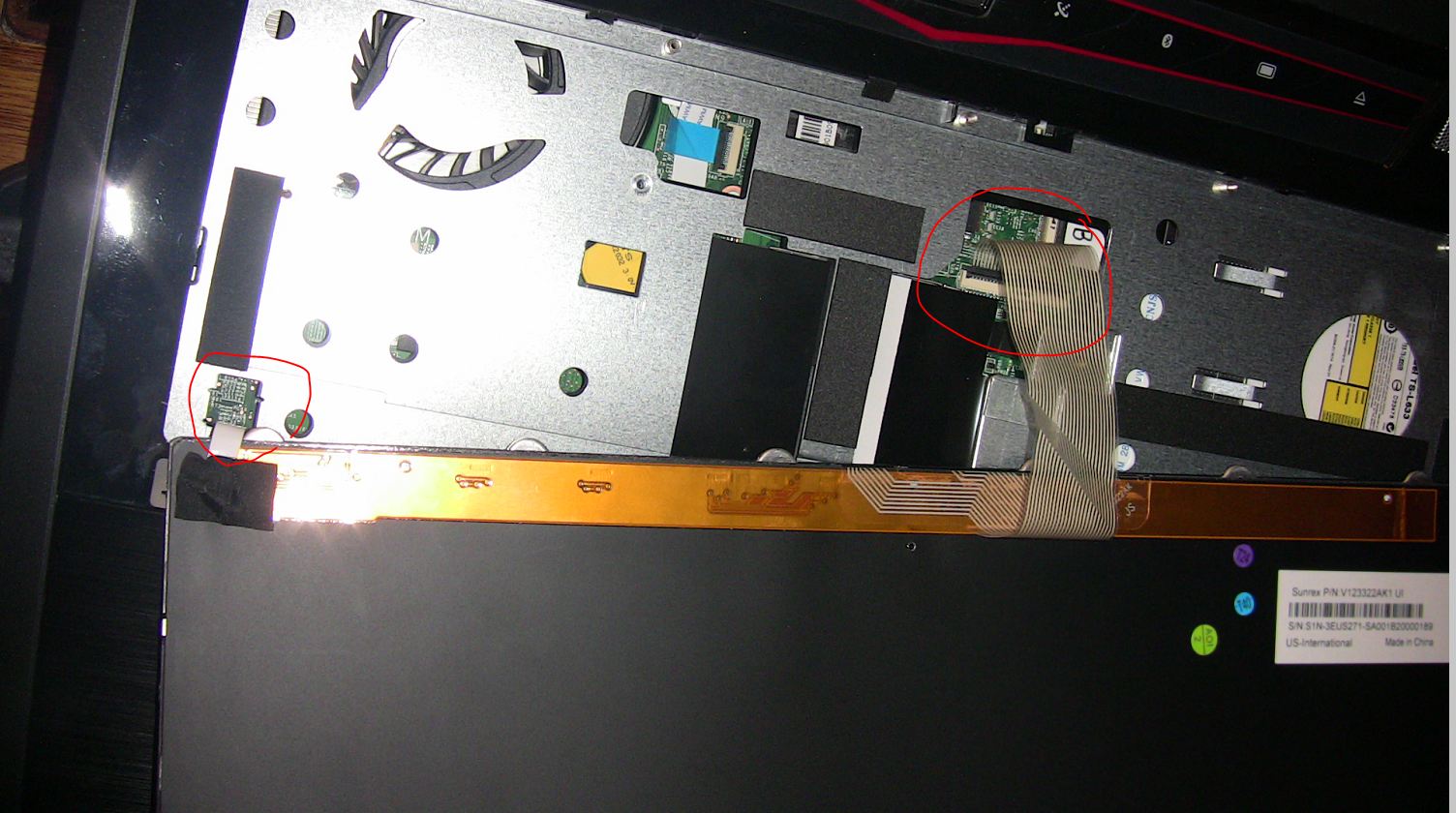

It has two cables one for keyboards and one for LED backlit:



U sure the HDD's offered are WD Scorpio?
I thought there were Hitachi HDD?

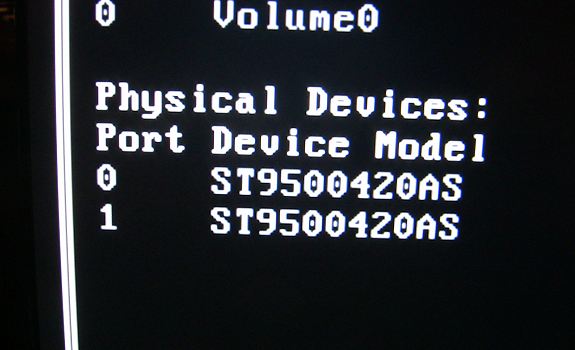

On GT683R is WD Scorpio black, but on this batch of GT780R they use Seagate ST9500420AS. They advertise it has 1TB 7200 rpm not brand name so they can always switch to different brands when parts are shortage.



Oh I see.. So since this batch is currently using SeaGate, I better grab the chance to buy a GT780 from you, Ken!!



Yes for this batch but not sure what they going to use next time, we will never know until receive the actual shipment:



That's a pity But physical dimensions are the same right?



YEP! That info on the WD Scorpio Blacks was my bad, sorry...... BUT, no matter, cause I just pulled the trigger on my new GT780R...... and it's gonna be SWEET! (says Ken, and he also says it'll be here tomorrow!) LOL!

I'm UNBOX'IN SOON! Now who's gonna start an GT780R Owner's Lounge thread? PLEASE, SOMEONE, DO IT NOW! (I don't wanna!)



Sorry Tim and yes the physical dimensions are the same, however, the GT780R keyboard has 5 screws on the top and GT68X keyboard does not.

Deliver tomorrow? how? you have custom configuration on your order.



COME ON KEN! We all know that you are a notebook God!

You'll figure it out, I'm sure...... and by my faith in you, I'll be watching for the little UPS brown-shirt Santa elf, with his big brown truck sleigh thingy. (we hardly ever get any snow here)

Tomorrow, RIGHT?



Sure I'll check with Pony Express for you tomorrow to see how soon they can deliver.



Ok, so I am confused. Is it confirmed no barebone for the 17in GT780R?
I would search myself, but I am on the way back to the states. Not much time to search forums or google. I thought I had seen somewhere on here it was due in July.



no barebones



agreed

I had to go back and read this tread a couple times, but I'm pretty certain the barebones referred to here is for the GT683R. A bit confusing, since we are talking about both systems in the same thread. Once owners threads get up for each, that should help.

Oh, and thanks to the folks at PowerNotebooks that posted the info about the screen -- contrast ratio looks relatively decent.



im selling my alienware m11xr2 to buy a msi gtr683r...will i notice a big diferrence in terms of graphics?? or just wait for another laptop?



Yes. But go post in the which notebook should I get subforum if you really want to compare and find something that fits your needs.



There will be 17.3" barebone just have to wait for MSI to release it.



For the GT780R? Well, now I am confused. In post #225 the folks at PowerNotebooks said there would be no barebones of this system.



Ken, can you let us know what the touchpad hardware is in the GT780R? It might not be the same as in the 683, the keyboard isn't.

Homer



According to the pdf downloadable manual from msi global website, the touchpad is called a "smartpad" and support gestures and multi touch.

You use 2 fingers on the pad to scroll. (up,down,left,right)

MSI Global ? Notebook - GT780

3-36 page 82



The only barebone's out now for the MSI GT680/GT683 are the 16F2's. They are close to the GT683. Both GTX 560M and GT460M available in this barebone for those interested. Unfortunately no GT780 barebones yet.



Looks like the GT780R has a video now:

http://youtu.be/Jun8MFqsrbg?hd=1

With the keyboard it seems like a sane mans Alienware


If they came up with a Matte screen and mechanical keyboard (w/ lighting) on the same unit OMG I would be so sold. I really want to make my next unit a matte screen and Steel Series makes a really popular mechanical keyboard so I wonder how this one on the laptop feels.



Thanks,

The MSI Drivers page shows it as a Sentelic Multi Touchpad.

Homer



Hm, ok.

So, there hasn't been any word from MSI to the resellers saying that there won't be a GT780 barebones, correct?



That is correct.



Why are there 2 wireless lan drivers? I see Intel and Atheros. Which is it?



The Intel driver.



Genious cooling system of the G780R. Dual exhaust and most importantly, GPU and CPU are right beside the cooling fan. GPU right below the fan and GPU right on the left. Not the usual from the left to right: fan with one exhaust, CPU then GPU far away from the fan.

Other things I like about the laptop is:
- Steelseries keyboard. Probably very good reliability and design
- Illuminated keyboard with the possibility to change colours
- Matte screen (YAY!!)
- Subwoofer and excellent audio speakers
- Perforated bottom where the fan can suck air through
- Smart buttons that let you eject optical drive and even turn off the screen while listening to music with a single touch.
- Battery located "inside" the chassis. The battery is not sticking out from the back.

Very good review video Gentech
Let us pray that the keyboard doesnt flex like a trampoline



DO you think that the GT683R has that kind of keyboard?

I just saw a video about someone showing their GT660 laptop and he mentioned how some of his keys are not leveled the same as his other keys.

And he described it as "flexing".

I would hate to have that on a GT683 laptop..



Yeah me too. I just remember reading a MSI GX 660 review where they mentioned that it flexed pretty bad. I just hope they got their act straight now that they feature a steelseries keyboard.



I am salivating over this.... Looks beautiful. Thanks for the video Ken!



One thing I've noticed in the video (concern) is how close the HDD is to the heat sink. I am talking about the HDD right below the subwoofer. Do you think that may cause an issue? I wonder if it will be OK to use some high temp silicone between the two... Just saying...



Great video, Ken!!

I can't stop having strong desires over this laptop!!

Imma buy it now!!



ken, it looks like the cpu and gpu can be accessed pretty easily by taking off one panel? Can the heatsinks come off that way or do you have to take more of it apart to get those out?



the Gt683r and the gt780r are 2 totally diff keyboards...I have a gx660r which is built just like the gt683r...its nice but there def is some flex...the new gt780r is made by steelseries and does not have that issue...weather it was addressed in the gt683r...I realy couldn't speak on that...I would hope so....But I cant wait to upgrade to the gt780r...its everything i want!



I just looked over the manual for the GT780R, and it noted the components that can be easily upgraded. It did not mention anything about the GPU or CPU. Can these be upgraded, as well?

Thanks!



Ken,

Two things I noted from the video:

1) No rundown of the ports on the left side.

2) No evaluation of typing on the keyboard.

While the first one is minor, we can all read manuals, the second one is key, no pun intended. A major flaw in many of the recent laptop systems is the flexing of the keyboard. While we all think the SteelSeries keyboard will not flex, we really need some independent evaluation on that.

Thanks!
Homer



With exception to the GPU, sure!

A lot of upgrades are available...... scroll down the list, and take a peek at the many options HERE!



Yes the CPU and GPU can be access easily by just remove the bottom cover. heatsink can be remove easily as well by just remove few screws.

1: The video clip was deleted by accident before upload to youtube.

2: I can do a separate video of the typing on keyboard.

CPU can be upgrade easily but not GPU, there is not other GPU available from MSI.



Hey Ken,

Do you notice any flexing on the GT683 laptop?

Did they improve the keyboard over the GT680?

Thanks.
