upgrading msi gt70 to new mxm 3.0b 1070/1080

There is no delivery to Europe. It can't be bought.



Taobao is China only, you need an escrow/agent, just search for taobao agent and dozens will pop up, just use of and you can send your order to anywhere in the world.



Thanks for the information!
https://www.yoybuy.com/en/?utm_source=google&utm_medium=search&utm_campaign=en-Brand-search&utm_term=%E5%8A%A0%E5%A4%A7%E5%9E%8B%E6%96%87%E5%AD%974&utm_content=yoybuy (

I bought an X16 version.



Hello i have a MSI GT70 with 4940mx like you. My old 980m's chipset gone yesterday so today i ordered a 1070 from ebay. I need a proper bios first for make it work on it's full potantial. Im not an PC expert and i dont know anyone who's understand that microcodding...

So can you please send me your bios?

Thank you.



I emailed the response. It was easier. I sent several photos.



Thank you sir, i really appericiate it.

Regards,



Please share your new gadget with us



I sent it....



Naturally. Unfortunately, there is a lot to look forward to.



I have unlocked BIOS of GT70-2OC, im planning to upgrade to 4940MX and 1070M, can you help me?



I think there is an overall limit to the power usage, capped at around 180W that is enforced by the EC and there isn't much to circumvent that.



I bought a new motherboard because the old one is broken.

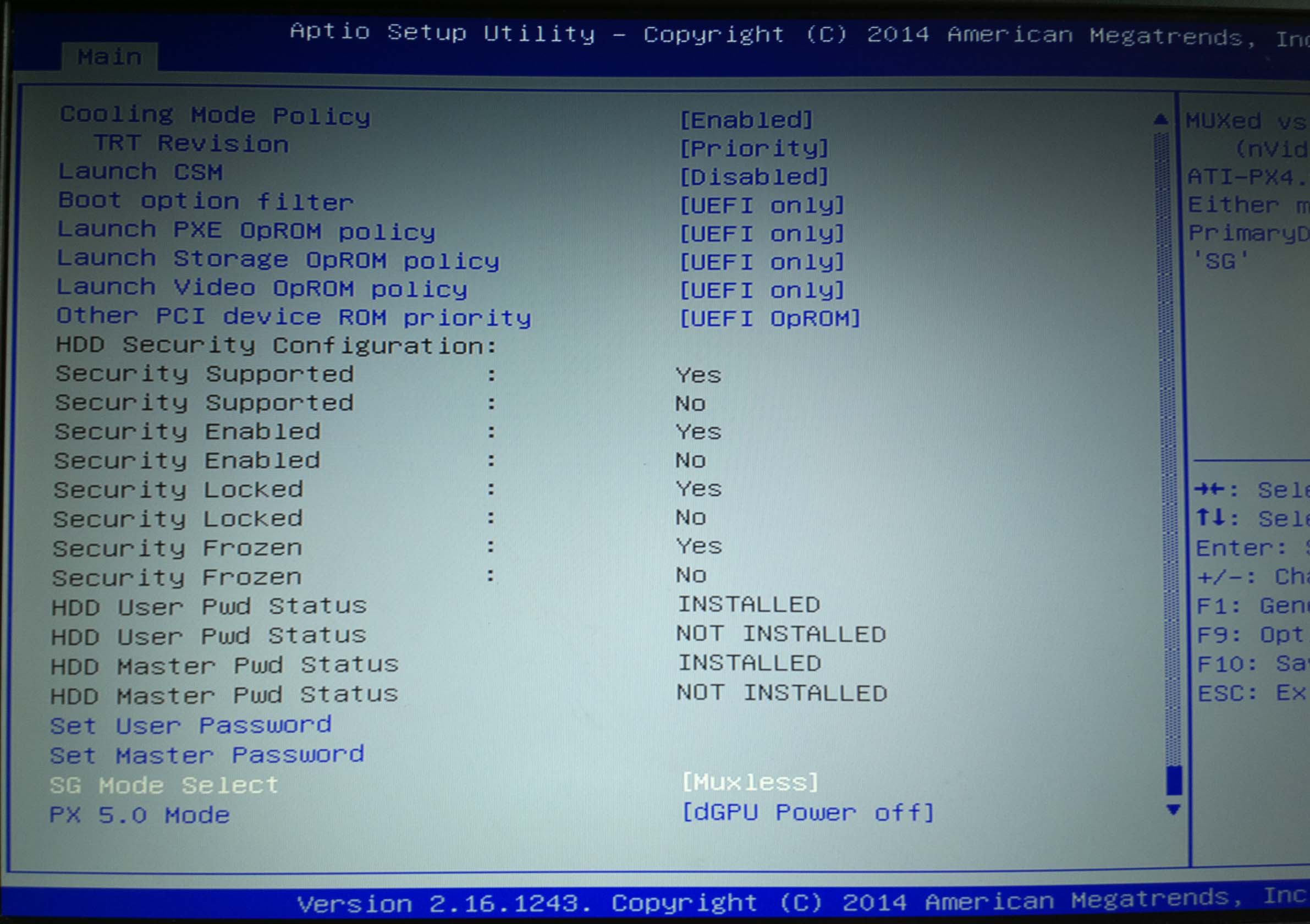

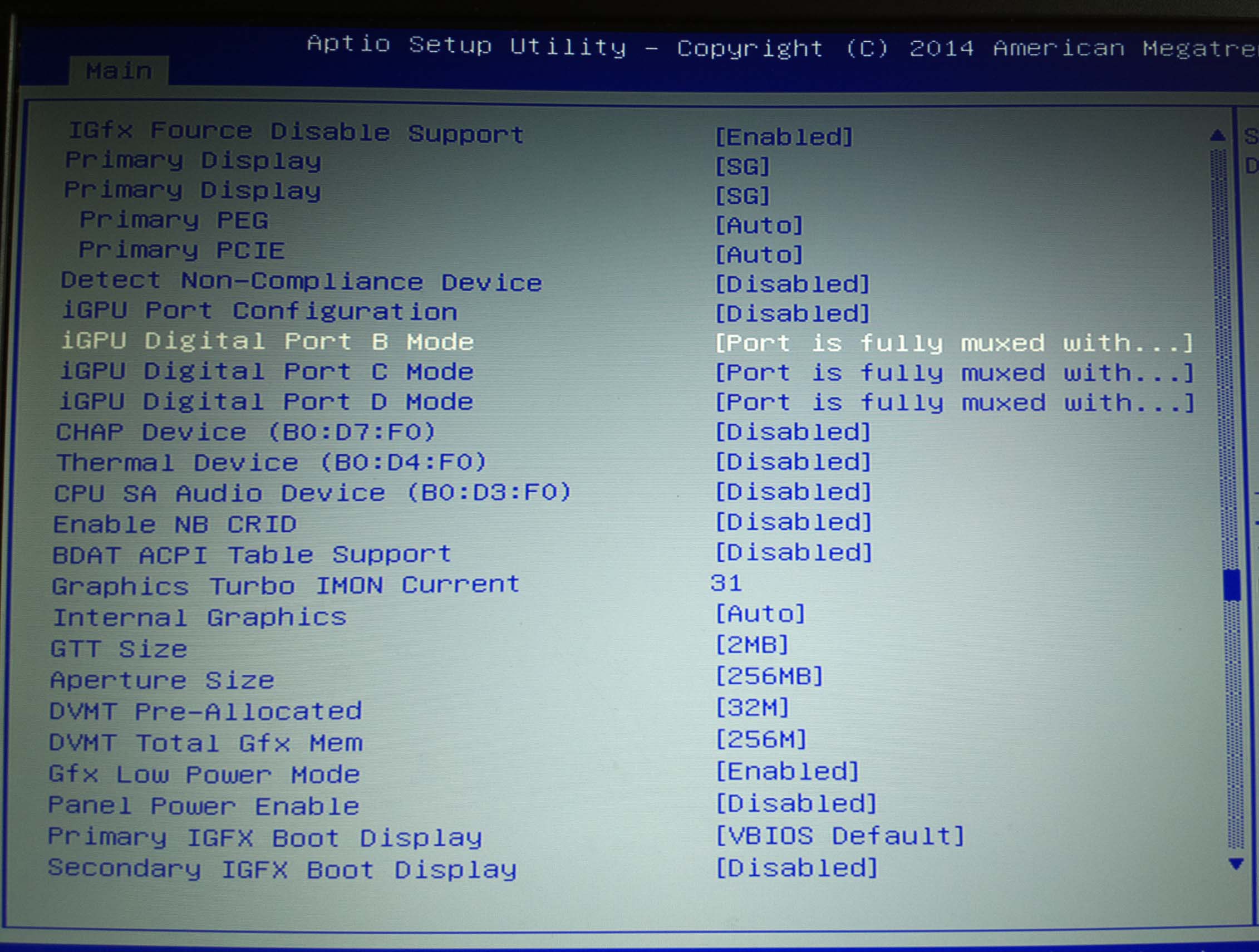

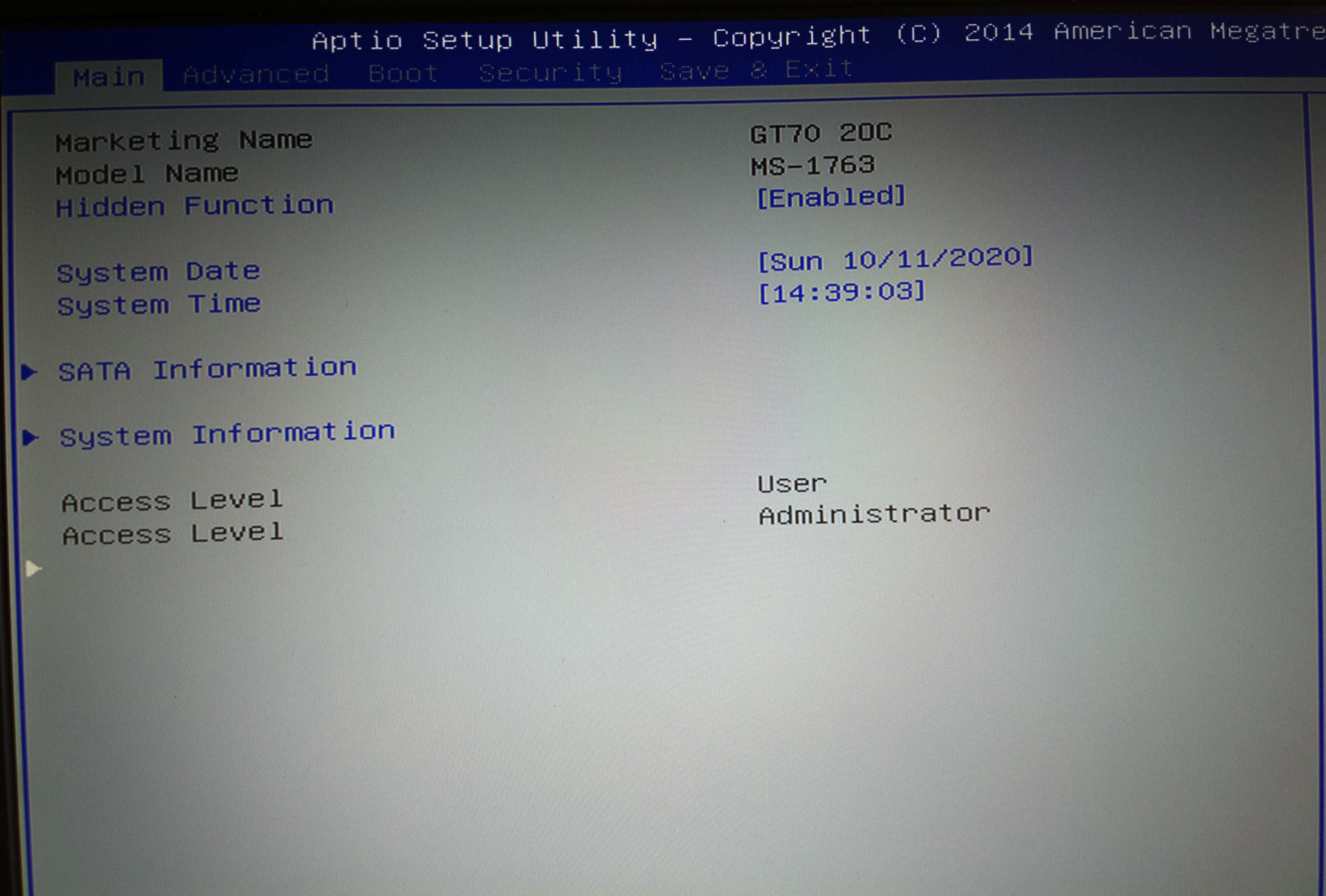

Bios 2OC ....... smoothly good with all 1070s.



Unfortunately, not good!
Everything slows down, frost, high consumption, high clock speeds.
Max-P vbios. That's all it depends on. I need a Max-Q vbios and everything is fine.



I did it, I just need to reduce the TDP.
I need software to reduce clocks.



Everything is working fine now. Everything is fine, successful, tested!
MSI GT70 2OC ...... the good vbios: P5200_HP_ZVRG1.rom I attach.



Curiosity.....
My measurement result (3D OpenGL Stereo)

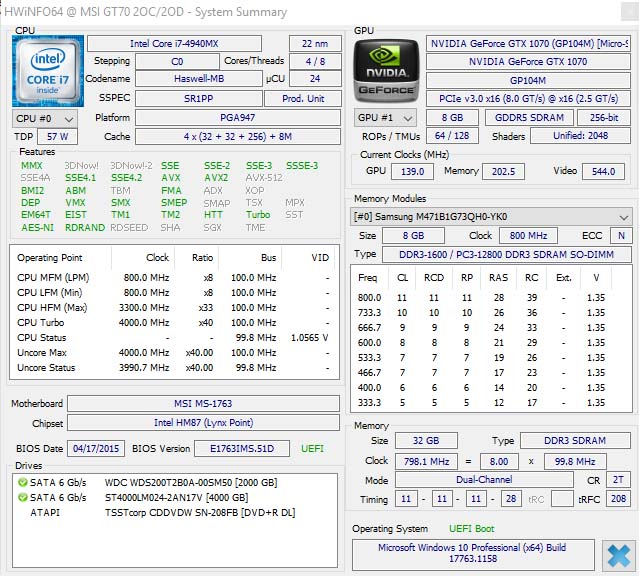

MSI WSGT70 2OCXXL (Gold Edition), i7-4940MX, DDR3L 1600Mhz 32GB, 2TB SSD + 4TB HDD + 128GB micro sd, Nvidia Quadro P5200 16GB (330W power supply)



Rx 480 mxm works msi gt70 ??



I think yes.
(((An example with another driver (Max-Q) is weaker)))
The hardware ID must be entered in the vga driver.

Mine......
1BB5 ............ 00001462.
where is 1BB5 .....



Looking for a good inf file, where is 1BB5 .....and rewrites the end (00001462)
Driver signature verification must be turned off before install .... bios .... (F7 or 7)



For 1070M?



Ok, I just wrote here as an interesting thing. The 1070m is now resting in the drawer.



Hi,
I want to upgrade the laptop in my signature to i7-4940mx and gtx 1070m. I can get it from Aliexpress. But I don't know how to change bios. I will be glad if you help....
EC Frimware: E1763IF8.517



I have the msi GT70 ONE with i7 3610qm and a GTX680m. I already have a GTX 1070 in my hands. I put it in the slot and windows 10 didn't recognize it. Any idea?



Do you have updated BIOS and EC?



I have an i7-4940mx cpu working (4.gen). The 3.gen cpu and motherboard are not the same. Maybe I need a good vbios ...... (don't know)

I am now using a Quadro P5200. I have seen 2 types of Windows10 systems. One recognized it in the device manager. The other saw nothing of it. After I installed the driver the other saw it too. When I removed it the hardware disappeared. I know this is a problem because the dongle needs to be inserted into the driver to install it.
You should know the dongle.

Maybe you should have a broken motherboard bios, unlokbios.

I asked the seller before buying. He said it would be good for me.
I can email the broken biost. I don't know if that's good for you. If you want and you don't have.



Did not. I have no idea how to do it. if you have a step by step to do this for the model of the msi Gt70 au I would appreciate it.



Did not. I have no idea how to do it. if you have a step by step to do this for the model of the msi Gt70 au I would appreciate it.



You can find the instructions here: https://www.msi.com/Laptop/support/GT70_0NE#down-bios and https://www.msi.com/Laptop/support/GT70_0NE#down-firmware
and the files here: https://mega.nz/#!5xRn0AKb!hG-_UcF3hAZJVv8YRQ9XcnybRUiAkGtHwMxnnUe4SAA



I will try today.



Look here, too: http://forum.notebookreview.com/threads/the-official-msi-gt60-70-970m-980m-upgrade-thread.765058/



Well eh but from what I read in the forum the GTX 1070 would be the maximum natural upgrade to do in the GT70. I have a 330w power supply, a new battery. Follow the photos of this wonder. It served as a glove in the slot. I also put the photo of the part that is not recognizing. In fact it recognizes it as a generic video adapter. Could it be that just make nvidia inf?



I dont kown how to add picture here.



The general video adapter is good. There's the card. I'm not a professional, I just managed the 980m, 1070m and P5200 (which is not completely flawless)

The hardware ID must be entered in the driver. If you can’t do it, I’ll help the next day (Wednesday). I have a lot to do now. Private or email would be nice, not here.



Hey @mr007rm , How can i message you directly? It seems that you are the most recently active person on this page with upgrading GPUs and I have a question. Can you message me?

Thank you in advance



Hi what do you want to ask?



I'm trying to upgrade an MSI GT70 20C gpu for someone. His card died, or at least we're pretty sure the card died, and he purchased a gtx 1060 for it, however we're having issues getting it to recognize the new card....



you must upgrade the bios and EC first. reinstalls windows 10 from scratch and makes nvidia's inf.



What is the EC? And if it has to wipe the machine, I'm not sure my friend will go for it haha



Find it privately!



You don't need any bios and EC updates. Driver manipulation, modification only required.



Where did you get that unlocked bios from? I also have a GT70 20C with GTX 770M, looking to upgrade to GTX 1060M / 1070M.



In the techinferno forum from Mr. Klem bios modder. Give me an email and I'll send it to you.


Anyway, 100% of the quadro p5200 card already has an internal screen. The clock of the core can also be controlled. Superposition benchmark extreme score 3798. Just interesting. Slightly not very stronger than the gtx 1070m.



Could you possible upload it somewhere and share the link in a PM. I don't believe i can send PM's already, just got registered and approved. I believe PM is disabled for new members, or i'm just overlooking it...

Prices on quadro p5200 are crazy. I think i'll go with a 1060m. Should be enough for mild 1080p gaming, withouth being bottlenecked by the powersupply... still around 300€ on aliexpress..



I bought a bare/none working GT70 20C. It came with the single sata port, no drives and 4 giga of ram. Ordered a replacement power button assembly and the msata raid pcb from aliexpress. Currently booting it by shorting the pins on the power button connector.

Up till now i have it running off a 2tb samsung evo ssd, and when the raid adapter gets here, i'll be adding 3 500gig msata drives. Upgraded ram to 32gig kingston hyperX impact 2133 ddr3 (got a good amazon warehouse deal on those). So now i'm looking into getting the cpu and gpu upgraded.

I wonder if a 1070 is really worth it (and the extra cost).
The 1060m seems like a good sweetspot for the GT70. It is power limited, and the shared cooling system isn't the best. So is a 1070m worth the hassle?

I have a gaming pc setup, but rarely use it these days. I'm mostly on my family PC, which is an old lenovo, 3rd gen i5, 16gig ram, and a gtx 1650 mildly OC'ed, and I find that rather adequit for my mild (2020, AAA games) 1080p 60hz gaming needs, so i would like to replicate that same experiance (or better) on this project laptop. Preferrably low budget as possible.

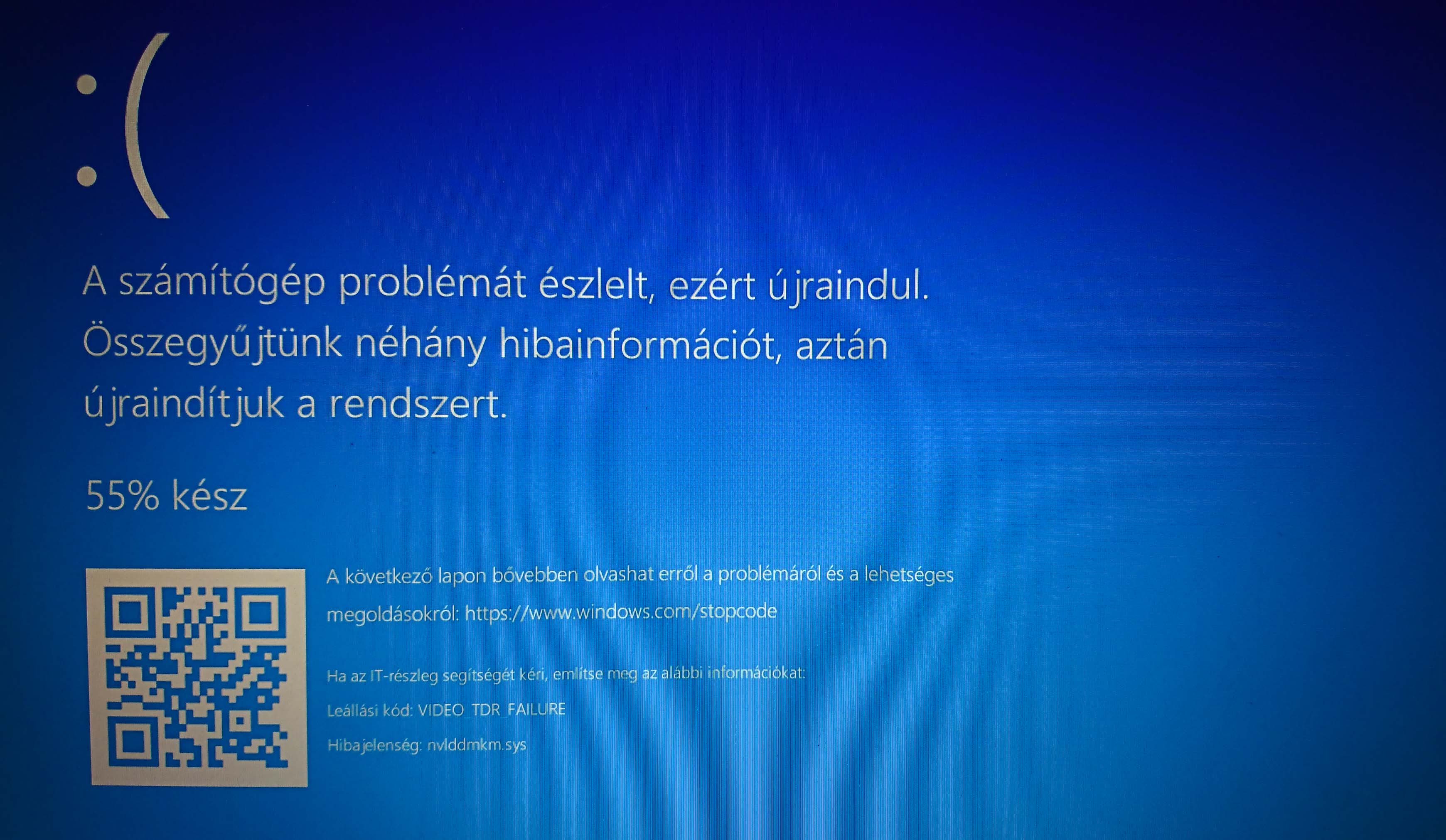

At 1070 the gpu UV will be important .... MSI AB .... the card spun too much for me, there was a lot of boost .... 1860, 1911Mhz already a lot and then he dies. There is a blue and yellow exit.
Unfortunately, English is weak.
The motherboard does not want to record more than 180W. 180W + battery above about 200W with max max load.

I have a green Chinese 115W 1070m card in the closet.
The currently used Quadro P5200 150W ..... (1557-1747) consumes a lot.($ 500 ebay)
If there is UV it is stable. Of course with a power limit. Another option is the NV panel for even power consumption and you can go through only 1557Mhz and no boost.

The 1070 is much simpler. I think it's worth using. The ddr3 memory is interesting. I bought it on Ebay in 1866 (cl9) 32GB was very cheap and not real.

The problem aida ..... photo.
I don't know if the motherboard can handle 1600Mhz over ddr3 module or what I'm using is faulty.
Cyberpunk 2077 is coming on the 10th. I wonder how my machine will perform.....carry all the games pretty well. The 1070 also went very well. The i7-4940mx cpu (4/8) is enough.



The Kingston HyperX Impact 2133MHz works stable on my system. Got a good return / warehouse deal on 2 16GB kits on amazon.de
They only have on new left, but more on backorder. They seem to be still in productions. Both my sets are manufactured in 2020.

The G.Skill ripjaws (F3-2133C11Q-32GRSL) have a bit tighter timings, but nowhere to be found new, and way to expensive on used market. The kingstons seems the way to go.



I've been browsing aliexpress for 1070's. But what should one look out for. Anyone know the difference between these 2 models? Seems like different vrm designs:




*edit* Nevermind, just found this thread which was verry helpfull: http://forum.notebookreview.com/threads/the-updated-gtx-1070-mxm-model-thread-2020.834354/



Hi!
If all goes well with the GT70 .... I will replace the Nvidia Quadro P5200 card next to the i7-4940mx with an RTX 5000. I already ordered, he's on his way. I will share the result.



Hello mr007rm I hope you are well, thank you for sharing your experience on the issue of upgrading the GT70, I have a GT60, could you support or advise me on how to perform this upgrade, can I also install a Quadro card?



I think the motherboard is pretty similar.



That's right, very similar, there is only the issue of the Bios update, and to know the experience of all of you to carry out this process,
I seek to have a square for my architecture work,
I have an
MSI Ge62 6QF
I7-6700HQ Processor
Bios Version E16J4IMS.117
EC Version 16J4EMS1.107
