ATI HD 6990m

This direct from Sager....

part number for 560M is 6-31-X510N-202

the part number of 6990M is 6-31-X510N-203

they are not the same parts.
_



Don't know where your getting your info at but it is a different heatsink as Larry stated above. This is confirmed. You can be assured Sager would not install a incorrect heatsink.



Pfft, thanks guys for the correct information on that heatsink being you're resellers after all and we trust what you say. I could see how one number differentiation could be confusing and throw a certain someone off, so thanks for keeping the correct details in light as usual



All I know for the moment is:

GTX 560M has 6-31-X510N-203
GTX 460M had 6-31-X510N-202
HD 6990M, I don't know but is it imaginable that it has the same heatsink as the GTX 560M?

I hope I'm wrong and the guys here will get the right heatsink. But Sager could check with Clevo R&D department, it will not hurt to ask anyway. I'm asking now that department (but it's already week-end in China) and as soon as I have their reply (if I have it) I'll get you the news.



I ordered the GTX 560m because the 6970m of my friend, who have a P170HM, died. pkhetan ordered it directly from clevo and the number on the die heatsink is exactly 6-31-X510N-203 - and it fits and works perfectly for the GTX 560m that I got. Temps never reach 80°.
I don´t know what part this officially is, but I know that the temps with GTX 560m are all right with that heatsink...



Clevo R&D department has just replied:

The GPU heatsink which come with the 6990M is 6-31-X510N- 204

And as I said before the heatsink for GTX 560M is 6-31-X510N- 203



This is very disconcerting. Between this and the reported matte screen problems, I'm on the verge of canceling (or at least modifying) my laptop order. Bah.



very concerning.



Just got my P150HM from Myth with the first Clevo 6990m! Here are all the benchmarks they gave me

3DMark 11

Total PCMarks: P3568


Graphics Score: 3270


Physics Score: 7074


Combined Score: 3371


Combined FPS: 15.68118


Graphics Test 1 FPS: 15.44954


Graphics Test 2 FPS: 15.87415


Graphics Test 3 FPS: 20.17817


Graphics Test 4 FPS: 9.61229


Physics Test FPS: 22.45886

Vantage

Total PCMarks: 10278


Memories Suite: 6361


TV and Movies Suite: 5579


Gaming Suite: 9341


Music Suite: 7339


Communications Suite: 11149


Productivity Suite: 7698


HDD Suite: 3624



Later on if your not busy could you tell us what kind of temperatures your getting that's my only concern.



Can you open it up and see what the model # is on the heatsink for the 6990M



Not to be rude, but are you kidding me? You expect me to take my brand new machine which I love to death, and open it up just for the heatsink model number?



no offense taken. If you take a look at past couple of posts on this thread, there is confusion as to whether or not the GTX 560M heatsink is being used on the 6990M. If pkhetan is correct, then your 6990M is gonna run very very hot.



Everything that starts with, "not to be rude", ends up being just that. Don't be ridiculous.

This is getting interesting.



It might be worth checking along with the color of your GPU Card. Sager has confirmed different model number on the heatsink they are using along with the Clevo certified cards.



Yeesh...feel like I dodged a bullet by not going with the 95% gamut matte on a P150HM only to have to worry about this 6990M issue.

Someone hold me and assure me it's all going to be okay!



@ KC2PLL

You don't have to remove any heatsink or video card or any thing. Just unscrew 4 screws and remove the plastic cover and take a photo........Please........



You don't need to mess with anything inside. Just remove the back panel and the information should be on top of the heatsink.



I recently purchased a Sager P170HM with a i7-2630QM and a 6990m.

I found out that the newer generation sandy bridge cpus all have built in Intel HD 3000 graphics.

So I'm wondering, is it possible to somehow disable the 6990m when I'm not playing games but just web surfing or doing other less graphic intensive activities? Then I can utilize the HD 3000 and use less power and thus generate less heat.

I don't want to change the subject from the current heat sink issue as I'm interested as well, but I didn't want to create a new thread just to ask this question.



I'm too lazy to take a picture, but here, if it pleases all of you, the heatsink part number i got was 6-31-X510N-202. @Justin, the card is green



Thank you so much

Please report your heat experience with that heatsink later.



So basically, its not the 6990M heatsink.


"This direct from Sager....

part number for 560M is 6-31-X510N-202

the part number of 6990M is 6-31-X510N-203

they are not the same parts."

Larry@LPC-Digital


"Clevo R&D department has just replied:

The GPU heatsink which come with the 6990M is 6-31-X510N-204

And as I said before the heatsink for GTX 560M is 6-31-X510N-203"

Pkhetan



If you noticed, both of them gave different answers, so it seems as if nobody knows. However, since I have what should be one, I will say for now that mine is correct



This confusion over numbers is getting weirder by the moment.

It's impossible to enable the IGP in Clevo machines.

Hopefully in the next gen they will use it.



edit: double post



Assuming Larry is correct (he is after all a Sager reseller), your heatsink part number doesn't match the one for the 6990M.



Realize the two different people: One is a Sager reseller and the other is the R&D Department of Clevo. Both sources should be right considering who they are, yet they are not.



As long as your load temps are reasonable, I wouldn't worry about the confusion. But if you're seeing it go over 90C, I'd start asking questions



Just spoke with Malibal, they are delaying all preorderd laptops with the 6990m a few more days. I wonder if its related to this heat sink PN issue.



Wait, what was wrong with the 95% gamut matte screen because I'm getting that and the 6990m!?



Its not going to be ok.... PANIC!!!!!!!!!!!!! AHHH!!!!!!!

:wink:


We will all get the mess sorted out hehe.

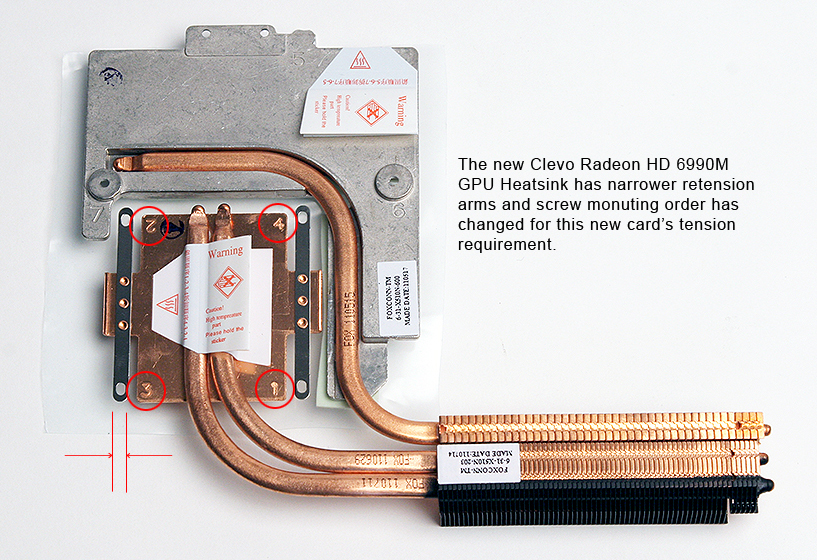

Here are some more details from Sager Engineering on the heatsink FYI

To clarify a bit, GTX-560 was originally released with the -202 heat sink, the new revised -203 heat sink is released for both the 6990 and the 560 which is being used by Clevo factory on the 6990 for official mass production shipment. And the 560s are being shipped with -202 running change to -203. Clevo RD works on newer design all the time and the next one would be -204 but it’s not yet released by the factory and note that when the -204 is final it will be a running change which it will take a bit longer before it’s circulated to the market. As it won’t’ be used until the -203 inventory reaches 0 (running change).



Email from Clevo, minor edit to remove contact information.

Pls refer below table to know the difference. The heat sink of 204 and 303 is next design. Moreover, the new design (204 and 303) will running change to replace part (302 and 203).
Heat-sink part number
6-31-X510N-203
6-31-X510N-204
Compatible models
HD 6990
GTX-560

6-31-X510N-303
6-31-X510N-302
Compatible models
HD 6970
GTX-580



Here is the Crysis 2 video with AMD 6990M, enjoy :

<param name="movie" value="http://www.youtube.com/v/swhnDahul30?version=3&amp;hl=en_US&amp;rel=0"></param><param name="allowFullScreen" value="true"></param><param name="allowscriptaccess" value="always"></param><embed src="http://www.youtube.com/v/swhnDahul30?version=3&amp;hl=en_US&amp;rel=0" type="application/x-shockwave-flash" width='560' height="349" allowscriptaccess="always" allowfullscreen="true"></embed></object>



Some folks have noticed a red ghosting effect on the 95%'s when using the calibrated color profiles. Allowing the GPU to handle the color reproduction rather than the OS seems to remedy the issue.

It's unknown if they're faulty panels, color profile issue, or what. Check the screen thread for more info. http://forum.notebookreview.com/sag...ading-my-np5165d-matte-95-gamut-screen-3.html



in which settings u run crysis 2??



While I am nervous, I have total faith in you, Malibal, and all the other resellers that this will get resolved.



Is this with the DX11 patch that Crytek released? If so, incredible.



wow who ever was playing the game in that was not very good, but the game looked pretty sweet.



It sure looks smooth. But how can the fps be fixed at 30?



I never get involved in flamewars or trolling but just this once I'm going to make an exception.

You're an idiot and if it were at all possible to give you negative rep, I would. You're a total jackass.

Thank you Gentech for making that video.



agreed .



can someone who has 6990m post some benchmarks like 3dmark11,vantage???thx.



SECOND TIME EDIT:
I had posted here about an order for a member that should be shipped containing -204 heatsink. I had been obligated to edit my post here later to save that shipment, but it seems my edit was too late: the original shipment was intercepted while in its way and Clevo sent a new package after they changed the heatsink from -204 to the -203. All that because Sager were afraid that people would know that they are telling lies (bolded in the quote above). What a Shame !



Did that 2 pages ago



well that's a bummer (for us that pre-ordered). I wonder if they offer to just sell the heatsink.



You do have to remember that a heatsink isn't going to drastically change the temps any version of the heatsink. At best its going to be one degree or so at best. =) There's only so much copper you can throw at the problem.



Gentlemen, I think your problem with the heatsink in the 6990M may be similar as for the 6970M: ImageShack(TM) slideshow
This may not work well.



I hope this gets sorted out very soon. A heatsink with enough capacity is only one piece of the puzzle. A proper fitting one is just as critical if not more so. I just ordered one from Mythlogic over the weekend, hope I'm not disappointed.



It was tested with Hardcore settings.

I tested very late last night so I didn't apply any patch.

Was never good at Crysis or Crysis 2, the video was just showing the performance.

I don't know, didn't have problem with nvidia GPUs, maybe the game needs to be patch.

You are welcome.



Does anyone have any idle/load temperatures for the 6990M?
