    Meaker's next project ;)

    Discussion in 'Sager and Clevo' started by Meaker@Sager, Sep 9, 2021.

  1. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    Maybe it keeps it powered long enough to flush in a power cut. Looks like a standard power measuring resistor there on the front for power modding :)

    Meaker@Sager, Oct 4, 2021
    #101
  2. ssj92

    ssj92 Neutron Star

    Reputations:
    2,446
    Messages:
    4,446
    Likes Received:
    5,689
    Trophy Points:
    581
    Please do tell because 80w tdp is holding it back :D

    ssj92, Oct 5, 2021
    #102
  3. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    On the front, leading up from the mxm power tabs is certainly one.

    Meaker@Sager, Oct 5, 2021
    #103
  4. votehart

    votehart Notebook Geek

    Reputations:
    29
    Messages:
    96
    Likes Received:
    37
    Trophy Points:
    26

    Fantastic tech. When it is not connected to the radiators can it be used as standard heatsink? These quieter fans? How much quieter? I am interested in purchasing both.

    votehart, Oct 6, 2021
    #104
  5. Duck W

    Duck W Notebook Consultant

    Reputations:
    40
    Messages:
    103
    Likes Received:
    80
    Trophy Points:
    41
    How much for the rtx 3070? Also maybe I’ll need a modified heat sink to fit the card in my p750?

    Duck W, Oct 6, 2021
    #105
  6. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    I think he listed that earlier as something like $1800?

    Meaker@Sager, Oct 6, 2021
    #106
    Duck W likes this.
  7. ViktorV

    ViktorV Notebook Evangelist

    Reputations:
    101
    Messages:
    306
    Likes Received:
    347
    Trophy Points:
    76

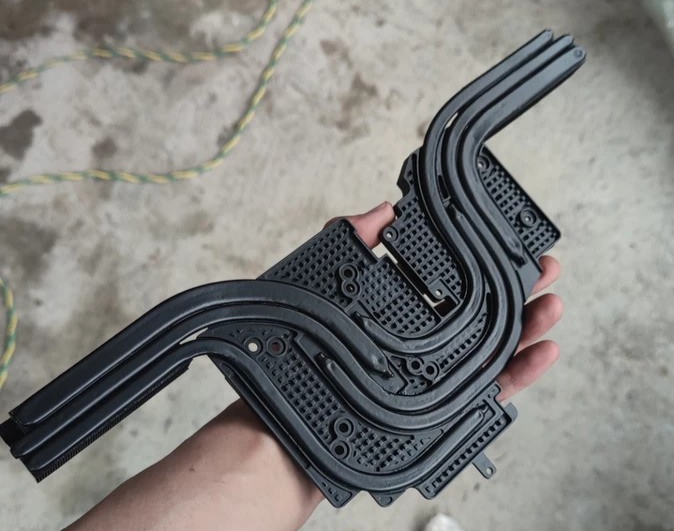

    1750$ rtx3070. You will need a custom heatsink for the p750, which costs $ 250


    Attached Files:

    ViktorV, Oct 6, 2021
    #107
    Duck W likes this.
  8. ViktorV

    ViktorV Notebook Evangelist

    Reputations:
    101
    Messages:
    306
    Likes Received:
    347
    Trophy Points:
    76
    Yes, this heatsink can be used without a liquid cooling unit connected, but the temperature of the video card will be slightly higher than on the standard heatsink, and the processor temperature will be lower than on the standard heatsink. The fans are much quieter and give a higher air flow density, that is, they need almost half the speed to supply a volume of air equal to that of the standard fans at maximum speed. For purchase, contact Maxim, I laid out his contact.

    ViktorV, Oct 6, 2021
    #108
  9. votehart

    votehart Notebook Geek

    Reputations:
    29
    Messages:
    96
    Likes Received:
    37
    Trophy Points:
    26

    Thank you. I will track down Maxim.

    votehart, Oct 7, 2021
    #109
  10. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    The hobby was never cheap but even mxm cards are being impacted by the shortage.

    Meaker@Sager, Oct 7, 2021
    #110
    Duck W likes this.
  11. Duck W

    Duck W Notebook Consultant

    Reputations:
    40
    Messages:
    103
    Likes Received:
    80
    Trophy Points:
    41
    That’s true. I’m just considering whether I upgrade or get a barebone x170. The market currently does not have anything interesting for me anymore. And my wallet is grateful for that.

    Duck W, Oct 7, 2021
    #111
    Reciever likes this.
  12. ViktorV

    ViktorV Notebook Evangelist

    Reputations:
    101
    Messages:
    306
    Likes Received:
    347
    Trophy Points:
    76
    We can bring you x170kmg with any rtx30 series card if you want)

    ViktorV, Oct 7, 2021
    #112
  13. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    My heatsink should hopefully ship in the next day or two so the final countdown begins, i've been staring at this 3070 for a while itching to try it so fingers crossed shipping goes well.

    Meaker@Sager, Oct 20, 2021
    #113
    DaMafiaGamer, jc_denton, electrosoft and 3 others like this.
  14. hacktrix2006

    hacktrix2006 Hold My Vodka, I going to kill my GPU

    Reputations:
    677
    Messages:
    2,175
    Likes Received:
    1,413
    Trophy Points:
    181
    RTX3070 is a beast of a card coming from a GTX1060 could never go back to pascal after using RTX GPU.

    Goodluck with the mods man and keep me updated as its giving me idea's when I bring back my GT72 to life.

    Sent from my SNE-LX1 using Tapatalk

    hacktrix2006, Oct 20, 2021
    #114
    Clamibot likes this.
  15. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    Oh there will be pics, I've promised a couple of people already.

    Meaker@Sager, Oct 22, 2021
    #115
    jc_denton, ViktorV, electrosoft and 1 other person like this.
  16. ViktorV

    ViktorV Notebook Evangelist

    Reputations:
    101
    Messages:
    306
    Likes Received:
    347
    Trophy Points:
    76
    I got a processor mutant qtj1 engineering i9-10980hk on a lga1151 substrate. The launch on p870tm1-g was successful, but it did not want to work with all the memory, it successfully launched on Samsung 2666Mhz RAM. I raised its frequency to 4700 Mhz for all cores and 4900 for one core with an undervolt of -125mV, the processor works stably, the temperature under load is 65-75 degrees.


    Attached Files:

    ViktorV, Oct 22, 2021
    #116
    alaskajoel, Tenoroon, Blacky and 4 others like this.
  17. razor0601

    razor0601 Notebook Evangelist

    Reputations:
    56
    Messages:
    450
    Likes Received:
    88
    Trophy Points:
    41
    Do you have more pics how it looks like in your P870TM?

    razor0601, Oct 24, 2021
    #117
  18. ViktorV

    ViktorV Notebook Evangelist

    Reputations:
    101
    Messages:
    306
    Likes Received:
    347
    Trophy Points:
    76


    Attached Files:

    ViktorV, Oct 25, 2021
    #118
    Papusan likes this.
  19. ViktorV

    ViktorV Notebook Evangelist

    Reputations:
    101
    Messages:
    306
    Likes Received:
    347
    Trophy Points:
    76


    Attached Files:

    ViktorV, Oct 25, 2021
    #119
    Papusan likes this.
  20. razor0601

    razor0601 Notebook Evangelist

    Reputations:
    56
    Messages:
    450
    Likes Received:
    88
    Trophy Points:
    41
    And how it looks like in the P870TM?

    razor0601, Oct 25, 2021
    #120
  21. ViktorV

    ViktorV Notebook Evangelist

    Reputations:
    101
    Messages:
    306
    Likes Received:
    347
    Trophy Points:
    76
    How is the processor installed on a socket?It is installed like a normal processor


    Attached Files:

    ViktorV, Oct 25, 2021
    #121
    electrosoft and razor0601 like this.
  22. razor0601

    razor0601 Notebook Evangelist

    Reputations:
    56
    Messages:
    450
    Likes Received:
    88
    Trophy Points:
    41
    Yes. And with stock P870TM Bios?

    razor0601, Oct 25, 2021
    #122
  23. ViktorV

    ViktorV Notebook Evangelist

    Reputations:
    101
    Messages:
    306
    Likes Received:
    347
    Trophy Points:
    76
    No, you need to install a BIOS from Dsanke with support for BGA1440 (9900ks 128g) processors or patch your BIOS yourself in the Coffee Time program.

    ViktorV, Oct 25, 2021
    #123
  24. razor0601

    razor0601 Notebook Evangelist

    Reputations:
    56
    Messages:
    450
    Likes Received:
    88
    Trophy Points:
    41
    Ok, but with DSanke Bios there is no need to do the pinmod with 9900k or something else, right?

    razor0601, Oct 25, 2021
    #124
  25. ViktorV

    ViktorV Notebook Evangelist

    Reputations:
    101
    Messages:
    306
    Likes Received:
    347
    Trophy Points:
    76
    For mutant processors, a pin mod is not needed, but for ordinary non-ES processors of the 9th generation in DM / DM2-3 / KM laptops, a pin mod is required.The pin mod is not required only on TM laptop models.

    ViktorV, Oct 25, 2021
    #125
  26. razor0601

    razor0601 Notebook Evangelist

    Reputations:
    56
    Messages:
    450
    Likes Received:
    88
    Trophy Points:
    41
    Ok, because I have P870TM-GS

    razor0601, Oct 25, 2021
    #126
  27. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,918
    Messages:
    3,036
    Likes Received:
    5,780
    Trophy Points:
    581
    Nice, looking forward to seeing the madness! :D

    jc_denton, Oct 26, 2021
    #127
    Clamibot, electrosoft, DaMafiaGamer and 1 other person like this.
  28. Blacky

    Blacky Notebook Prophet

    Reputations:
    2,044
    Messages:
    5,346
    Likes Received:
    1,034
    Trophy Points:
    331
    It's not a mutant processor, it's the solution to BGA trash, when BGA trash is sent down our necks.

    Blacky, Oct 26, 2021
    #128
    Clamibot, electrosoft and Papusan like this.
  29. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    It has cleared Russian export checks and is on its way :)

    Meaker@Sager, Oct 26, 2021
    #129
    electrosoft, jc_denton, Papusan and 1 other person like this.
  30. ViktorV

    ViktorV Notebook Evangelist

    Reputations:
    101
    Messages:
    306
    Likes Received:
    347
    Trophy Points:
    76
    Yes, they had some fun)))) this processor has a crystal from the i9-9900k with the latest technical process, that is, you essentially buy an i9-9900k for $ 140, as for me it is quite a reasonable choice))))

    ViktorV, Oct 27, 2021
    #130
    Clamibot, Papusan, electrosoft and 1 other person like this.
  31. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931

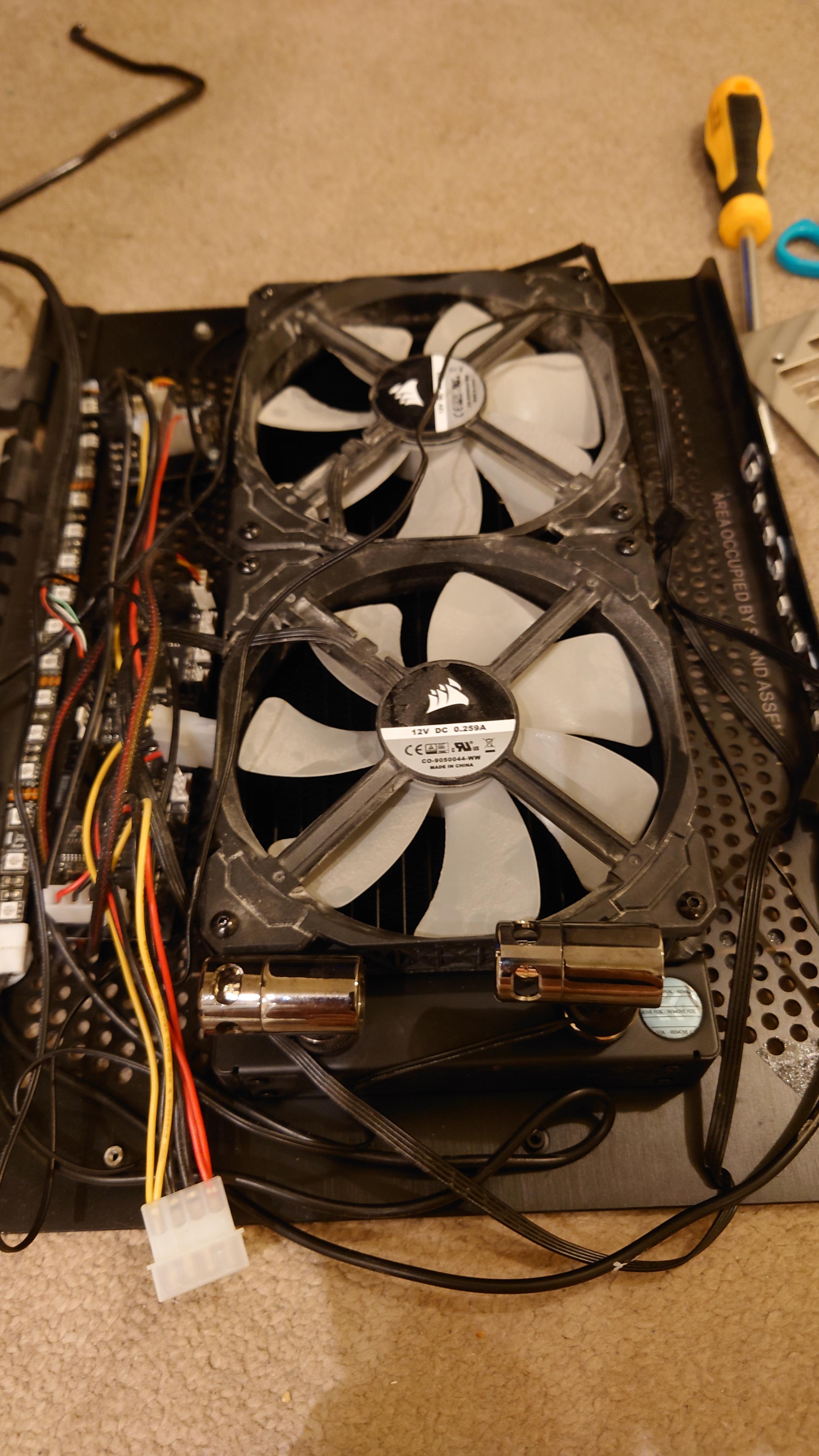

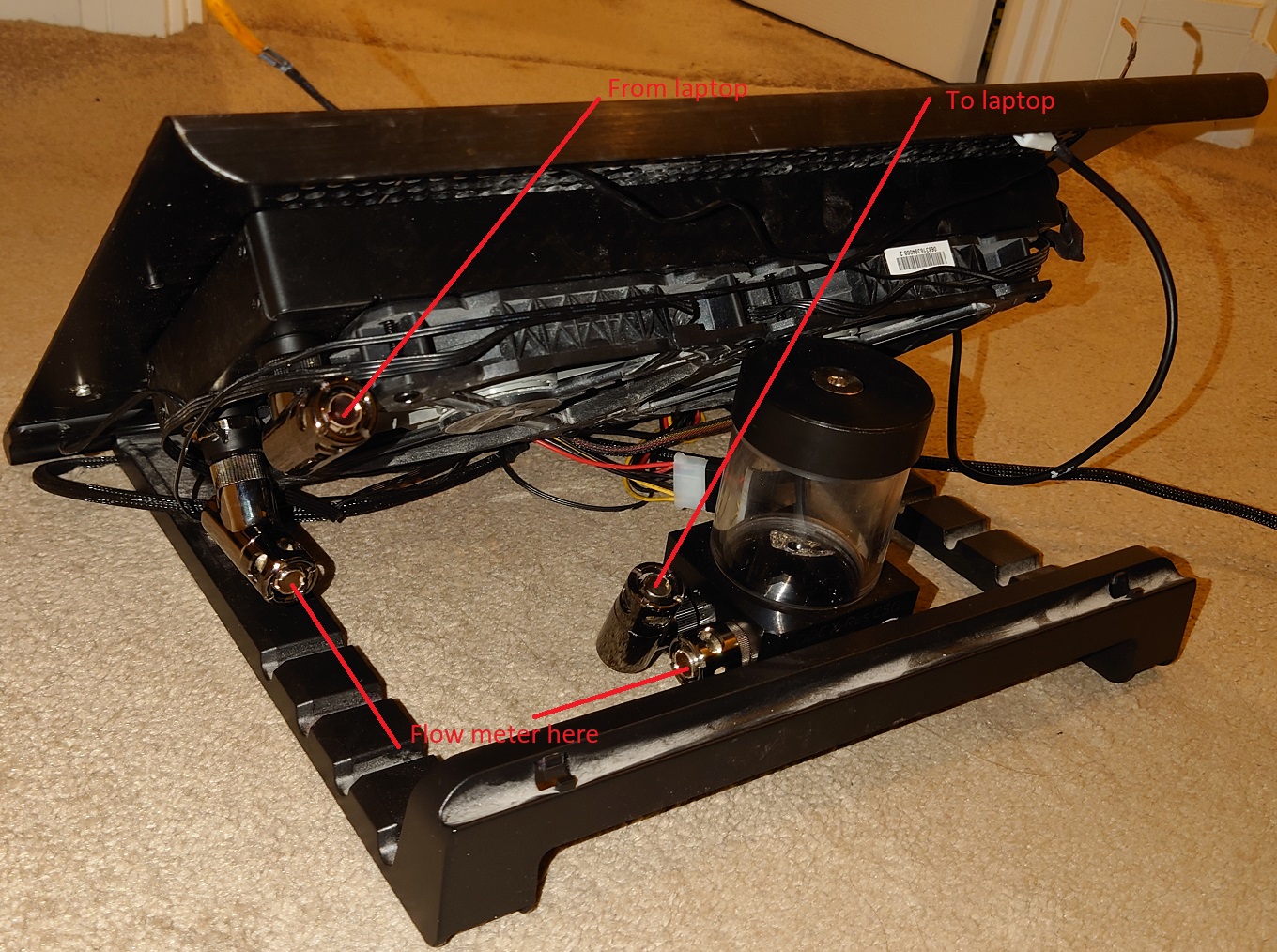

    Ok so just checked out the old pump is in good working order and the fittings are still ok. Looks good, so have ordered some fresh fluid/tubing along with a fluid temp sensor. Also a slim EK 280MM radiator to go with my existing fan arrangement.

    I may use Aida pro to feed temps back to the controller directly so I can have curves for CPU/GPU temps built in.

    Just the ground cable for the pump is showing a bit of abuse so a little soldering needed for that. Otherwise I am pleased. Cleaned out the pump and it ran strong :)

    EK D5 pump/reservoir combo
    EK Water Blocks EK-CoolStream SE 280
    EK 13/10 tubing
    2xCorsair Maglev 140MM fans
    Monsoon black chrome compression fittings
    Mayhems X1 Red fluid

    Plus I have some old angled fittings. My hope it to have it all sit within the stand as it currently is.

    Here is a video of how it is currently setup. I'll have to change the fan behaviour as it reads only off the input temps of the exhaust sensors. You can get Aida 64 pro to feed sensor data into the aquaero from your system and give it a virtual sensor of your actual CPU/GPU temps.


    Last edited: Oct 27, 2021
    Meaker@Sager, Oct 27, 2021
    #131
    dmanti, jc_denton, Clamibot and 3 others like this.
  32. hacktrix2006

    hacktrix2006 Hold My Vodka, I going to kill my GPU

    Reputations:
    677
    Messages:
    2,175
    Likes Received:
    1,413
    Trophy Points:
    181
    Guess @Meaker@Sager is going to be water cooling and over clocking the snot out of his system.

    VRM craters inbound, so best get popcorn ready.

    Sent from my SNE-LX1 using Tapatalk

    hacktrix2006, Oct 27, 2021
    #132
    Papusan and electrosoft like this.
  33. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    I'm maybe going to re-enforce the VRM too.

    Meaker@Sager, Oct 27, 2021
    #133
    jc_denton, DaMafiaGamer, Papusan and 1 other person like this.
  34. hacktrix2006

    hacktrix2006 Hold My Vodka, I going to kill my GPU

    Reputations:
    677
    Messages:
    2,175
    Likes Received:
    1,413
    Trophy Points:
    181
    What with plutonium reactor

    Sent from my SNE-LX1 using Tapatalk

    hacktrix2006, Oct 27, 2021
    #134
  35. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    With the missing phases, as far as the power supply from the machine and cooling is concerned cooling a single 3070 is super easy compared to shunt modded 1080 SLI doing about 550W.

    Meaker@Sager, Oct 27, 2021
    #135
    dmanti, hacktrix2006, DaMafiaGamer and 1 other person like this.
  36. hacktrix2006

    hacktrix2006 Hold My Vodka, I going to kill my GPU

    Reputations:
    677
    Messages:
    2,175
    Likes Received:
    1,413
    Trophy Points:
    181
    You do know I messing with you right. I can't wait to see the numbers.

    I would shunt the 3070 though as the 140w power limit doesn't leave head room for vram and vcore over clocking or at least mine doesn't.

    Sent from my SNE-LX1 using Tapatalk

    hacktrix2006, Oct 27, 2021
    #136
    ViktorV likes this.
  37. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    I'll take it step by step and see where things are. A shunt mod of some kind will be likely.

    Meaker@Sager, Oct 28, 2021
    #137
    electrosoft and hacktrix2006 like this.
  38. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    [​IMG]

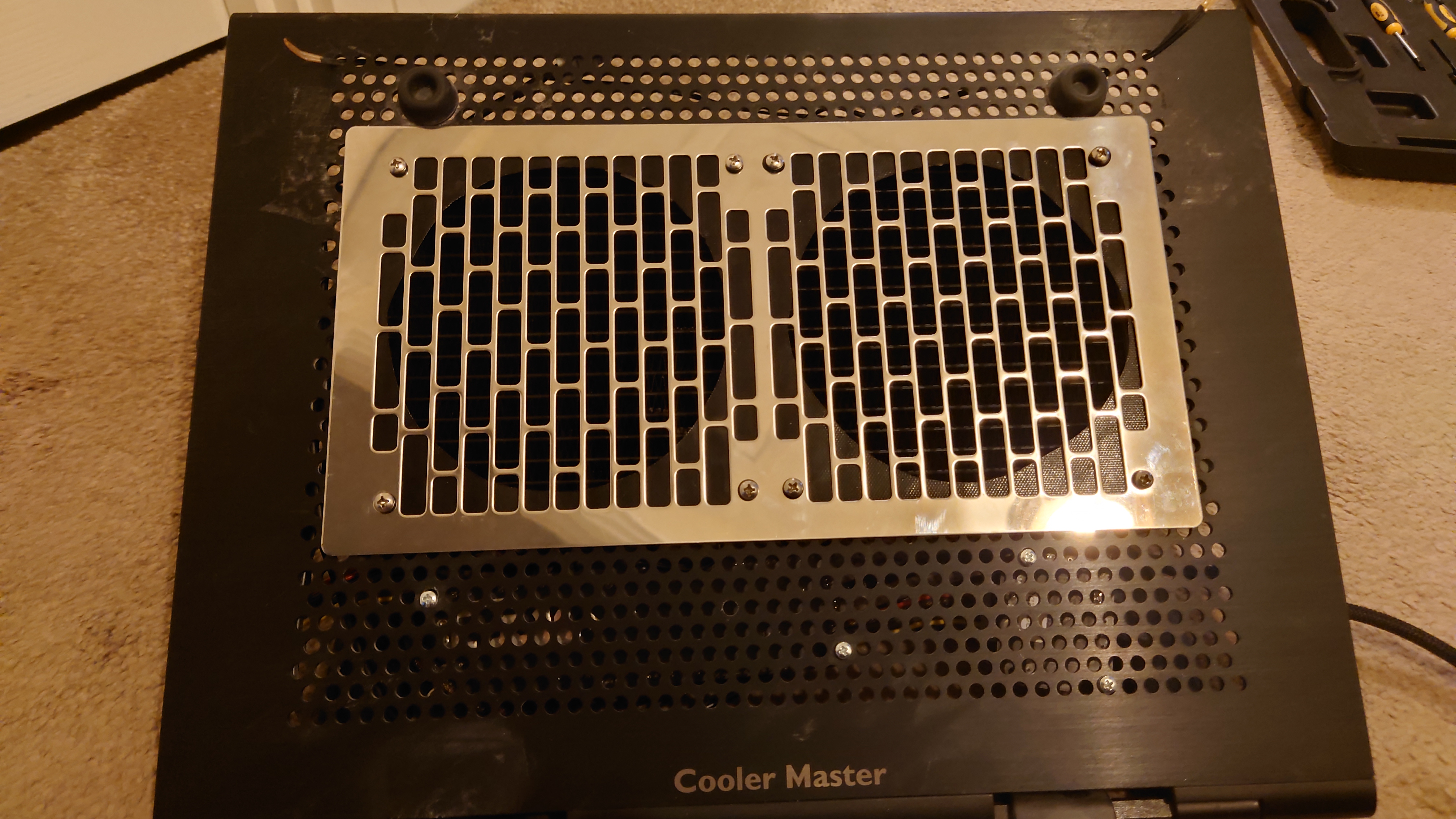

    I need some slightly longer screws to be able to fit the front face plate but here is a mock up of how the radiator fits in.

    Meaker@Sager, Oct 28, 2021
    #138
    jc_denton likes this.
  39. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    [​IMG]

    Ok new screws arrived and that's the front as it should be.

    Meaker@Sager, Oct 29, 2021
    #139
  40. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,918
    Messages:
    3,036
    Likes Received:
    5,780
    Trophy Points:
    581
    Is the russian cooler a hybrid water/air unit?

    jc_denton, Oct 29, 2021
    #140
  41. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    Yes it is a hybrid.

    Meaker@Sager, Oct 29, 2021
    #141
  42. ViktorV

    ViktorV Notebook Evangelist

    Reputations:
    101
    Messages:
    306
    Likes Received:
    347
    Trophy Points:
    76
    Yes, this radiator can work without connecting a water cooling system

    ViktorV, Oct 30, 2021
    #142
  43. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    I'm grabbing a flow meter and some extra sensors to feed in all the data :)

    Meaker@Sager, Oct 30, 2021
    #143
  44. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,918
    Messages:
    3,036
    Likes Received:
    5,780
    Trophy Points:
    581
    Sounds like a fun project for sure. Looking forward to read about the progress.

    jc_denton, Oct 30, 2021
    #144
  45. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    So here is the mock up of positions, pump cabling is fixed and ready to go. Waiting on the flow meter but the system is getting there :)

    [​IMG]

    Meaker@Sager, Oct 30, 2021
    #145
    dmanti, ole!!!, hacktrix2006 and 4 others like this.
  46. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,918
    Messages:
    3,036
    Likes Received:
    5,780
    Trophy Points:
    581
    Looks good, I'd still call it mobile in my book :D

    jc_denton, Oct 30, 2021
    #146
    ole!!!, Papusan and Clamibot like this.
  47. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    I could put some quick release fittings in there so it would be detachable.

    Meaker@Sager, Oct 30, 2021
    #147
    hacktrix2006 and Papusan like this.
  48. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    Heatsink is now in the country at the first international hub so hopefully wont take too long to get here now.

    Meaker@Sager, Nov 4, 2021
    #148
    Papusan, Clamibot, electrosoft and 2 others like this.
  49. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    Slight change of plans, no flow meter for now as it was out of stock and it's a bit of a wait for one to come in so I've just plumbed in a straight run of tubing there. I've got tubes waiting now to plumb up so I'll be able to get it working very quickly when it arrives.

    Meaker@Sager, Nov 4, 2021
    #149
    dmanti, Papusan and hacktrix2006 like this.
  50. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    I've had a note from parcel force it's due for delivery today :)

    Meaker@Sager, Nov 5, 2021
    #150
    ViktorV likes this.
← Previous pageNext page →
