Official Coffee Lake Thread/BIOS For ALL SkyLake/KabyLake Clevo LGA1151 laptops

oh thanks also how do i check that im using modded bios after i installed it?

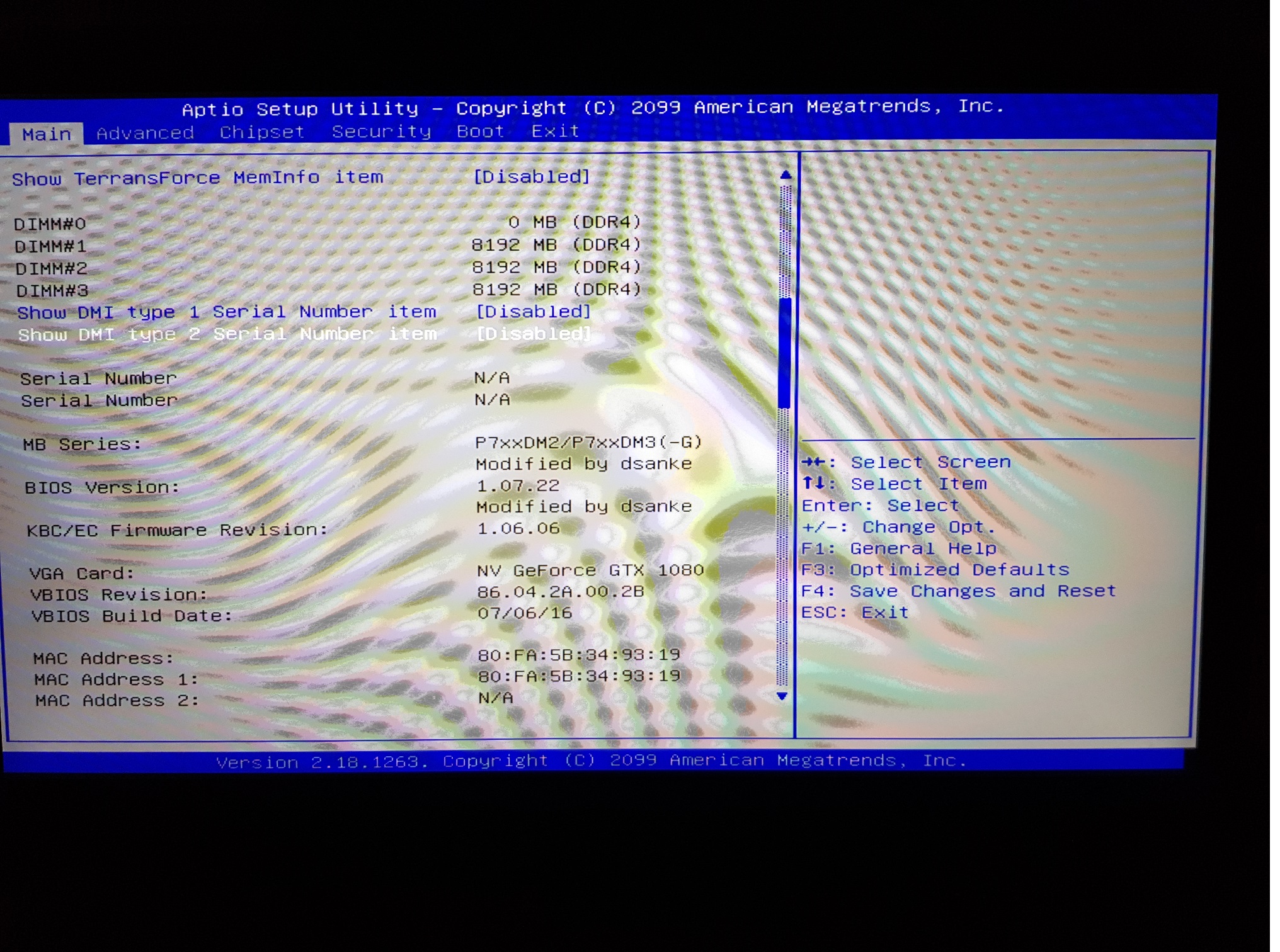

Enter BIOS by pressing F2 (when powering the machine up) and you should see: Modified by dsanke in the BIOS info right when you enter it

Should be something like this:

Spoiler

Sorry for the lines in the screen, but i took the photo with my phone



The Interface will change or use the F2 Key when the Motherboard/Brand splash screen appears. The Bios information on the first page will appear or depending on the mod, the Bios interface will change.



Joluke beat me to it. I looked away for too long. Ha!



No worries



Strange mine doesn’t said after i installed it

Except the ME FW version 11.6.29.3287



oh nevermind i accident skipped the step so nothing happen ,now i can see the modded bios version



Hello all,

So I have updated bios for p751dm, works fine with same issue for audio jacks (though driver is realtek and audio works from speakers and some jack din't check properly which one I was in a hurry) and one more issue with my 780m which gets stuck at 324mhz and no matter what I do it's stuck at this p8 power state (I thinks it's p8, only 2 power states work) and perf cap reason is idle.

8086K does well, 4.6ghz in load, but my heatsink needs some mod for a contact with this cpu, otherwise it's half in the air and temps are far from OK.

Rolled back to original BIOS and the 780m runs fine, anyway should get a proper 9 or 10 series MXM for it but later.

Will try to update the p751dm2-g and try the new BIOS already from the 9 series BIOS thread, basically it should work just fine.

Reading the thread I noted that both P7xxDM and p7xxDMx suffer from same issues with audio jacks and shutdown going to restart while power not connected? Has anyone tried to fix these things?



Hi
I have w650kk1 any one tried i5 9400f without intel graphic? this bios supports 9th gen?



Yes it does support 9th gen. As for the other question can't answer because I have a different laptop



you can't use cpu without igpu unless you want your laptop be a no screen server.



Edit: I accidently posted this in the not refresh forum, I am sorry.



GSync only avialible on i5+ CPUs. These is due to the nvidia liceinses.



Thank you for your quick reply! Do you by any chance also give me a source for this information, because I'm planning to buy an i5+ if I know this is true for certain.



No, this information doesn't have official source. (at least I did not find when I was searching) But you can search my previous posts and see, how i solve same problem. (replaced 8100 on 8400 firstly, and then - on 8700k es)



Invest in a i7 8700k and you should be good to go

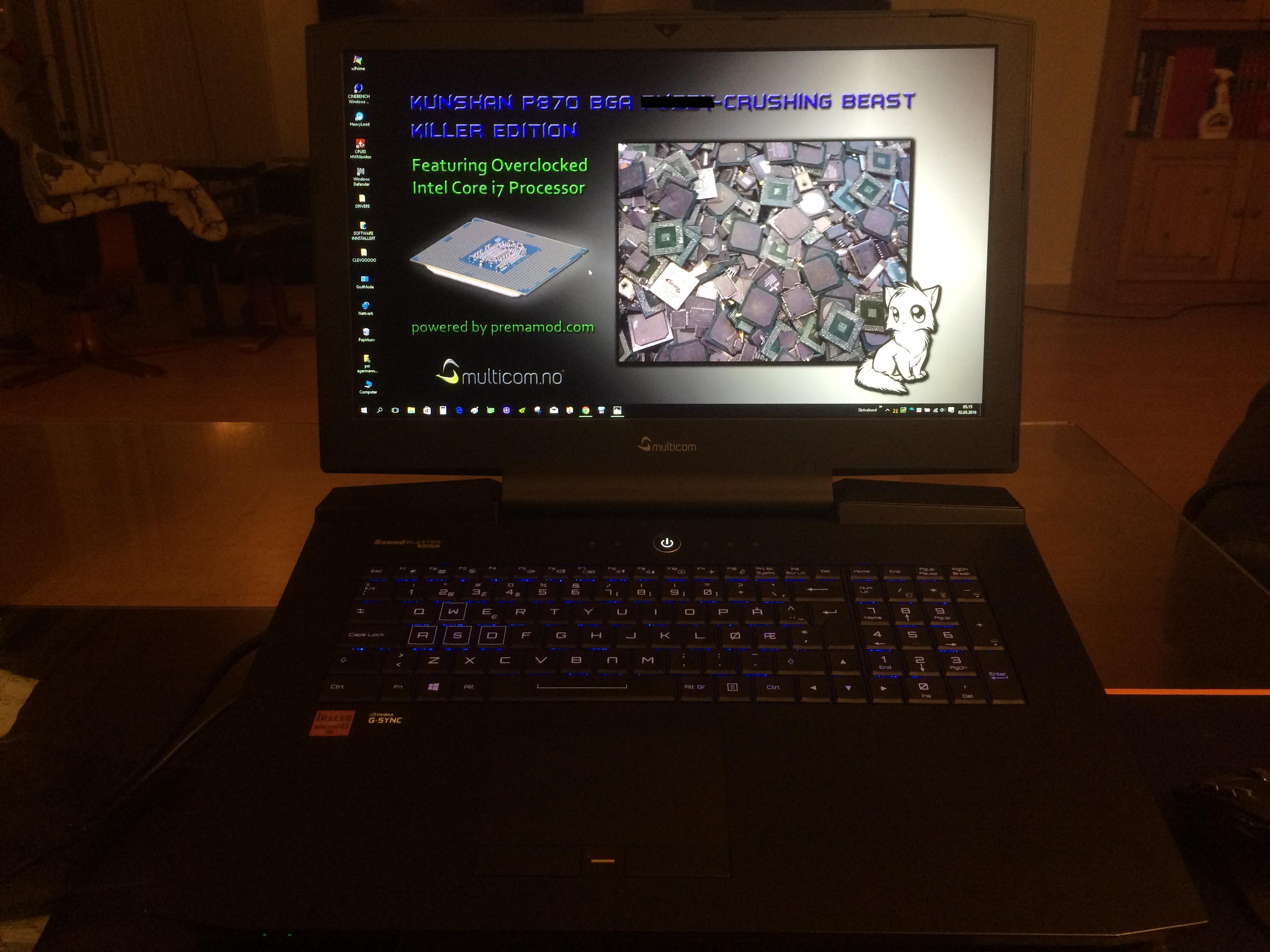

@Prema mod bios and the old Clevo P870DM

The old lady from 2015 has been through several Cpu upgrades the last years.



Hi
Thanks for the reply and i'm asking this after long time!. do you mean if i use any CPU without igpu like i3 9100f or i5 9400f on my w650kk1 laptop it will damage the Nvidia GPU? because it will run on Nvidia only? actually i'm not using screen saver function of laptop, my usage will be gaming, browsing, office works and movies.
and how it will affect the battery life?
appreciate your reply.

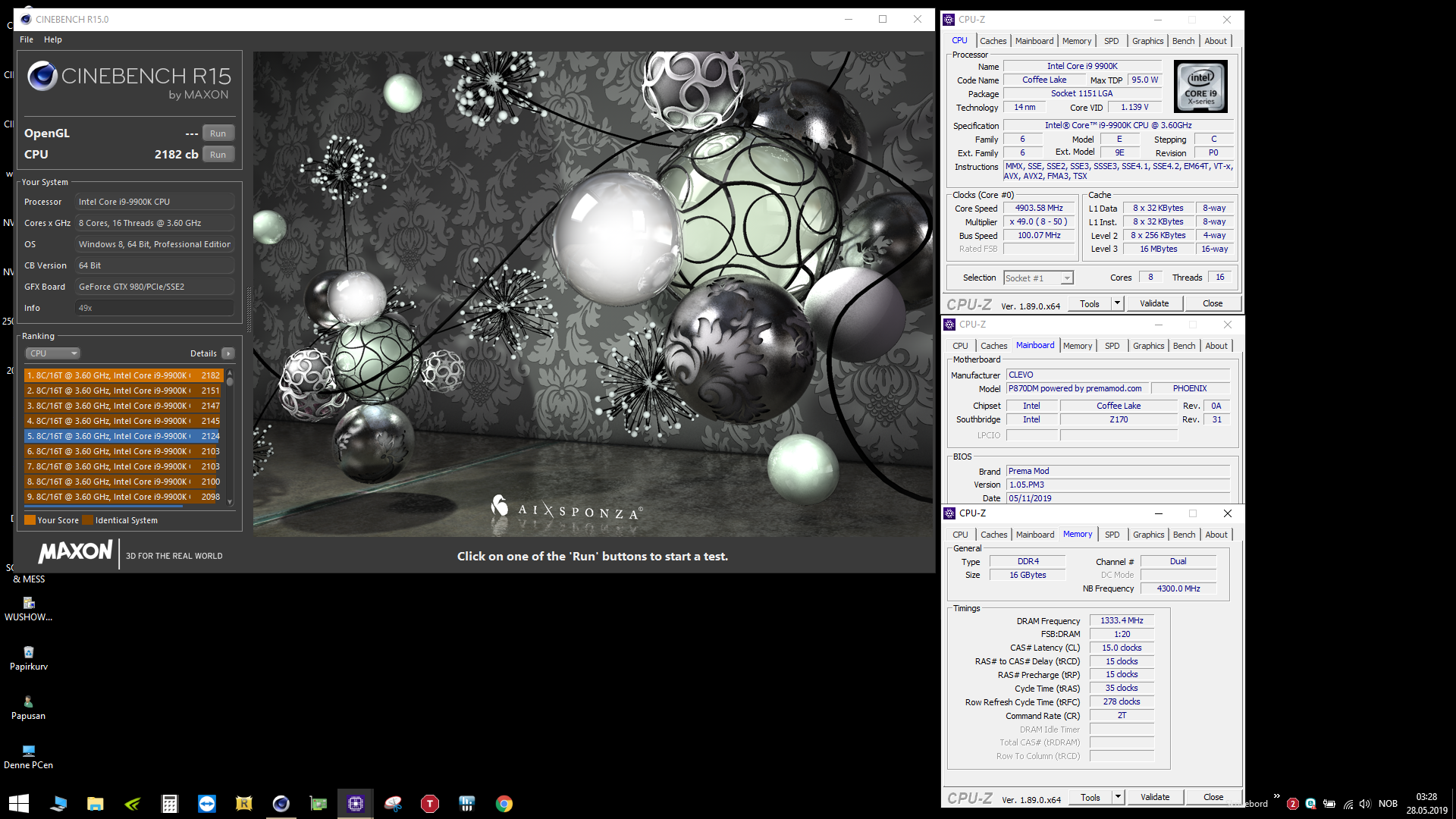

This is great, what temps do you have at this speed?!



I need your advice as well, if I can't run @5.0, do you recommend the i7 9700K instead? I'm have a plan to upgrade my KM1.



A machine setup for g-sync except (GPUs and panel and BIOS) for having optimus will not enable it on an i3 CPU setup but will with i5/i7.



Rather go for 8700K(8086K). A amazing all around chips. All depends on your workflow. 12 threads is better than 8 if your workflow need it. You can’t hold high clocks with 9900K on the old Clevo’s. You need TM boards and cooling then.



I already ordered the TM1 CPU heatsink and x -Bracket for me and one of my friends (NBR Member) we will do the mod as soon as we get the parts.
So I have to decide about the CPU to try get one in the same time.
What I understand from you that the 8700k/8086k is better than the 9700k? and if I have the TM1 cooling so I can go for the 9900k?,



If you push 9900K you will reach power shutdown. A ok binned 9900K will let you go longer but not as far you want. I haven’t thermal problems but Mb can’t let me go as long I want.

8700K let you run higher clocks.

All depends on what you’re goal is.



It's a lot easier to delid too.



When I upgraded my old KM1 to 8086k (delided), Prema tried to make it run stable @5.0, but it runs only @4.9 stable with undervaluing -150, I really appreciate his remote support. It was a great system.
I don't need to bush the 9900k, I only need to make it run stable (If @4.9 all cores will be fine) and to be a selling point after few months. But if not stable enough, then 8700k will be my choice. That's why I need to make sure from someone like you guys already has the experience.
I never sell any system without making sure 100% is working fine, most of my buyers are my friends and relatives, I can't take any risk with them even if they are just strangers.
- Stability + Performance
- Selling point
- Value added
These are what I'm looking for.



8700K. Stock is 4.3 on all cores. Nothing is near this level in long time use in todays laptop. 8 cores or 16 threads running in today’s notebooks is a joke.



So that's mean your recommendation is the 8700/8086k, I'll start looking for one from now on. Thanks for your kindness.



Yeah, 6 cores and 12 threads. On old MB. As long cooling is ok.. Go!



If you use any CPU without iGPU , it wouldn't cause your discrete GPU damage , but your laptop will keep black screen because the display need iGPU to work.And for this model , the display output also connect to iGPU, so if you want use it as a normal laptop , do not choose CPU without iGPU.



In my km1 - tm1 mod I could use a very good 9900kf chip on 4,3ghz around 75-80C. To be honest it is just not worth it... with a good 8086k or 8700k you can get easily 4,7-4,8Ghz and the price per buck it is better. I will give a shot later to the 9900k, I will also get a tm1 cpu heatsink, and will put it direct die with OC frame if it is possible.



Good to know, please update us with any new results.



The 9900ks could be more clockable but pricing could he an issue.



Guys,
how can i unlock tdp limit in the gop modified vbios? (what is in 1st post download)
thx

would need for gsync 1080 and gsync 1060. any1 could help?



So far pascal BIOS aren't unlocked for any type of stuff to be unlocked :/. You can try the tdp modifier (search: tdp modifier in this forum) on a vBios for your gpu. Dump the vBios with gpu-Z and modified the tdp and reflash the vBios with a programmer



Hi,
Can anyone dump me an official 1080GTX Gsync vbios for 8th gen CPU (from tm1 model). ASAP if it is feasible
thx



Lol, I think this is the third time I have given you this.

https://www.sendspace.com/file/1l7n2g



Yeah i am a dick i know l am at an engineer but i did not have it!! Thx again!!!

I have hard time with my km1 to tm1 870... 120hz panels work fine but 144hz flickering... we went back to stock tm1 bios now we wanna test with stock vbios. Already replace panel amd cable...

tried but black screen in 870km1 w/ stock TM1 bios



whoops forgot to tell you guys that after i install the new bios for W650KK1 so the system work fine after i plugged in g4600
and for the 8th then it on way to my house.



would the i7 8086k at factory clocks be ok in a p870dm3-g???? with original heat sinks , or would the temps be to high? NON over clocking



It should run fine. I'm running a 8086k in a P870DM-G which has the 5v fans vs the 12v monsters in the DM3 and it is OC'd to 4.5ghz on all cores @ -150uv and works great and passes all my stability criteria in my sig.



question :
Can you put I7 8700T ES cpu (engineer samples) in w650kk1 like normal cpu?



Usually yes with ES CPUs but they can have odd quirks.



as long as it work normal then im fine with it



Oh they work but don't expect top notch performance out of them. Especially if you've bought a 8700t es, they are DREADFUL!

A 7700k at stock is faster than those pieces of rubbish!



ah interesting what about turbo boost them all the time?



Locked down chips will struggle keep up max boost (all cores) due limited TDP



ok but here the result of i7 8700T ES :
User Benchmark: https://www.userbenchmark.com/UserRun/20192194
CPU-Z benchmark : https://valid.x86.fr/jf615w
Note' : I7 8700T ES sometimes will identify as CPU-0000
but here the strangest part : before I install the I7 8700T ES ,i were using i3 8100 ,the i3 acting very strange like having black screen a few times and somehow managed to damage my cache drive (all app Icon were turned into 'X in the box' icon inside the search tab) , after I installed i7, everything returns to normal (all app icon recovered).

so can someone explain? I'm very confused...



Hi mate and thank you for your work!
Can you re-upload the pictures? All the links are broken...
Thanks a lot



The pictures you need are inside of the zip file in the first page
