    P150EM Upgrading from 675M to 680M!

    Discussion in 'Sager and Clevo' started by hackness, Jun 28, 2012.

  1. 5482741

    5482741 5482741

    Reputations:
    712
    Messages:
    1,530
    Likes Received:
    17
    Trophy Points:
    56
    So you haven't been able to overclock past the MSI Afterburner max?

    Have you tried using NVIDIA System Tools?

    5482741, Jul 4, 2012
    #151
  2. fantabulicius

    fantabulicius Notebook Consultant

    Reputations:
    82
    Messages:
    226
    Likes Received:
    0
    Trophy Points:
    30
    is the 135 mhz core oc an artificial limit put there by nvidia ?

    fantabulicius, Jul 5, 2012
    #152
  3. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101
    Around 20C, GTX680M's temp is naturally low. It's unexpectedly low really. Also when running Furmark my GTX680M auto throttles, this might be a feature to keep the gpu safe.

    Not tried yet, is that tool for kepler? I tried EVGA precision X for kepler gpu, the program freezes when I apply the clock lol.

    It's a limit on the Msi afterburner, and what's weird here is that it says +135 on the slider instead of the actual clock. Nvidia inspector couldn't read the P0 state too.

    hackness, Jul 5, 2012
    #153
  4. hizzaah

    hizzaah Notebook Virtuoso

    Reputations:
    1,672
    Messages:
    2,418
    Likes Received:
    289
    Trophy Points:
    101
    well I'm sure there are updates to these tools soon. Wonder if you got a "good overclocker" or if this is the standard for 680M's and there will be a few gems in the lot later

    hizzaah, Jul 5, 2012
    #154
  5. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101
    ok this is what happen full time when running Furmark on my GTX680M, maybe the 180W adapter isn't enough or the card is designed to throttle against burning benchtools. Voltage stays at 0.962v full time during Furmark, like the 0.962v state is designed for throttling.

    [​IMG]

    hackness, Jul 5, 2012
    #155
  6. hizzaah

    hizzaah Notebook Virtuoso

    Reputations:
    1,672
    Messages:
    2,418
    Likes Received:
    289
    Trophy Points:
    101
    Don't happen to have a Kill A Watt do you?

    hizzaah, Jul 5, 2012
    #156
  7. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101
    Sorry I don't have one at the moment.

    Was able to push the Memory Clock to 2700MHz(+900), I didn't know samsung vram makes that big of a difference. Also it seems like the +135MHz limit came from the card itself, I tried using nvidia inspector, max is +135MHz too, it gives me a feeling that this was for the boost clock that they didn't enable on the GTX680M.
    Edit: Nevermind, it started throttling once I start the benchmark. I guess 2600MHz on memory clock is about the max for GTX680M.

    hackness, Jul 5, 2012
    #157
  8. Tonrac

    Tonrac Notebook Evangelist

    Reputations:
    301
    Messages:
    336
    Likes Received:
    82
    Trophy Points:
    41
    Does the gpu start throttling in game with OC clock?

    Tonrac, Jul 5, 2012
    #158
  9. Blacky

    Blacky Notebook Prophet

    Reputations:
    2,044
    Messages:
    5,346
    Likes Received:
    1,034
    Trophy Points:
    331
    Just take a pic of the vRAM modules and we'll tell you max OC ;).

    Blacky, Jul 5, 2012
    #159
  10. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,148
    Trophy Points:
    931
    take a look at the OP ^^

    Sent from my GT-I9001 using Tapatalk 2

    jaybee83, Jul 5, 2012
    #160
  11. fantomasz

    fantomasz Notebook Deity

    Reputations:
    147
    Messages:
    1,113
    Likes Received:
    0
    Trophy Points:
    55
    as of today looks like 680 have less problems than 7970
    but both gpu suffer from lack of drivers
    I hope this will change in future

    fantomasz, Jul 5, 2012
    #161
  12. Blacky

    Blacky Notebook Prophet

    Reputations:
    2,044
    Messages:
    5,346
    Likes Received:
    1,034
    Trophy Points:
    331
    Ah, thanx!

    Looks like they are design to work well up to 1250 MHz. After that ... it's a different story.

    Edit: How do those results compare with the 7970M ?

    Blacky, Jul 5, 2012
    #162
  13. Mikaelft

    Mikaelft Notebook Consultant

    Reputations:
    24
    Messages:
    289
    Likes Received:
    0
    Trophy Points:
    30
    Nvidia GTX 560M vs 675M
    Result

    Nvidia GTX 560M vs 680M
    Result

    Mikaelft, Jul 5, 2012
    #163
  14. vuman619

    vuman619 Notebook Evangelist

    Reputations:
    381
    Messages:
    367
    Likes Received:
    2
    Trophy Points:
    31
    check out the results in my laptop blog in my sig ;)

    vuman619, Jul 5, 2012
    #164
  15. Blacky

    Blacky Notebook Prophet

    Reputations:
    2,044
    Messages:
    5,346
    Likes Received:
    1,034
    Trophy Points:
    331
    Uhhh, I see. Nicely done! But gaming benches? Are those coming up as well?

    Blacky, Jul 5, 2012
    #165
  16. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581
    Its a feature of the 680M I guess.

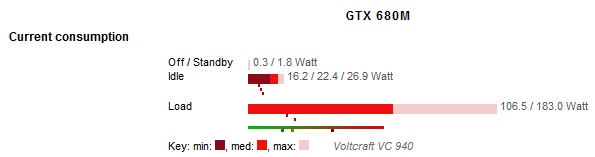

    Notebookcheck also got throttling when reviewing the 680M. They tested the P170EM but with a 220W power supply.

    Maximum power draw when doing a very resourceful heavy task: Furmark + Prime95, was 183W for the entire system.
    [​IMG]

    Here is the screenshot of their test. Its unfortunally a small picture but you can clearly show it says that its throttling in the Furmark window. The GPU temperature is low, the power draw is a lot less than 220W so I think it must be a feature

    [​IMG]

    Cloudfire, Jul 5, 2012
    #166
  17. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,148
    Trophy Points:
    931
    nvidia have been implementing furmark / OCCT throttling ever since 580M, nothing new there :)

    jaybee83, Jul 5, 2012
    #167
  18. james_het

    james_het Notebook Geek

    Reputations:
    22
    Messages:
    92
    Likes Received:
    0
    Trophy Points:
    15
    from what u have posted it seems that benchmarks like 3dmark11 and furmark have better outcome on 680M, and benchmarks like Crysis 2 and BF 3 seem to be at the same level on both GPUs (some games seem to favor 7970M). Am i wrong? And of course the 680 has a nice OC potential, comparable to 7970M, but a much better cooling system, or runs cooler at least, and amuch better switchable support via drivers (atm enduro is a joke, while Optimus is fully optimized).

    If i had to buy the card now honestly maybe ill still take the 7970M if i had an Alienware or HM Clevo, but if i could afford the +300 USD id really take the 680M, cause to me paying 1700 USD for a achine that doesn t work as intended is horrible. Im not saying it s Clevo or AMD or anyone else's fault, im just explaining my pov.

    Back on topic the 680M is a very nice card dude, congrats :)

    james_het, Jul 5, 2012
    #168
  19. Zymphad

    Zymphad Zymphad

    Reputations:
    2,321
    Messages:
    4,165
    Likes Received:
    355
    Trophy Points:
    151
    OC Potential is totally random, can't just generalize like that. For me, on my 7970M for example, I run without any artifacting and issues at 950/1300, but some users see running at 1000/1400. So there will be many 680M users who can't OC well just as many who can.

    Zymphad, Jul 5, 2012
    #169
  20. Kingpinzero

    Kingpinzero ROUND ONE,FIGHT! You Win!

    Reputations:
    1,439
    Messages:
    2,332
    Likes Received:
    6
    Trophy Points:
    55
    That's true, also drivers could hold back OC.
    Personally I can bench at 965/1500, but with latest beta im forced to step down my OC quite a lot for games.
    It depends on luck, cooling materials, card, drivers.
    Anyway thanks for the benchmark Hackness, I appreciate your hard work :) + rep!

    Kingpinzero, Jul 5, 2012
    #170
  21. BlueFresh

    BlueFresh Notebook Enthusiast

    Reputations:
    0
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    Rather satisfying results shared so far - appreciate it

    I'm even more eagerly anticipating having an OC'd 680m now :cool:

    Will also be powered w/ a 3920xm, OC'd - 4.1ghz, quad

    -

    --

    ---

    ETA ~2 weeks *sigh*

    BlueFresh, Jul 5, 2012
    #171
  22. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101
    No, not in games, I get stable fps in all the games I have tested so far. It's just furmark even heaven 3.0 doesn't throttle. They hate Furmark I take it :D

    hackness, Jul 5, 2012
    #172
  23. BlueFresh

    BlueFresh Notebook Enthusiast

    Reputations:
    0
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    Just out of curiosity; how would the 680m OC'd overall performance compare to current high-end desktop GPU's?

    Would it be fair to compare it with the GTX 670?

    Thanks in advance.

    Edit: lol noticed there is a huge memory difference with GTX 670 actually.. over 4gbs

    BlueFresh, Jul 5, 2012
    #173
  24. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101
    No it won't reach GTX670's level(3Dmark11 is around 8000~10k depend on the make), GTX580 at most.

    hackness, Jul 5, 2012
    #174
  25. BlueFresh

    BlueFresh Notebook Enthusiast

    Reputations:
    0
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    GTX 580 in specs isn't too bad..

    Appreciate the prompt response

    BlueFresh, Jul 5, 2012
    #175
  26. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581
    BF3 stock clocks, temperature hackness. We haven`t found out how hot this GPU run without overclock yet :)

    Cloudfire, Jul 5, 2012
    #176
  27. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101
    It's around 70C right now after 1hr of playing, I'll post at 2hr into the game.

    hackness, Jul 5, 2012
    #177
  28. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581
    Awesome :D

    Cloudfire, Jul 5, 2012
    #178
  29. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101
    OK BF3 temp at stock clock after 2hr of gaming in 3 maps: Caspian boarder/Gulf of Oman/Operation Metro.

    Room got a little warm tho.

    [​IMG]

    hackness, Jul 5, 2012
    #179
  30. Blacky

    Blacky Notebook Prophet

    Reputations:
    2,044
    Messages:
    5,346
    Likes Received:
    1,034
    Trophy Points:
    331
    Room temperature please!

    Blacky, Jul 5, 2012
    #180
  31. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101
    Around 25.
    10chars

    hackness, Jul 5, 2012
    #181
  32. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581
    Many thanks hackness. Another rep earned.

    hmmm, the room temperature seems to affect the GPU temperature greatly.

    Yesterday you tried BF3 out with your max overclock. And you got Max 67 degree celsius, 8 degree lower than today. With a massive overclock...

    [​IMG]

    Cloudfire, Jul 5, 2012
    #182
  33. aduy

    aduy Keeping it cool since 93'

    Reputations:
    317
    Messages:
    1,474
    Likes Received:
    0
    Trophy Points:
    55
    well since the 680m is the gtx 670 but downclocked, i think it depends on how close you can get to the clocks of the 670m, and btw guys overclocked memory is much less important than you would think. on bf3 maxed on my 485m, i can underclock my memory to 1254 mhz from 1500 and still only get 60% useage of the (mcu). now where this larger bandwidth comes handy is when you have multiple displays.

    aduy, Jul 5, 2012
    #183
  34. Blacky

    Blacky Notebook Prophet

    Reputations:
    2,044
    Messages:
    5,346
    Likes Received:
    1,034
    Trophy Points:
    331
    It doesn't matter. At those temps I can OC that card to get at least 10% more out of it. I am talking about permanent OCs, not those wannabe-be OCs done just for benching.

    Blacky, Jul 5, 2012
    #184
  35. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101
    I think th 67C is because it was only a 30min session plus the room temp here is around 18-20 at night.

    hackness, Jul 5, 2012
    #185
  36. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    Woah, just so you know the GTX670 runs at around 1.175V, so 0.98 is a HUGE reduction. These are some nice cores.

    Meaker@Sager, Jul 5, 2012
    #186
  37. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101
    Thanks for the rep hehe.

    GTX680M has 4 voltage and they all are present:0.9870v/0.962v/0.862v/0.8370v

    0.962v = throttle mode, comfirmed with Furmark.

    hackness, Jul 5, 2012
    #187
  38. oni222

    oni222 Notebook Deity

    Reputations:
    310
    Messages:
    733
    Likes Received:
    5
    Trophy Points:
    31
    FFXIV does not work with any 6X0 card desktop or laptop. It took forever to get nvidia to fix it on the 580's :(

    It's a shame because I am looking to upgrade to the 680m for FFXIV!

    EDIT: Hey Hackness what server do you play on FXIV? I tried to send you a PM but you disabled it :(

    oni222, Jul 5, 2012
    #188
  39. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581
    Yeah seems like a reasonable explanation. Either way it runs cooler than GTX 580M. Do you remember what temperatures you got with your 675M when gaming with BF3? :)

    Cloudfire, Jul 5, 2012
    #189
  40. LaptopNut

    LaptopNut Notebook Virtuoso

    Reputations:
    1,610
    Messages:
    3,745
    Likes Received:
    92
    Trophy Points:
    116
    Not only does it run cooler than the 580M, in some places it costs less than that GPU as well. My 680M has been shipped now, I look forward to it.

    LaptopNut, Jul 5, 2012
    #190
  41. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,835
    Likes Received:
    583
    Trophy Points:
    131
    That's not a big deal, everything that's mobile throttles. Even the mobile CPUs.

    Zero989, Jul 5, 2012
    #191
  42. vince207gti

    vince207gti Notebook Guru

    Reputations:
    13
    Messages:
    51
    Likes Received:
    5
    Trophy Points:
    16
    wow, i don't understand why they put throttle around75°c, it's very cold,
    my previous M17x with 280mgtx and 5870m usually got higher than 85°c, and they're still working :S

    they're should be a nice boost without this throttling issue :S

    vince207gti, Jul 5, 2012
    #192
  43. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581
    Only Furmark throttles. All the games play just fine with the max overclock

    680M SLI, fastest XM CPU and 2 480GB SSDs in RAID. Nice notebook you have ordered vince :D

    Yeah its crazy considering its 45%+ faster than 580M. I didn`t see that coming. Looking forward to your experience with the 680M LaptopNut. I know a lot of forum members are getting it the next days. HTWingNut tomorrow :)

    Cloudfire, Jul 5, 2012
    #193
  44. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101
    80~85C for a 30min BF3 session on the GTX675M.

    hackness, Jul 5, 2012
    #194
  45. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581
    Wow so it runs 10 degree celsius if not more below 580M. Mighty impressive

    Cloudfire, Jul 5, 2012
    #195
  46. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101
    I think I might add a fan cable spliter and add a 3V micro fan to exhaust the air from the hole above the vrams, shouldn't be a problem as it only uses 0.01W.

    hackness, Jul 5, 2012
    #196
  47. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101
    hackness, Jul 5, 2012
    #197
  48. jaug1337

    jaug1337 de_dust2

    Reputations:
    2,135
    Messages:
    4,862
    Likes Received:
    1,031
    Trophy Points:
    231
    Wow just... wow

    +1 great job really

    I can only imagine overvolting this

    jaug1337, Jul 5, 2012
    #198
  49. Killerinstinct

    Killerinstinct Notebook Evangelist

    Reputations:
    633
    Messages:
    539
    Likes Received:
    119
    Trophy Points:
    56
    I am wondering why nvidia didn't increase the core clocks, so far we have seen three results in which the GTX 680m can reach 800 easily and it has low temps, and the the power comsumption should still be around the same since the voltage hasn't change, i believe not sure about the last statement that i made.


    EDIT: last statment is wrong, forgot about looking at some desktop cards overclock wattage going up after increasing clocks, my bad.

    Killerinstinct, Jul 5, 2012
    #199
  50. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,426
    Messages:
    58,171
    Likes Received:
    17,882
    Trophy Points:
    931
    Throttle will be TDP rated rather than temp related.

    Meaker@Sager, Jul 5, 2012
    #200
← Previous pageNext page →
