REALTEK HD AUDIO MOD For Clevo

Yes, just follow instructions...



Realtek UAD 8612 (Build 17763.288)


Realtek_UAD_6.0.1.8612_Creative_SBC_UWP_Clevo_Mod (full package)​

Realtek UAD 8612 WHQL
Realtek Audio Console 1.2.165.0 UWP
Creative UAD extensions
Sound Blaster Connect 720° 2.2.3.0 UWP
SHA1: 5AF9B249C5A486BE85FC857FA5F9AEA52F3DA249


- Uninstall Realtek UAD/HDA drivers, SBC (UWP) and Realtek Audio Console (UWP), including Autoruns step "“UWP.service” (Creative) and "Realtek" audio entries
(careful not to delete Realtek card reader entry) then reboot.

- Disable driver signature enforcement. Hold down the Shift key while you click the “Restart” option -> Select “Troubleshoot” -> Advanced options -> Startup Settings -> select “Disable driver signature enforcement” option.

- Temporarily disable AV software.

- Copy to desktop then Right-click/Run as administrator “Realtek…mod.exe”.

- When prompted (4x) select “Install driver software anyway” (UAD).

- Realtek installer, select “No, I will restart my computer later” to continue with RTK Audio Console & SBC installation.

- Finally, reboot.

- Realtek Audio Console -> disable "Power Management".



I've heard that Realtek had developed a dll that provided native ASIO support. Anyone know more about the current status of that?



Realtek UAD 8619 (Build 17763.292)


Realtek_UAD_6.0.1.8619_Creative_SBC_UWP_Clevo_Mod (full package)​

Realtek UAD 8619 WHQL
Realtek Audio Console 1.2.167.0 UWP
Creative UAD extensions
Sound Blaster Connect 720° 2.2.3.0 UWP
SHA1: 85DA50A9919D80E3318A748AC89BAF4EF4856288


- Uninstall Realtek UAD/HDA drivers, SBC (UWP) and Realtek Audio Console (UWP), including Autoruns step "“UWP.service” (Creative) and "Realtek" audio entries
(careful not to delete Realtek card reader entry) then reboot.

- Disable driver signature enforcement. Hold down the Shift key while you click the “Restart” option -> Select “Troubleshoot” -> Advanced options -> Startup Settings -> select “Disable driver signature enforcement” option.

- Temporarily disable AV software.

- Copy to desktop then Right-click/Run as administrator “Realtek…mod.exe”.

- When prompted (4x) select “Install driver software anyway” (UAD).

- Realtek installer, select “No, I will restart my computer later” to continue with RTK Audio Console & SBC installation.

- Finally, reboot.

- Realtek Audio Console -> disable "Power Management".



It seems that i can't use mono microphone with your drivers, since I only got the option for 2 channel in the default format. When i plug it, i sound atrocious and i think that is the culprit.



That might be my issue as well as on discord everyone has been complaining with my voice or the sound.



Well i'm by no means competent, but its logical that there would be problem when using a single channel (mono) mic with drivers forcing 2 channels (stereo). I'm not sure though if realtek designed it that way or its just this driver released by j95.



Set ext. MIC as default device and disable MIC enhancements under SBC and RTK Audio console.



Hi @ j95,
1) I successfully installed your Realtek UAD 8619 mod on my Clevo P650RS-G but I don't understand why the installer must put at desktop in order to get it install properly.

2) My laptop has ESS SABRE HiFi, at the time of writing if I install Realtek HD Audio Driver 8642_FF00 Generic or 8642_FF10 with Creative instead of Realtek HD Audio Driver provided by Clevo, does it means it will never use ESS SABRE HiFi?

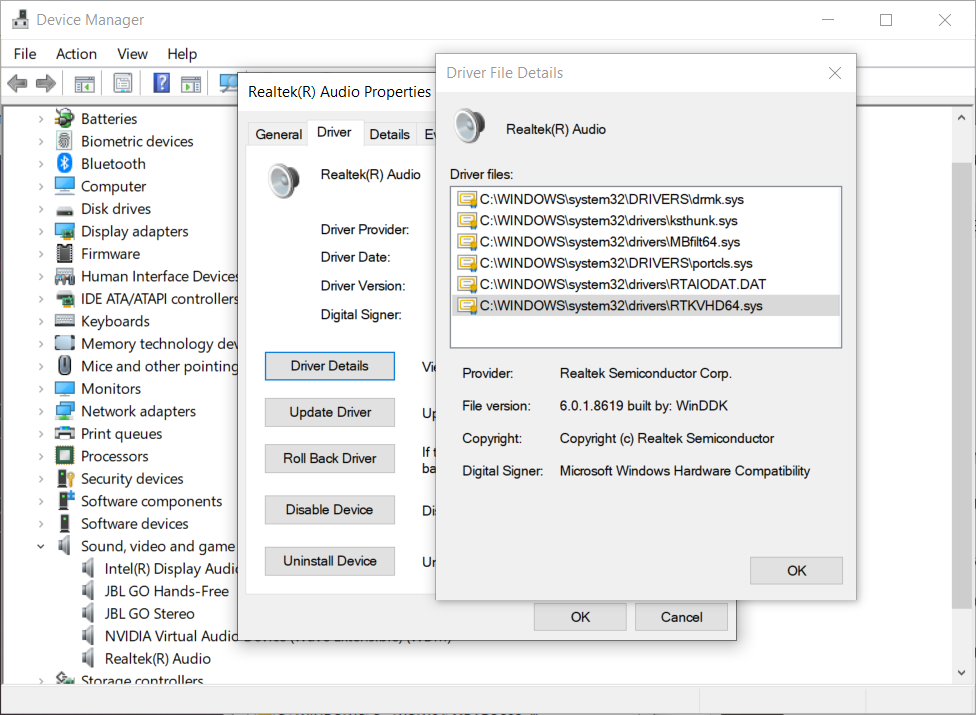

3) Look like I missing 1 item. Will it affects anything?



1) Due to the install script. System drive, path spaces etc.

2) Yes, it will use ESS SABRE DAC.

3) Nope, it's fine. "edevmon.sys" is ESET's filter driver.

Realtek UAD 8642 (Build 17763.348)


Realtek_UAD_6.0.1.8642_Creative_SBC_UWP_Clevo_Mod (full package)​

Realtek UAD 8642 WHQL
Realtek Audio Console 1.2.171.0 UWP
Creative UAD extensions
Sound Blaster Connect 720° 2.2.3.0 UWP
SHA1: D1A4666A94424B8FD155FD1583D40A5BC4D42F1B



1) Thanks for the reply. Does it also means ESS SABRE DAC is independent from Realtek Audio driver?
2) Since my laptop has previous version, can I just run the this new Realtek UAD 8642 to install?​



Yes, built-in DAC.
You must fully unisntall previous drivers.



Realtek UAD 8648 (19H1 Build 18356.1)


Realtek_UAD_6.0.1.8648_Creative_SBC_UWP_Clevo_Mod (full package)​

Realtek UAD 8648 WHQL
Realtek Audio Console 1.2.172.0 UWP
Creative UAD extensions
Sound Blaster Connect 720° 2.2.3.0 UWP
SHA1: EEC9B199E016C7F0412DC4863AA2089CF23F648B


- Uninstall Realtek UAD/HDA drivers, SBC (UWP) and Realtek Audio Console (UWP), including Autoruns step "“UWP.service” (Creative) and "Realtek" audio entries
(careful not to delete Realtek card reader entry) then reboot.

- Disable driver signature enforcement. Hold down the Shift key while you click the “Restart” option -> Select “Troubleshoot” -> Advanced options -> Startup Settings -> select “Disable driver signature enforcement” option.

- Temporarily disable AV software.

- Copy to desktop then Right-click/Run as administrator “Realtek…mod.exe”.

- When prompted (4x) select “Install driver software anyway” (UAD).

- Realtek installer, select “No, I will restart my computer later” to continue with RTK Audio Console & SBC installation.

- Finally, reboot.

- Realtek Audio Console -> disable "Power Management".



Realtek UAD 8652 (19H1 Build 18362.1)


Realtek_UAD_6.0.1.8652_Creative_SBC_UWP_Clevo_Mod (full package)​

Realtek UAD 8652 WHQL
Realtek Audio Console 1.2.172.0 UWP
Creative UAD extensions
Sound Blaster Connect 720° 2.2.3.0 UWP
SHA1: 1B7A37D9690B11A103E6B8D75C2E55055C5F8346



Thank j95 for the great contribution again!

Because I have to use Dolby Digital Live and DTS interactive for re-mixing the 5.1 channels and output the signals via SPDIF(optical), I must stick to HDA drivers.

I wonder if there is any music/sound quality difference between 6.0.1.8581 and 6.0.1.8454? I still remember that j95 highly recommended version 6.0.1.8454 due to its sound quality.



Hello @j95 ,

I'd once tried out your Clevo modded audio drivers and it worked fine. Recently, I re-installed my Windows and downloaded the latest version of your mod (Realtek UAD 8562) and followed ALL the necessary steps and installed everything. However, the Realtek Audio Console says "Can not connect to RPC service". Sound Blaster Connect seems to work just fine, and audio is fine as well. Its just the Audio Console that's causing me problem.
I will mention that the Audio Console worked earlier and showed the equalizer and everything. But only once, it hasn't worked ever since I tried updating to your newer driver posts. Only once did everything work. Ever since I've been using whatever driver Windows installs which did work fine until my Windows re-install and I figured I'd give this another go but I need the EQ and some more settings that your mod provides.

I'd be very grateful for your insight on this. (My specs are in my signature)



Keep 8454 for the time being...8581 'standard' without DDL/DTS.

You must fully uninstall previous drivers, especially if you're switching to UAD drivers...incl. Creative connect service, SBC (win32.) Once you're done, run DDU to delete leftovers "Realtek Audio"

Uninstall Realtek Audio Console and then re-install it from here



Still nothing. Here's what I did in order-
- Uninstall Realtek High Definition Audio Driver from Programs & Features (Control Panel)
- Uninstall SBC and RAC UWP apps from the Start Menu list
- Deleted UWP.Service and Realtek audio service using Autoruns64 (admin)
- Rebooted to Safe Mode, ran DDU, chose Audio and Realtek (WIP) and Clean and Restart
- After reboot, Shift+Restart, chose Disable Driver Signature Enforcement
- After reboot, disable AV and ran your setup from desktop as Admin
- Proceeded as normal and chose 4x Install Driver Software Anyway, I'll reboot later, SBC and RAC installed.
- Final reboot.

Dunno what is wrong but I think that's all the necessary steps.

Also one more thing of note, in the Realtek driver whenever I click on the Sound icon in the taskbar it only shows "Speakers" even though I have headphones plugged in. Whenever I used the Windows audio driver it distinctly showed two options- Speakers and Headphones that I could switch between. And if I plug or unplug my headphones the volume changed to what I set for either of them (20% for headphones and 70% for the speakers). The Realtek drivers don't have this feature or is it something that doesn't come with it?

P.S. Can I have the 8454 setup since everyone is praising it? Here's hoping it does install successfully.



So installing Realtek Audio console from MS store didn't solve the issue? Then anti-virus messing with the installation process or even "Secure Boot" enabled...also try uninstalling Steam audio drivers/devices, incl. "Audio inputs and outputs" under device manager before installing Realtek UAD.

Device manager -> “Realtek(R) Audio” properties -> Events -> scroll down to the latest event and then post results.

Realtek UAD 8666 (19H1 Build 18362.1)


Realtek_UAD_6.0.1.8666_Creative_SBC_UWP_Clevo_Mod (full package)
Update: Realtek_Audio_Console_1.2.174.0 (Standalone)​

Realtek UAD 8666 WHQL
Realtek Audio Console 1.2.174.0 UWP
Creative UAD extensions
Sound Blaster Connect 720° 2.2.3.0 UWP
SHA1: A4E84701136BA8DF2E10DB64551639B1FF330B8D



Realtek UAD 8668 (19H1 Build 18362.1)


Realtek_UAD_6.0.1.8668_Creative_SBC_UWP_Clevo_Mod (full package)​

Realtek UAD 8668 WHQL
Realtek Audio Console 1.2.174.0 UWP
Creative UAD extensions
Sound Blaster Connect 720° 2.2.3.0 UWP (updated .NET & VCLibs)
SHA1:865A97E45EBE95AC0975B833A40A64EC0C6C4707


- Uninstall Realtek UAD/HDA drivers, SBC (UWP) and Realtek Audio Console (UWP), including Autoruns step "“UWP.service” (Creative) and "Realtek" audio entries
(careful not to delete Realtek card reader entry) then reboot.

- Disable driver signature enforcement. Hold down the Shift key while you click the “Restart” option -> Select “Troubleshoot” -> Advanced options -> Startup Settings -> select “Disable driver signature enforcement” option.

- Temporarily disable AV software.

- Copy to desktop then Right-click/Run as administrator “Realtek…mod.exe”.

- When prompted (4x) select “Install driver software anyway” (UAD).

- Realtek installer, select “No, I will restart my computer later” to continue with RTK Audio Console & SBC installation.

- Finally, reboot.

- Realtek Audio Console -> disable "Power Management".



Realtek UAD 8678 (1903 Build 18362.53)


Realtek_UAD_6.0.1.8678_Creative_SBC_UWP_Clevo_Mod (full package)​

Realtek UAD 8678 WHQL
Realtek Audio Console 1.2.175.0 UWP
Creative UAD extensions
Sound Blaster Connect 720° 2.2.3.0 UWP (updated .NET & VCLibs)
SHA1: E8F98A3A6FF2D3C274400BCB2847A3D51A3140FC



Realtek UAD 8688.1 (1903 Build 18362.53)


Realtek_UAD_6.0.1.8688.1_Creative_SBC_UWP_Clevo_Mod (full package)​

Realtek UAD 8688.1 WHQL
Realtek Audio Console 1.3.177.0 UWP
Creative UAD extensions
Sound Blaster Connect 720° 2.2.3.0 UWP (updated .NET & VCLibs)
SHA1: 6AD7C0637227FFE2473BD16ED3FA14F2100BF02E



Realtek UAD 8694.1 (1903 Build 18362.86)


Realtek_UAD_6.0.1.8694.1_Creative_SBC_UWP_Clevo_Mod (full package)​

Realtek UAD 8694.1 WHQL
Realtek Audio Console 1.3.178.0 UWP
Creative UAD extensions
Sound Blaster Connect 720° 2.2.3.0 UWP (updated .NET & VCLibs)
SHA1: 1A720610D3B5D8D7FCE484AF5D9C19B9C07CE396



Hello @j95 . Sorry to message directly but I didn't know what else to do. I have trying to install audio drivers in many different ways but none has worked so far. Something else I tried did work and so I am listing both below and requesting some advise.
What didn't work : Please see http://forum.notebookreview.com/thr...lounge-phoenix-5.826848/page-47#post-10929948

What partially worked but not from prema site :

• Removed all realtek audio stuff ( left realtek card reader driver that I got from HID, installed.
• Removed sound blaster and other creative products
• Then followed the comments on this page : Realtek Audio Console can't connect to RPC service :

Uninstall everything about realtek audio, so far what have u done. Go to https://github.com/pal1000/Realtek-UAD-generic/releases , download the zip > extract and run setup.cmd, follow the cmd instruction and restart ur PC. Now download and install the realtek uwp audio console app from store (It automatically got installed and enabled). I prefer this release bcoz it makes things so simple to install and uninstall.
-------
This also allowed me to install the Realtek audio which I came up and was usable. However the creative sound blaster, even though installed, wasn't doing anything on changing the settings.

Another issue with the second install ( 'what worked install') is that the 4th jack (counting from nearest to screen down) is set to headphone and when headphone is inserted, it works fine. However when headphone is unplugged, I have to manually switch playback devices to 'speakers' to get audio from the speakers. Apart from these two issues, the headphone sound etc is good​



hi j95

Sound Blaster Connect 720° UWP app updated to version 2.2.10.0 from MS store in June 2019



@varunreeves


Clevo Mod Installation:

Run DDU (latest version) to uninstall previous version. Select “Audio” -> Realtek -> uninstall without rebooting, and then set “Creative” option, finally reboot.

You must disable both driver signing and any anti-virus software before installing driver mods.

Copy Realtek…exe to the desktop and then right click “run as administrator”

When prompted (4x) select “Install driver software anyway”

Exit realtek Installer without rebooting to complete RTK Audio console and SBC installation.

After rebooting, disable and re-enable “Jack detection when device is plugged in” (Realtek Audio Console advanced settings).
Disable Power management

Realtek UAD 8746.1 (1903 Build 18362.239)


Realtek_UAD_6.0.1.8746.1_Creative_SBC_UWP_Clevo_Mod (full package)​

Realtek UAD 8746.1 WHQL
Realtek Audio Console 1.3.185.0 UWP
Creative UAD extensions
Sound Blaster Connect 720° 2.2.10.0 UWP
SHA1: FDBEE571CE1D769631F3FDD4E3BD6834F9058E73



question: where to download the MOD for Clevo models/Audio hardware IDs not listed on the Prema website? or how to add them manually? thanks in advance



Please look at my reply above to the "What worked for me section" I have listed the page I found during my google search for driver downloads. I then went to the github url as described in on THAT page. I repaste the relevant part again below :

Go to https://github.com/pal1000/Realtek-UAD-generic/releases , download the zip > extract and run setup.cmd, follow the cmd instruction and restart ur PC. Now download and install the realtek uwp audio console app from store (It automatically got installed and enabled). I prefer this release bcoz it makes things so simple to install and uninstall.​

That is what I did and it worked for me.

I also retried the steps as j95 mentions above for his drivers and matched his instructions. My finding is that the latest driver mod goes through the initial install without errors ( even though all the last three newest ones just before this one gives the same memory error I listed above) but it does not show the realtek audio installer OR the sound blaster installer at all. I am thinking of making a small video showing the steps I did and paste the link here so @j95 can see what is going on and advise accordingly.

Also, please note that I am using the windows version 10 pro is the one that I got from UltraMale's modded windows.

​



Installed this driver after upgrading to 1903 from 1809. Everything works, but the Creative Audio Effects Component is showing driver version 2.0.0.14. Latest version on the clevo website is 2.0.0.36. I was previously using 2.0.0.33. What am I doing wrong?



Updated instructions, now all Clevo devices are supported (Realtek).

BIOS (F2) -> Disable "Secure boot"
Admin cmd (Win10):

Code:

bcdedit /set {default} bootmenupolicy legacy

reboot -> keep holding F8 -> select "Disable Driver Signature Enforcement"
Once installed, disable and re-enable “Jack detection when device is plugged in” (Realtek Audio Console advanced settings).
Disable Power management

For SBC 720 we must use v2.0.0.14 (stock SBC 360).
.



Do we need to do something to prevent Windows Update from updating the driver? WU is currently offering 2.0.0.36, though perhaps not to us Clevo folk.



check this out: https://www.ghacks.net/2018/10/15/update-manager-windows-wumgr/

u can selectively hide updates with this tool, comes in very handy

@j95 yuh da man! thanks so much for all your efforts



Does this modded driver work with P650HS-G?



After a couple of months and still trying to install the drivers from J9 I am still not successful. I just wanted to quickly mention that for anyone who is looking for a working solution and not necessarily looking for getting J9's drivers to work, please refer to my post here: http://forum.notebookreview.com/threads/realtek-hd-audio-mod-for-clevo.814860/page-18#post-10930043.

Now back to my issue. I had some free time and tried installing the p80tm-r drivers posted on the premamod's site again including the additional instructions from @j95 but it still doesn't work. I followed my steps listed here with one or two additional steps. My first step was to boot in safe mode, disable driver signature using the bcedit command (mentioned in my link in the previous line), rather than the reboot into advanced settings method.

After this I logged into safe mode to used latest ddu to unistall both realtek and soundblaster but I noticed something peculiar. After removing the software with ddu, the sound icon had a cross to it (as expected) but within 15 - 20 seconds the cross would go away and the speaker again became functional AUTOMATICALLY. Note, that I had the internet disabled all the while after logging into safe mode but the sneaky windows was automatically installing drivers ! I will post a video with this happening in a bit. I found that I had to go to the group policy editor and disable a setting mentioned here. I just followed what the video person does exactly as he did. After doing this I rebooted again and this time windows wasn't reinstalling audio drivers after ddu removal !

So I thought I had solved the problem and then I booted into windows 10 regular and then tried installing the realtek. It DID complete the first part with the prompt : When prompted (4x) select “Install driver software anyway” (UAD) . After this I clicked no to restarting and then clicked Finish. After this I did NOT get any prompt and a window of the "cmd" prompt popped up for a brief moment and went away. However after all this I still did not see any installations show up in the sound section. I then went ahead and undid the group policy settings and tried the same method and I got back to square one with a driver installed halfway. I am posting the video of my efforts in a bit . The video should be up in half an hour or so here : please see first part here www.youtube.com/watch?v=G1Dl6PaHUk8 and also the rest of it in this one -> www.youtube.com/watch?v=By5_Il7UkM8( no audio but have listed and shown all steps I tried)



Try this to turn off Avast. https://www.getavast.net/how-to/disable-turn-off



Disable secure boot: Bios (F2) -> Disable "secure boot"

There's no “Test Mode” watermark

Disable driver signing:

Code:

bcdedit /set {default} bootmenupolicy legacy

reboot -> keep holding F8 -> select "Disable Driver Signature Enforcement"

or

Code:

bcdedit /set testsigning on

How to disable Driver Signature enforcement on Windows 10




...............



there's a customized 8750.1 UAD "SBC5" Creative driver from ASRock that has Creative Software Component v2.0.0.38 driver (newer than the 2.0.0.36 version from WU) - using .38 will prevent WU from offering the .36 version

also j95 needs to do a new Realtek + Creative UAD mod based on this generic 8787.1 UAD driver from github (released near the end of August).

I'm no longer using any Realtek UAD + Nahimic 3 driver mods on my Gigabyte board and have switched to using Realtek UAD + Creative mod on there, based on the 2.0.0.38 Creative component from ASRock's 8750.1 SBC UAD driver [I use the updated 2.0.2.5 CreativeUWPService.exe file but use v2.0.0.14 of the mbapo232.dll & mbapo264.dll files to allow running the SBConnect2 uwp app as SBX720; v2.0.0.38 also contains v6.10.0.17 of the mbfilt32.sys & mbfilt64.sys files that bring back 192Khz support that was removed from the v6.10.0.16 version from the 2.0.0.33 - 2.0.0.36 Creative component releases].



Yes and no. Soundblaster offers full function and works like a charm. But jack detection (Realtek Audio Console) oddly enough doesn't. So internal and external speakers will produce sound when using 6.0.8746.1. Haven't been able to figure out how to fix this...



Yes that happened to me too, apparently Realtek Audio Console won't even launch somehow...



Yes that happened to me too, apparently Realtek Audio Console won't even launch somehow...*



MF POS WU force fed me 2.0.0.36.



that sucks.
that won't happen if the 2.0.0.38 creative sbx driver were installed instead of the 2.0.0.36 version (released near end of August 2019 for Clevo P9X0RC_RD_RF_RN series).

Edit 10/10/2019 - j95 really needs to make a newer modded Realtek UAD + Creative 2.0.0.38 driver with older mbapo2 components (to prevent WU from inadvertently updating the creative components)



Good day. I have Clevo P870KM, BIOS from Dsanke Will this mod suit my model? For Realtek and Sound Blaster to work together.



Best way is to check it yourself. Make a backup and follow the steps carefully and let us know, if it doesn't work just go back to the backup and let us know! All I know is that this mod currently does not work for P650HS-G.



@j95 I DDU to update to latest drivers, but I only get three warnings to install drivers not "4". After installations. I only get the realtek console, but not SBC. How do I get SBC? I tried the steps again and no go. Now I am getting sound from speakers and headphones and can't seem to get only the headphones to work when plugged in. I am not sure if it is due to SBC not installed. thanks



Did you run DDU twice to uninstall the Creative stuff and the Realtek stuff?



no I didn't. didn't think I had to. Will try again in a few.



Ok. I finally go it to stick and works now. My only issue is that I am getting sound coming from my speakers when headphones plugged in. SBC has headphone mode switched off so i am not sure why it is doing that. it was fine before.



Are you getting the popup asking what has been plugged into the headphone jack? You might have turned that off earlier, Windows has taken over this functionality, so you might need to dig there. Also, dig around in the Realtek app. P650 users have reported this before, and I don't know if it has been fixed for them.

Another known issue is that there is no sound from the headphones after the laptop has woken from sleep (lid closed and later opened). No fix yet. AFAIK.



thanks for responding. No popups at all. In order to separate them I have to disable the speakers or make "real digital ouput" the default, but once I unplug i have to revert as the speakers don't work. where would I need to disable this craziness via windows? all I did was update drivers. The real audio console is quite limited so, I wasn't able to find anything specific to work with.
